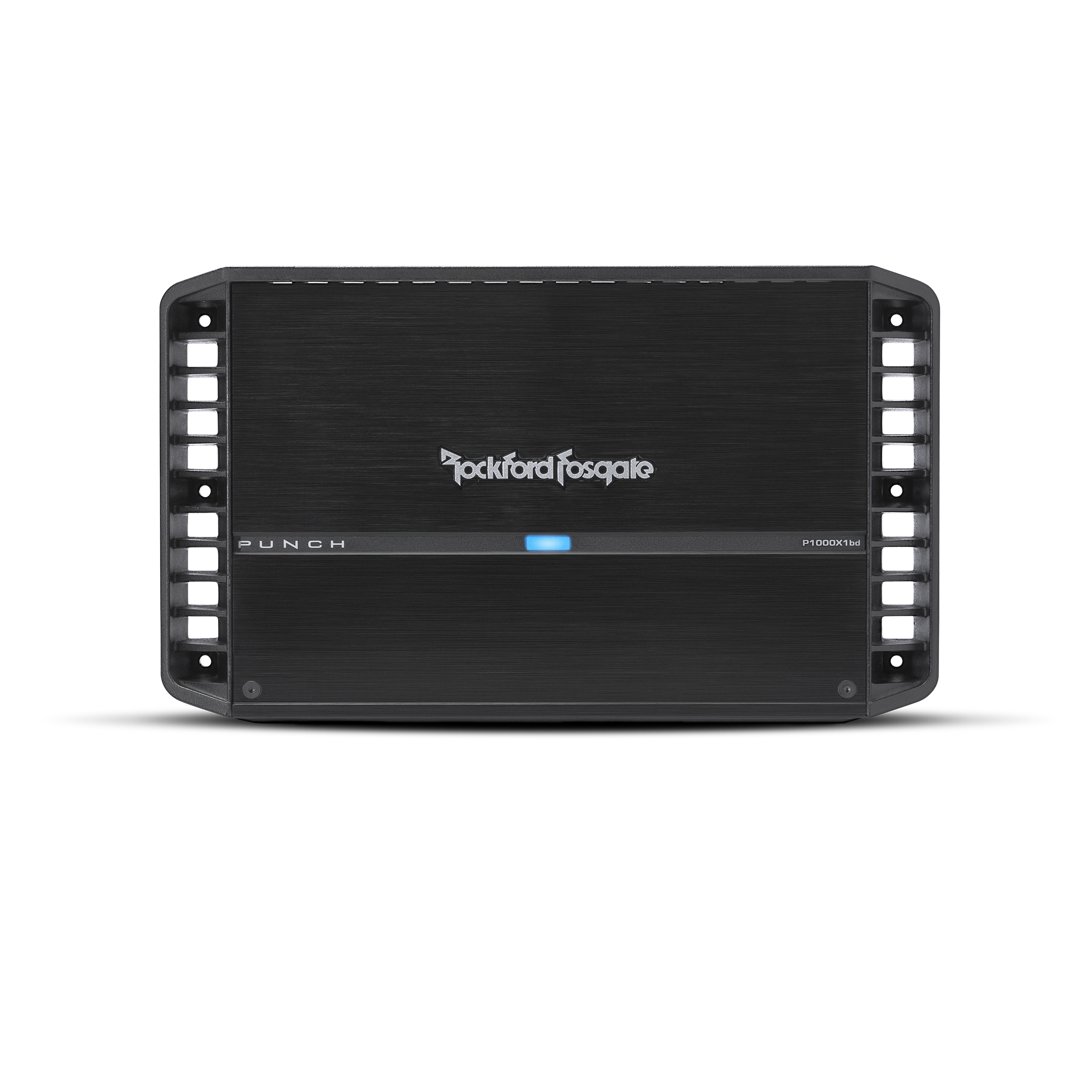

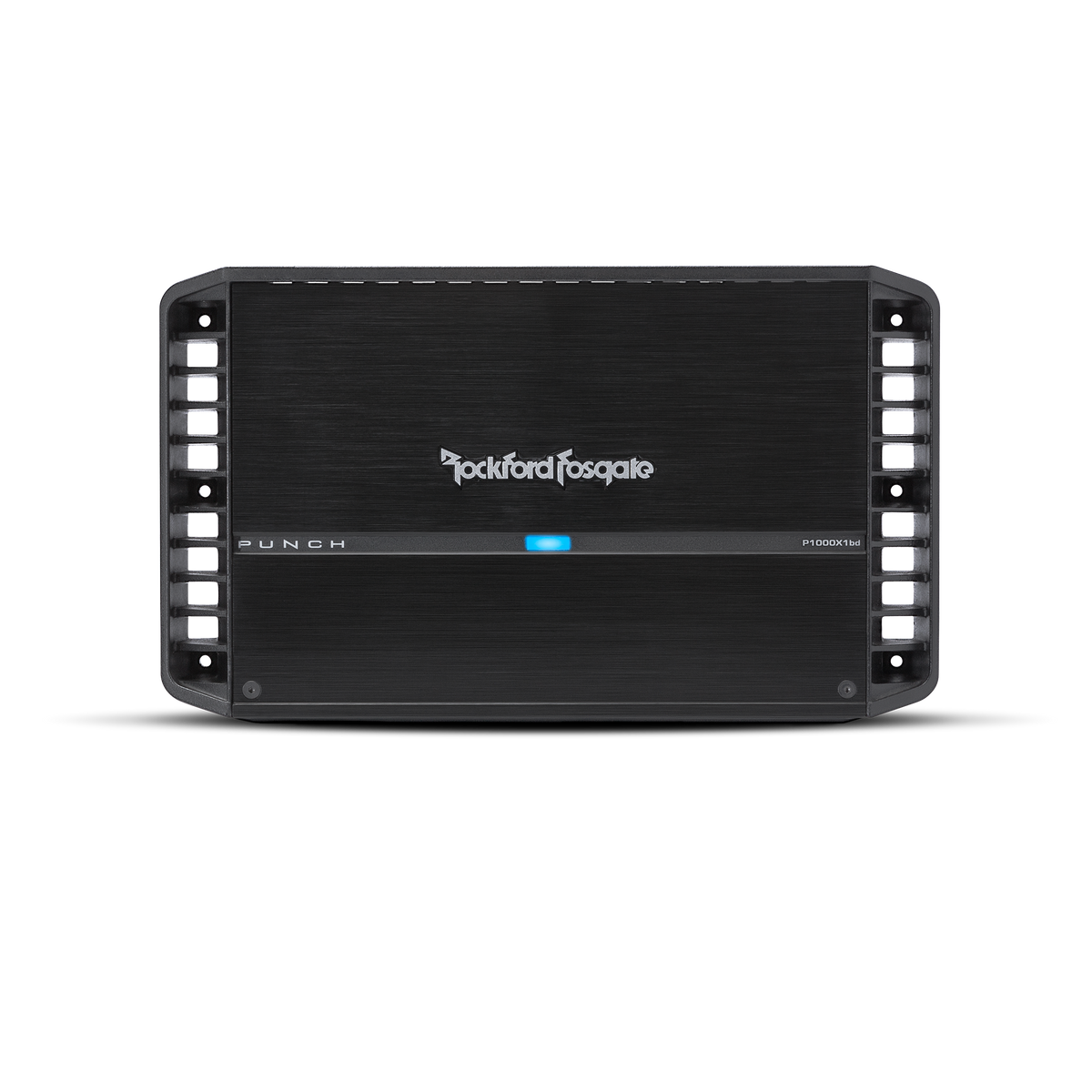

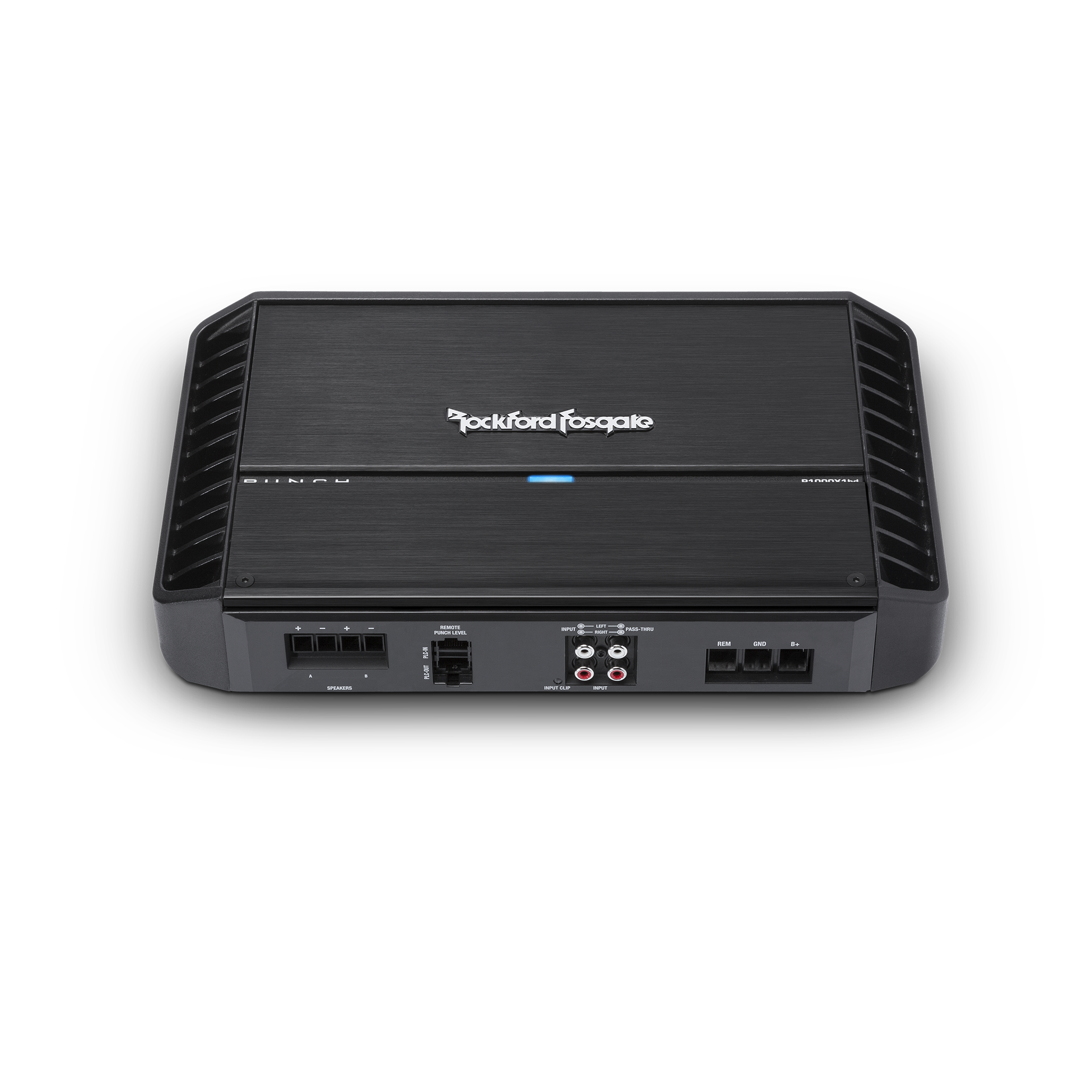

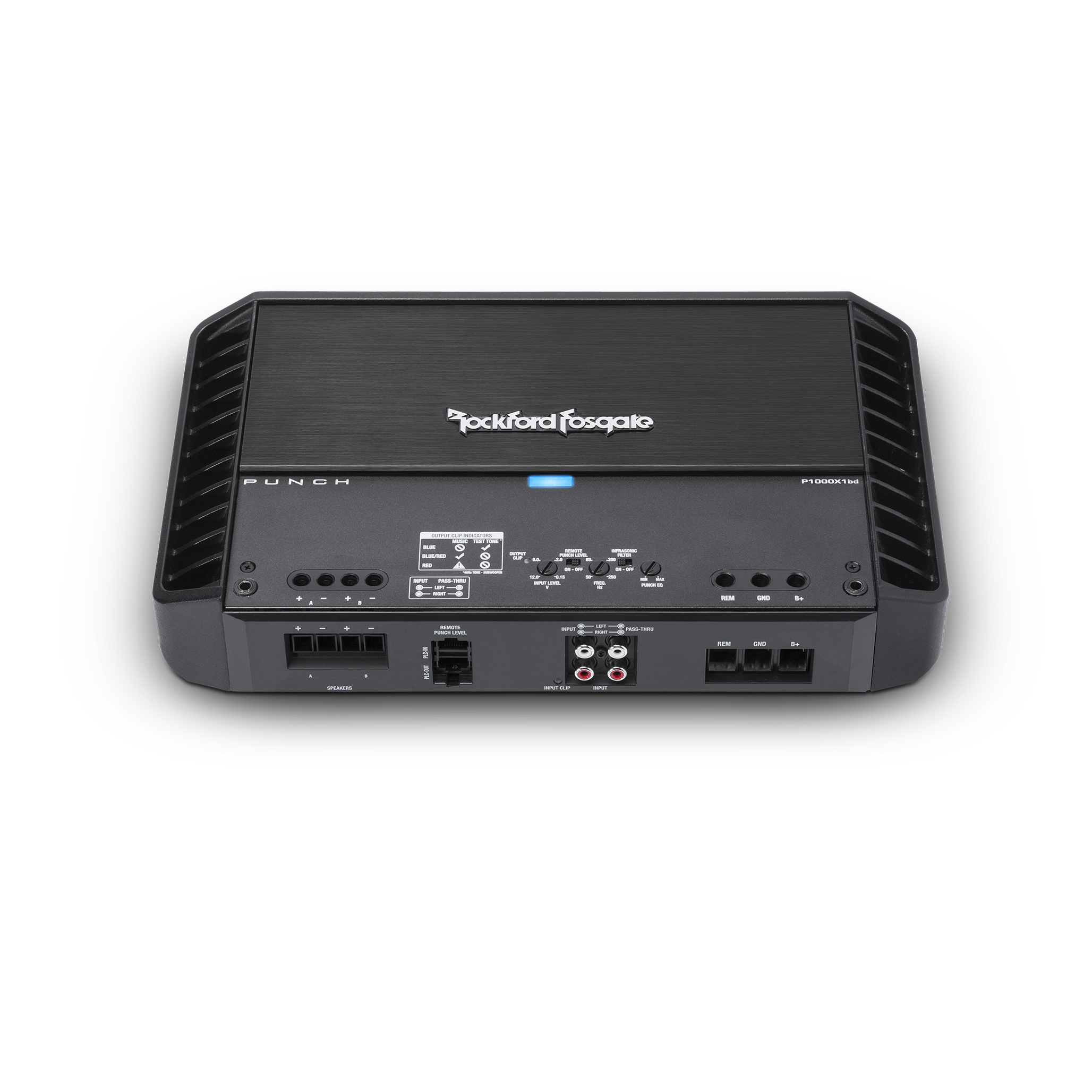

Punch 1,000 Watt Class-bd Mono Amplifier

Overview

The Punch P1000X1bd mono amplifier pumps out 1000 Watts into a 1-Ohm load. The Class-BD technology produces bass more efficiently than traditional amps.

Features

• Optional remote Punch Level Control (PLC2) ready (w/ input clip indicator)
• RCA pass-thru outputs
• 12dB/octave Butterworth crossover
• High level input capable with Auto Turn-On circuit
• Features C.L.E.A.N. Set-up
• Infrasonic filter
• On-board Punch EQ with +18dB boost @ 45Hz
• Cast aluminum heatsink
• Over current protection
• Muted turn on
• Short circuit protection
• 1 Year Warranty

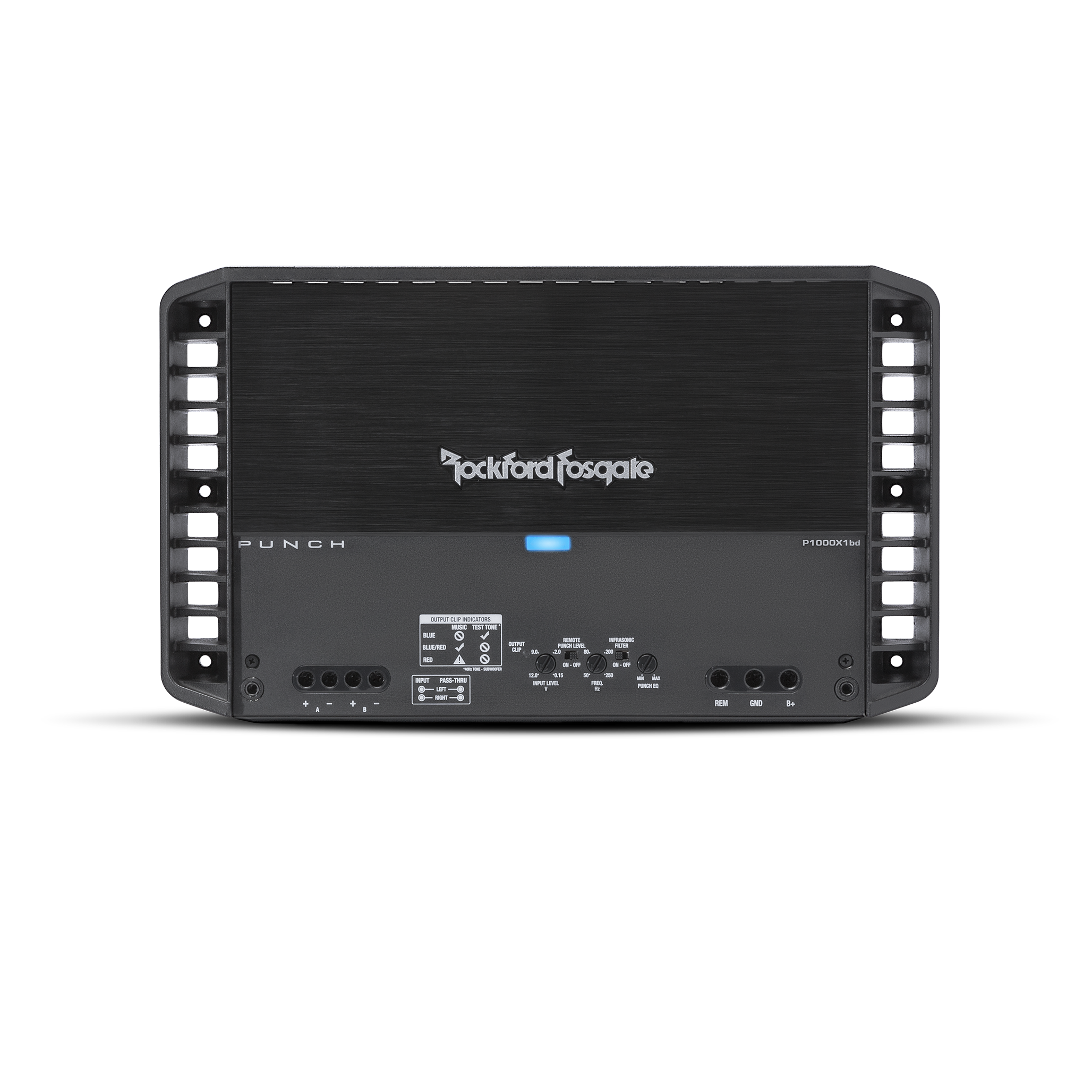

• Stealth top mounted control panel

Technologies

• CTA-2006 Compliant: Power ratings on Rockford Fosgate amplifiers conform to CTA-2006 industry standards. These guidelines mean your amplifier's output power ratings are REAL POWER numbers, not inflated marketing ratings.
• C.L.E.A.N. Technology: C.L.E.A.N. (Calibrated Level Eliminates Audible Noise) is a patented circuit with in/out clip LEDs to help match a source to amp and optimize output.
• Engineered In The USA: These Avatars are a personal signature from the Rockford Fosgate team member(s) who designed and engineered this fanatic product. This statement illustrates our commitment to being Designed and Engineered in the U.S.A.
• DSM: DSM utilize 1% tight-tolerances improving efficiency of the circuit, decreases cross-talk from other discrete components and lowers operating temperature.
• Class-BD: Class-BD amplifiers have 75-80% efficiency ratings vs. 20-60% efficiency ratings of traditional Class-A/B amplifiers.
• NOMAD: NOMAD is a "real time" analog computer that protects your amplifier from shorting speaker wires and dangerously low speaker impedances.
• Balanced Differential Inputs: Differential inputs eliminate noise picked up by signal cables.
• MEHSA³: MEHSA³ reduces MOSFET temperatures, lowers distortion, increases durability and prolongs the output device life span.
• CE Compliant: This product fulfills all essential safety and environmental requirements as defined in the European Directives (768/2008 EC).

Specifications

CEA-2006 Compliant	CEA-2006 Power Rating 300W x 1 @ 4Ω ≤1.0% THD+N
Number of Channels	1
Rated Power (RMS Continuous Power)	300 Watts x 1 @ 4-Ohm 500 Watts x 1 @ 2-Ohm 1000 Watts x 1 @ 1-Ohm
Total Power (Sum of Rated Power)	1000 Watts
Dynamic Power (PVC/PowerCube®)	491 Watts x 1 @ 4-Ohms 874 Watts x 1 @ 2-Ohms 1,430 Watts x 1 @ 1-Ohm
Bridgeable	No
Common Mode Rejection	>55 dB
Damping Factor	>300
Signal-to-Noise (CEA)	>80 dB
Crossover Controls	Low-Pass (LP): 50-250Hz @ 12dB/octave Butterworth Infrasonic Filter (IF): 28Hz @ 12dB/Octave Butterworth All-Pass: No
Average Current Draw (13.8V Music)	65 A
Total Harmonic Distortion (THD+Noise)	4-Ohm:<1.0% 2-Ohm:<1.0% 1-Ohm:<1.0%
Power Input Connector	Captive C-Clamp
Input Sensitivity	150 mV - 12 V
Signal Input	Hi/Low level: 1 RCA pair
Operating Voltage	9 - 16 VDC
Suggested Alternator	100 A
Shipping Weight	12.9 lb. (5.85 Kg.)
Max. Current Draw (13.8V Sinewave)	130 A
Efficiency (average)	86% @ 4-Ohm
Recommended Fuse (not included)	140 A
Tone Controls	Punch EQ2 Bass: 0dB to +18dB @ 45Hz
Signal Output	Hi/Low level: 1 RCA pair
Power Wire Gauge	4 AWG
Speaker Output Connector	Captive C-Clamp
Speaker Wire Gauge	8 AWG to 18 AWG
Heat Sink Type	Cast aluminum
Cooling	Convection
Remote Controls	Optional Punch Level Control (PLC2) Ready
Visual Indicators	Power/Protect/Thermal LED Input Clip LED3 Output Clip LED1,2,3 LED Color Legend: 1BLUE: <0.5% THD 2VIOLET: 1% THD 3RED: 10%+ THD
Circuit Topology Class	Class BD
Frequency Response	20Hz to 250Hz +/- 1.0dB
Dimensions (H x W x D)	2.38 x 7.76 x 13.28 (in) 6.05 x 19.71 x 33.73 (cm)
