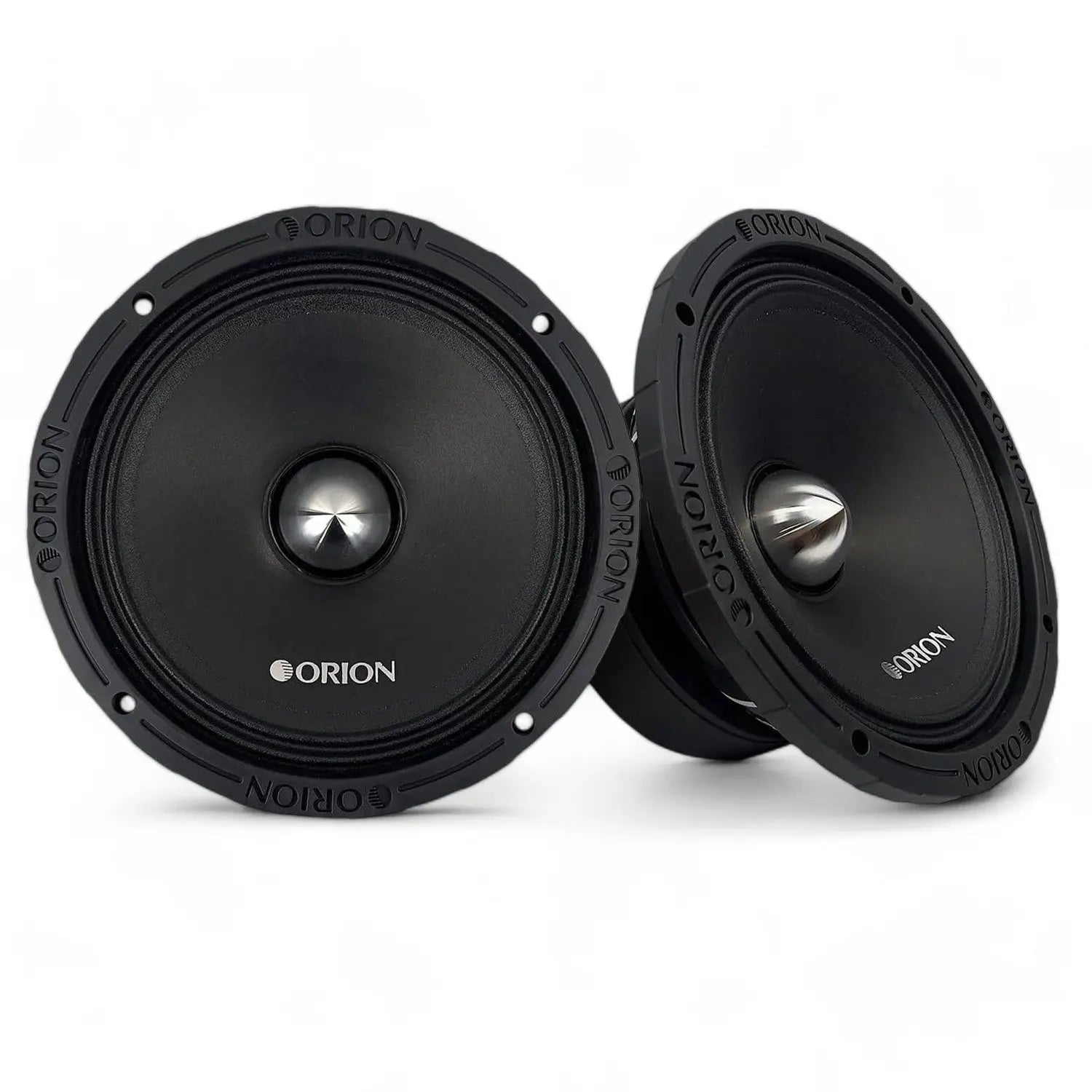

Orion XTX 8 Inch Midrange Speaker. Available manufacturer models: XTX852 (2 Ohm), XTX854 (4 Ohm), XTX858 (8 Ohm). Select the impedance or configuration that matches your system; specifications for each model are listed below.
Manufacturer specifications
XTX852 - 2 Ohm
- Speaker Size: 8 (Inches)
- Voice Coil Configuration: 8 ohm
- Power Handling (Peak): 1600 Watts
- Power Handling (RMS): 400 Watts
- Sensitivity: 98.5 dB
- Frequency Response: 130 Hz - 12 kHz
- Voice Coil Diameter: 2" (Inches)
- Material: Cast Basket
- Cone Material: Non Pressed Paper
- Phase Plug Material: Billet Aluminum
- Magnet Information: 88 Oz. Ferrite
- Grilles Included: No
- Mounting Depth: 91mm / 3.58 (Inches)
- Overall Depth: 100.5mm / 3.96 (Inches)
- Cutout Diameter: 184mm / 7.24 (Inches)
- Overall Diameter: 215mm / 8.46 (Inches)

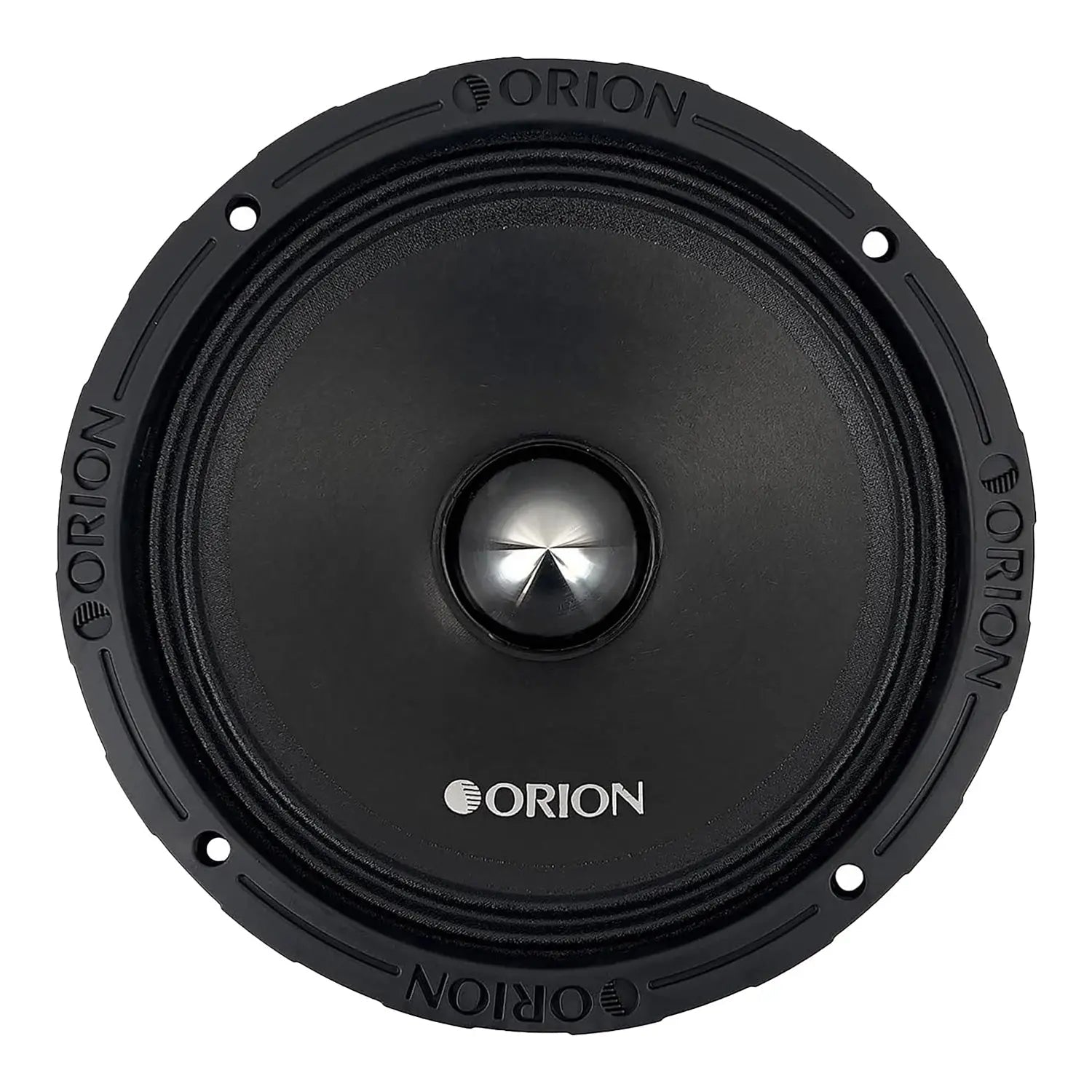

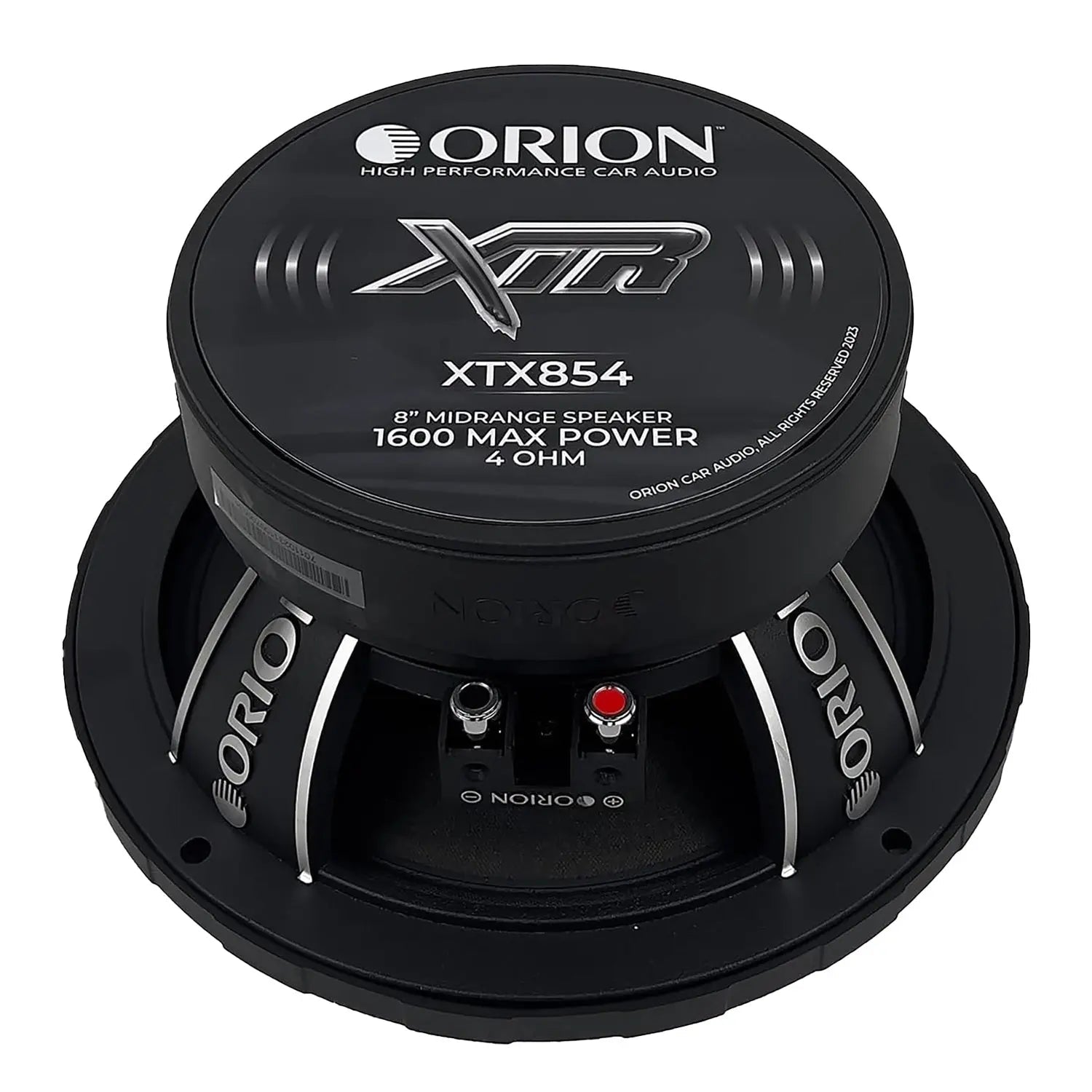

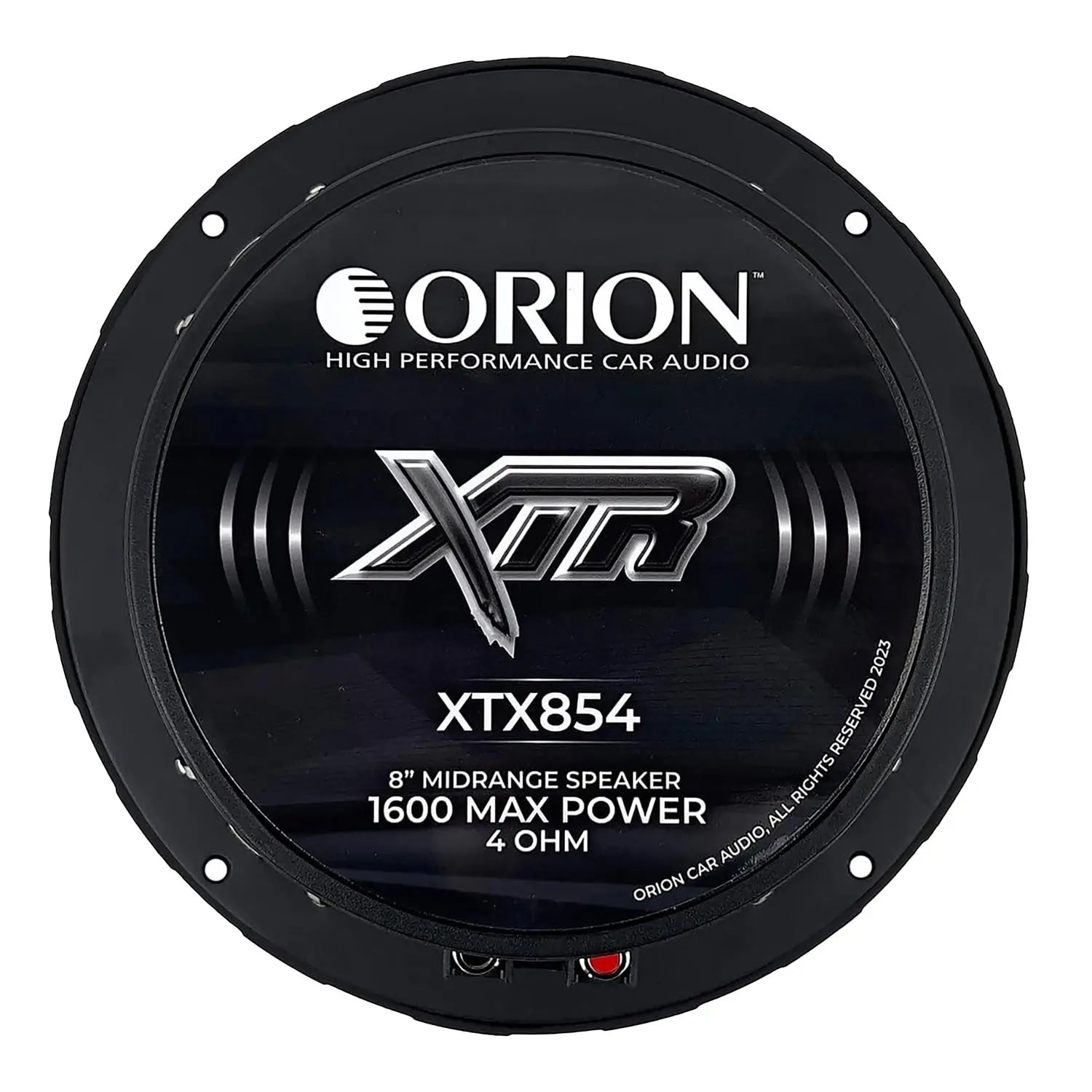

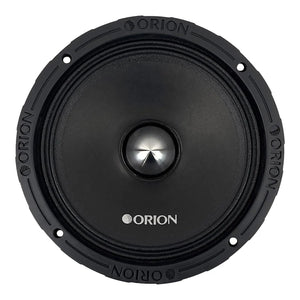

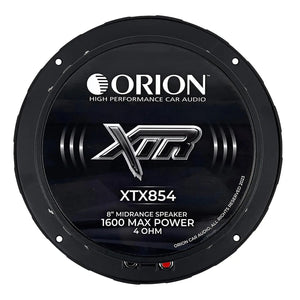

XTX854 - 4 Ohm
- Speaker Size: 8 (Inches)
- Voice Coil Configuration: 4 ohm
- Power Handling (Peak): 1600 Watts
- Power Handling (RMS): 400 Watts
- Sensitivity: 98.5 dB
- Frequency Response: 130 Hz - 12 kHz
- Voice Coil Diameter: 2" (Inches)
- Material: Cast Basket
- Cone Material: Non Pressed Paper
- Phase Plug Material: Billet Aluminum
- Magnet Information: 88 Oz. Ferrite
- Grilles Included: No
- Mounting Depth: 91mm / 3.58 (Inches)
- Overall Depth: 100.5mm / 3.96 (Inches)
- Cutout Diameter: 184mm / 7.24 (Inches)
- Overall Diameter: 215mm / 8.46 (Inches)

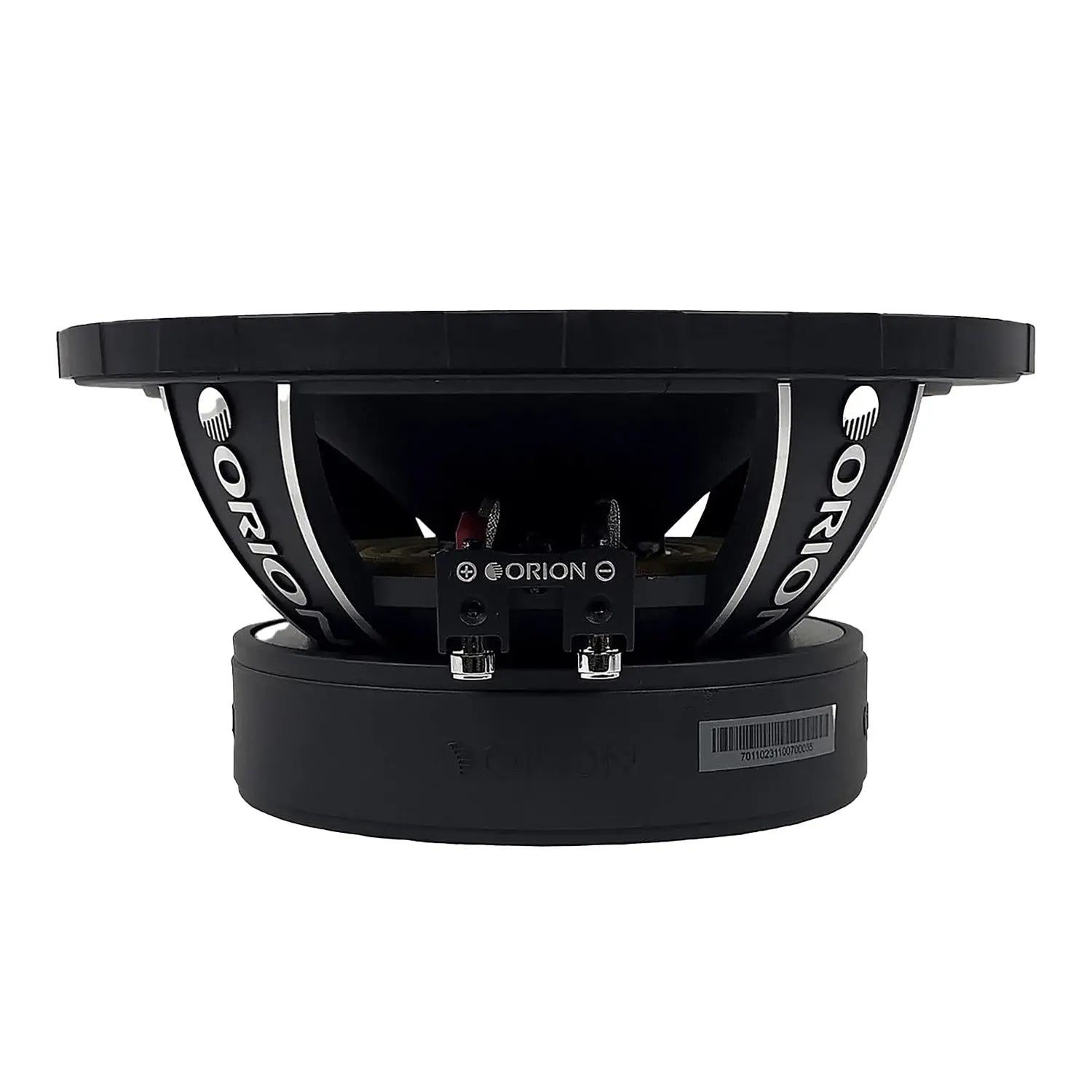

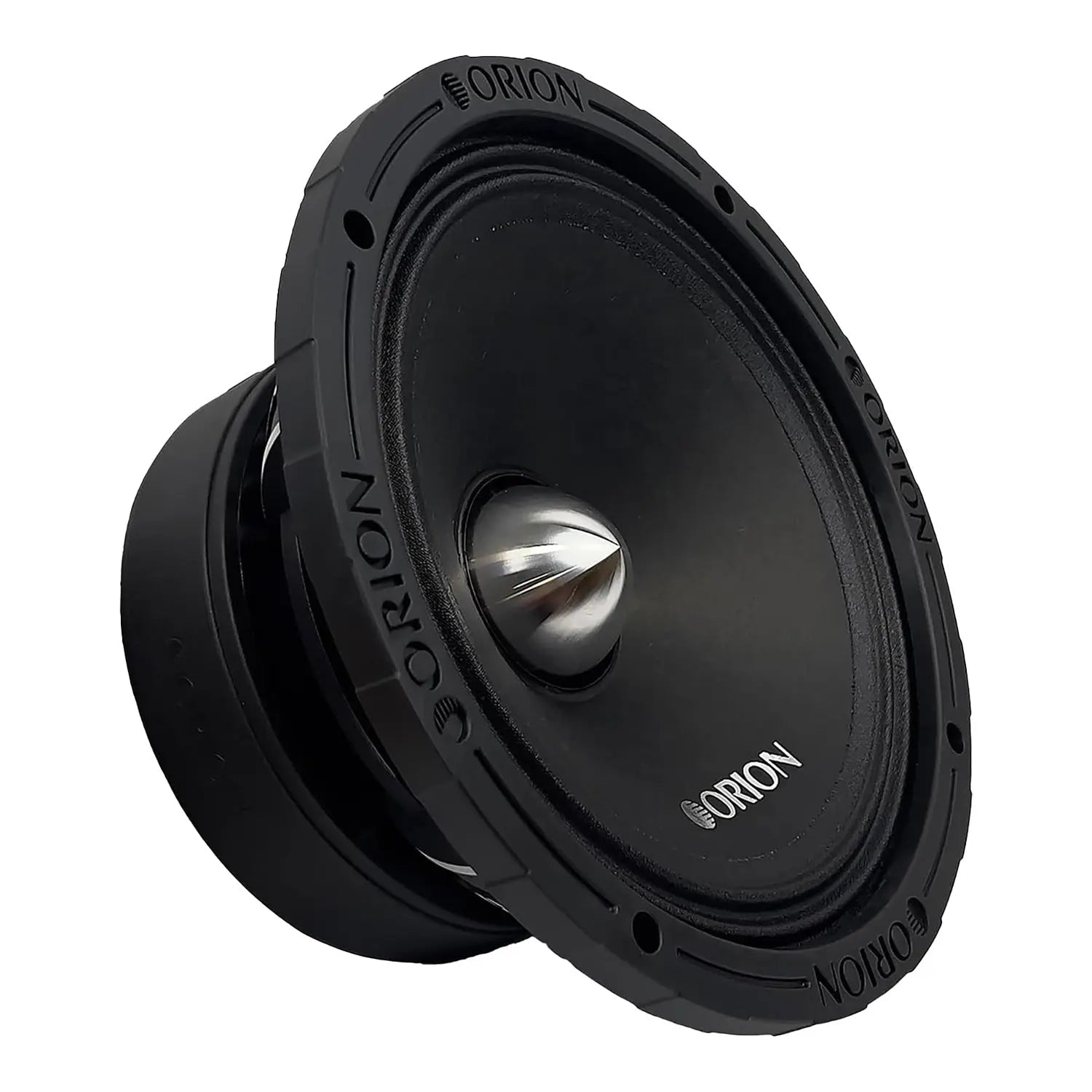

XTX858 - 8 Ohm
See the Orion product page for detailed specifications.
