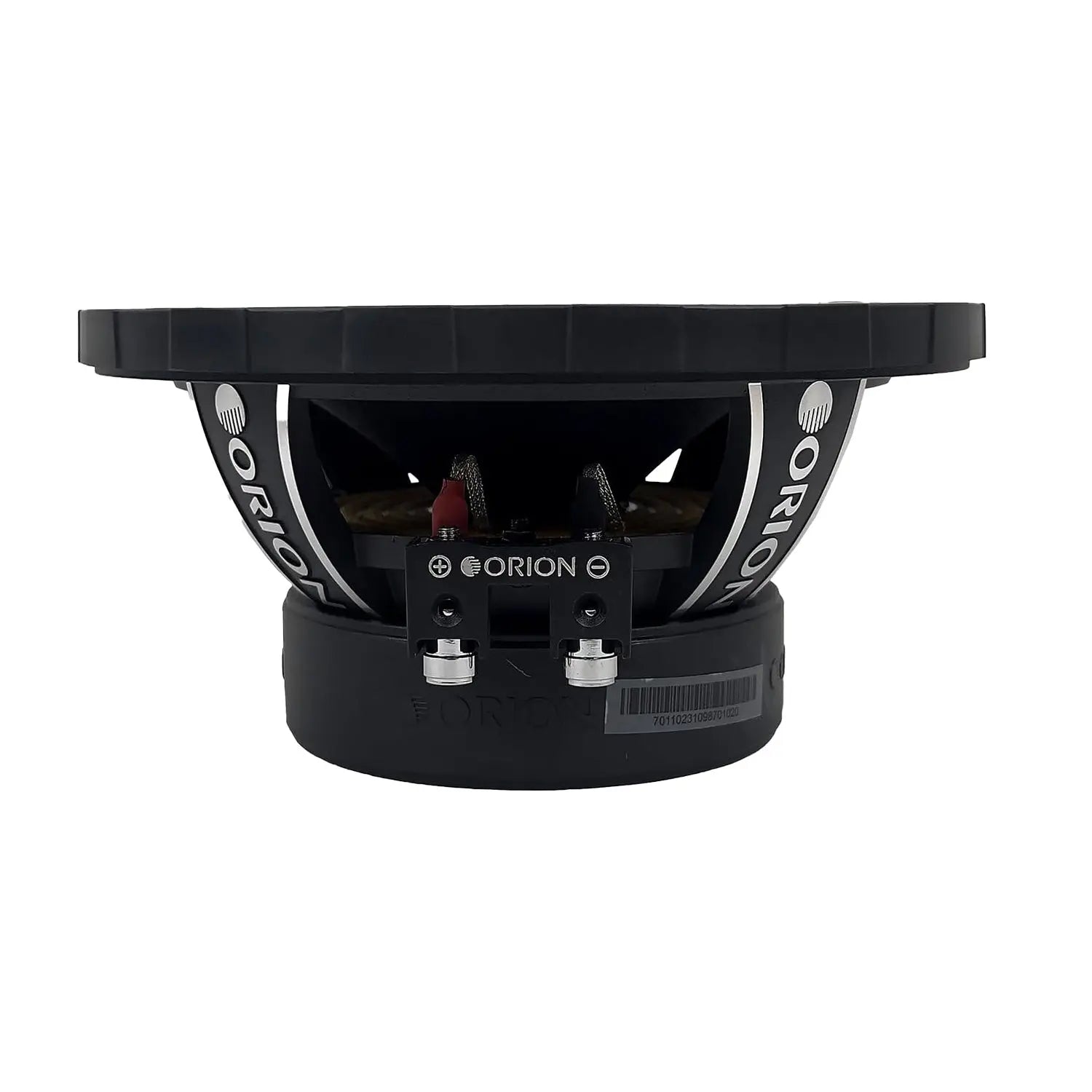

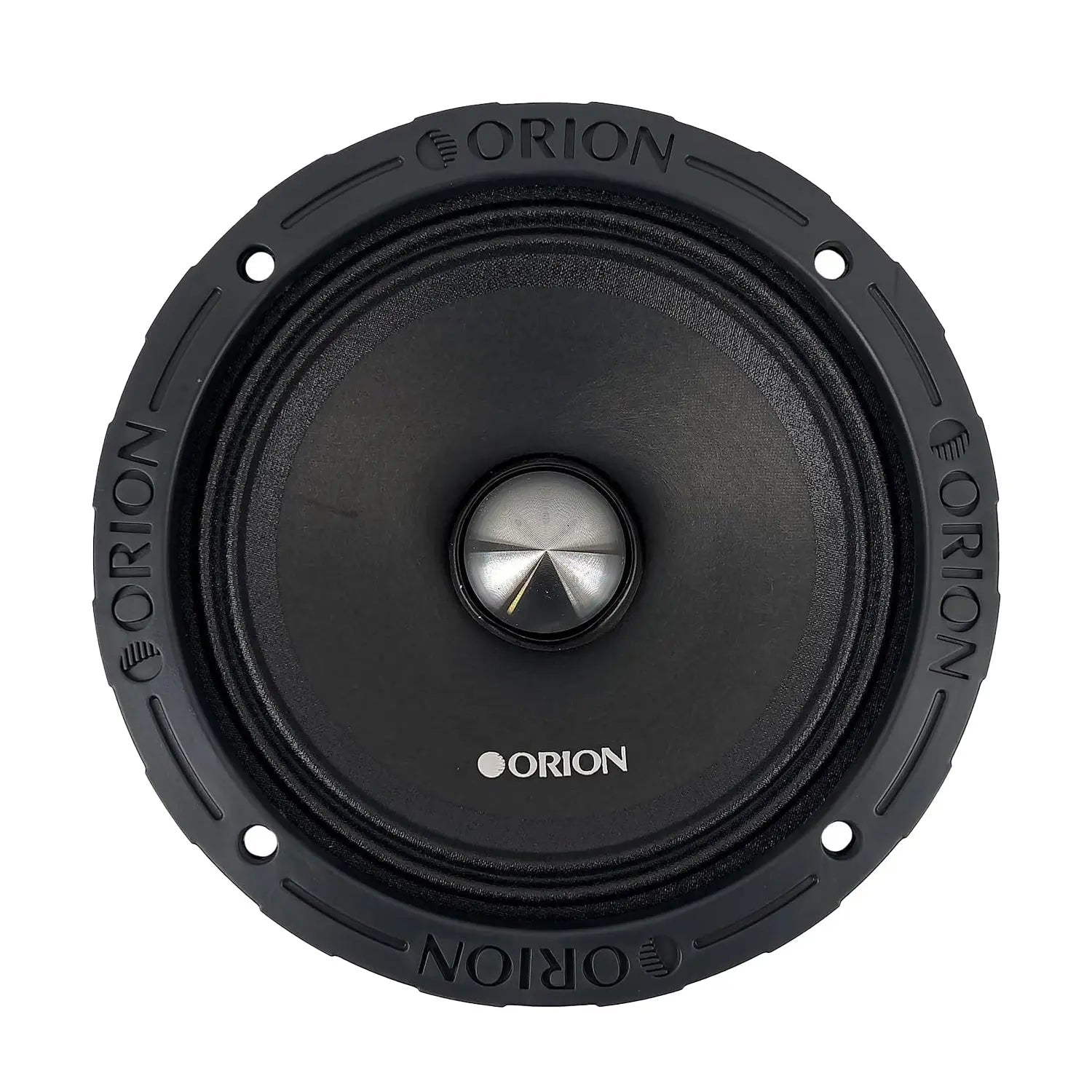

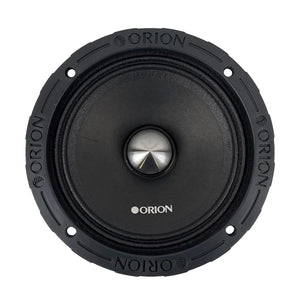

Orion XTX 6.5 Inch Midrange Speaker. Available manufacturer models: XTX652 (2 Ohm), XTX654 (4 Ohm), XTX658 (8 Ohm). Select the impedance or configuration that matches your system; specifications for each model are listed below.
Manufacturer specifications
XTX652 - 2 Ohm
- Speaker Size: 6.5 (Inches)
- Voice Coil Configuration: 2 ohm
- Power Handling (Peak): 1400 Watts
- Power Handling (RMS): 350 Watts
- Sensitivity: 97 dB
- Frequency Response: 140 kHz - 12 kHz
- Voice Coil Diameter: 1.5" (Inches)
- Speaker Quantity: 2 Speakers
- Material: Cast Basket
- Cone Material: Non Pressed Paper
- Phase Plug Material: Billet Aluminum
- Magnet Information: 20 Oz. Ferrite
- Grilles Included: No
- Mounting Depth: 75.2mm / 2.96 (Inches)
- Overall Depth: 84mm / 3.31 (Inches)
- Cutout Diameter: 146mm / 5.75 (Inches)
- Overall Diameter: 178mm / 7 (Inches)

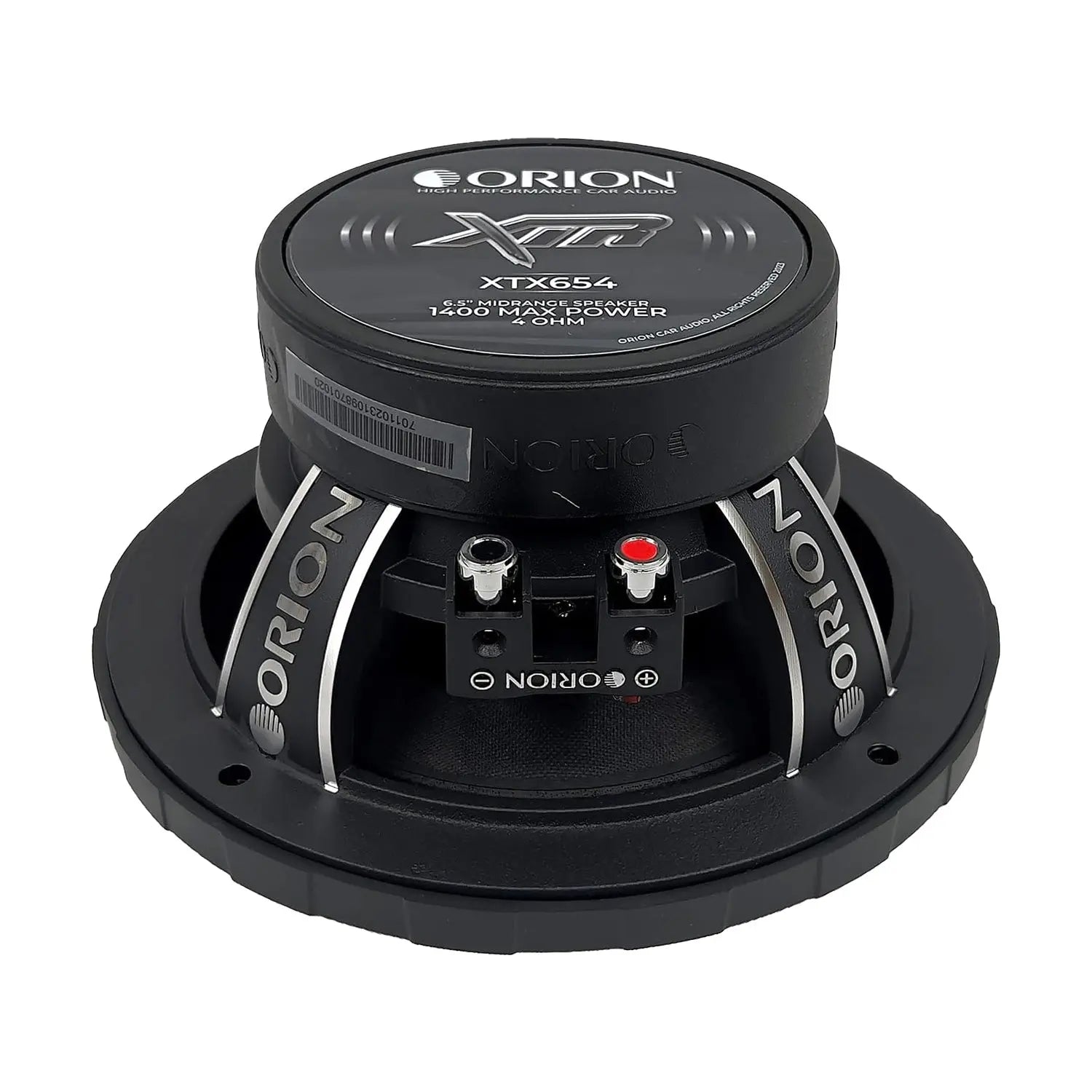

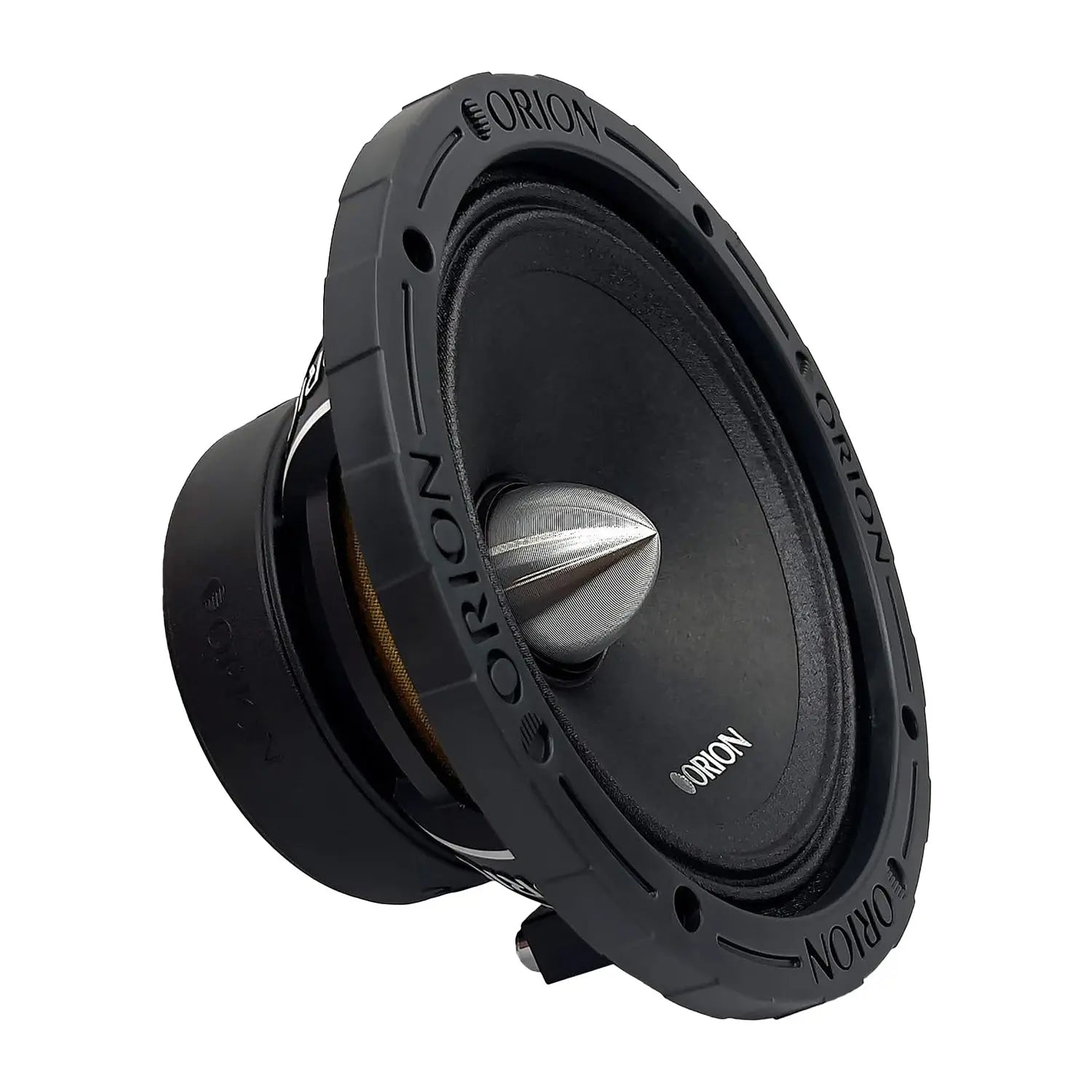

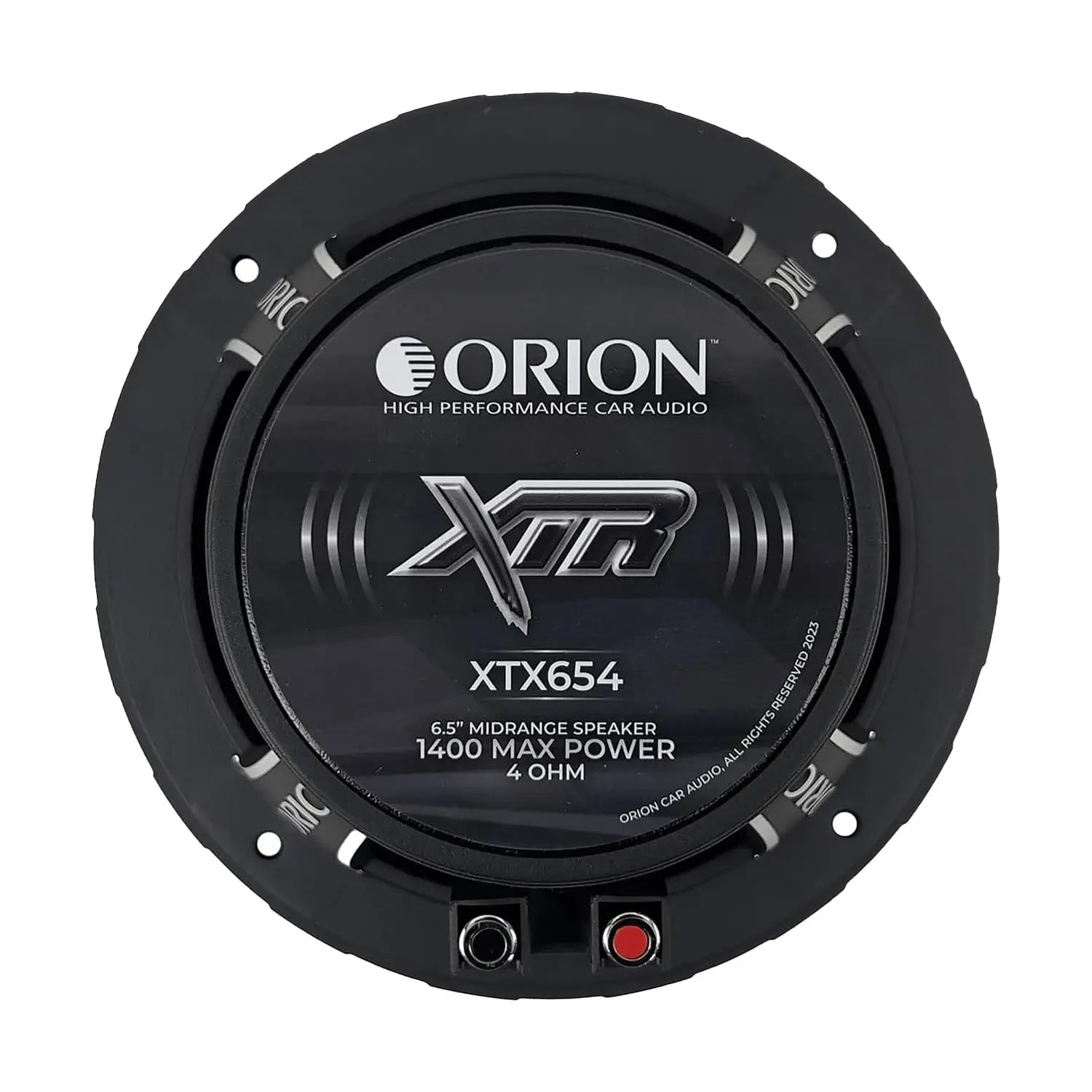

XTX654 - 4 Ohm
- Speaker Size: 6.5 (Inches)
- Voice Coil Configuration: 4 ohm
- Power Handling (Peak): 1400 Watts
- Power Handling (RMS): 350 Watts
- Sensitivity: 97 dB
- Frequency Response: 140 kHz - 12 kHz
- Voice Coil Diameter: 1.5" (Inches)
- Speaker Quantity: 2 Speakers
- Material: Cast Basket
- Cone Material: Non Pressed Paper
- Phase Plug Material: Billet Aluminum
- Magnet Information: 20 Oz. Ferrite
- Grilles Included: No
- Mounting Depth: 75.2mm / 2.96 (Inches)
- Overall Depth: 84mm / 3.31 (Inches)
- Cutout Diameter: 146mm / 5.75 (Inches)
- Overall Diameter: 178mm / 7 (Inches)

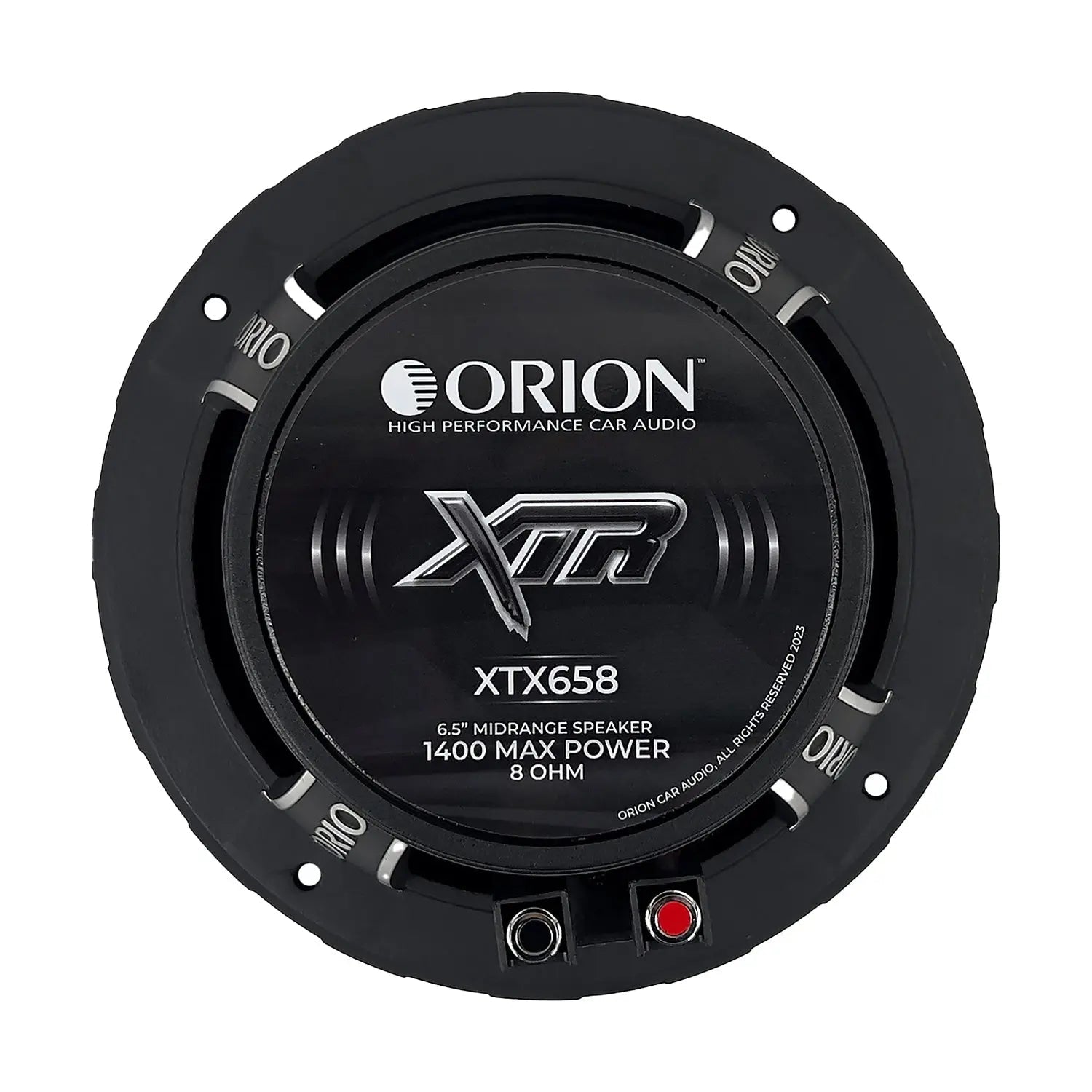

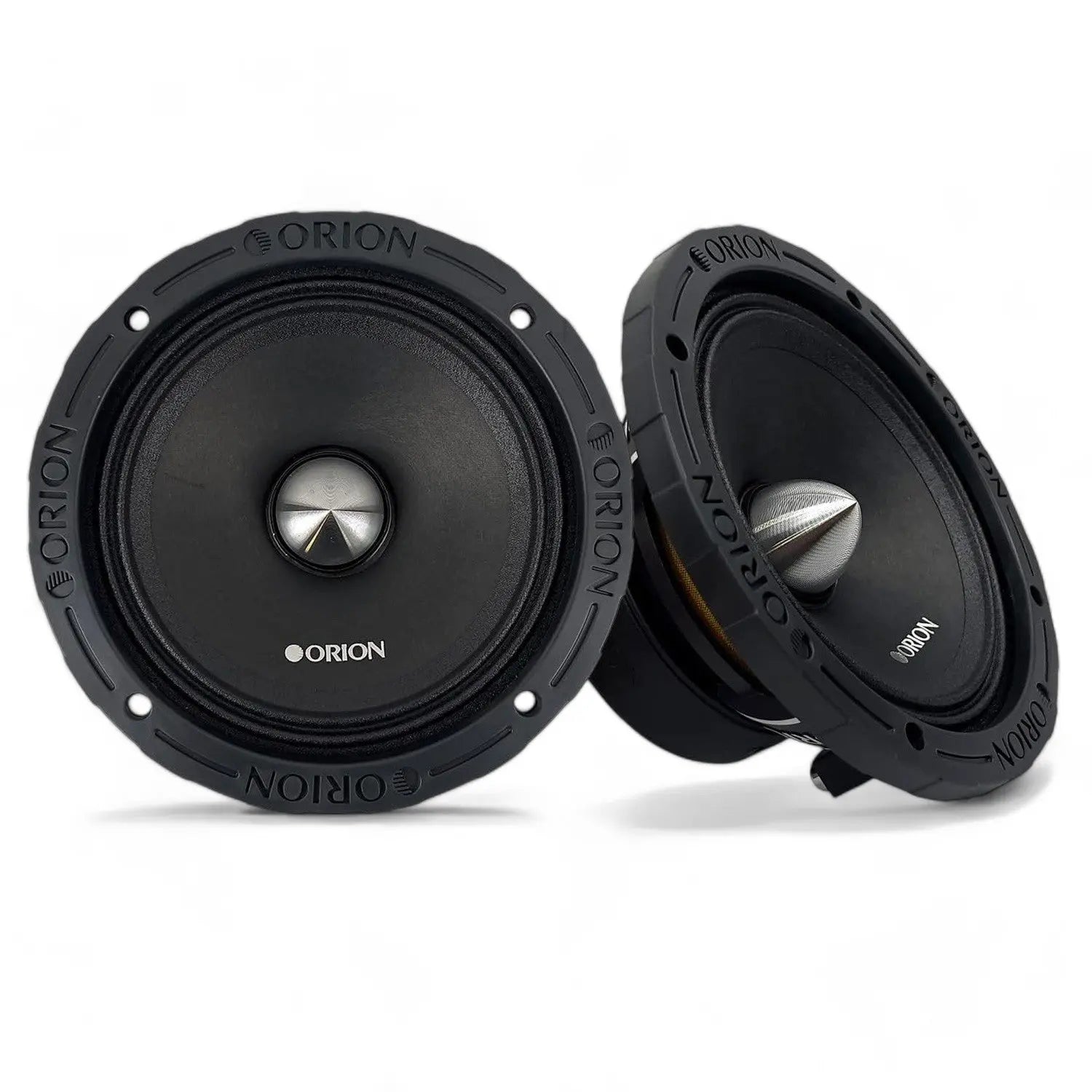

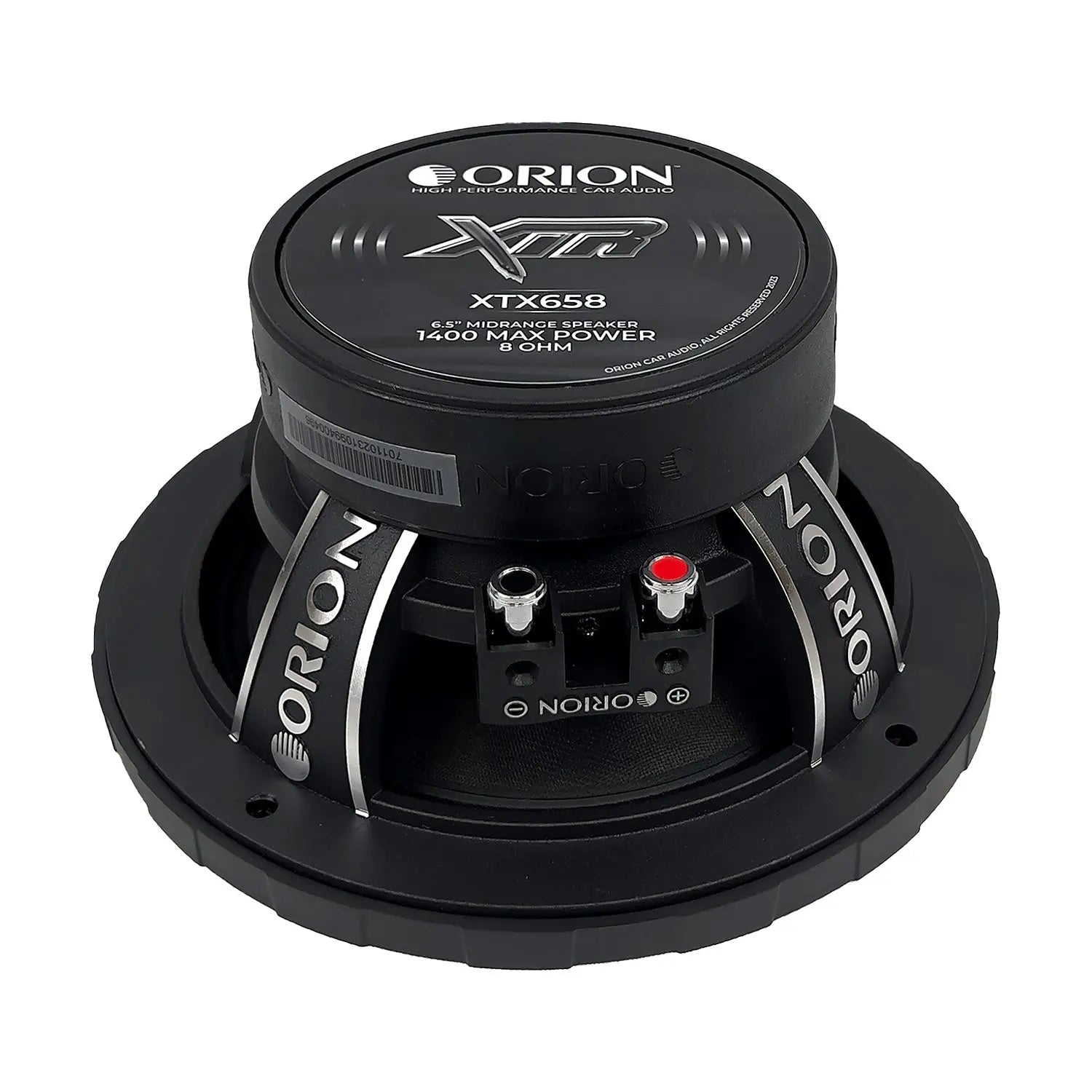

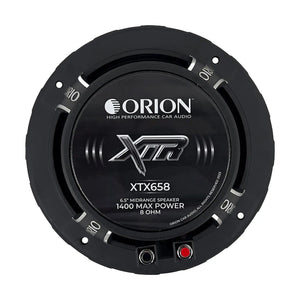

XTX658 - 8 Ohm
See the Orion product page for detailed specifications.
