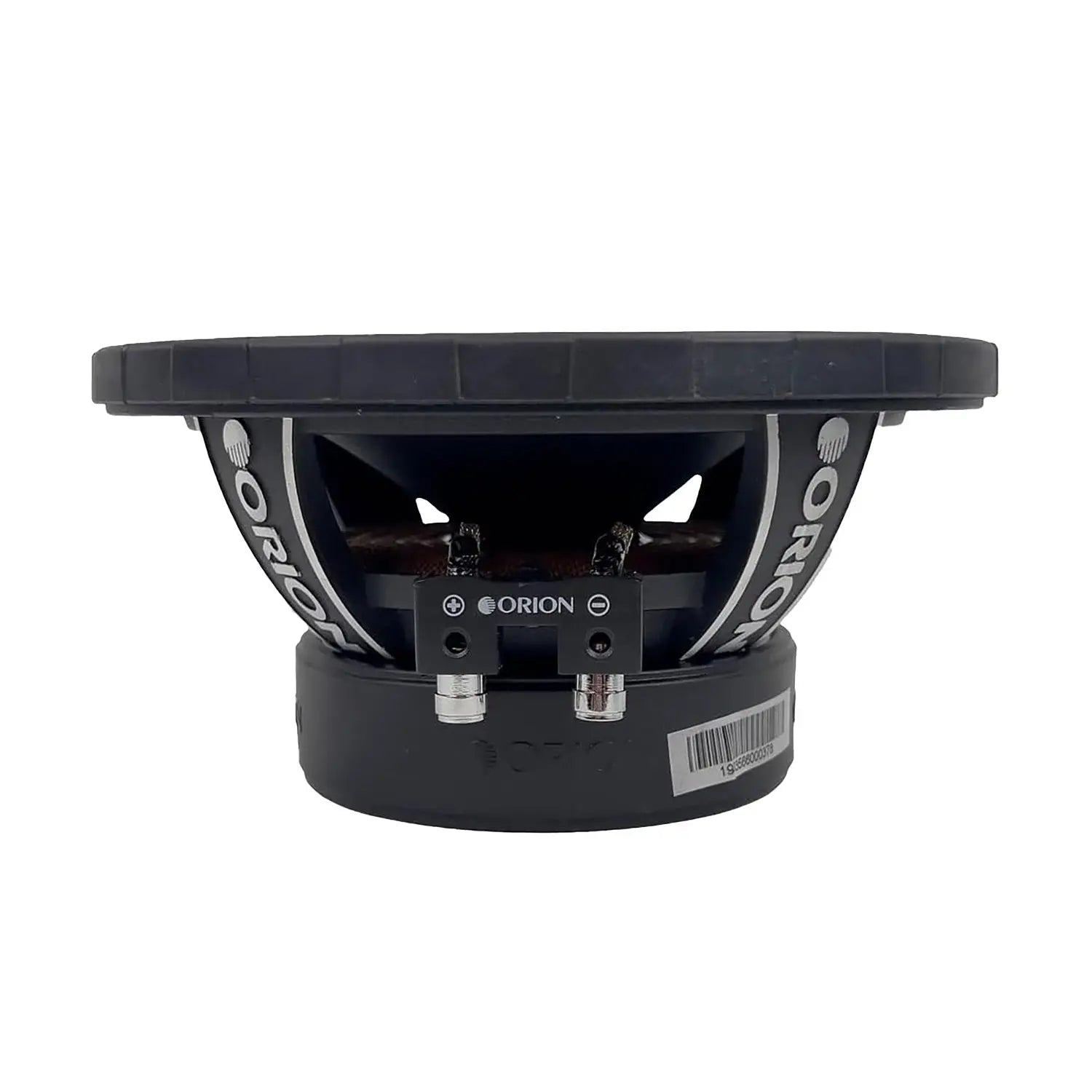

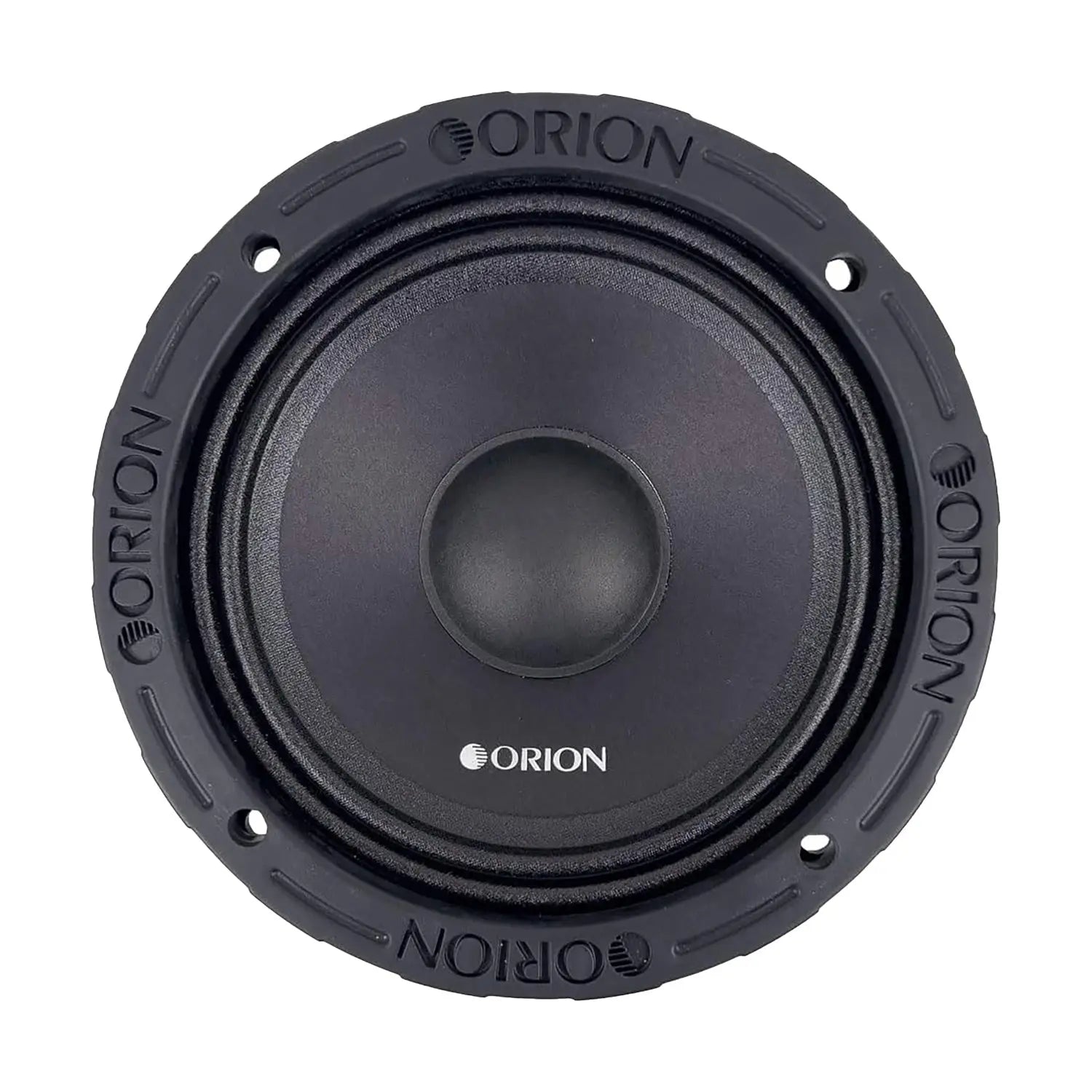

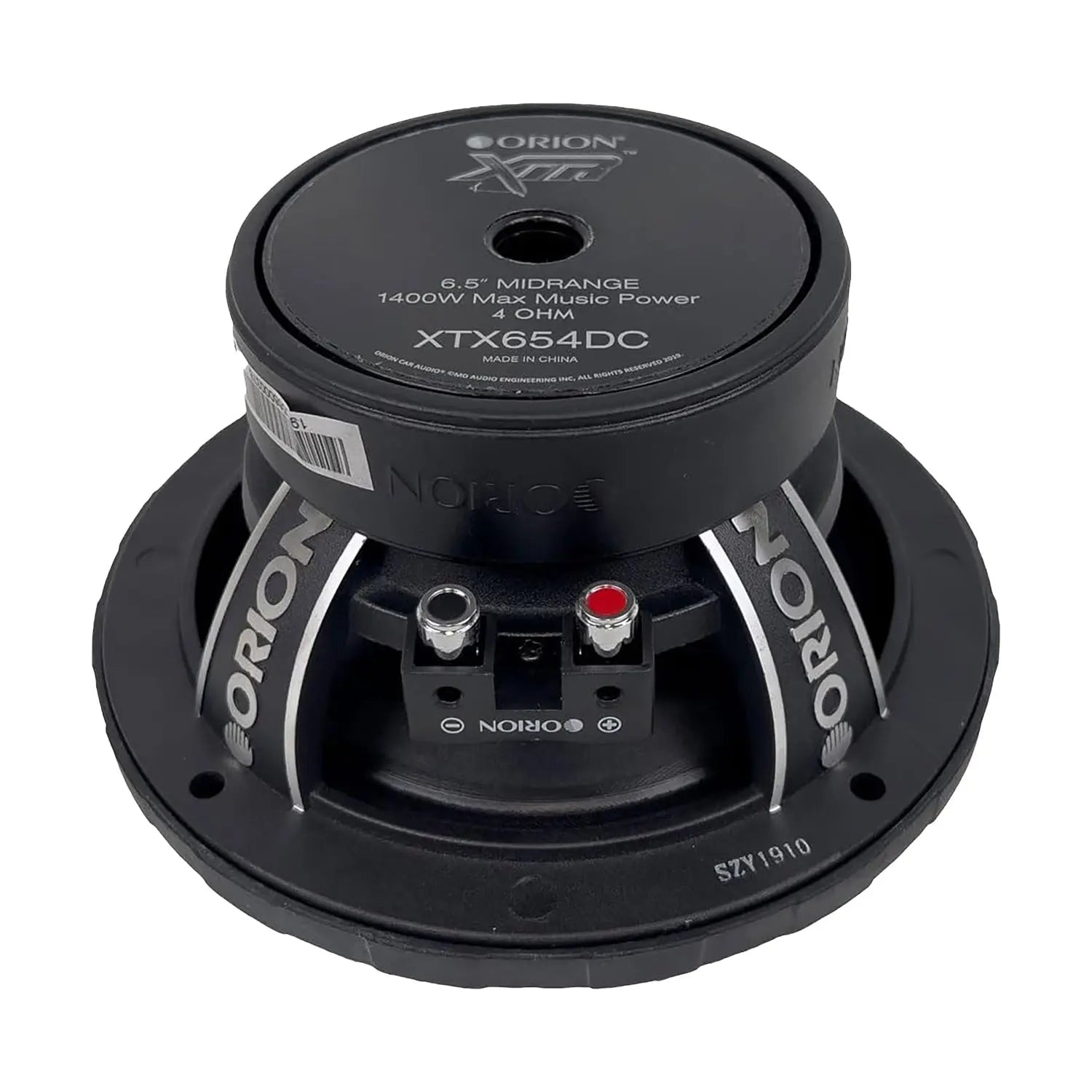

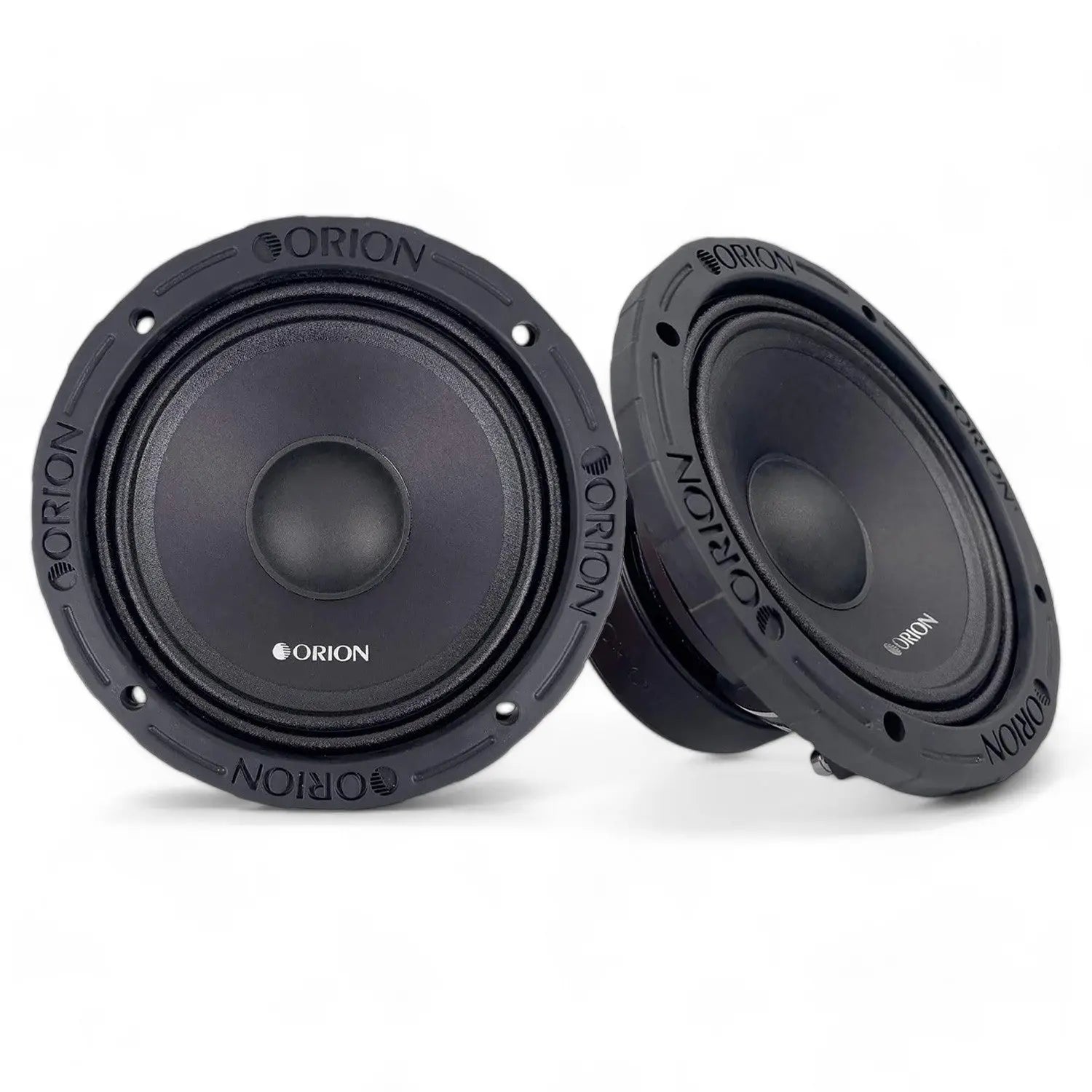

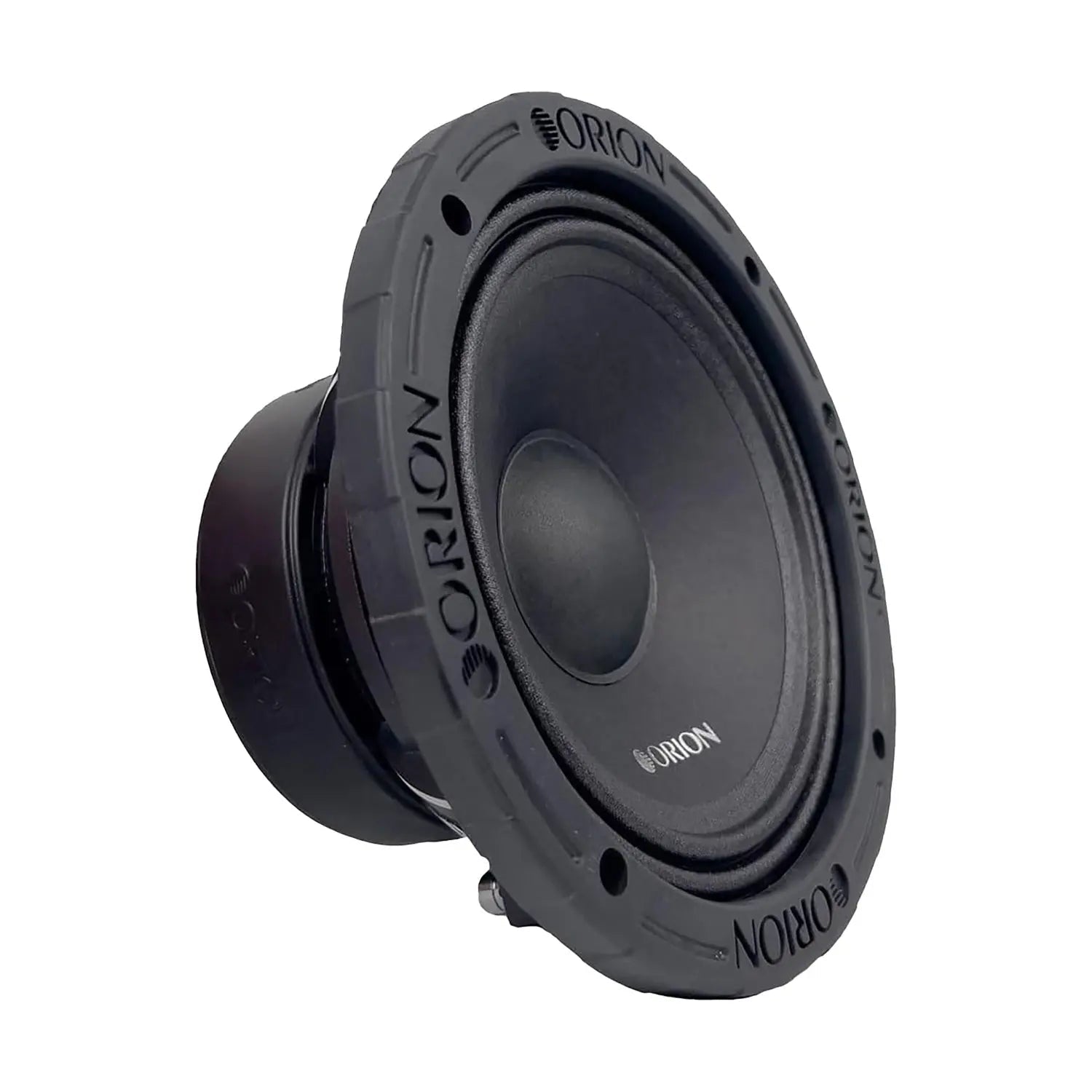

Orion XTX 6.5 Inch Dust Cap Midrange Speaker
Orion XTX 6.5 Inch Dust Cap Midrange Speaker
Orion XTX 6.5 Inch Dust Cap Midrange Speaker
Orion XTX 6.5 Inch Dust Cap Midrange Speaker. Available manufacturer models: XTX652DC (2 Ohm), XTX654DC (4 Ohm), XTX658DC (8 Ohm). Select the impedance or configuration that matches your system; specifications for each model are listed below.
Manufacturer specifications
XTX652DC - 2 Ohm
- Speaker Size: 6.5 (Inches)
- Voice Coil Configuration: 2 ohm
- Power Handling (Peak): 1400 Watts
- Power Handling (RMS): 350 Watts
- Sensitivity: 97 dB
- Frequency Response: 140 kHz - 12 kHz
- Voice Coil Diameter: 1.5" (Inches)
- Material: Cast Basket
- Cone Material: Non Pressed Paper
- Magnet Information: 20 Oz. Ferrite
- Grilles Included: No
- Mounting Depth: 75.2mm / 2.96 (Inches)
- Overall Depth: 84mm / 3.31 (Inches)
- Cutout Diameter: 146mm / 5.75 (Inches)
- Overall Diameter: 178mm / 7 (Inches)
XTX654DC - 4 Ohm
- Speaker Size: 6.5 (Inches)
- Voice Coil Configuration: 4 ohm
- Power Handling (Peak): 1400 Watts
- Power Handling (RMS): 350 Watts
- Sensitivity: 97 dB
- Frequency Response: 140 kHz - 12 kHz
- Voice Coil Diameter: 1.5" (Inches)
- Material: Cast Basket
- Cone Material: Non Pressed Paper
- Magnet Information: 20 Oz. Ferrite
- Grilles Included: No
- Mounting Depth: 75.2mm / 2.96 (Inches)
- Overall Depth: 84mm / 3.31 (Inches)
- Cutout Diameter: 146mm / 5.75 (Inches)
- Overall Diameter: 178mm / 7 (Inches)

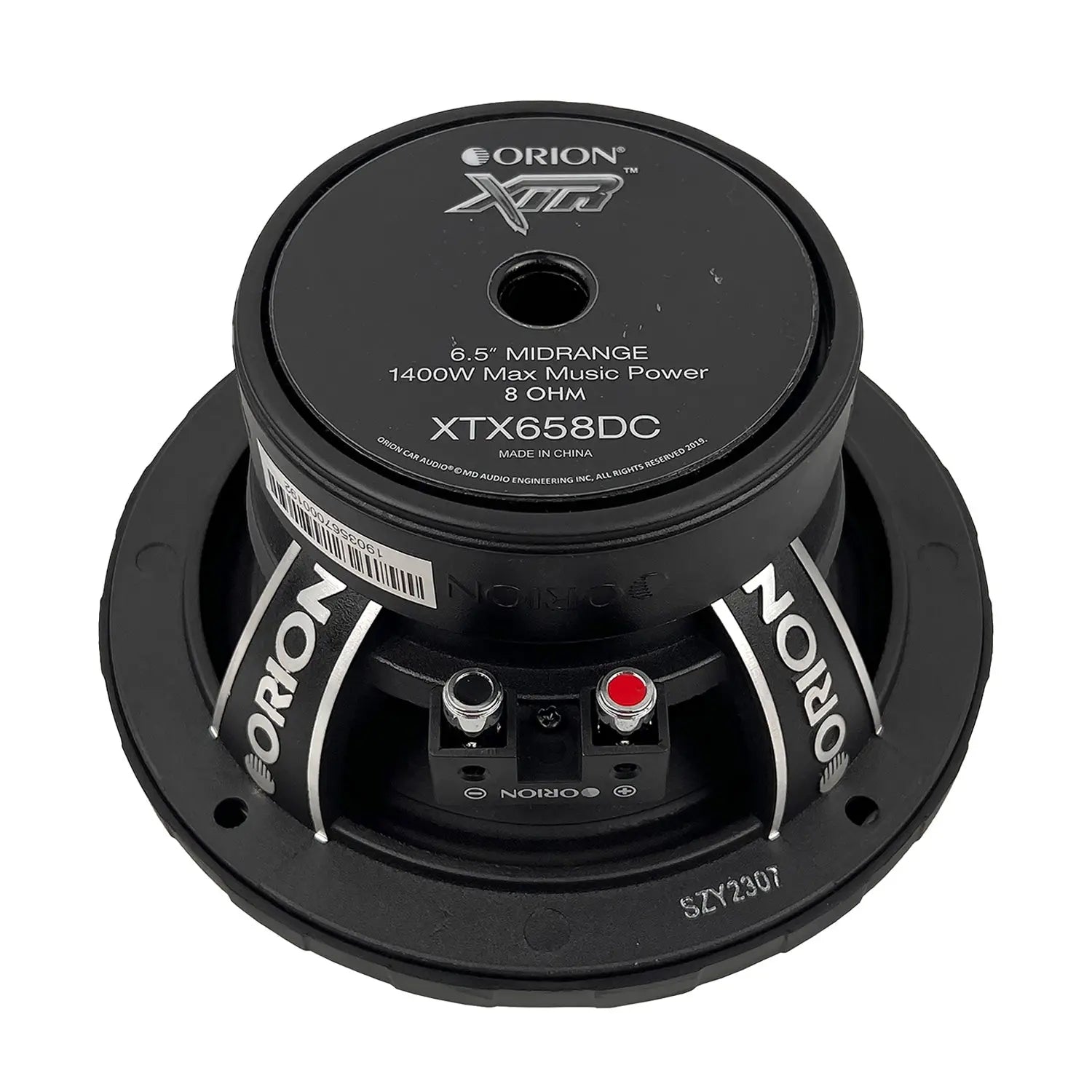

XTX658DC - 8 Ohm
See the Orion product page for detailed specifications.
