Orion XTX 10 Inch Midrange Speaker. Available manufacturer models: XTX1052 (2 Ohm), XTX1054 (4 Ohm), XTX1058 (8 Ohm). Select the impedance or configuration that matches your system; specifications for each model are listed below.
Manufacturer specifications
XTX1052 - 2 Ohm
- Speaker Size: 10 (Inches)
- Voice Coil Configuration: 2 ohm
- Power Handling (Peak): 2000 Watts
- Power Handling (RMS): 500 Watts
- Sensitivity: 99.9 dB
- Frequency Response: 100 Hz - 6 kHz
- Voice Coil Diameter: 3" (Inches)
- Speaker Quantity: 1 Speaker
- Material: Cast Basket
- Cone Material: Non Pressed Paper
- Phase Plug Material: Billet Aluminum
- Magnet Information: 120 Oz. Ferrite
- Grilles Included: No
- Mounting Depth: 107mm / 4.21 (Inches)
- Overall Depth: 120mm / 4.72 (Inches)
- Cutout Diameter: 229mm / 9.02 (Inches)
- Overall Diameter: 260mm / 10.24 (Inches)

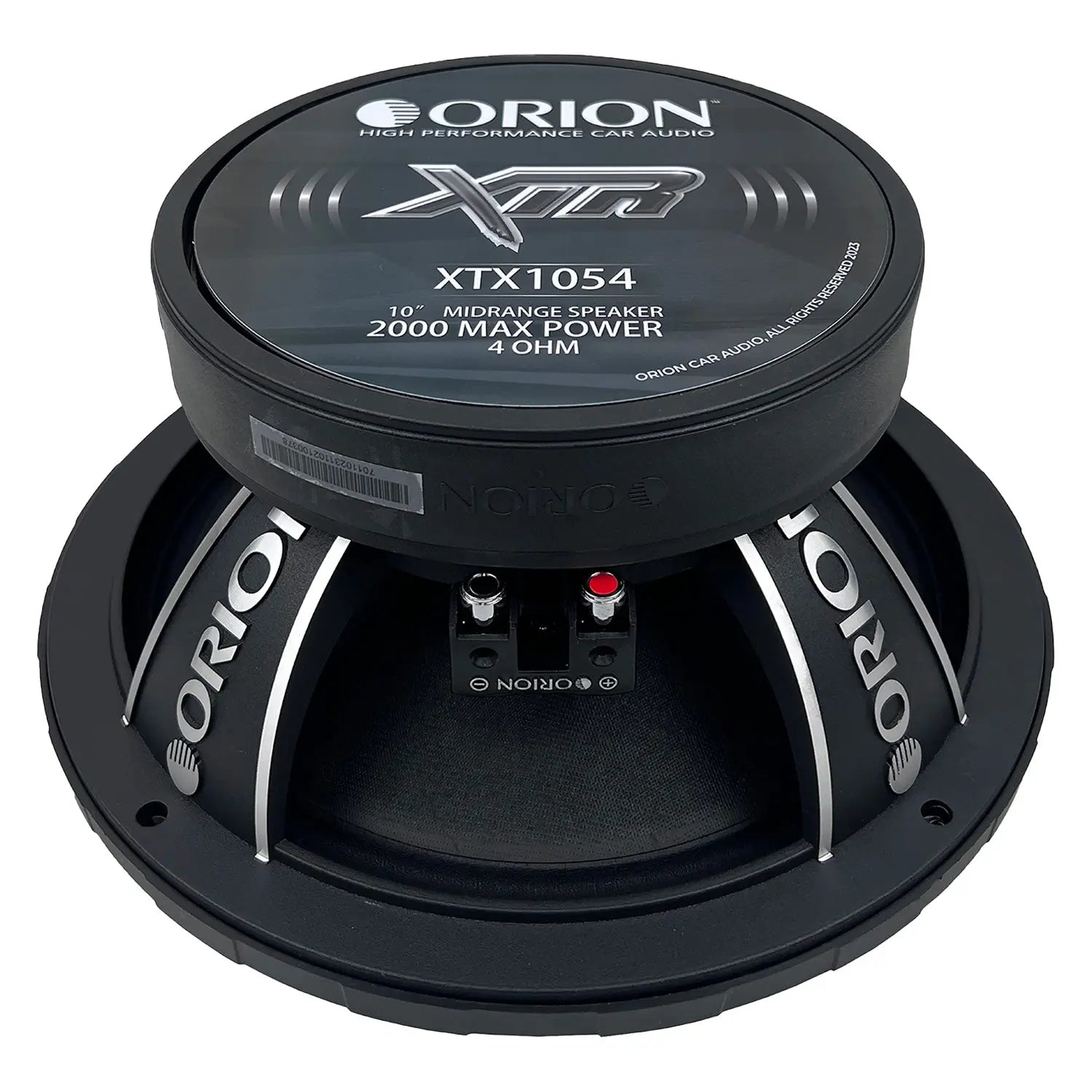

XTX1054 - 4 Ohm
- Speaker Size: 10 (Inches)
- Voice Coil Configuration: 4 ohm
- Power Handling (Peak): 2000 Watts
- Power Handling (RMS): 500 Watts
- Sensitivity: 99.9 dB
- Frequency Response: 100 Hz - 6 kHz
- Voice Coil Diameter: 3" (Inches)
- Speaker Quantity: 1 Speaker
- Material: Cast Basket
- Cone Material: Non Pressed Paper
- Phase Plug Material: Billet Aluminum
- Magnet Information: 120 Oz. Ferrite
- Grilles Included: No
- Mounting Depth: 107mm / 4.21 (Inches)
- Overall Depth: 120mm / 4.72 (Inches)
- Cutout Diameter: 229mm / 9.02 (Inches)
- Overall Diameter: 260mm / 10.24 (Inches)

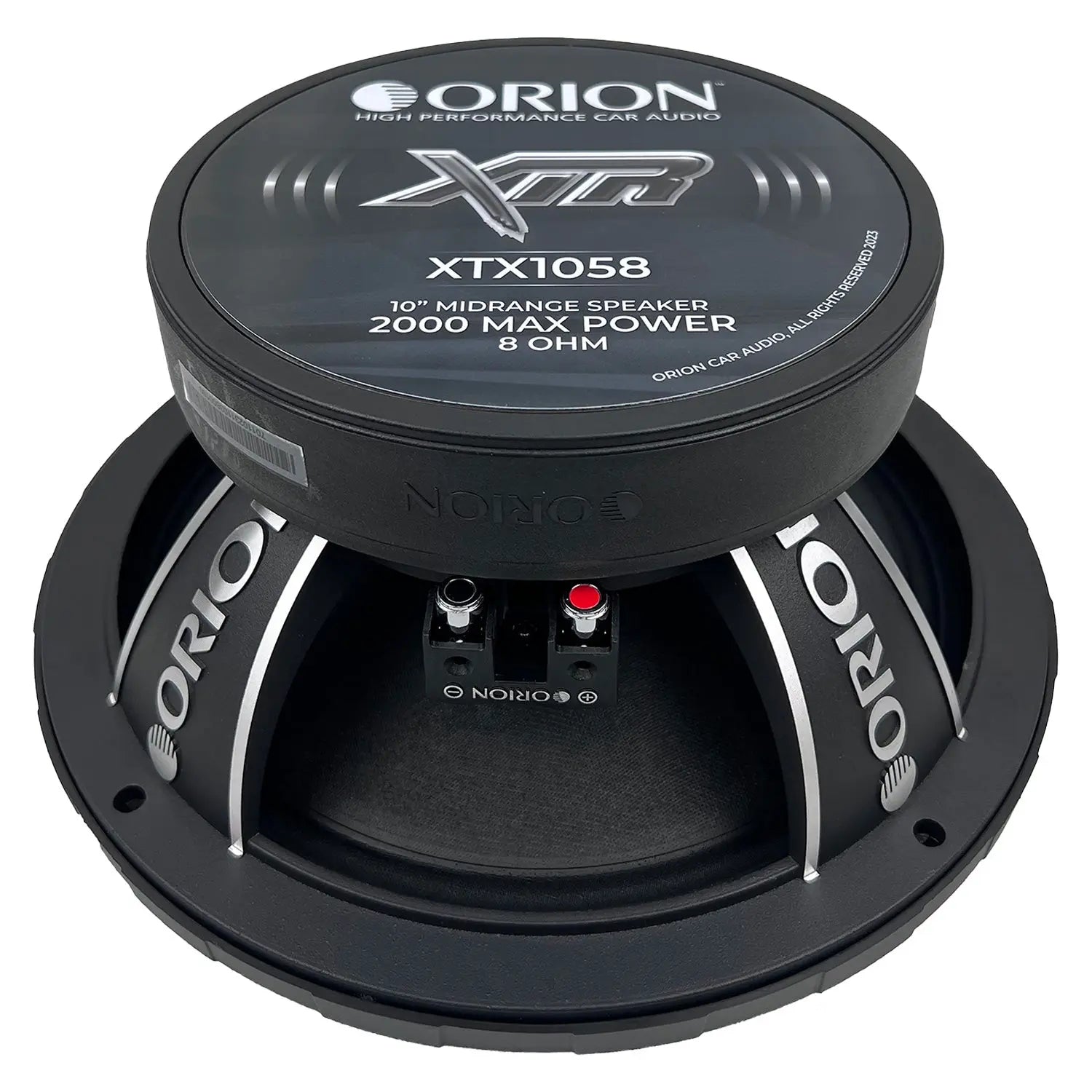

XTX1058 - 8 Ohm
See the Orion product page for detailed specifications.
