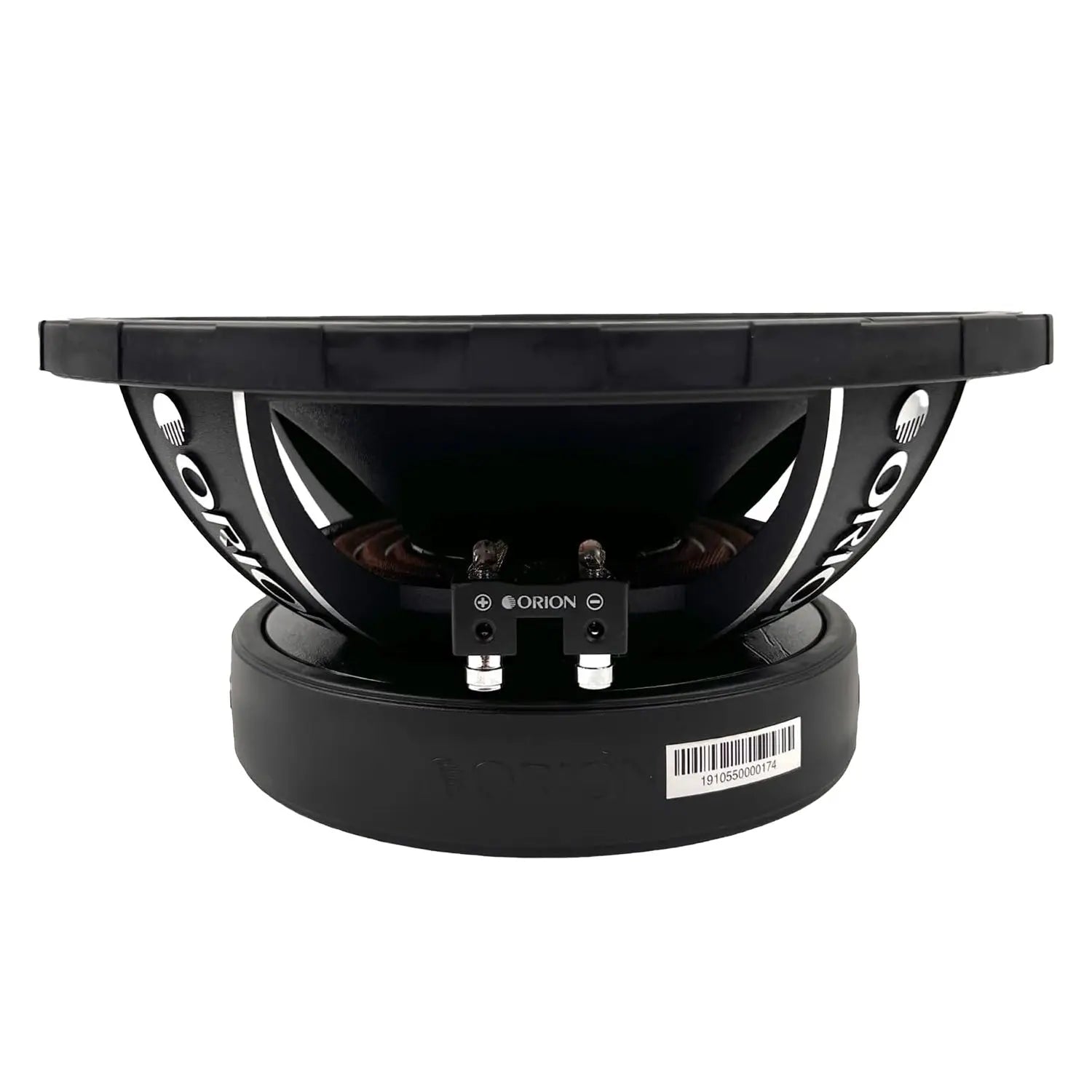

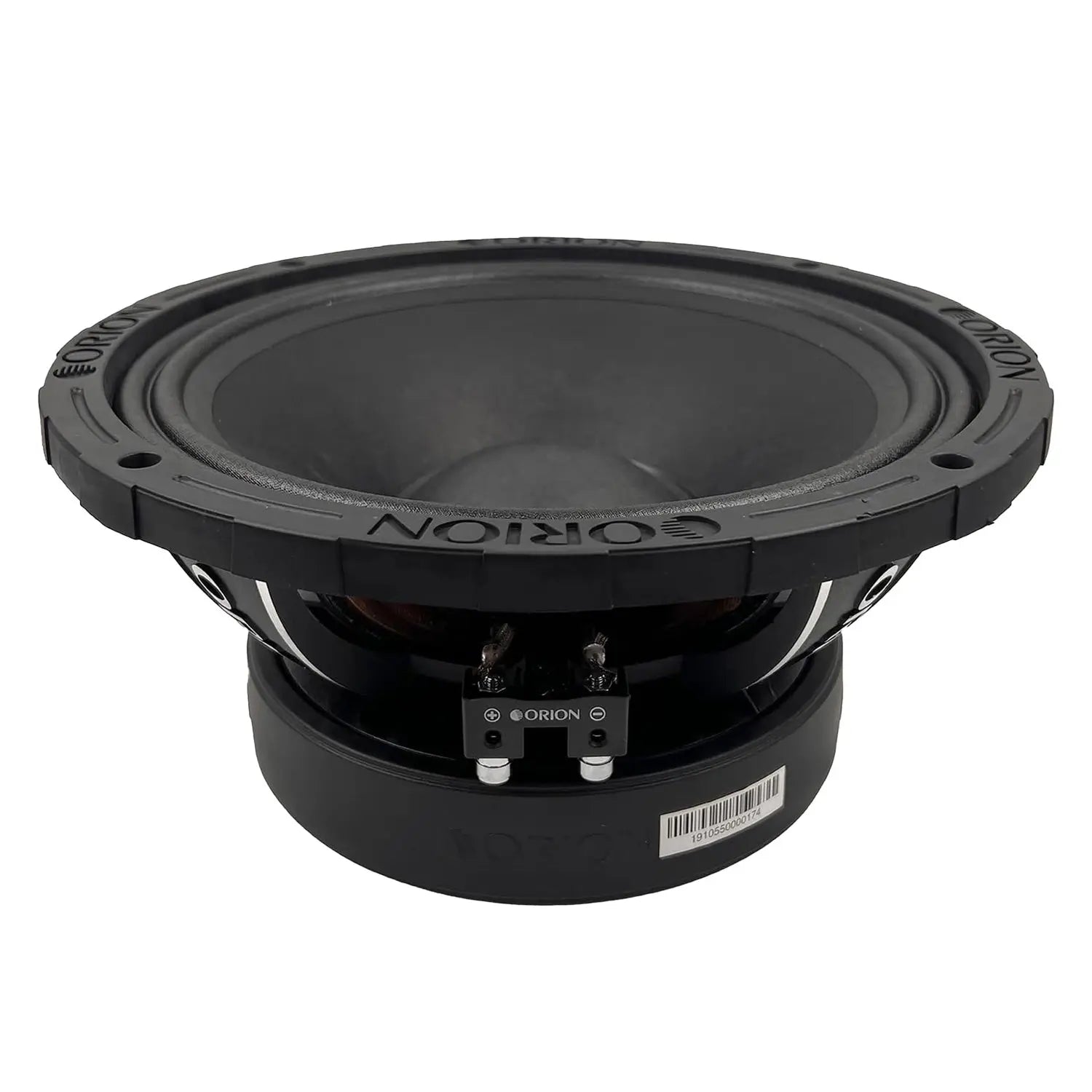

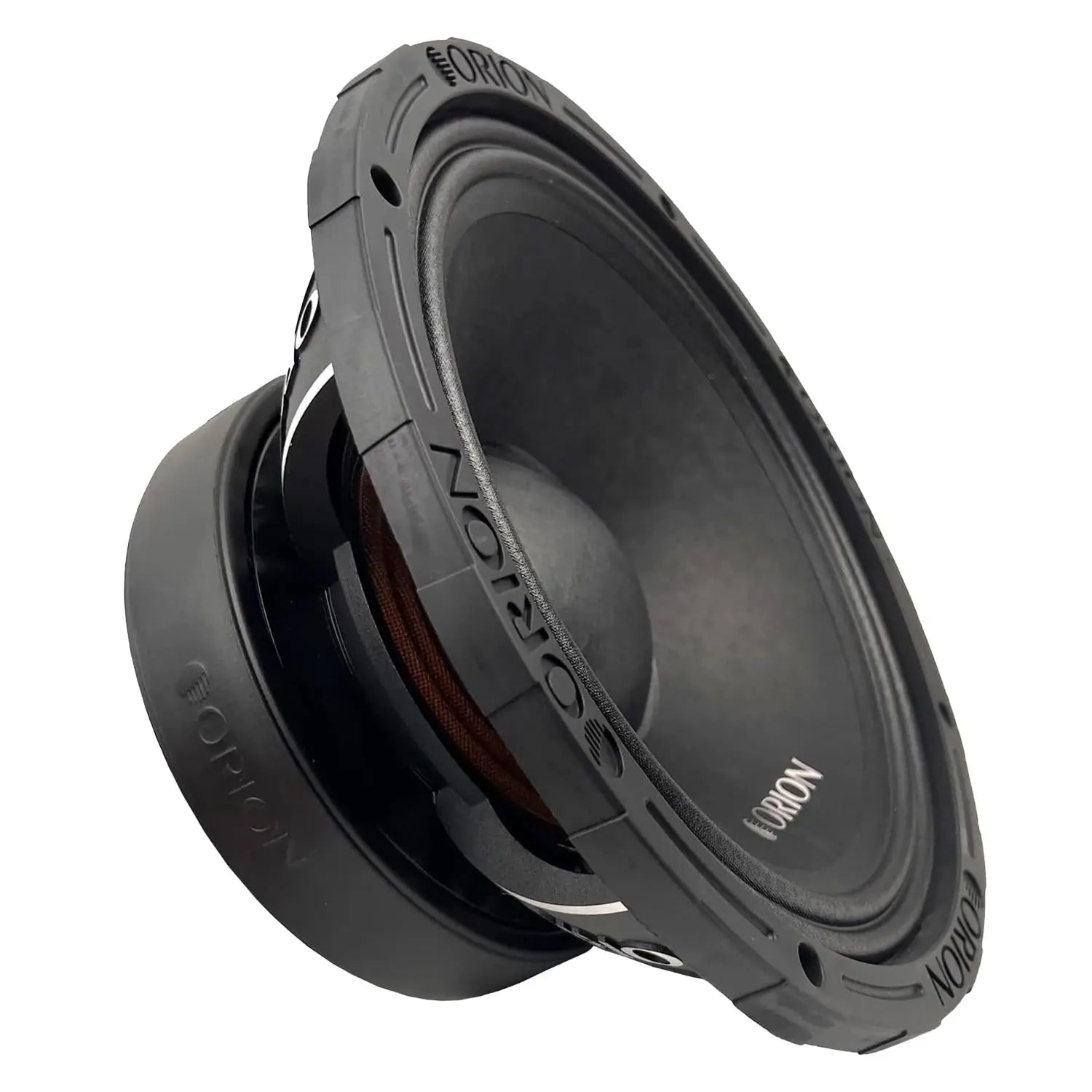

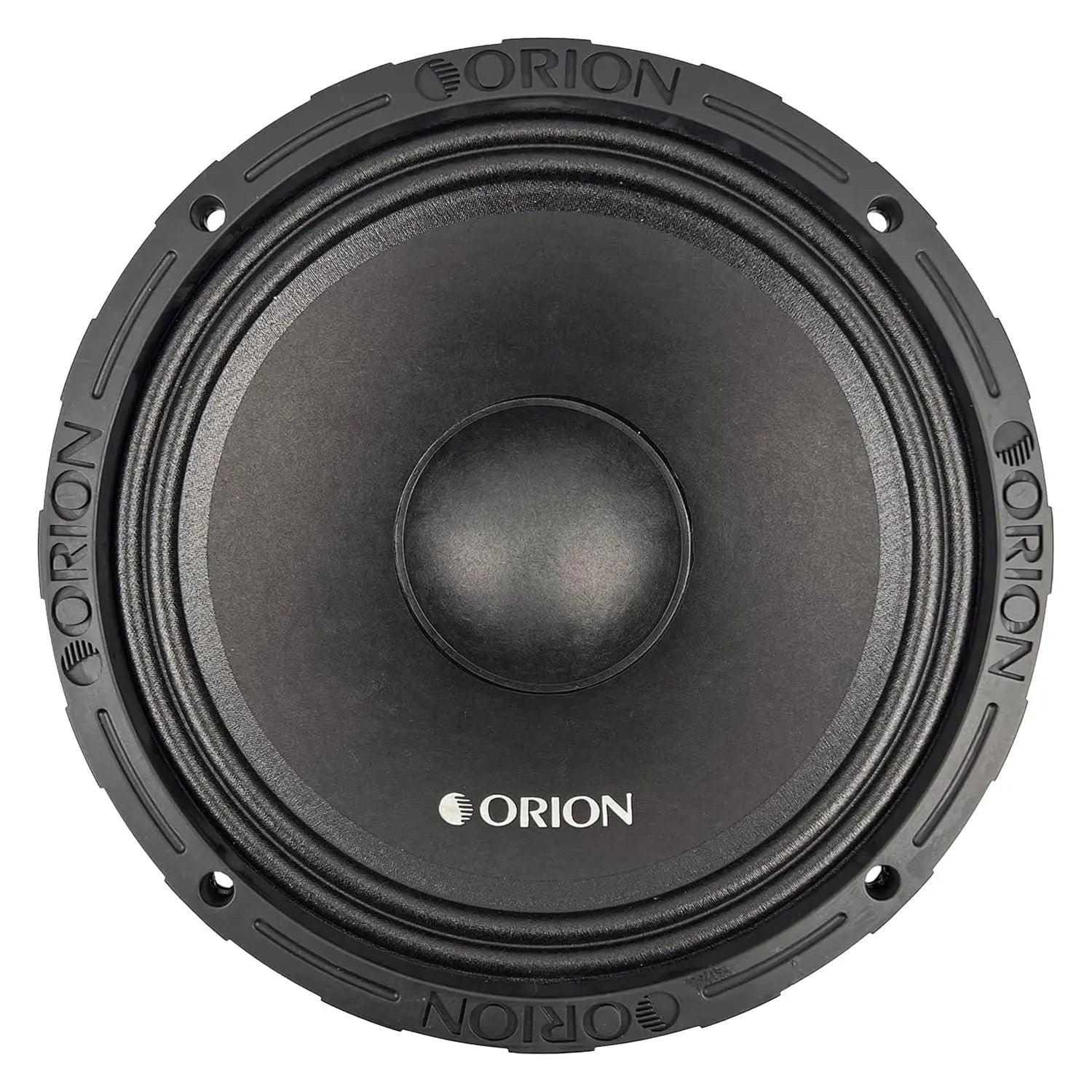

Orion XTX 10 Inch Dust Cap Midrange Speaker
Orion XTX 10 Inch Dust Cap Midrange Speaker
Orion XTX 10 Inch Dust Cap Midrange Speaker
Orion XTX 10 Inch Dust Cap Midrange Speaker. Available manufacturer models: XTX1052DC (2 Ohm), XTX1054DC (4 Ohm), XTX1058DC (8 Ohm). Select the impedance or configuration that matches your system; specifications for each model are listed below.
Manufacturer specifications
XTX1052DC - 2 Ohm
- Speaker Size: 10 (Inches)
- Voice Coil Configuration: 2 ohm
- Power Handling (Peak): 2000 Watts
- Power Handling (RMS): 500 Watts
- Sensitivity: 99.9 dB
- Frequency Response: 100 Hz - 6 kHz
- Voice Coil Diameter: 3" (Inches)
- Material: Cast Basket
- Cone Material: Non Pressed Paper
- Magnet Information: 120 Oz. Ferrite
- Grilles Included: No
- Mounting Depth: 107mm / 4.21 (Inches)
- Overall Depth: 120mm / 4.72 (Inches)
- Cutout Diameter: 229mm / 9.02 (Inches)
- Overall Diameter: 260mm / 10.24 (Inches)

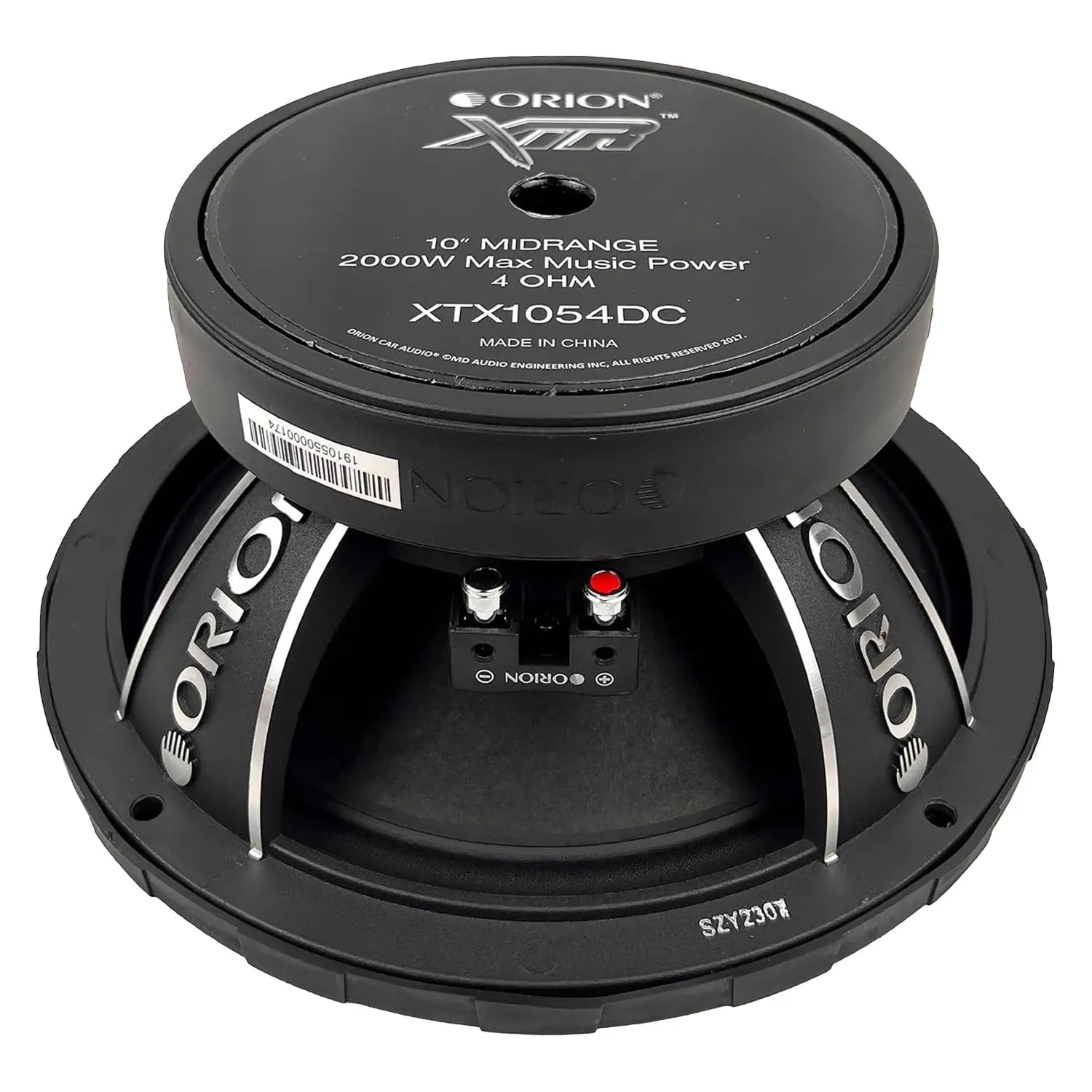

XTX1054DC - 4 Ohm
- Speaker Size: 10 (Inches)
- Voice Coil Configuration: 4 ohm
- Power Handling (Peak): 2000 Watts
- Power Handling (RMS): 500 Watts
- Sensitivity: 99.9 dB
- Frequency Response: 100 Hz - 6 kHz
- Voice Coil Diameter: 3" (Inches)
- Material: Cast Basket
- Cone Material: Non Pressed Paper
- Magnet Information: 120 Oz. Ferrite
- Grilles Included: No
- Mounting Depth: 107mm / 4.21 (Inches)
- Overall Depth: 120mm / 4.72 (Inches)
- Cutout Diameter: 229mm / 9.02 (Inches)
- Overall Diameter: 260mm / 10.24 (Inches)

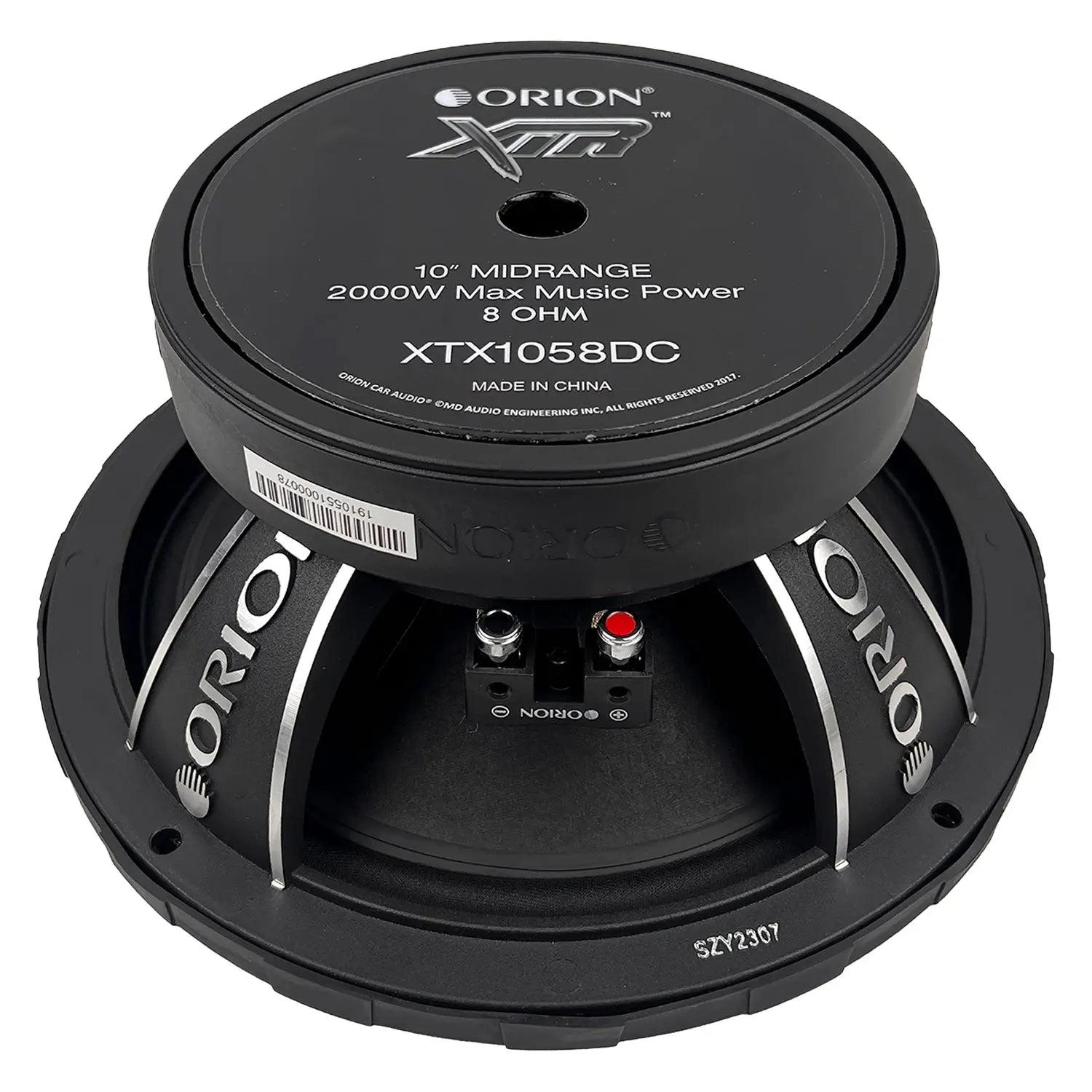

XTX1058DC - 8 Ohm
See the Orion product page for detailed specifications.
