Orion XTRPRO 12 Inch Shallow Subwoofer

High-Output Shallow 12 Inch Subwoofer for Space-Limited Installs

The Orion Orion XTRPRO 12 Inch Shallow Subwoofer delivers powerful and controlled bass in a compact shallow-mount design. Specifically, this 12 inch dual 2 ohm shallow competition subwoofer produces deep low-frequency output while fitting in tight spaces. As a result, it works well in modern vehicles and space-restricted builds. With 800W RMS and 3200W peak power, it offers a strong balance of output, control, and long-term reliability.

Additionally, the dual 2-ohm voice coil configuration provides flexible wiring options. Because of this, matching amplifier loads becomes easier in compact systems. Therefore, the Orion XTRPRO 12 Inch Shallow Subwoofer fits under-seat installs, shallow enclosures, and performance-focused daily drivers.

Built for Shallow-Mount Performance

To maintain clean output in limited space, the Orion XTRPRO 12 Inch Shallow Subwoofer uses a UV-coated paper and fiber blend cone. Moreover, it features a durable NBR surround that controls cone movement in a shallow profile. Together, these components reduce distortion while keeping bass tight and accurate.

A polypropylene dustcap strengthens the cone assembly. As a result, stability improves during higher output levels. In addition, a ceramic magnet motor structure delivers reliable control and efficiency despite the reduced mounting depth.

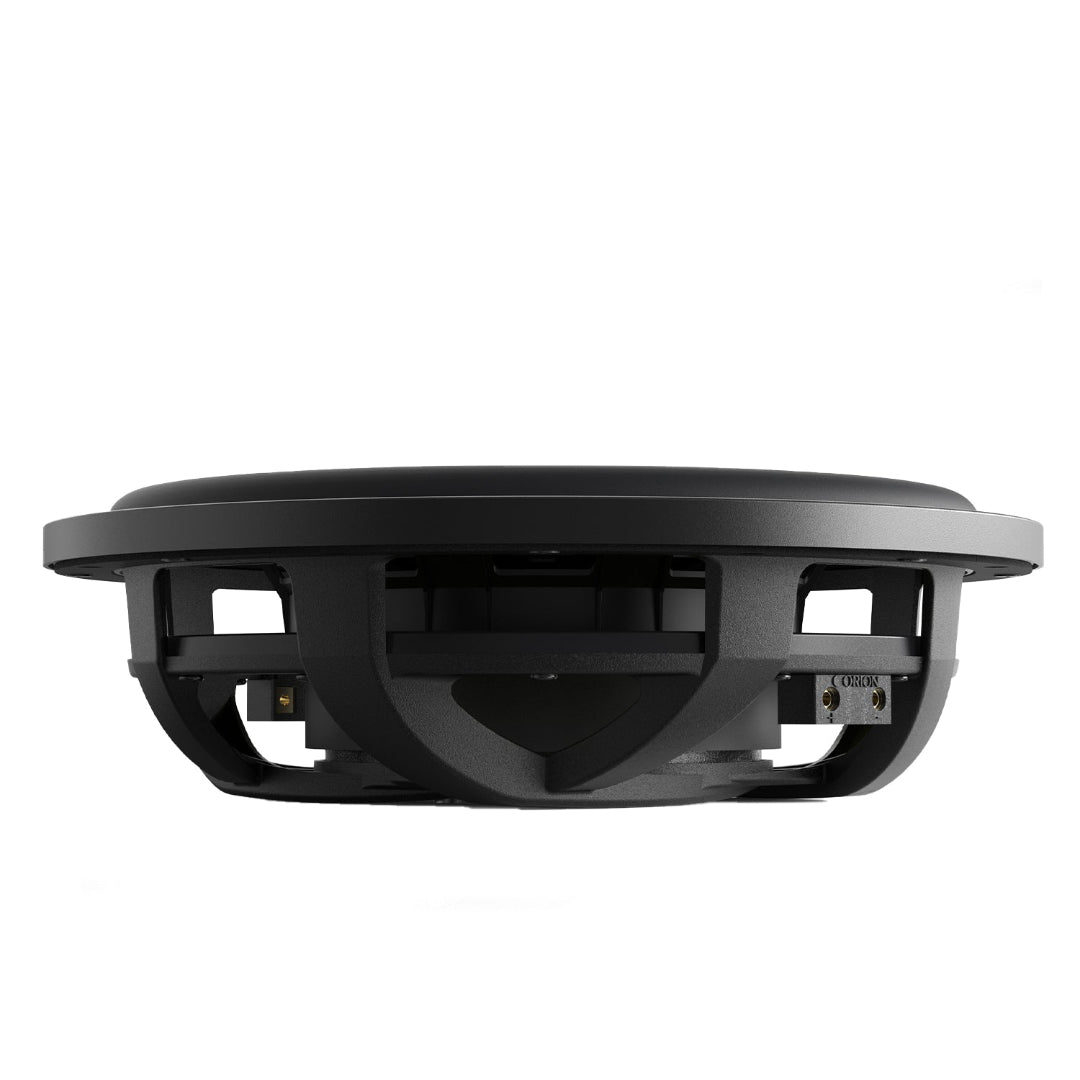

With a 3-inch mounting depth, this shallow subwoofer installs easily where traditional subwoofers cannot. Therefore, it is an ideal solution for compact enclosures and stealth audio upgrades.

Ideal For

• Under-seat and shallow enclosure installations
• Compact trunk and stealth audio builds
• High-output daily-driven systems
• Space-restricted performance applications

Key Features

• 12 inch dual 2 ohm shallow mount subwoofer
• 800W RMS / 3200W peak power handling
• Dual voice coil design for flexible wiring options
• UV-coated paper and fiber blend cone
• NBR surround for controlled excursion in shallow designs
• Polypropylene dustcap for added cone strength
• Ceramic magnet motor structure
• Ultra-shallow 3" mounting depth
• Optimized for compact sealed enclosures
• Proven Orion Car Audio XTRPRO Shallow Series engineering

Key Features

• Uncompromising Power in a Compact Form: Experience intense low-frequency output with 800 watts RMS and 3200 watts max power, delivering deep, controlled bass in vehicles where space is limited. Perfect for sealed or custom slim enclosures, this sub lets you maximize sound without sacrificing storage or interior layout.
• Dual 2-Ohm Voice Coils for Flexible Wiring: The 2+2 ohm coil configuration gives you maximum flexibility to wire for a variety of load setups, whether you're optimizing for power or configuring multi-sub systems. This versatility makes it easy to pair with different amplifiers without compromising output.
• High-Performance 3" Copper Voice Coil: At the heart of the subwoofer lies a large 3-inch copper-wound voice coil capable of dissipating heat efficiently during high-power playback. It ensures consistent performance during extended sessions and reduces the risk of thermal compression.
• Vented Motor Structure & 56 Oz Magnet: The integrated venting system allows air to circulate around the motor and voice coil, preventing overheating while improving excursion control. Paired with a strong 56-ounce magnet, it delivers better cone movement, higher sensitivity, and more precise bass response.
• Shallow-Mount Ready with Ultra-Rigid Design: With a mounting depth of only 3 inches, this subwoofer is ideal for tight installs like behind truck seats or under false floors. The rugged construction maintains enclosure integrity while producing clean, vibration-free output at all volume levels.
• World's First Reconable Shallow Subwoofer: Engineered to be the first shallow-mount subwoofer with a fully reconable design, giving you the freedom to replace soft parts without replacing the entire unit-unmatched serviceability in tight-space installs.
• Patent-Pending Innovation: Designed with exclusive, patent-pending technology that sets a new standard in shallow subwoofer design, combining ultra-slim mounting depth with rebuildable versatility for long-term performance.

Specifications

• Subwoofer Size: 12 (Inches)
• Voice Coil Configuration: Dual 2-ohm
• Power Handling (Peak): 3200 Watts
• Power Handling (RMS): 800 Watts
• Sensitivity: 84.22 dB
• Frequency Response: 20 Hz - 300 Hz
• Dustcap Material: Polypropylene
• Cone Material: UV Coated Paper / Fiber Blend Cone
• Surround Material: NBR
• Magnet Information: Ceramic
• Mounting Depth: 3 (Inches)
• Cutout Diameter: 11.81 (Inches)
• Overall Diameter: 12.8 (Inches)

Available Options

• Impedance: Dual 2 Ohm
• Impedance: Dual 4 Ohm

The Kaos Run Down

• Manufacturer SKUs: ORI-XTRPRO-SW12D2, ORI-XTRPRO-SW12D4
• Product Type: Subwoofers
• Audio Type: Subwoofer
• Option: Impedance
• Available Options: Dual 2 Ohm, Dual 4 Ohm
• Source: Orion
