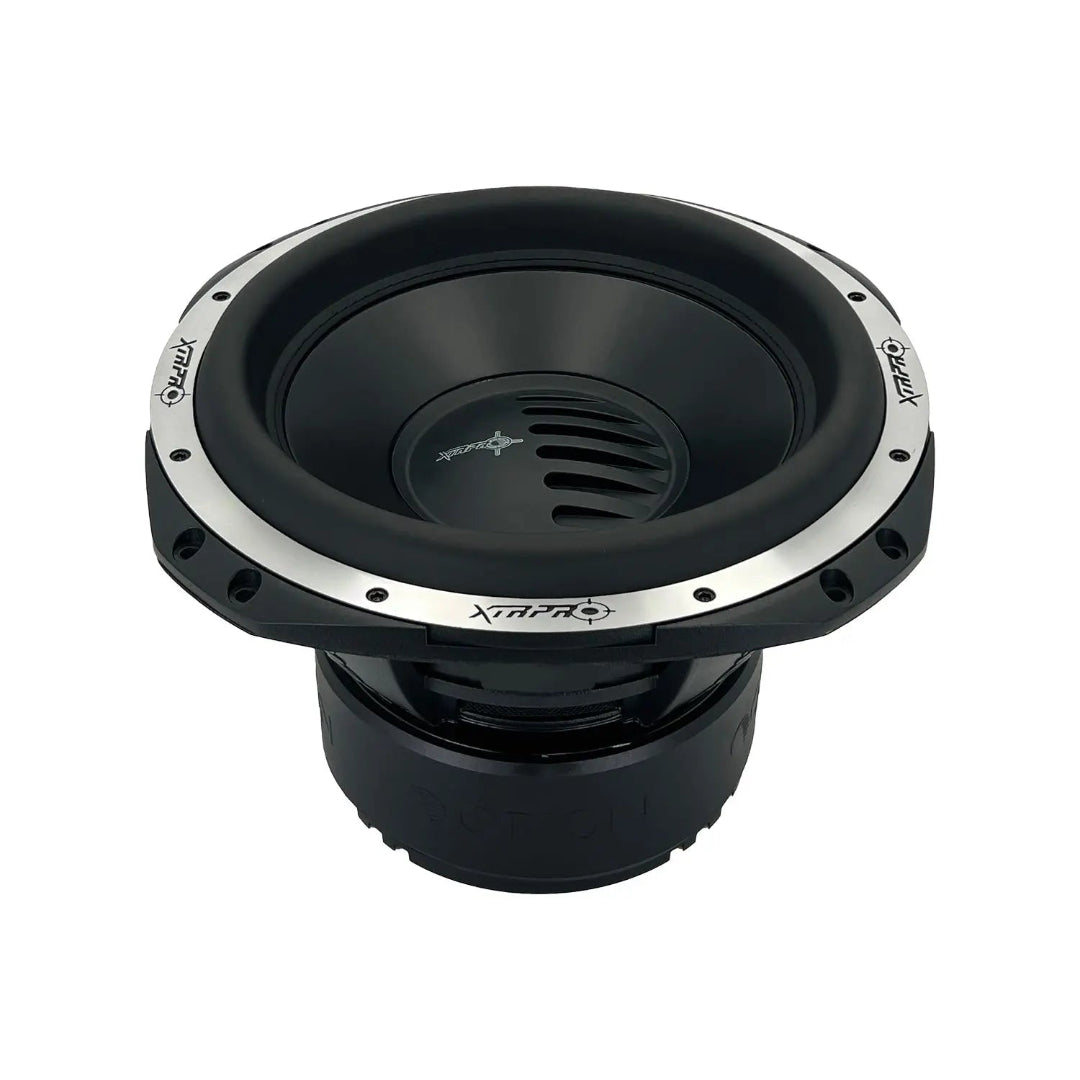

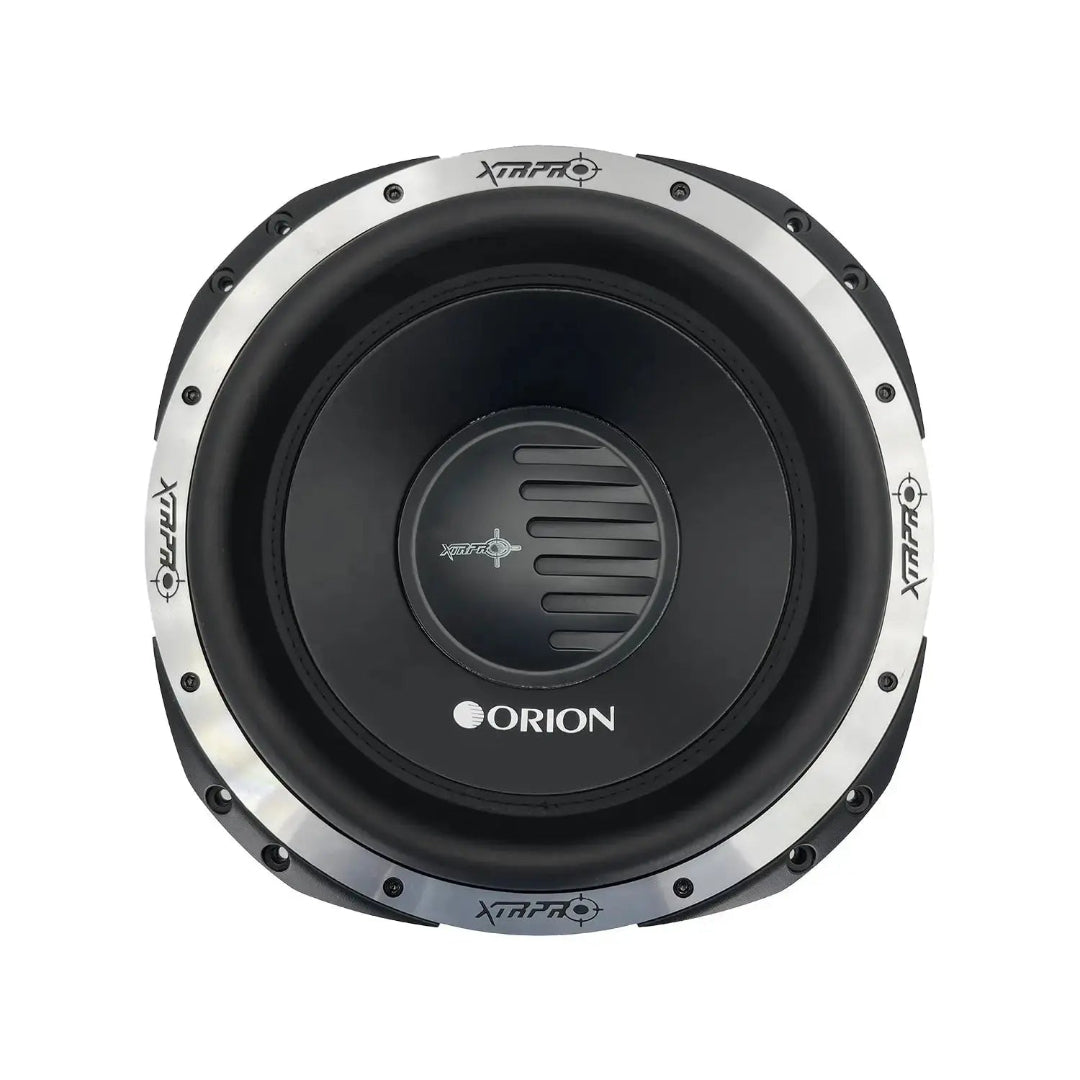

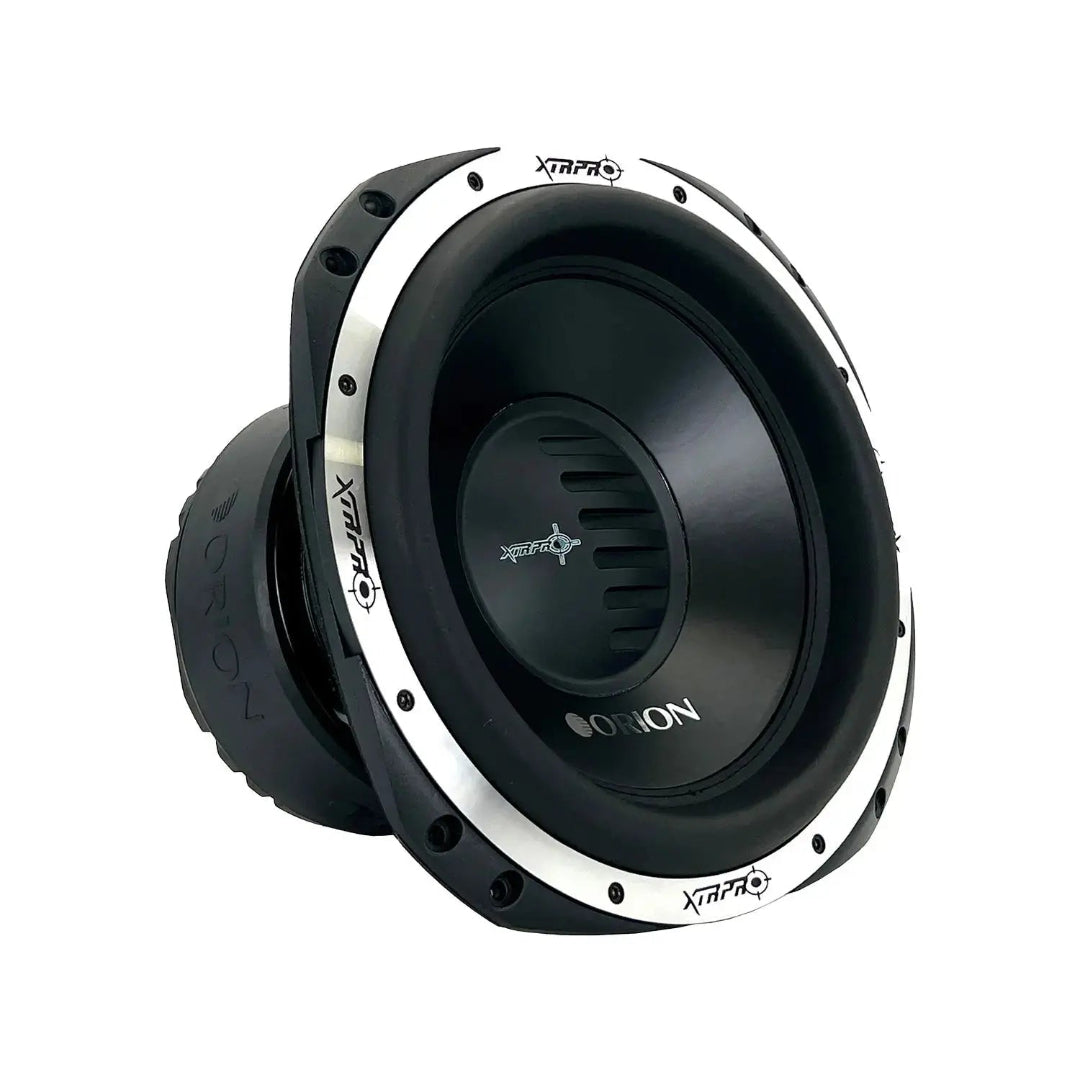

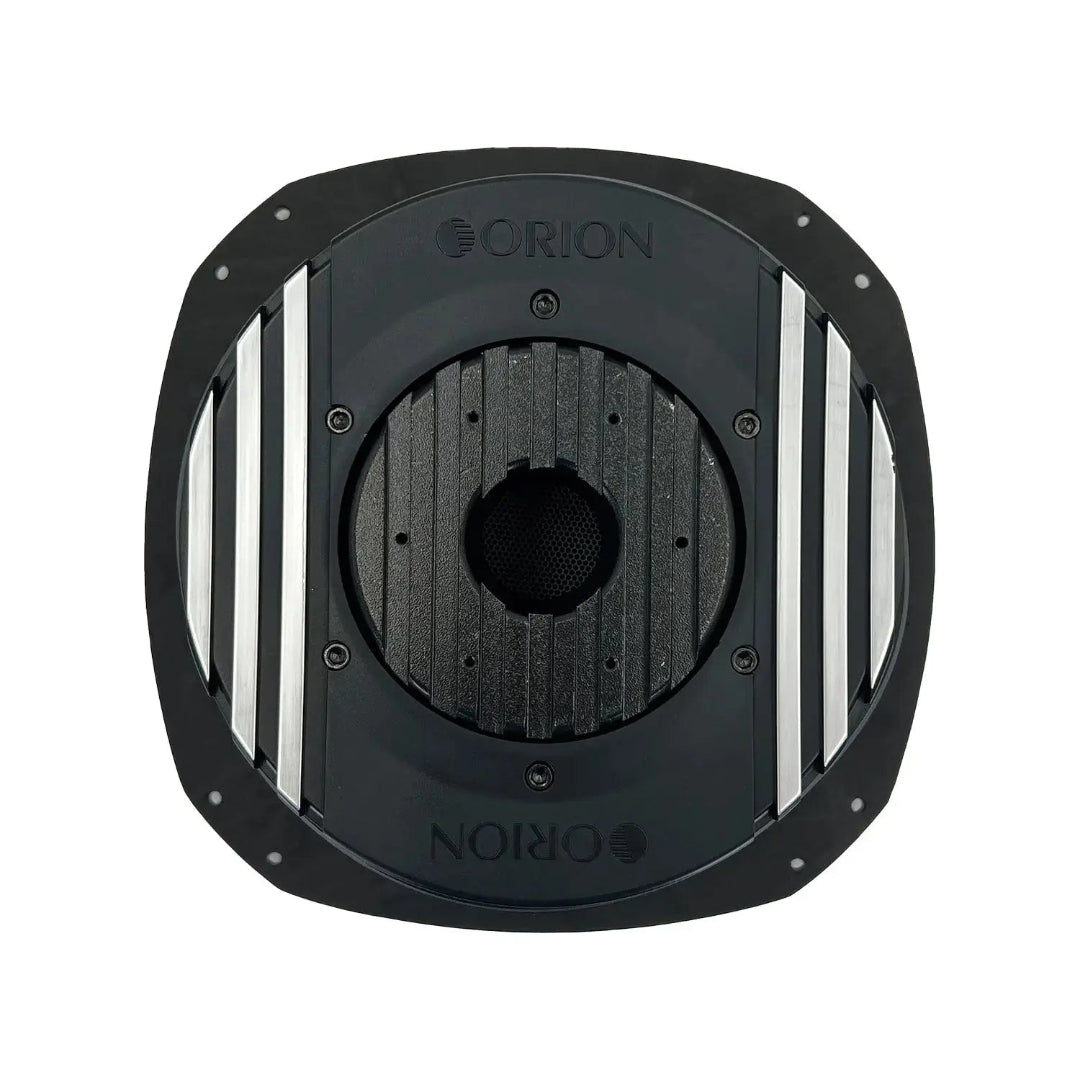

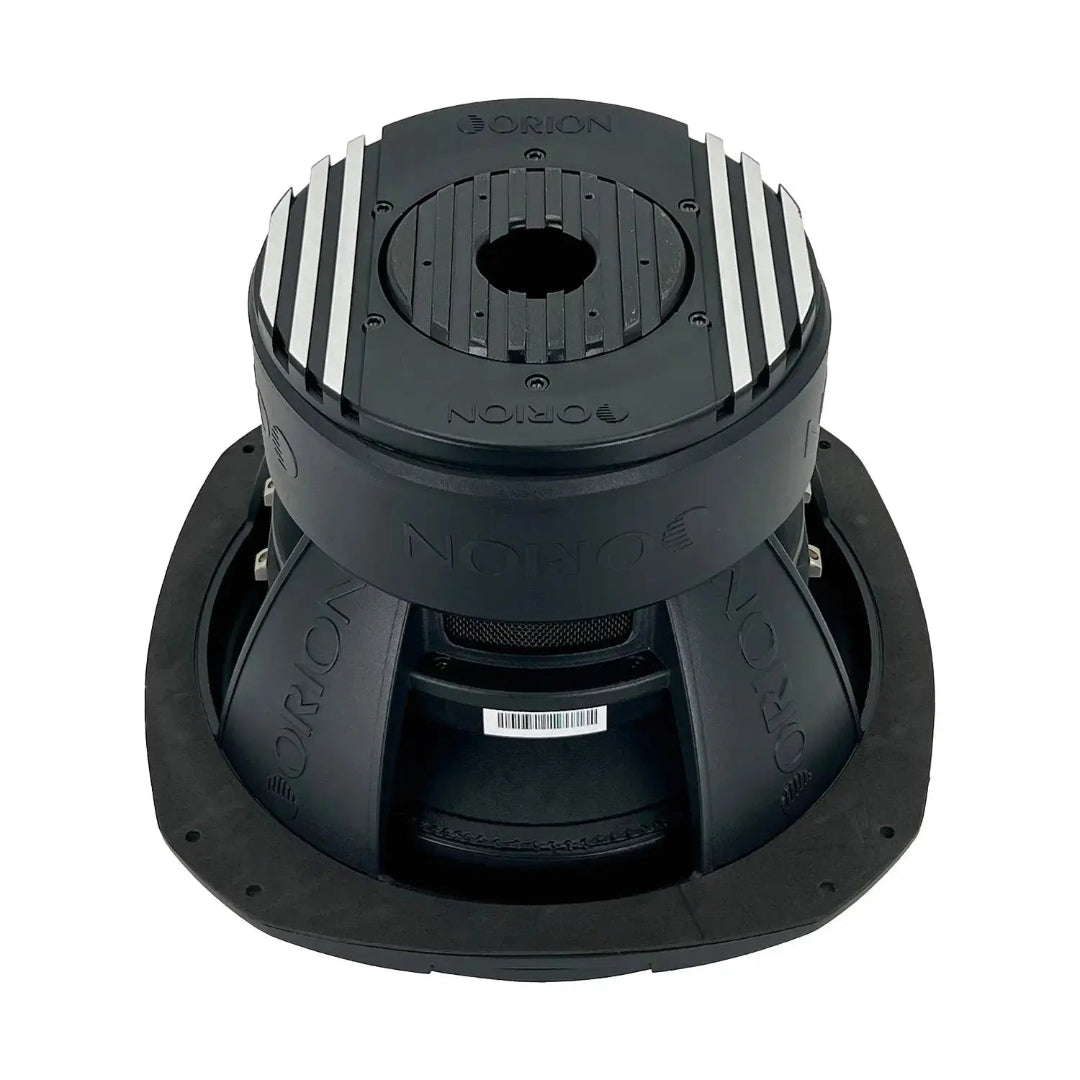

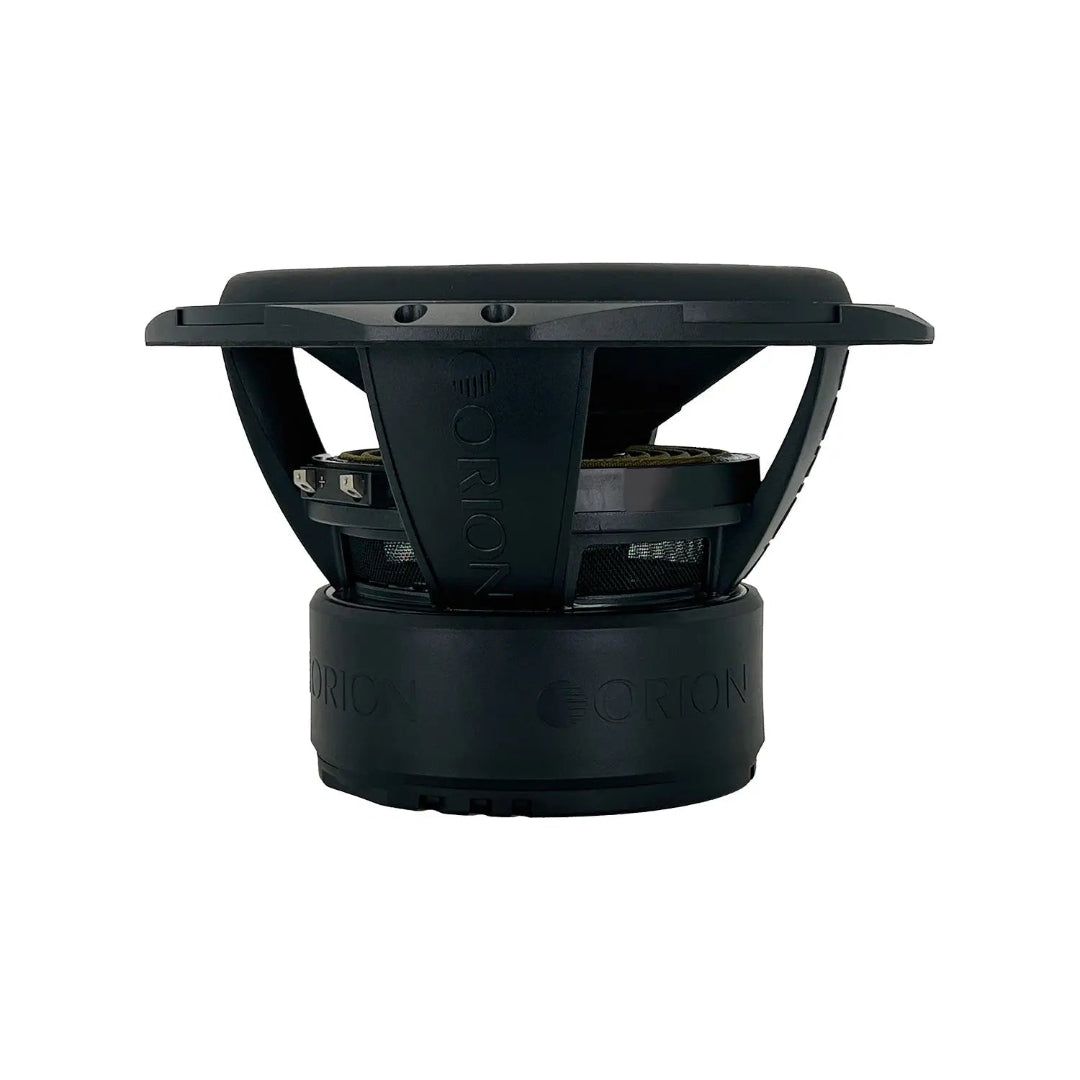

Orion XTRPRO 12 Inch Competition Subwoofer - 1500 Watts RMS
Orion XTRPRO 12 Inch Competition Subwoofer - 1500 Watts RMS
Orion XTRPRO 12 Inch Competition Subwoofer - 1500 Watts RMS
Orion XTRPRO 12 Inch Competition Subwoofer - 1500 Watts RMS. Available manufacturer models: XTRPRO122D (Dual 2 Ohm), XTRPRO124D (Dual 4 Ohm). Select the impedance or configuration that matches your system; specifications for each model are listed below.
Manufacturer specifications
XTRPRO122D - Dual 2 Ohm
- Subwoofer Size: 12 (Inches)
- Voice Coil Configuration: Dual 2-ohm
- Power Handling (Peak): 6000 Watts
- Power Handling (RMS): 1500 Watts
- Sensitivity: 88.6 dB
- Frequency Response: 32 Hz - 500Hz
- Voice Coil Diameter: 3 (Inches)
- Voice Coil Material: Aluminum Wound Voice Coil on a Kapton Former
- Spider: Dual Flat Conex Spiders with Loop Stitched Tinsel Leads
- Dustcap Material: Polypropylene
- Cone Material: UV Coated Reinforced Paper
- Surround Material: Santoprene
- Basket Material: Proprietary Cast Aluminum Frame
- Magnet Information: 176 Oz Ferrite
- Speaker Displacement: 0.1674 (cu. ft.)
- Mounting Depth: 196mm / 7.70 (Inches)
- Cutout Diameter: 284mm / 11.18 (Inches)
- Overall Diameter: 322mm / 12.68 (Inches)
XTRPRO124D - Dual 4 Ohm
- Subwoofer Size: 12 (Inches)
- Voice Coil Configuration: Dual 4-ohm
- Power Handling (Peak): 6000 Watts
- Power Handling (RMS): 1500 Watts
- Sensitivity: 88.6 dB
- Frequency Response: 32 Hz - 500Hz
- Voice Coil Diameter: 3 (Inches)
- Voice Coil Material: Aluminum Wound Voice Coil on a Kapton Former
- Spider: Dual Flat Conex Spiders with Loop Stitched Tinsel Leads
- Dustcap Material: Polypropylene
- Cone Material: UV Coated Reinforced Paper
- Surround Material: Santoprene
- Basket Material: Proprietary Cast Aluminum Frame
- Magnet Information: 176 Oz Ferrite
- Speaker Displacement: 0.1674 (cu. ft.)
- Mounting Depth: 196mm / 7.70 (Inches)
- Cutout Diameter: 284mm / 11.18 (Inches)
- Overall Diameter: 322mm / 12.68 (Inches)
