Orion XTR 8 Inch Shallow Subwoofer - 300 Watts RMS. Available manufacturer models: XTR8SWD2 (Dual 2 Ohm), XTR8SWD4 (Dual 4 Ohm). Select the impedance or configuration that matches your system; specifications for each model are listed below.
Manufacturer specifications

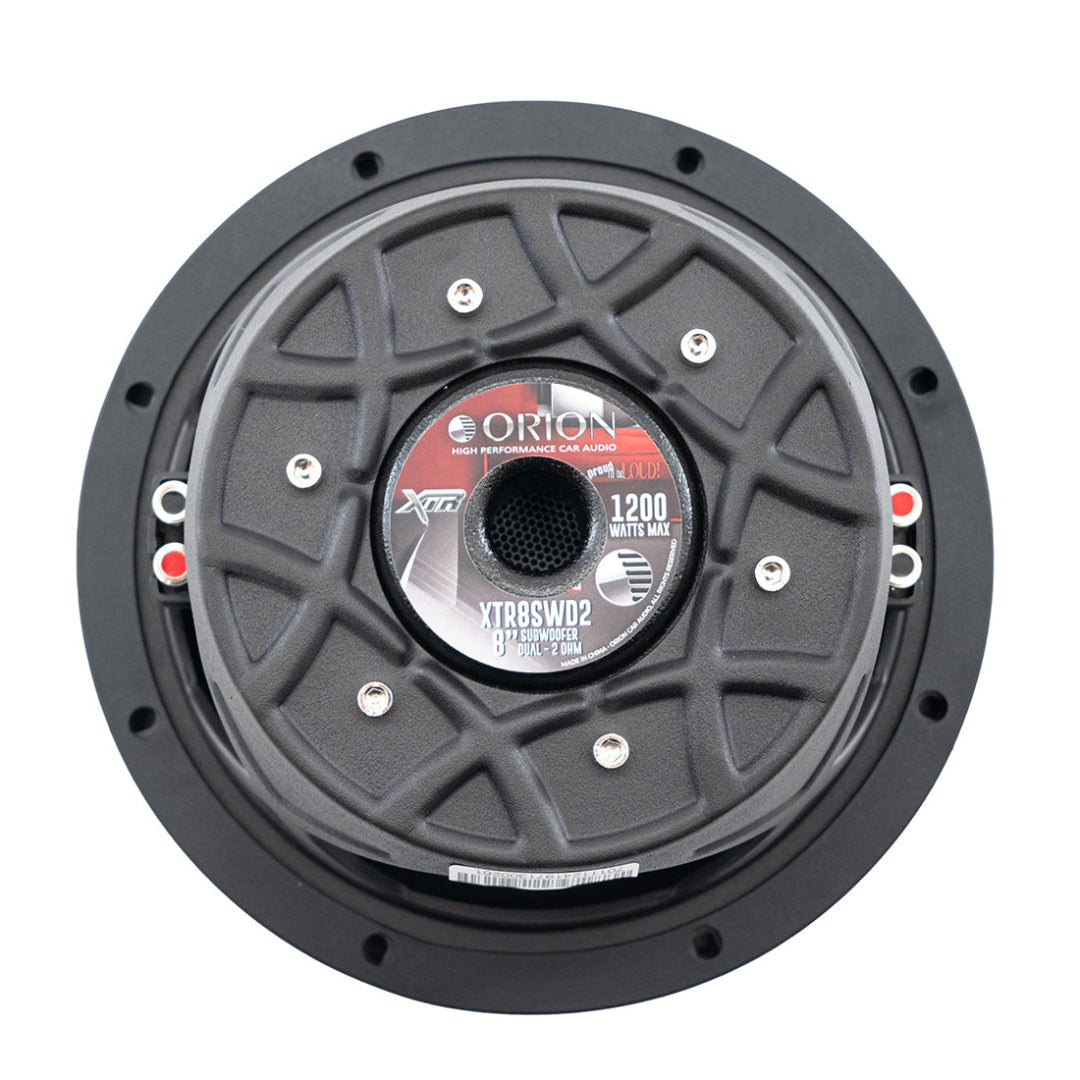

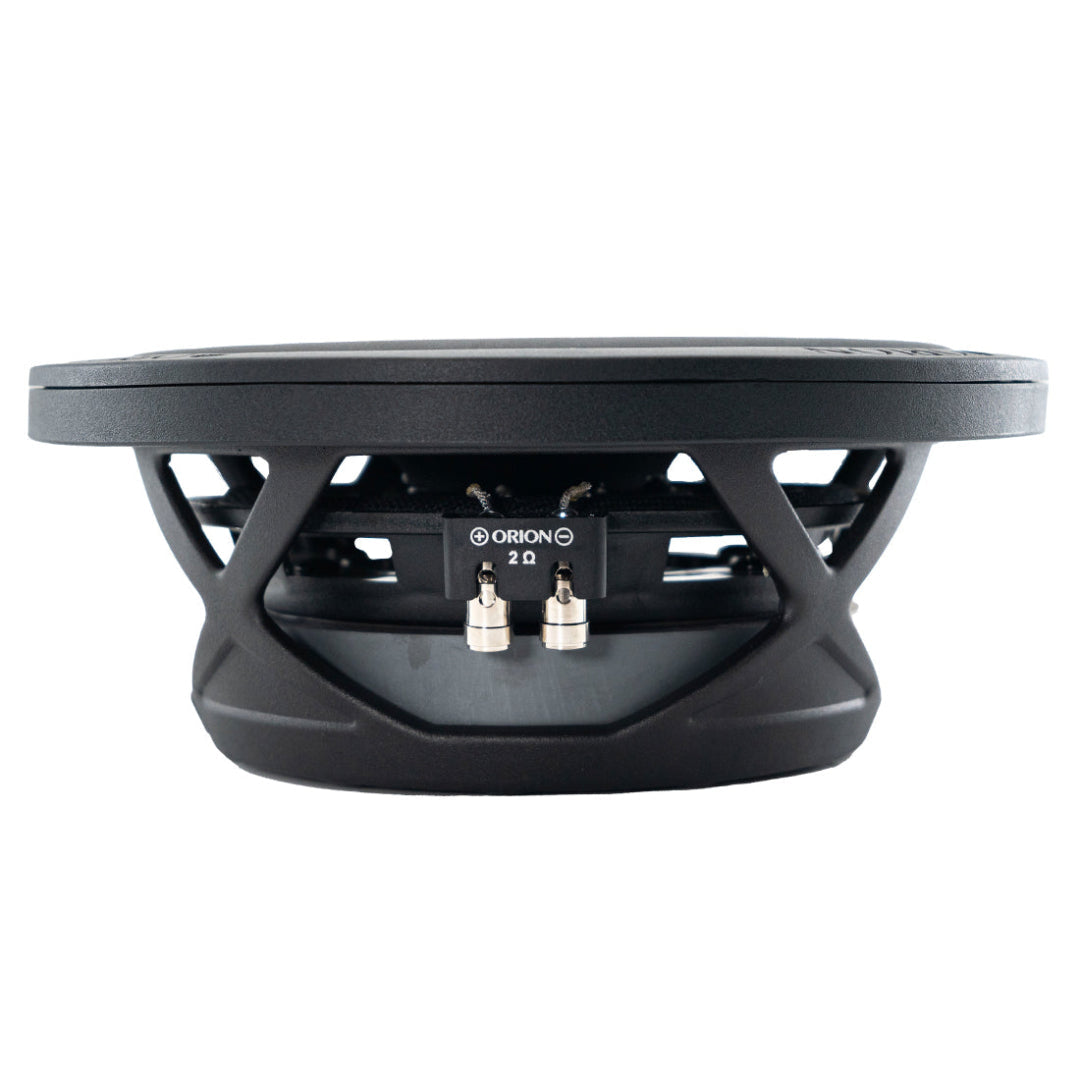

XTR8SWD2 - Dual 2 Ohm
- Subwoofer Size: 8 (Inches)
- Voice Coil Configuration: Dual 2-ohm
- Power Handling (Peak): 1200 Watts
- Power Handling (RMS): 300 Watts
- Sensitivity: 83 dB
- Frequency Response: 40 Hz - 300 Hz
- Dustcap Material: Polypropylene
- Cone Material: UV Coated Paper / Fiber Blend Cone
- Surround Material: NBR
- Magnet Information: Ceramic
- Mounting Depth: 70mm / 2.76 (Inches)
- Cutout Diameter: 180mm / 7.09 (Inches)
- Overall Diameter: 218mm / 8.58 (Inches)

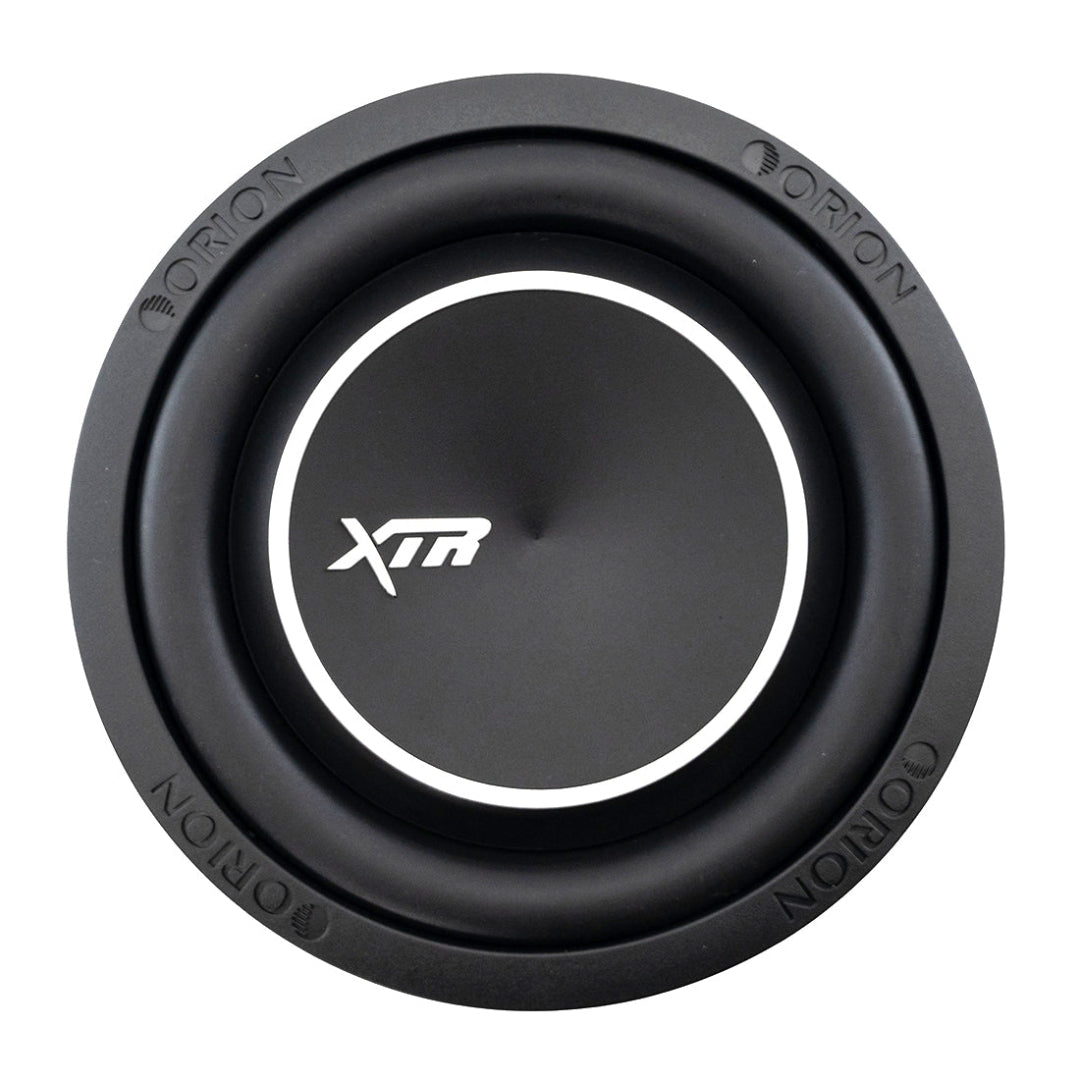

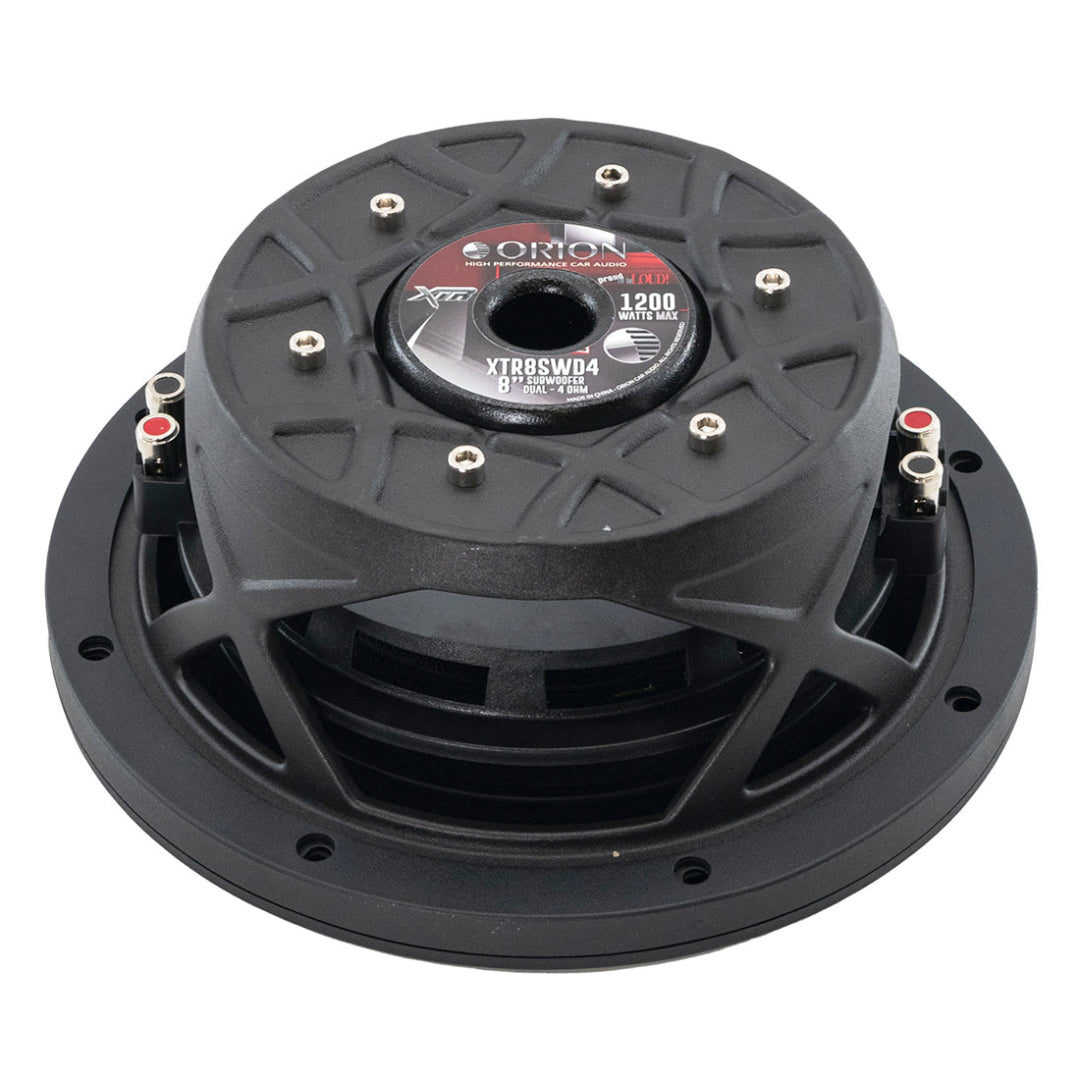

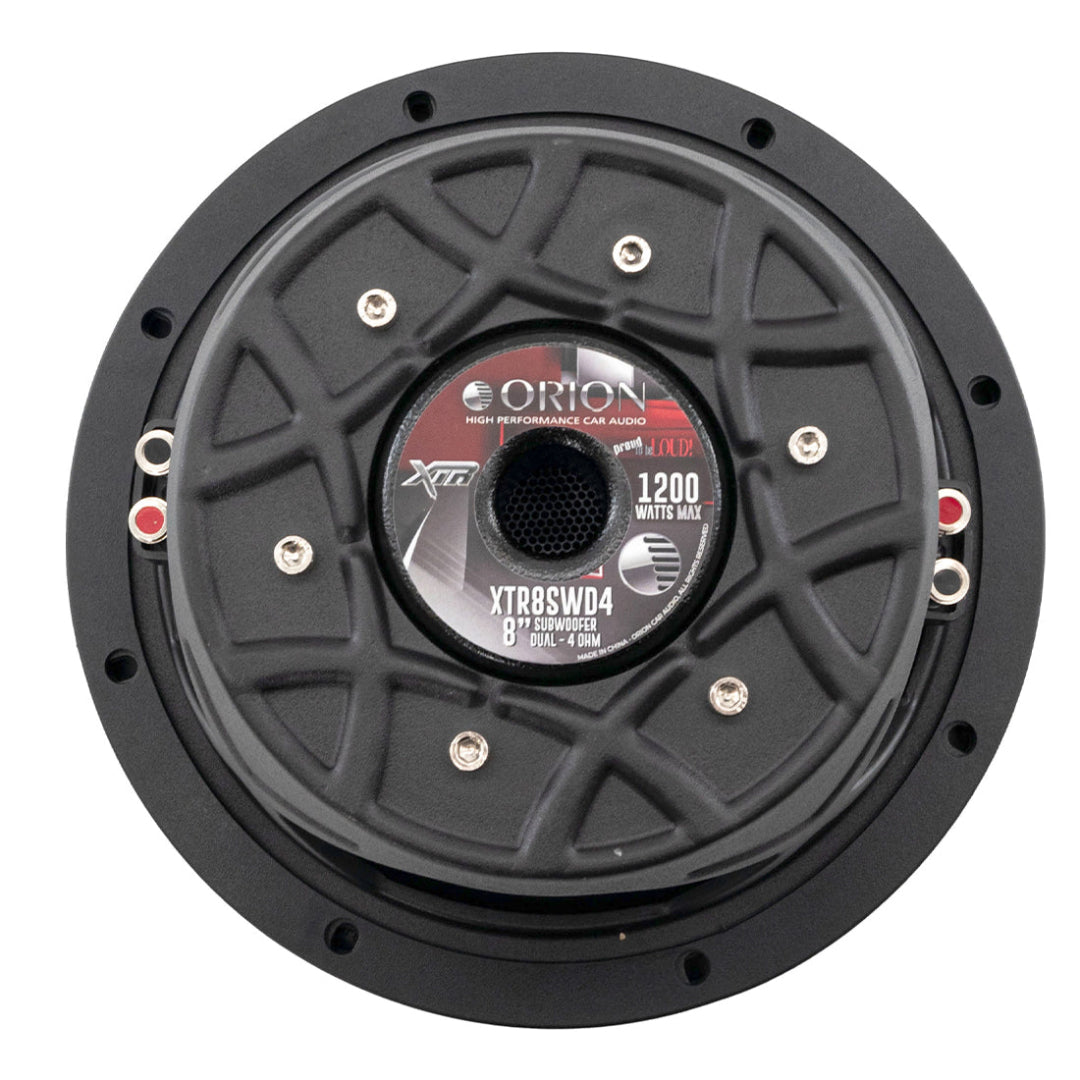

XTR8SWD4 - Dual 4 Ohm
- Subwoofer Size: 8 (Inches)
- Voice Coil Configuration: Dual 4-ohm
- Power Handling (Peak): 1200 Watts
- Power Handling (RMS): 300 Watts
- Sensitivity: 83 dB
- Frequency Response: 40 Hz - 300 Hz
- Dustcap Material: Polypropylene
- Cone Material: UV Coated Paper / Fiber Blend Cone
- Surround Material: NBR
- Magnet Information: Ceramic
- Mounting Depth: 70mm / 2.76 (Inches)
- Cutout Diameter: 180mm / 7.09 (Inches)
- Overall Diameter: 218mm / 8.58 (Inches)
