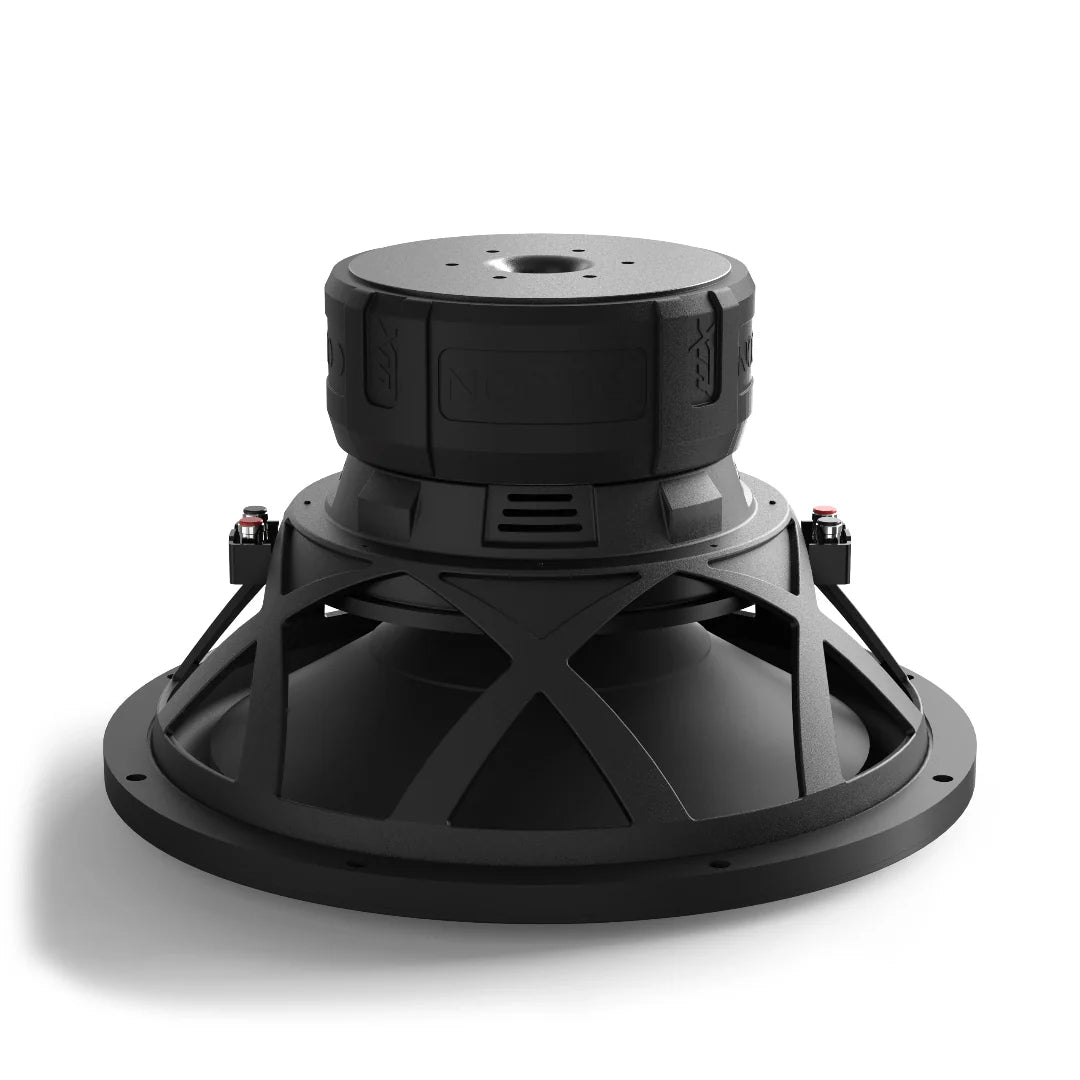

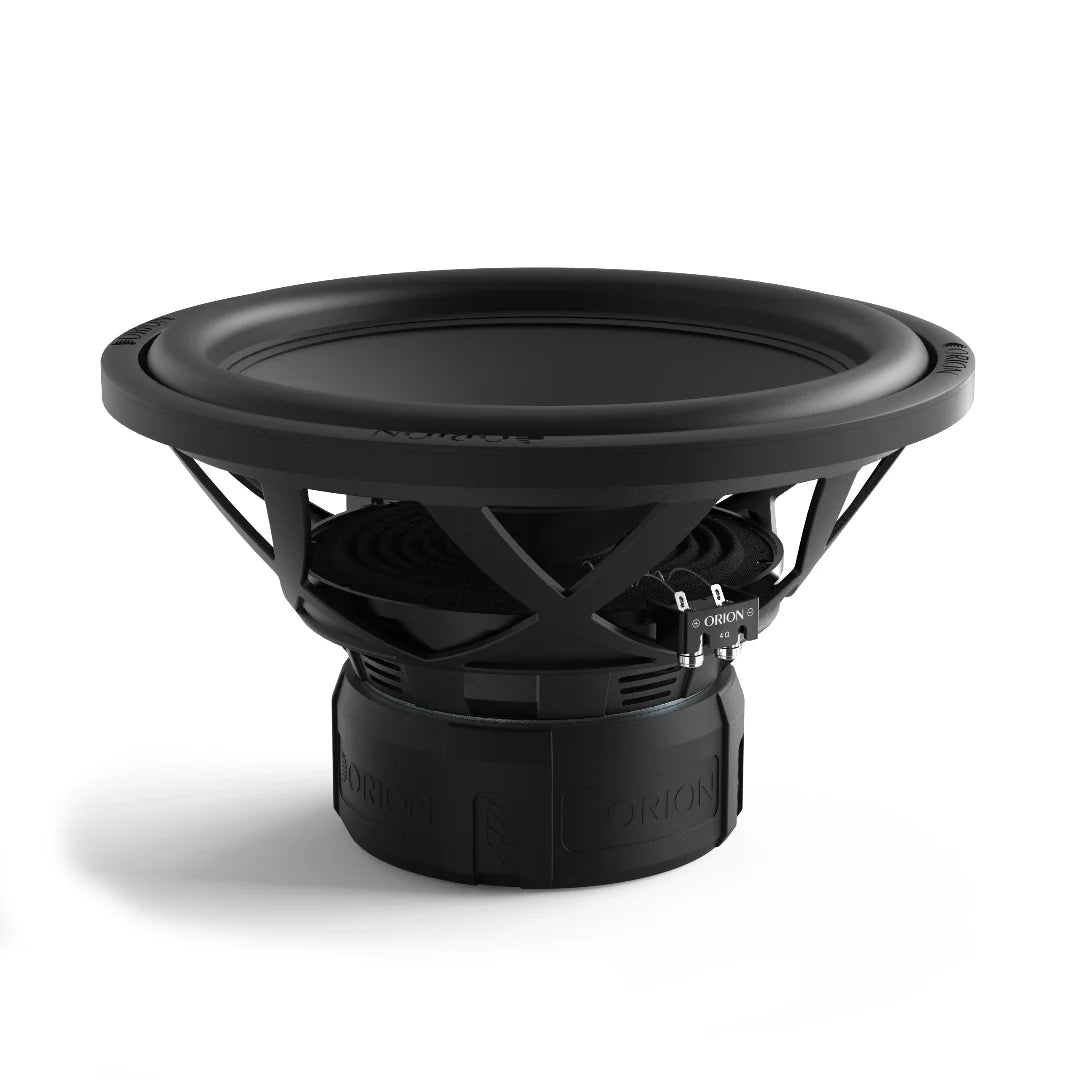

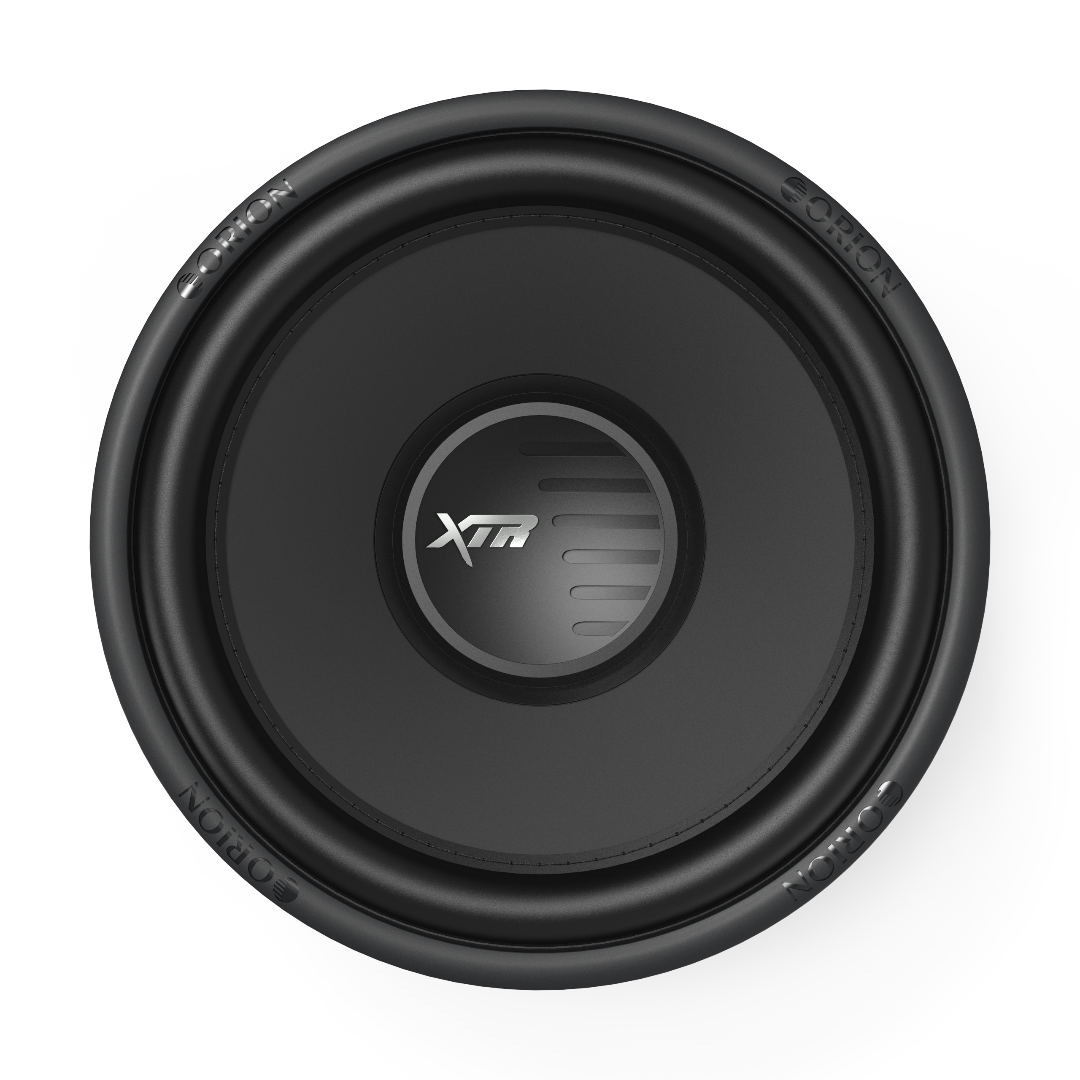

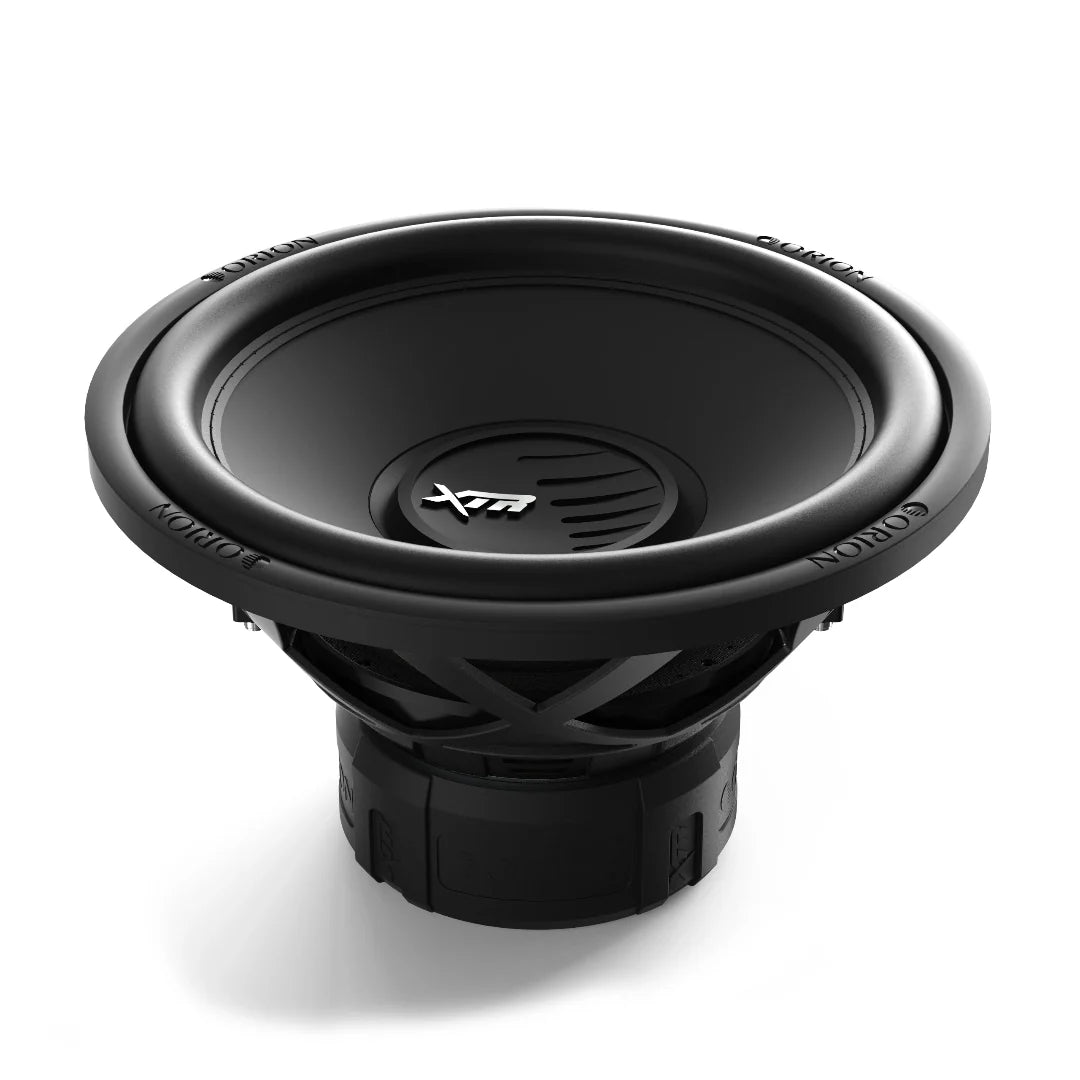

Orion XTR 15 Inch Subwoofer

High-Output 15 Inch Subwoofer Built for Deep, Authoritative Bass

The Orion Orion XTR 15 Inch Subwoofer delivers massive low-frequency performance in a powerful, performance-driven design. Specifically engineered as a 15 inch dual 2 ohm car subwoofer, it produces deep, controlled bass with impressive efficiency. As a result, it is ideal for high-output systems. With 750W RMS and 3000W peak power, it offers an excellent balance of output, durability, and long-term reliability.

Additionally, the dual 2-ohm voice coil configuration provides flexible wiring options. Because of this, matching amplifier loads becomes easier across a wide range of system layouts. Therefore, the Orion XTR 15 Inch Subwoofer works well in daily-driven builds, high-output trunk systems, and multi-subwoofer configurations.

Built for Clean, Powerful Output

To ensure consistent performance, the Orion XTR 15 Inch Subwoofer features a UV-coated paper and fiber blend cone. Moreover, it uses a durable Santoprene surround to support high excursion while maintaining control. Together, these materials help reduce distortion while delivering strong, accurate bass response.

At its core, the subwoofer uses a 3-inch copper-clad aluminum voice coil. As a result, heat handling and power stability are improved during extended listening sessions. In addition, a ceramic magnet motor structure provides strong control and efficiency across the operating range.

Whether installed in a sealed enclosure for tight response or a ported enclosure for maximum impact, this 15 inch dual 2 ohm car subwoofer delivers deep, authoritative bass that remains clean and controlled.

Ideal For

• High-output trunk and cargo-area installations
• Daily-driven systems requiring deep bass authority
• Multi-subwoofer setups using dual voice coils
• Performance-focused car audio builds

Key Features

• 15 inch dual 2 ohm car subwoofer
• 750W RMS / 3000W peak power handling
• Dual voice coil design for flexible wiring configurations
• UV-coated paper and fiber blend cone
• Santoprene surround for durability and excursion control
• 3" high-temperature voice coil for improved power handling
• Ceramic magnet motor structure
• 6.85" mounting depth
• Optimized for sealed and ported enclosures
• Proven Orion Car Audio XTR Series build quality

Key Features

• Engineering Excellence: The Orion Orion XTR 15 Inch Subwoofer subwoofer represents engineering prowess with a peak power handling of 3000 Watts and RMS power handling of 1000 Watts.
• Dual 2 ohm Configuration: Equipped with a dual 2 ohm voice coil setup, this subwoofer offers versatile wiring options for seamless integration into a wide range of audio setups.
• Superior Sound Reproduction: The UV-coated paper/fiber blend cone and Santoprene surround ensure precise sound reproduction, maintaining clarity even under high-power conditions.
• Efficient Sensitivity: With a sensitivity rating of 87.3 dB, this subwoofer efficiently converts power into impactful sound, delivering dynamic and detailed bass response.
• Extended Frequency Range: The subwoofer's frequency response spans from 20 Hz to 250 Hz, capturing both the deep rumble and intricate details of your music.
• Advanced Cooling System: Designed for reliability, the subwoofer features an advanced cooling system to prevent overheating and ensure consistent performance.
• Flexible Impedance: The dual 2-ohm impedance configuration ensures compatibility with a variety of amplifiers and audio systems, facilitating seamless integration.
• High-Quality Magnet: Equipped with a ceramic magnet structure, the subwoofer generates powerful magnetic fields, contributing to accurate and resonant bass reproduction.

Specifications

• Subwoofer Size: 15" (Inches)
• Voice Coil Configuration: Dual 2 ohm
• Power Handling (Peak): 3000 Watts
• Power Handling (RMS): 750 Watts
• Sensitivity: 87.3 dB
• Frequency Response: 20 Hz - 250 Hz
• Voice Coil Diameter: 3" (Inches)
• Cone Material: UV-Coated Paper/Fiber Blend Cone
• Surround Material: Santoprene
• Mounting Depth: 8.27" (Inches)
• Cutout Diameter: 13.62" (Inches)
• Magnet Material: Ceramic
• Overall Diameter: 15.31" (Inches)

Available Options

• Impedance: Dual 2 Ohm
• Impedance: Dual 4 Ohm

The Kaos Run Down

• Manufacturer SKUs: ORI-XTR15D2, ORI-XTR15D4
• Product Type: Subwoofers
• Audio Type: Subwoofer
• Option: Impedance
• Available Options: Dual 2 Ohm, Dual 4 Ohm
• Source: Orion
