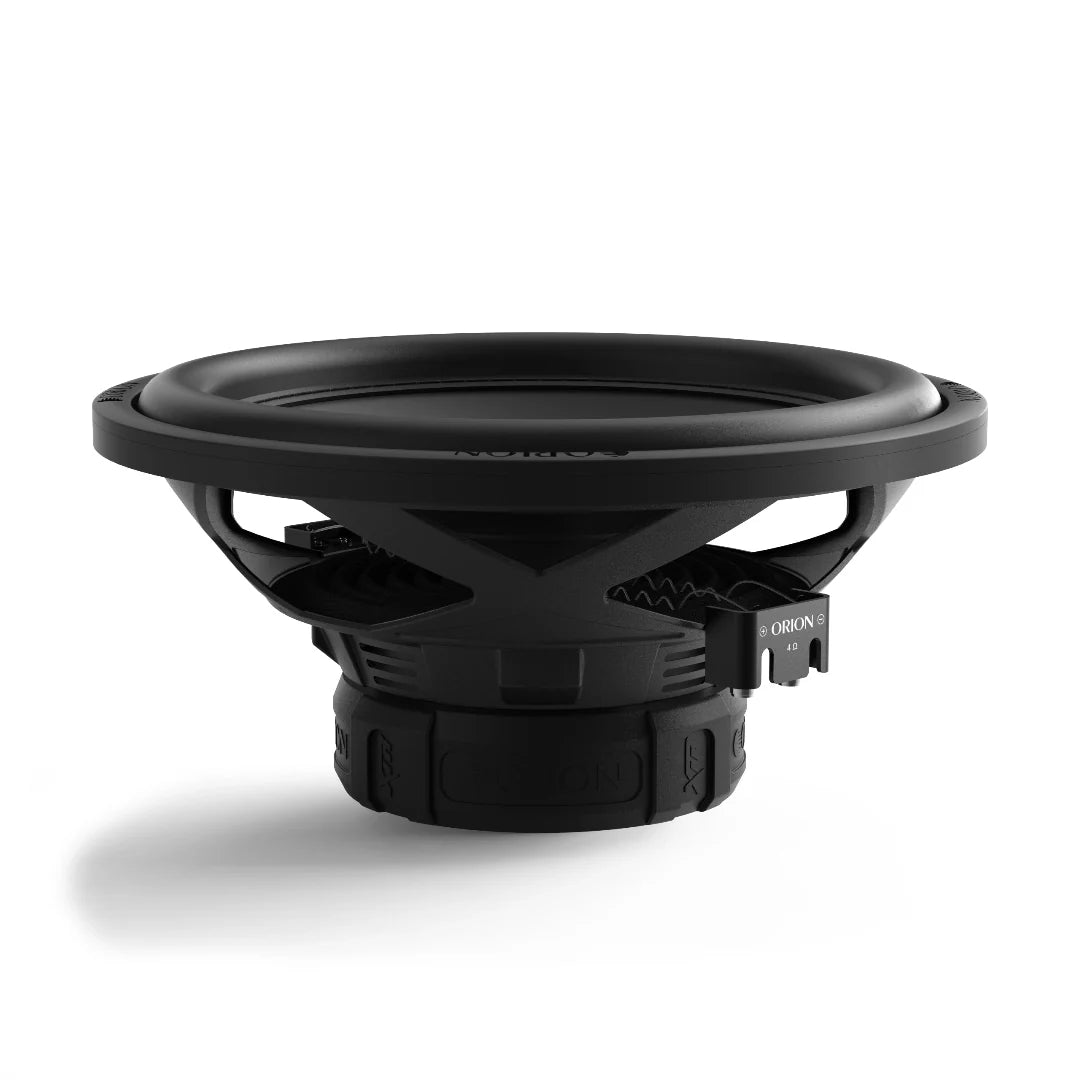

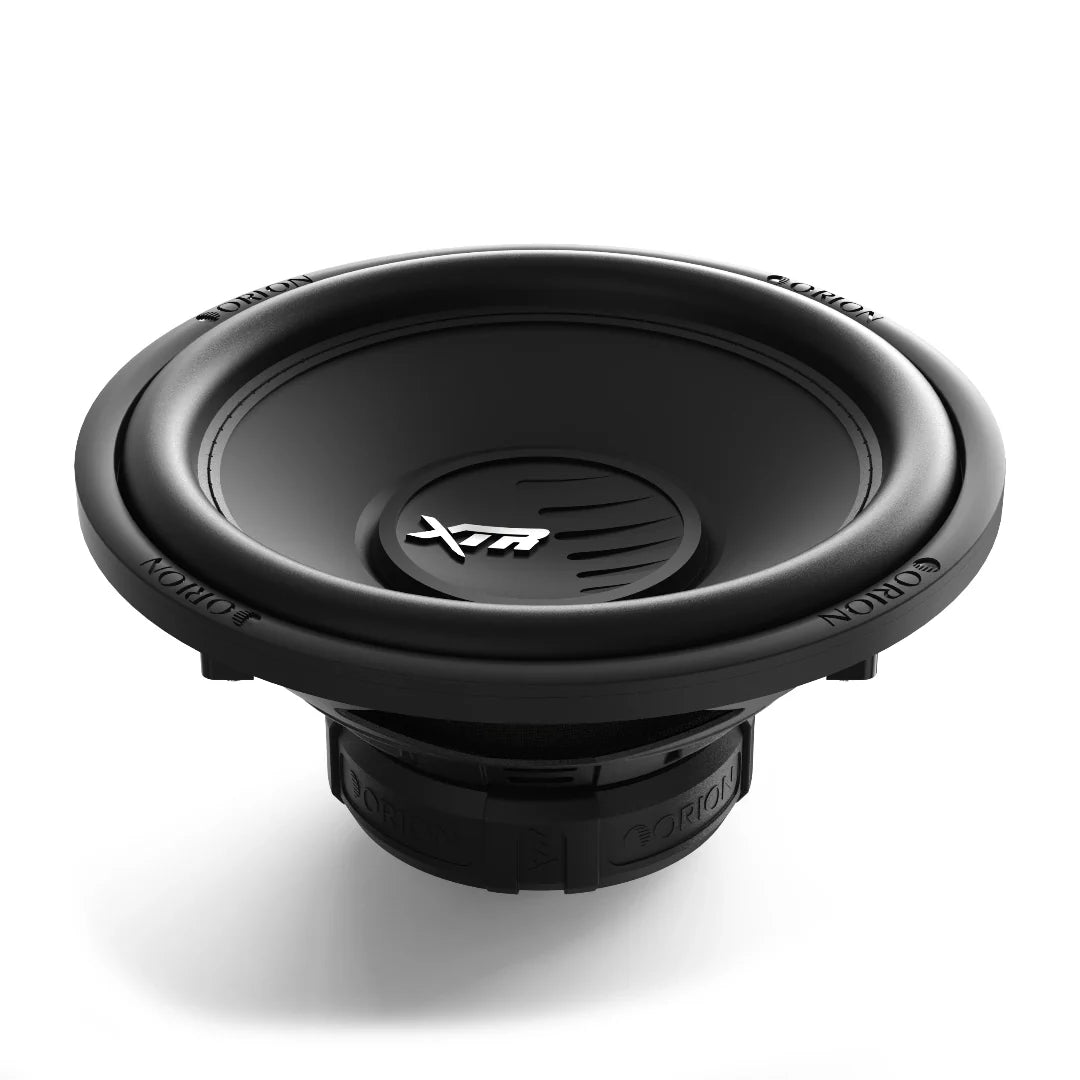

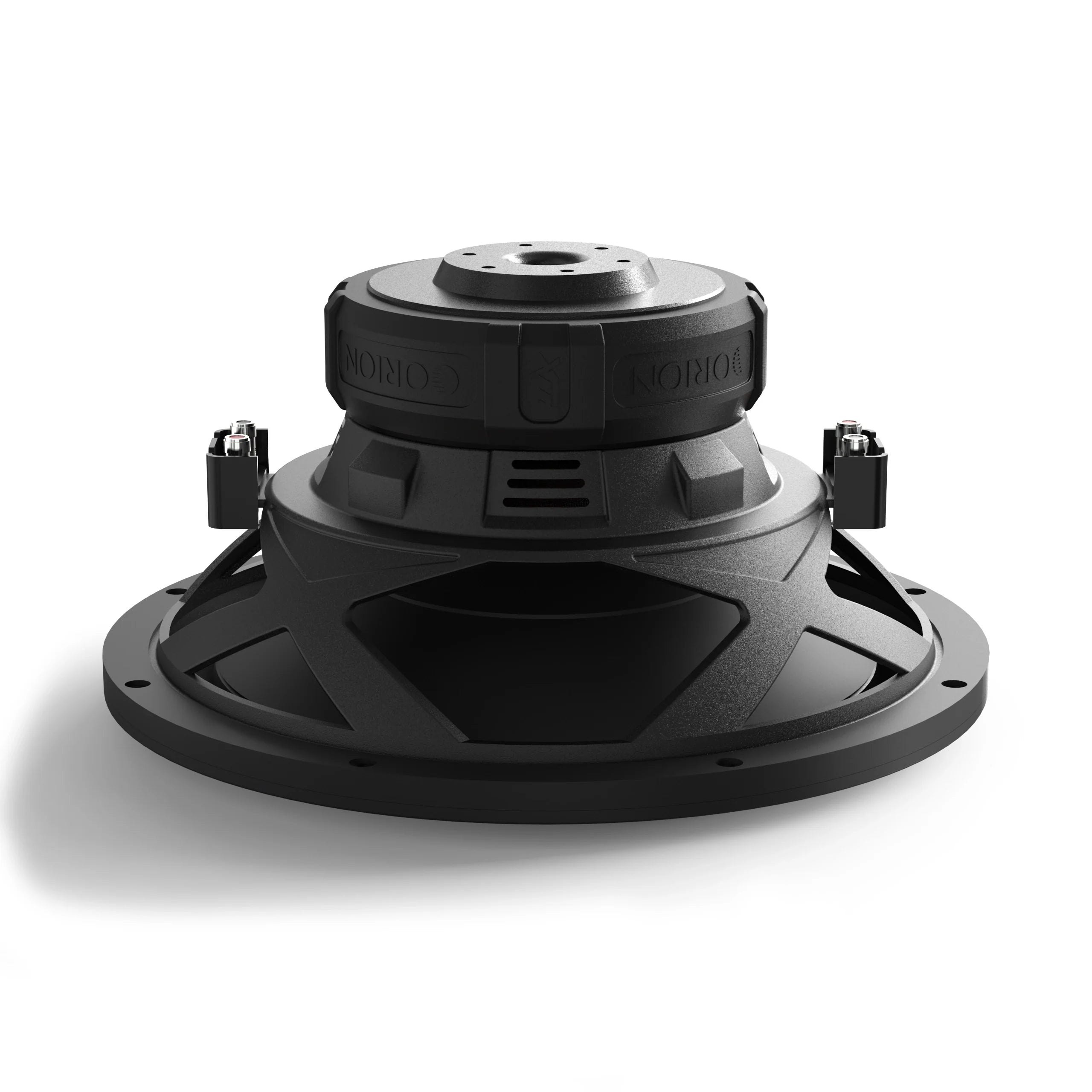

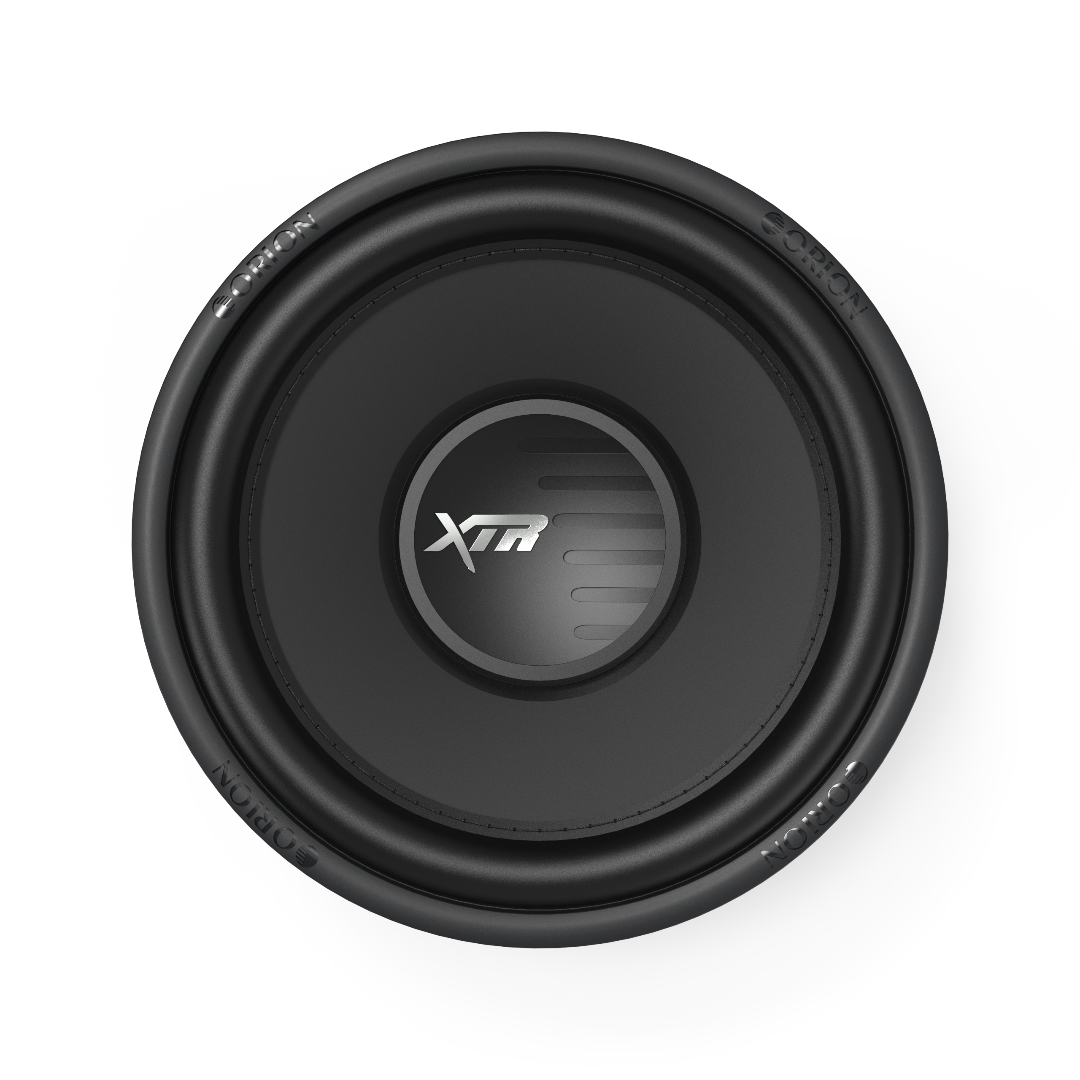

Orion XTR 12 Inch Subwoofer - 600 Watts RMS
Orion XTR 12 Inch Subwoofer - 600 Watts RMS
Orion XTR 12 Inch Subwoofer - 600 Watts RMS
Orion XTR 12 Inch Subwoofer - 600 Watts RMS. Available manufacturer models: XTR12D2 (Dual 2 Ohm), XTR12D4 (Dual 4 Ohm). Select the impedance or configuration that matches your system; specifications for each model are listed below.
Manufacturer specifications
XTR12D2 - Dual 2 Ohm
- Subwoofer Size: 12" (Inches)
- Voice Coil Configuration: Dual 2-ohm
- Power Handling (Peak): 2400 Watts
- Power Handling (RMS): 600 Watts
- Sensitivity: 87.38 dB
- Frequency Response: 20 Hz - 250 Hz
- Voice Coil Diameter: 2 (Inches)
- Dustcap Material: Polypropylene
- Cone Material: UV Coated Paper / Fiber Blend Cone
- Surround Material: Santoprene
- Magnet Information: 55 Oz Ceramic
- Mounting Depth: 145mm / 5.71 (Inches)
- Cutout Diameter: 279mm / 10.98 (Inches)
- Overall Diameter: 319mm / 12.56 (Inches)
XTR12D4 - Dual 4 Ohm
- Subwoofer Size: 12" (Inches)
- Voice Coil Configuration: Dual 4-ohm
- Power Handling (Peak): 2400 Watts
- Power Handling (RMS): 600 Watts
- Sensitivity: 87.27 dB
- Frequency Response: 20 Hz - 250 Hz
- Voice Coil Diameter: 2" (Inches)
- Dustcap Material: Polypropylene
- Cone Material: UV Coated Paper / Fiber Blend Cone
- Surround Material: Santoprene
- Magnet Information: 55 Oz Ceramic
- Mounting Depth: 145mm / 5.71 (Inches)
- Cutout Diameter: 279mm / 10.98 (Inches)
- Overall Diameter: 319mm / 12.56 (Inches)
