Orion XTR 12 Inch Shallow Subwoofer - 500 Watts RMS. Available manufacturer models: XTR12SWD2 (Dual 2 Ohm), XTR12SWD4 (Dual 4 Ohm). Select the impedance or configuration that matches your system; specifications for each model are listed below.
Manufacturer specifications

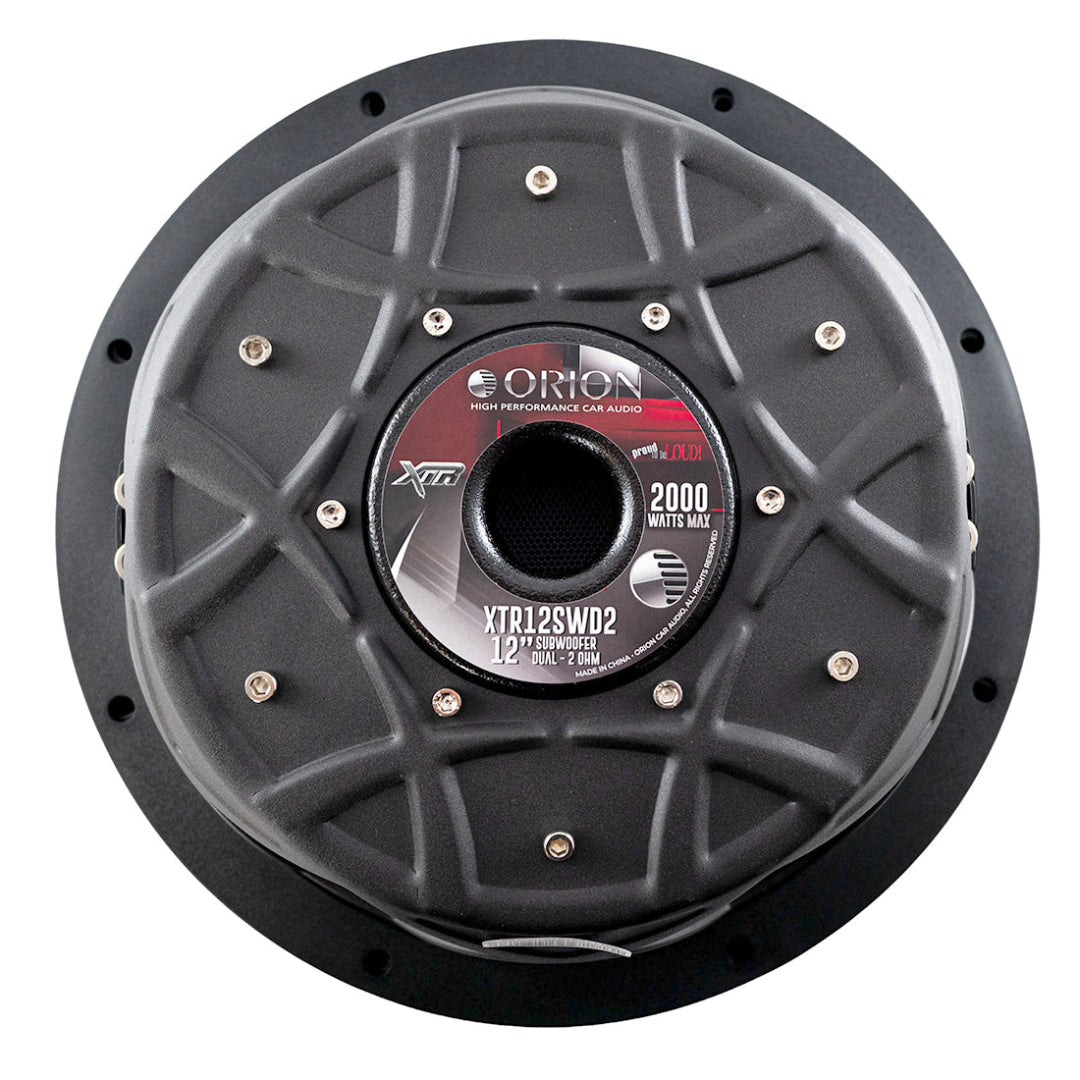

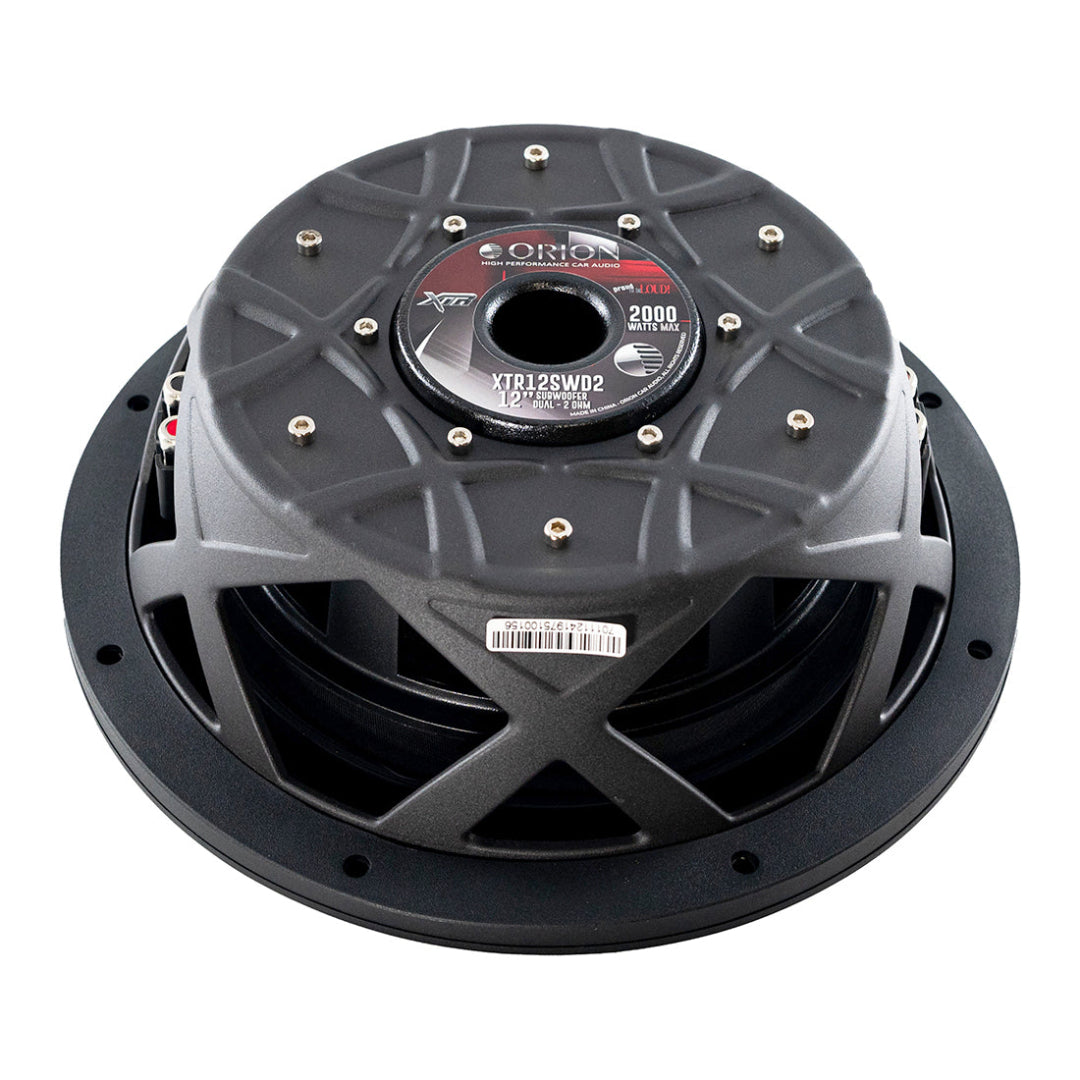

XTR12SWD2 - Dual 2 Ohm
- Subwoofer Size: 12 (Inches)
- Voice Coil Configuration: Dual 2-ohm
- Power Handling (Peak): 2000 Watts
- Power Handling (RMS): 500 Watts
- Sensitivity: 85 dB
- Frequency Response: 28 Hz - 300 Hz
- Dustcap Material: Polypropylene
- Cone Material: UV Coated Paper / Fiber Blend Cone
- Surround Material: NBR
- Magnet Information: Ceramic
- Mounting Depth: 91mm / 3.58 (Inches)
- Cutout Diameter: 280mm / 11.02 (Inches)
- Overall Diameter: 324mm / 12.76 (Inches)

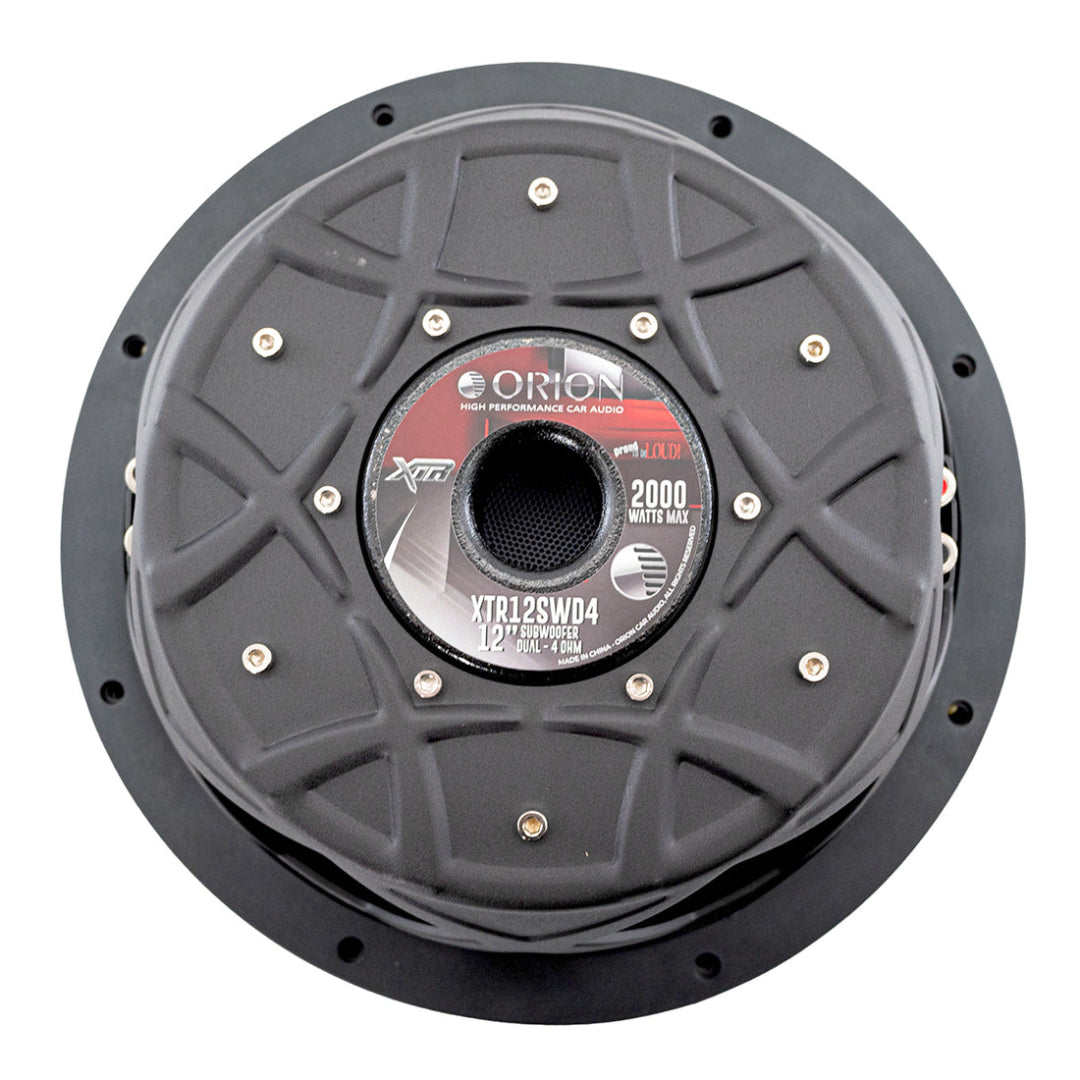

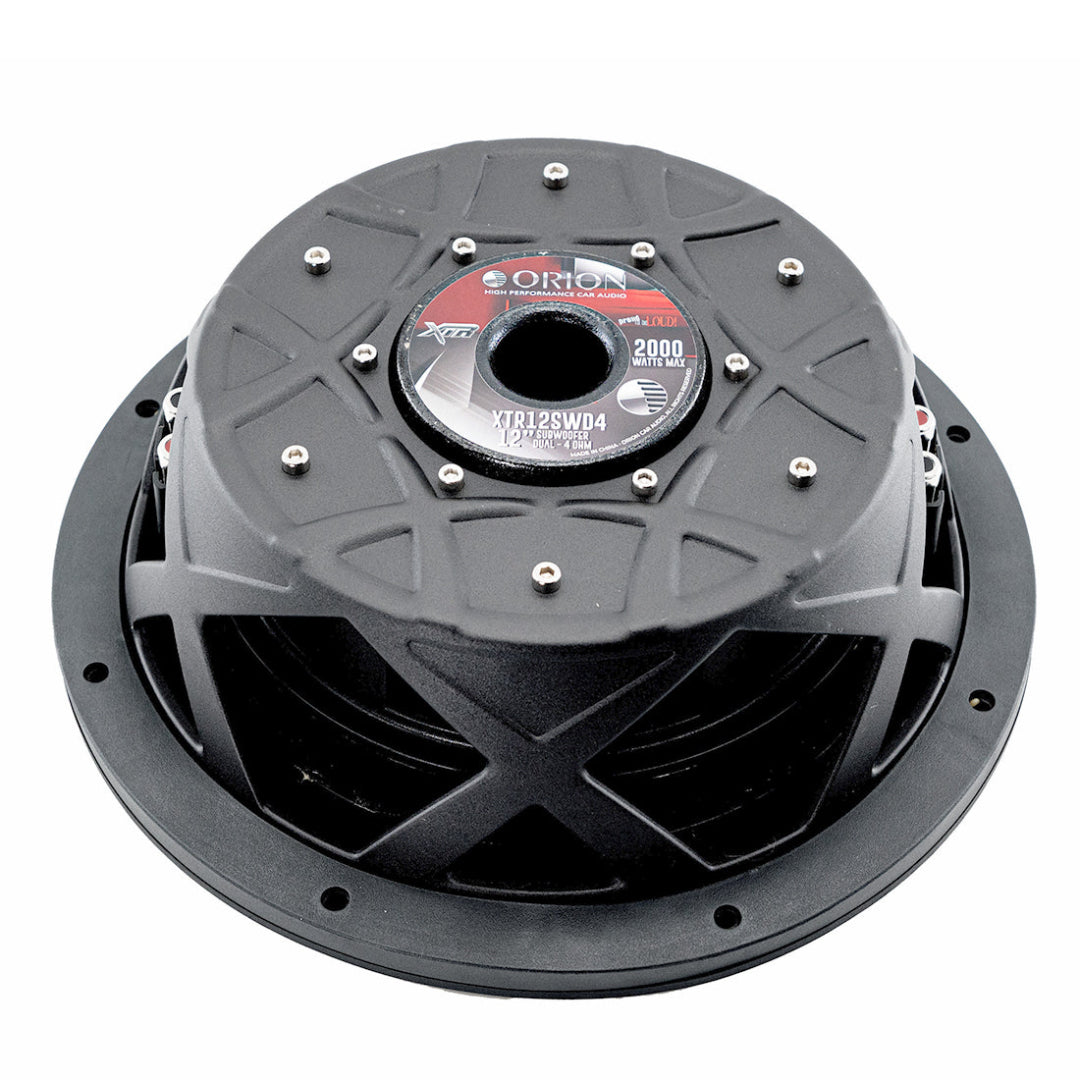

XTR12SWD4 - Dual 4 Ohm
- Subwoofer Size: 12 (Inches)
- Voice Coil Configuration: Dual 4-ohm
- Power Handling (Peak): 2000 Watts
- Power Handling (RMS): 500 Watts
- Sensitivity: 85 dB
- Frequency Response: 28 Hz - 300 Hz
- Dustcap Material: Polypropylene
- Cone Material: UV Coated Paper / Fiber Blend Cone
- Surround Material: NBR
- Magnet Information: Ceramic
- Mounting Depth: 91mm / 3.58 (Inches)
- Cutout Diameter: 280mm / 11.02 (Inches)
- Overall Diameter: 324mm / 12.76 (Inches)
