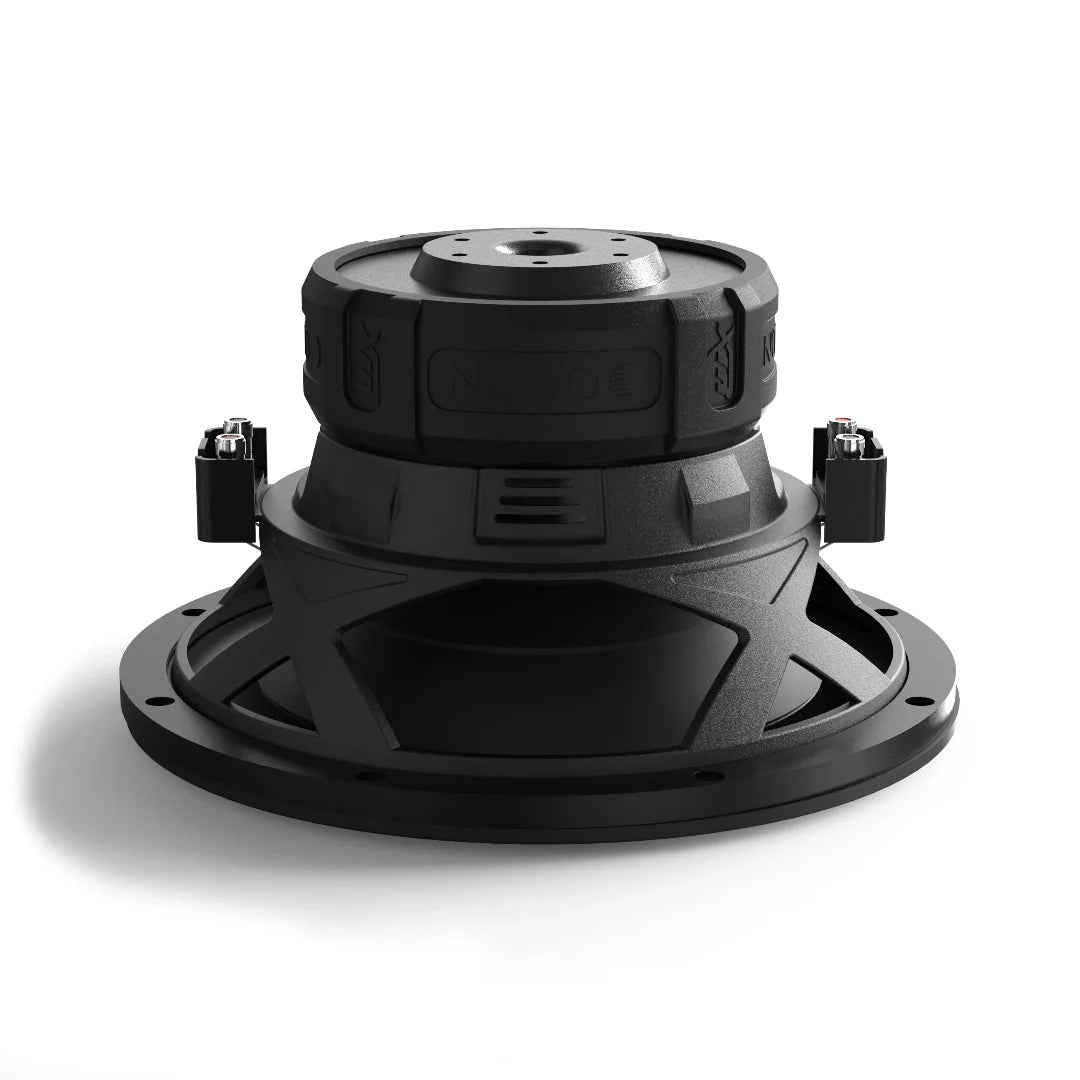

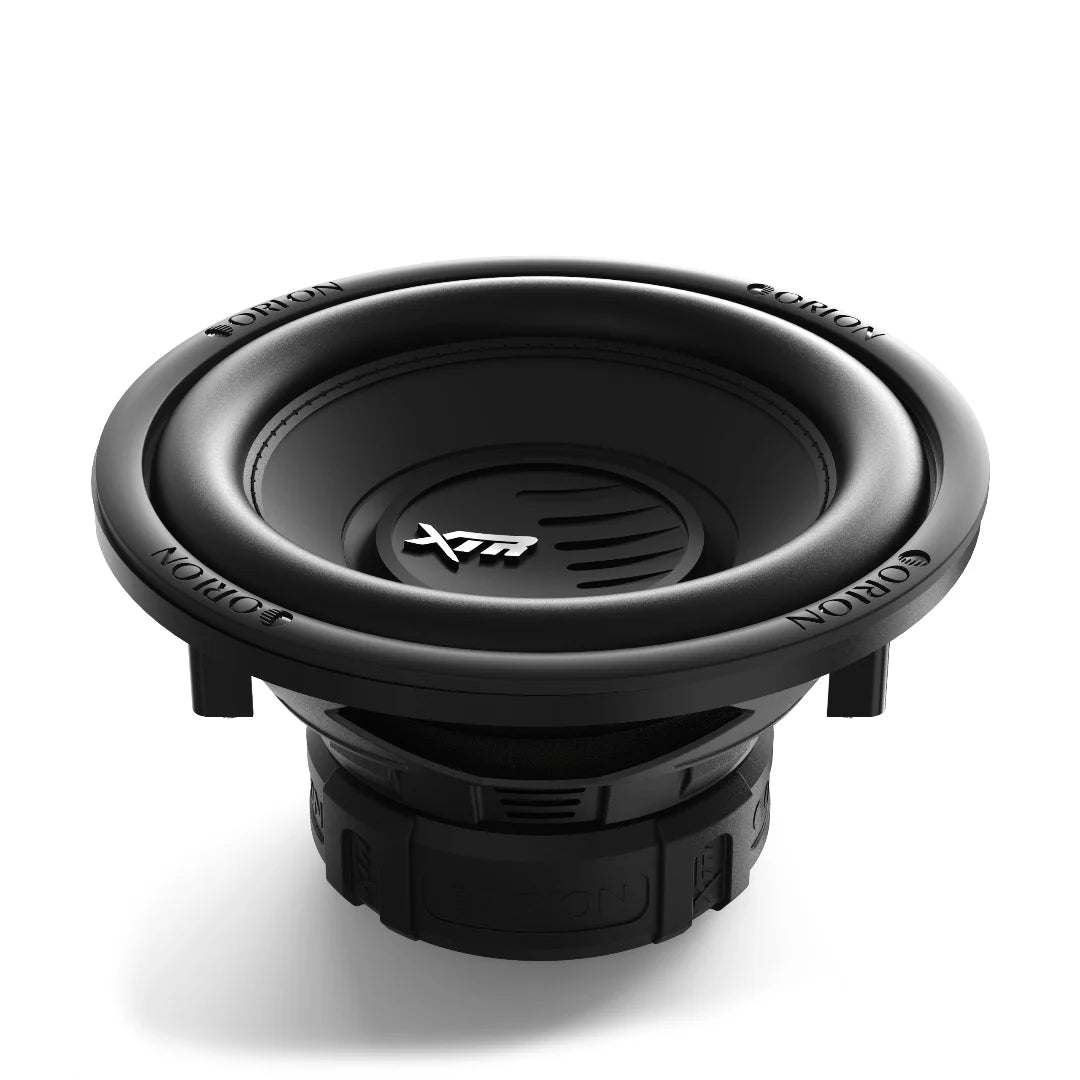

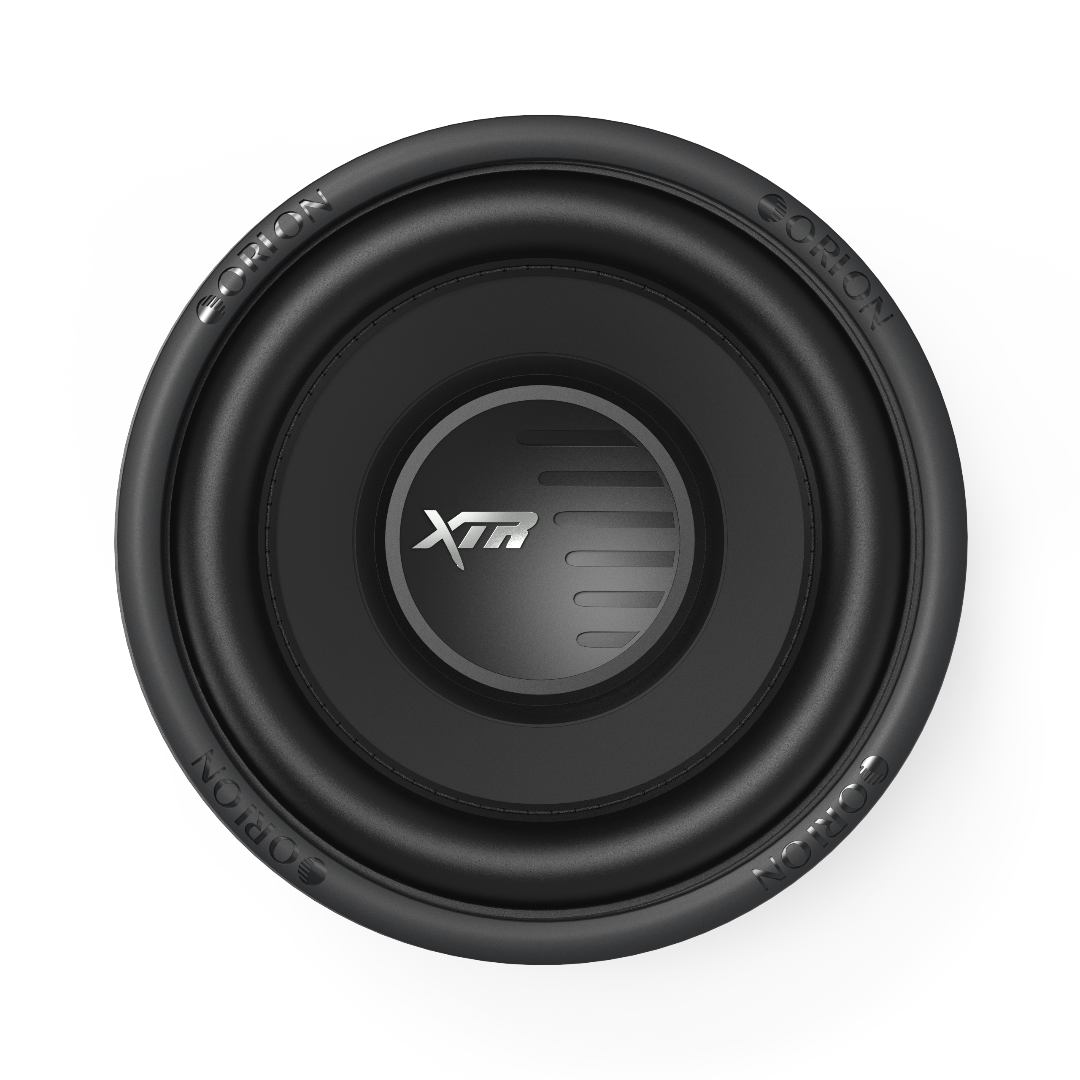

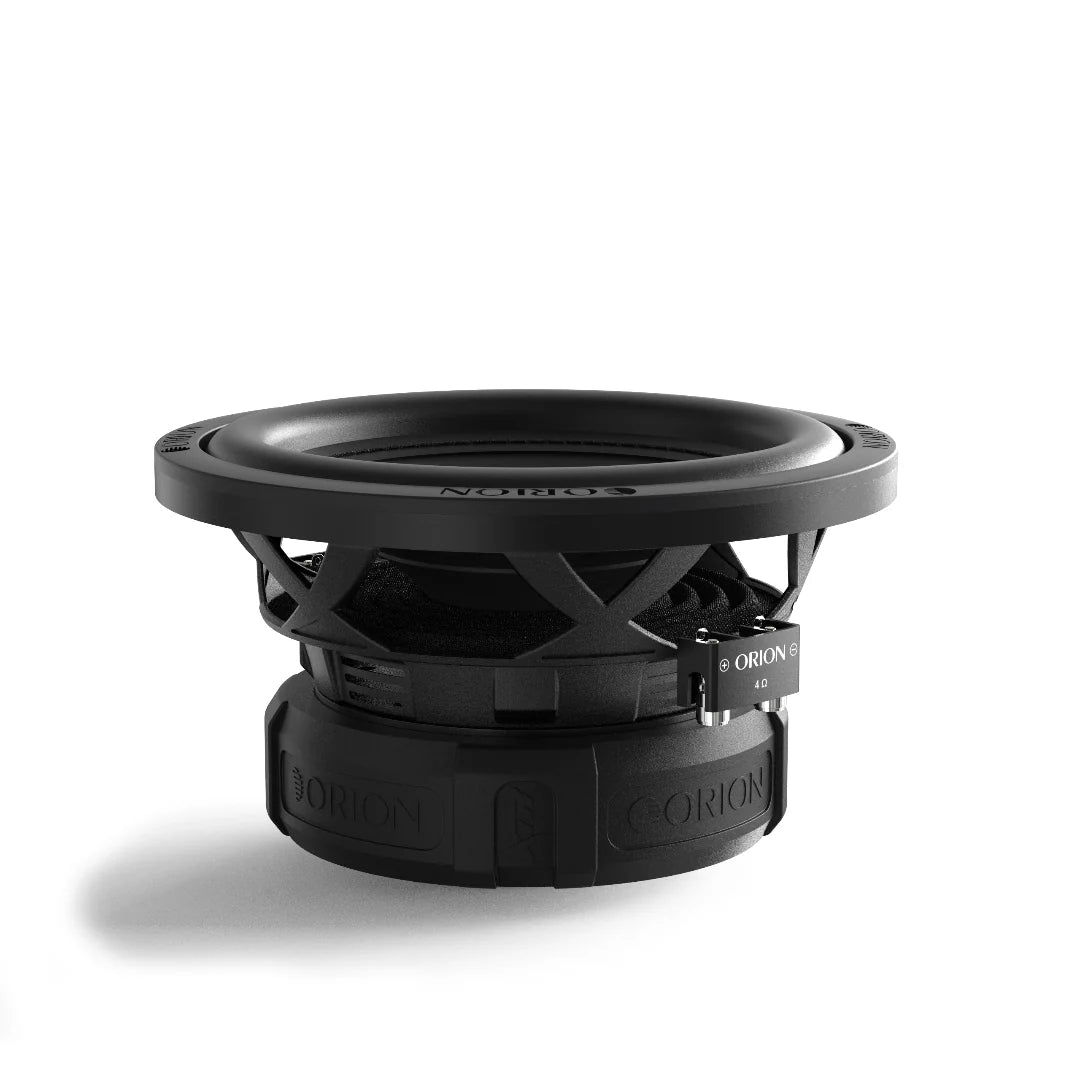

Orion XTR 10 Inch Subwoofer - 500 Watts RMS
Orion XTR 10 Inch Subwoofer - 500 Watts RMS
Orion XTR 10 Inch Subwoofer - 500 Watts RMS
Orion XTR 10 Inch Subwoofer - 500 Watts RMS. Available manufacturer models: XTR10D4 (Dual 4 Ohm), XTR10D2 (Dual 2 Ohm). Select the impedance or configuration that matches your system; specifications for each model are listed below.
Manufacturer specifications
XTR10D4 - Dual 4 Ohm
- Subwoofer Size: 10 (Inches)
- Voice Coil Configuration: Dual 4-ohm
- Power Handling (Peak): 2000 Watts
- Power Handling (RMS): 500 Watts
- Sensitivity: 84.65 dB
- Frequency Response: 20 Hz - 250 Hz
- Dustcap Material: Polypropylene
- Cone Material: UV Coated Paper / Fiber Blend Cone
- Surround Material: Santoprene
- Magnet Information: Ceramic
- Mounting Depth: 138mm / 5.43 (Inches)
- Cutout Diameter: 230mm / 9.09 (Inches)
- Overall Diameter: 263mm / 10.35 (Inches)
XTR10D2 - Dual 2 Ohm
- Subwoofer Size: 10 (Inches)
- Voice Coil Configuration: Dual 2-ohm
- Power Handling (Peak): 2000 Watts
- Power Handling (RMS): 500 Watts
- Sensitivity: 83.7 dB
- Frequency Response: 20 Hz - 250 Hz
- Dustcap Material: Polypropylene
- Cone Material: UV Coated Paper / Fiber Blend Cone
- Surround Material: Santoprene
- Magnet Information: Ceramic
- Mounting Depth: 138mm / 5.43 (Inches)
- Cutout Diameter: 230mm / 9.09 (Inches)
- Overall Diameter: 263mm / 10.35 (Inches)
