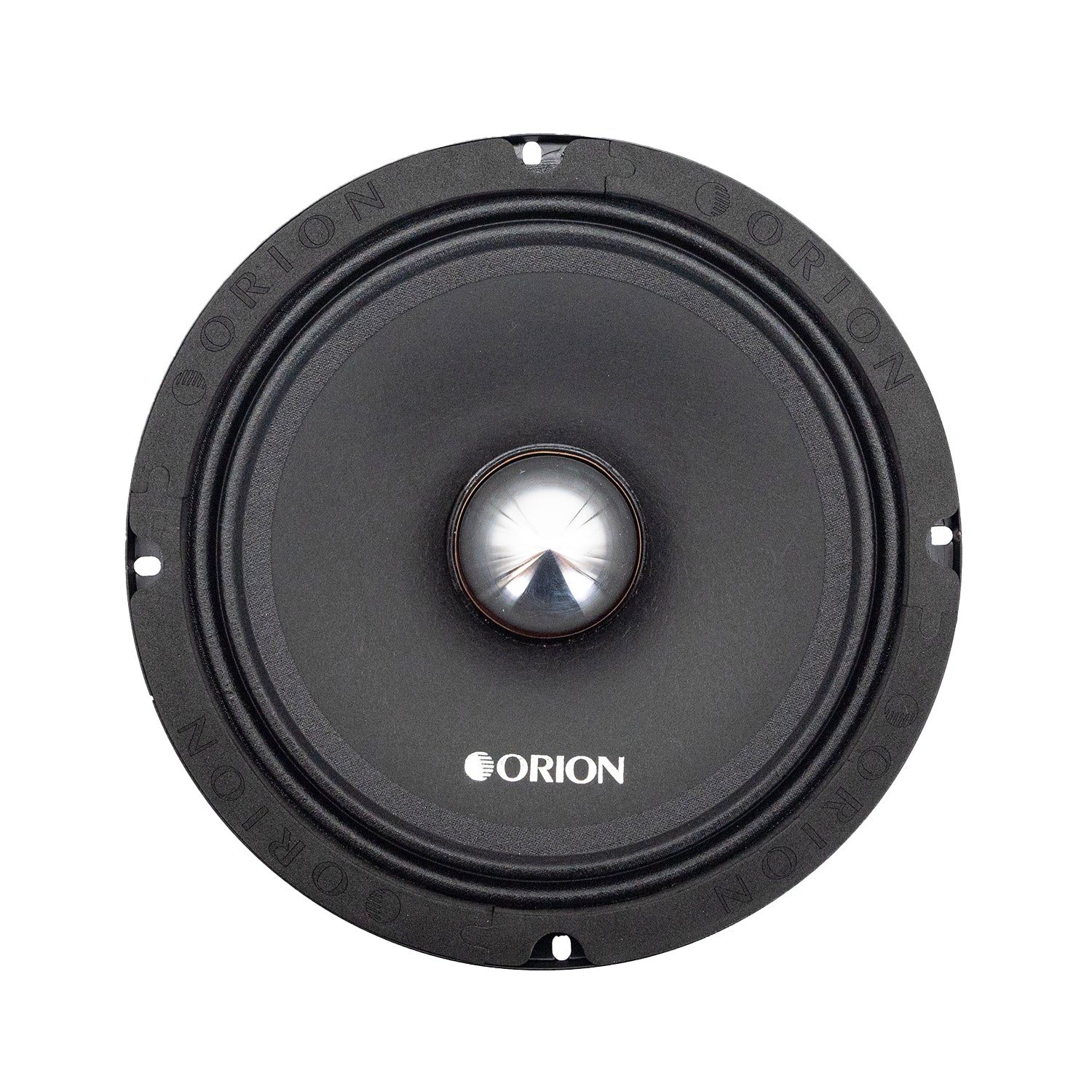

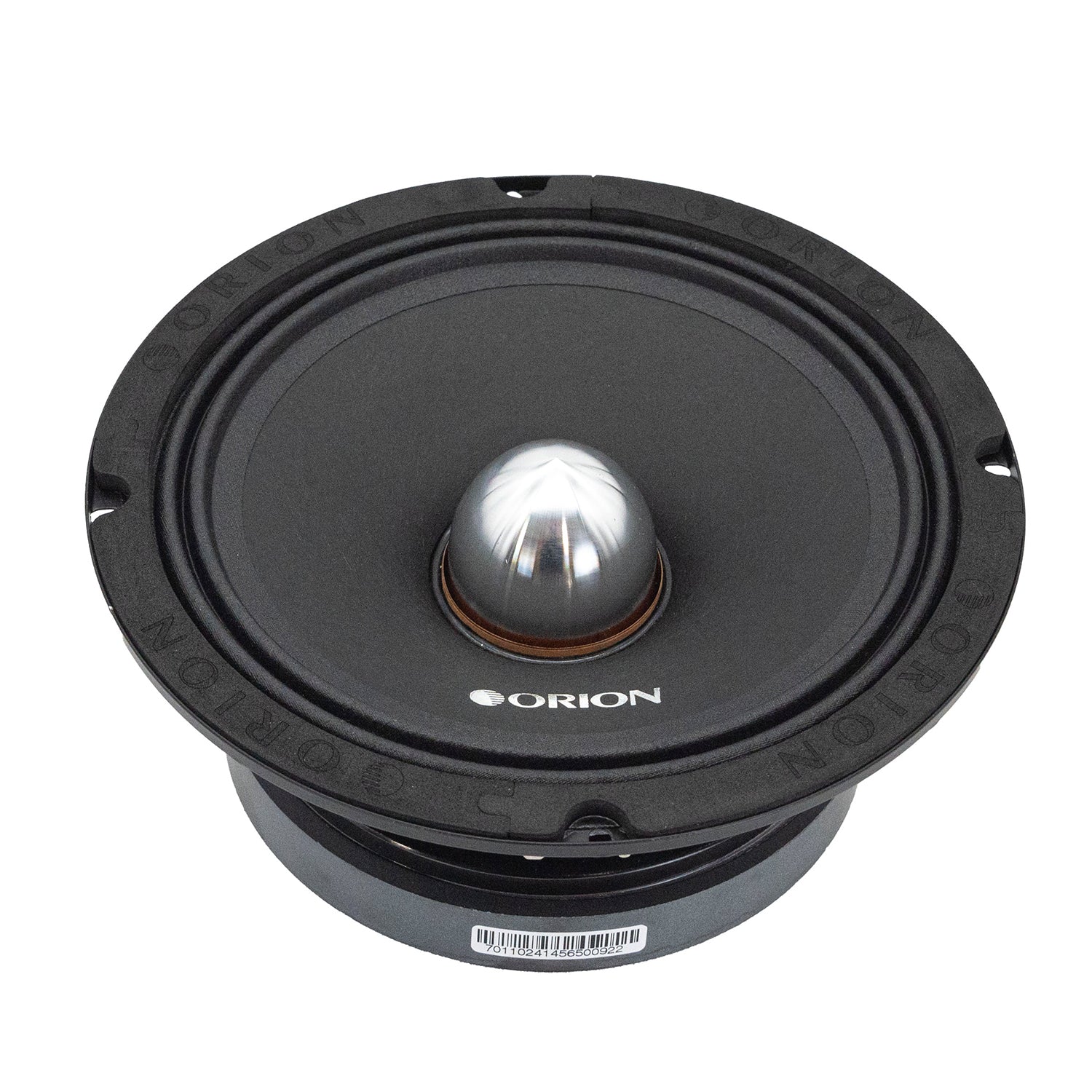

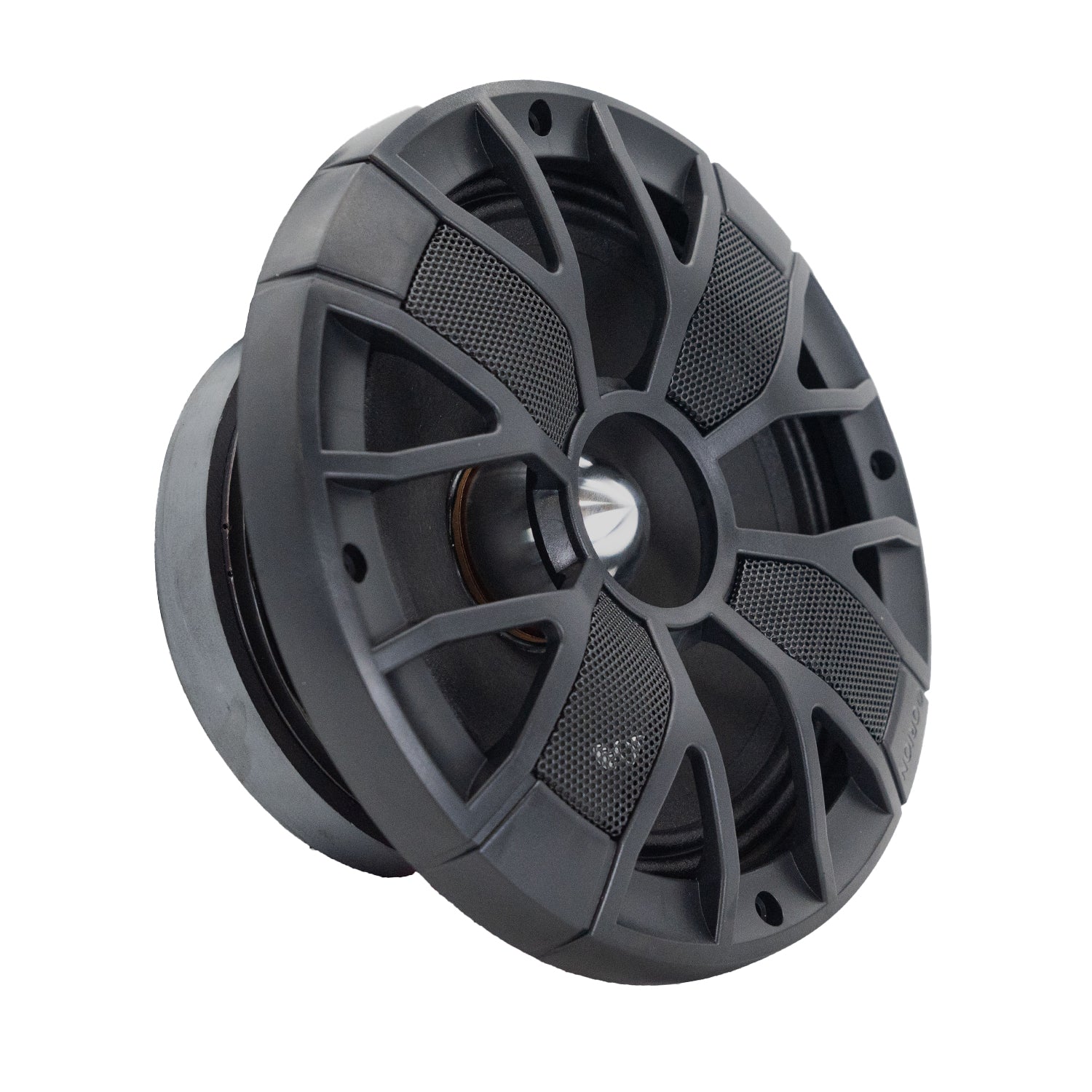

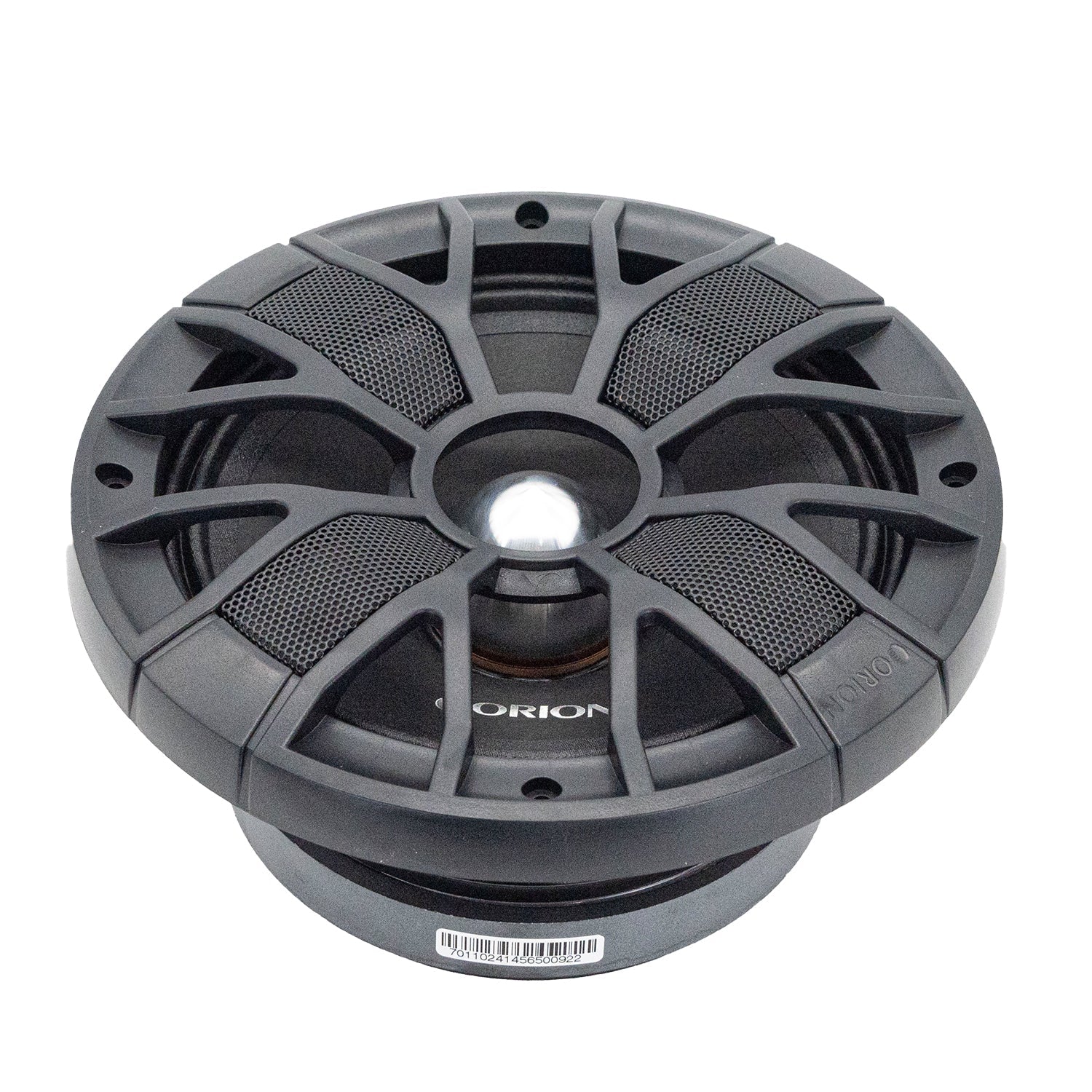

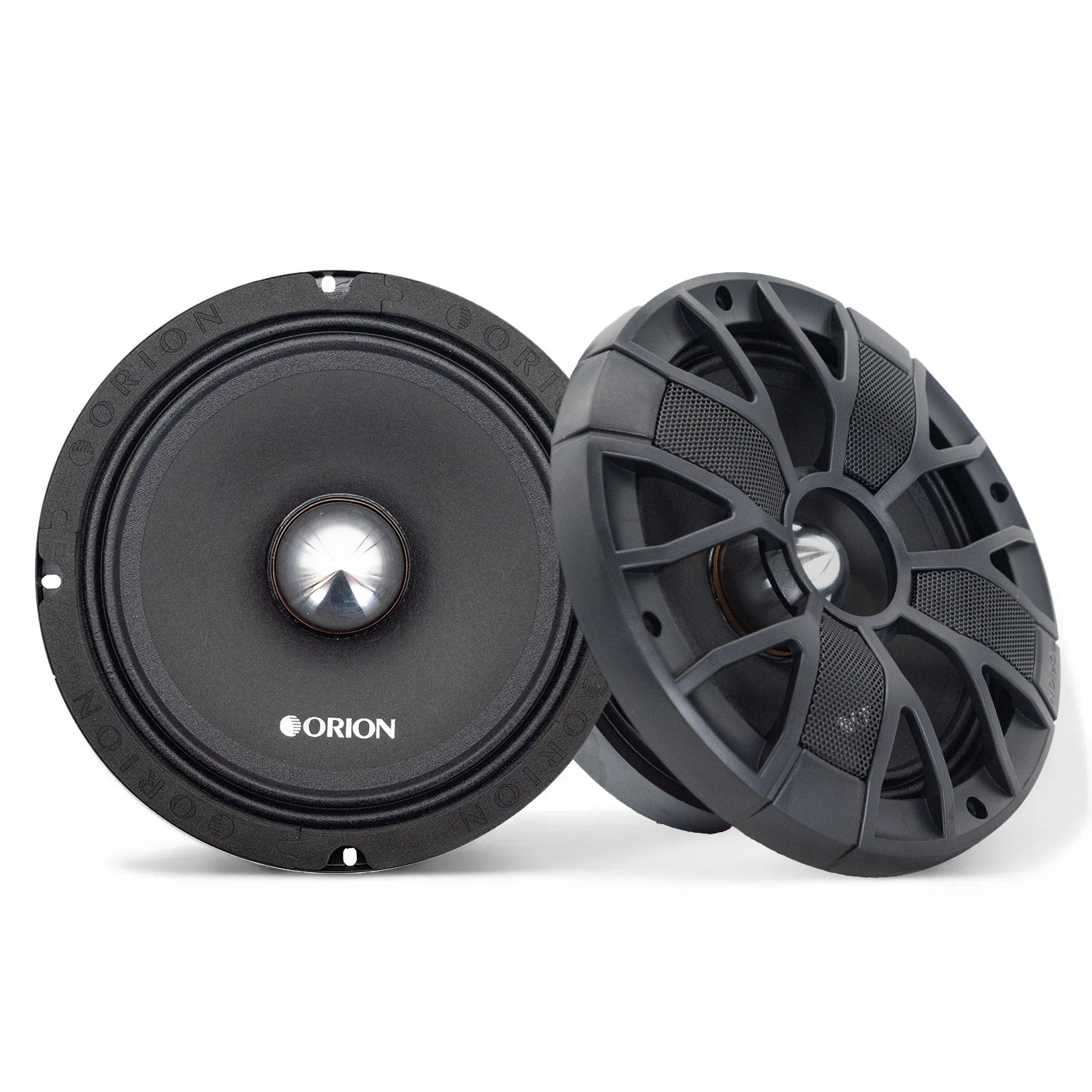

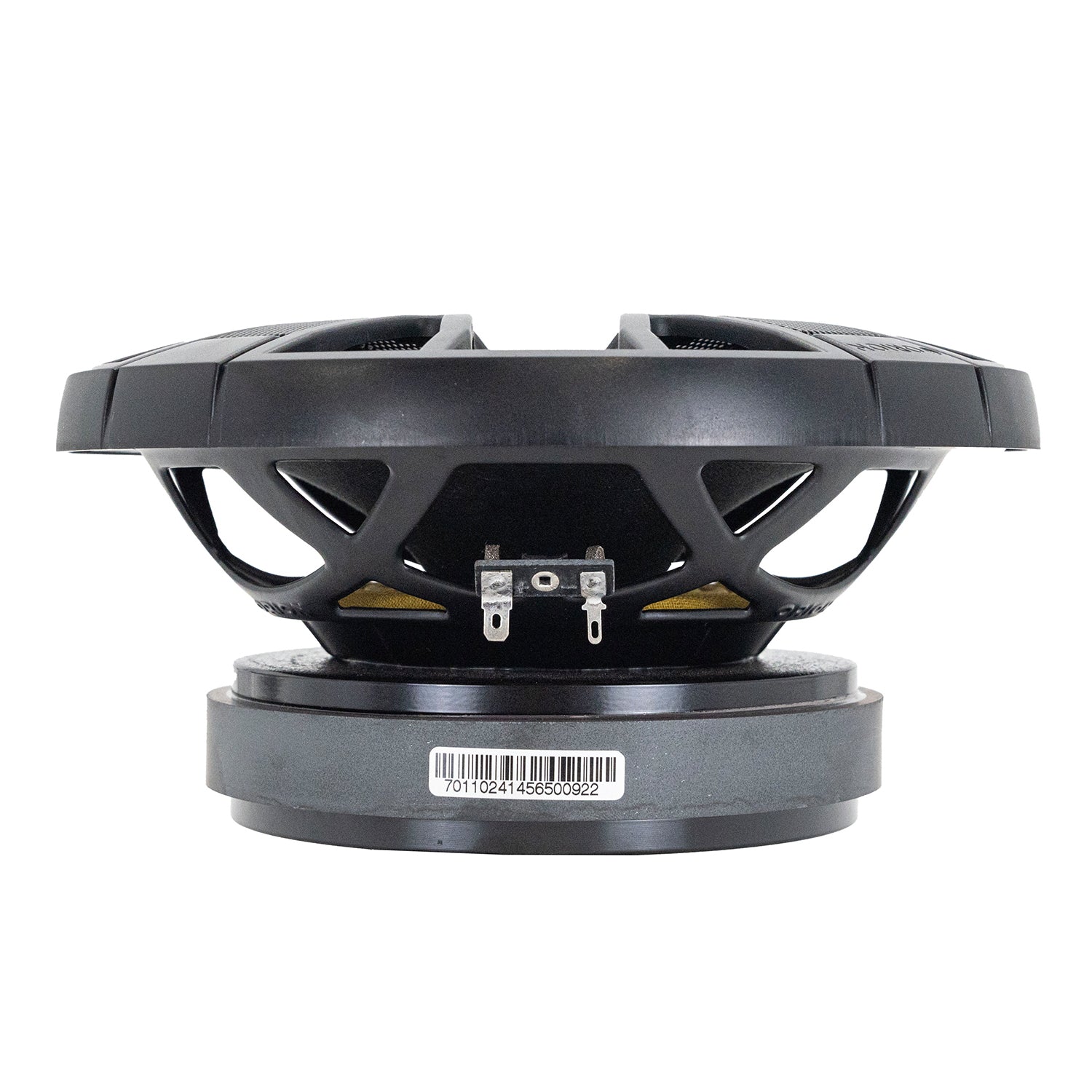

Orion XSM 8 Inch Slim Midrange Speaker - 350 Watts RMS
Orion XSM 8 Inch Slim Midrange Speaker - 350 Watts RMS
Orion XSM 8 Inch Slim Midrange Speaker - 350 Watts RMS
Orion XSM 8 Inch Slim Midrange Speaker - 350 Watts RMS. Available manufacturer models: XSM802SL (2 Ohm), XSM804SL (4 Ohm). Select the impedance or configuration that matches your system; specifications for each model are listed below.
Manufacturer specifications
XSM802SL - 2 Ohm
- Speaker Size: 8 (Inches)
- Voice Coil Configuration: 2 ohm
- Power Handling (Peak): 1400 Watts
- Power Handling (RMS): 350 Watts
- Sensitivity: 98 dB
- Frequency Response: 80 Hz - 20 kHz
- Voice Coil Diameter: 2" (Inches)
- Material: Heavy Gauges Stamped Steel
- Cone Material: Non Pressed Paper
- Phase Plug Material: Billet Aluminum
- Magnet Information: 110 Oz. Ferrite
- Grilles Included: Yes
- Mounting Depth: 85mm / 3.35 (Inches)
- Overall Depth: 90mm / 3.54 (Inches)
- Cutout Diameter: 202mm / 7.95 (Inches)
- Overall Diameter: 212mm / 8.35 (Inches)
XSM804SL - 4 Ohm
- Speaker Size: 8 (Inches)
- Voice Coil Configuration: 4 ohm
- Power Handling (Peak): 1400 Watts
- Power Handling (RMS): 350 Watts
- Sensitivity: 98 dB
- Frequency Response: 80 Hz - 20 kHz
- Voice Coil Diameter: 2" (Inches)
- Material: Heavy Gauges Stamped Steel
- Cone Material: Non Pressed Paper
- Phase Plug Material: Billet Aluminum
- Magnet Information: 110 Oz. Ferrite
- Grilles Included: Yes
- Mounting Depth: 85mm / 3.35 (Inches)
- Overall Depth: 90mm / 3.54 (Inches)
- Cutout Diameter: 202mm / 7.95 (Inches)
- Overall Diameter: 212mm / 8.35 (Inches)
