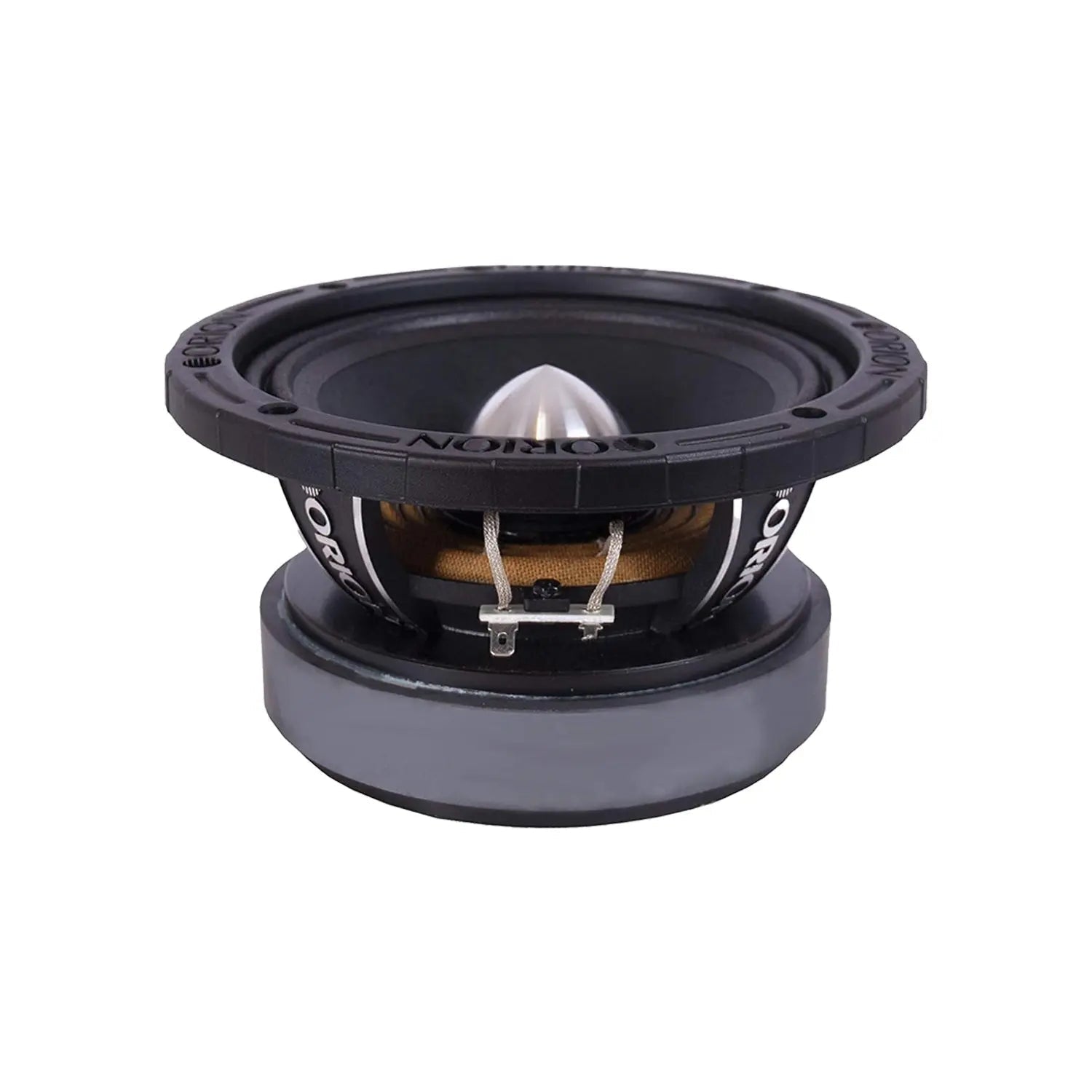

Orion XPM 6.5 Inch MBF Midbass Speaker
Orion XPM 6.5 Inch MBF Midbass Speaker
Orion XPM 6.5 Inch MBF Midbass Speaker

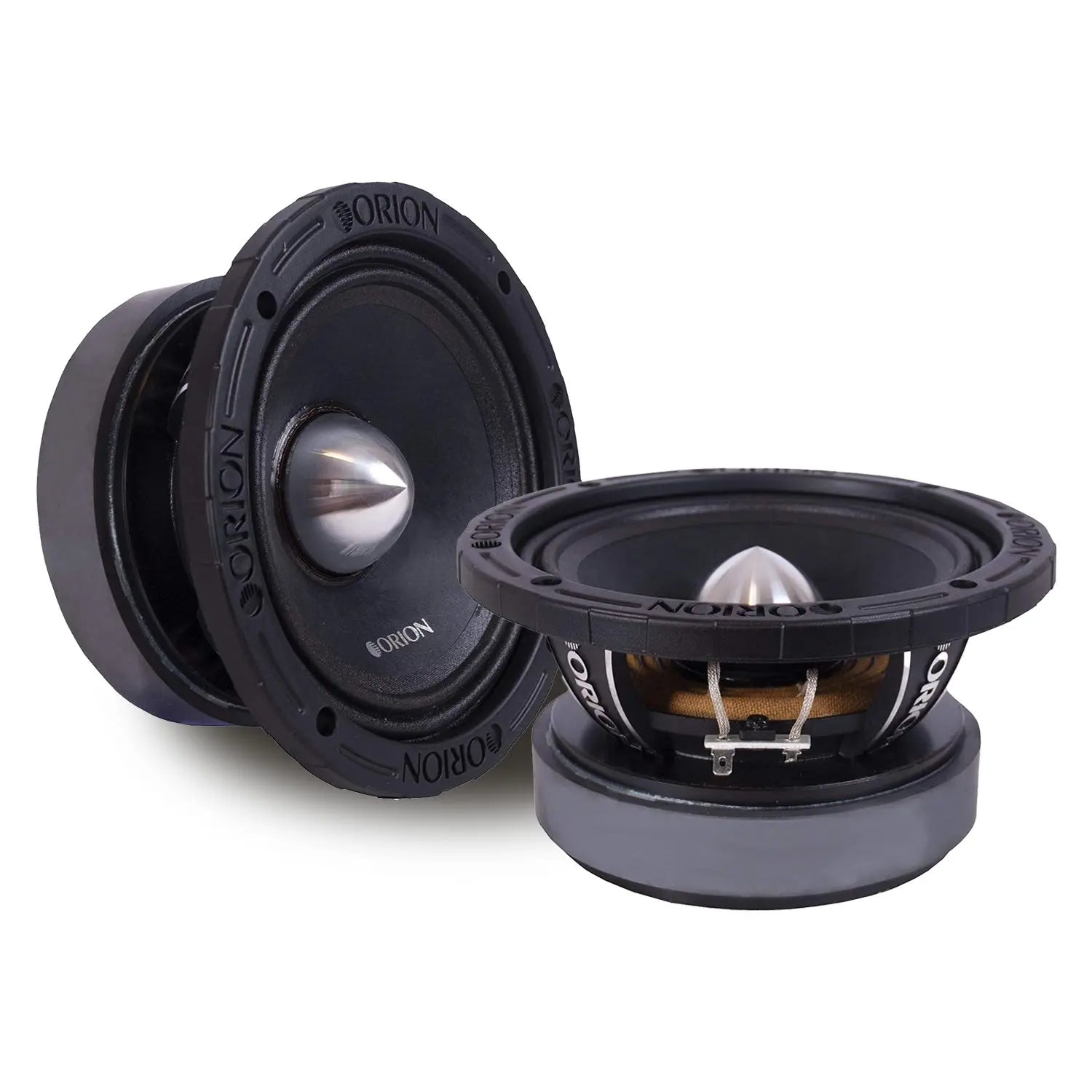

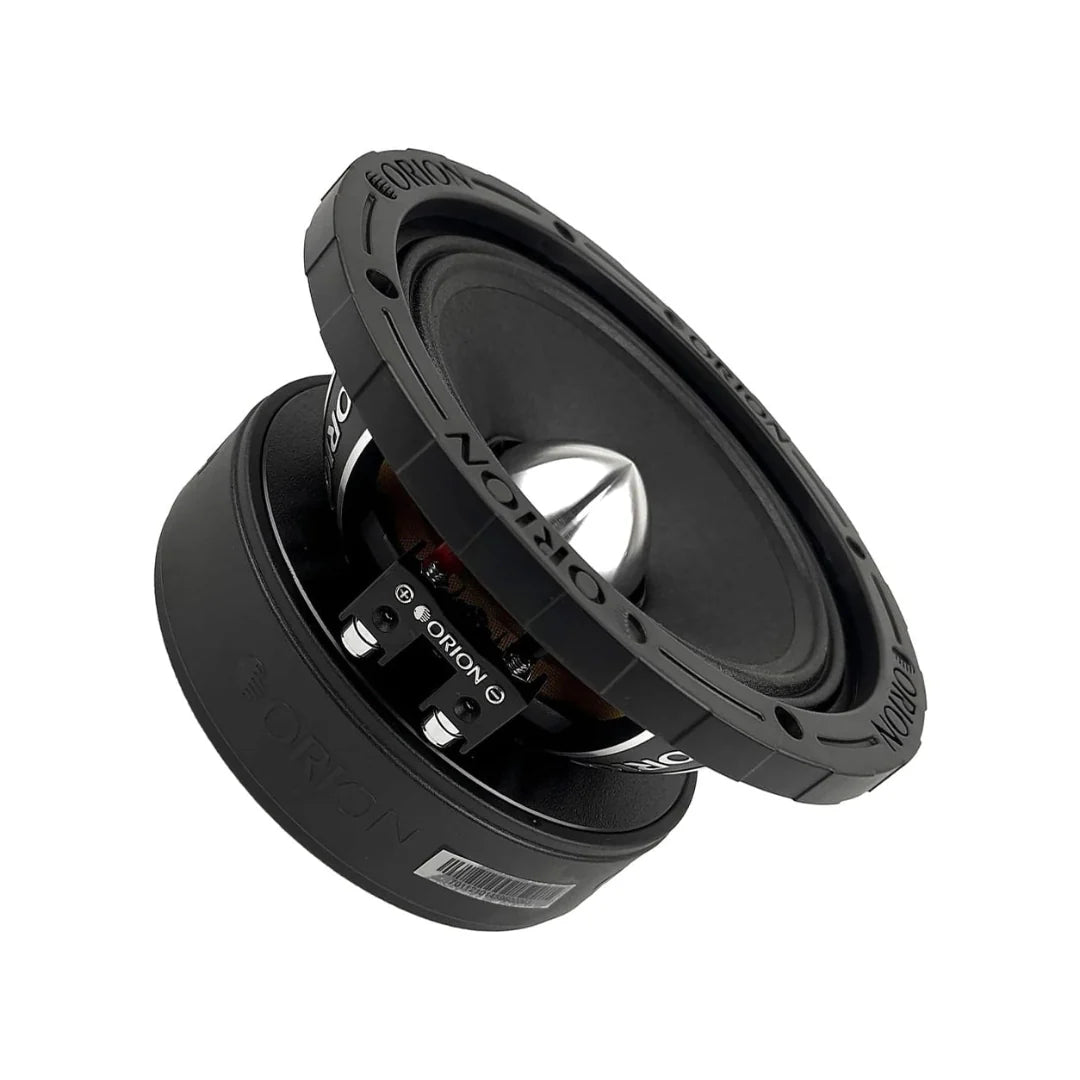

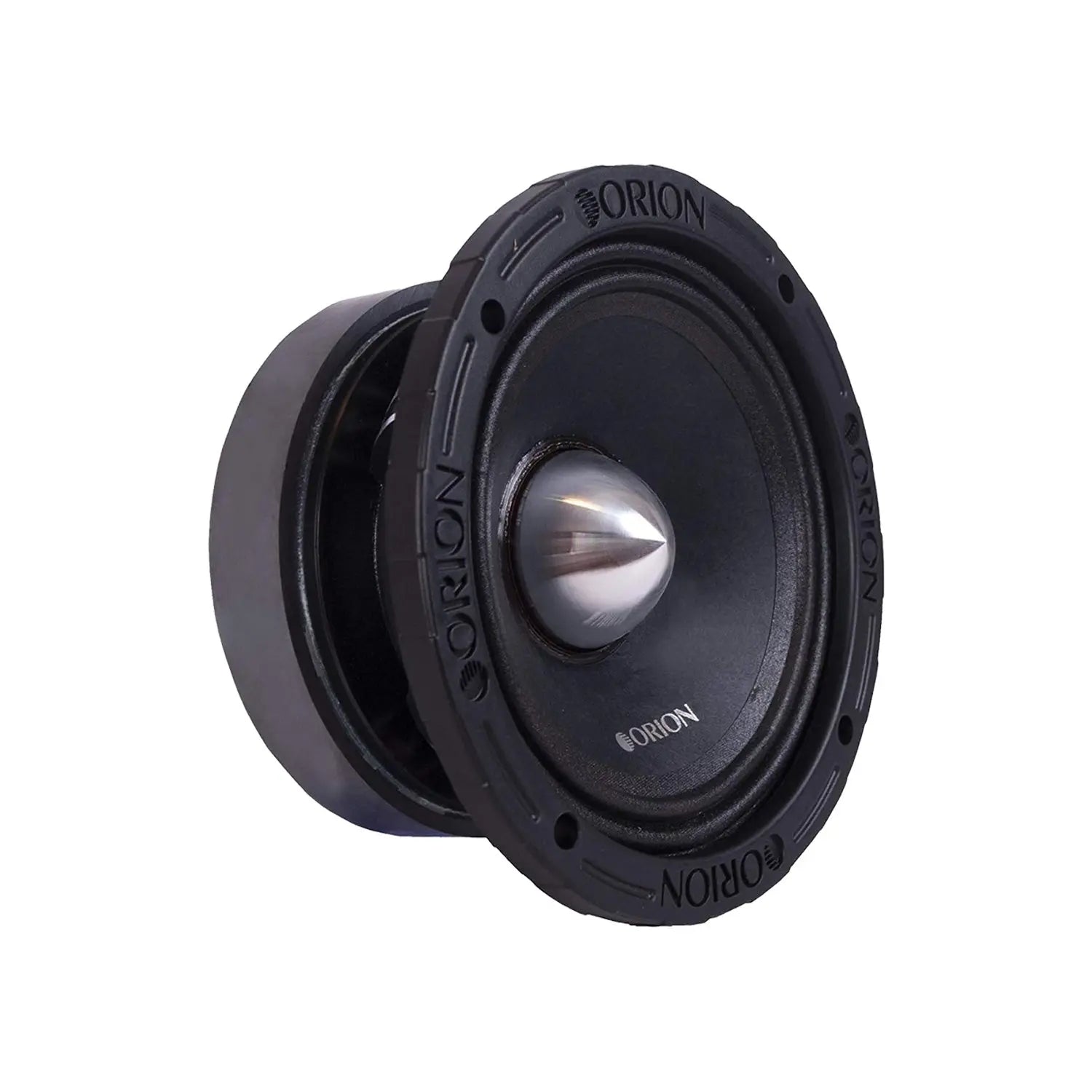

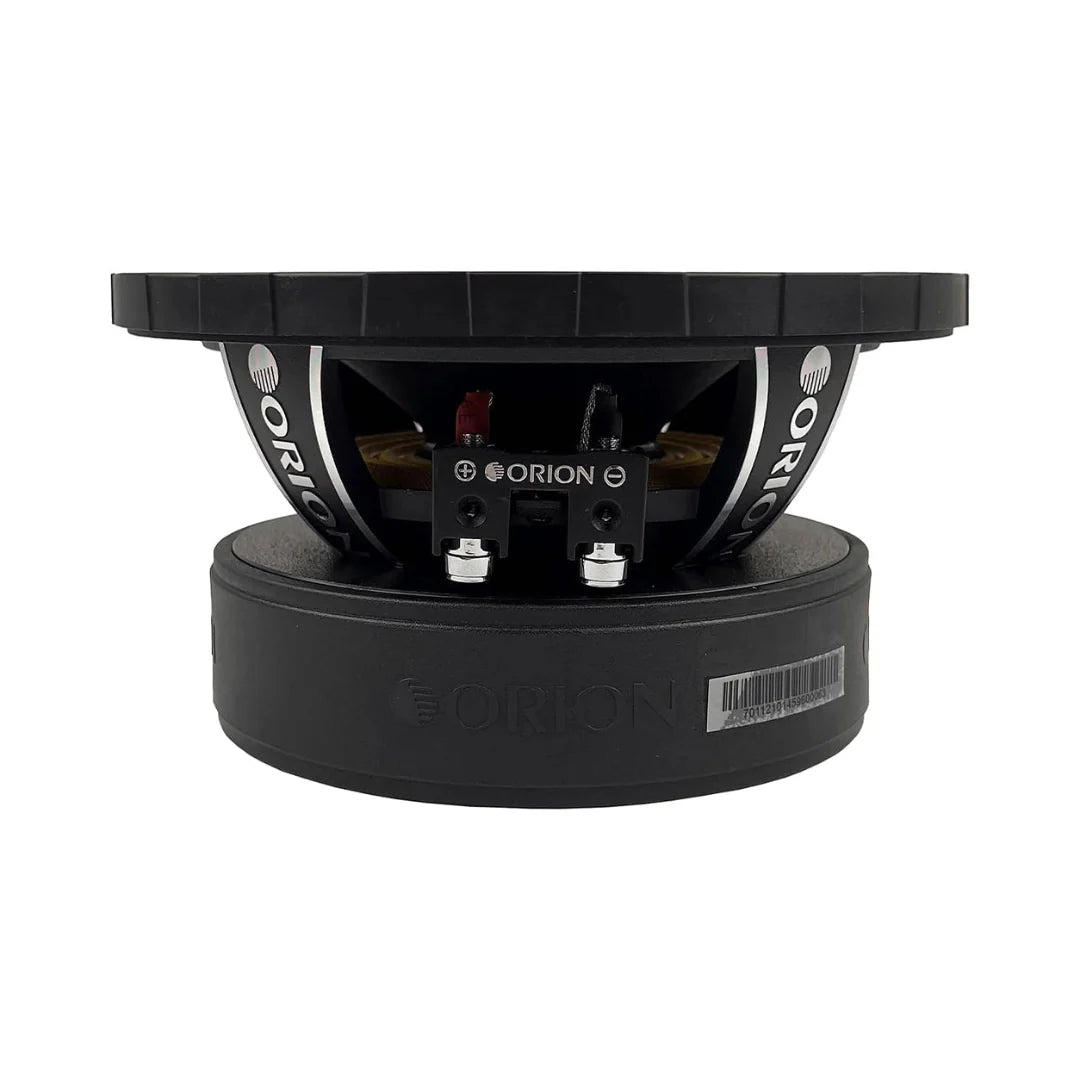

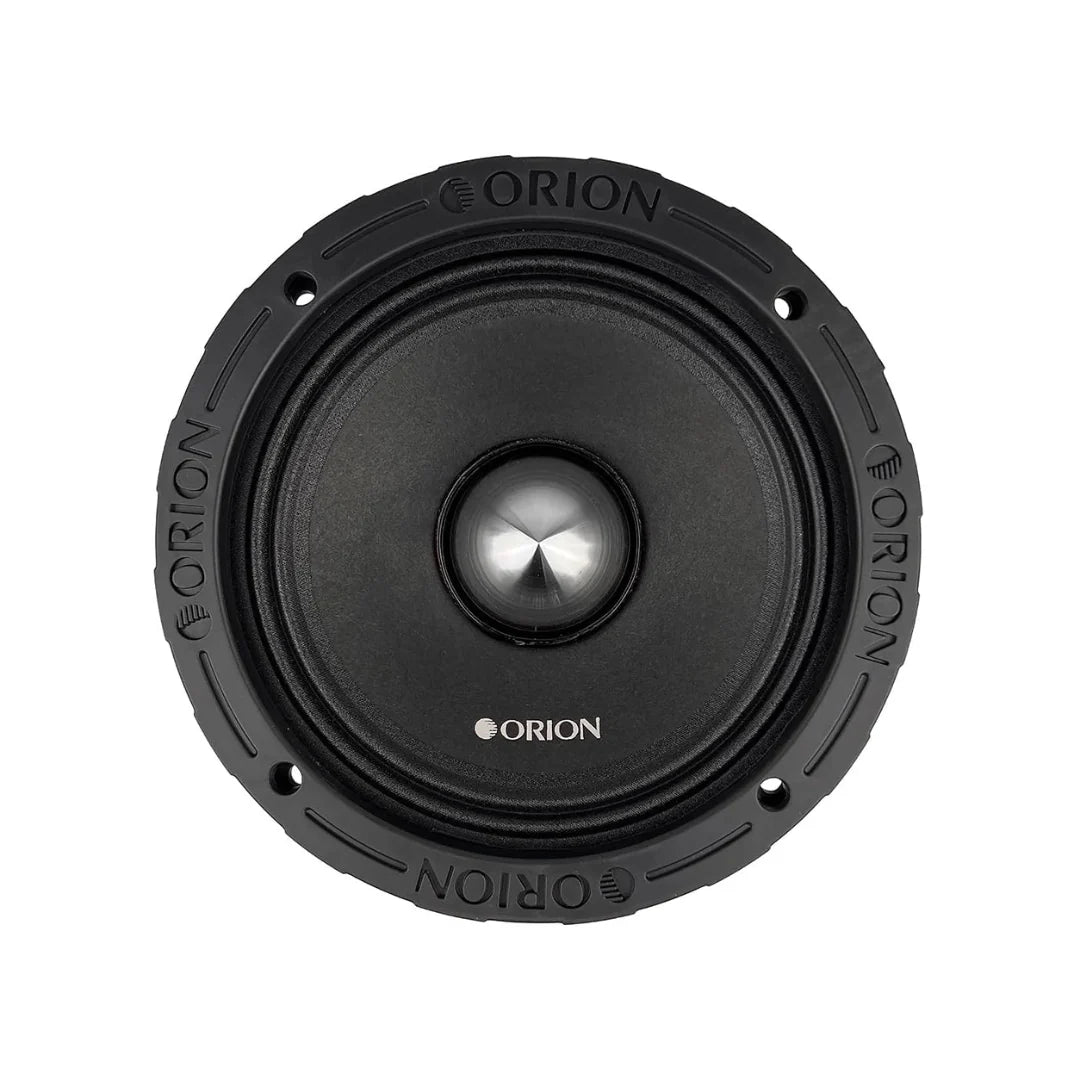

Orion XPM 6.5 Inch MBF Midbass Speaker. Available manufacturer models: XPM652MBF (2 Ohm), XPM654MBF (4 Ohm), XPM658MBF (8 Ohm). Select the impedance or configuration that matches your system; specifications for each model are listed below.
Manufacturer specifications

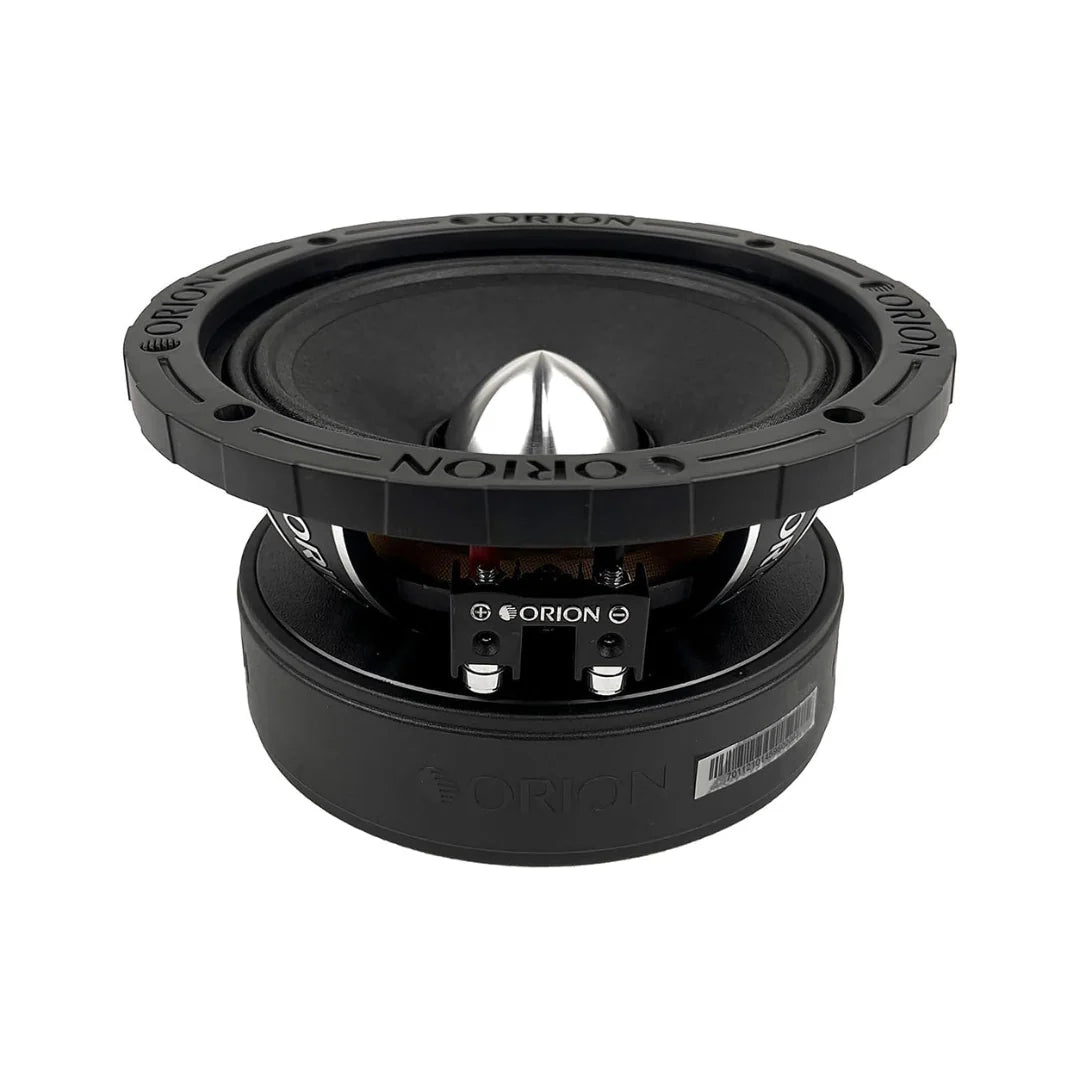

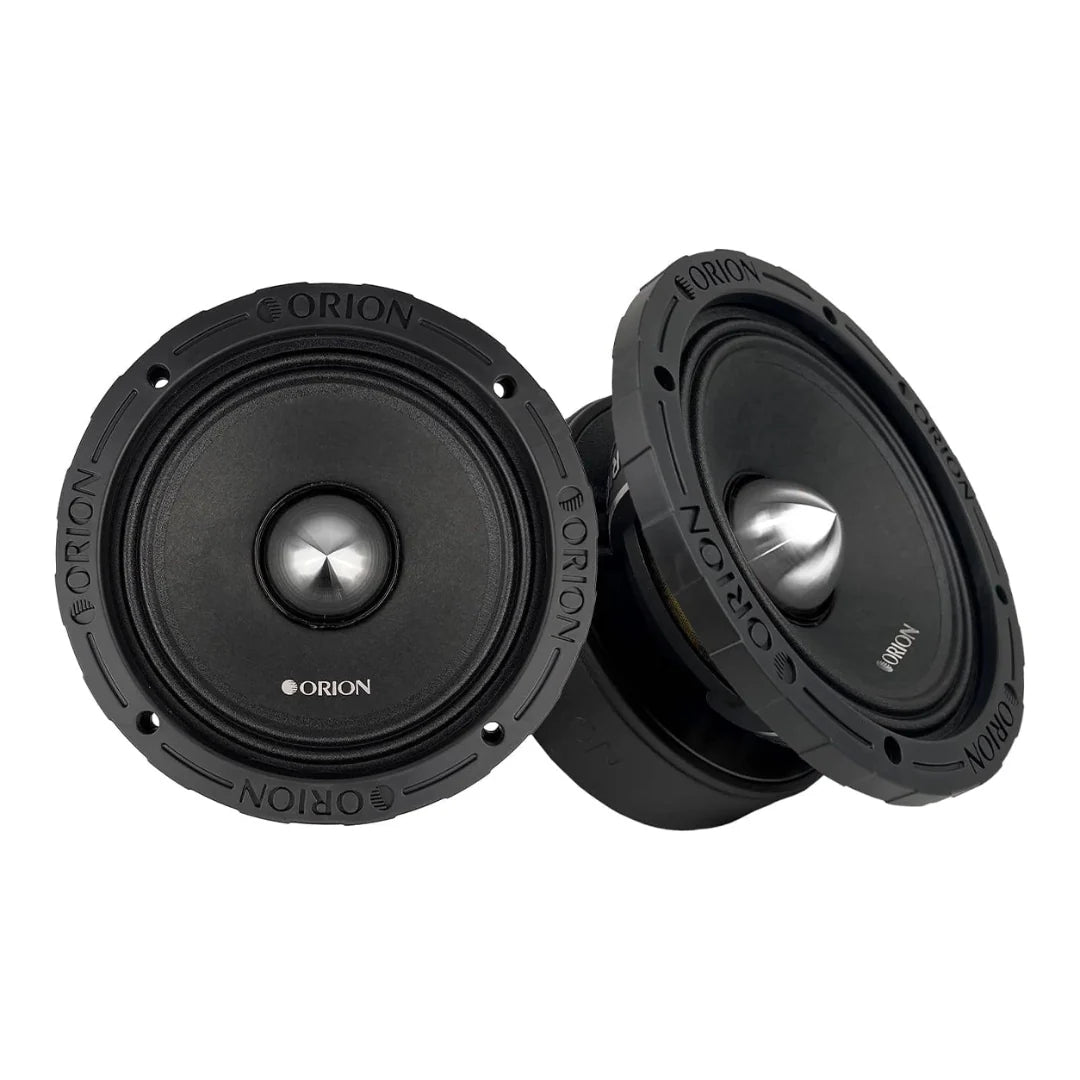

XPM652MBF - 2 Ohm
- Speaker Size: 6.5 (Inches)
- Voice Coil Configuration: 2 ohm
- Power Handling (Peak): 1600 Watts
- Power Handling (RMS): 400 Watts
- Sensitivity: 99.1 dB
- Frequency Response: 230 Hz - 9 kHz
- Voice Coil Diameter: 2" (Inches)
- Material: Cast Basket
- Cone Material: Non Pressed Paper
- Phase Plug Material: Billet Aluminum
- Magnet Information: 54 Oz. Ferrite
- Grilles Included: No
- Mounting Depth: 83.2mm / 3.28 (Inches)
- Overall Depth: 95mm / 3.74 (Inches)
- Cutout Diameter: 146mm / 5.75 (Inches)
- Overall Diameter: 178mm / 7 (Inches)

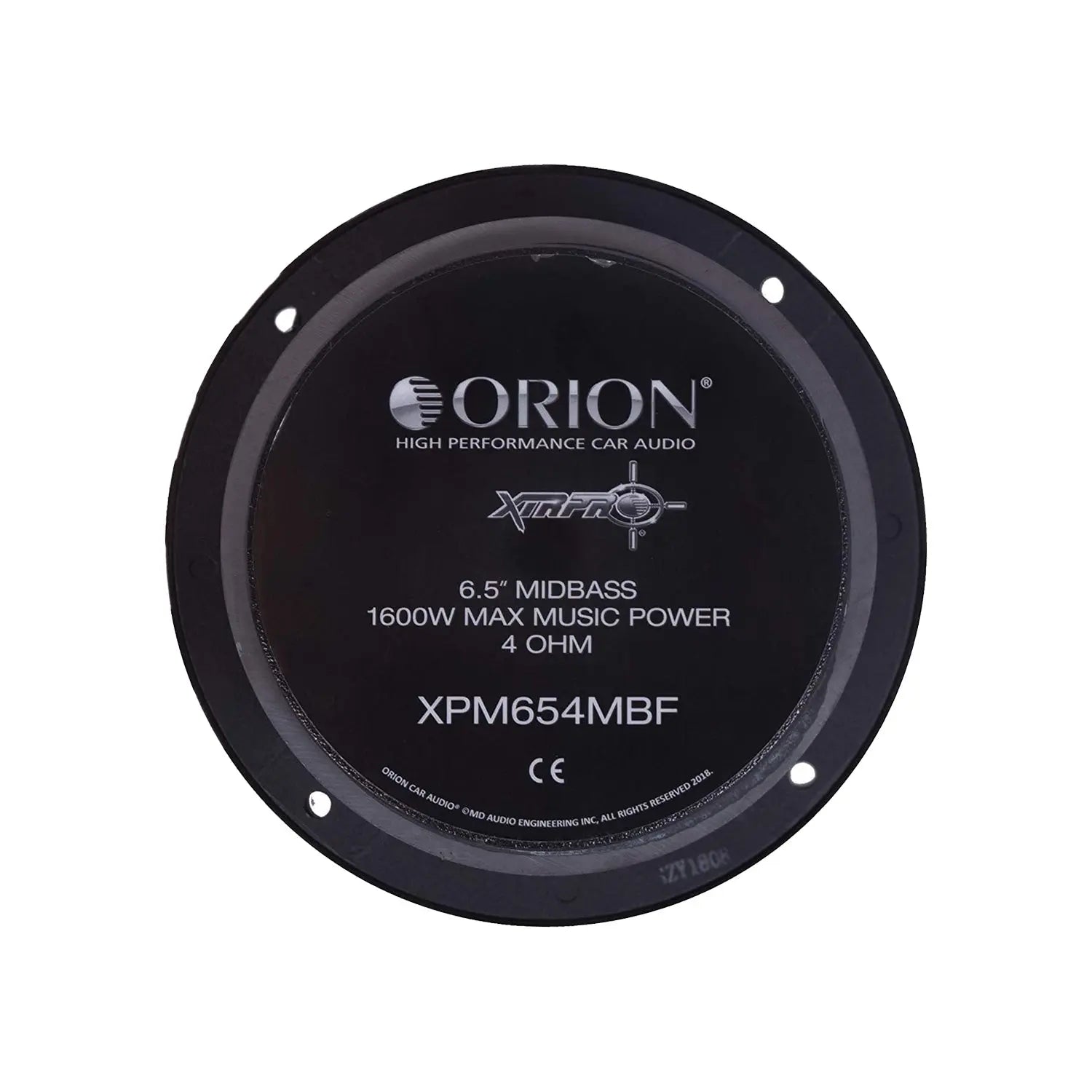

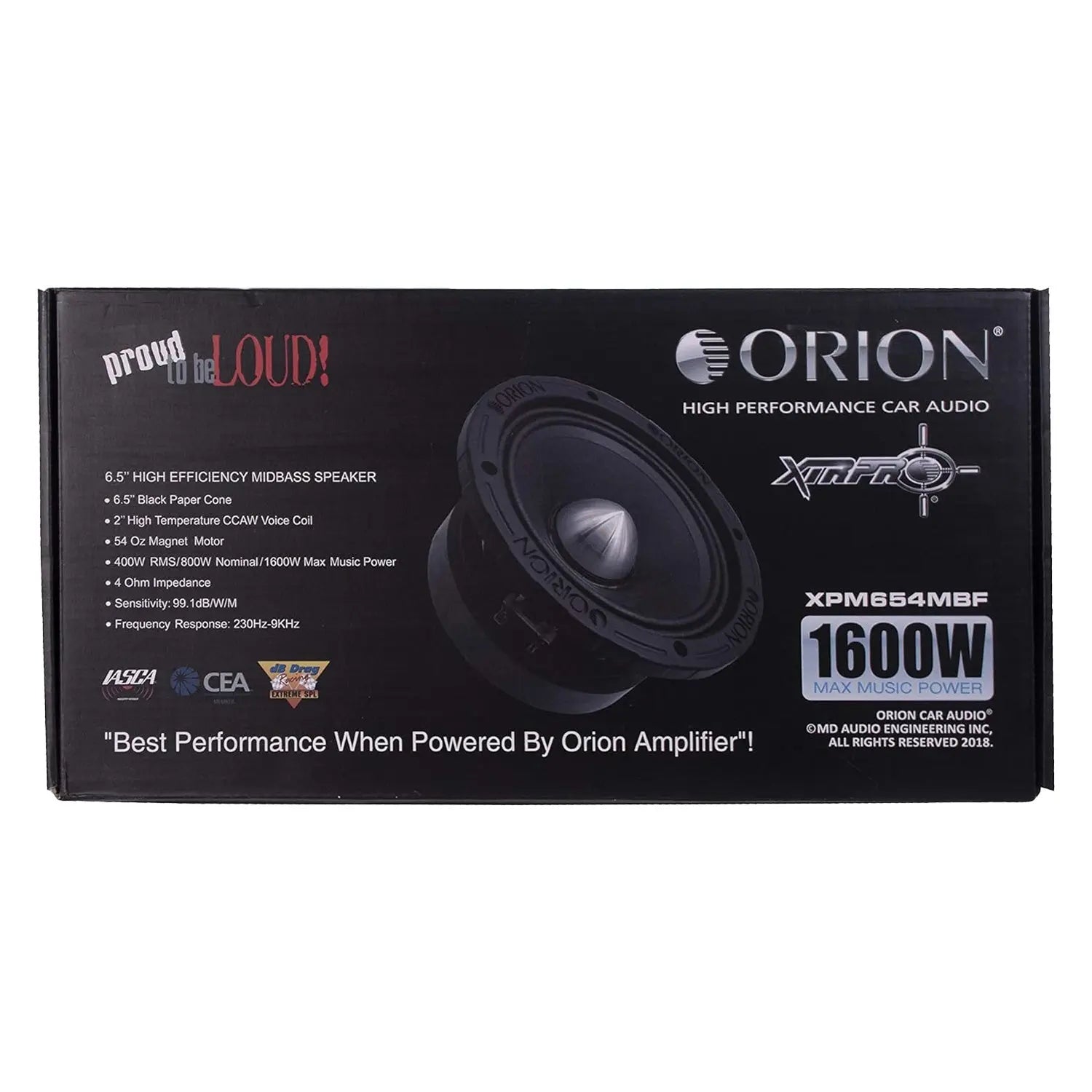

XPM654MBF - 4 Ohm
- Speaker Size: 6.5 (Inches)
- Voice Coil Configuration: 4 ohm
- Power Handling (Peak): 1600 Watts
- Power Handling (RMS): 400 Watts
- Sensitivity: 99.1 dB
- Frequency Response: 230 Hz - 9 kHz
- Voice Coil Diameter: 2" (Inches)
- Material: Cast Basket
- Cone Material: Non Pressed Paper
- Phase Plug Material: Billet Aluminum
- Magnet Information: 54 Oz. Ferrite
- Grilles Included: No
- Mounting Depth: 83.2mm / 3.28 (Inches)
- Overall Depth: 95mm / 3.74 (Inches)
- Cutout Diameter: 146mm / 5.75 (Inches)
- Overall Diameter: 178mm / 7 (Inches)

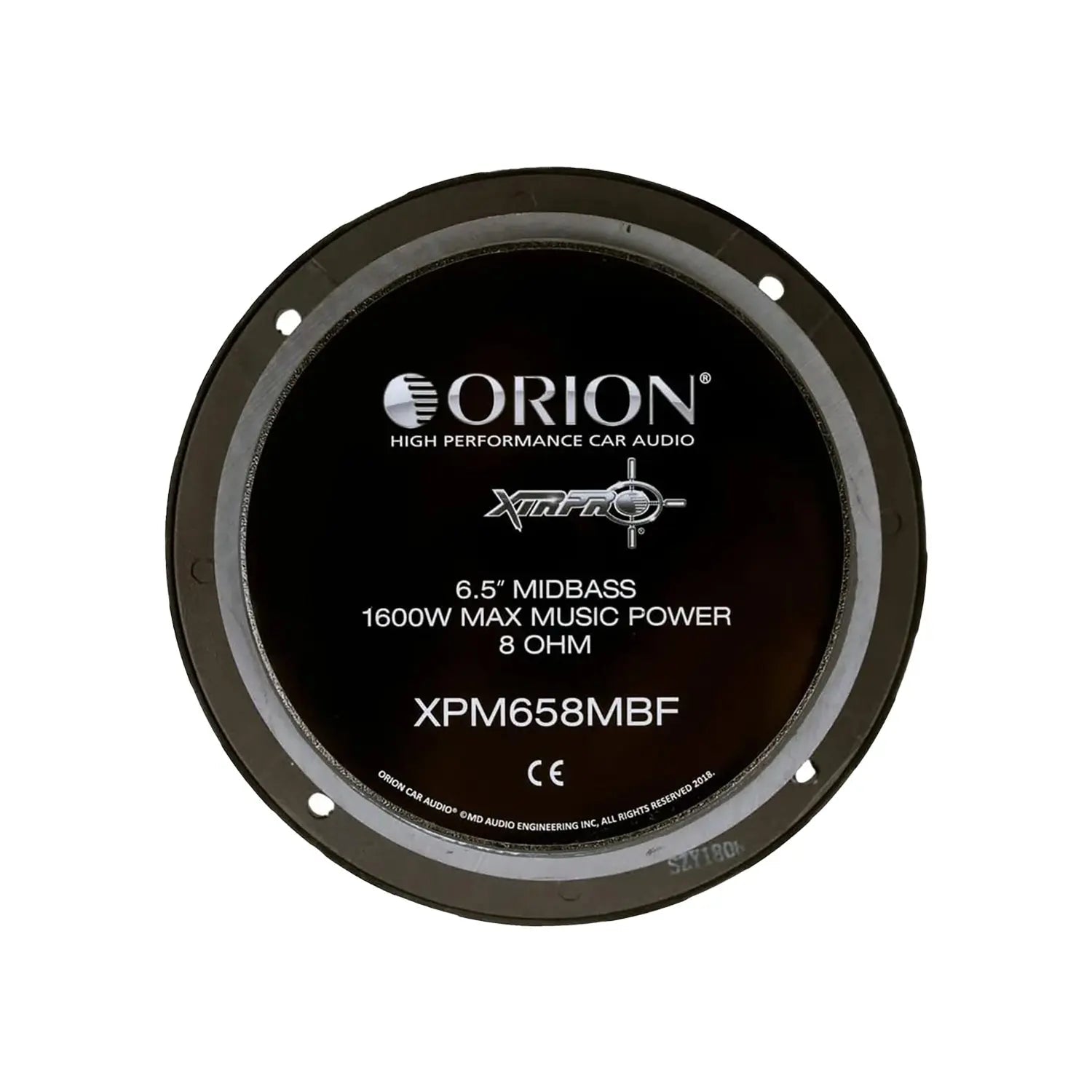

XPM658MBF - 8 Ohm
See the Orion product page for detailed specifications.
