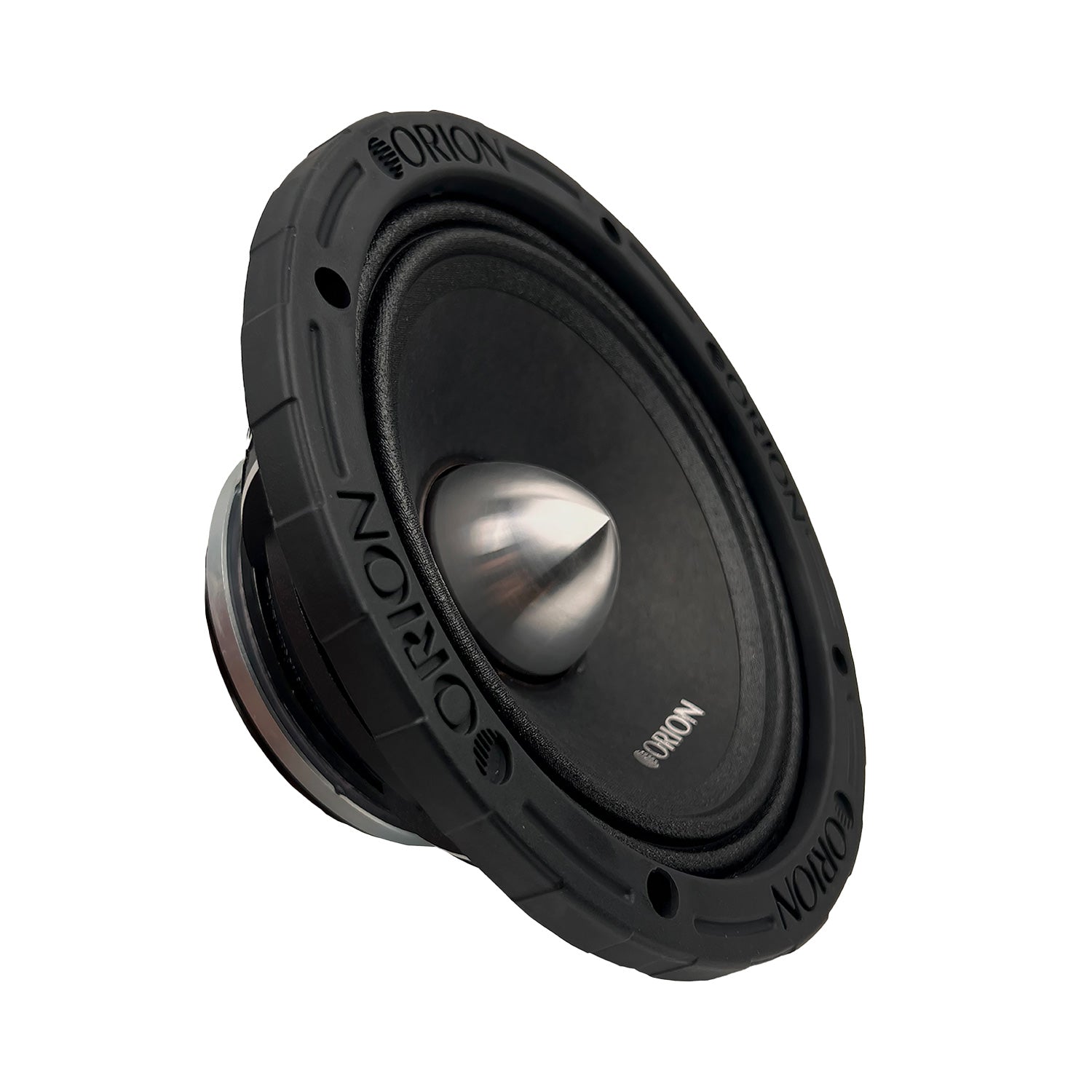

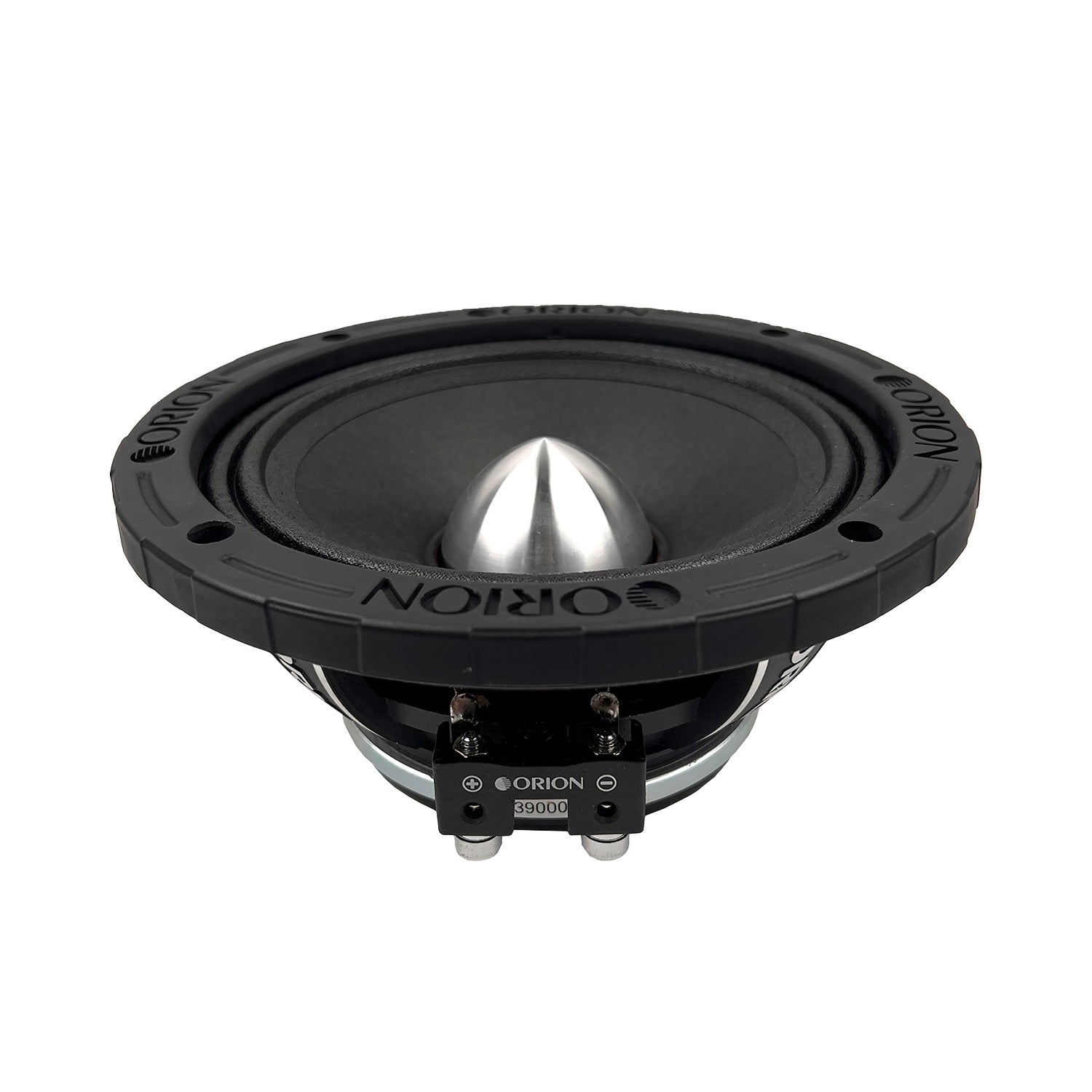

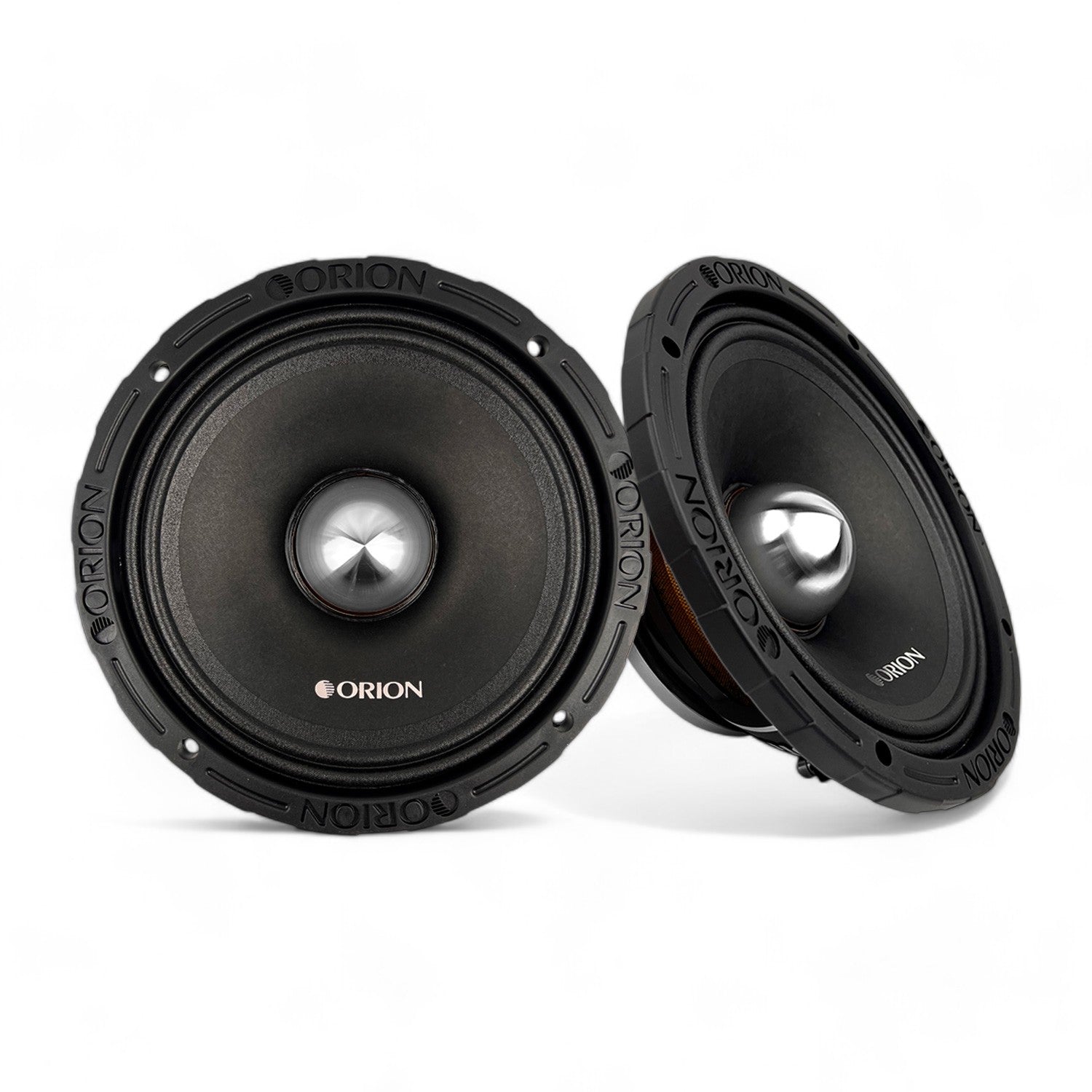

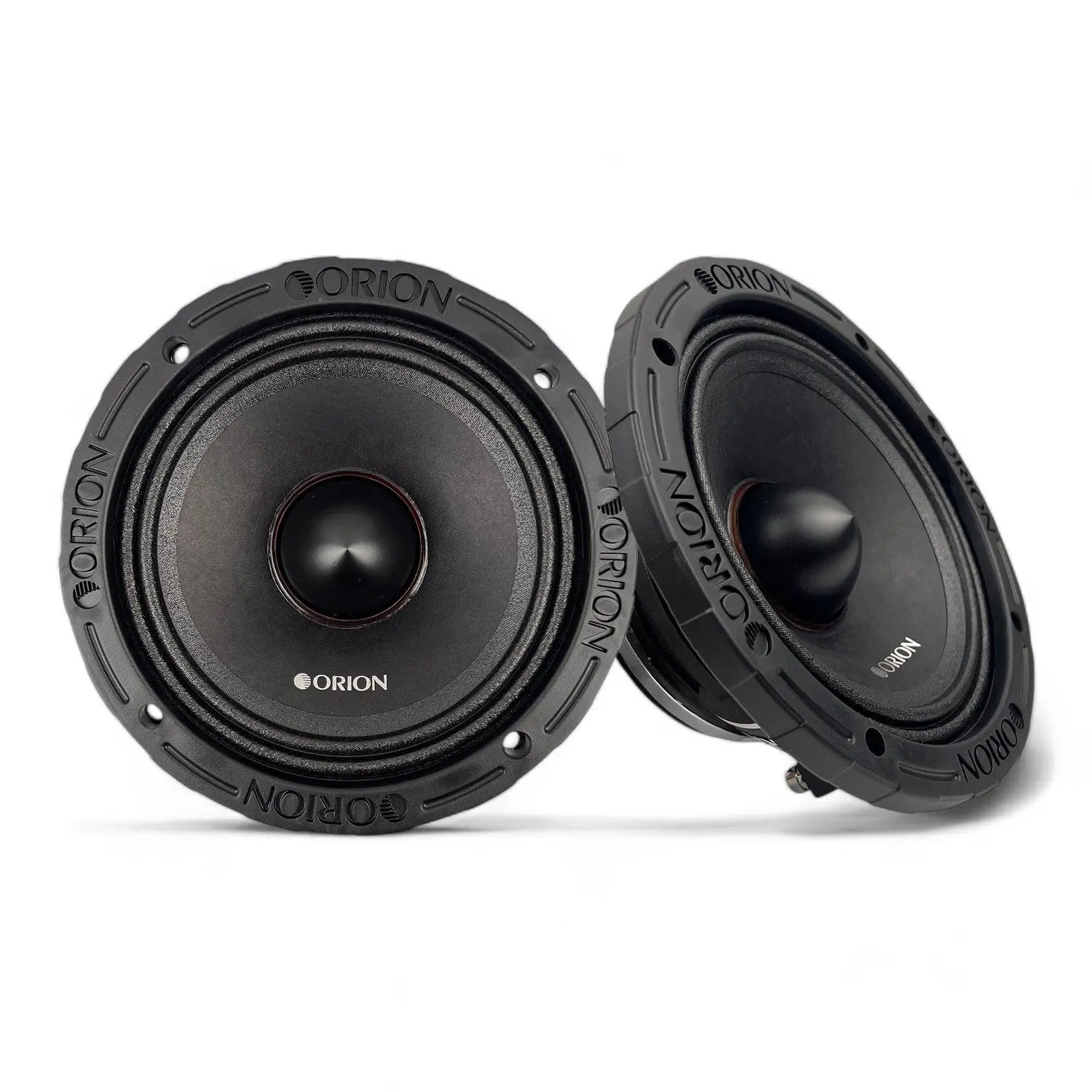

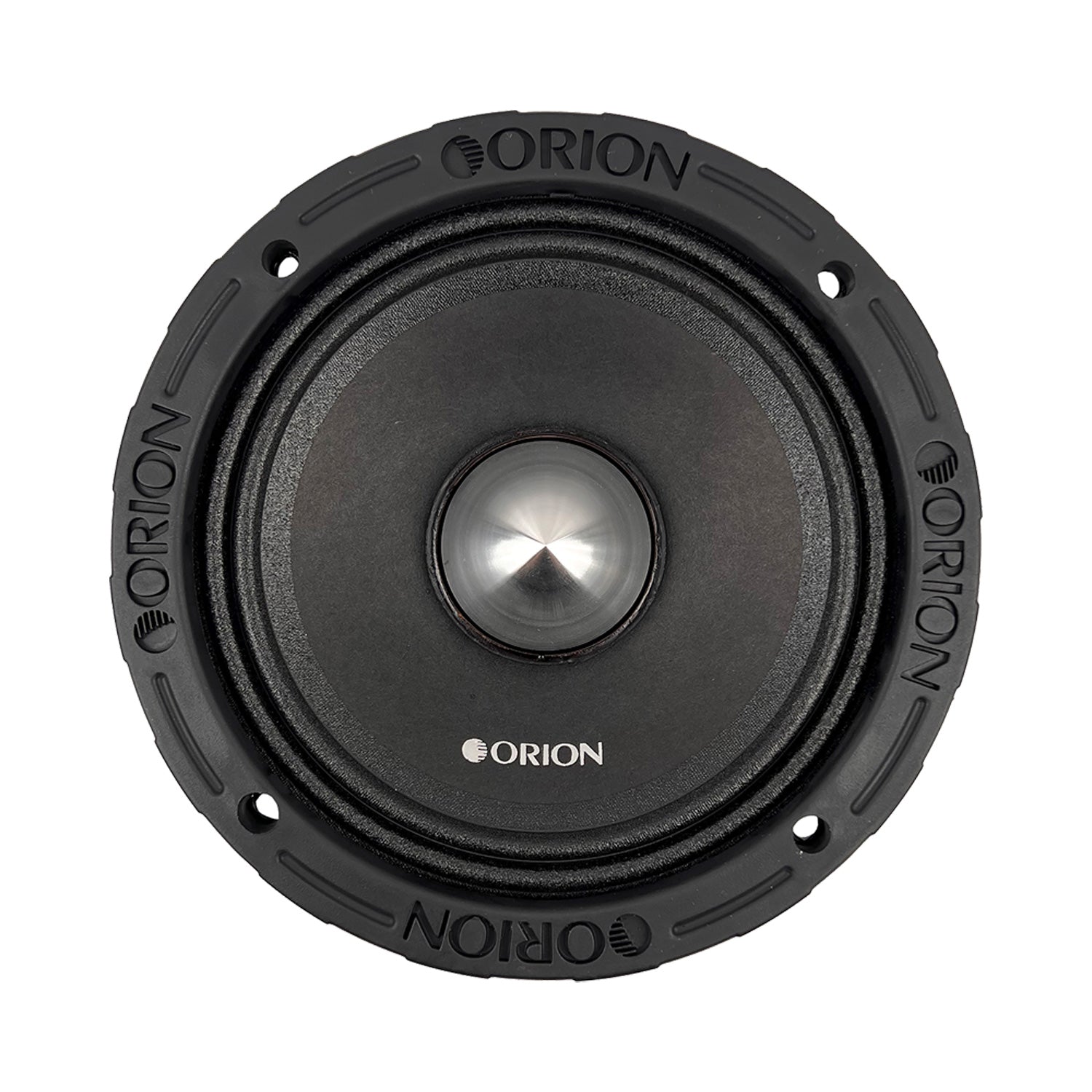

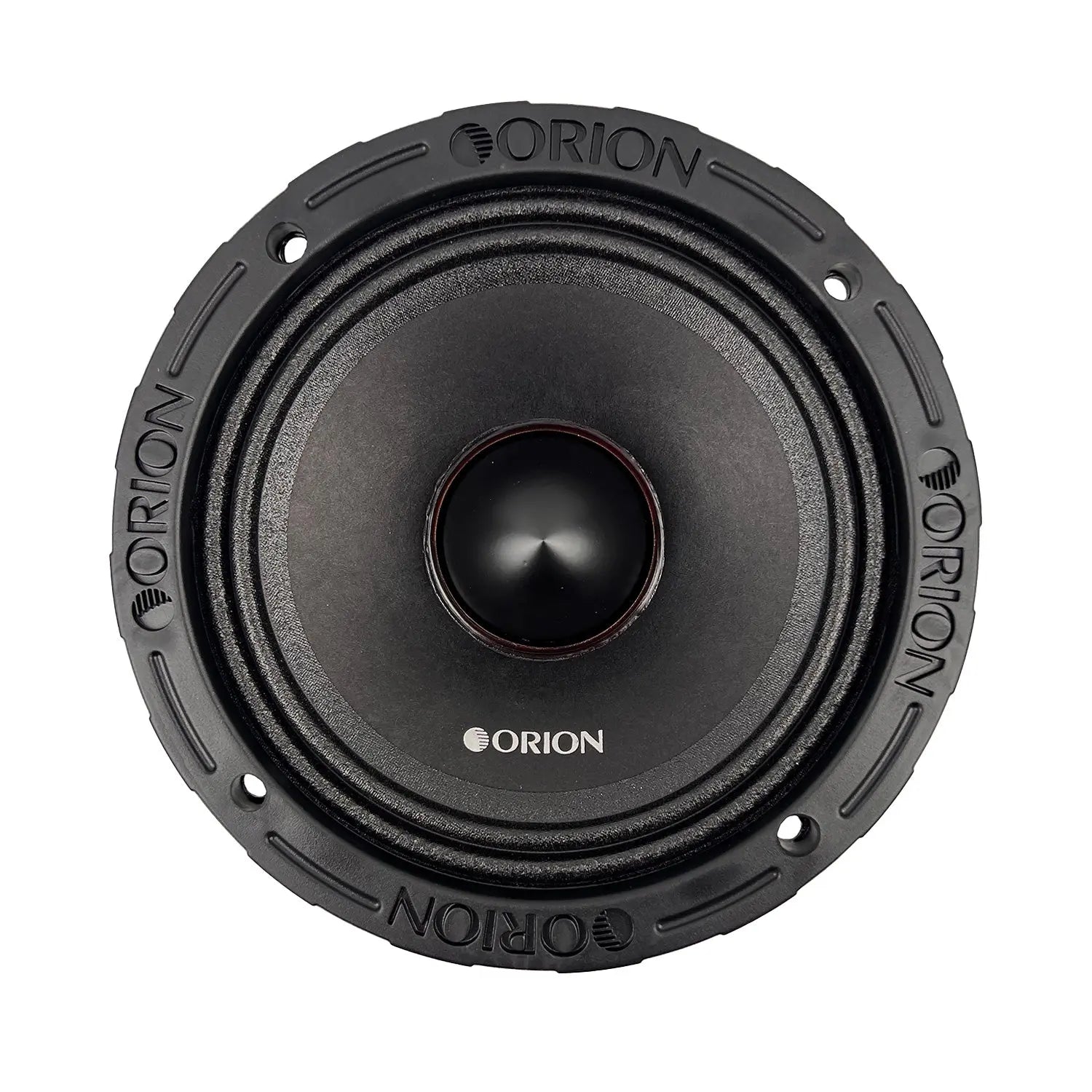

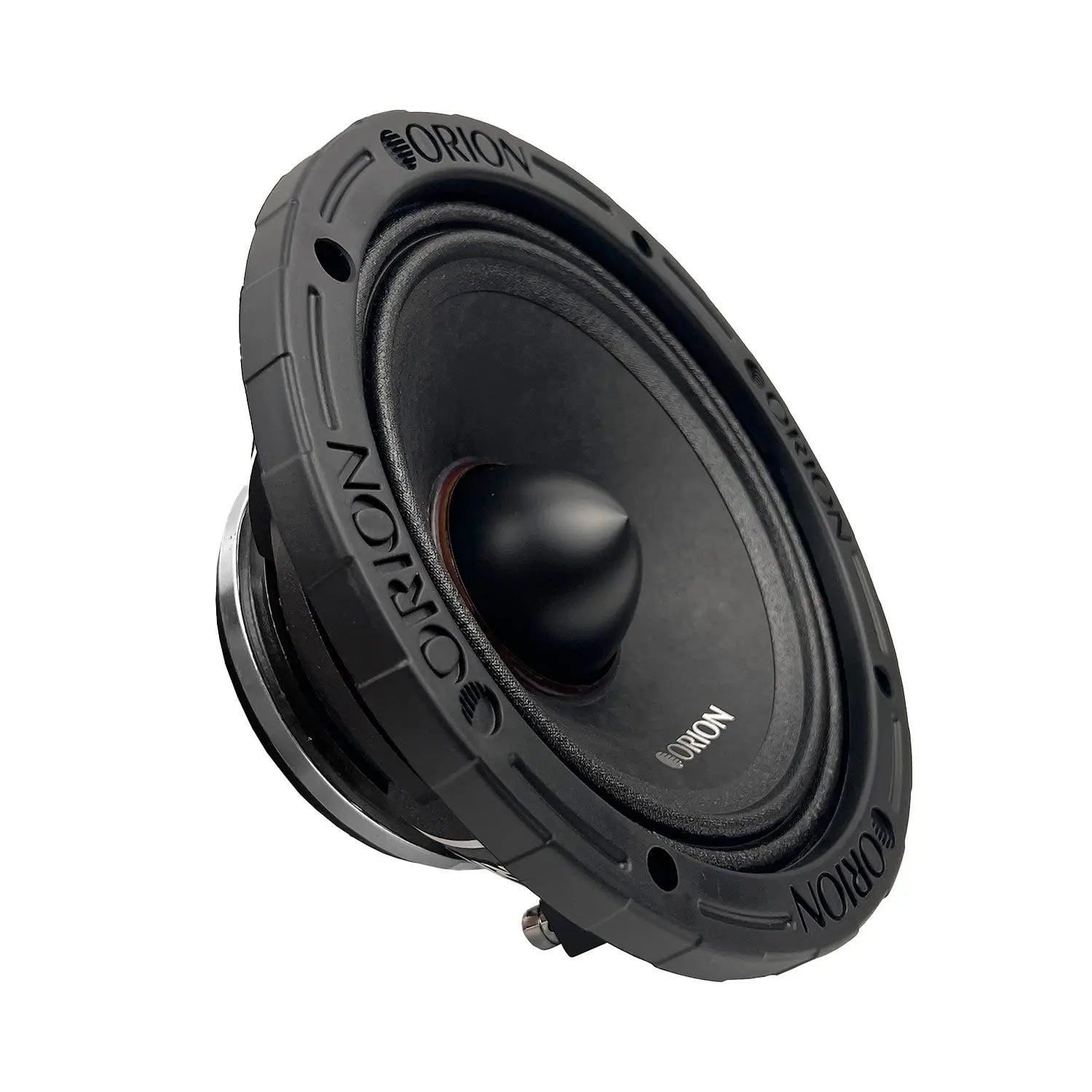

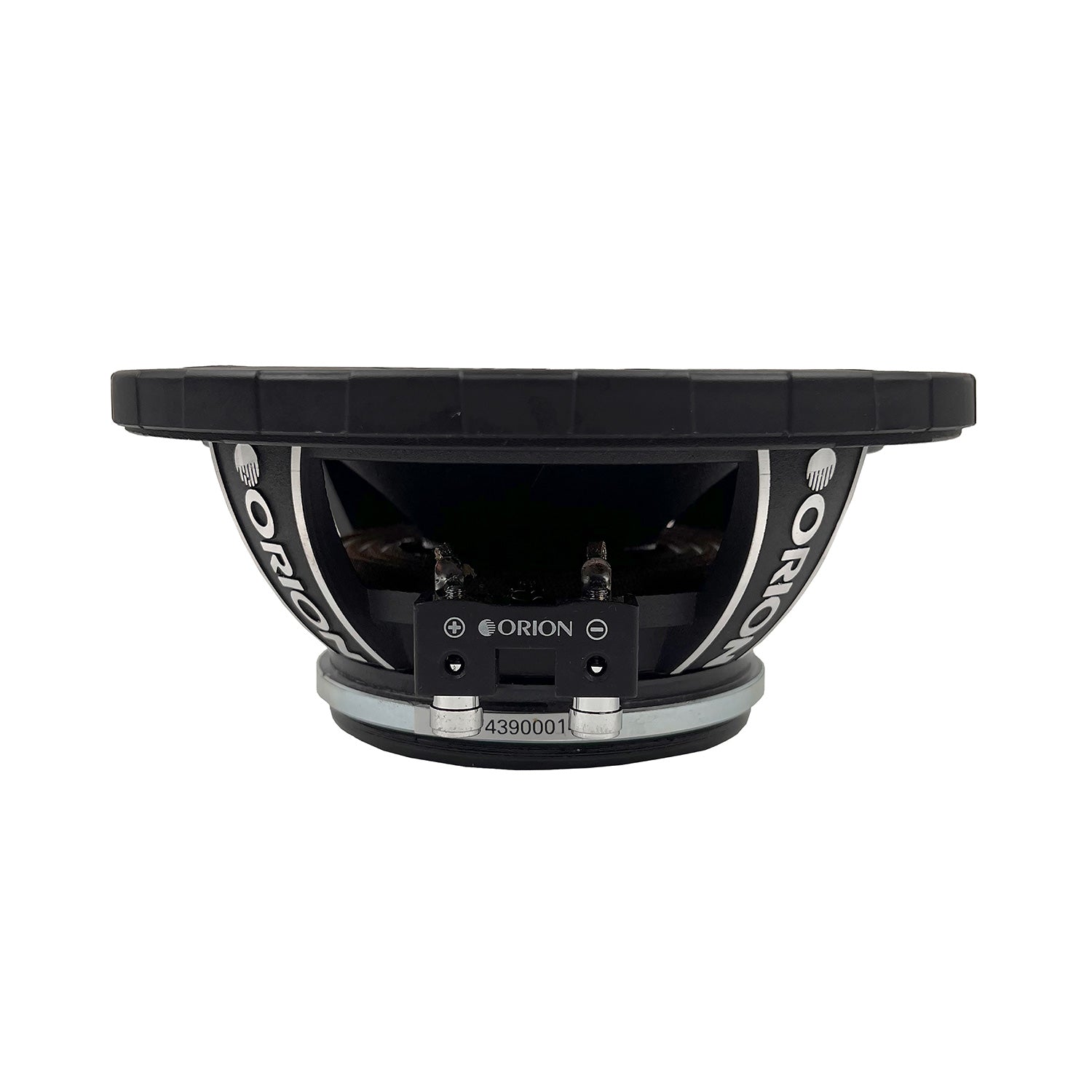

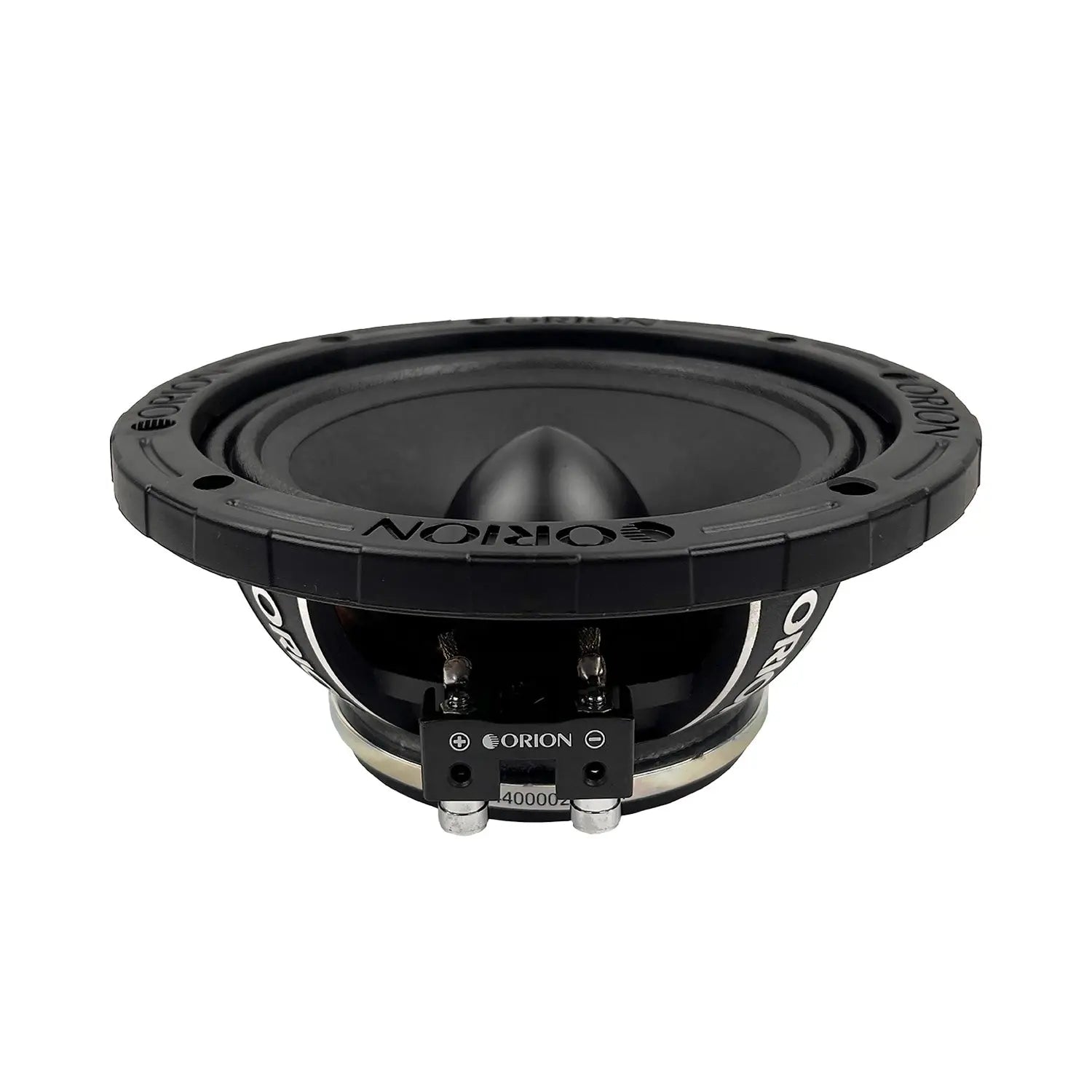

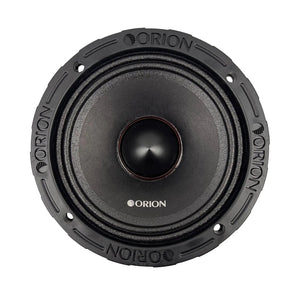

Orion HCCA 6.5 Inch NHP Midrange Speaker. Available manufacturer models: HCCA652NHP (2 Ohm), HCCA658NHP (8 Ohm). Select the impedance or configuration that matches your system; specifications for each model are listed below.
Manufacturer specifications
HCCA652NHP - 2 Ohm
- Speaker Size: 6.5 (Inches)
- Voice Coil Configuration: 2 ohm
- Power Handling (Peak): 1800 Watts
- Power Handling (RMS): 450 Watts
- Sensitivity: 99.8 dB
- Frequency Response: 120 Hz - 12 kHz
- Voice Coil Diameter: 2" (Inches)
- Speaker Quantity: 2 Speakers
- Material: Cast Basket
- Cone Material: Non Pressed Paper
- Phase Plug Material: Billet Aluminum
- Magnet Information: Neodymium
- Grills Included: No
- Mounting Depth: 68.5mm / 2.7 (Inches)
- Overall Depth: 79mm / 3.11 (Inches)
- Cutout Diameter: 146mm / 5.75 (Inches)
- Overall Diameter: 178mm / 7 (Inches)

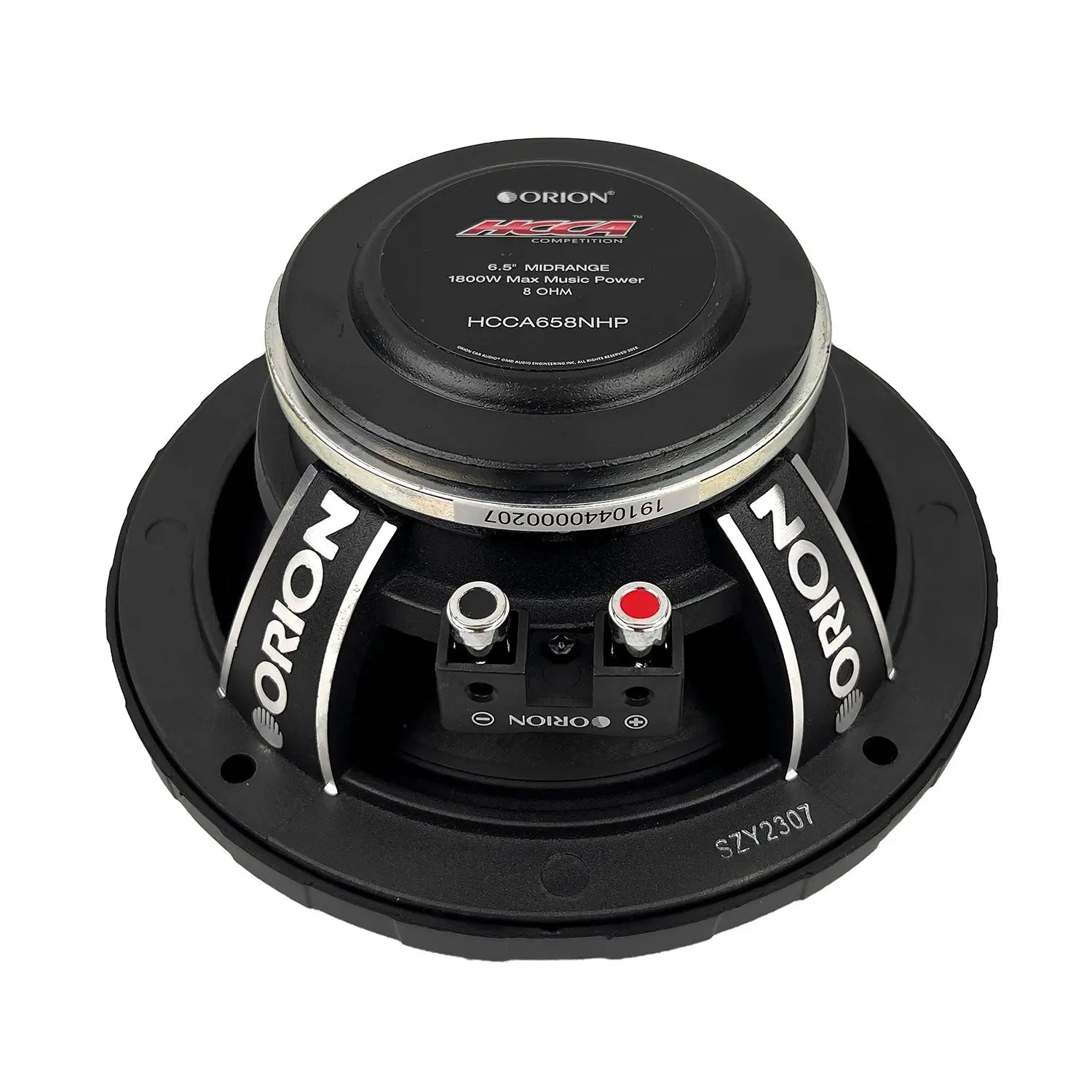

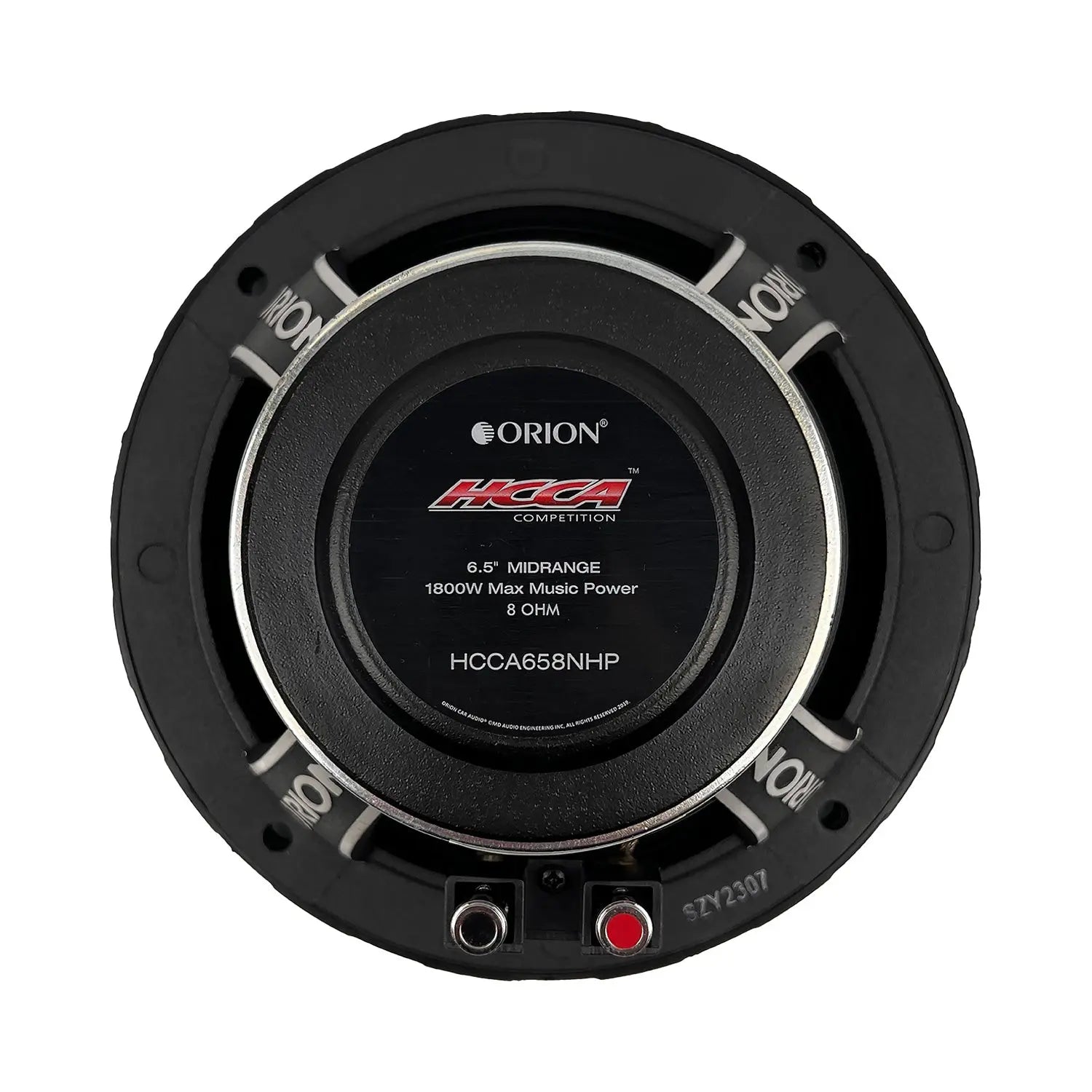

HCCA658NHP - 8 Ohm
See the Orion product page for detailed specifications.
