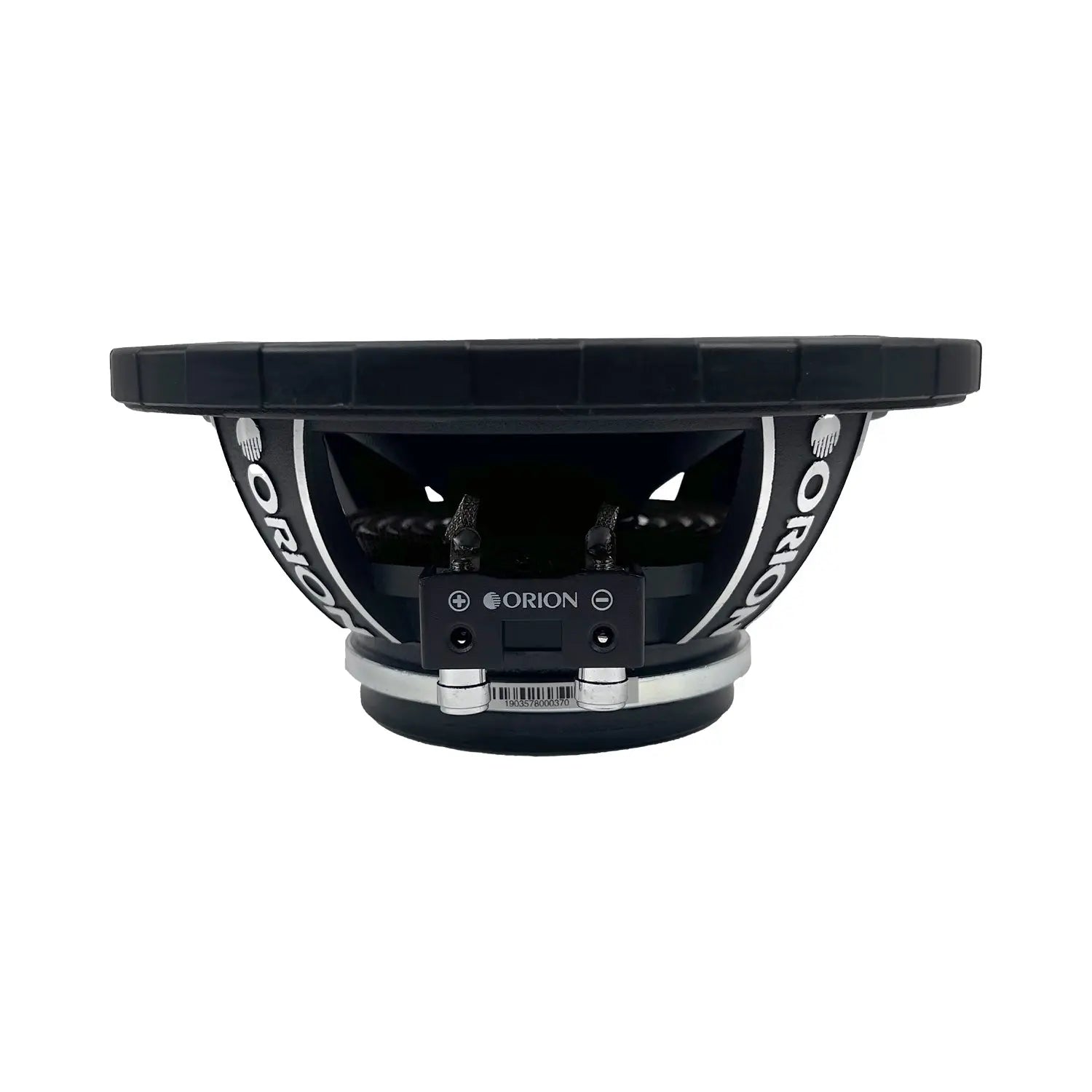

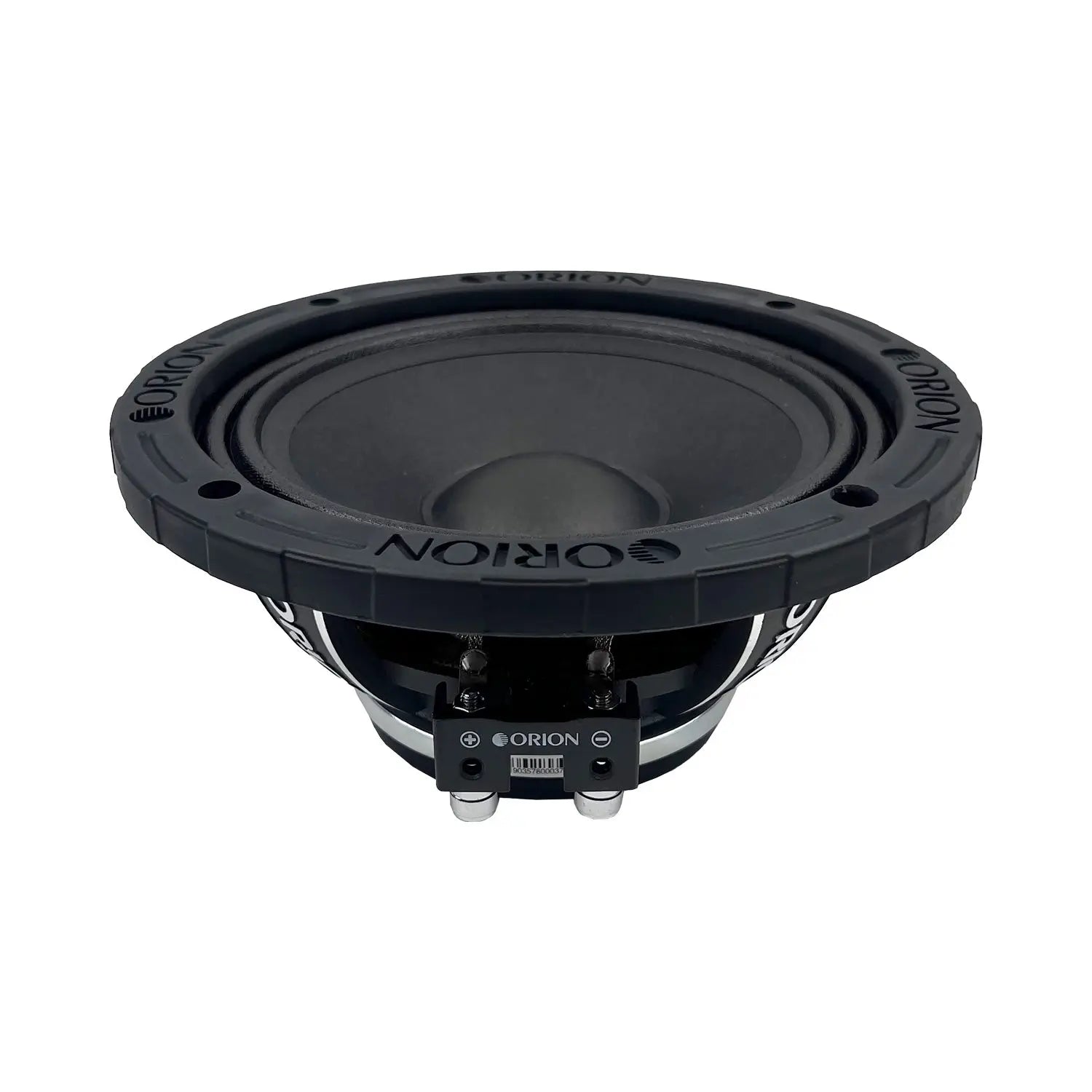

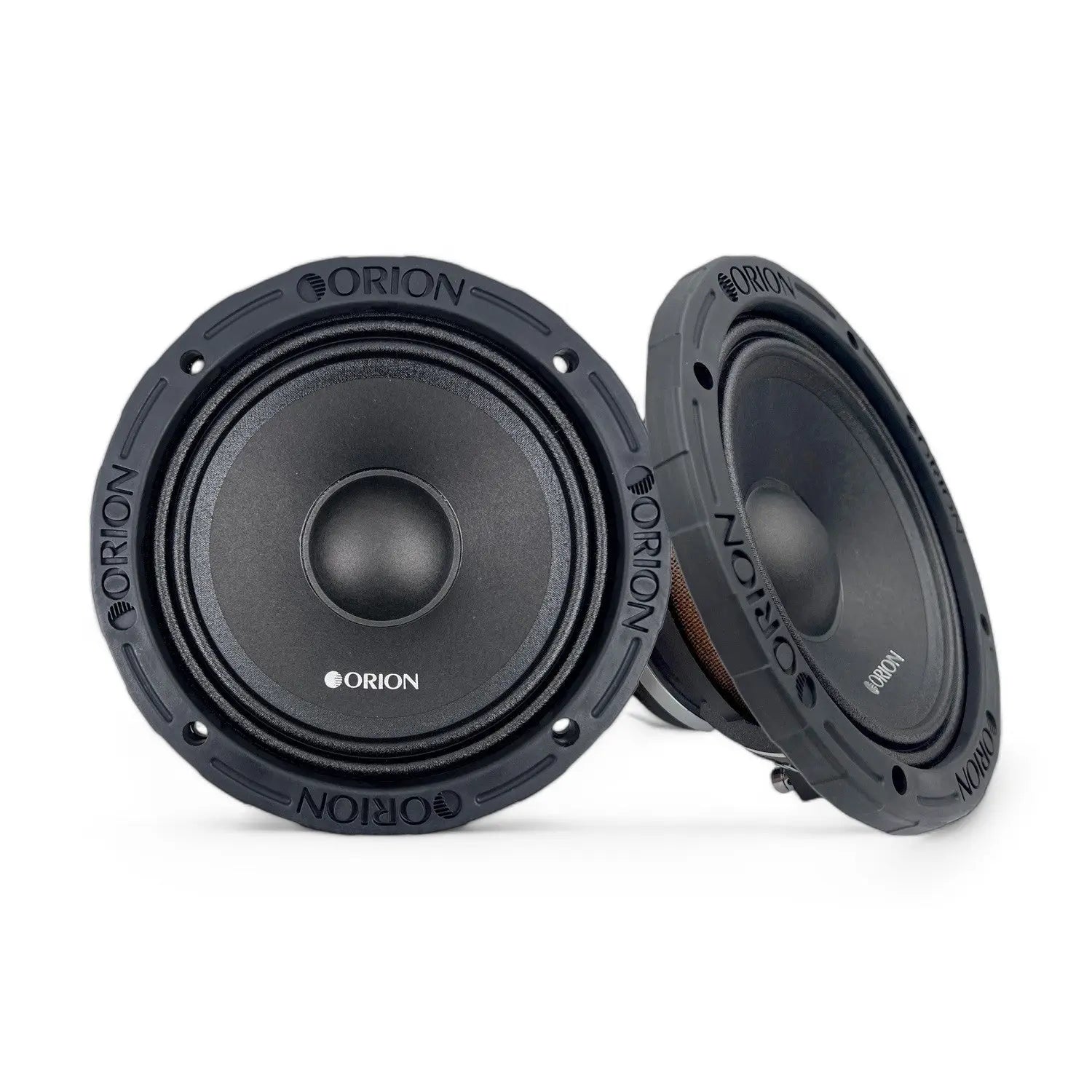

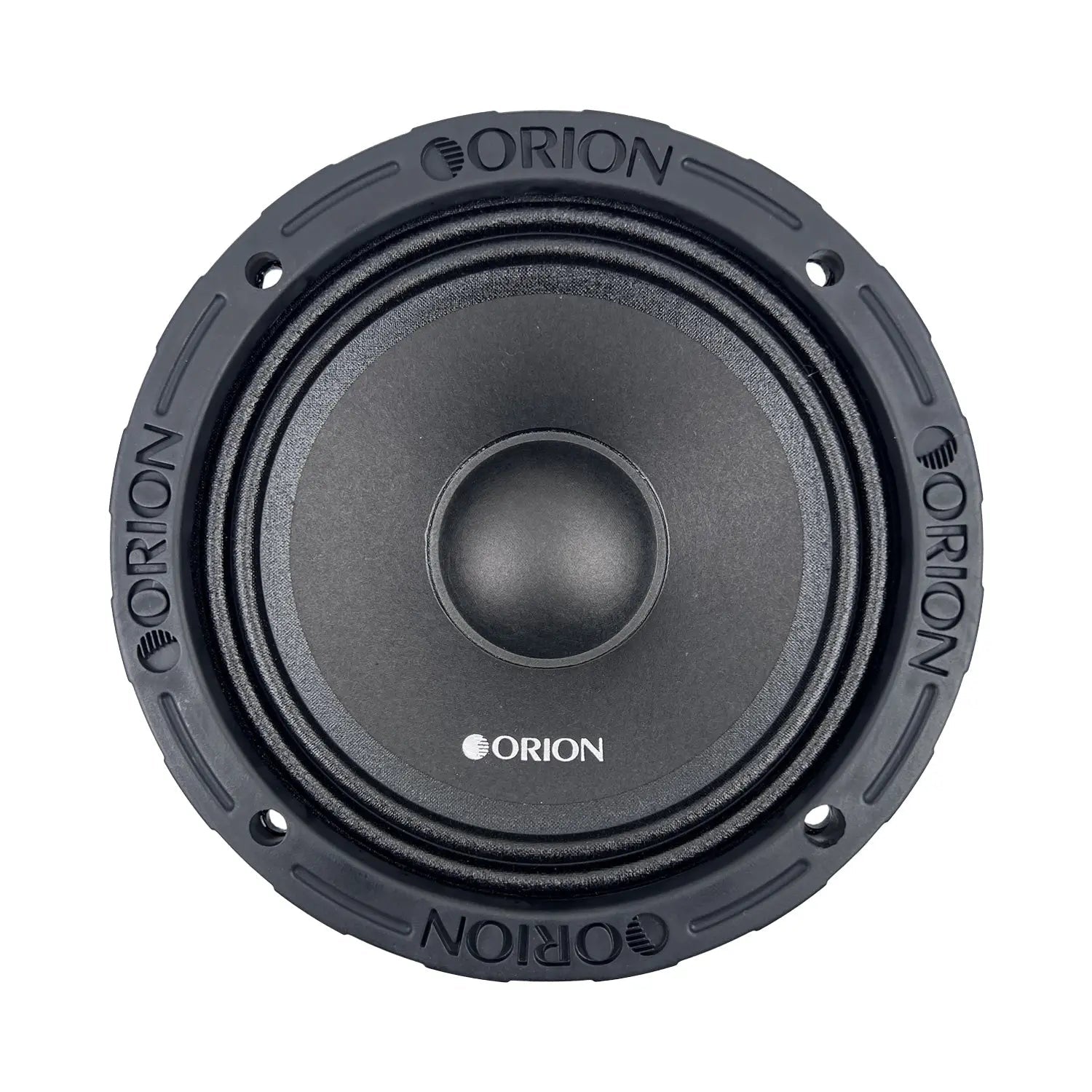

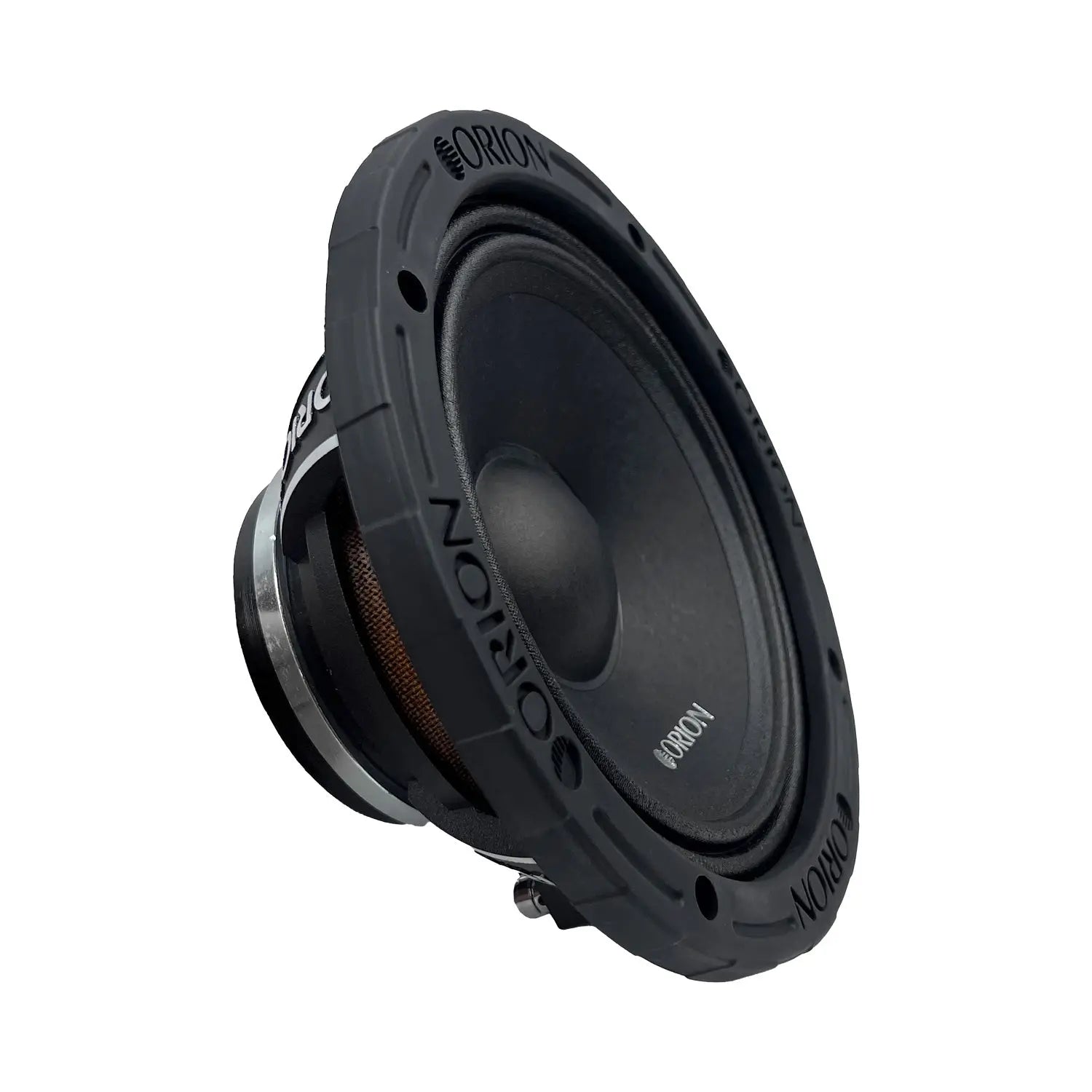

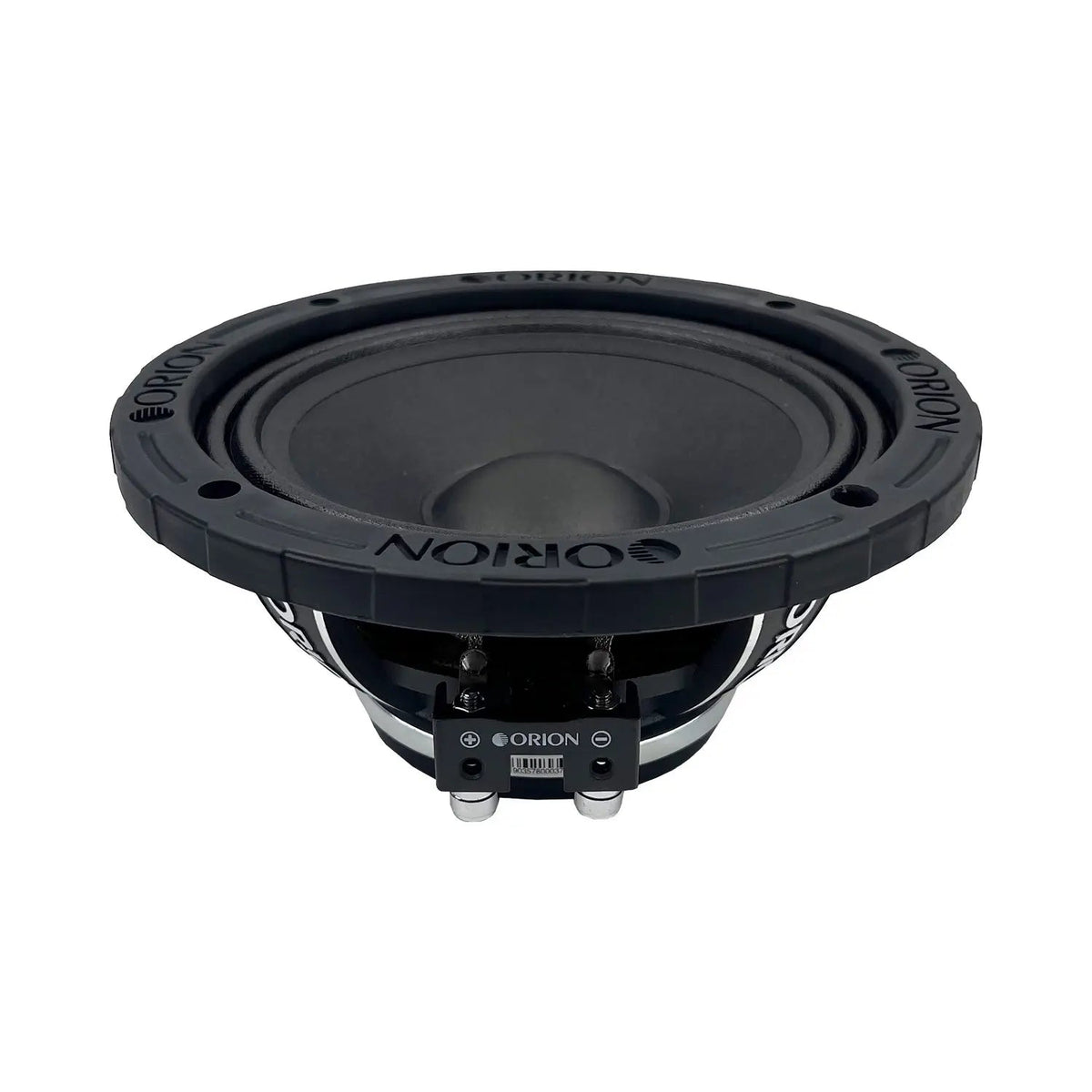

Orion HCCA 6.5 Inch Neodymium Dust Cap Midrange Speaker. Available manufacturer models: HCCA62NDC (2 Ohm), HCCA64NDC (4 Ohm), HCCA68NDC (8 Ohm). Select the impedance or configuration that matches your system; specifications for each model are listed below.
Manufacturer specifications
HCCA62NDC - 2 Ohm
- Speaker Size: 6.5 (Inches)
- Voice Coil Configuration: 2 ohm
- Power Handling (Peak): 1400 Watts
- Power Handling (RMS): 350 Watts
- Sensitivity: 97 dB
- Frequency Response: 140 kHz - 12 kHz
- Voice Coil Diameter: 1.5" (Inches)
- Material: Cast Basket
- Cone Material: Non Pressed Paper
- Magnet Information: 20 Oz. Ferrite
- Grills Included: No
- Mounting Depth: 67.2mm / 2.65 (Inches)
- Overall Depth: 75.5mm / 2.97 (Inches)
- Cutout Diameter: 146mm / 5.75 (Inches)
- Overall Diameter: 174mm / 6.85 (Inches)

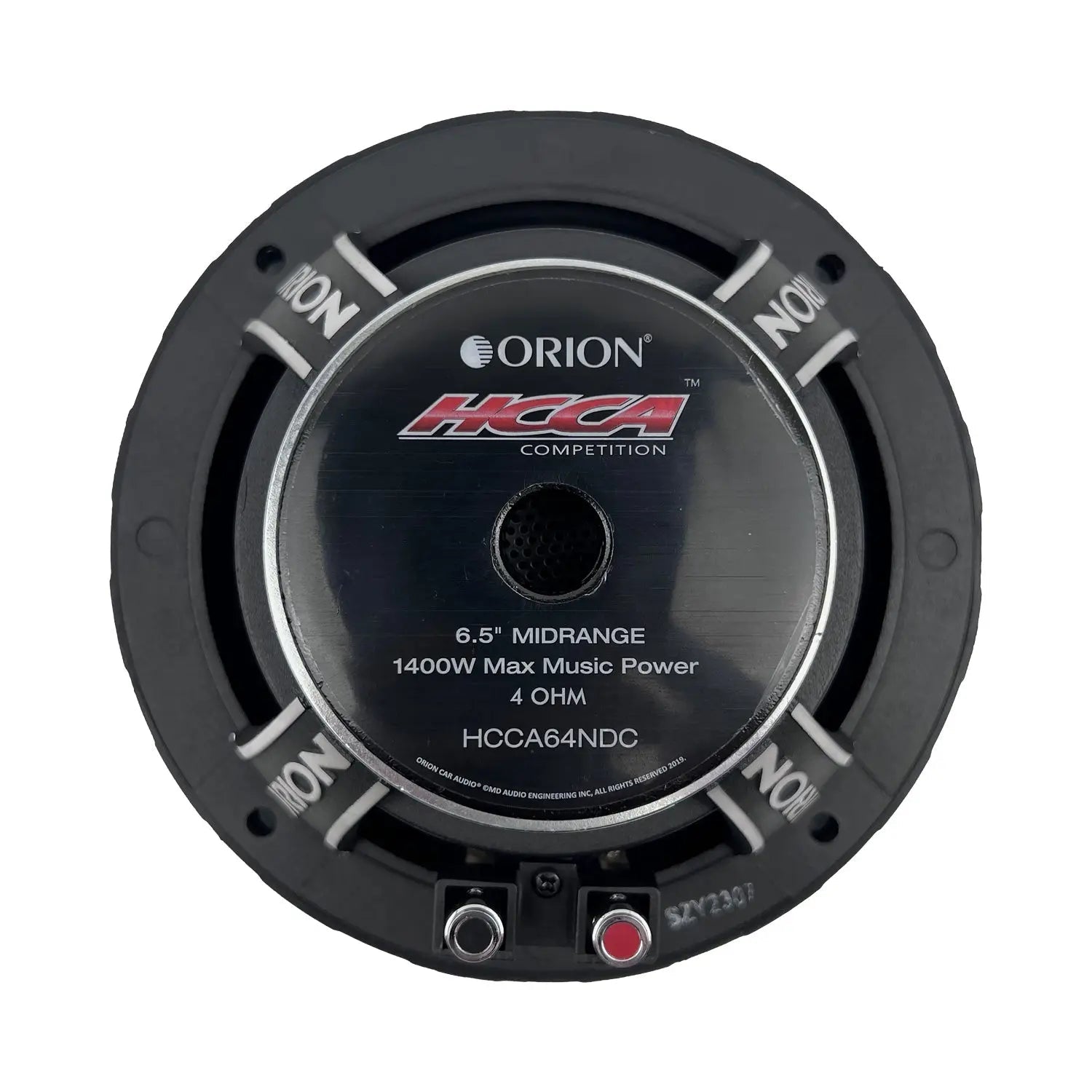

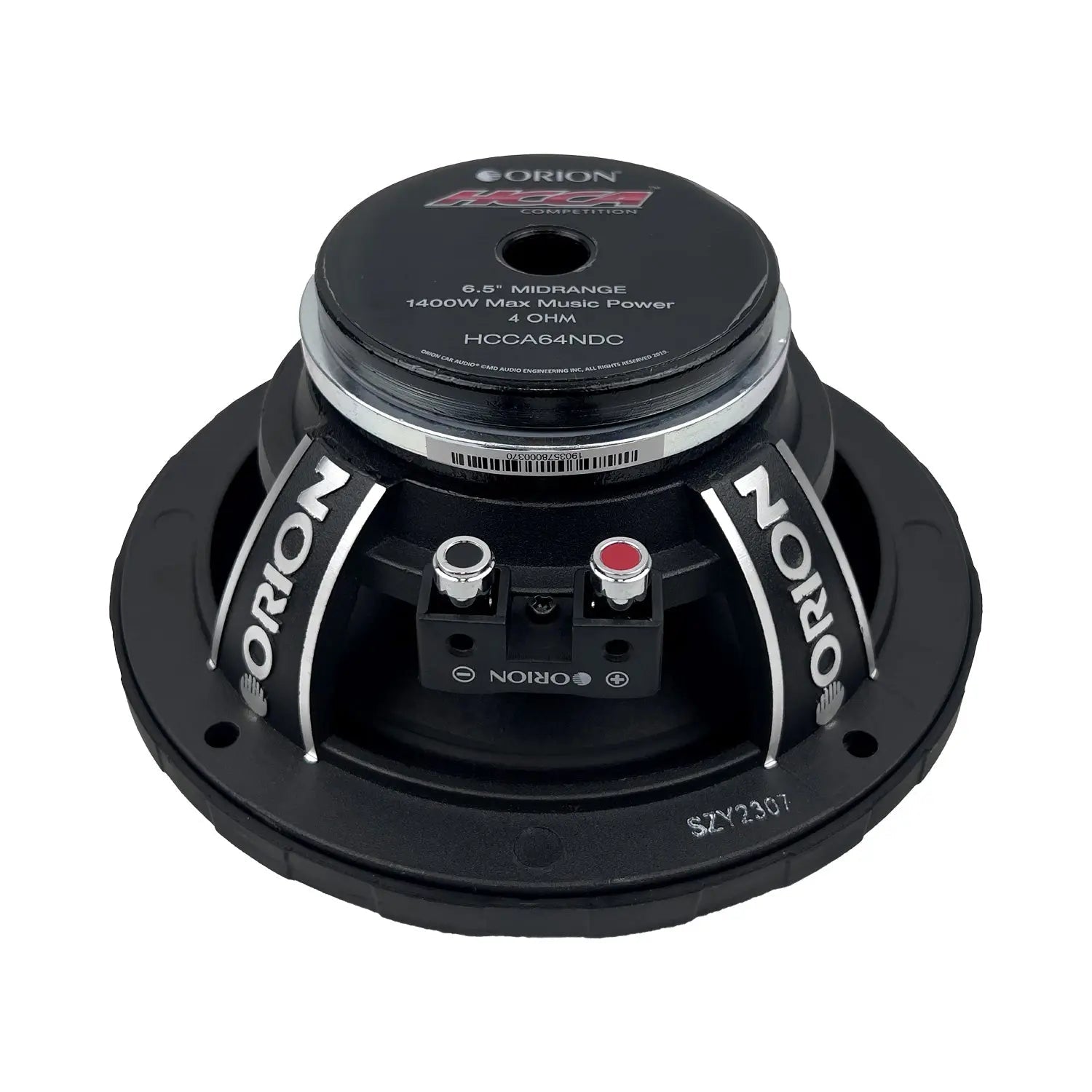

HCCA64NDC - 4 Ohm
- Speaker Size: 6.5 (Inches)
- Voice Coil Configuration: 4 ohm
- Power Handling (Peak): 1400 Watts
- Power Handling (RMS): 350 Watts
- Sensitivity: 99 dB
- Frequency Response: 130 kHz - 12 kHz
- Voice Coil Diameter: 1.5" (Inches)
- Material: Cast Basket
- Cone Material: Non Pressed Paper
- Magnet Information: 20 Oz. Ferrite
- Grills Included: No
- Mounting Depth: 67.2mm / 2.65 (Inches)
- Overall Depth: 75.5mm / 2.97 (Inches)
- Cutout Diameter: 146mm / 5.75 (Inches)
- Overall Diameter: 174mm / 6.85 (Inches)

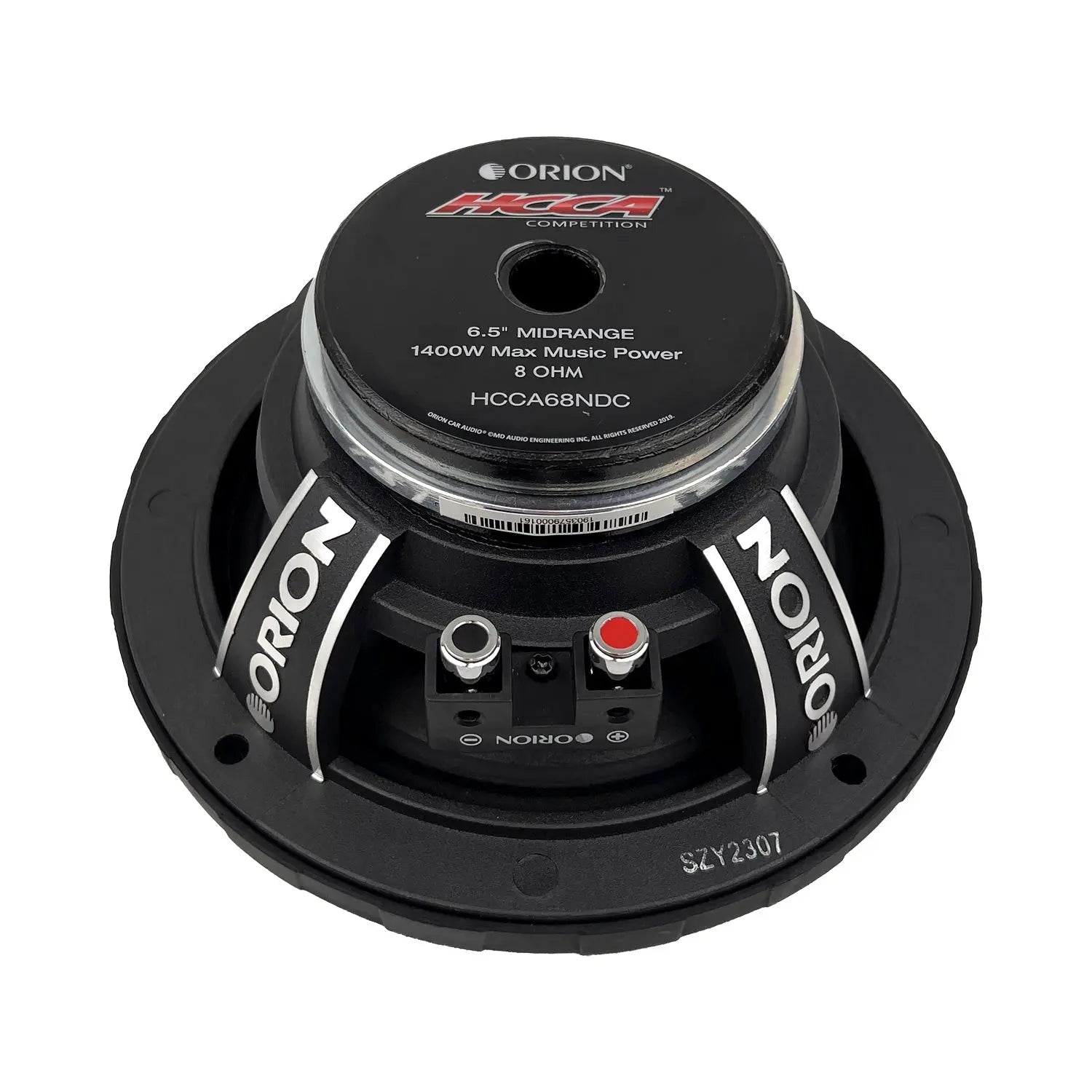

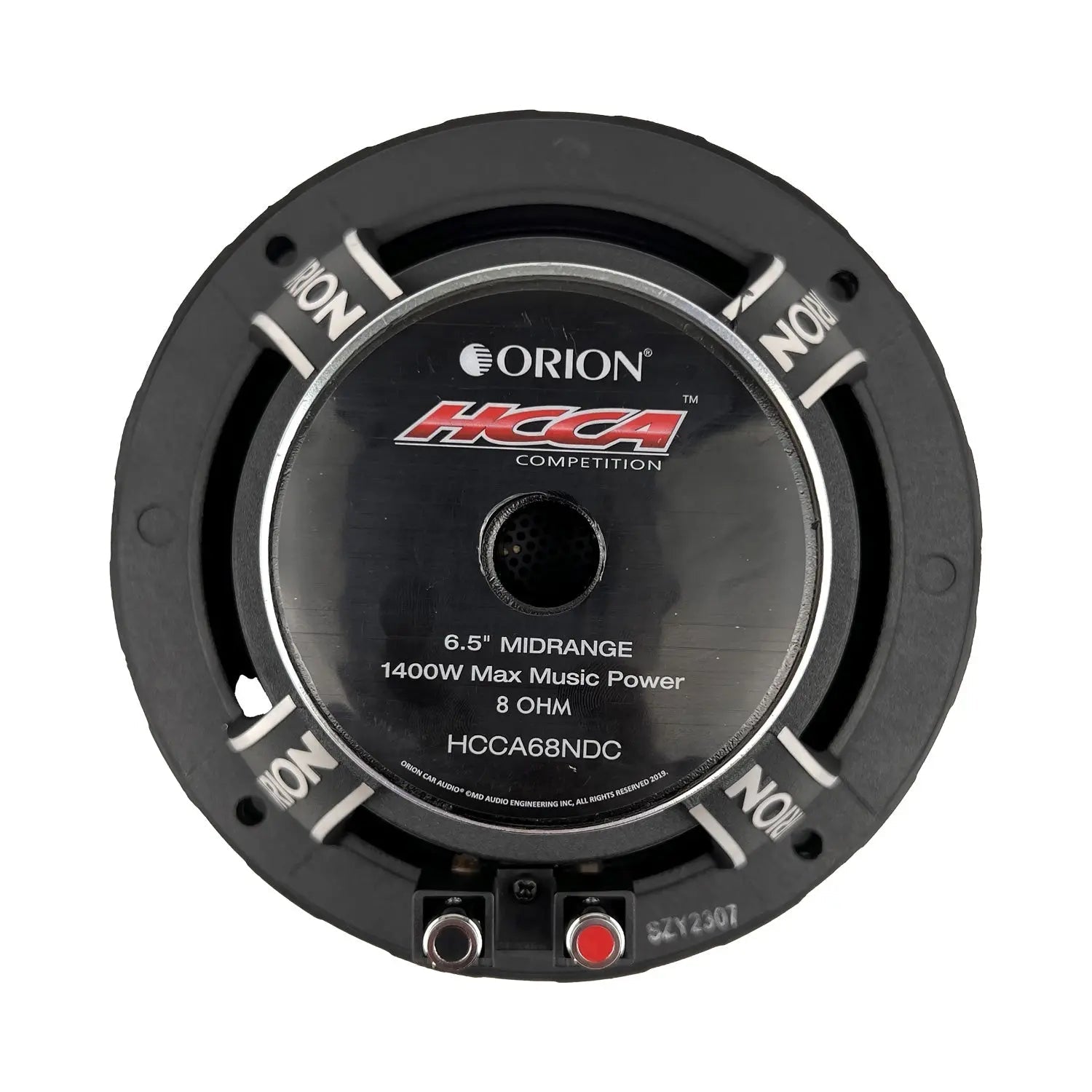

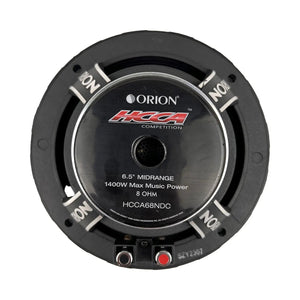

HCCA68NDC - 8 Ohm
See the Orion product page for detailed specifications.
