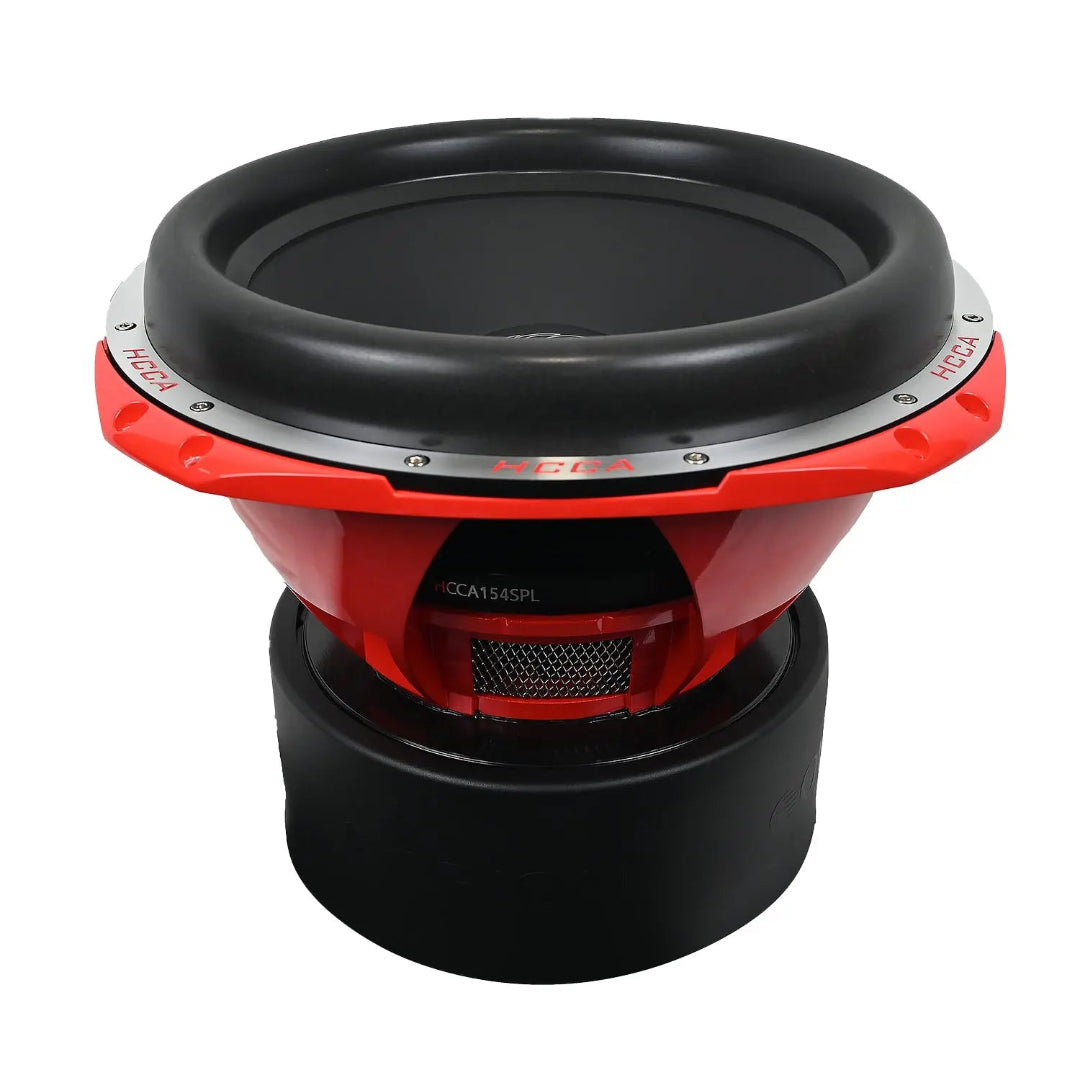

Orion HCCA 15 Inch SPL Subwoofer - 5000 Watts RMS

Orion HCCA 15 Inch SPL Subwoofer - 5000 Watts RMS. Available manufacturer models: HCCA151SPL (Dual 1 Ohm), HCCA152SPL (Dual 2 Ohm), HCCA154SPL (Dual 4 Ohm). Select the impedance or configuration that matches your system; specifications for each model are listed below.

Manufacturer specifications

HCCA151SPL - Dual 1 Ohm

• Subwoofer Size: 15" (Inches)
• Voice Coil Configuration: Dual 1-ohm
• Power Handling (Peak): 20000 Watts
• Power Handling (RMS): 5000 Watts
• Sensitivity: 86.02 dB
• Frequency Response: 21 Hz - 100 Hz
• Voice Coil Diameter: 4" (Inches)
• Dustcap Material: Polypropylene
• Cone Material: Moisture and UV Resistant Paper Cone
• Surround Material: NBR Foam
• Magnet Information: 690 Oz Triple Stack Ceramic
• Mounting Depth: 306mm / 12.05 (Inches)
• Cutout Diameter: 383mm / 15.07 (Inches)
• Overall Diameter: 422mm / 16.61 (Inches)

HCCA152SPL - Dual 2 Ohm

• Subwoofer Size: 15" (Inches)
• Voice Coil Configuration: Dual 2-ohm
• Power Handling (Peak): 20000 Watts
• Power Handling (RMS): 5000 Watts
• Sensitivity: 87.4 dB
• Frequency Response: 21 Hz - 100 Hz
• Voice Coil Diameter: 4" (Inches)
• Dustcap Material: Polypropylene
• Cone Material: Moisture and UV Resistant Paper Cone
• Surround Material: NBR Foam
• Magnet Information: 690 Oz Triple Stack Ceramic
• Mounting Depth: 306mm / 12.05 (Inches)
• Cutout Diameter: 383mm / 15.07 (Inches)
• Overall Diameter: 422mm / 16.61 (Inches)

HCCA154SPL - Dual 4 Ohm

• Subwoofer Size: 15" (Inches)
• Voice Coil Configuration: Dual 4-ohm
• Power Handling (Peak): 20000 Watts
• Power Handling (RMS): 5000 Watts
• Sensitivity: 87.2 dB
• Frequency Response: 21 Hz - 100 Hz
• Voice Coil Diameter: 4" (Inches)
• Dustcap Material: Polypropylene
• Cone Material: Moisture and UV Resistant Paper Cone
• Surround Material: NBR Foam
• Magnet Information: 690 Oz Triple Stack Ceramic
• Mounting Depth: 306mm / 12.05 (Inches)
• Cutout Diameter: 383mm / 15.07 (Inches)
• Overall Diameter: 422mm / 16.61 (Inches)
