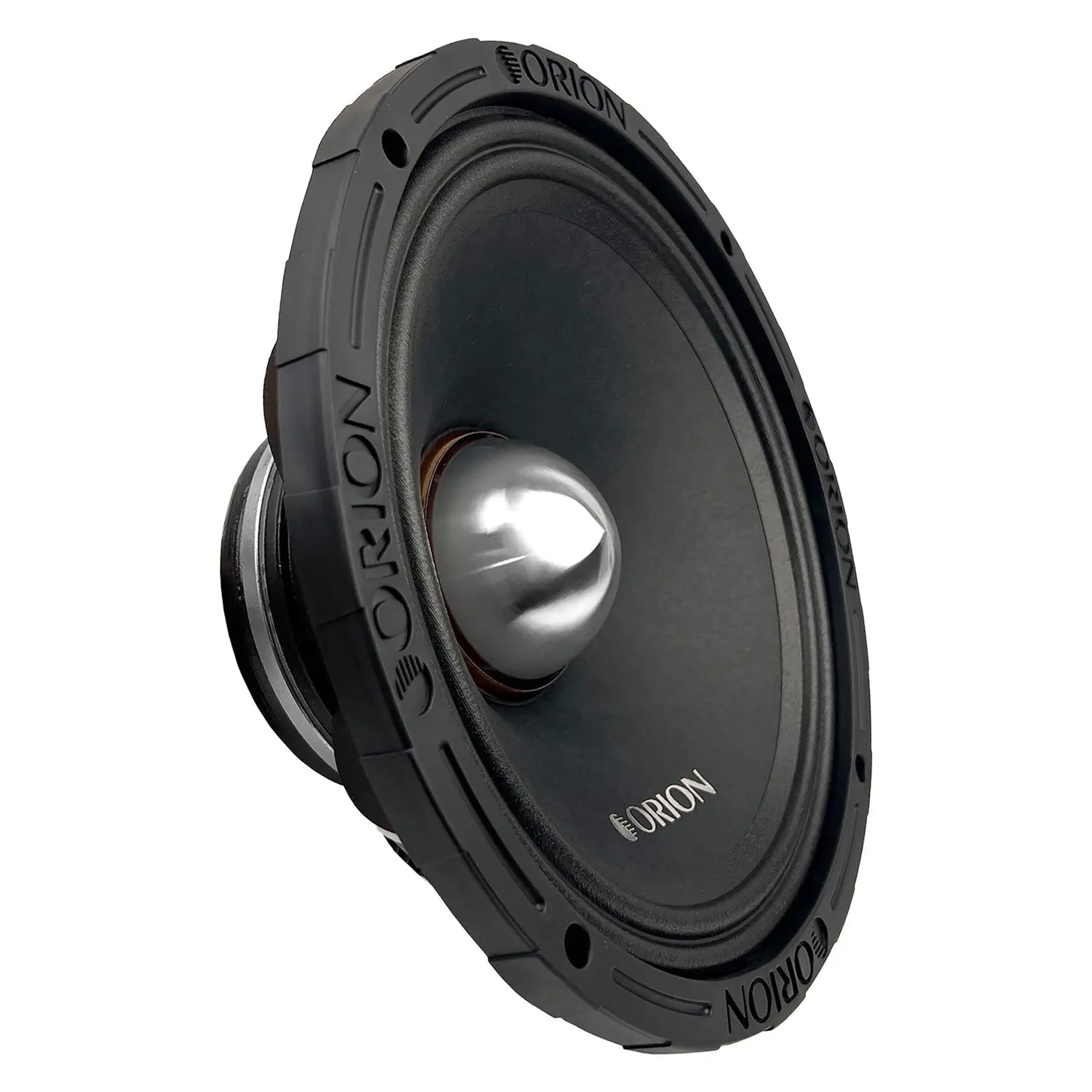

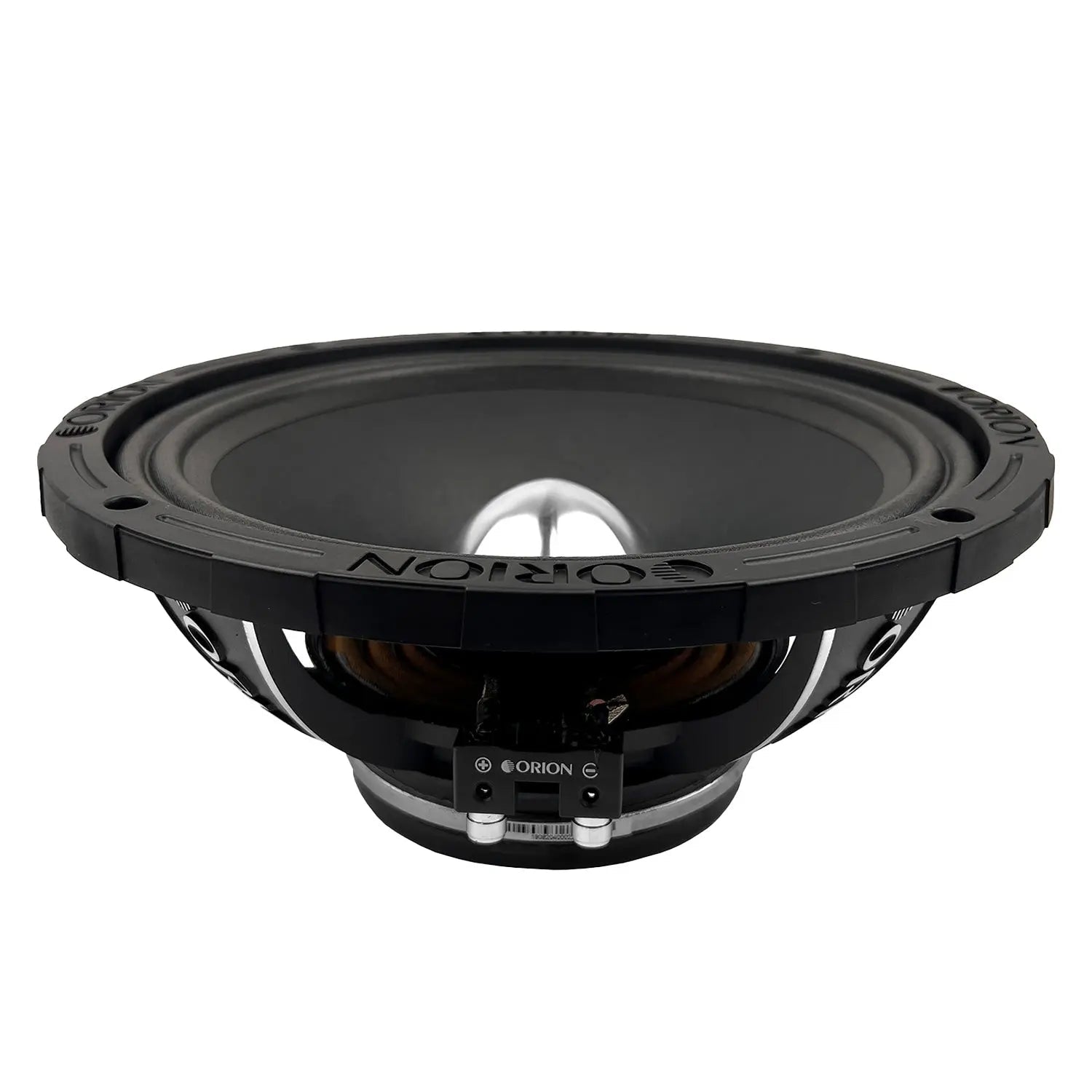

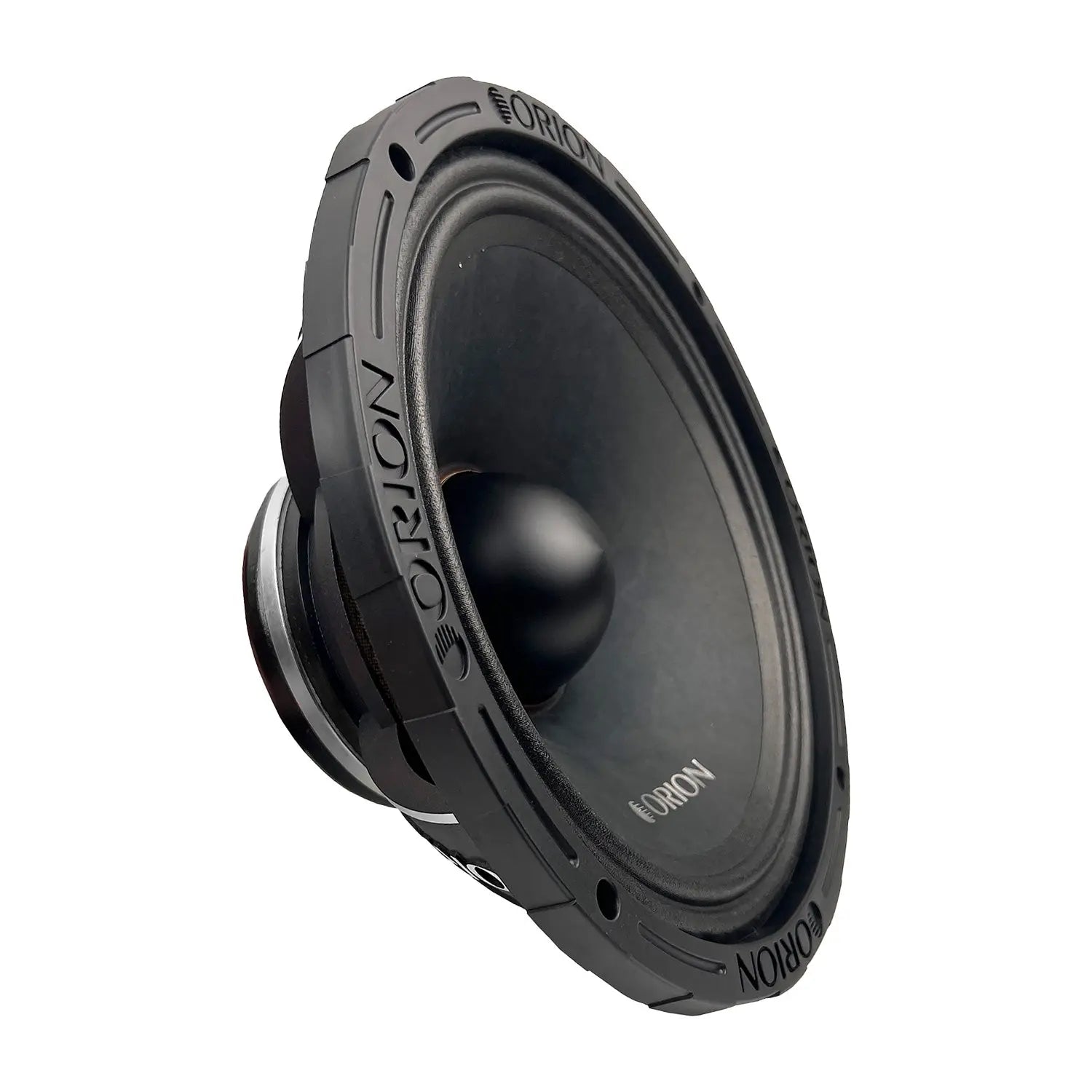

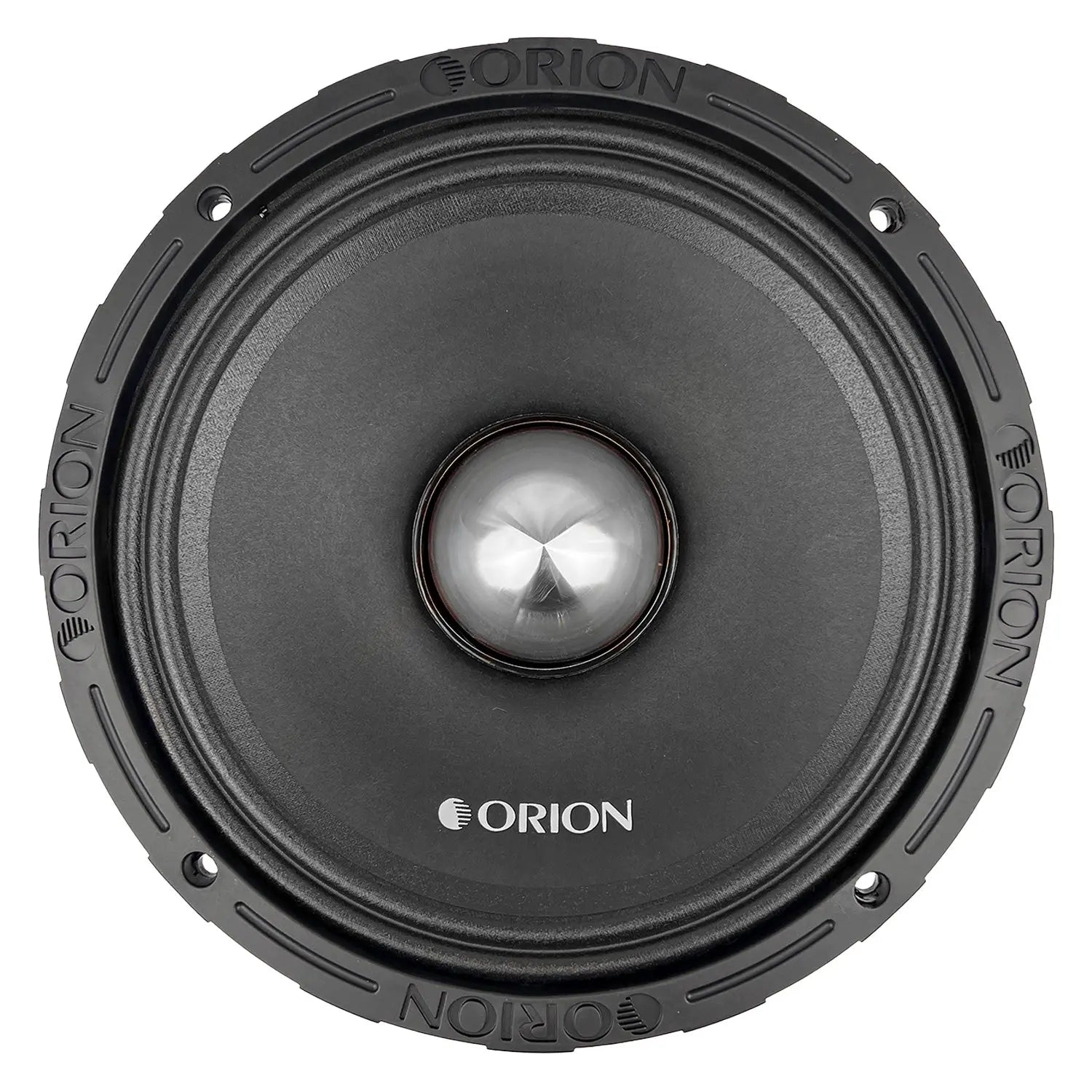

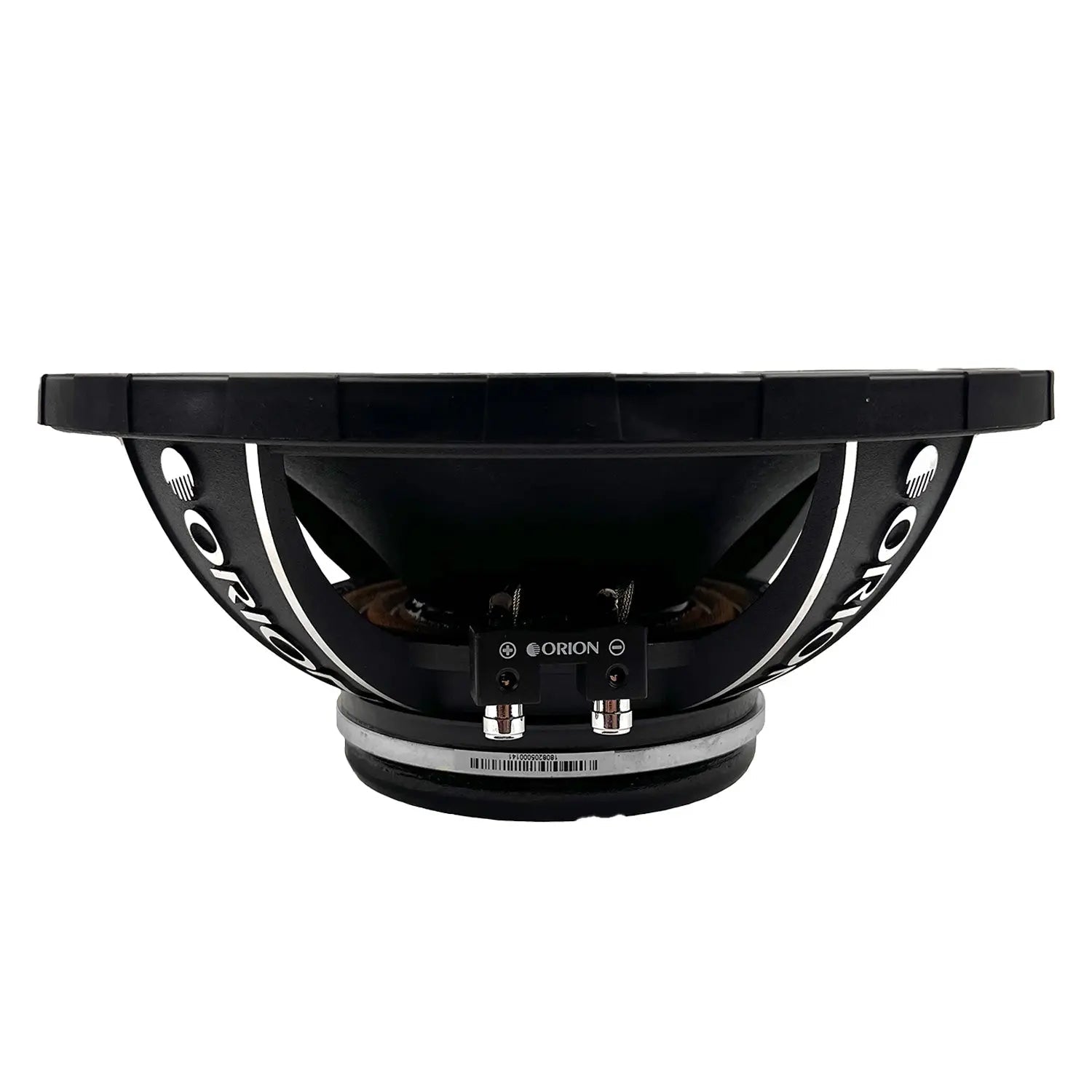

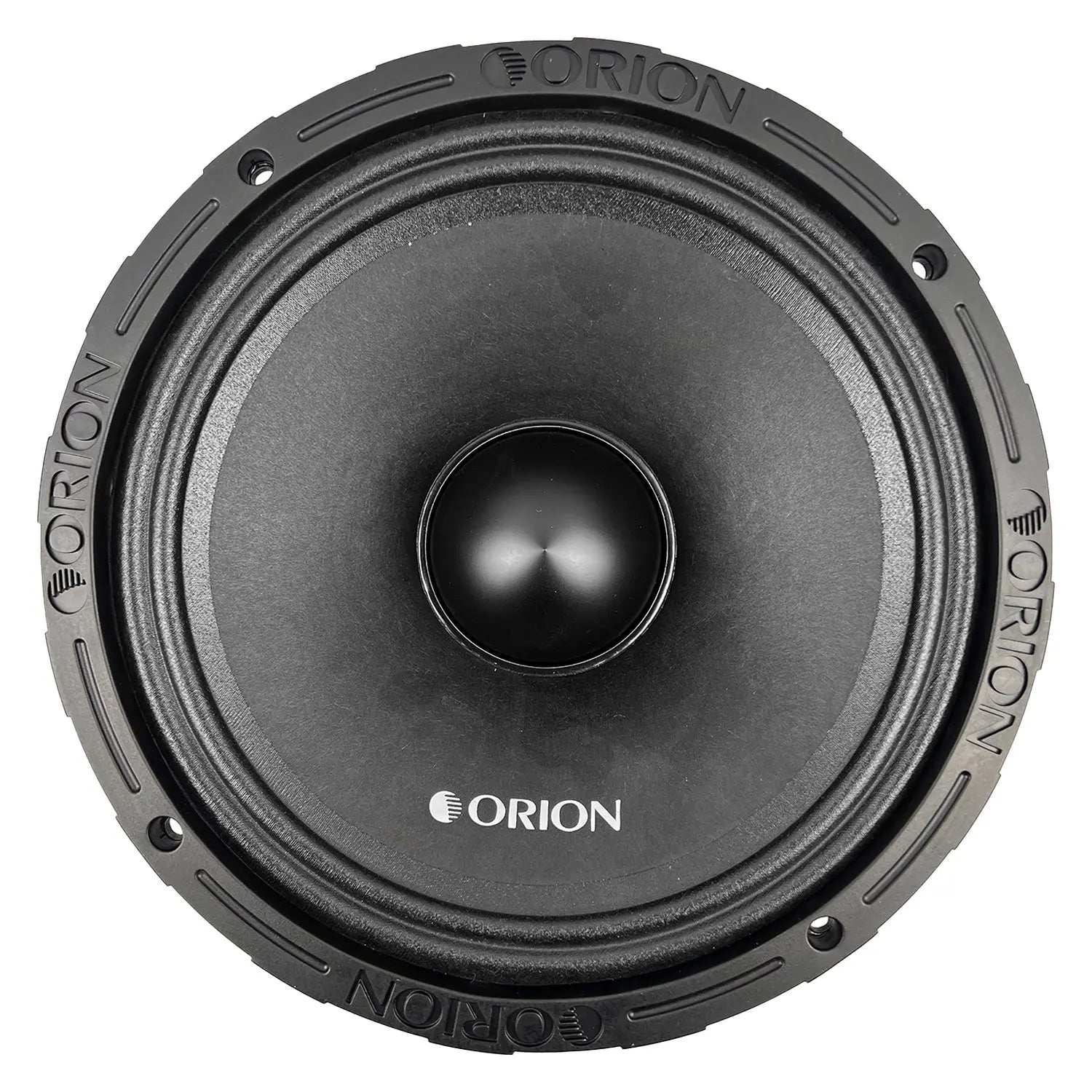

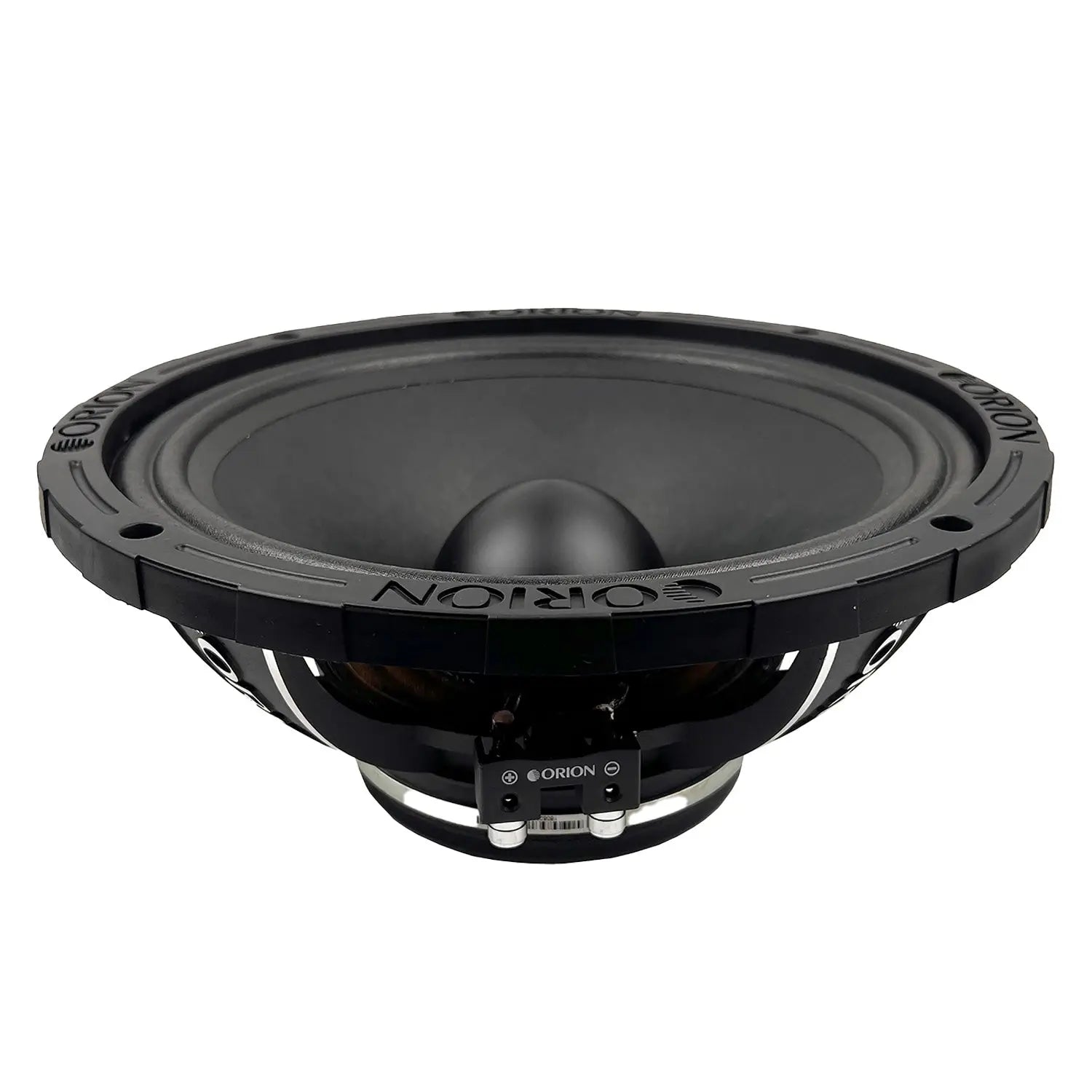

Orion HCCA 10 Inch Neodymium Midrange Speaker - 550 Watts RMS. Select the correct impedance for your system. Orion's model specifications are listed below.
Manufacturer specifications
HCCA1052N - 2 Ohm
- Speaker Size: 10 (Inches)
- Voice Coil Configuration: 2 ohm
- Power Handling (Peak): 2200 Watts
- Power Handling (RMS): 550 Watts
- Sensitivity: 101.4 dB
- Frequency Response: 105 Hz - 12 kHz
- Voice Coil Diameter: 3" (Inches)
- Material: Cast Basket
- Cone Material: Non Pressed Paper
- Phase Plug Material: Billet Aluminum
- Magnet Information: Neodymium
- Grill Included: No
- Mounting Depth: 99mm / 3.9 (Inches)
- Overall Depth: 111mm / 4.37 (Inches)
- Cutout Diameter: 234mm / 9.21 (Inches)
- Overall Diameter: 260mm / 10.24 (Inches)
HCCA104N - 4 Ohm
- Speaker Size: 10 (Inches)
- Voice Coil Configuration: 4 ohm
- Power Handling (Peak): 2200 Watts
- Power Handling (RMS): 550 Watts
- Sensitivity: 101.3 dB
- Frequency Response: 105 Hz - 12 kHz
- Voice Coil Diameter: 3" (Inches)
- Material: Cast Basket
- Cone Material: Non Pressed Paper
- Phase Plug Material: Billet Aluminum
- Magnet Information: Neodymium
- Grill Included: No
- Mounting Depth: 99mm / 3.9 (Inches)
- Overall Depth: 111mm / 4.37 (Inches)
- Cutout Diameter: 234mm / 9.21 (Inches)
- Overall Diameter: 260mm / 10.24 (Inches)

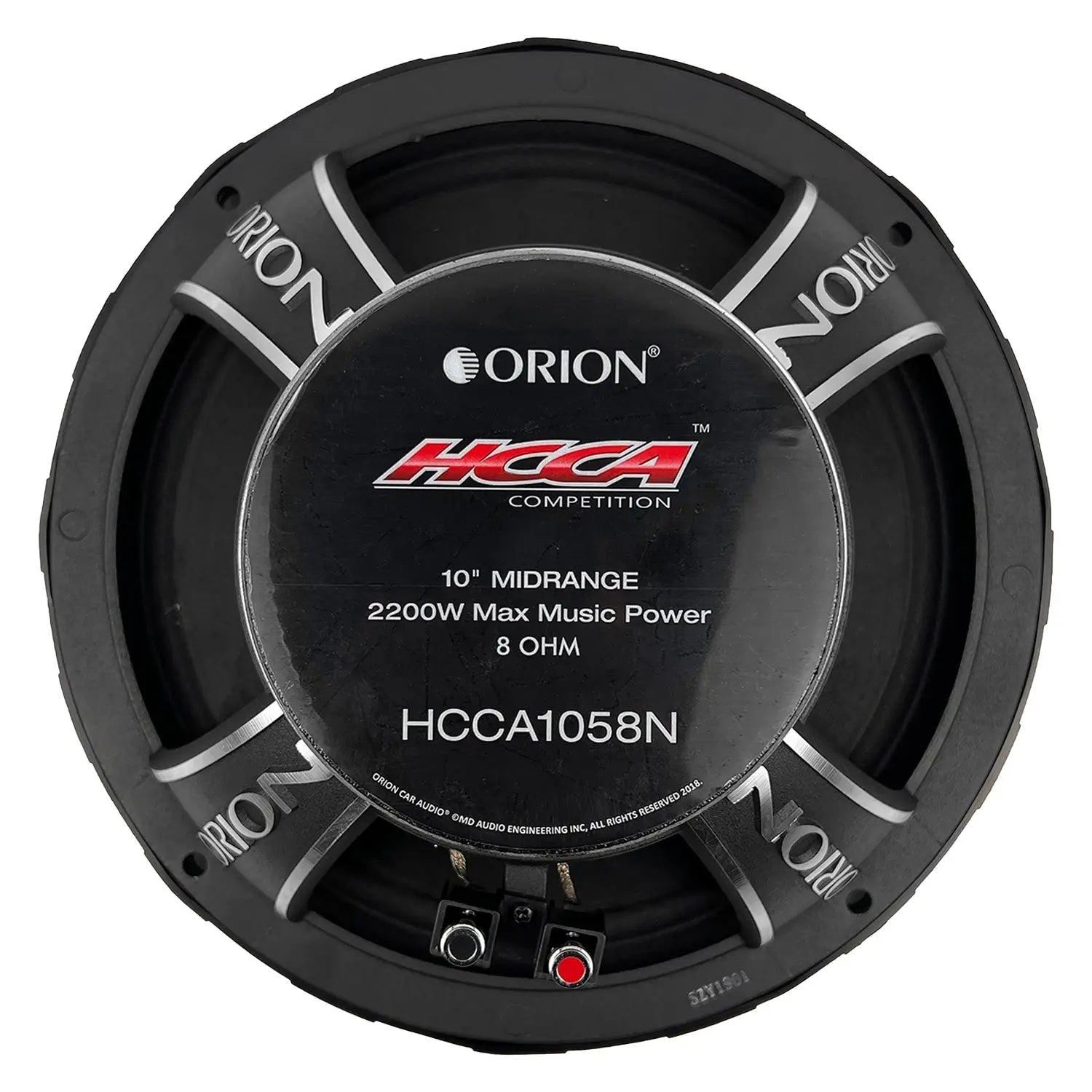

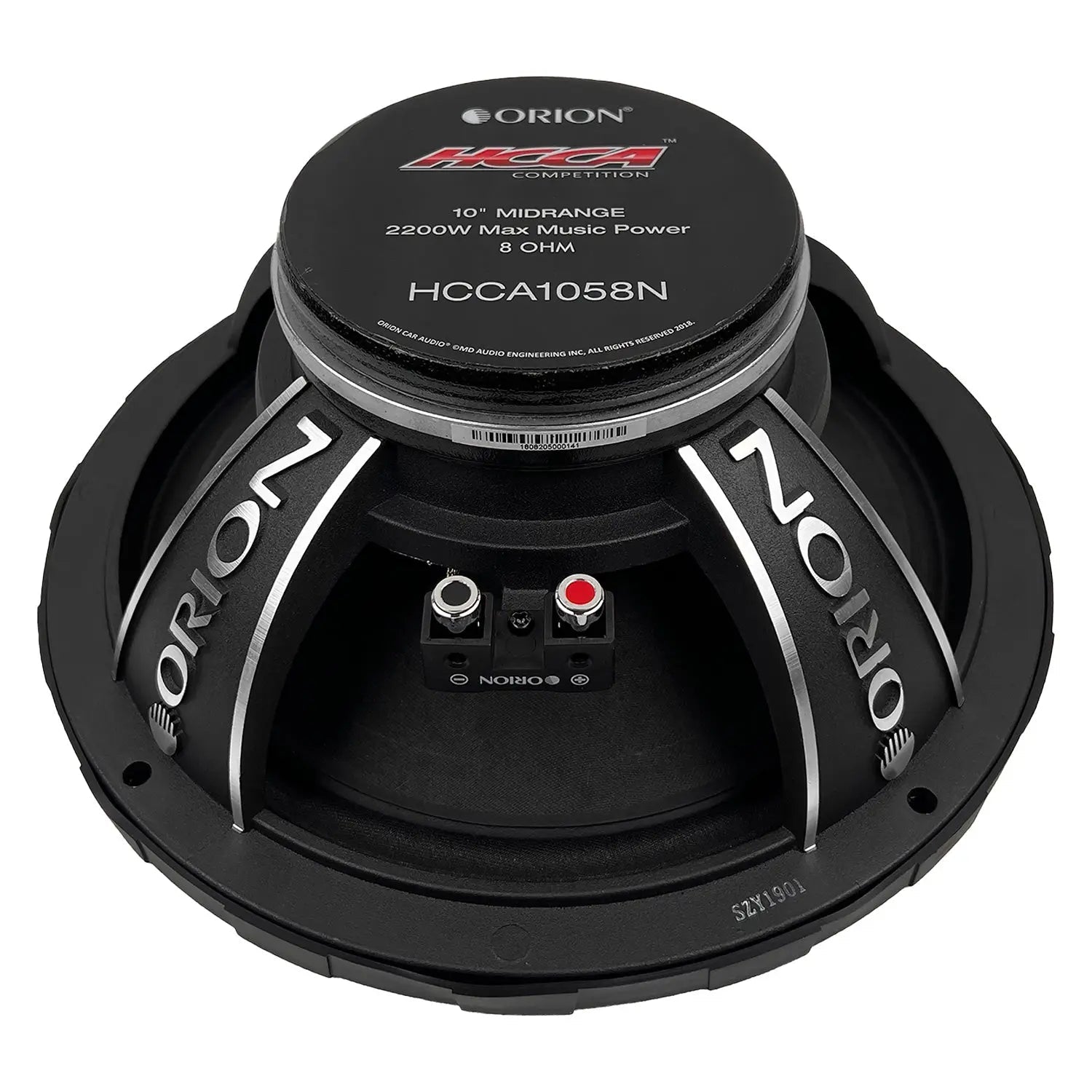

HCCA1058N - 8 Ohm
Orion has not provided a complete specifications panel for this impedance.
