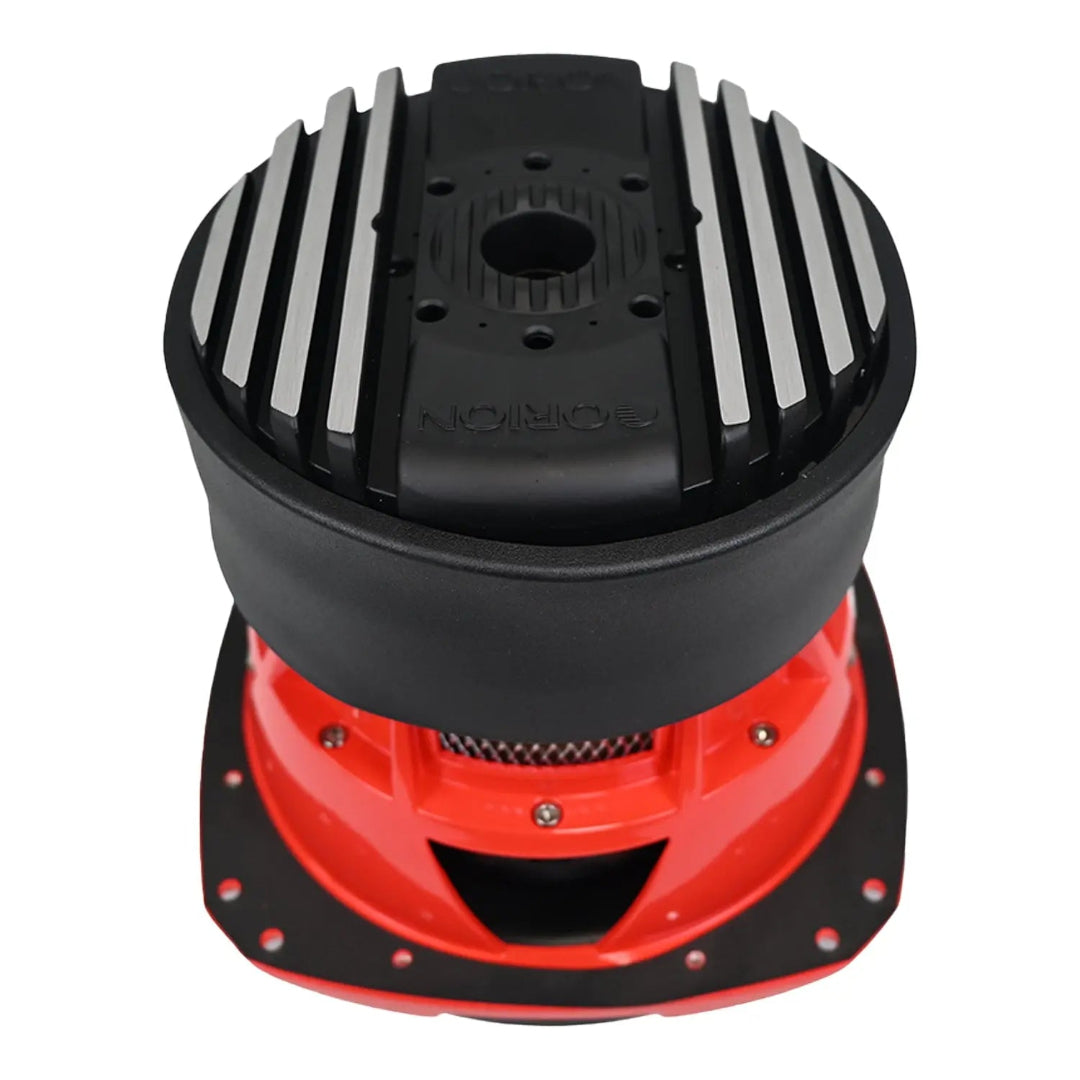

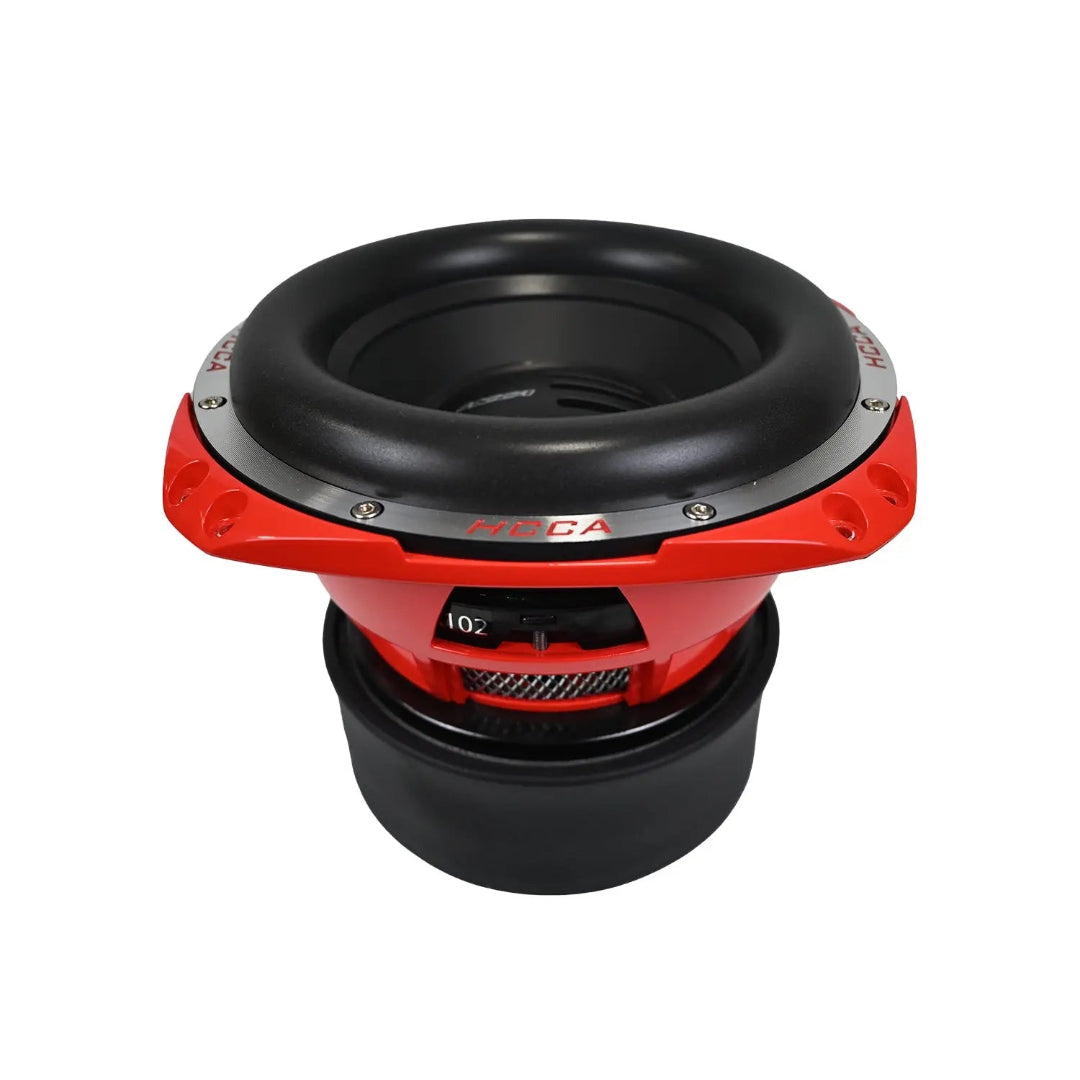

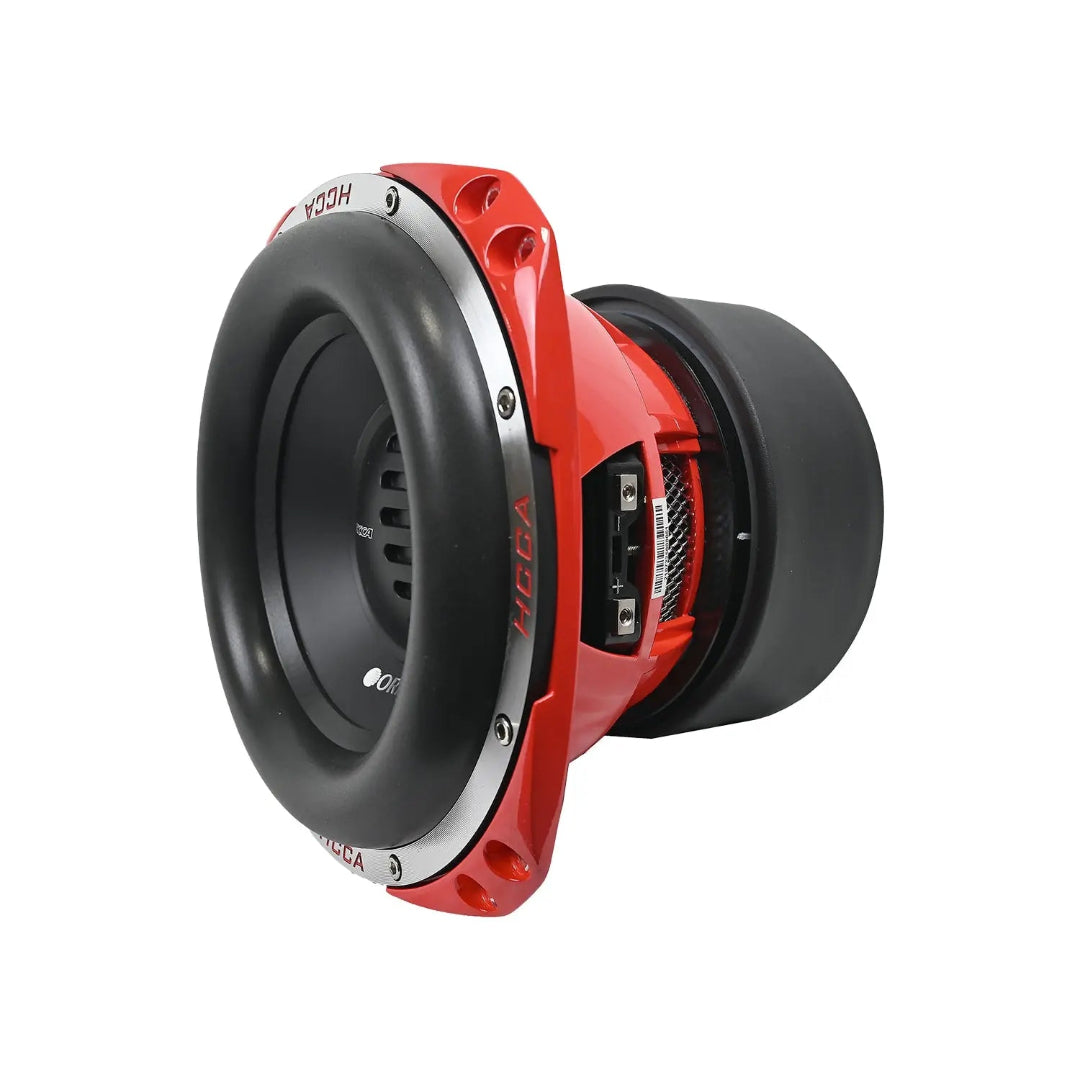

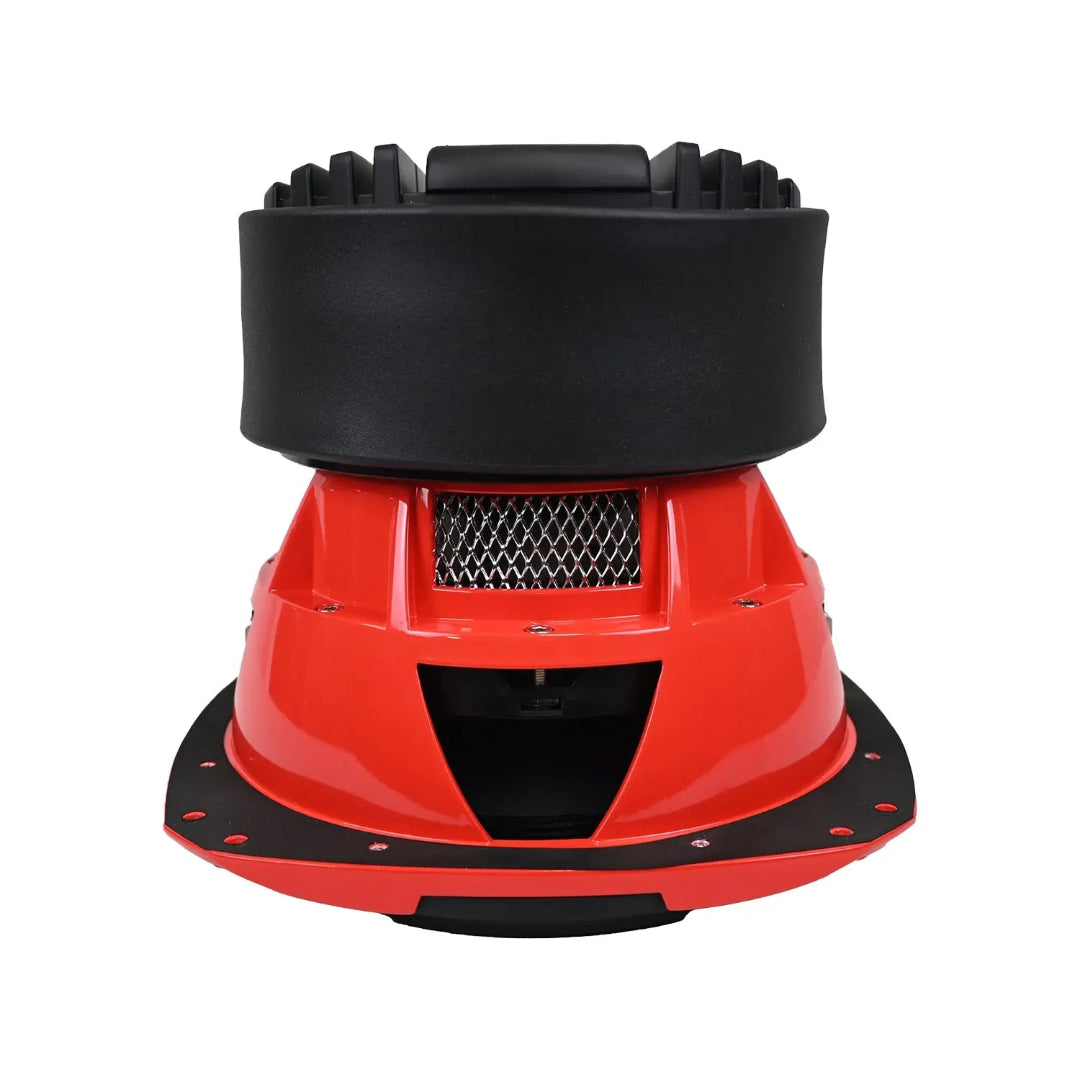

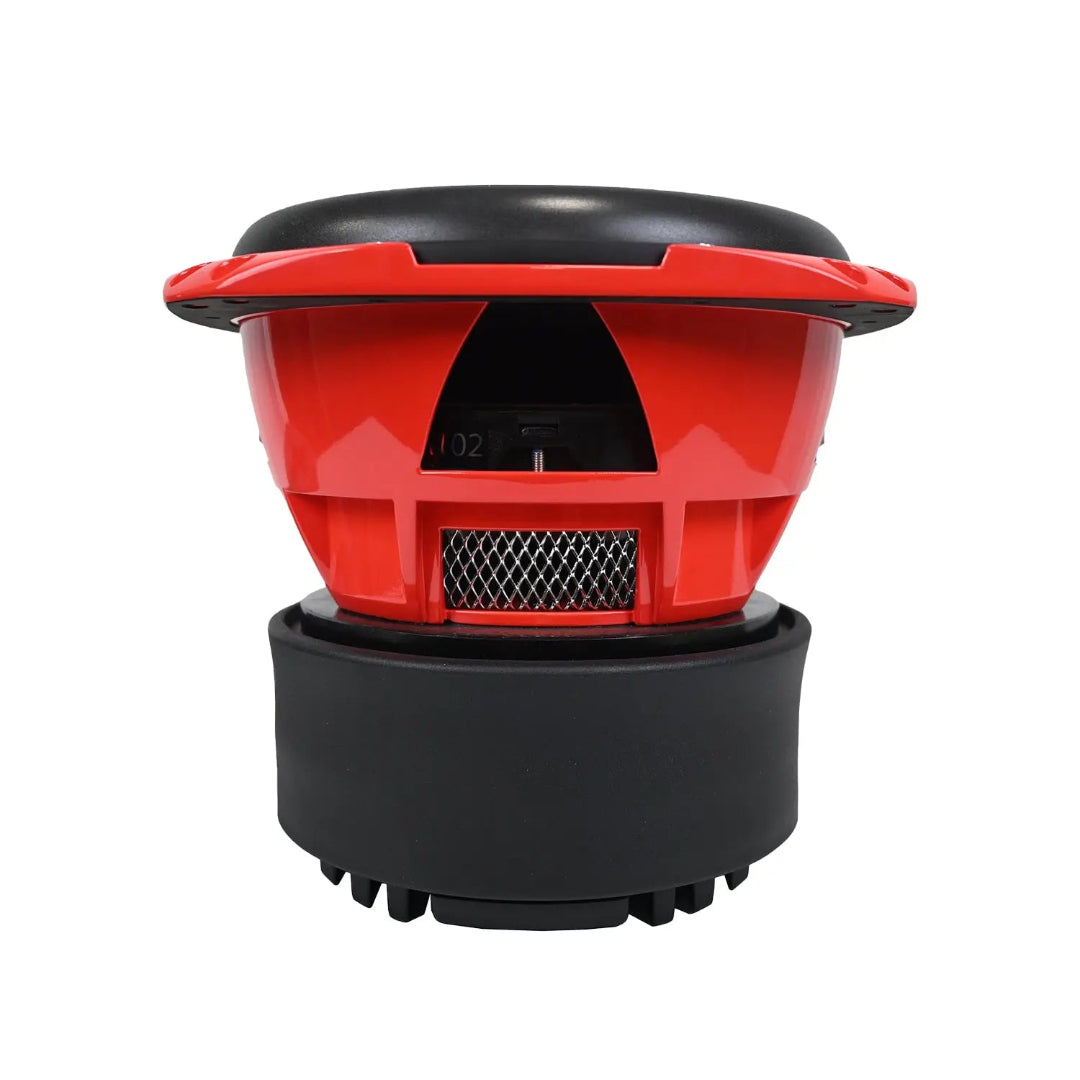

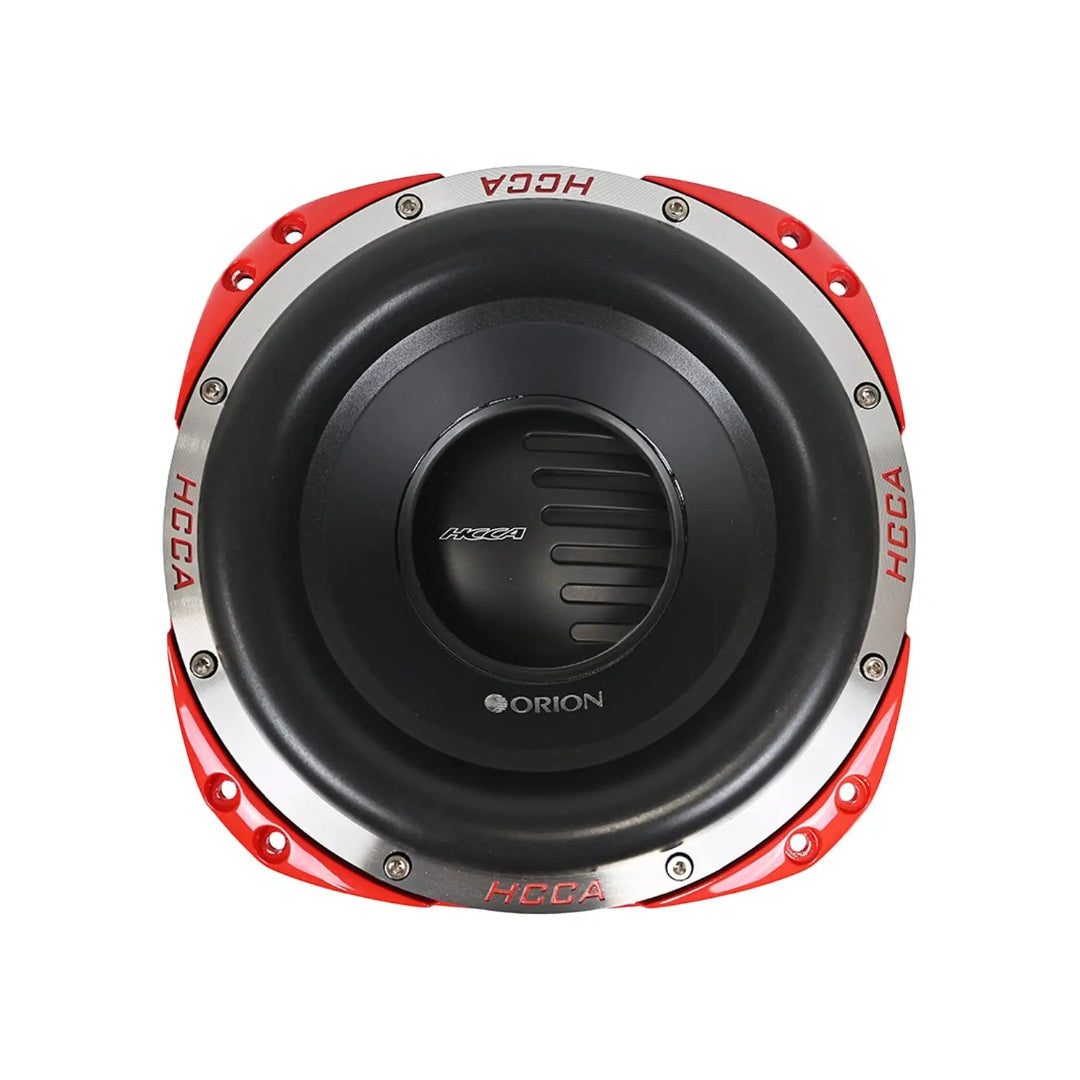

Orion HCCA 10 Inch Competition Subwoofer - 2000 Watts RMS

Orion HCCA 10 Inch Competition Subwoofer - 2000 Watts RMS. Available manufacturer models: HCCA102 (2 Ohm), HCCA104 (4 Ohm). Select the impedance or configuration that matches your system; specifications for each model are listed below.

Manufacturer specifications

HCCA102 - 2 Ohm

• Subwoofer Size: 10" (Inches)
• Voice Coil Configuration: Dual 2-ohm
• Power Handling (Peak): 8000 Watts
• Power Handling (RMS): 2000 Watts
• Sensitivity: 86.51 dB
• Frequency Response: 32 Hz - 100 Hz
• Voice Coil Diameter: 3" (Inches)
• Dustcap Material: Polypropylene
• Cone Material: Moisture and UV Resistant Paper Cone
• Surround Material: NBR Foam
• Magnet Information: 264 Oz Triple Stack Ceramic
• Mounting Depth: 214mm / 8.425 (Inches)
• Cutout Diameter: 238mm / 9.37 (Inches)
• Overall Diameter: 268.5mm / 10.57 (Inches)

HCCA104 - 4 Ohm

• Subwoofer Size: 10" (Inches)
• Voice Coil Configuration: Dual 4-ohm
• Power Handling (Peak): 8000 Watts
• Power Handling (RMS): 2000 Watts
• Sensitivity: 83.66 dB
• Frequency Response: 33 Hz - 100 Hz
• Voice Coil Diameter: 3" (Inches)
• Dustcap Material: Polypropylene
• Cone Material: Moisture and UV Resistant Paper Cone
• Surround Material: NBR Foam
• Magnet Information: 264 Oz Triple Stack Ceramic
• Mounting Depth: 214mm / 8.425 (Inches)
• Cutout Diameter: 238mm / 9.37 (Inches)
• Overall Diameter: 268.5mm / 10.57 (Inches)
