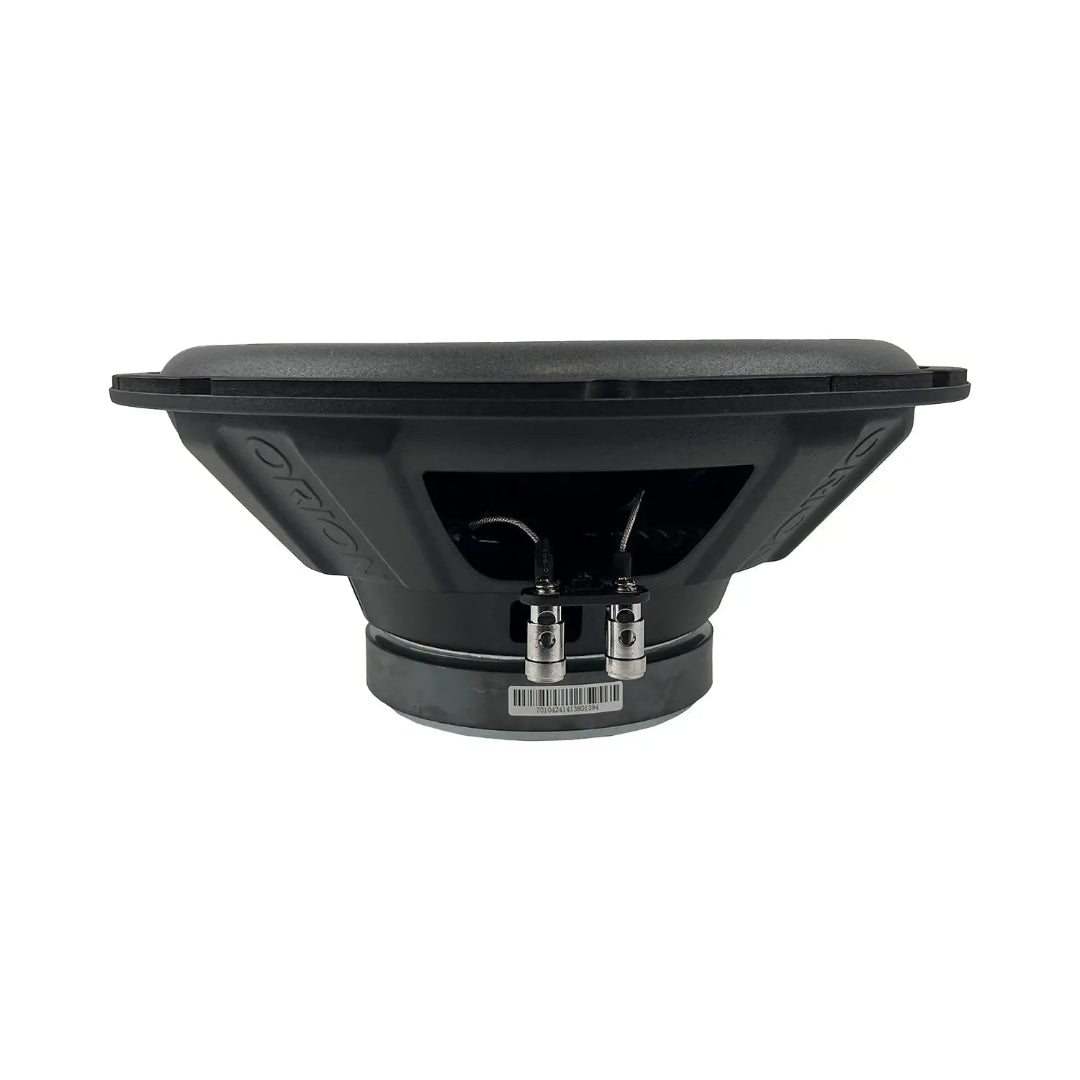

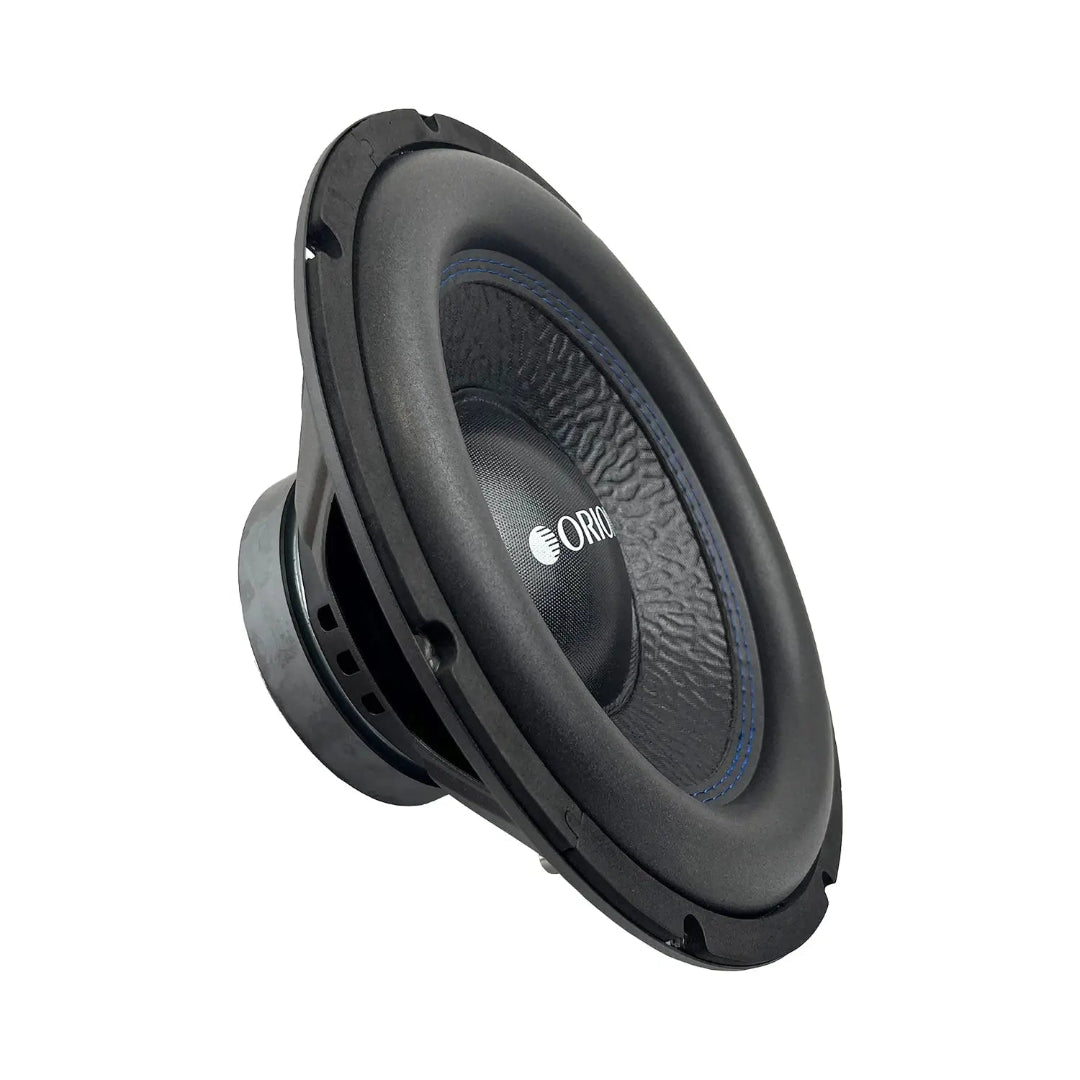

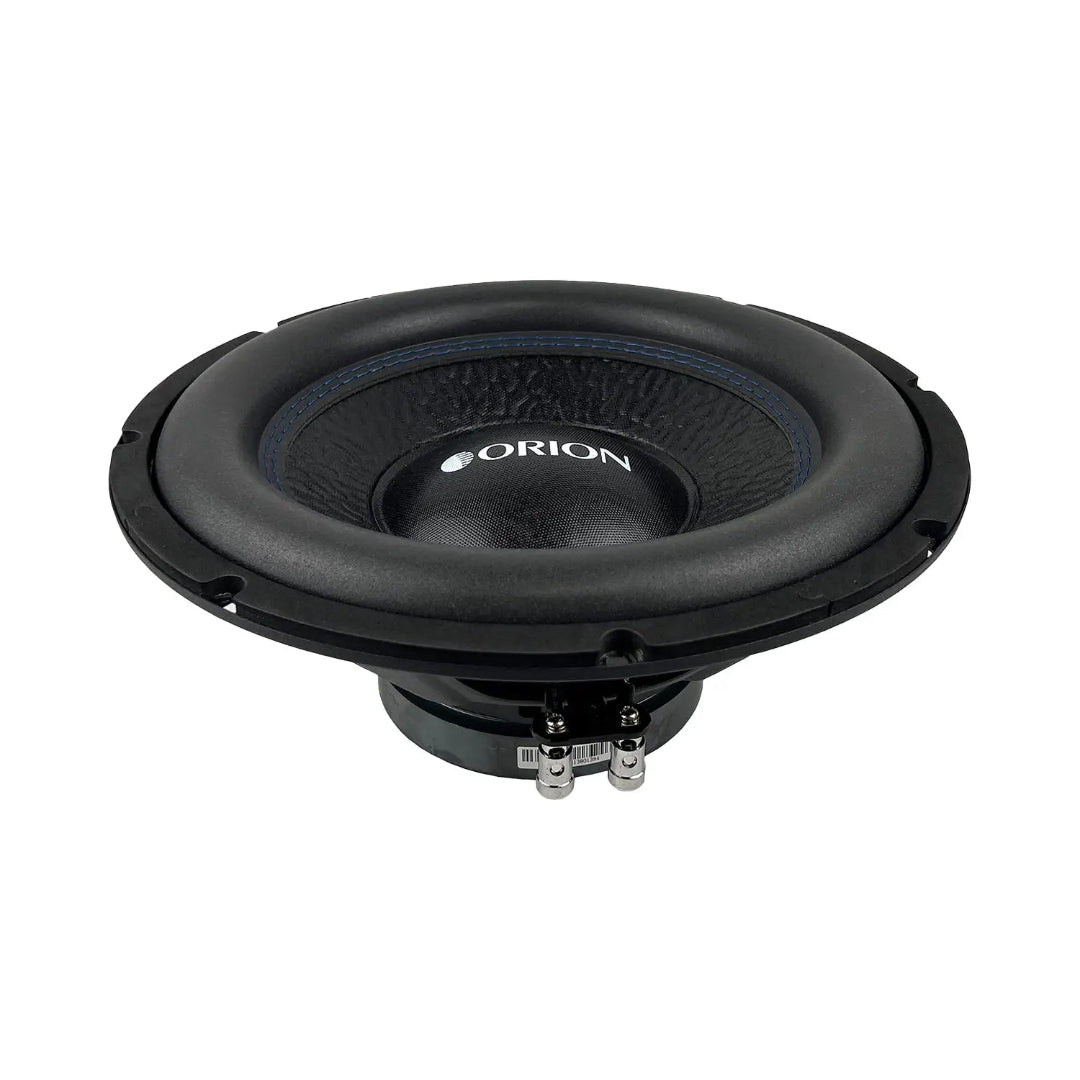

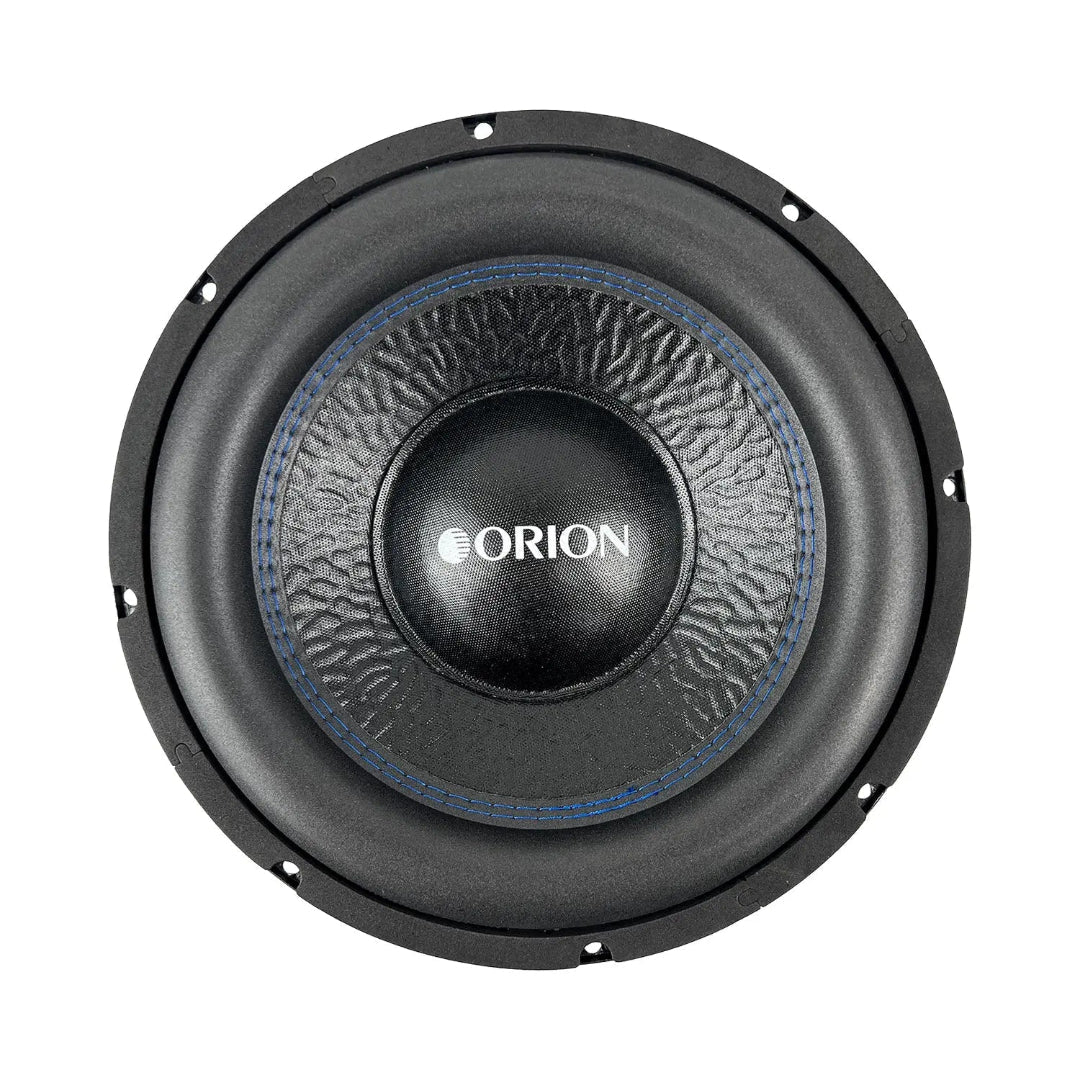

Orion CBW 12 Inch Cobalt Subwoofer - 400 Watts RMS

Orion CBW 12 Inch Cobalt Subwoofer - 400 Watts RMS. Available manufacturer models: CBW124D (Dual 4 Ohm), CBW124S (Single 4 Ohm). Select the impedance or configuration that matches your system; specifications for each model are listed below.

Manufacturer specifications

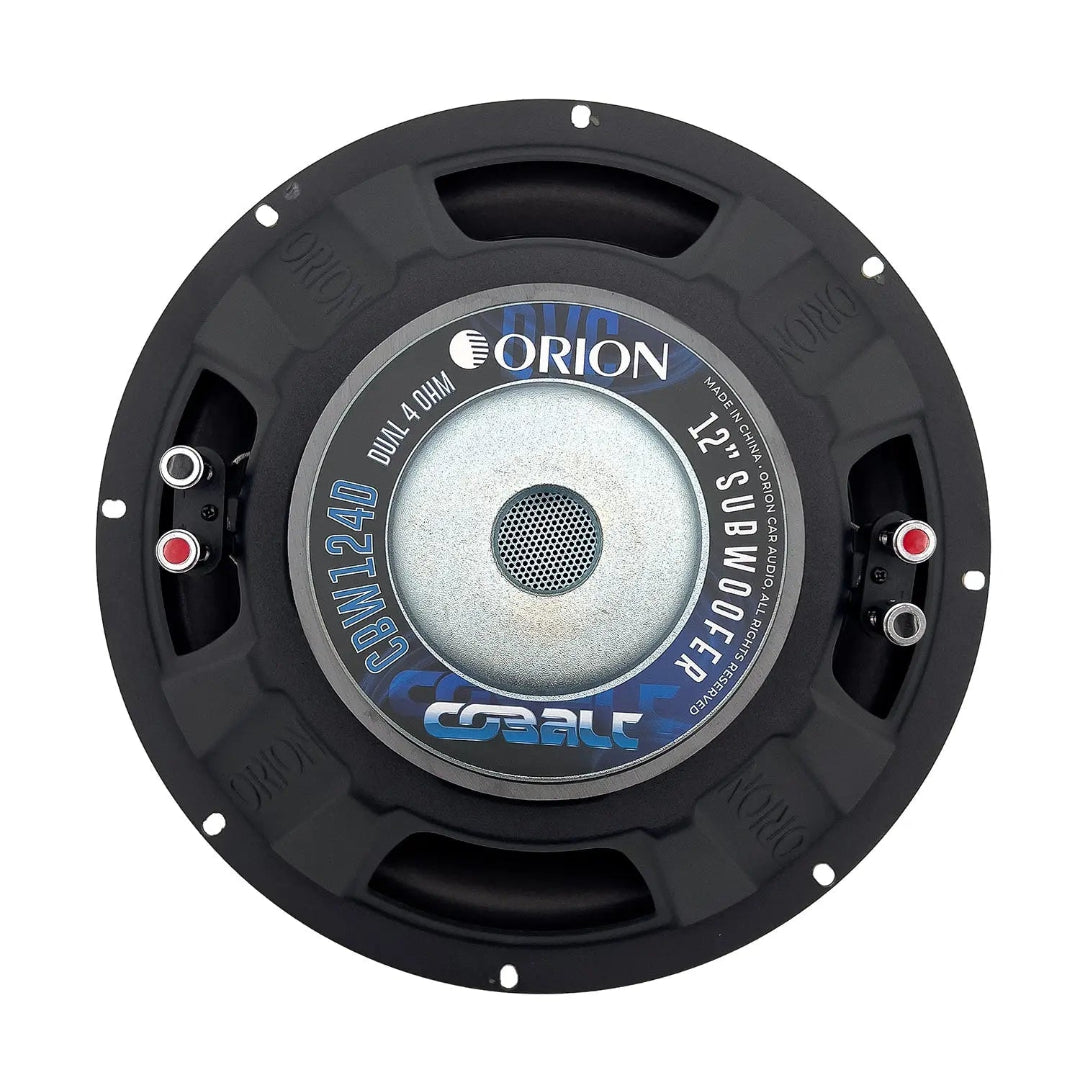

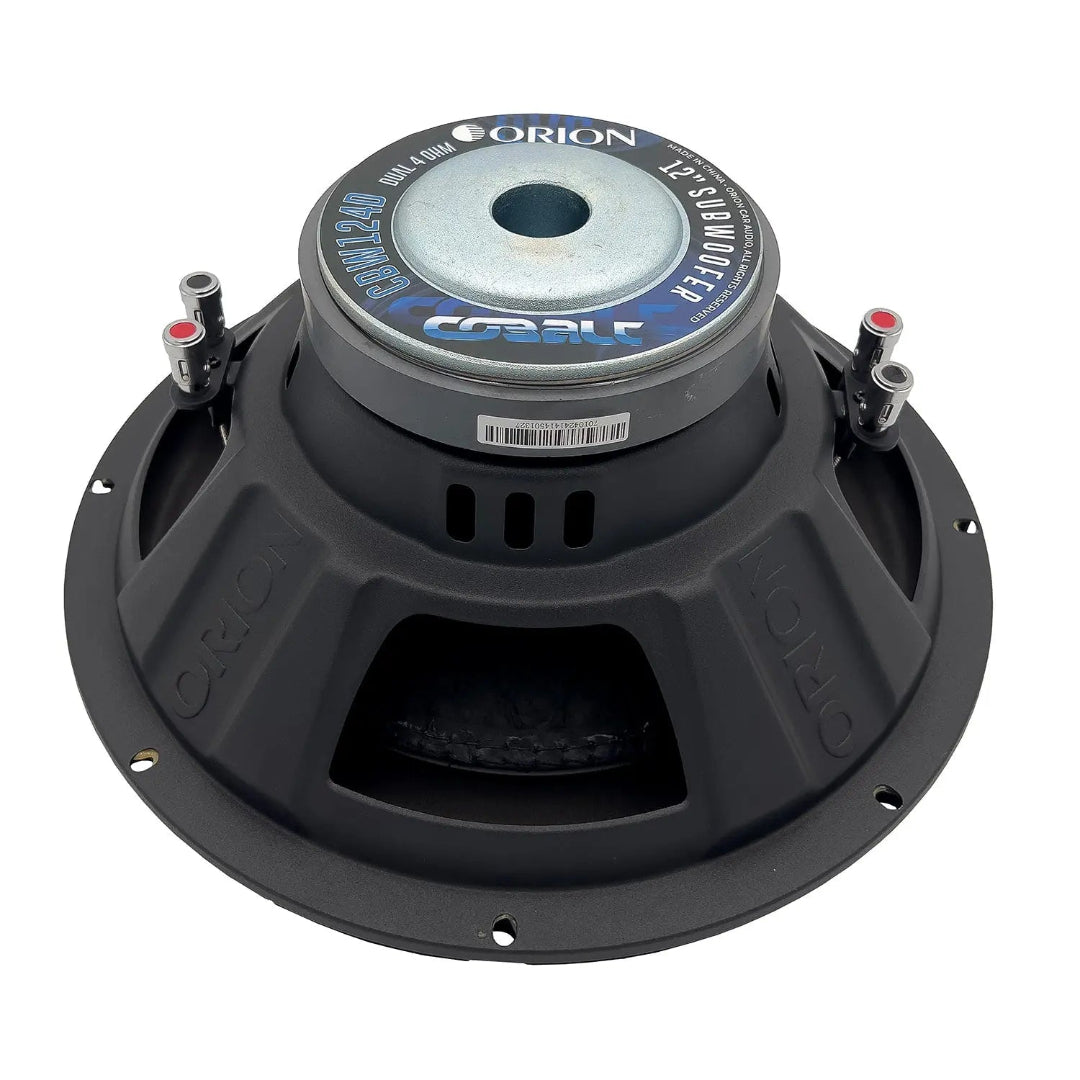

CBW124D - Dual 4 Ohm

• Subwoofer Size: 12 (Inches)
• Voice Coil Configuration: Dual 4-ohm
• Power Handling (Peak): 1600 Watts
• Power Handling (RMS): 400 Watts
• Sensitivity: 87 dB
• Frequency Response: 20 Hz - 300 Hz
• Voice Coil Diameter: 2 (Inches)
• Cone Material: UV Coated Paper / Fiber Blend Cone
• Surround Material: Foam Surround
• Magnet Information: 65 Oz Ferrite
• Overall Depth: 142mm / 5.59
• Mounting Depth: 122mm / 4.80 (Inches)
• Overall Diameter: 313mm / 12.32 (Inches)
• Cutout Diameter: 300mm / 11.81 (Inches)

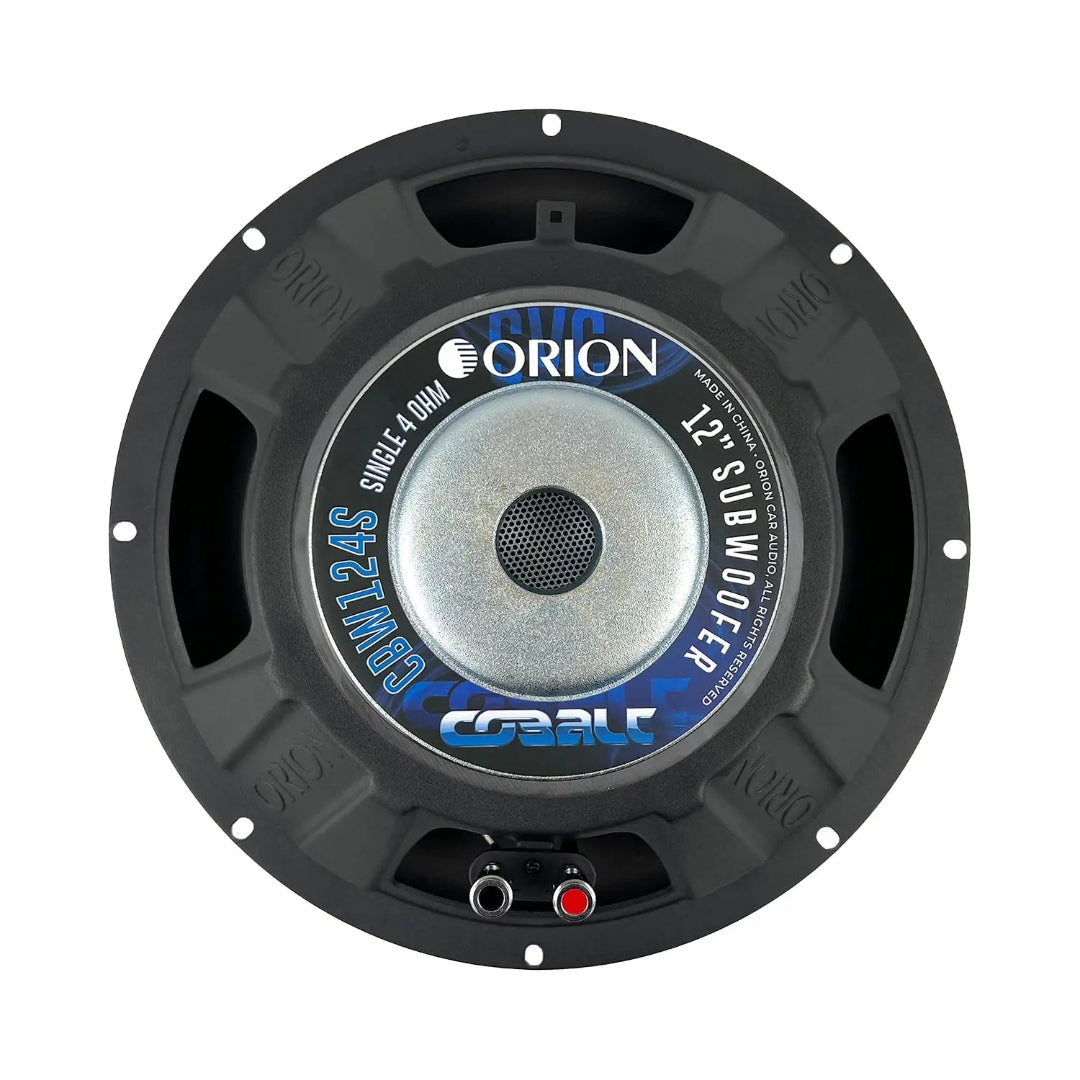

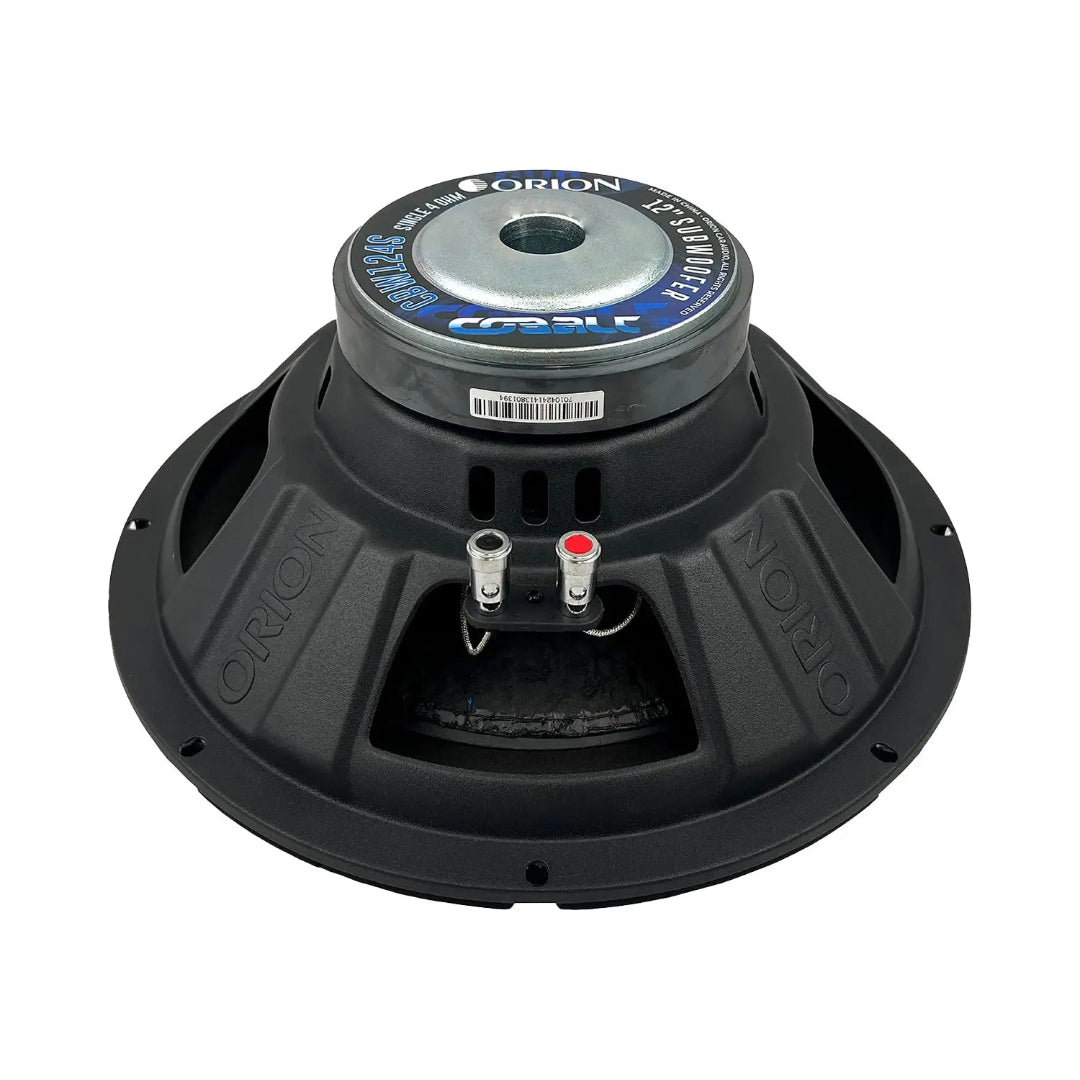

CBW124S - Single 4 Ohm

• Subwoofer Size: 12 (Inches)
• Voice Coil Configuration: Single 4-ohm
• Power Handling (Peak): 1600 Watts
• Power Handling (RMS): 400 Watts
• Sensitivity: 87 dB
• Frequency Response: 20 Hz - 300 Hz
• Voice Coil Diameter: 2 (Inches)
• Cone Material: UV Coated Paper / Fiber Blend Cone
• Surround Material: Foam Surround
• Magnet Information: 65 Oz Ferrite
• Overall Depth: 142mm / 5.59
• Mounting Depth: 122mm / 4.80 (Inches)
• Overall Diameter: 313mm / 12.32 (Inches)
• Cutout Diameter: 300mm / 11.81 (Inches)
