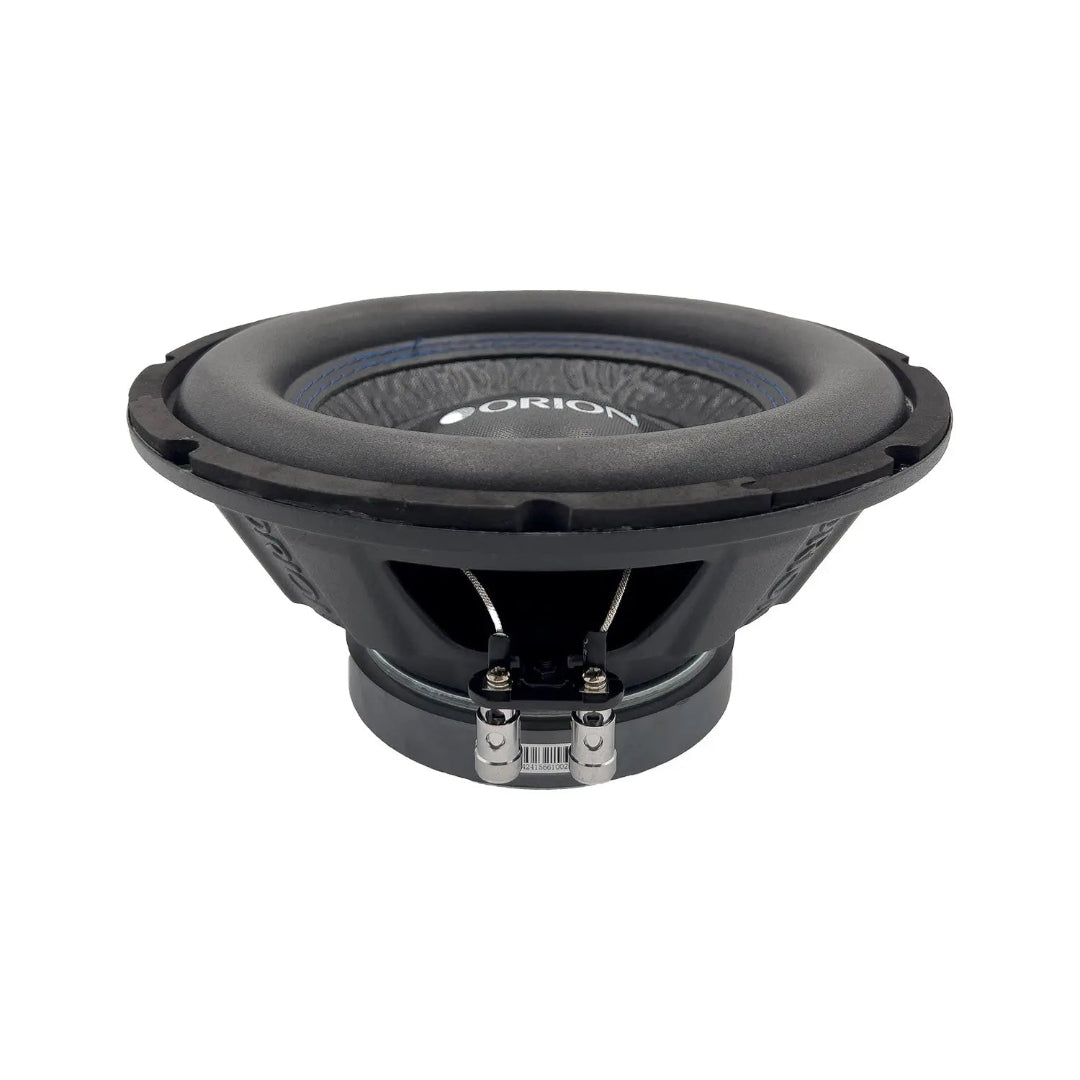

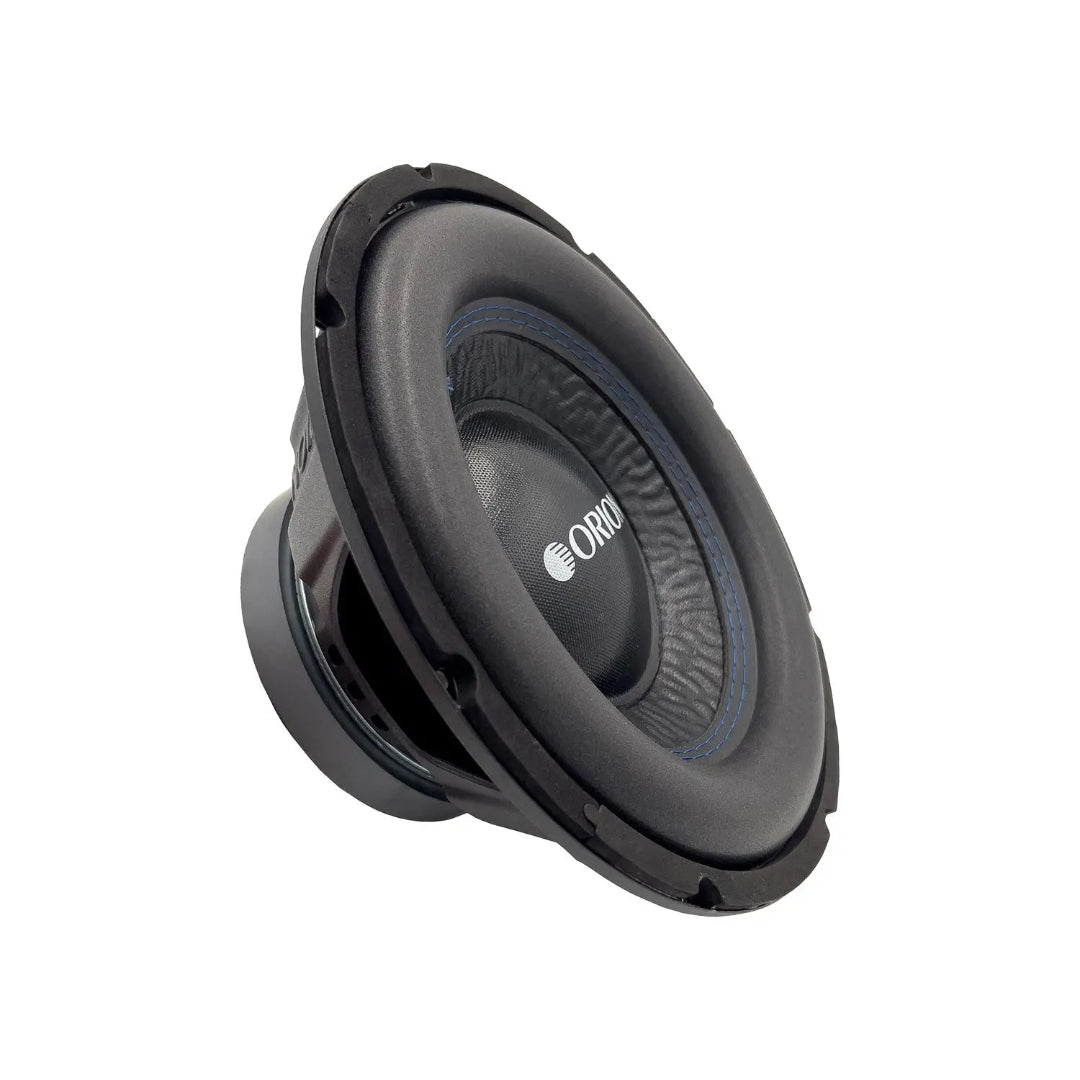

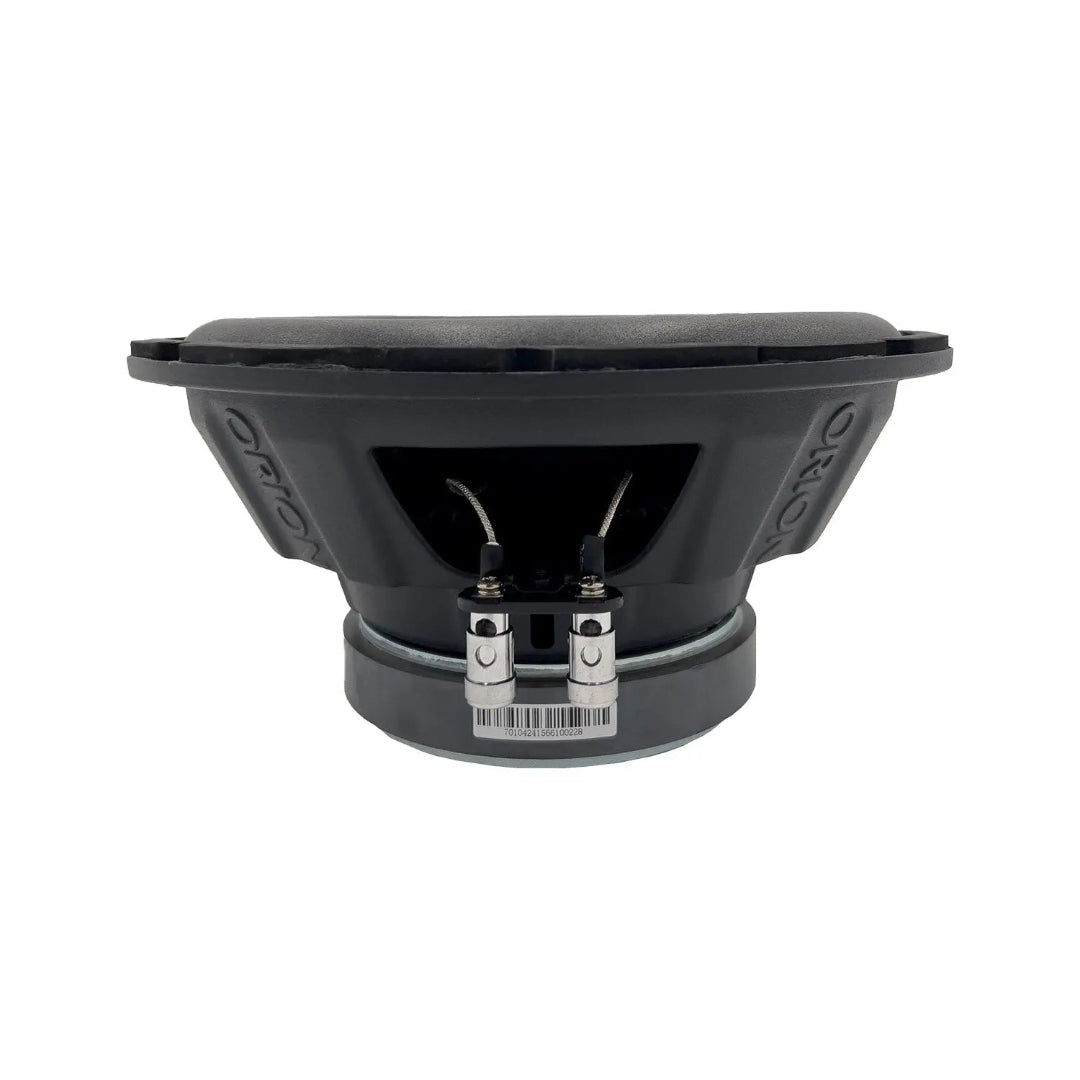

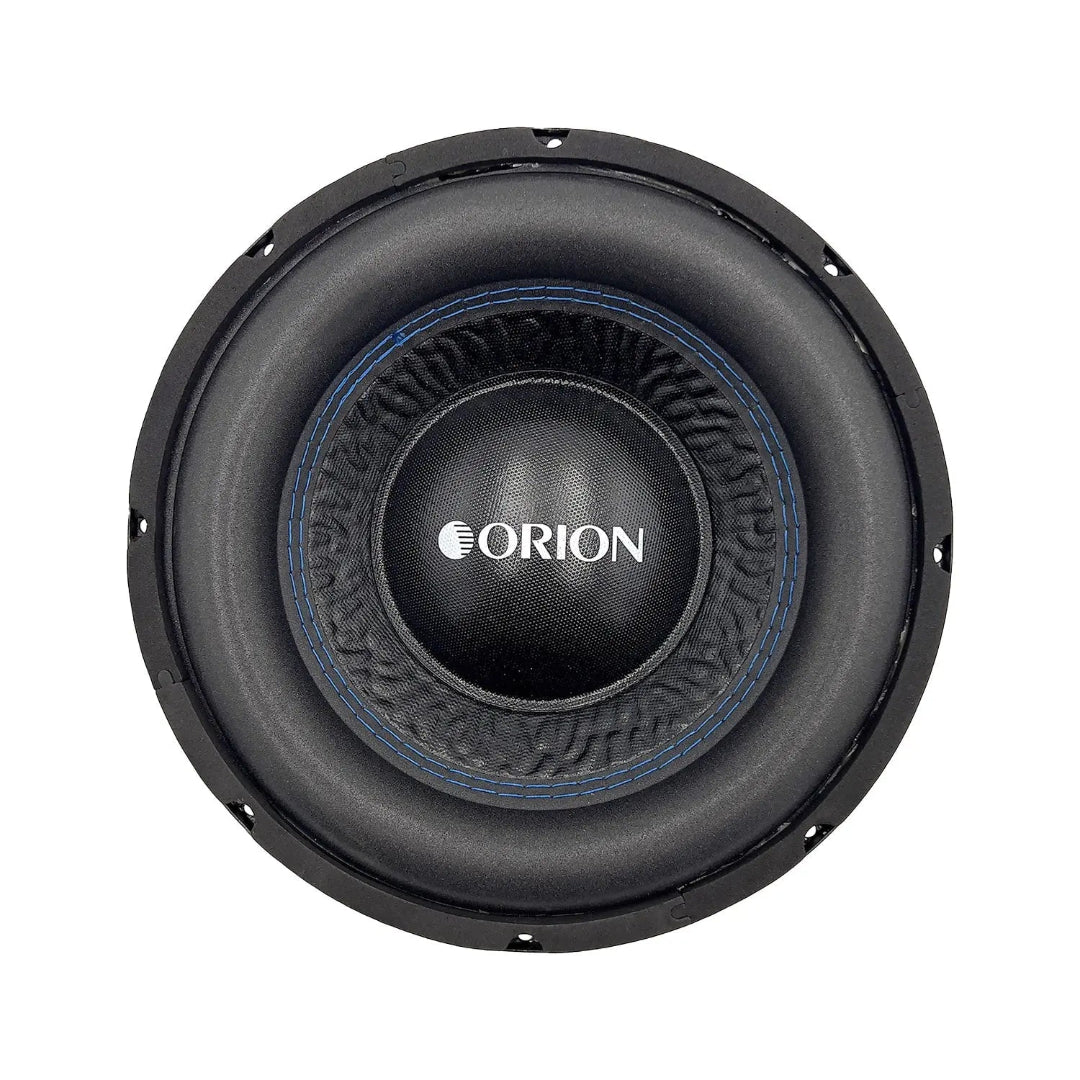

Orion CBW 10 Inch Cobalt Subwoofer - 300 Watts RMS

Orion CBW 10 Inch Cobalt Subwoofer - 300 Watts RMS. Available manufacturer models: CBW104D (Dual 4 Ohm), CBW104S (Single 4 Ohm). Select the impedance or configuration that matches your system; specifications for each model are listed below.

Manufacturer specifications

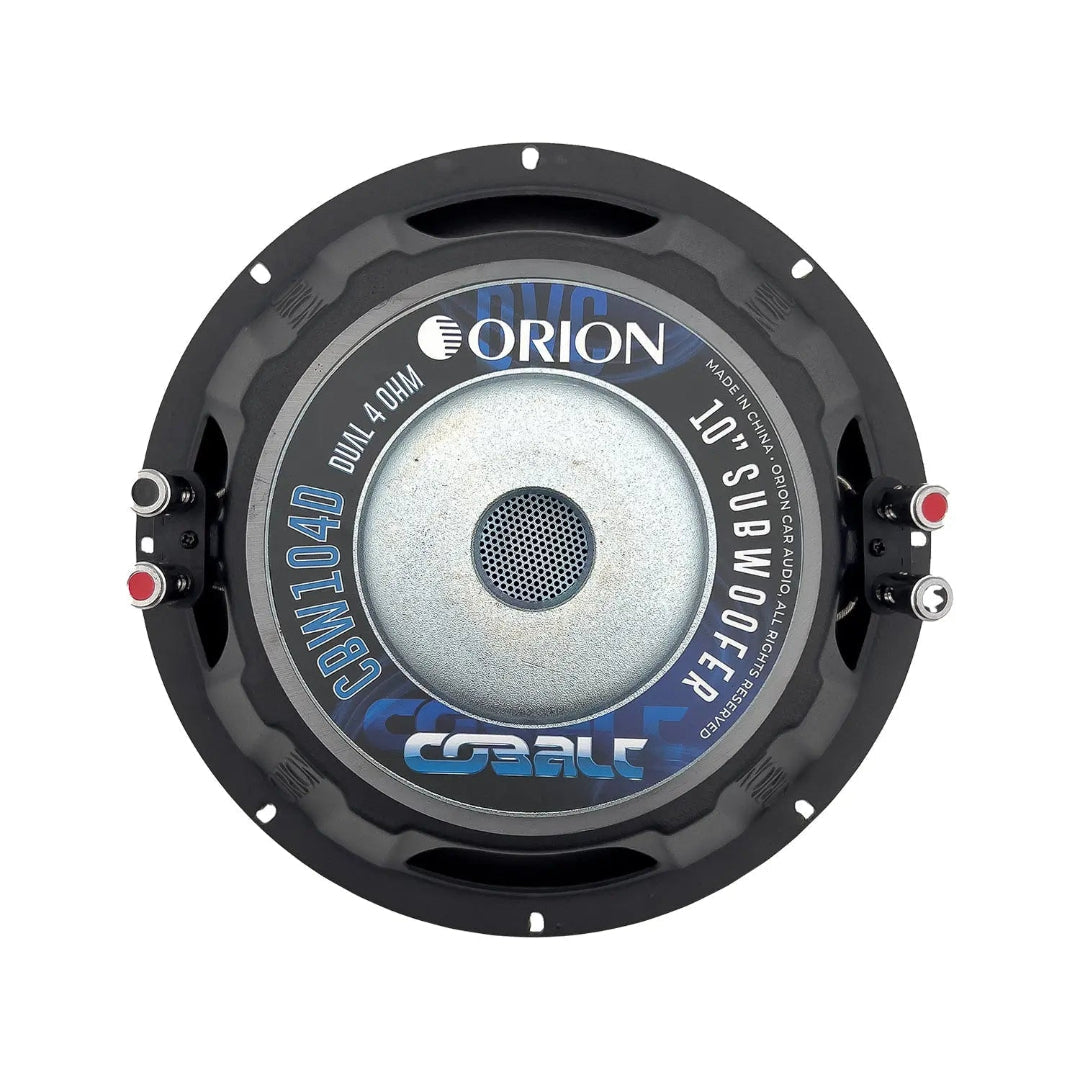

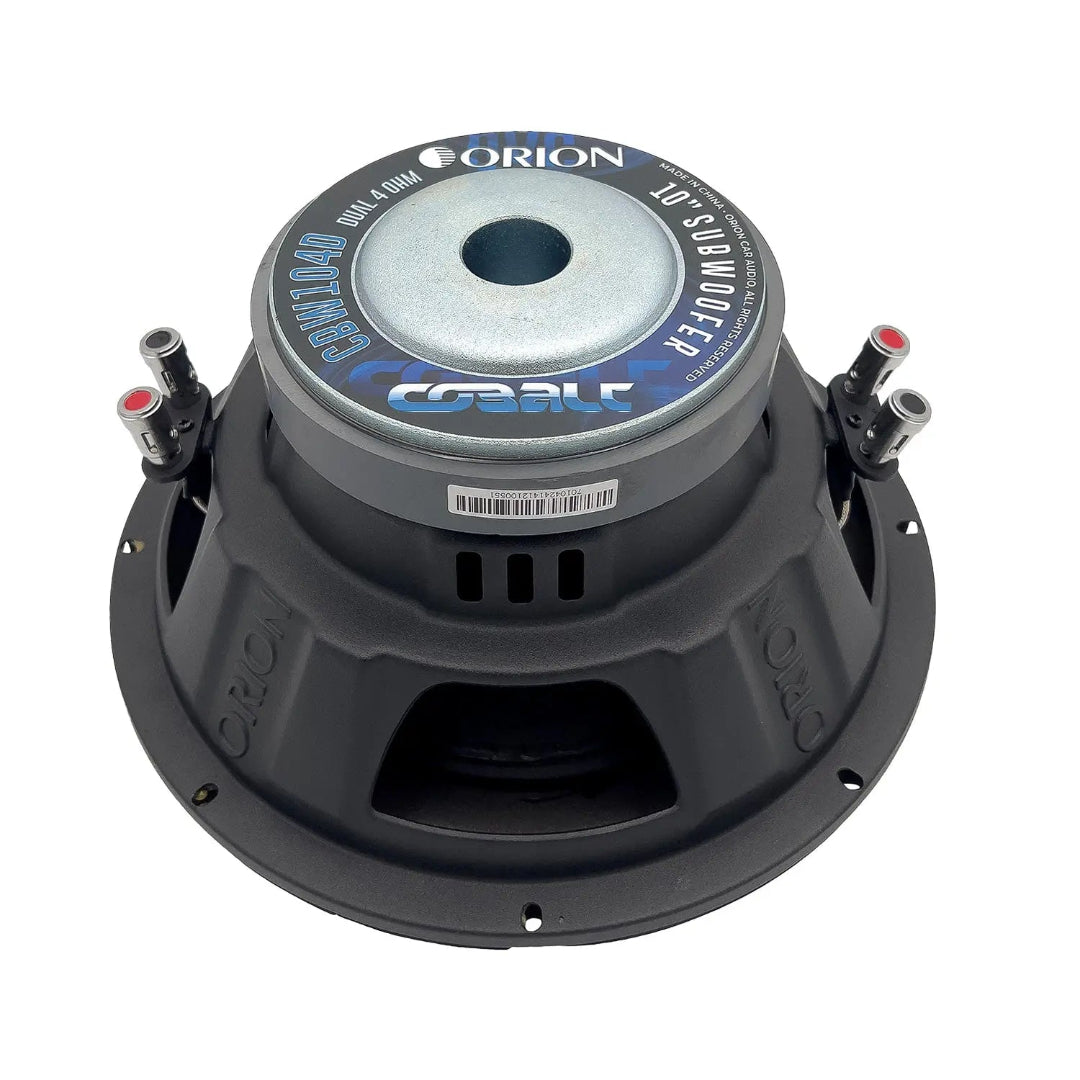

CBW104D - Dual 4 Ohm

• Subwoofer Size: 10 (Inches)
• Voice Coil Configuration: Dual 4-ohm
• Power Handling (Peak): 1200 Watts
• Power Handling (RMS): 300 Watts
• Sensitivity: 85 dB
• Frequency Response: 20 Hz - 300 Hz
• Voice Coil Diameter: 2 (Inches)
• Cone Material: UV Coated Paper / Fiber Blend Cone
• Surround Material: Foam Surround
• Magnet Information: 50 Oz Ferrite
• Overall Depth: 135mm / 5.31
• Mounting Depth: 116mm / 4.57 (Inches)
• Overall Diameter: 257mm / 10.12 (Inches)
• Cutout Diameter: 246mm / 9.69 (Inches)

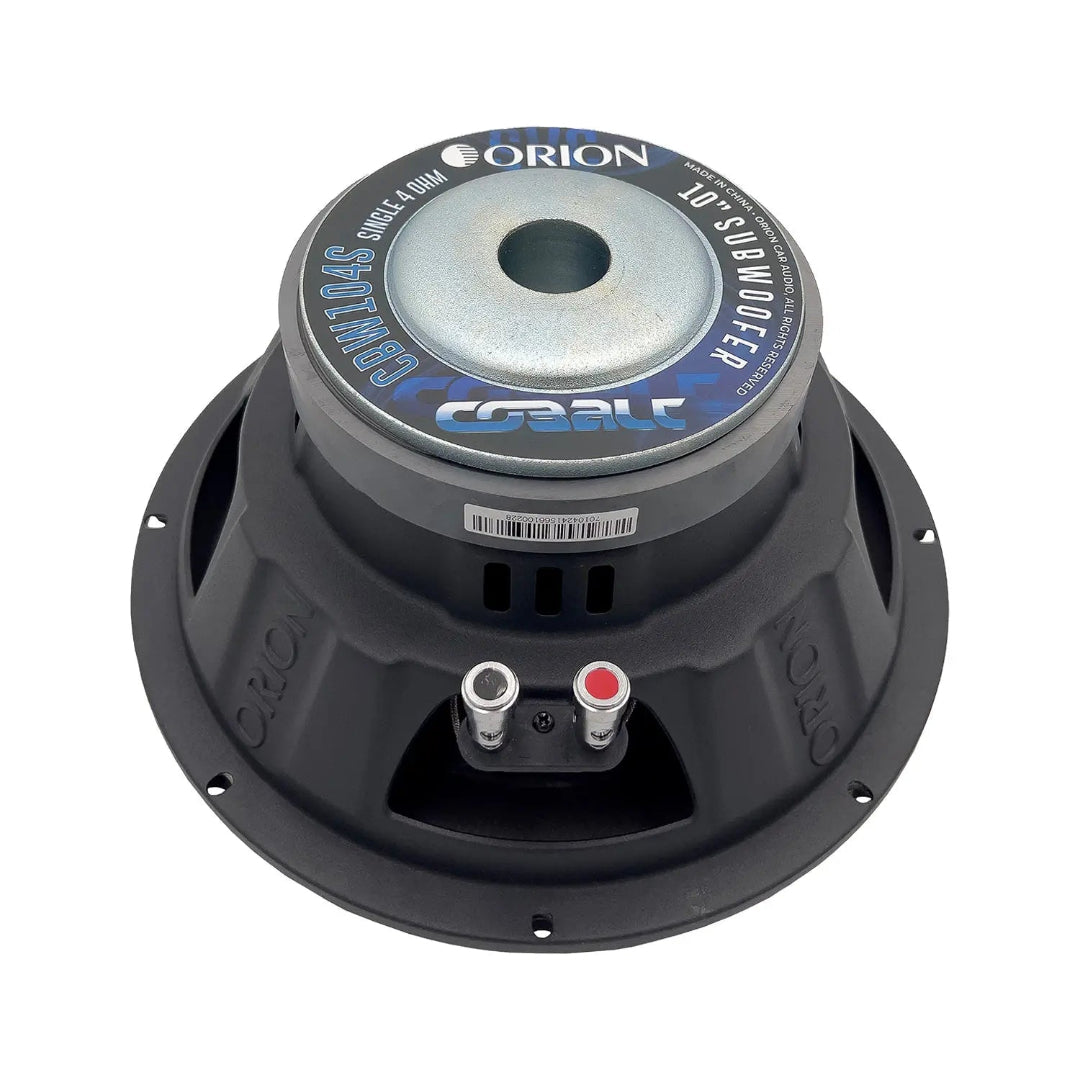

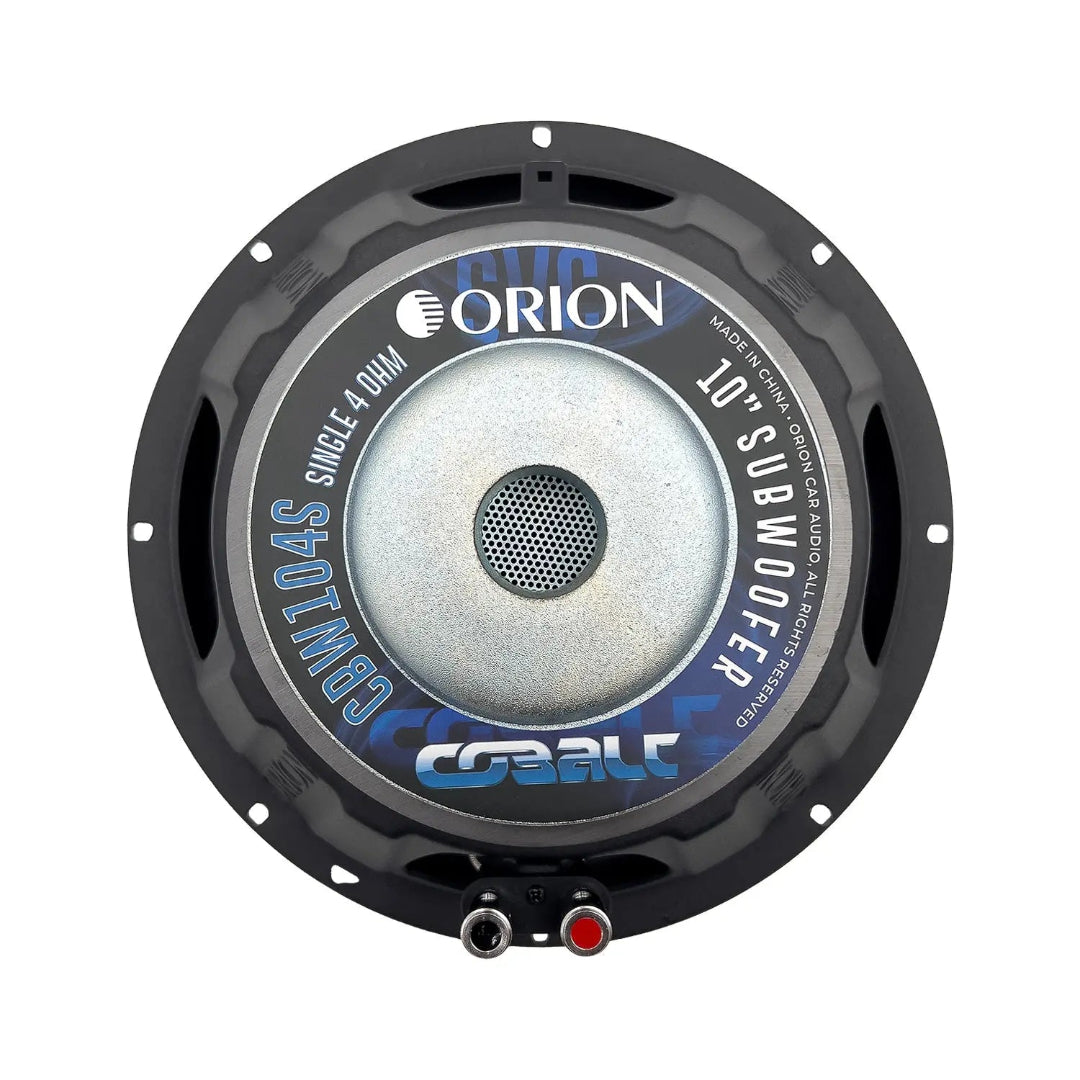

CBW104S - Single 4 Ohm

• Subwoofer Size: 10 (Inches)
• Voice Coil Configuration: Single 4-ohm
• Power Handling (Peak): 1200 Watts
• Power Handling (RMS): 300 Watts
• Sensitivity: 85 dB
• Frequency Response: 2 0 Hz - 300 Hz
• Voice Coil Diameter: 2 (Inches)
• Cone Material: UV Coated Paper / Fiber Blend Cone
• Surround Material: Foam Surround
• Magnet Information: 50 Oz Ferrite
• Overall Depth: 135mm / 5.31
• Mounting Depth: 116mm / 4.57 (Inches)
• Overall Diameter: 257mm / 10.12 (Inches)
• Mounting Diameter: 246mm / 9.69 (Inches)
