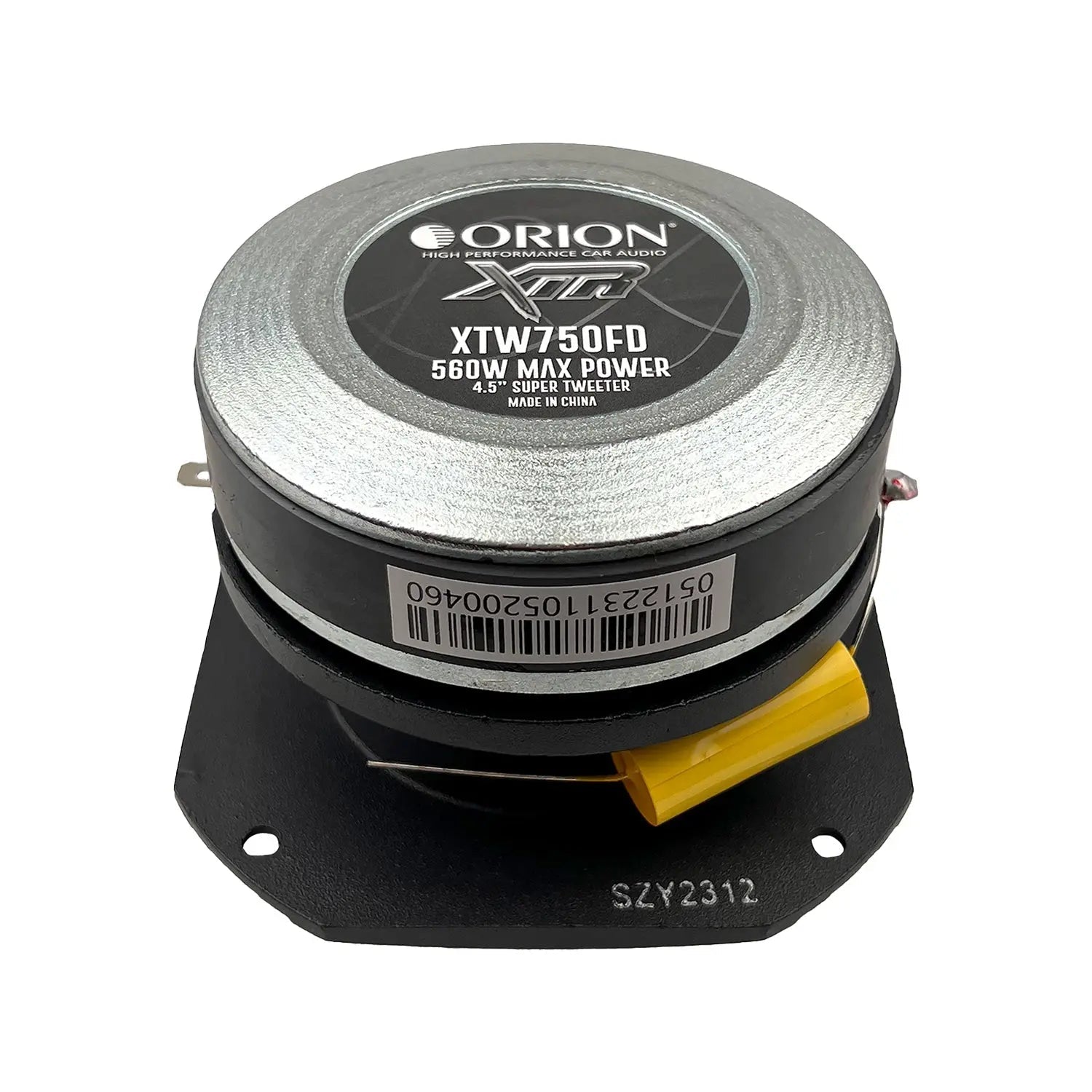

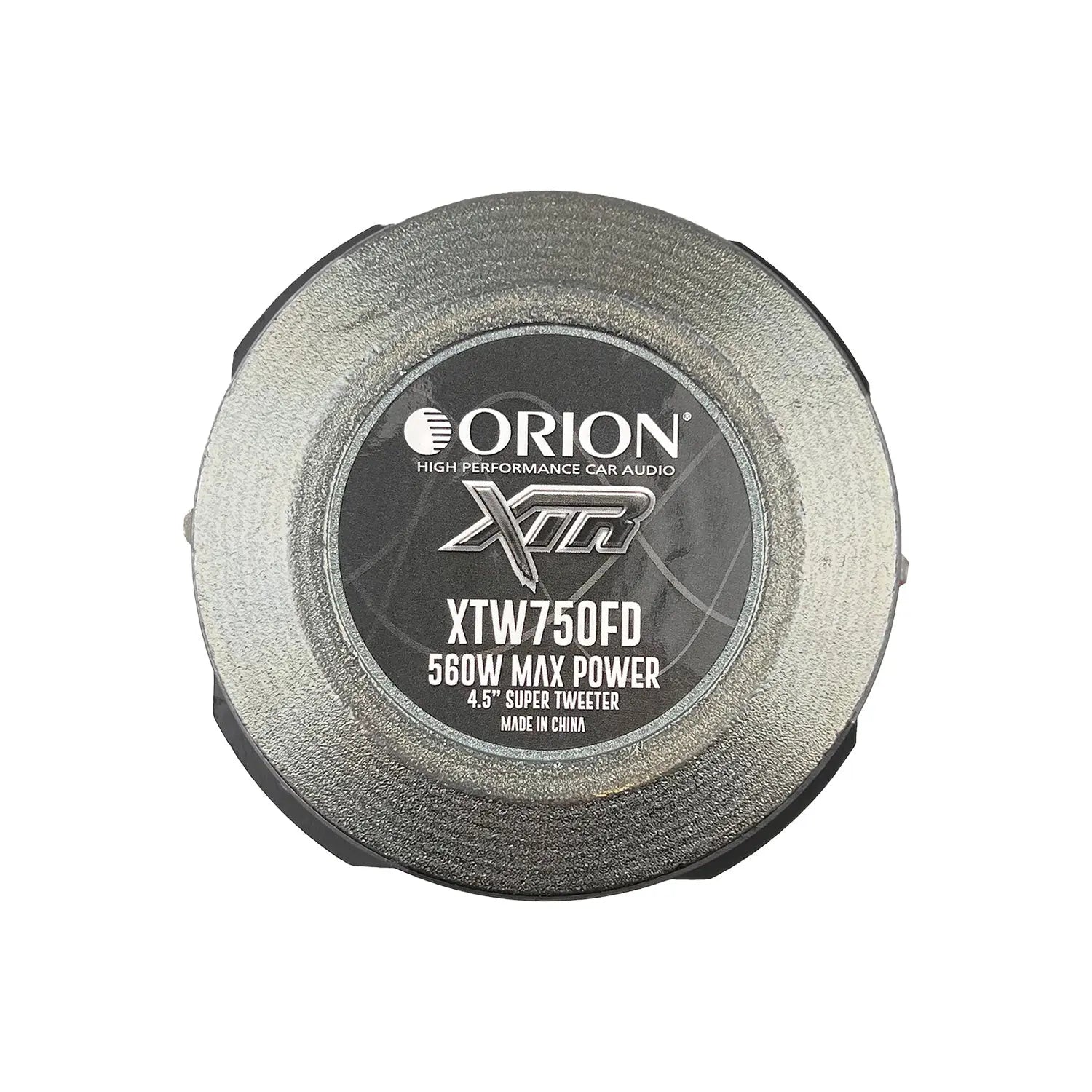

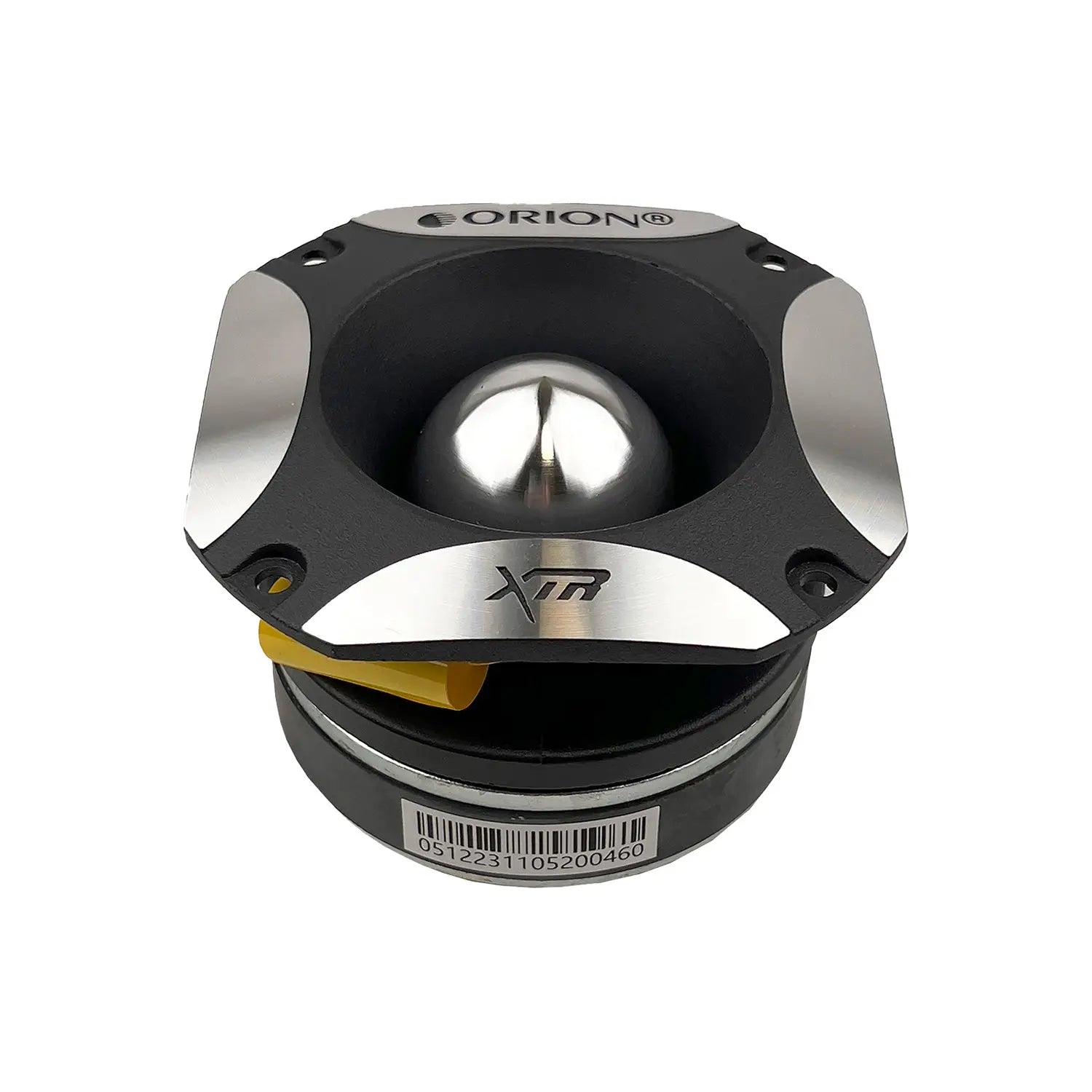

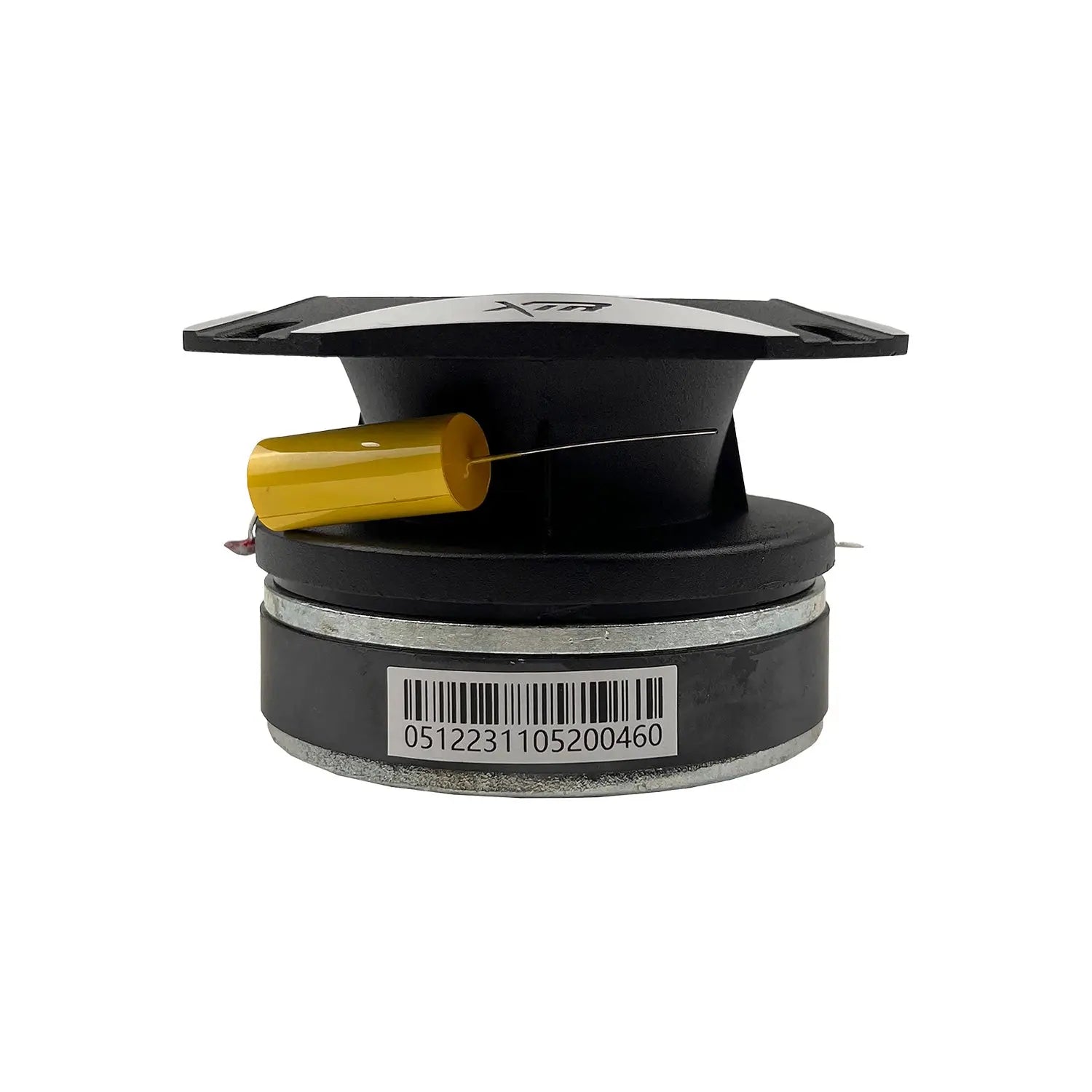

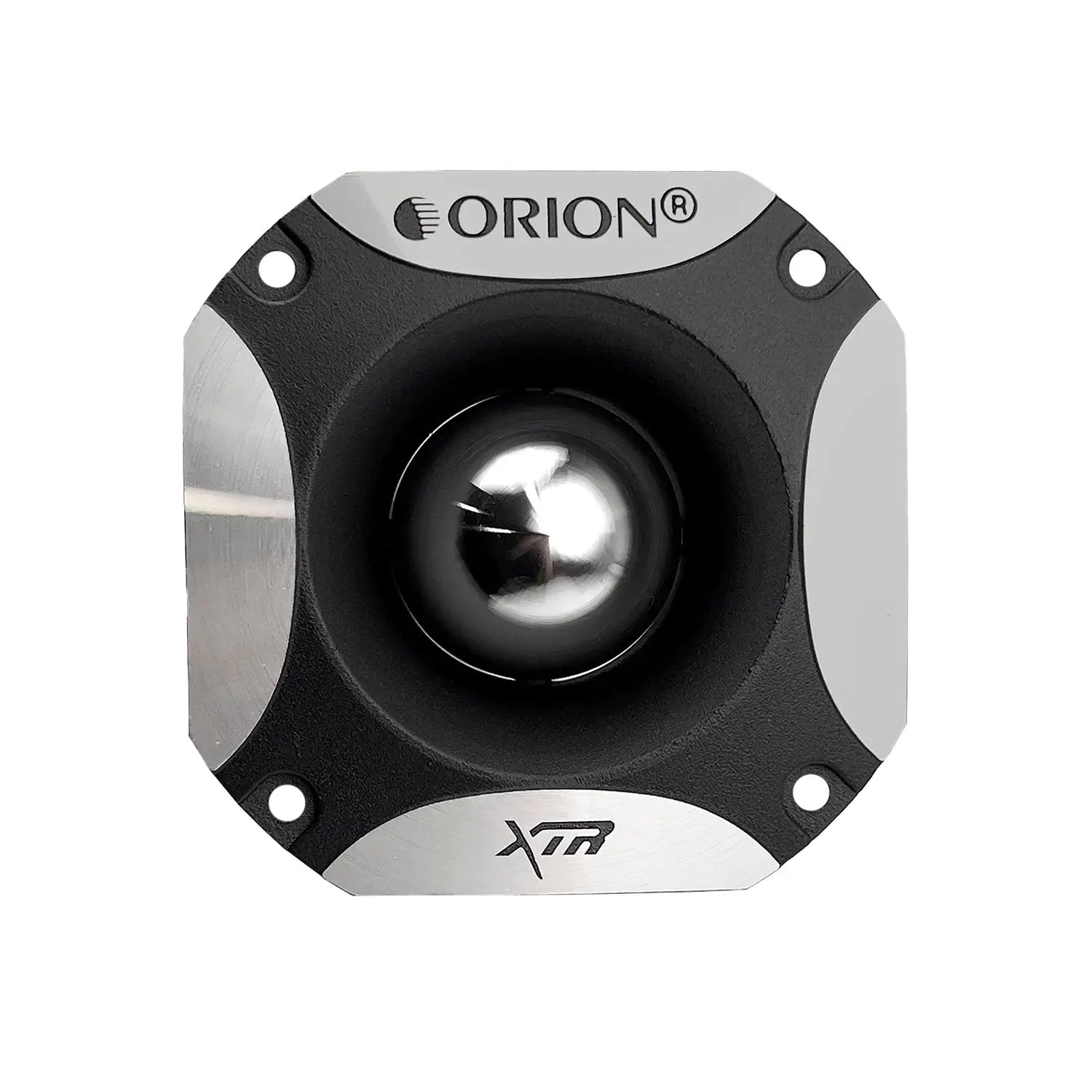

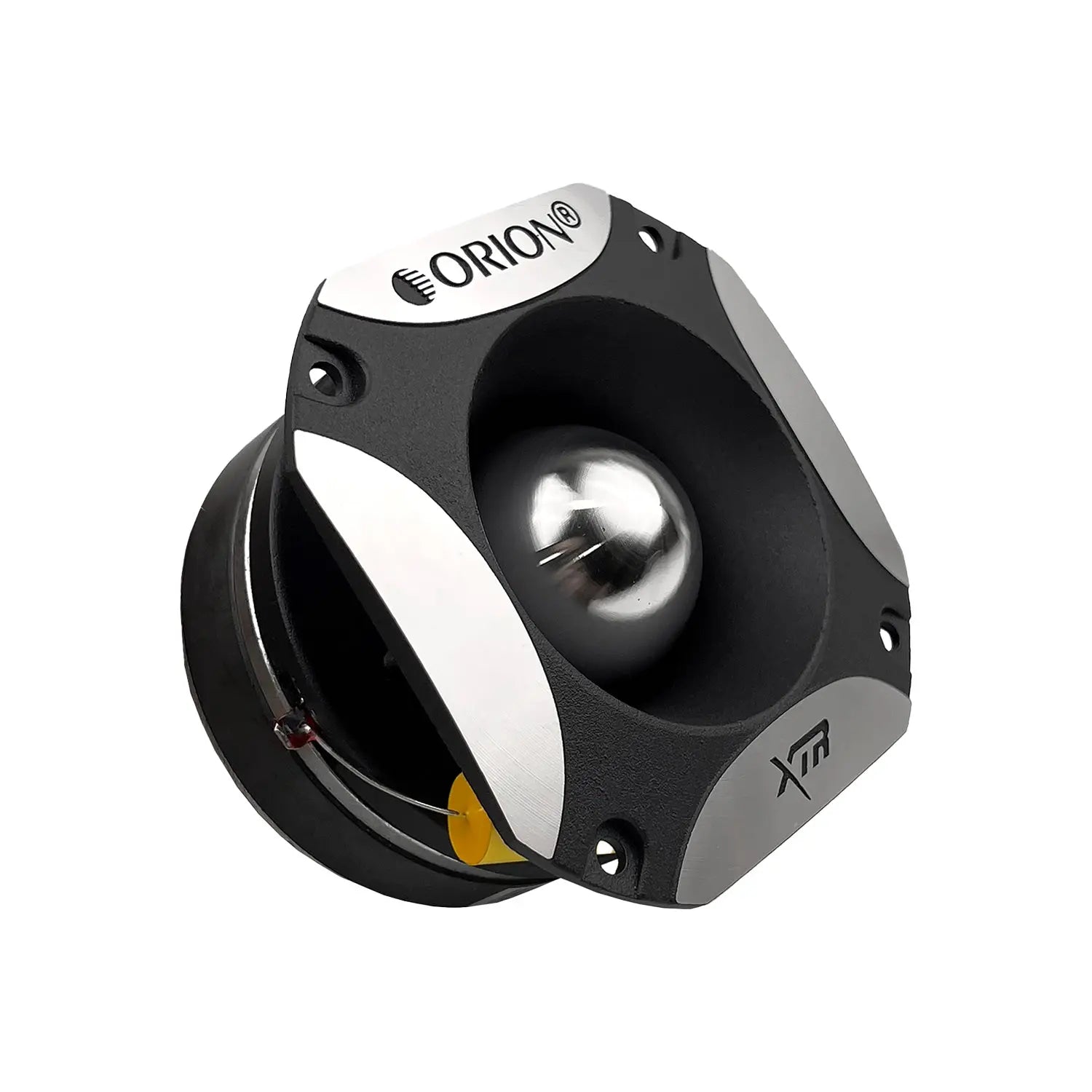

Orion XTW750FD - 4.5" Super Bullet Tweeter

Precision in High-Frequency Sound

Experience the pinnacle of high-frequency audio performance with the ORION XTW750FD 4.5" Super Bullet Tweeter. Meticulously engineered to deliver exceptional clarity, precision, and impact to your music, these tweeters are designed for audiophiles and music enthusiasts who demand the utmost in sonic excellence. With its super bullet design and powerful specifications, the XTW750FD tweeter is ready to elevate your audio experience to new heights.

The Kaos

Kaos Fitment and Install Note

This audio product is sold with real-world support from Kaos Offroad. Side-by-side, marine, truck, and powersports audio builds need the right match between speakers, subwoofers, amplifiers, wiring, enclosure design, and tuning.

If you are building a Polaris RZR, Can-Am X3, Ranger, Defender, truck, or boat system, message Kaos Offroad before you order and we can help confirm the right setup.

Run Down

• Manufacturer SKU: ORI-XTW750FD
• Product Type: Speaker
• Audio Type: Speaker
• Speaker Size: 4 Inch

Manufacturer specifications

XTW750FD

• Speaker Size: 4.5 (Inches)
• Voice Coil Configuration: 4 ohm
• Power Handling (Peak): 560 Watts
• Power Handling (RMS): 140 Watts
• Sensitivity: 109.9 dB
• Frequency Response: 1500 - 25 kHz
• Voice Coil Diameter: 1.75" (Inches)
• Material: Aluminum Die-Cast
• Diaphragm Material: Aluminum
• Phase Plug Material: Billet Aluminum
• Magnet Information: 14 Oz Ferrite
• Recommended Capacitor: 3.3uF 100V
• Cutout Diameter: 82mm / 3.23 (Inches)
• Overall Diameter: 101mm / 2.76 (Inches)
