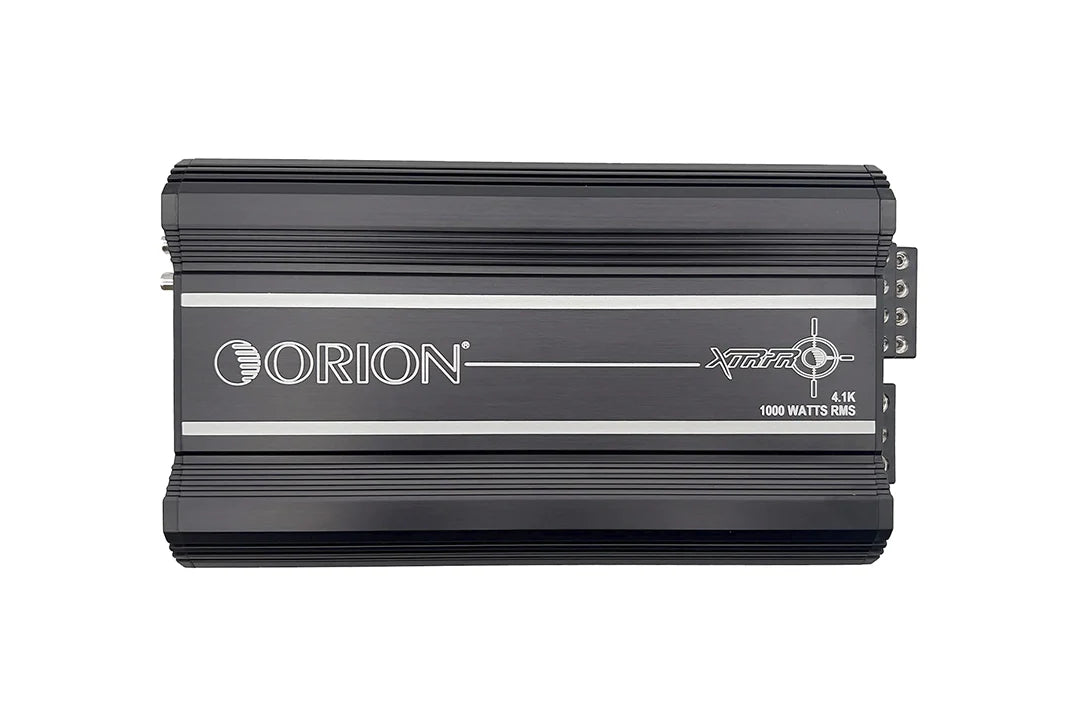

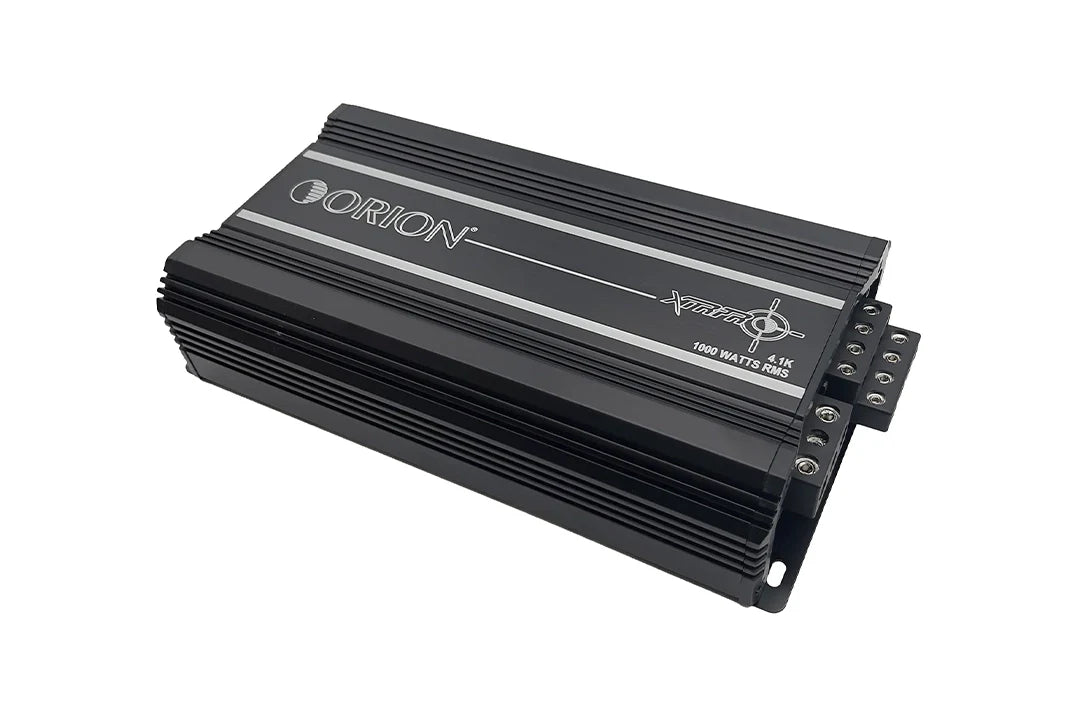

XTRPRO4.1K - XTRPRO Series 4-Channel IntelliTech Full-Range Class D Amplifier

XTRPRO SERIES CLASS D AMP - XTRPRO4.1K | Orion XTR PRO Amplifier

The Orion XTRPRO4.1K is more than a 4-channel amplifier-it's a high-performance full-range audio powerhouse built for flexibility, control, and pure sound clarity. Designed for audio enthusiasts who want to power mids, highs, or even full-range systems with ease, this compact amplifier delivers up to 310 watts per channel at 1 ohm, offering exceptional performance in a space-saving footprint.

What makes this amp stand apart is Orion's proprietary IntelliTech platform-a smart design architecture that ensures optimized signal flow, tight frequency response, and efficient thermal management across the full audio spectrum. Whether you're tuning a 3-way front stage, powering custom door panels, or pushing your rear fill, the XTRPRO4.1K adapts to your configuration and delivers powerful, clean output with precision control.

Built on a Class D topology, it combines high efficiency with low heat operation, making it the perfect solution for demanding builds that require compact installation and reliable long-term performance. And with its remote gain control, variable filters, and adjustable bass boost, you're always in command of your system's output and tone.

Whether you're building for daily listening or show-quality sound, the XTRPRO4.1K gives you the control, clarity, and confidence to elevate your system to the next level.

Key Features

• High-Efficiency, Compact Power Delivery: The XTRPRO4.1K delivers up to 310 watts per channel at 1 ohm, offering more than enough output to push mids, highs, and even midbass drivers with clean, distortion-free power. It's ideal for compact builds that still demand serious performance without overloading electrical systems or consuming excessive space.
• Full-Range Versatility Powered by IntelliTech: With Orion's IntelliTech full-range architecture, this amp is capable of powering everything from tweeters to subwoofers-all while maintaining exceptional signal clarity and thermal stability. Its design makes it the go-to solution for installers and audio builders who need flexible amplification in a single chassis.

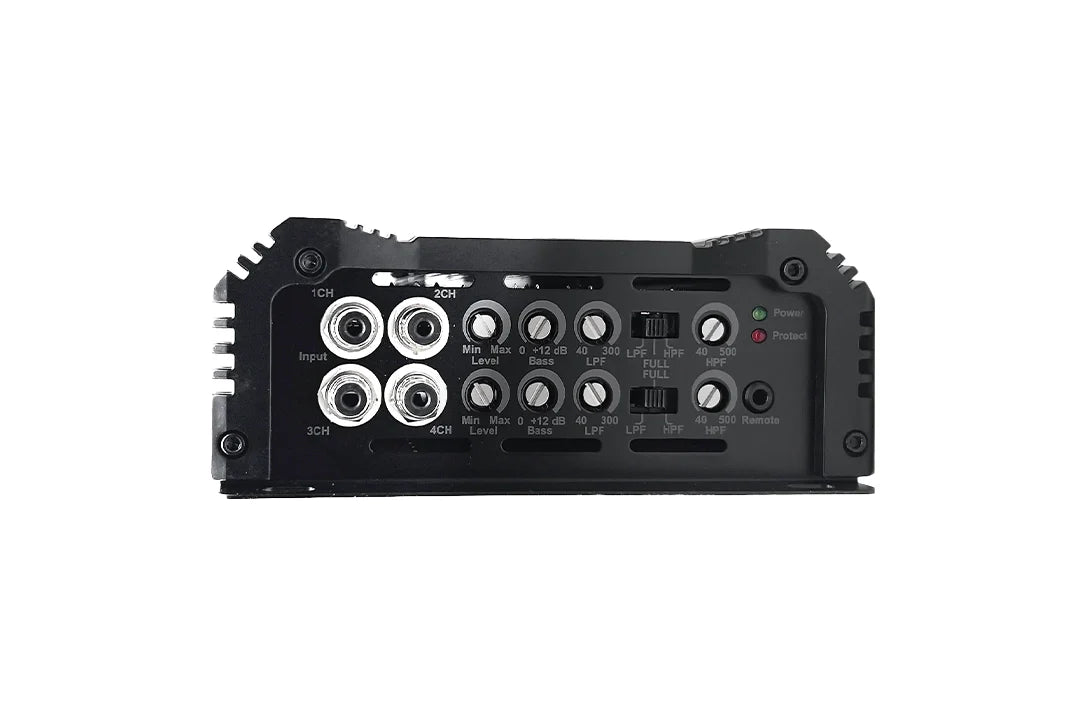

• Detailed Tuning Control for Precision Sound: Equipped with fully adjustable high-pass and low-pass filters, plus a 12dB variable bass boost, the XTRPRO4.1K gives you total control over your frequency response. Fine-tune your system's balance, eliminate overlap, and ensure every driver is dialed in for its optimal performance range.
• Reliable Operation Under Pressure: Built with robust internal protection circuits, this amplifier monitors temperature, load, and voltage conditions in real time to prevent shutdowns or failures during demanding playback. It's made to handle long sessions, high volumes, and extreme conditions-day in and day out.
• Ultra-Compact for Clean Installs: Measuring just over 11 inches in length, the XTRPRO4.1K is small enough to fit in glove compartments, seat cavities, trunk sides, and more. Its size makes it the perfect choice for stealth installations, motorcycles, side-by-sides, or any application where space is at a premium but sound quality can't be compromised.

Power Rating

• - RMS Power @ 4 Ohms: 150W x 4CH
• - RMS Power @ 2 Ohms: 220W x 4CH
• - RMS Power @ 1 Ohm: 310W x 4CH

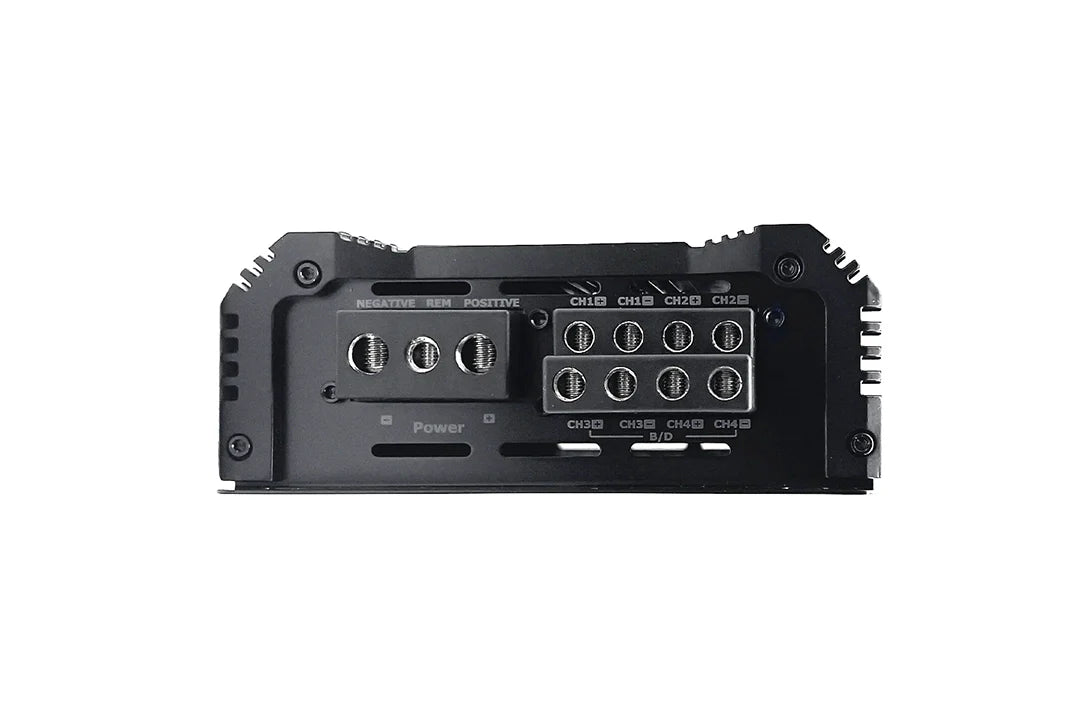

• POWER TERMINAL MANAGEMENT
• Positive Terminals: 1 x 4 AWG.
• Negative Terminals: 1 x 4 AWG.
• Remote Turn-ON Signal: 10 AWG.
• Speaker Output Terminals: 4 AWG.

Specifications

• IntelliTech Full-Range Class D Design
• 1-Ohm Stable on All Channels
• High-Pass Filter: 40Hz - 500Hz
• Low-Pass Filter: 40Hz - 300Hz
• Bass Boost: 0 - 12dB
• Gain Control: 200mV - 6V
• Signal-to-Noise Ratio: >94dB
• Damping Factor: >100
• Remote Gain Controller Included
• Thermal and Short Circuit Protection
• Heavy-Duty Power & Speaker Terminals
• 11.02" x 5.90" x 2.16" (280mm x 150mm x 55mm)

The Kaos Run Down

• Manufacturer SKU: ORI-XTRPRO4.1K
• Product Type: Amplifiers
• Audio Type: Amplifier
• Amplifier Channels: 4ch
• Amplifier Class: Class D
• Source: Orion
