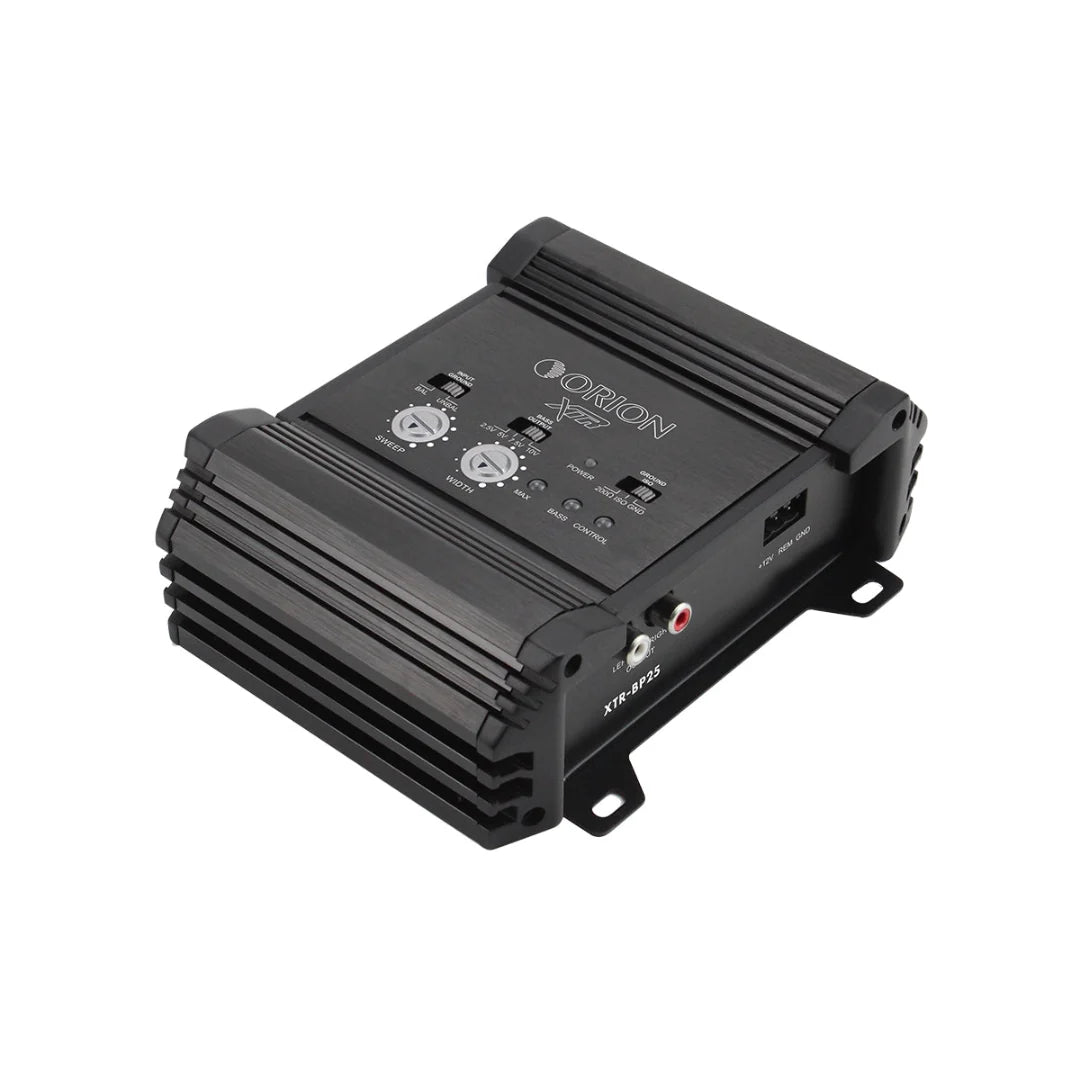

Orion XTR-BP25 Bass Processor with 10V Output & Precision Bass Restoration

XTR-BP25 Bass Processor - Enhanced Low-Frequency Performance

Upgrade your car audio system with the XTR-BP25 Bass Processor. It restores and enhances low-frequency performance for stronger bass.

This processor recovers bass often lost in compressed audio and factory systems. As a result, your subwoofers deliver deeper and more controlled output. In addition, it improves clarity and impact.

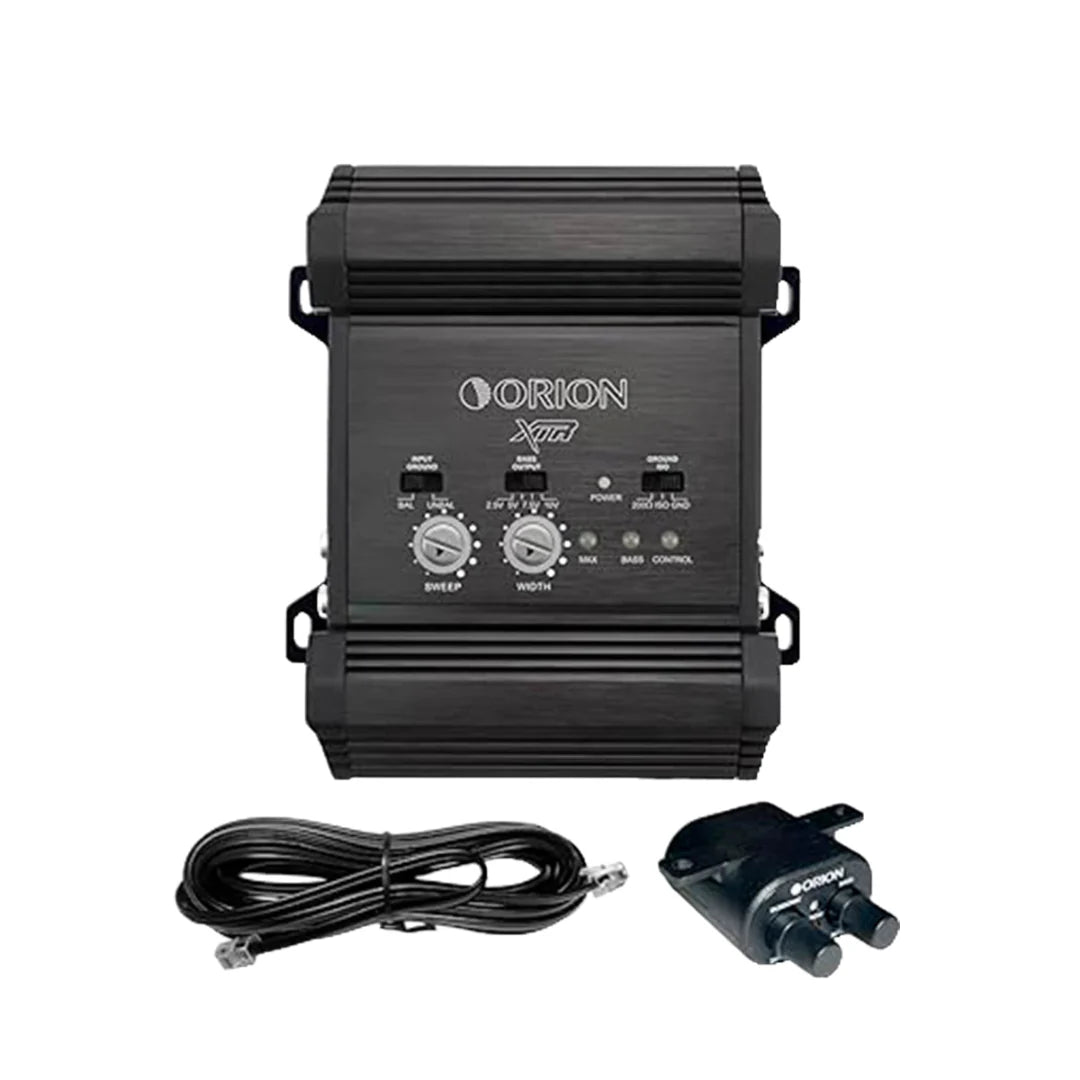

Precision Bass Tuning

The XTR-BP25 gives you control over your bass response. Therefore, you can fine-tune your system to match your setup.

You can adjust:

Sweep control to set the frequency center

Width control to adjust the bandwidth

The Kaos

Kaos Fitment and Install Note

This audio product is sold with real-world support from Kaos Offroad. Side-by-side, marine, truck, and powersports audio builds need the right match between speakers, subwoofers, amplifiers, wiring, enclosure design, and tuning.

If you are building a Polaris RZR, Can-Am X3, Ranger, Defender, truck, or boat system, message Kaos Offroad before you order and we can help confirm the right setup.

Run Down

• Manufacturer SKU: ORI-XTR-BP25
• Product Type: Processor
• Audio Type: Processor

Manufacturer specifications

XTR-BP25

• Power Supply: 6.5V – 18V
• Maximum Input Level: 10V
• Maximum Output Level: 10.5V
• Input Sensitivity: 10.5V
• Input Impedance: >50K Ohms
• Output Impedance: 100 Ohms
• EQ Boost / Cut: 15 dB
• Signal-to-Noise Ratio: >110 dB
• THD @ 2V Output: <0.02%
• Channel Separation: >80 dB
• CMRR: -63 dB Balanced / -29 dB Unbalanced
• Frequency Response: 10 Hz – 30 kHz
• Subsonic Filter: 27 Hz – 72 Hz
• Current Draw: 230 mA
• Interchannel Gain Tracking: 0.1 dB
• Fuse Rating: 1A
• Dimensions: 3.98” x 6.42” x 2.09”
