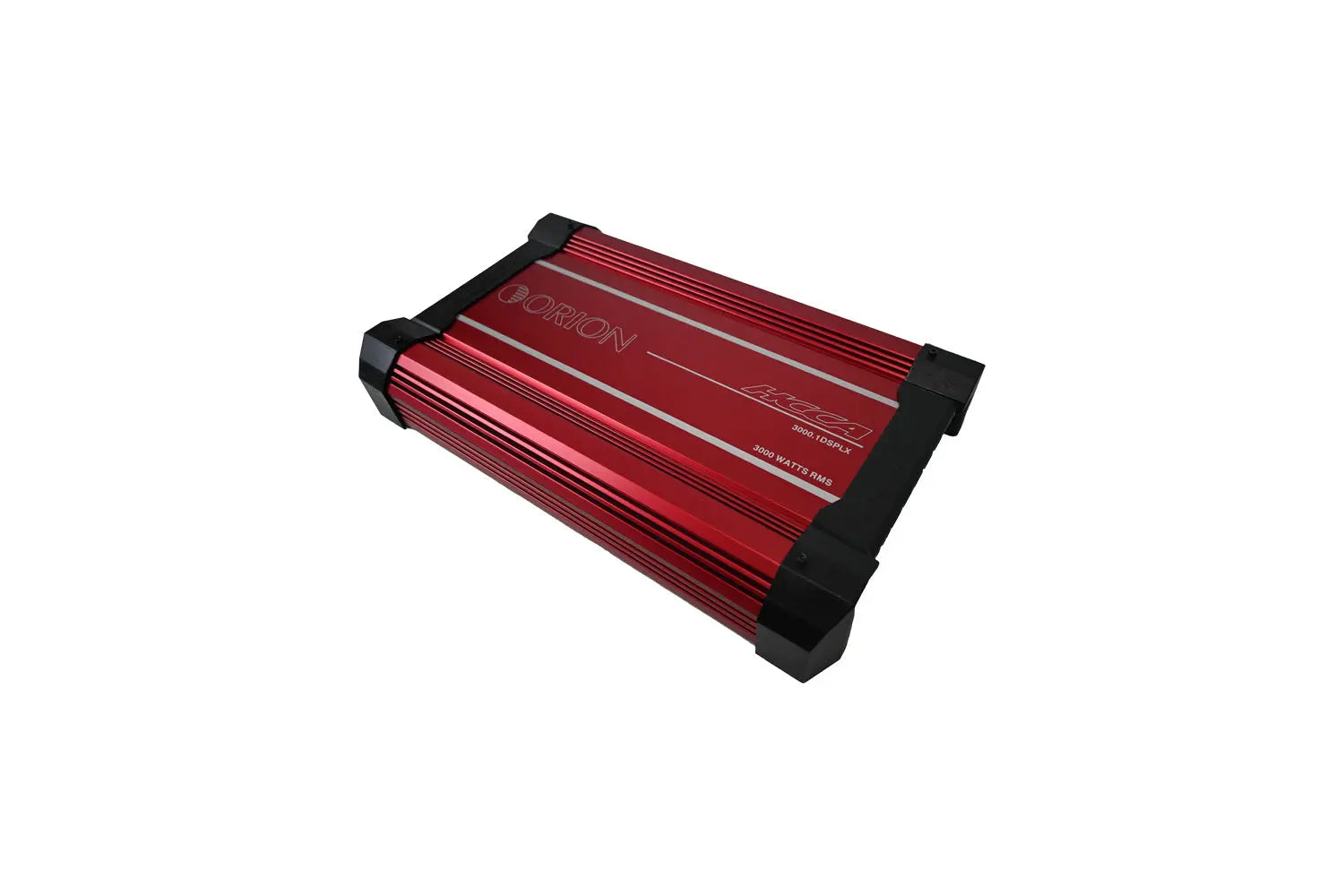

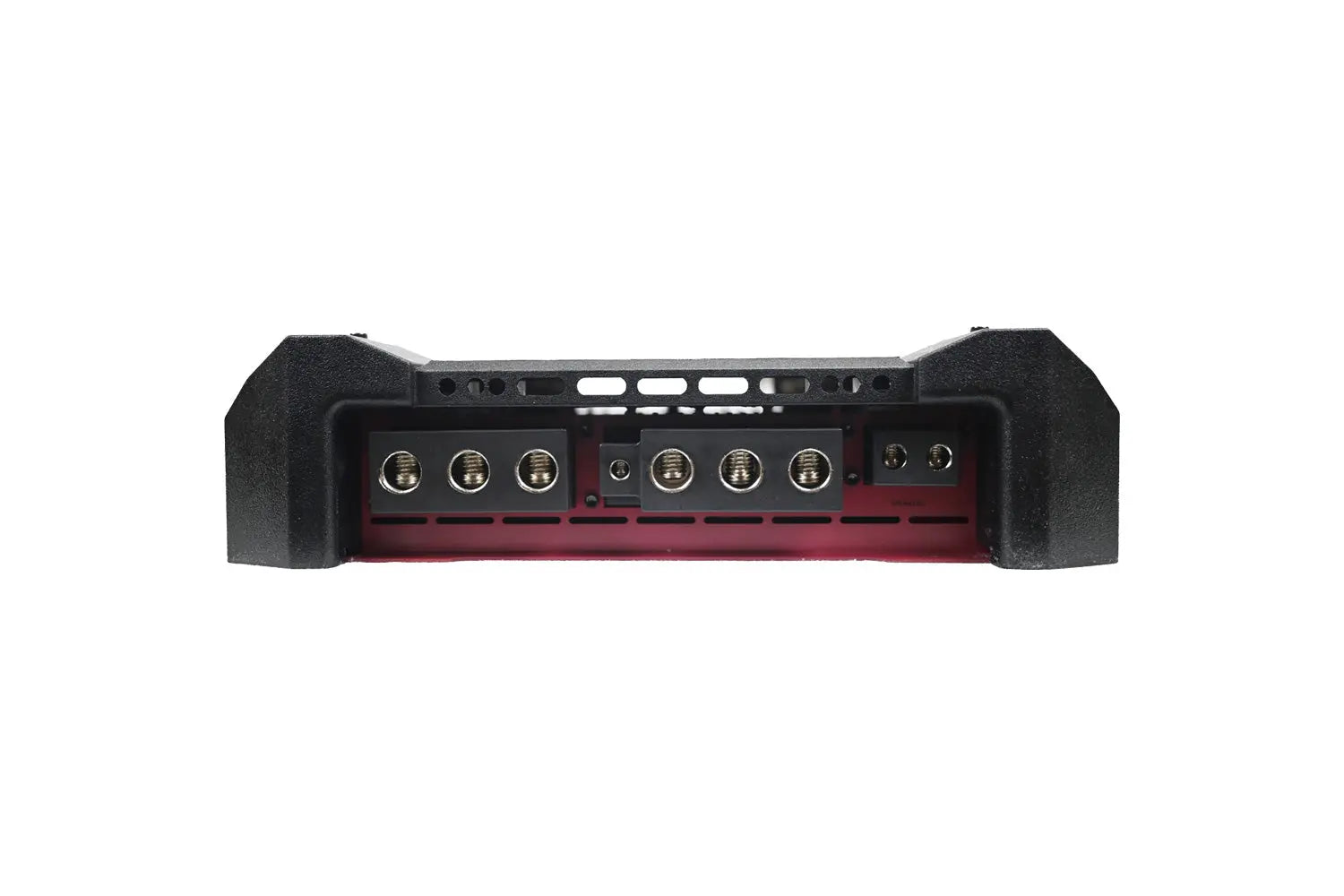

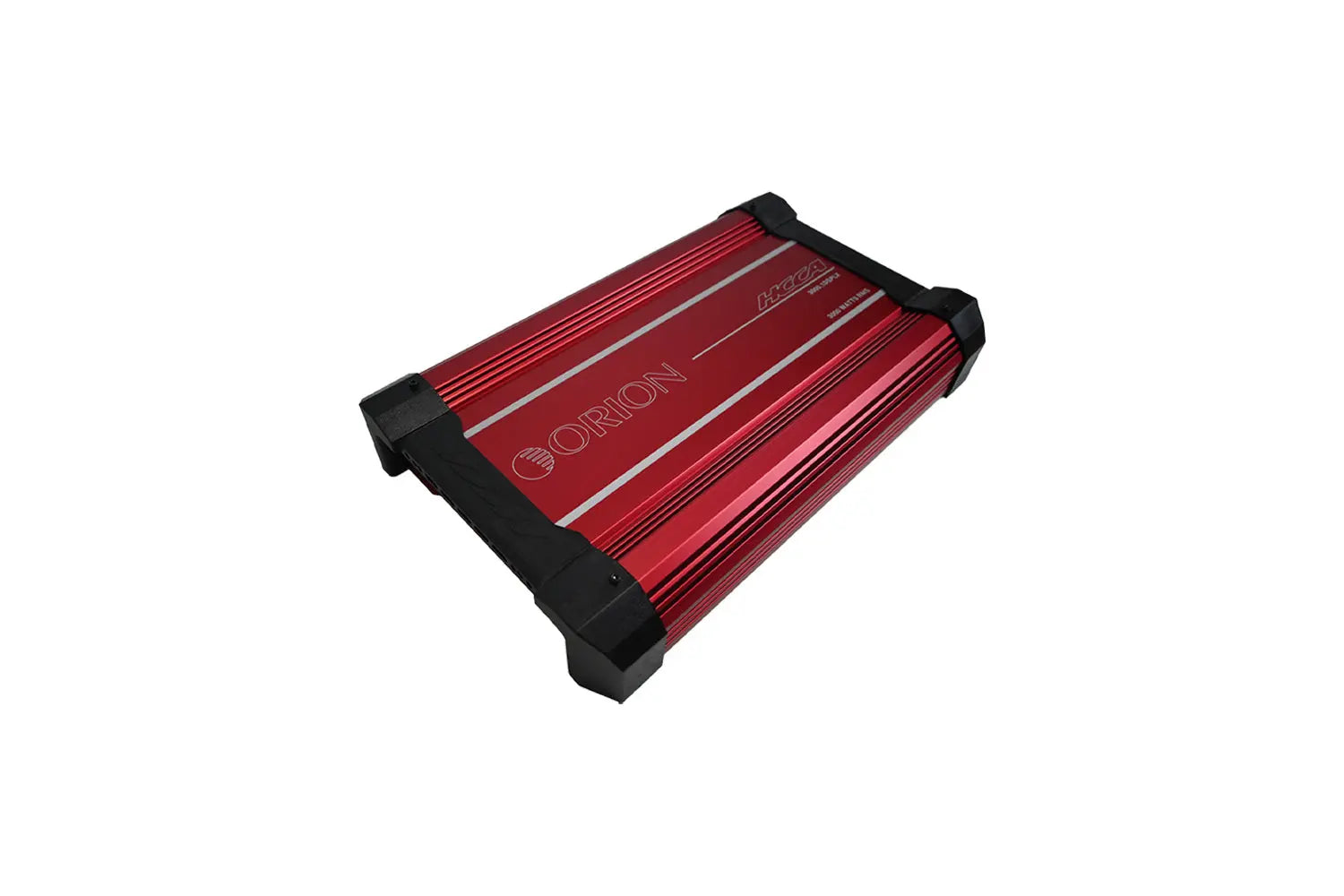

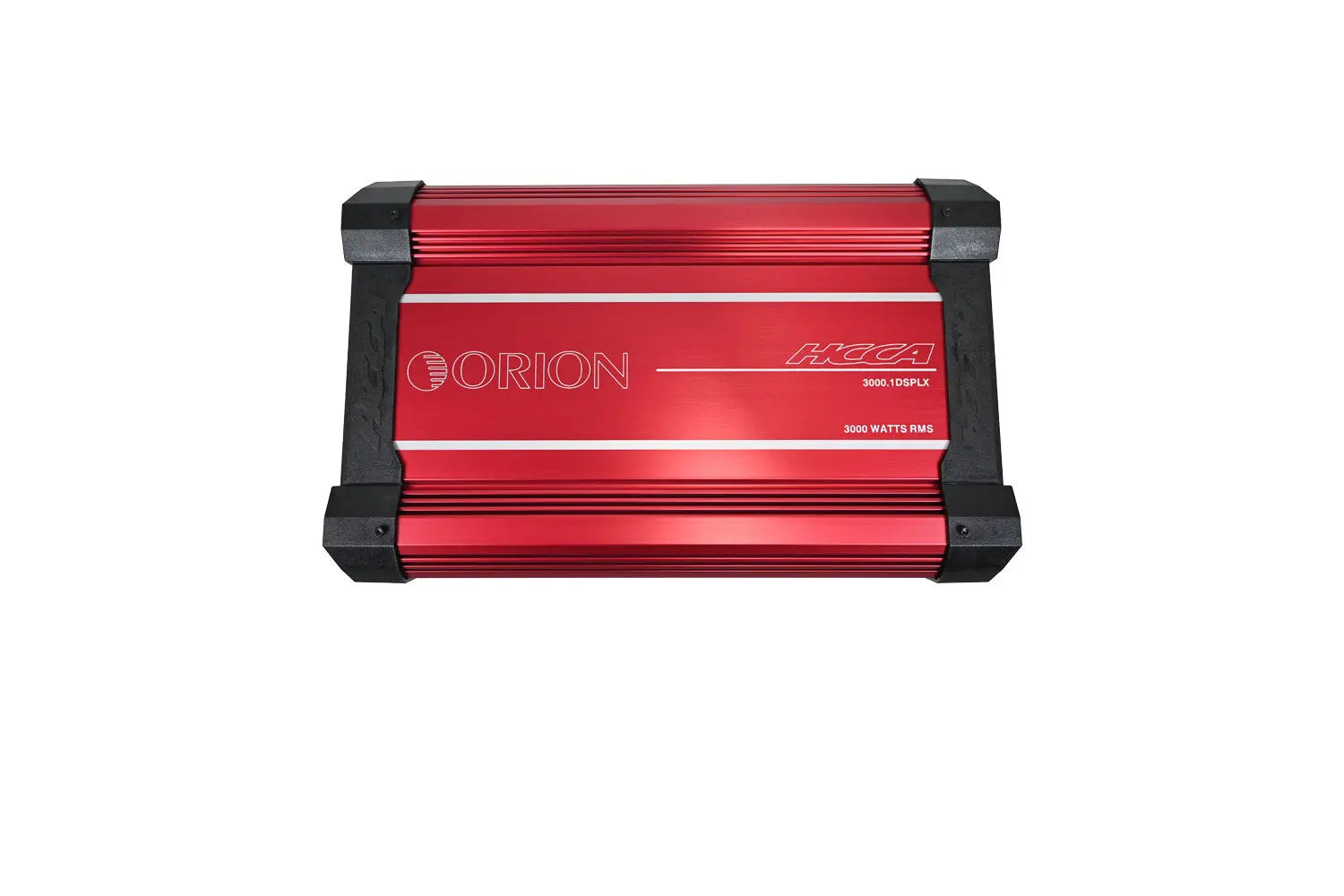

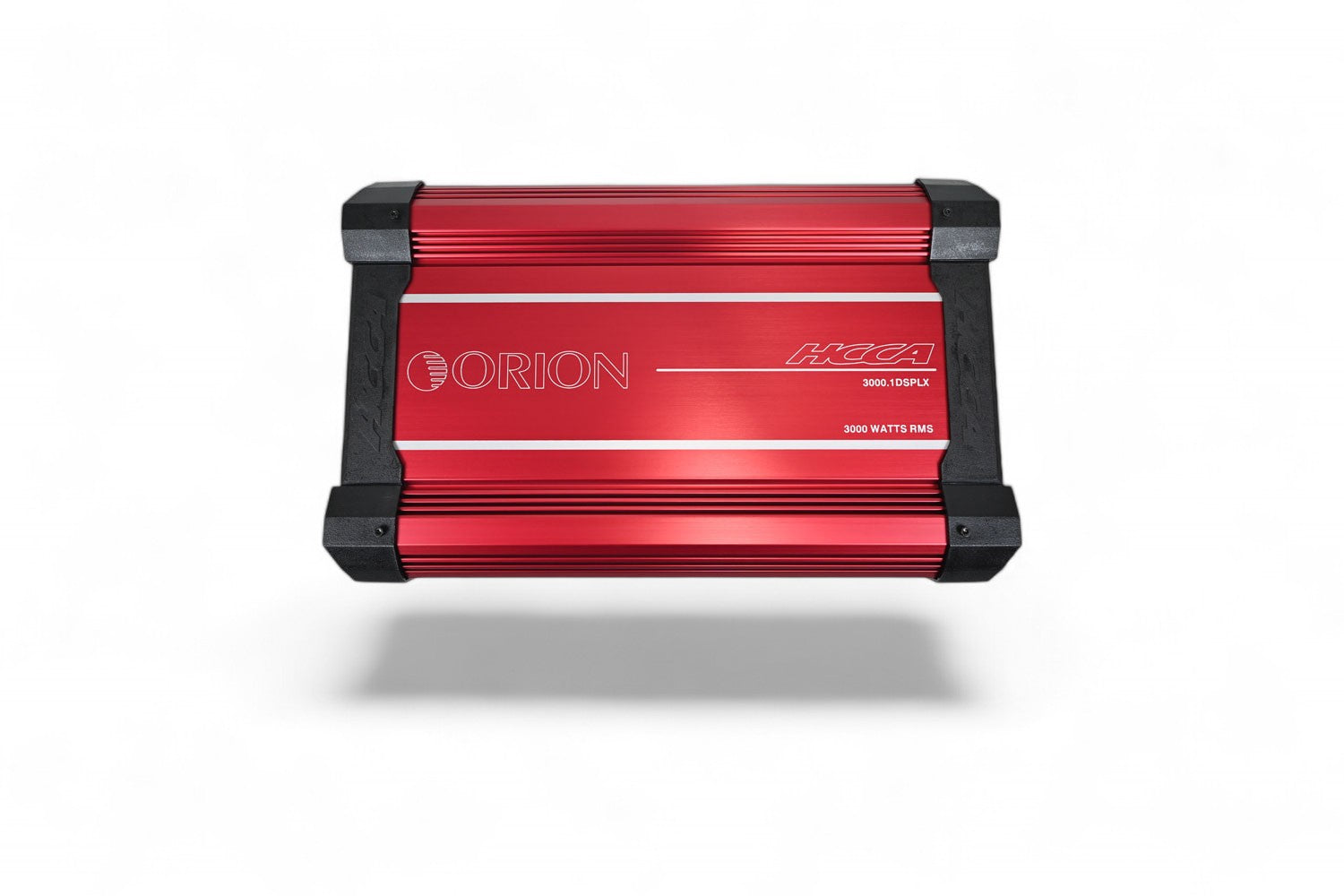

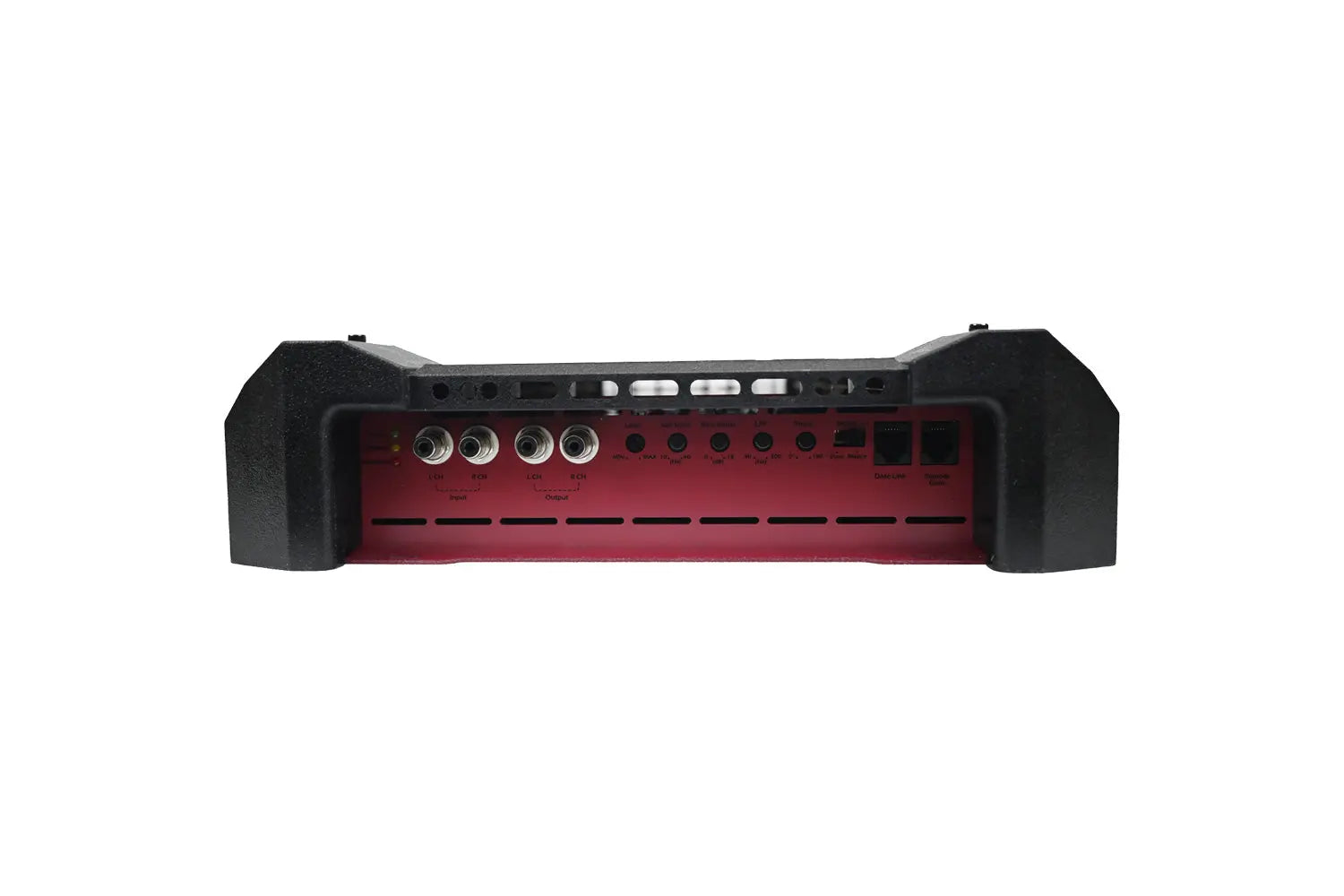

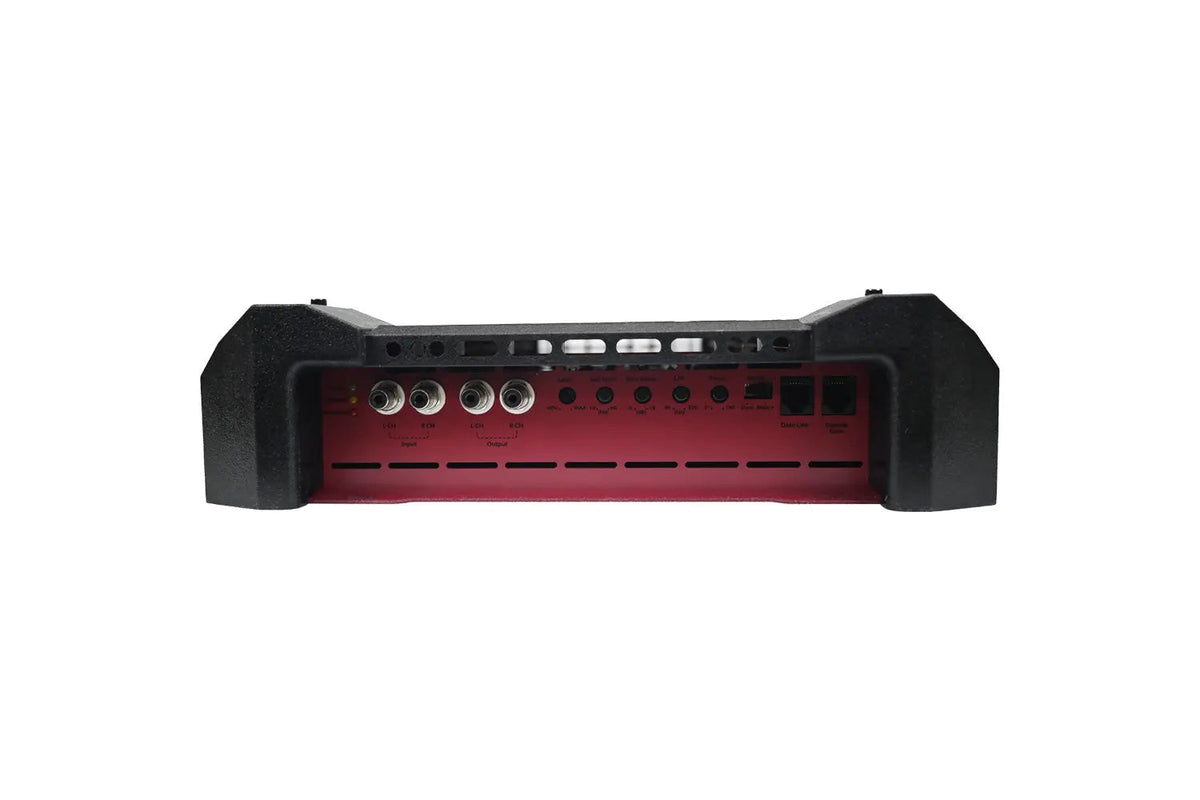

Orion HCCA3000.1DSPLX - 3000W RMS MONOBLOCK CLASS D AMPLIFIER
Orion HCCA3000.1DSPLX - 3000W RMS MONOBLOCK CLASS D AMPLIFIER
ORION HCCA3000.1DSPLX HCCA Series 3000W RMS 1-Channel Class D Amplifier
The HCCA3000.1DSPLX Class D Orion Hcca Amplifier is built for those who demand nothing less than competition-level performance. Delivering an astounding 3,000 watts RMS at 1 ohm, this amplifier is engineered to dominate SPL (Sound Pressure Level) competitions with ground-shaking bass and crisp, clear sound. Featuring the iconic HCCA Red design, it not only performs like a beast but looks the part too, adding a sleek, bold statement to your audio setup.
Powered by advanced Class D technology, the HCCA3000.1DSPLX runs cooler and more efficiently, pushing your subwoofers to their limits without sacrificing performance. Its robust construction and intelligent protection circuits guard against overheating and overload, ensuring long-lasting, reliable power for your most intense sessions.
Perfect for competitive car audio or those who want a show-stopping system, the HCCA3000.1DSPLX combines HCCA's legendary durability with unmatched power. Bring your vehicle to life with SPL-winning bass and superior sound quality, all while rocking the iconic HCCA Red. Upgrade with Orion Hcca Amplifier
Key Features
Class D Amplification: Experience the epitome of efficiency and power with Class D amplification, delivering unparalleled and precise sound reproduction.
3000 Watts RMS: Immerse yourself in a realm of unmatchable audio power with 3000 Watts RMS, delivering commanding and precise sound performance.
Precision Audio Control: The adjustable built-in crossover allows meticulous calibration of audio frequencies, optimizing speaker performance.
Manufacturer specifications
HCCA3000.1DSPLX
- - Frequency Response: 10Hz - 300Hz
- - Low Pass Crossover: 40Hz - 300Hz
- - Supply Voltage: 9 - 16V
- - Amplifier Efficiency: >88%
- - Damping Factor: >200dB
- - Signal to Noise Ratio: >90dB
- - T.H.D. & Noise: 0.5%
- - Input Impedance: 24K Ohms
- - Phase Shift: 0 - 180
- - Bass Boost: 0-18dB Variable
- - Subsonic Filter: 10 - 40Hz
- - Variable Input Level Control: 0.2V - 6.0V
- - Fuses: 350A recommended (not included)
- - Dimensions (L x W x H): 18.89" x 11.89" x 3.15" (480x302x80mm)
