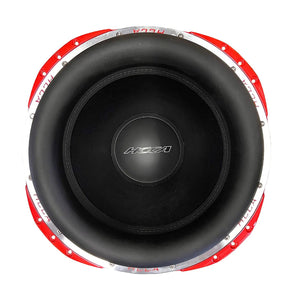

Orion HCCA151SPLX - 15 Inch Dual 1 Ohm Extreme SPL Subwoofer | 7500W RMS Bass Power

Extreme SPLX 15 Inch Subwoofer Built for Record-Level Output

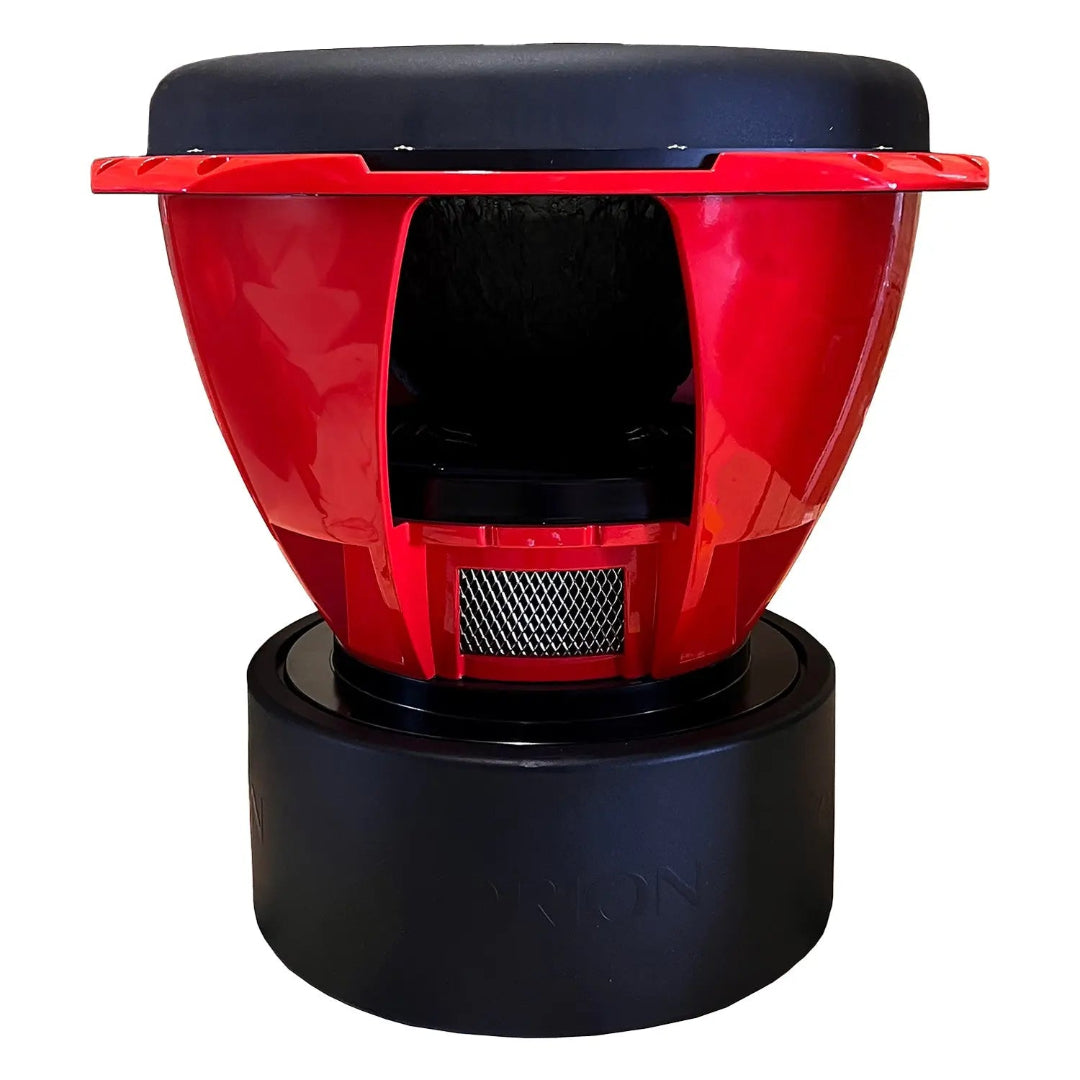

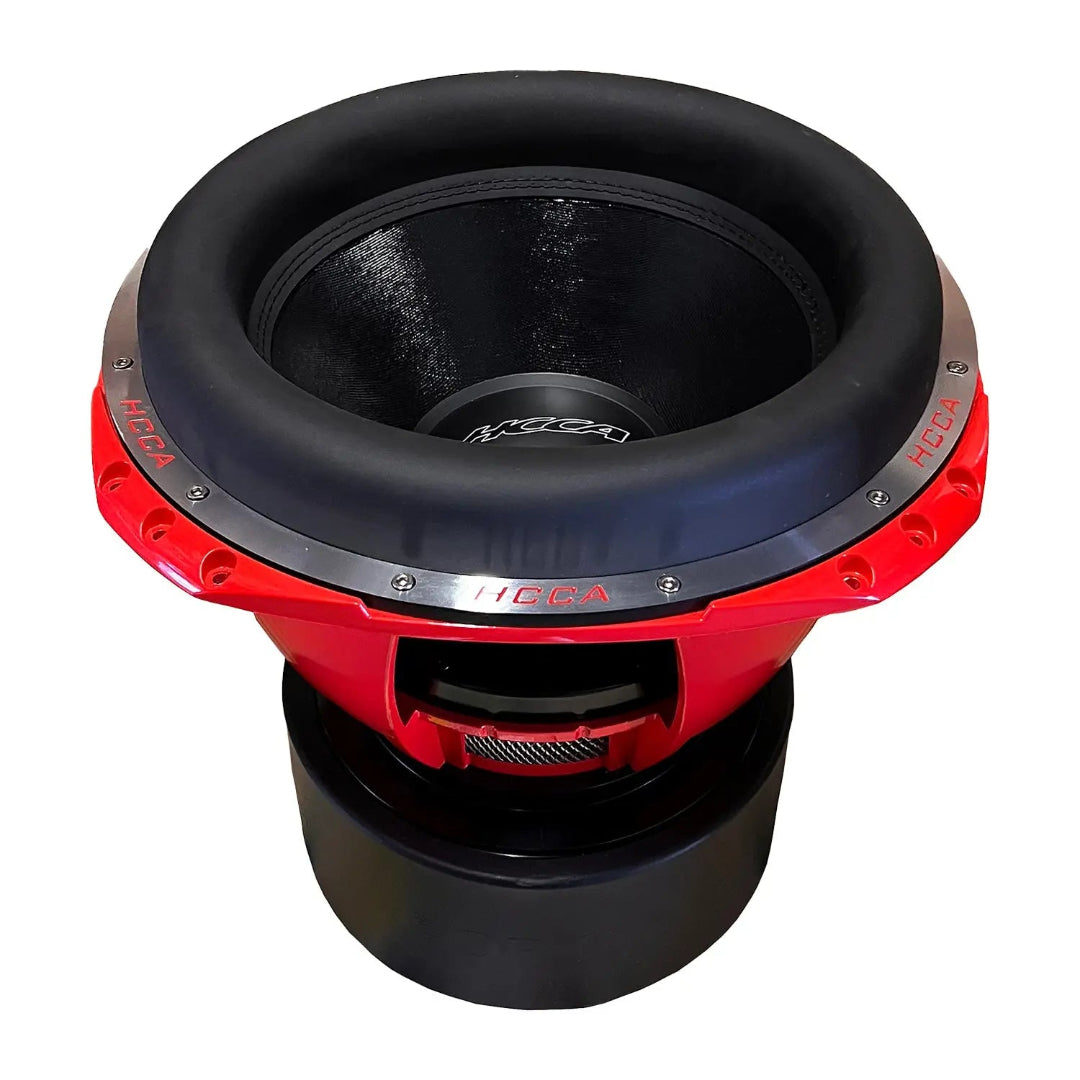

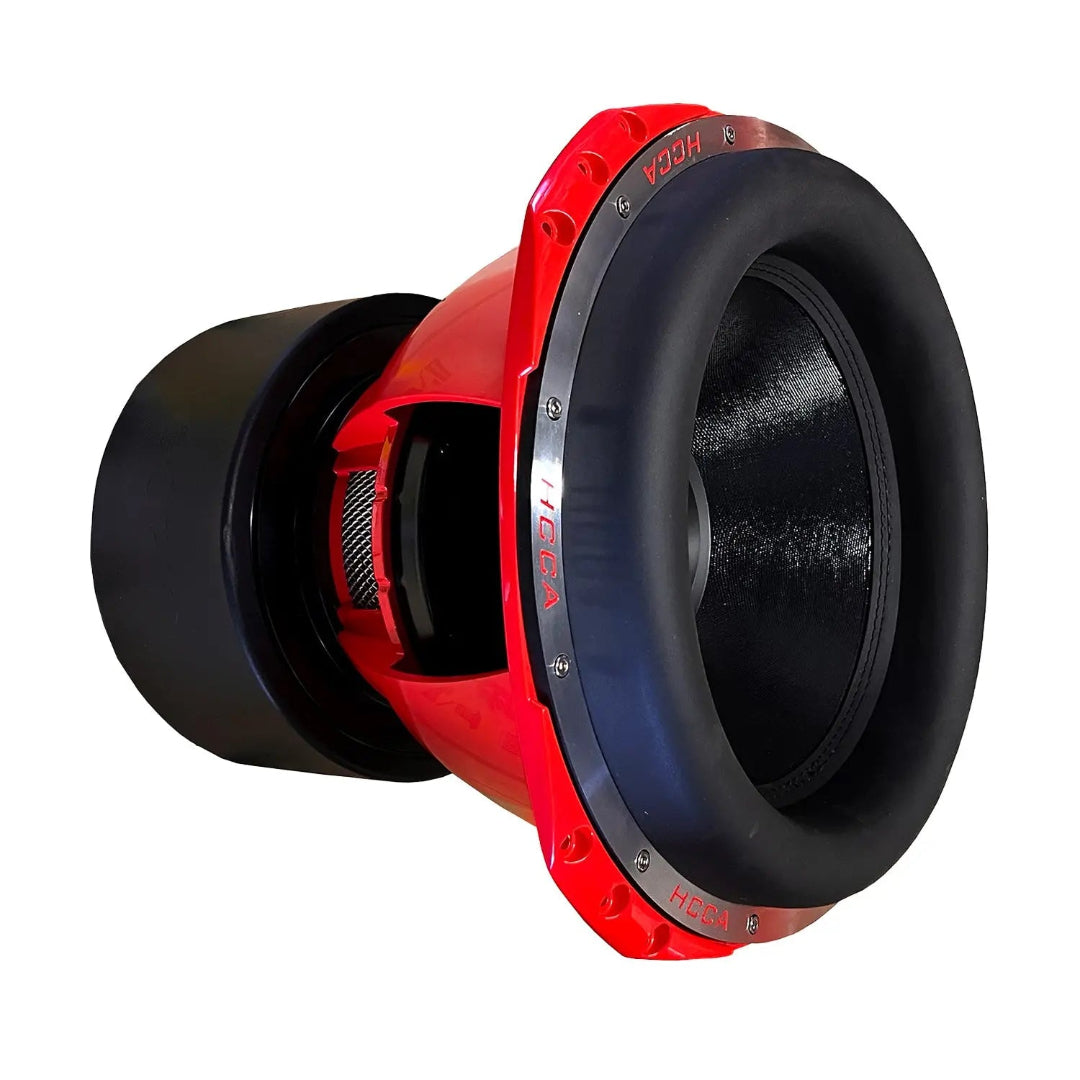

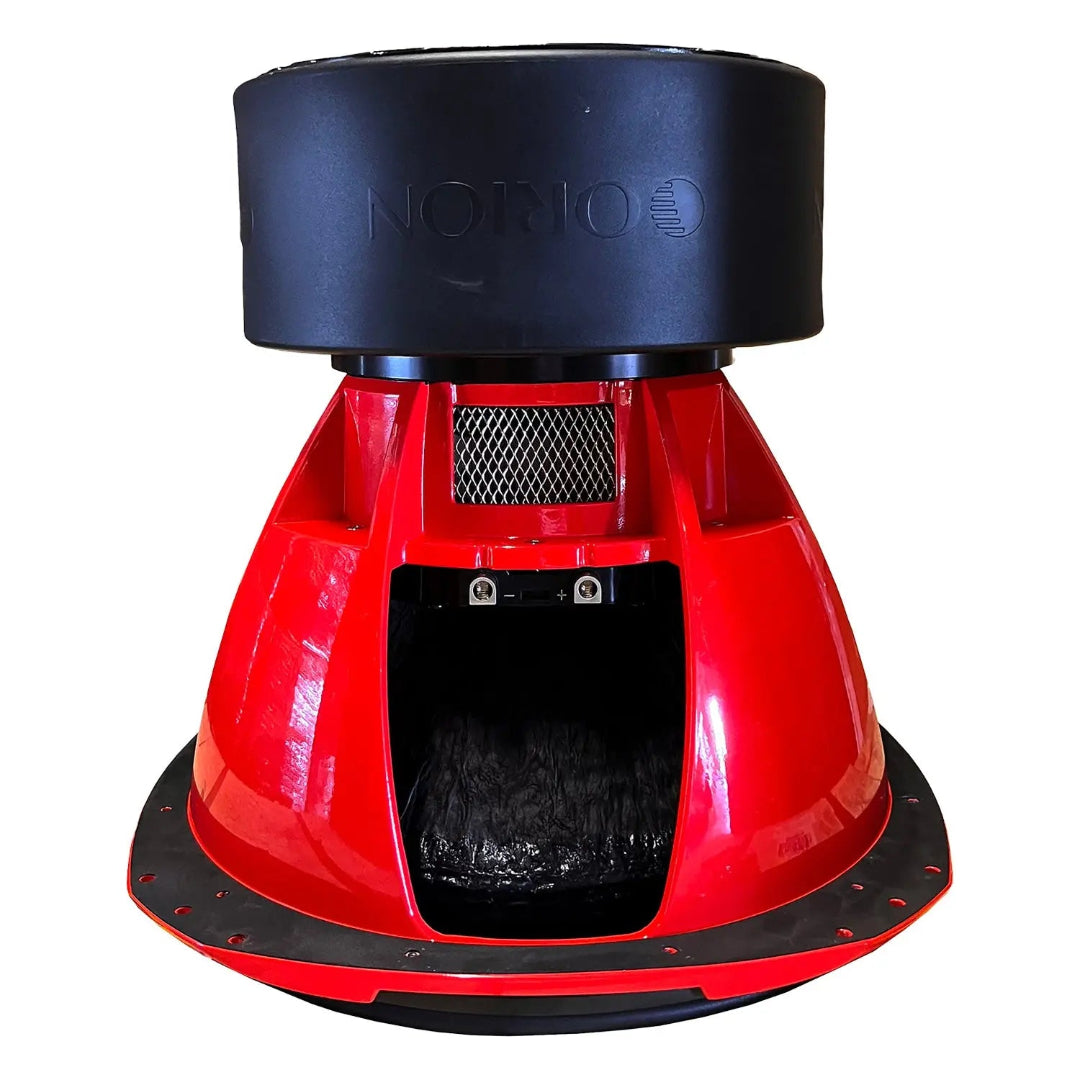

The Orion HCCA151SPLX sits at the absolute peak of Orion's bass lineup. Specifically, this 15 inch dual 1 ohm SPLX competition subwoofer is engineered for extreme sound pressure levels. As a result, it delivers crushing low-frequency output for the most demanding SPL builds. With 7500W RMS and 30000W peak power , it is built for competitors who operate far beyond standard limits.

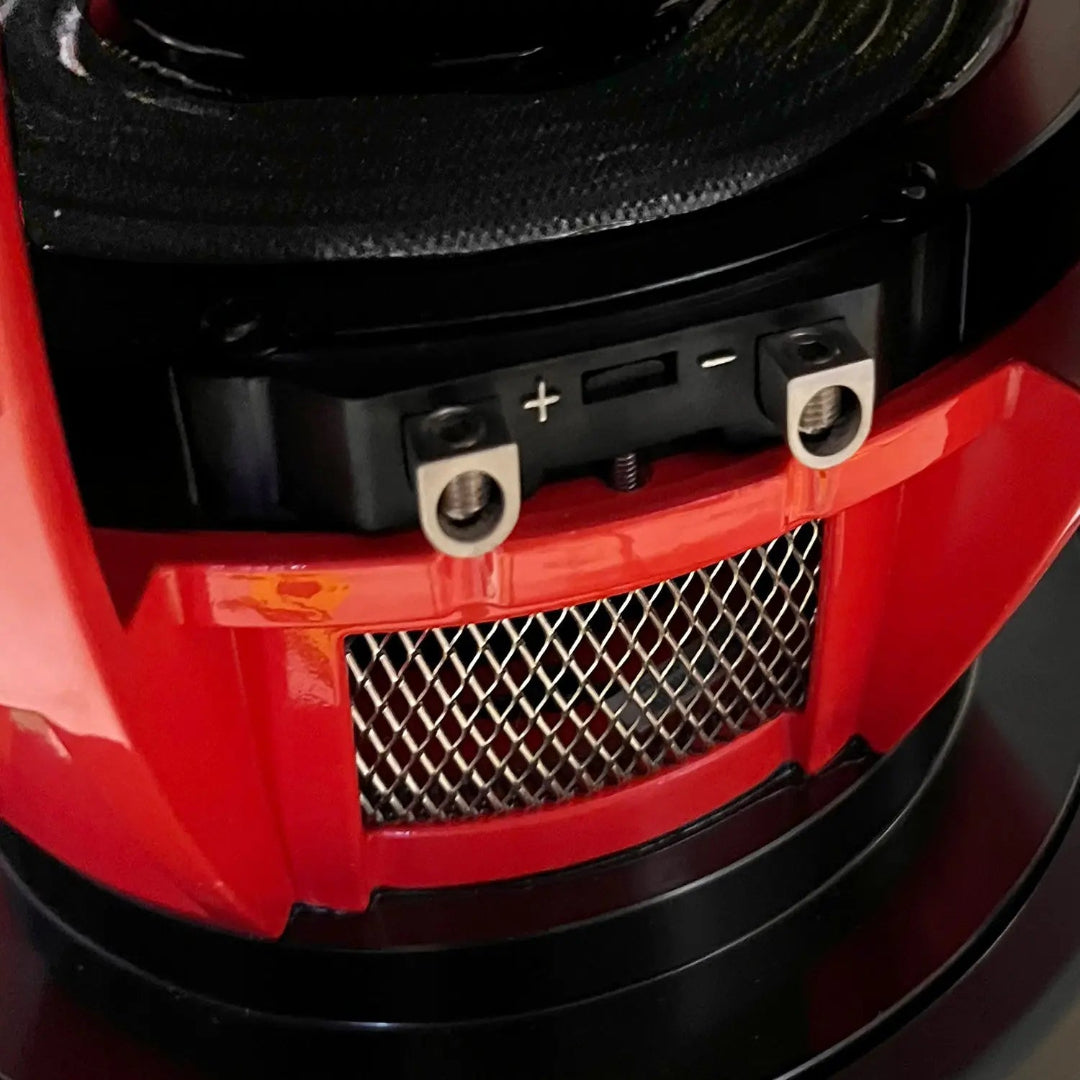

Additionally, the dual 1-ohm voice coil configuration allows ultra-low impedance wiring. Because of this, the subwoofer pairs perfectly with high-voltage, competition-grade amplifiers. Therefore, the HCCA151SPLX is ideal for extreme SPL competition vehicles, demo monsters, and record-chasing bass walls.

Built for Extreme SPLX Abuse

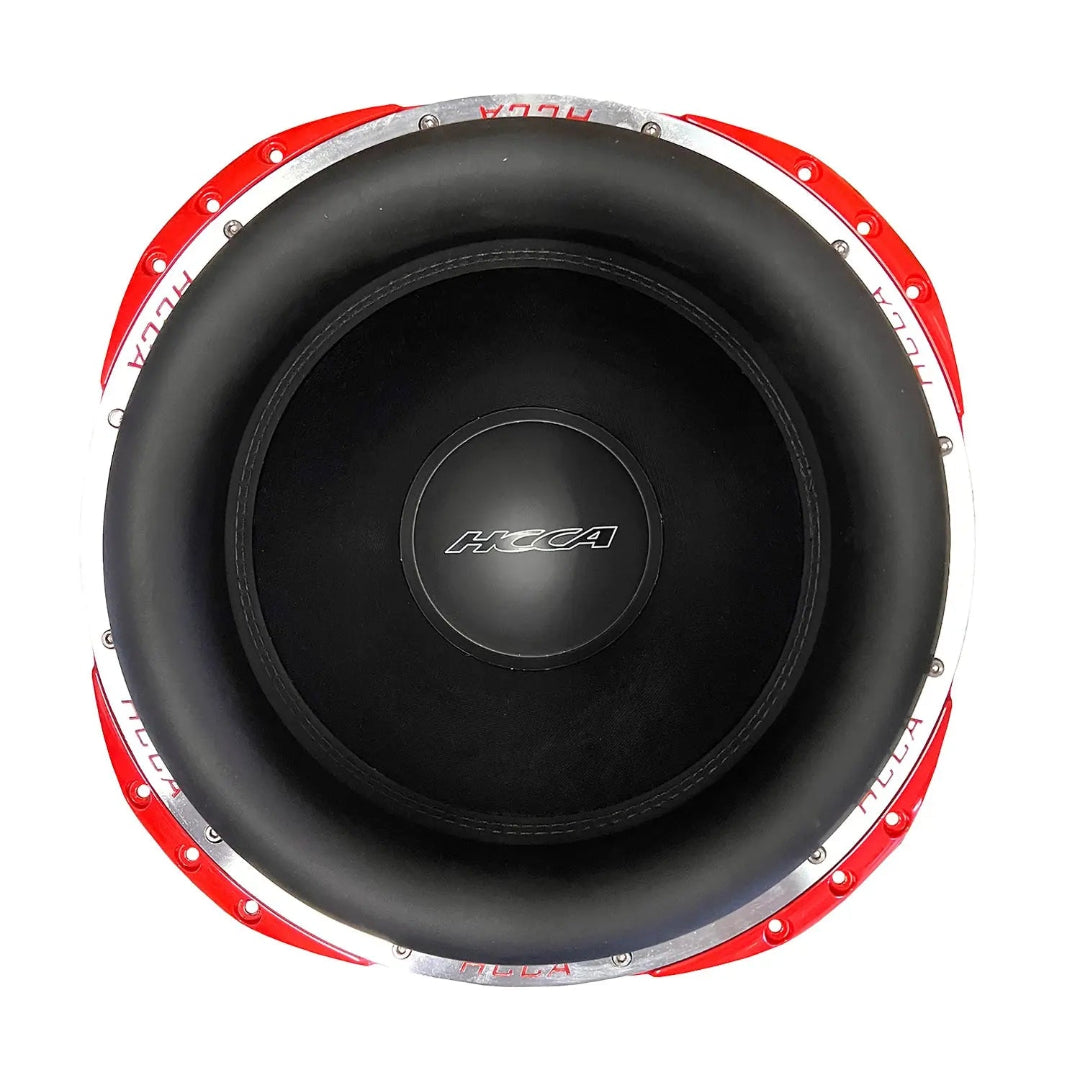

To survive brutal power levels, the HCCA151SPLX uses a moisture- and UV-resistant glass fiber paper cone . Moreover, it features a reinforced NBR foam surround designed to handle violent cone movement. Together, these components maintain stability during massive excursion.

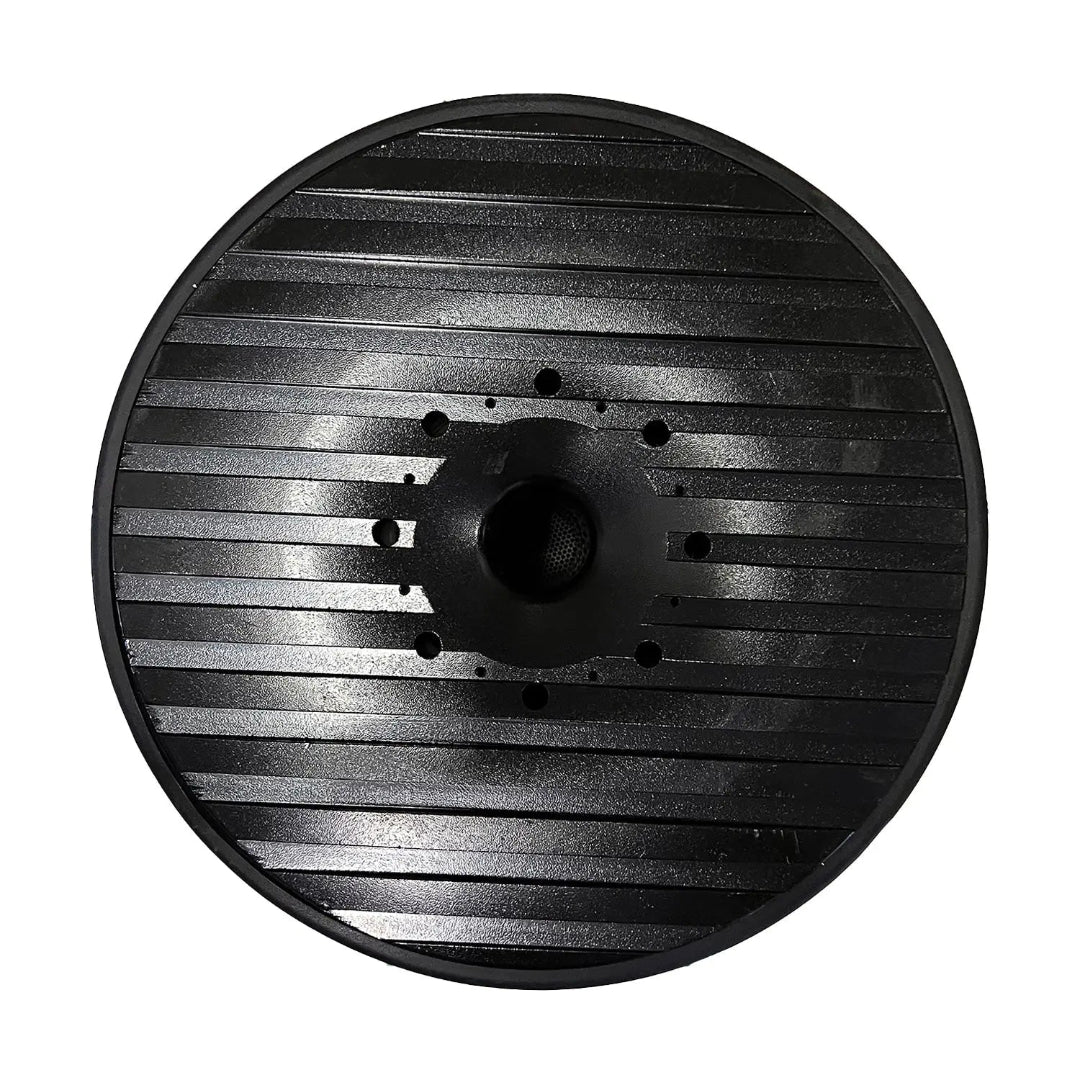

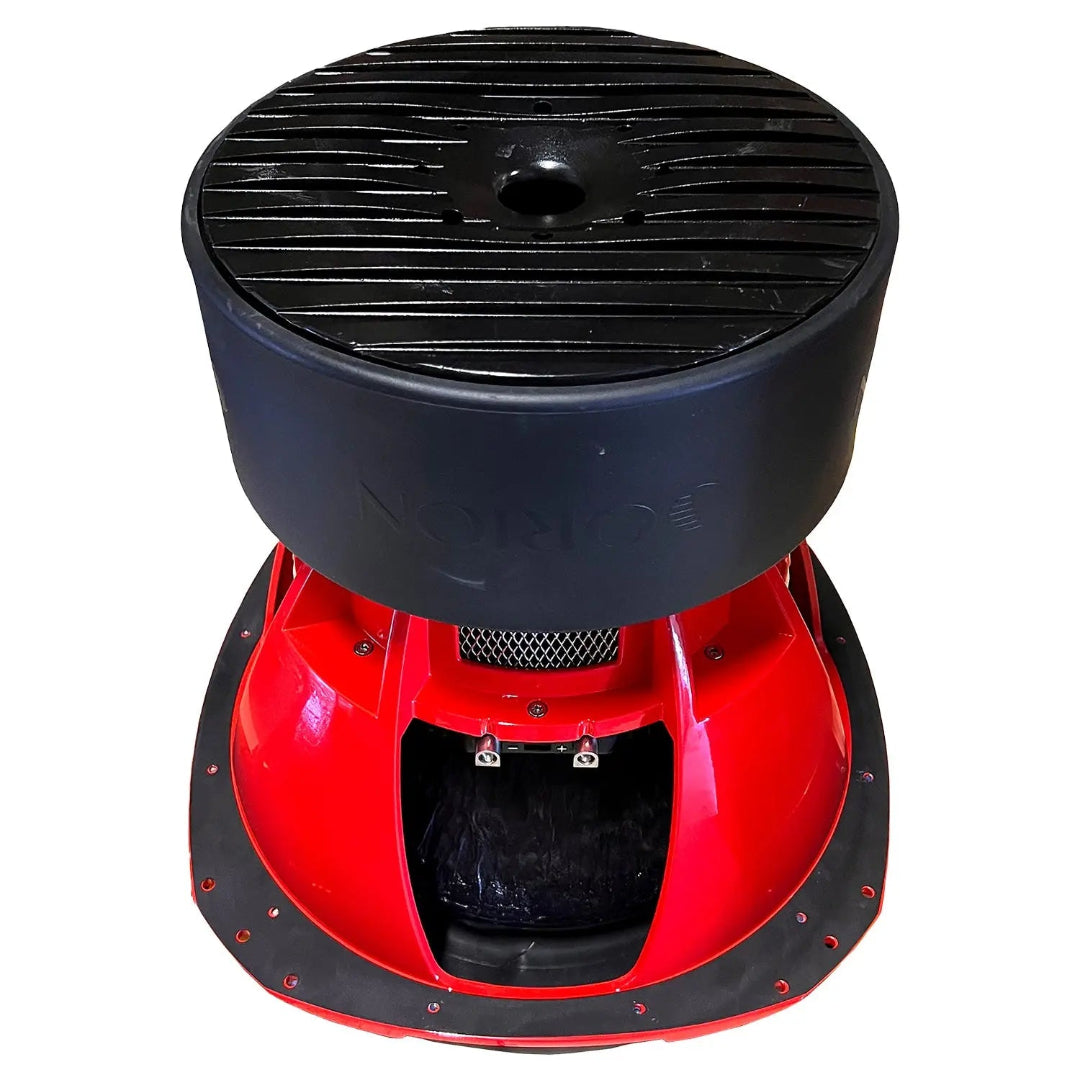

At its core, the subwoofer uses a huge 4-inch high-temperature voice coil . As a result, it manages intense heat during long competition runs. In addition, a 690 oz triple-stack ceramic magnet motor structure delivers enormous motor force. This design maximizes output while maintaining control at extreme power levels.

Ideal For

Extreme SPLX competition vehicles

Manufacturer specifications

HCCA151SPLX

• Subwoofer Size: 15" (Inches)
• Voice Coil Configuration: Dual 1-ohm
• Power Handling (Peak): 30000 Watts
• Power Handling (RMS): 7500 Watts
• Sensitivity: 87.81 dB
• Frequency Response: 20 Hz - 200 Hz
• Voice Coil Diameter: 4" (Inches)
• Dustcap Material: Polypropylene
• Cone Material: Moisture and UV Resistant Glass Fiber Paper Cone
• Surround Material: NBR Foam
• Magnet Information: 690 Oz Triple Stack Ceramic
• Mounting Depth: 379.5mm / 14.94 (Inches)
• Cutout Diameter: 383mm / 15.08 (Inches)
• Overall Diameter: 423.5mm / 16.67 (Inches)
