ORION HCCA 150NE - Super Shallow Neodymium Tweeters

HCCA Tweeters - HCCA 150NE 3.6" Super Shallow Neodymium Tweeters

Upgrade your system with HCCA Tweeters designed for precision, power, and clean high-frequency performance. The HCCA15 0NE 3.6" Super Shallow Neodymium Tweeters deliver crisp highs and detailed sound in a compact, installation-friendly design.

Engineered for tight spaces, these HCCA Tweeters feature a super shallow profile that fits easily into custom builds and factory locations without major modifications. Whether you're upgrading an existing system or building from scratch, they provide flexibility without sacrificing performance.

Key Features of HCCA Tweeters

Super Shallow Design - Ideal for tight installations and custom applications

Neodymium Magnet Structure - Delivers strong output with exceptional clarity

High Power Handling - Maintains clean, distortion-free highs at any volume

Compact 3.6" Size - Wide sound dispersion without taking up space

Manufacturer specifications

HCCA150NE

• Speaker Size: 3.6" (Inches)
• Voice Coil Configuration: 4 ohm
• Power Handling (Peak): 600 Watts
• Power Handling (RMS): 150 Watts
• Sensitivity: 107 dB
• Frequency Response: 1.5 kHz - 20 kHz
• Voice Coil Diameter: 1.5" (Inches)
• Tweeter: 2 Tweeters
• Material: Aluminum Die-Cast
• Diaphragm Material: Aluminum
• Phase Plug Material: Aluminum Neodymium Tweeter
• Magnet Information: Neodymium

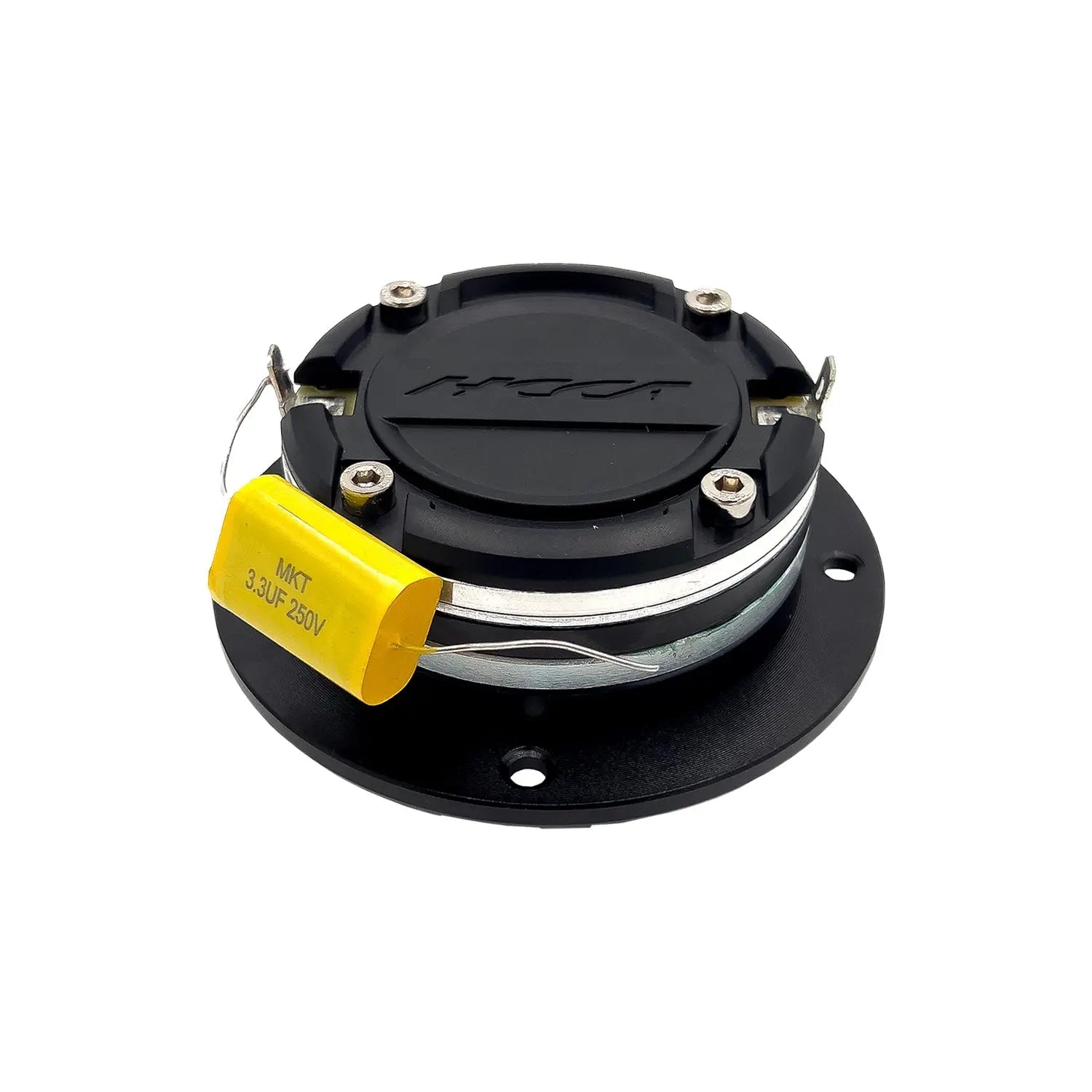

• Recommended Capacitor: 3.3uF 250V
• Mounting Depth: 30.6mm / 1.2 (Inches)
• Overall Depth: 46.5mm / 1.83 (Inches)
• Cutout Diameter: 70mm / 2.76 (Inches)
• Overall Diameter: 93mm / 3.66 (Inches)
