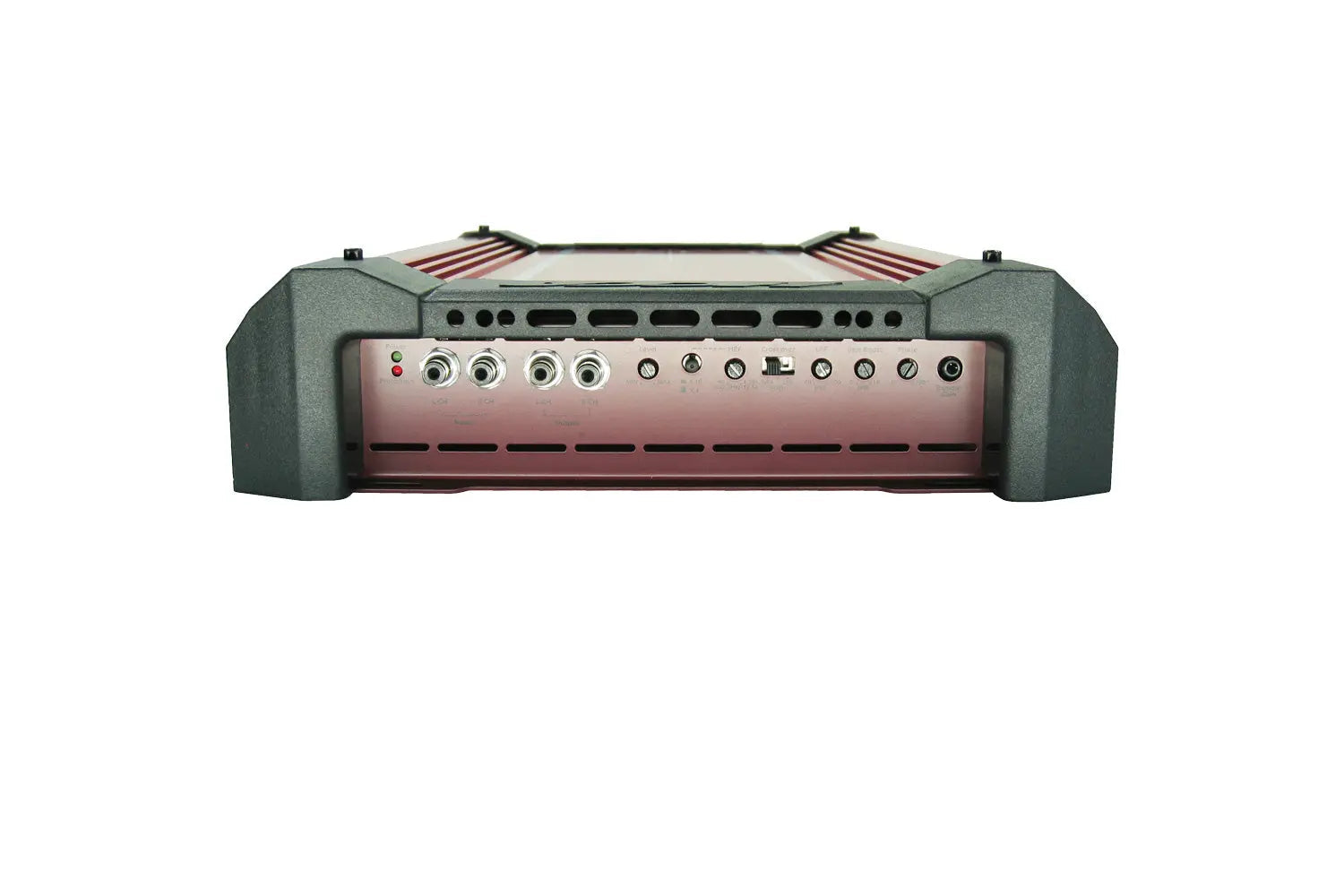

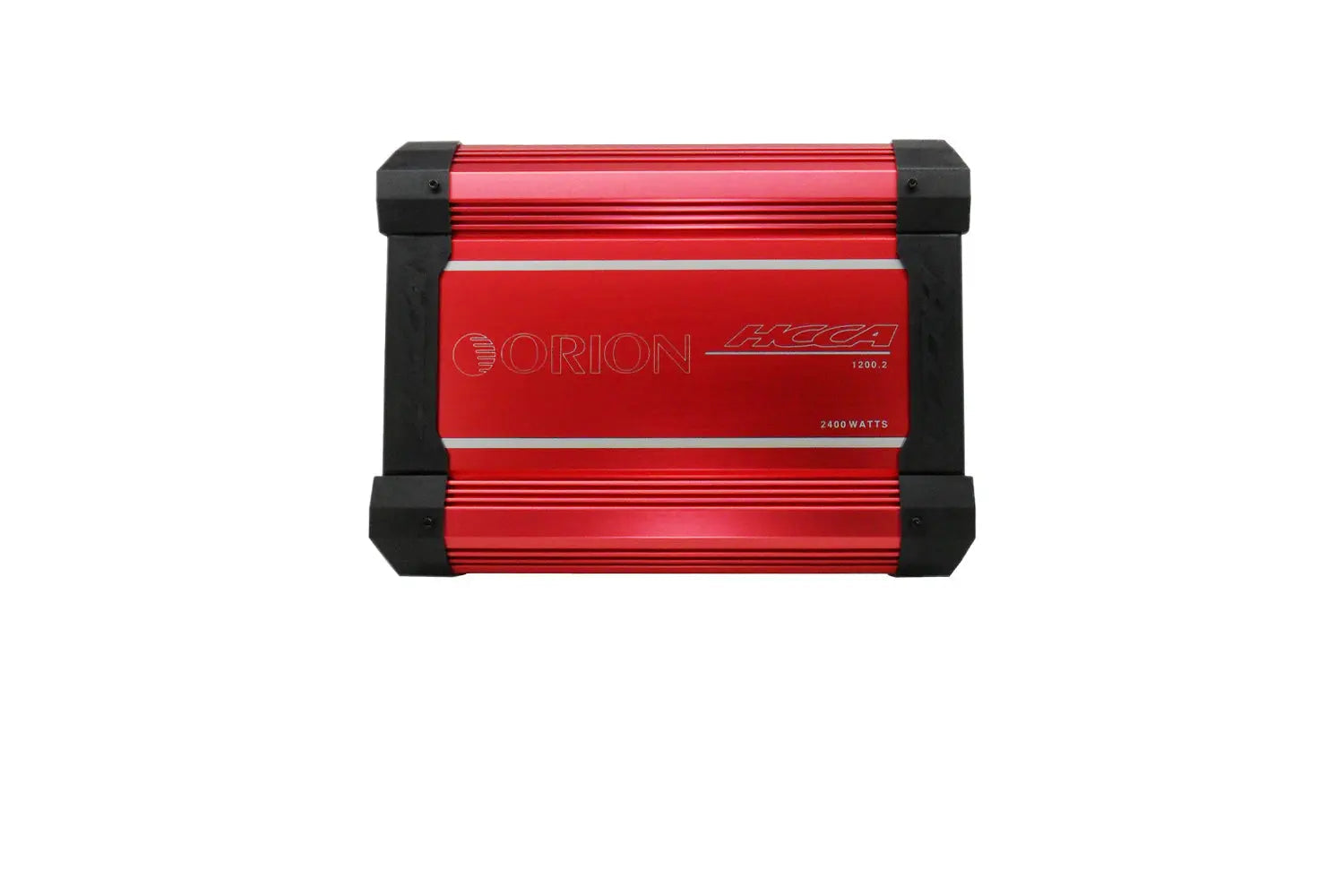

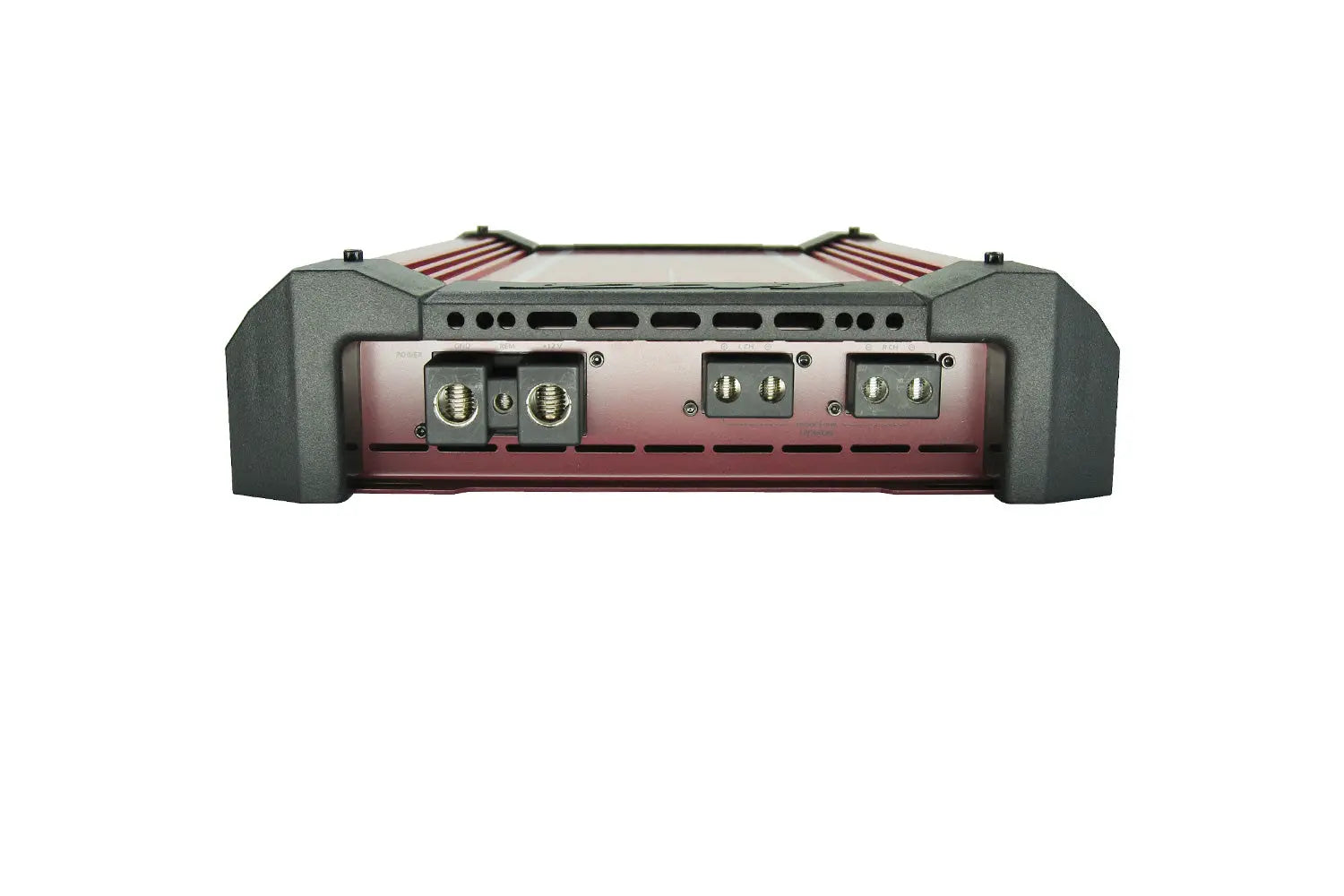

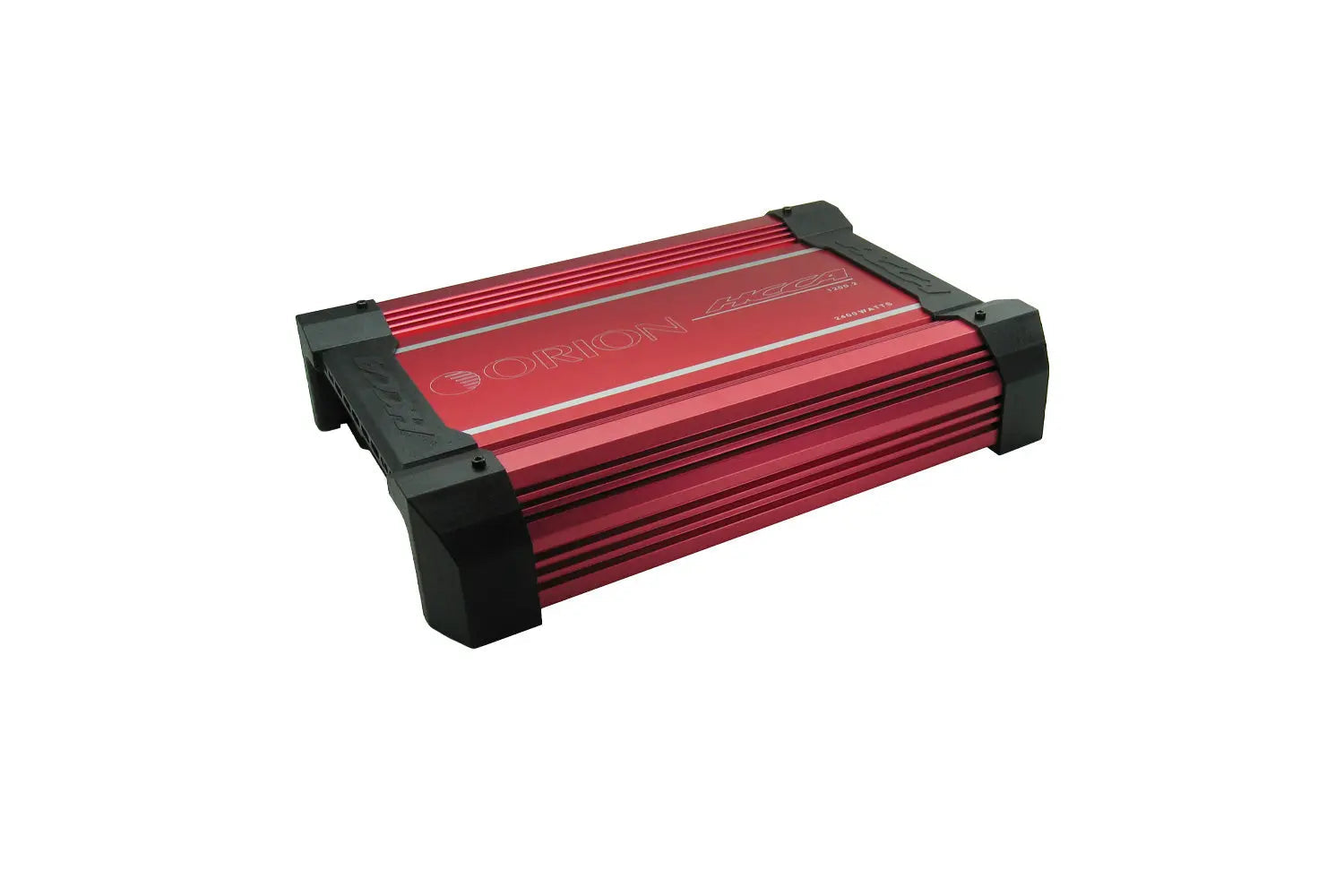

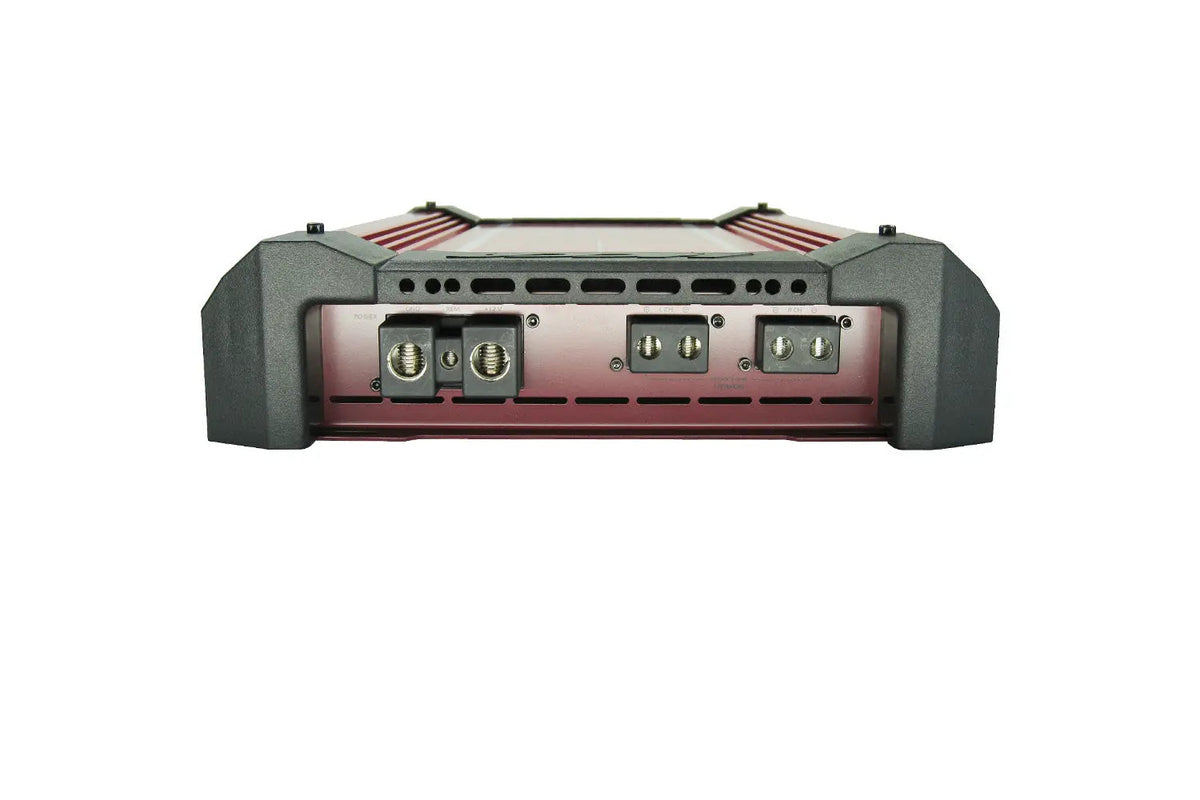

Orion HCCA1200.2 - 1200W RMS 2-Channel Class-AB Amplifier

ORION HCCA1200.2 HCCA Series 1200W RMS Class-AB 2 Channel Amplifier

Elevate Your Audio Experience to New Heights:

The ORION HCCA1200.2 HCCA Series 1200W RMS 2-Channel Class-AB Amplifier is a testament to precision engineering and audio excellence. Designed for enthusiasts who demand exceptional performance, this amplifier is a powerful addition to your audio setup, delivering clarity, power, and unrivaled sonic depth.

Elevate Your Audio Journey:

The ORION HCCA1200.2 HCCA Series 1200W RMS 2-Channel Class-AB Amplifier is your gateway to elevating your audio journey. Crafted with meticulous attention to detail and advanced features, this amplifier adds a dynamic dimension to your listening experience.

Exceptional Sound Reproduction:

Rediscover your music with stunning clarity. From the delicate nuances to the most powerful crescendos, every aspect of your audio comes to life in unparalleled detail.

Unparalleled Performance:

Manufacturer specifications

HCCA1200.2

• - Frequency Response: 10Hz to 35kHz +/- 1 dB
• - Linear Bandwidth: 20Hz to 65kHz +/- 3 dB
• - High Pass Crossover Continuously variable: (40-1.25kHz/400-12.5kHz)
• - Low Pass Crossover Continuously variable: (40-300Hz)
• - Phase shift control: 0 to 180
• - Bass Boost: 0-18dB variable
• - Distortion at Rated Power: 0.005% THD+N
• - Damping Factor: > 100
• - Input Sensitivity(RMS): 200mV to 6V
• - Supply Voltage Range: 9 to 16V
• - Input Impedance: 20K Ohms
• - Amplifier Efficiency: > 67% into 2 Ohms load at max. power
• - SNR at rated output power and lowest impedance: > 95dB
• - Fuses: 125A recommended (not included)
• - Dimensions (L x W x H): 15" x 11.89" x 3.15" (381x302x80mm)
