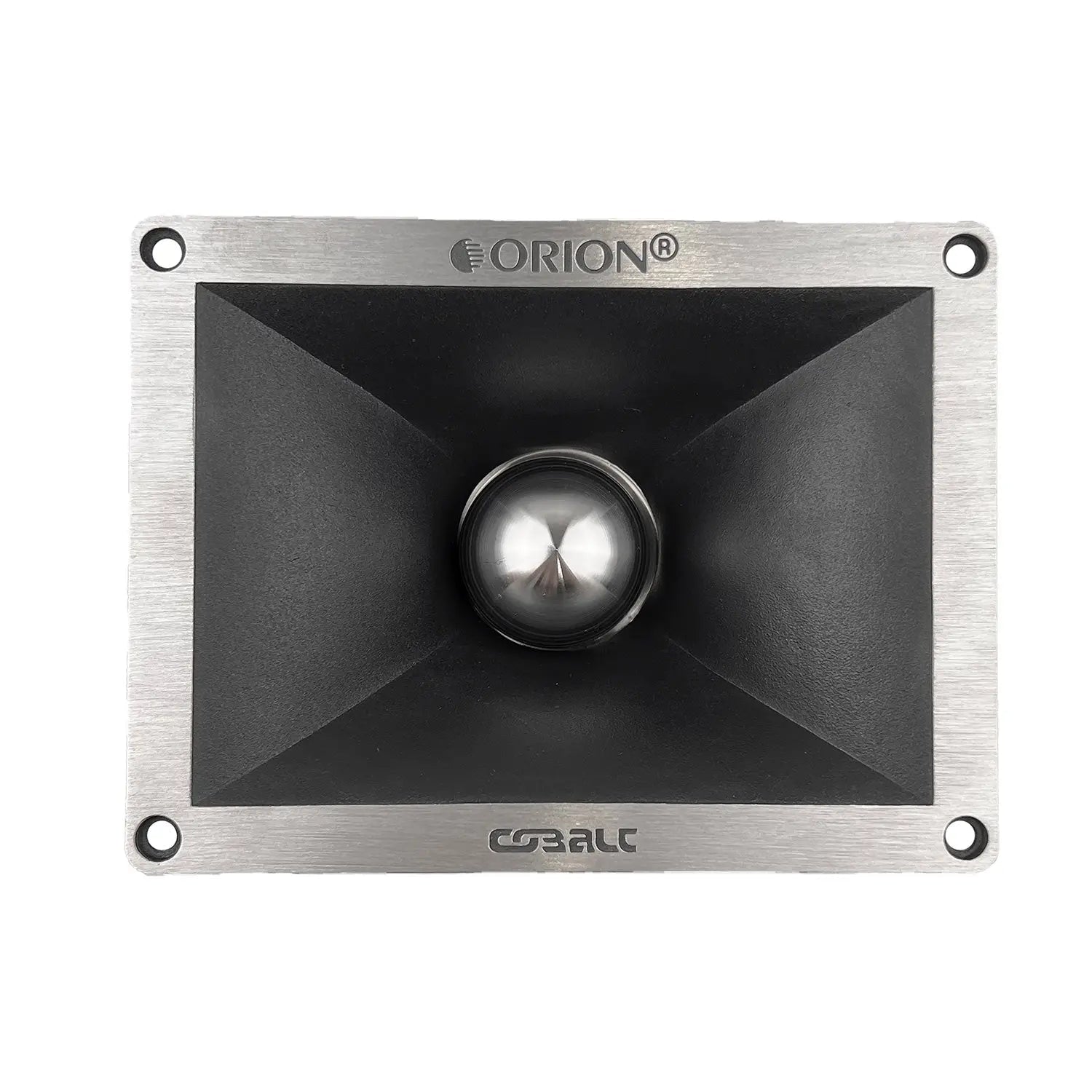

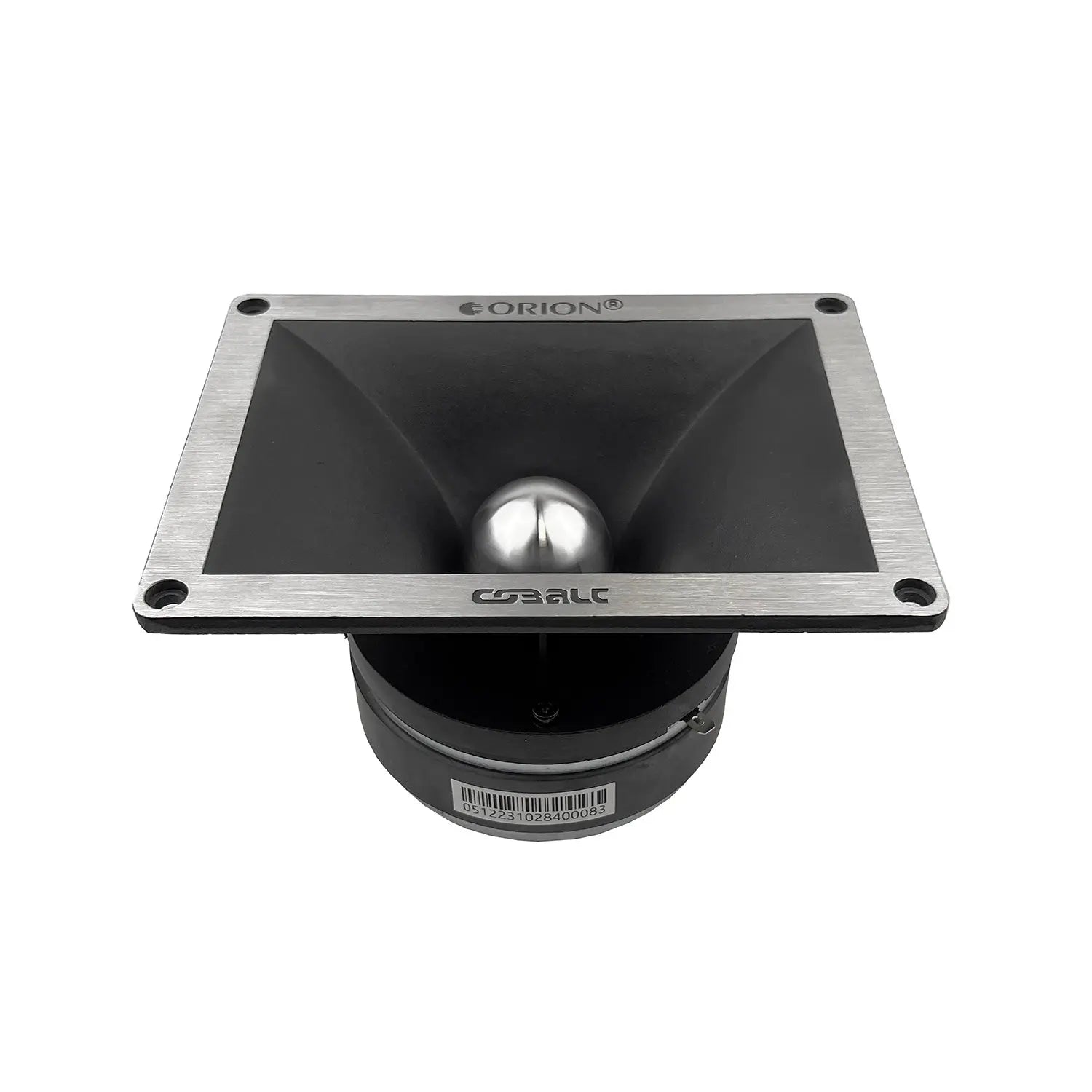

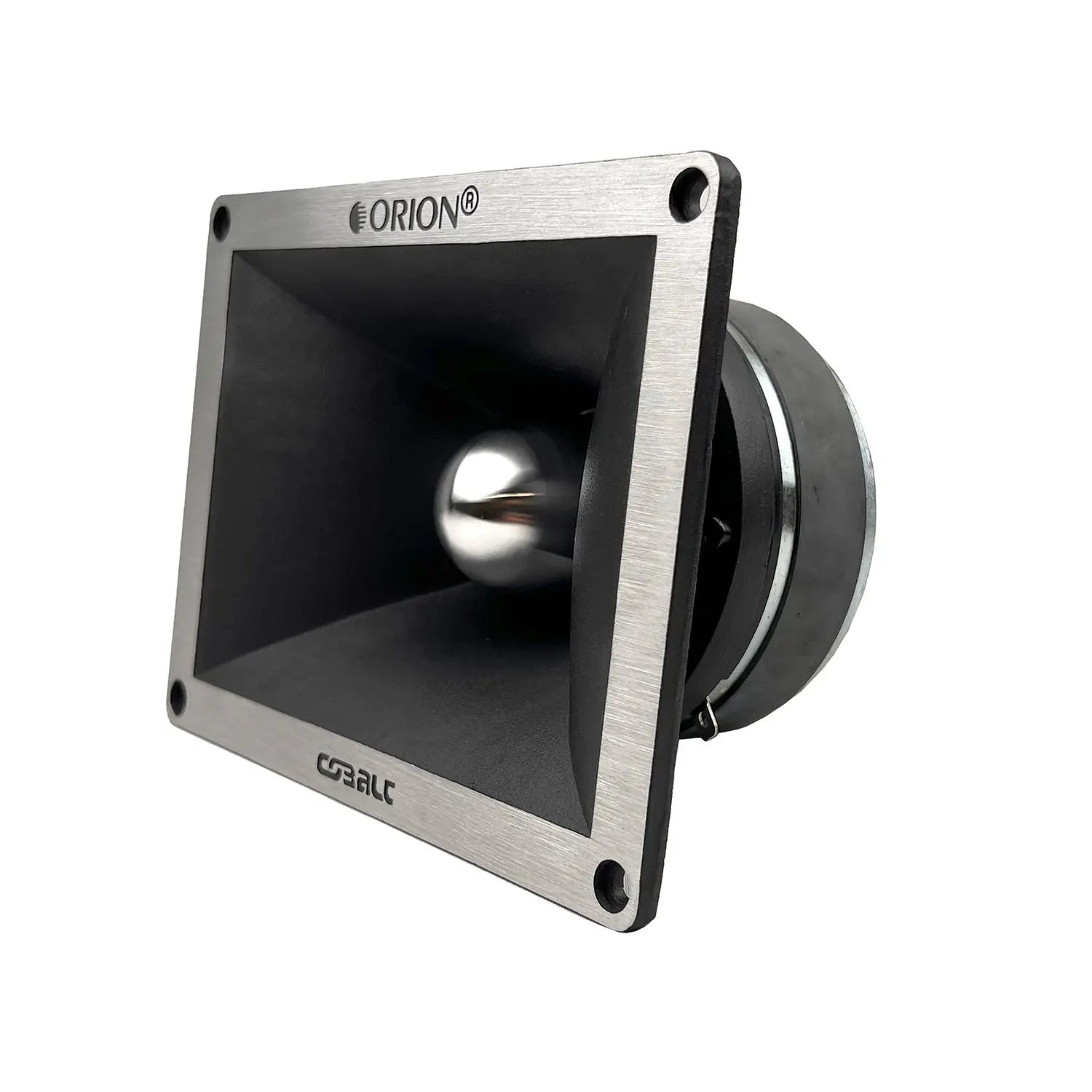

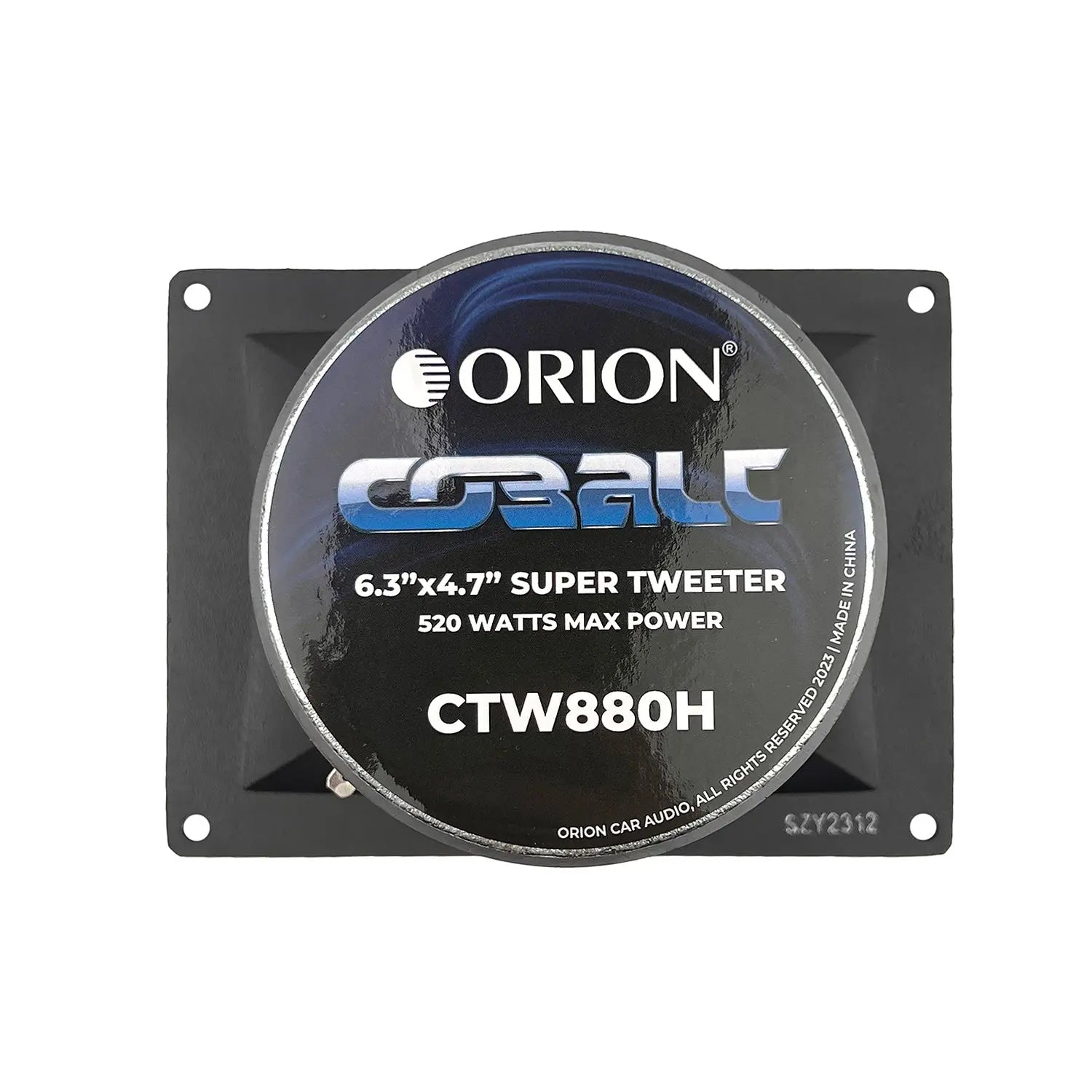

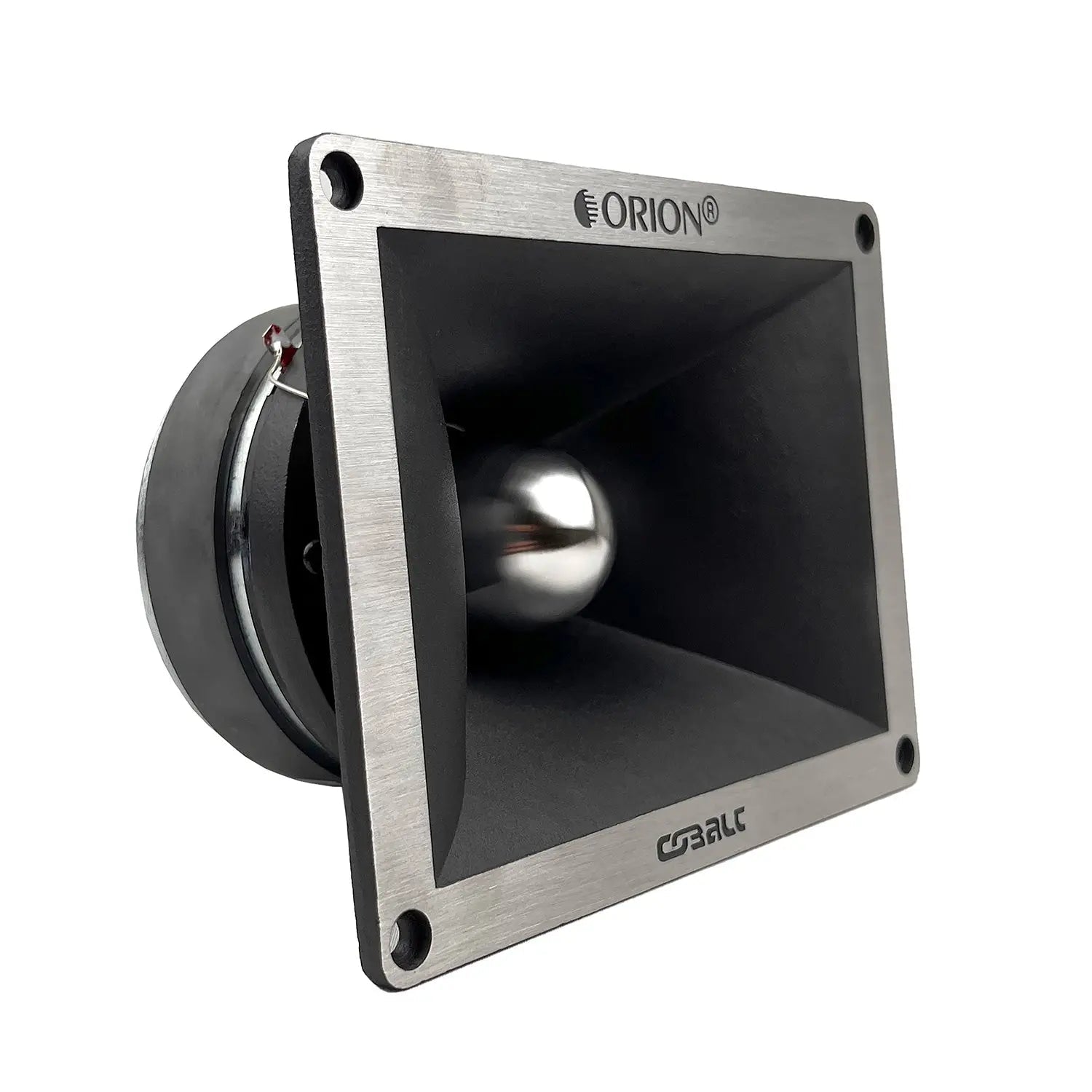

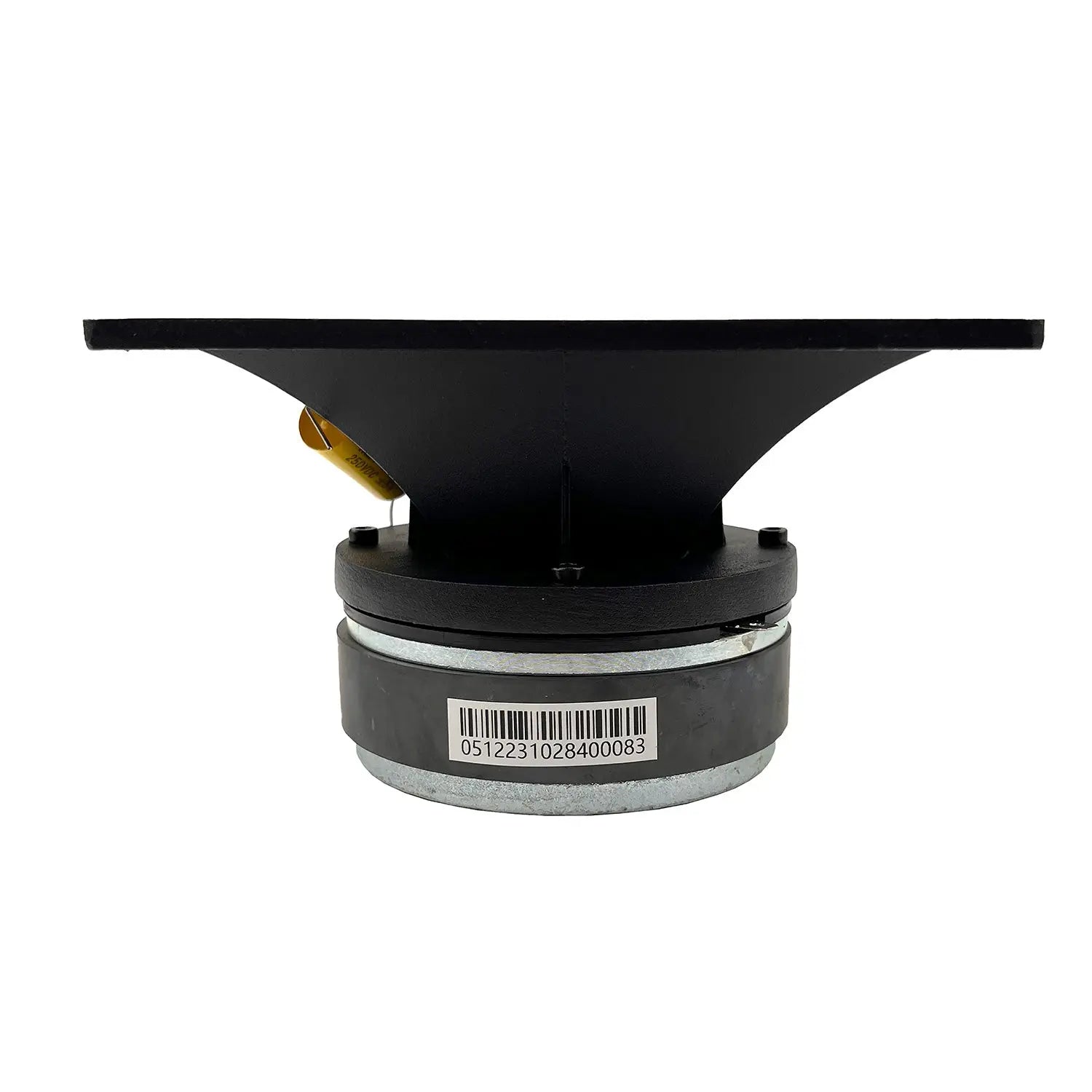

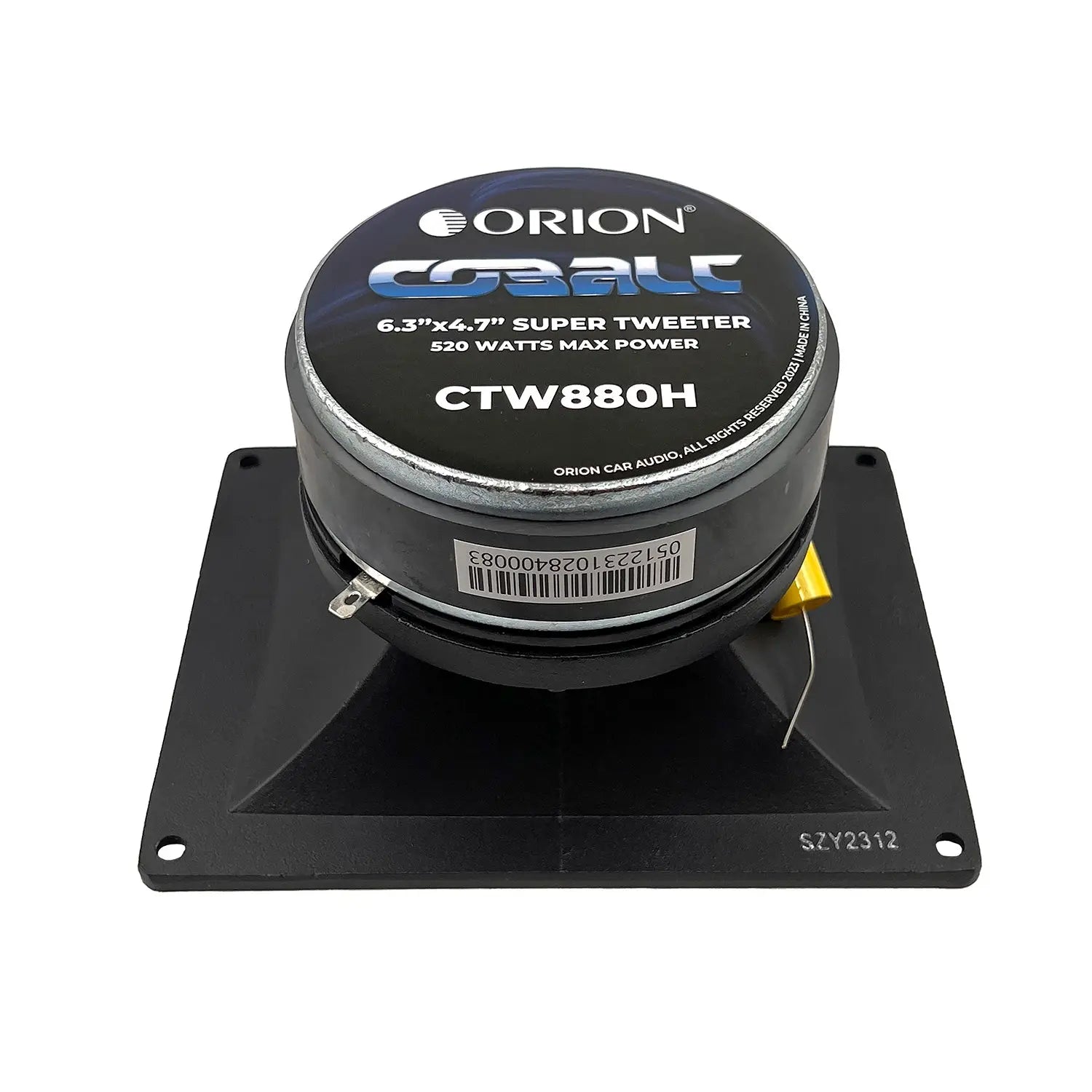

Orion CTW880H - Super Tweeter

A New Dimension of Sound Introducing the ORION CTW880H Super Tweeter, a precision-engineered audio solution designed to infuse your music with a new dimension of brilliance and clarity, elevating your auditory experience like never before.

Elevate Your Sonic Landscape: Revolutionize your driving soundtrack with the ORION CTW880H 6.3" x 4.7" Super Tweeter, an embodiment of sonic excellence that brings forth brilliance and depth, elevating your music experience.

Unrivaled Brilliance: Experience high-frequency brilliance that redefines your music, unveiling the layers and intricacies of each composition.

Expansive Soundstage: Immerse yourself in a captivating soundstage that transports you to the heart of the music, revealing its hidden dimensions.

Robust Power Management: With 130 watts RMS and 520 watts MAX power handling, these tweeters maintain their pristine sound quality, even at higher volumes.

Elegance in Design: The CTW880H's design exudes elegance, adding a touch of sophistication to your audio setup, while delivering outstanding sonic performance.

Lasting Excellence: Engineered for long-lasting performance, the CTW880H consistently delivers remarkable high-frequency sound that transforms your music journey.

Elevate Your Experience: Embark on a new dimension of sound with the ORION CTW880H 6.3" x 4.7" Super Tweeter, and indulge in an audio experience that resonates with clarity, brilliance, and depth, setting a new benchmark for audio quality and enjoyment.

Manufacturer specifications

CTW880H

• Speaker Size: 6.3" x 4.7" (Inches)
• Voice Coil Configuration: 4 ohm
• Power Handling (Peak): 520 Watts
• Power Handling (RMS): 130 Watts
• Sensitivity: 112 dB
• Frequency Response: 2 kHz - 25 kHz
• Voice Coil Diameter: 1.75" (Inches)
• Material: Aluminum Die-Cast
• Diaphragm Material: Aluminum
• Phase Plug Material: Billet Aluminum
• Magnet Information: Ferrite
• Recommended Capacitor: 3.3uF 100V
• Mounting Depth: (Inches)
• Overall Depth: (Inches)
• Cutout Diameter: 147mm / 5.79" x 107mm / 4.21"
• Overall Diameter: 159mm / 6.26" x 120mm / 4.72"
