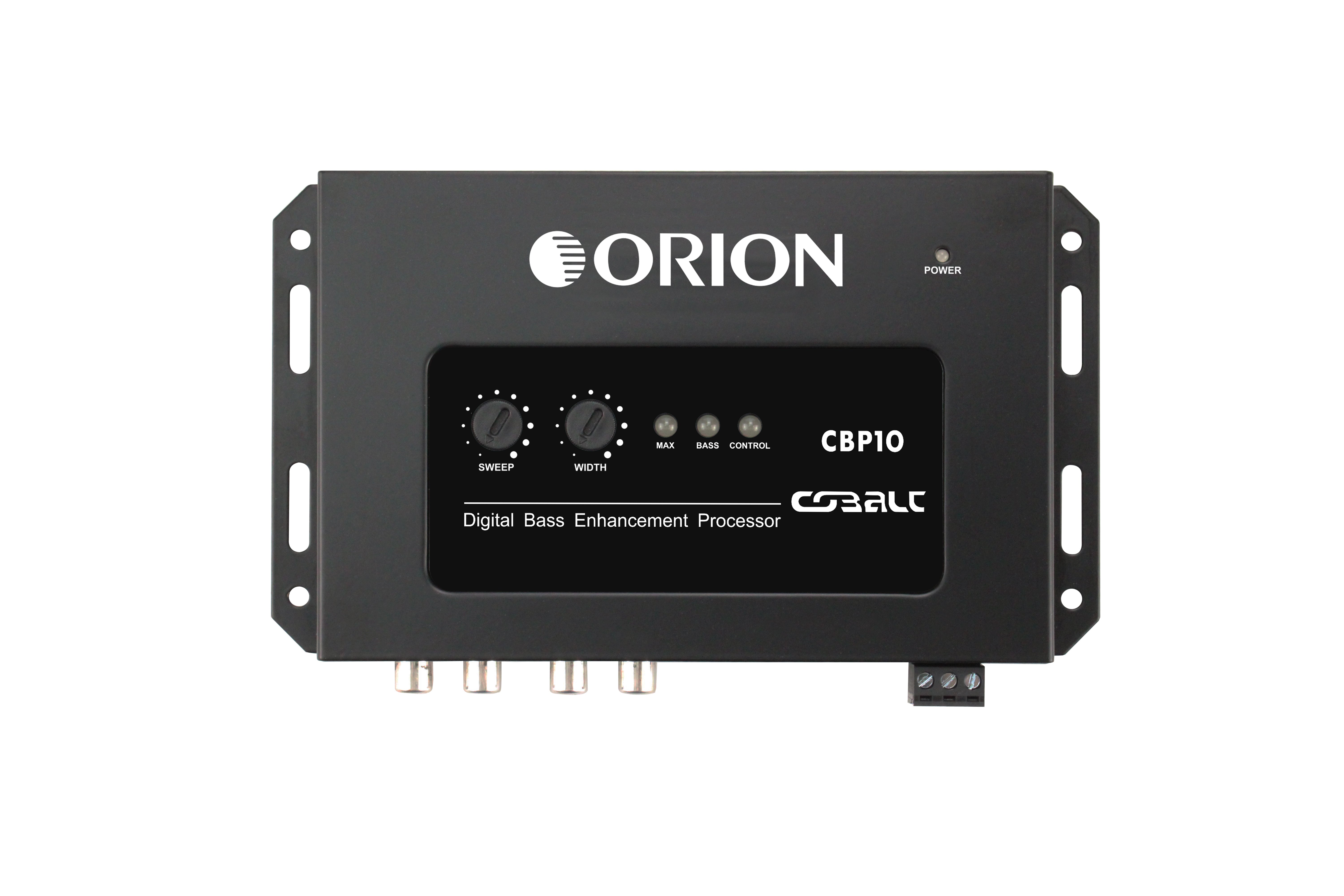

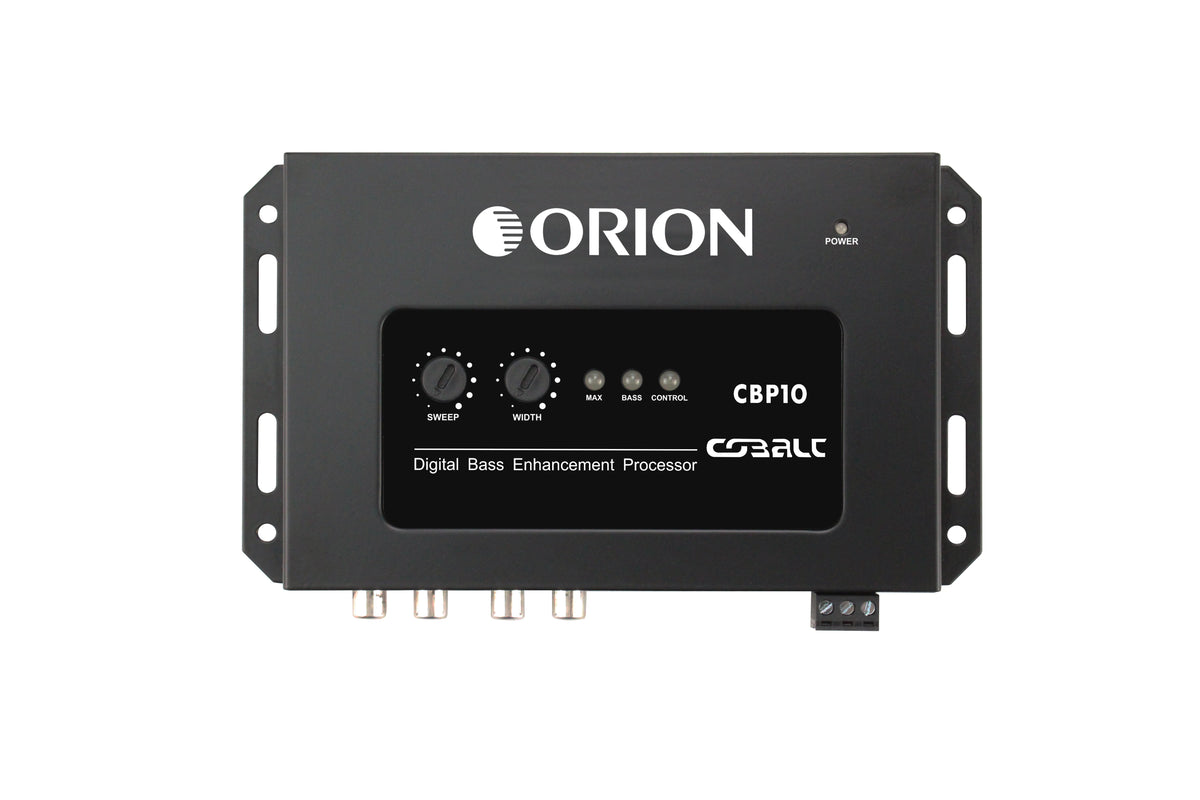

Orion CBP10 Digital Bass Processor with Bass Restoration & 10V Output

CBP10 Digital Bass Enhancement Processor - Deep and Controlled Bass

Upgrade your car audio system with the CBP10 Digital Bass Enhancement Processor . It restores and enhances low-frequency performance for stronger, deeper bass.

Many factory and compressed audio sources reduce bass output. As a result, your subwoofer can lose impact. The CBP10 processes the signal to recover lost bass and restore the full depth of your music.

Precision Bass Tuning

The CBP10 gives you full control over your bass response. Therefore, you can fine-tune your system to match your setup.

You can adjust:

Sweep control to set the frequency center

Width control to adjust the bandwidth

Manufacturer specifications

CBP10

• Power Supply: 6.5V – 18V
• Maximum Input Level: 10V
• Maximum Output Level: 10.5V
• Input Sensitivity: 10.7V
• Input Impedance: >50K Ohms
• Output Impedance: 100 Ohms
• EQ Boost / Cut: 15 dB
• Signal-to-Noise Ratio: >110 dB
• THD @ 2V Output: <0.02%
• Channel Separation: >80 dB
• CMRR: -63 dB Balanced / -29 dB Unbalanced
• Frequency Response: 10 Hz – 30 kHz
• Subsonic Filter: 31 Hz – 71 Hz
• Current Draw: 180 mA
• Interchannel Gain Tracking: 0.1 dB
• Fuse Rating: 1A
• Dimensions: 7.28” x 4.13” x 1.02”
