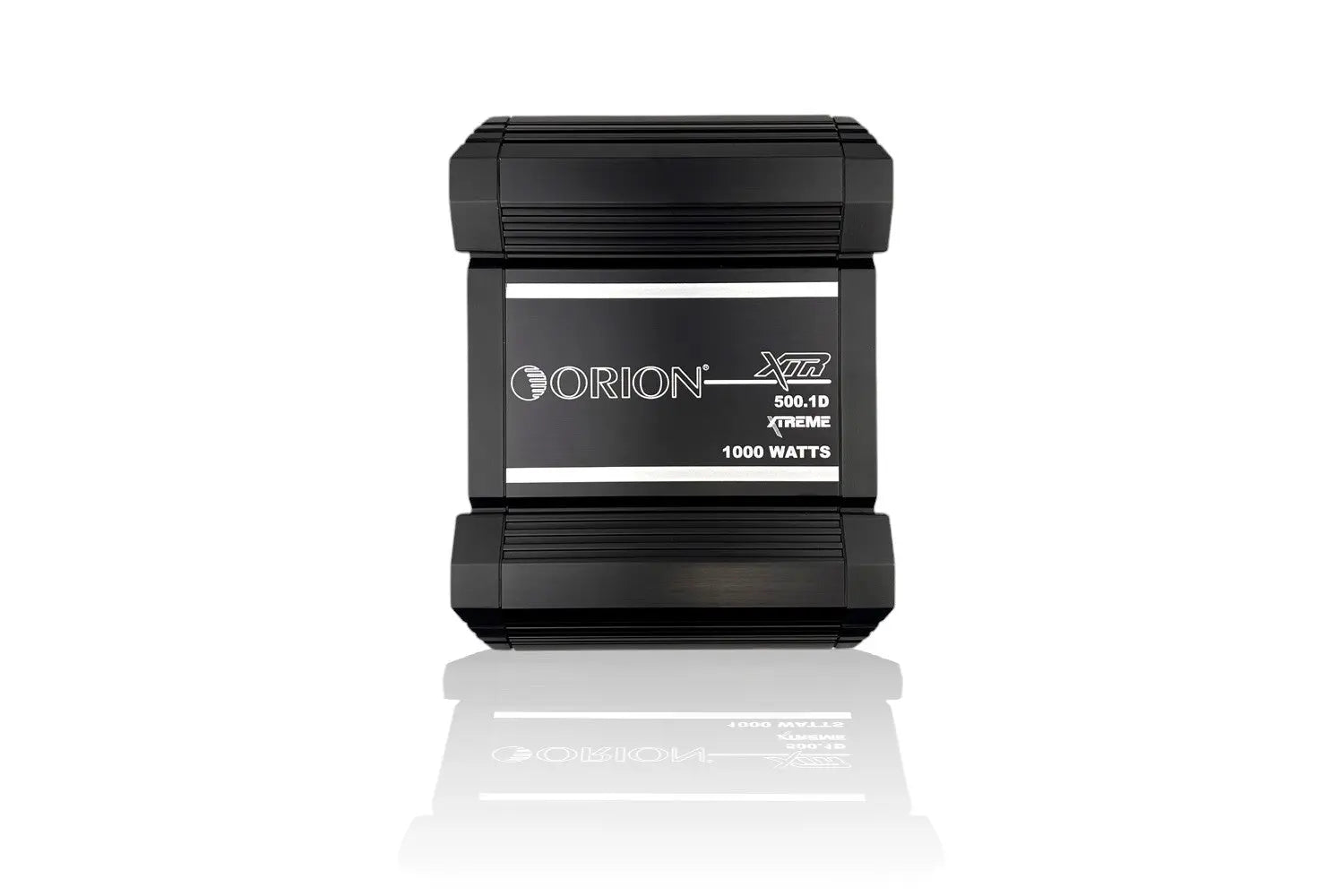

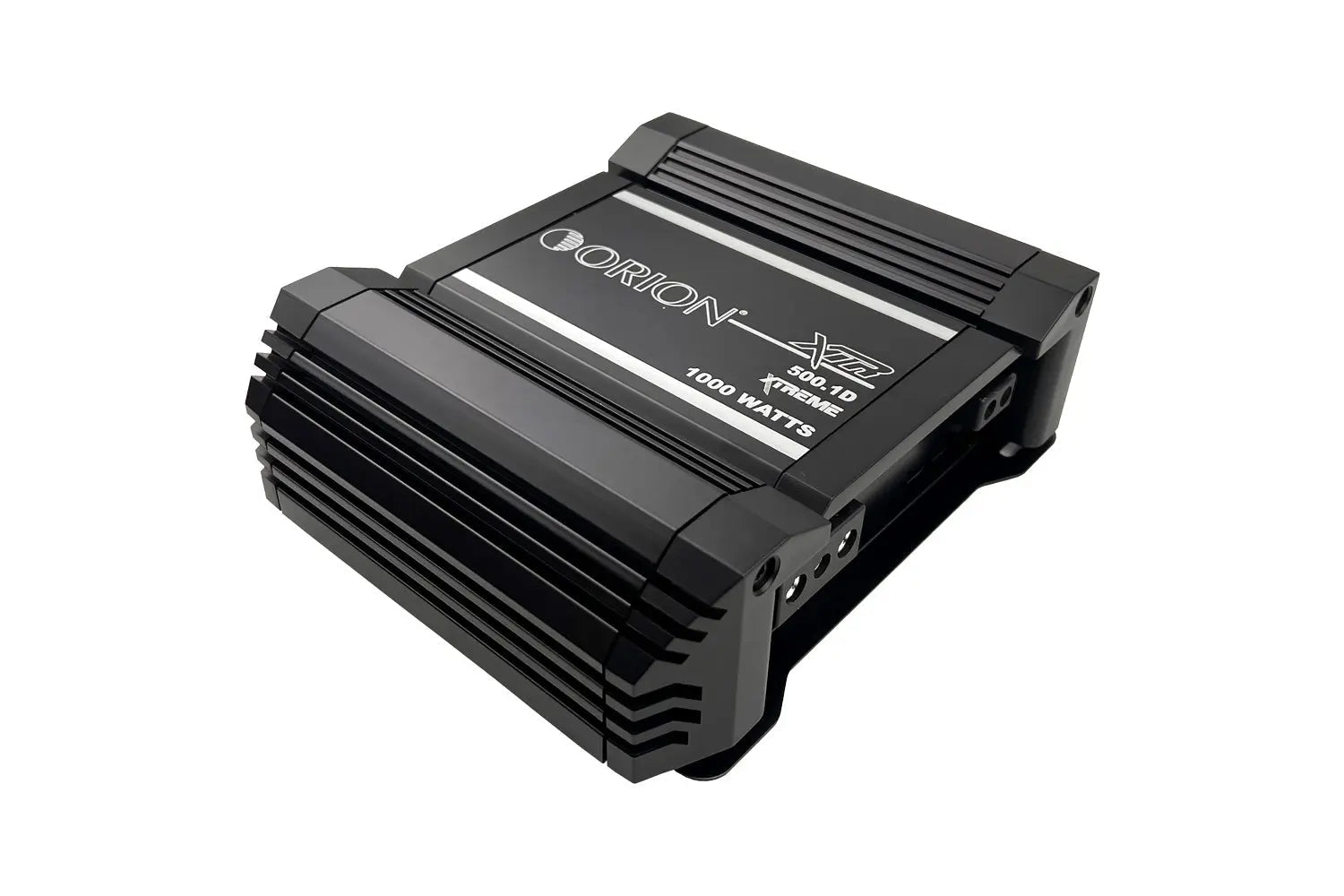

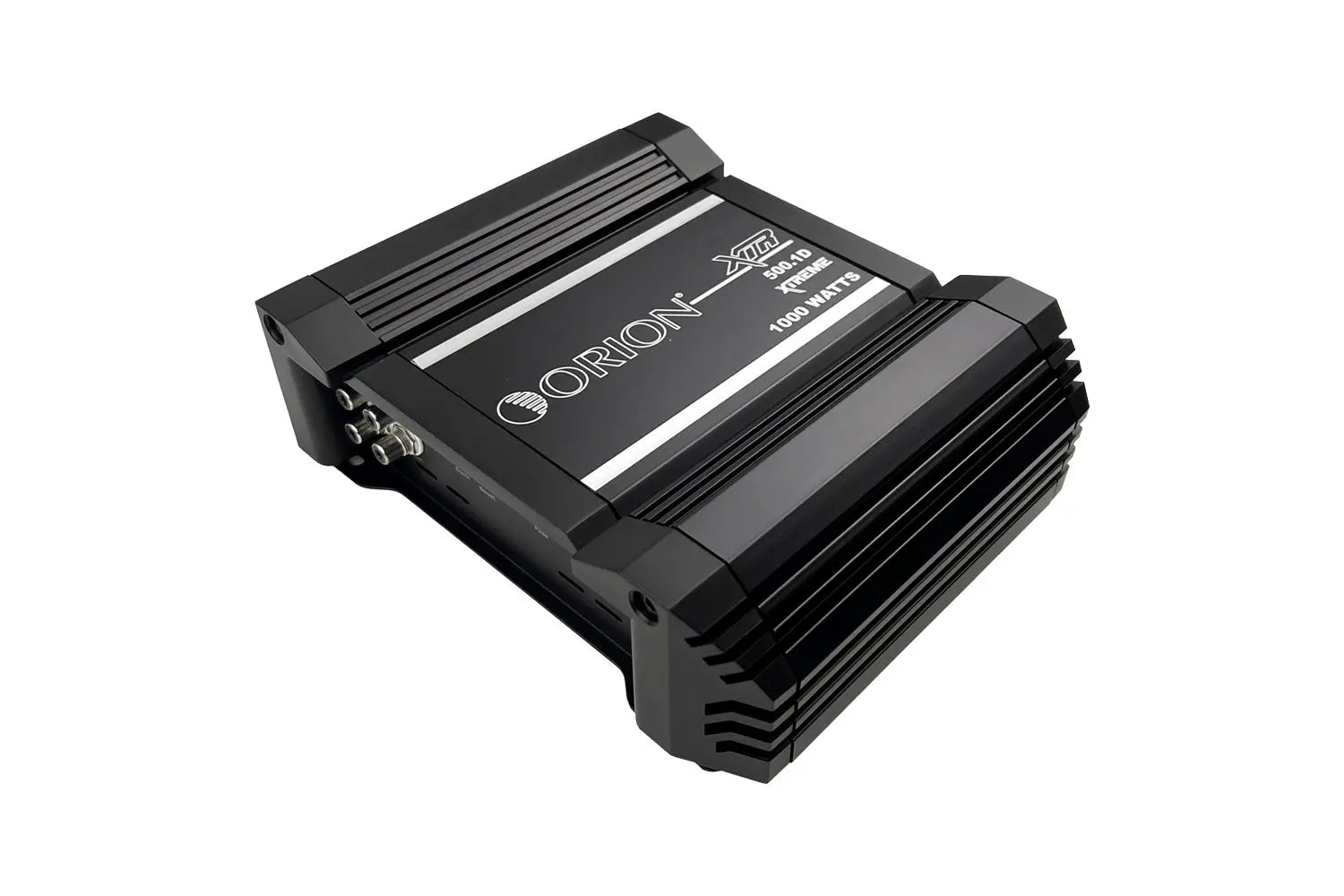

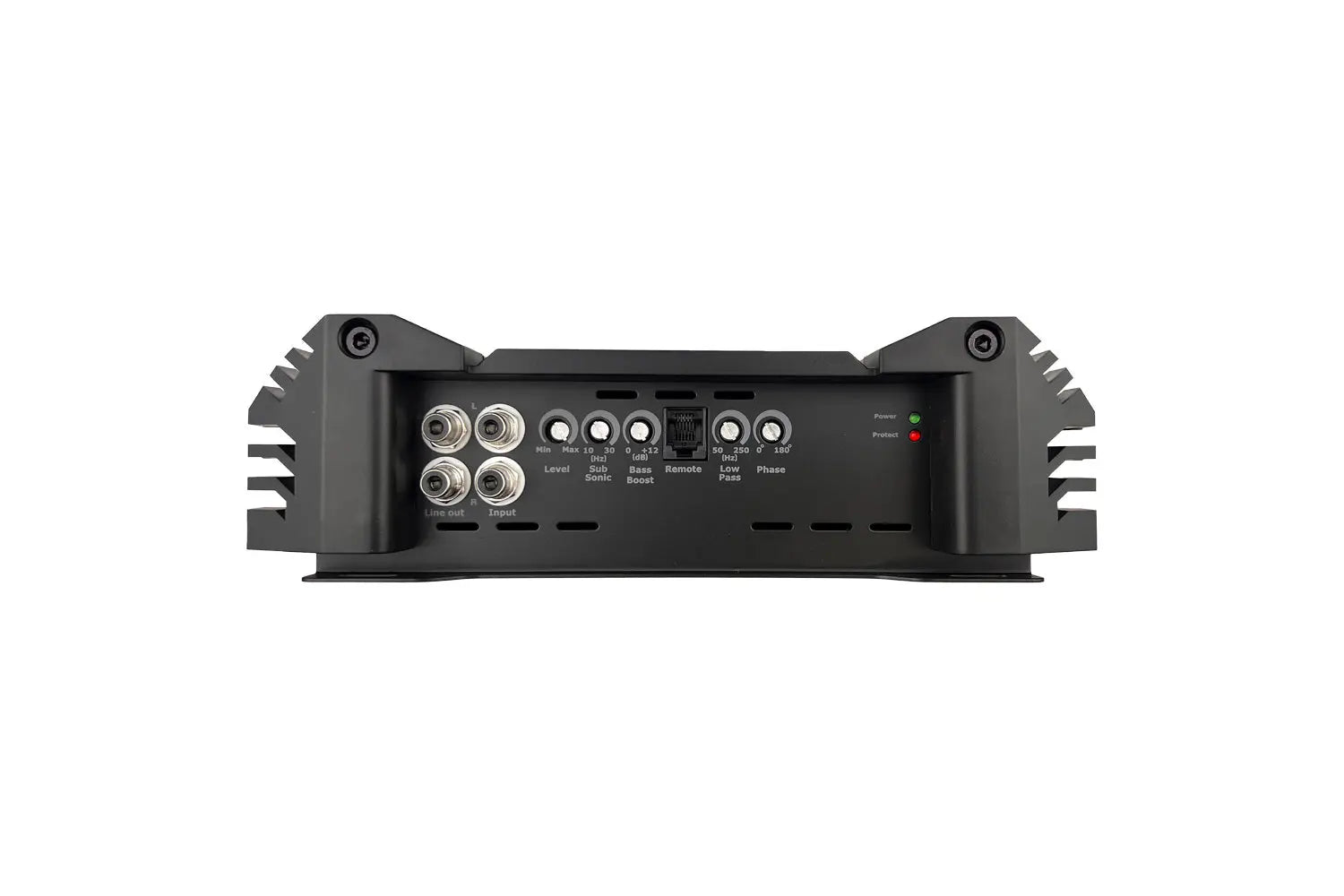

XTR500.1D - 500 Watt RMS Class D Monoblock Orion XTR Amplifier

Key Features

• Class D Amplification - Efficiency Meets Precision: Experience the unmatched power of Class D amplification, delivering efficient, high-quality sound with minimal heat output. This advanced technology maximizes power while maintaining precise, distortion-free sound reproduction, so you get crystal-clear audio that's both powerful and refined.
• 500 Watts RMS - Commanding Power on Every Note: Feel the energy of 500 Watts RMS as this amplifier brings intense, room-filling sound to your vehicle. Designed to produce consistently powerful audio, it creates a dynamic listening experience that reveals every detail and bass drop, making every drive feel like a live concert.
• Precision Audio Control - Fine-Tune Every Frequency: Unlock a new level of sound control with an adjustable built-in crossover. This feature allows meticulous tuning of audio frequencies, enabling you to tailor the sound for optimal speaker performance. Shape the high, mid, and low tones to bring out the best in every beat, so your system always delivers an immersive, balanced sound.

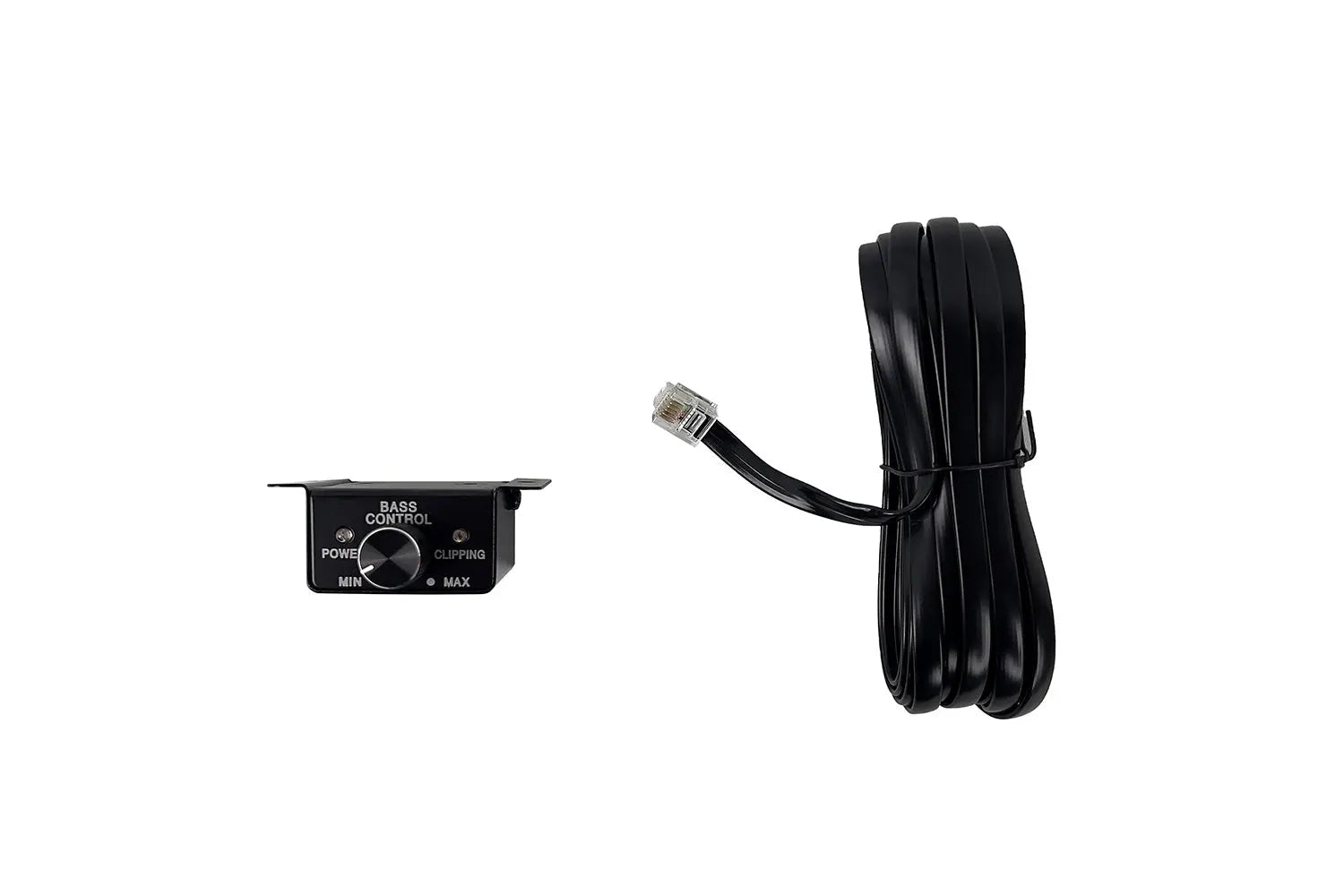

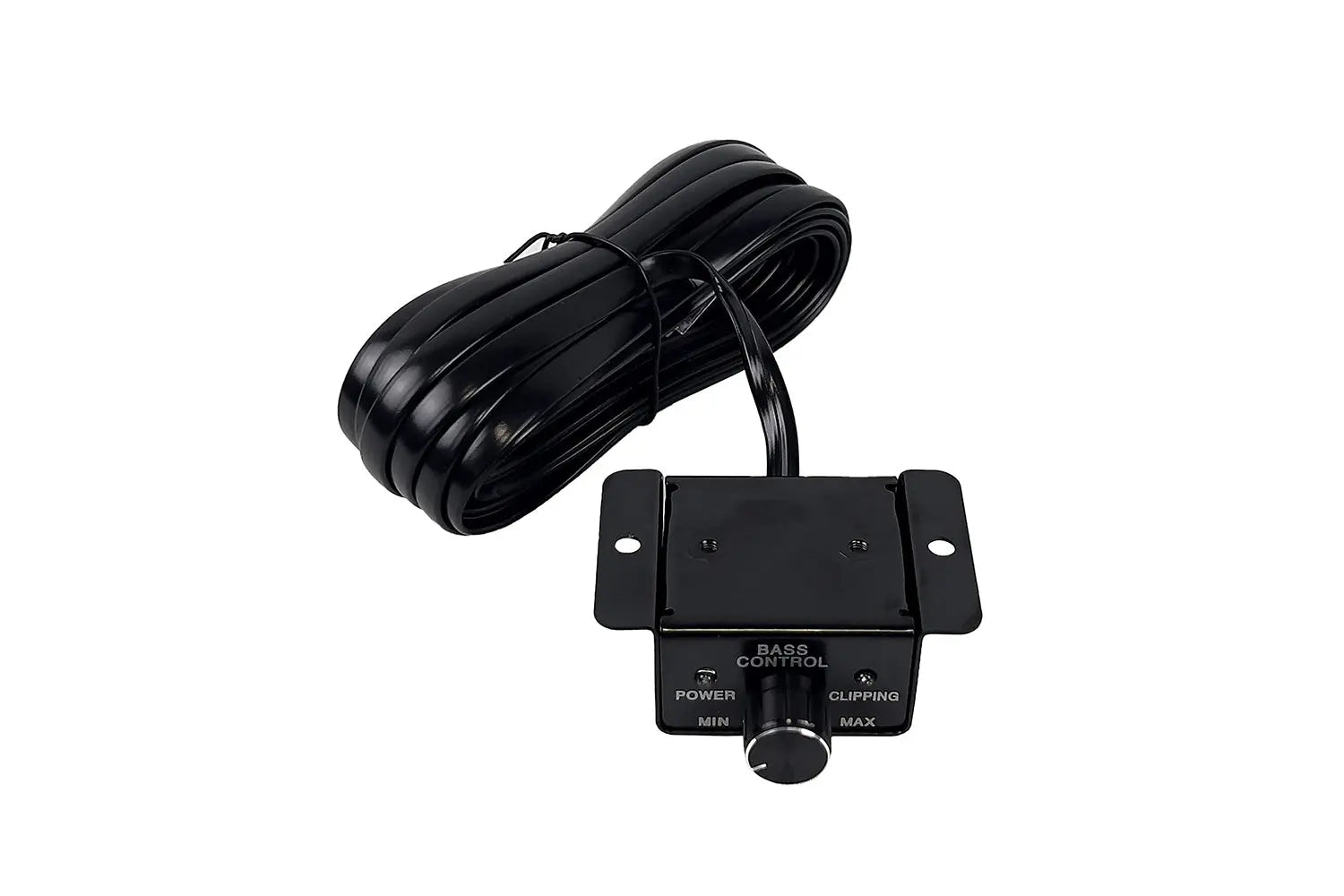

• Customized Bass Boost - Amplify Your Low End: Turn up the impact with an adjustable bass boost that brings depth and power to low frequencies. Whether you prefer subtle bass reinforcement or want to feel the full force of every note, this feature lets you customize bass intensity for a rich, resonant sound that makes an impression.
• Advanced Protection Measures - Built to Last: Drive your system hard with the confidence that advanced protection circuitry has you covered. Designed to protect against overheating and electrical shorts, these safety features extend the life of your amplifier, allowing you to enjoy high-performance audio without compromising on durability.
• Compact and Efficient Design - Big Sound, Small Space: Enjoy the flexibility of a compact design that fits seamlessly into tight spaces without sacrificing sound quality. This sleek, space-saving amplifier integrates easily into any setup, delivering powerful sound in a form that's easy to install and blend into your vehicle.
• Engineered for Excellence - Crafted with Precision and Power Efficiency: With meticulous engineering, this amplifier combines optimal audio performance, energy efficiency, and reliable operation. Built with durability and precision in mind, it's designed to elevate your sound experience and withstand the demands of high-power playback, ensuring consistent, outstanding audio performance every time.
• -All MOSFET Power Supply & Output Stage
• -Heavy Gauge / High Current Custom Power and Speaker -Terminals
• -2-Ohm Stable

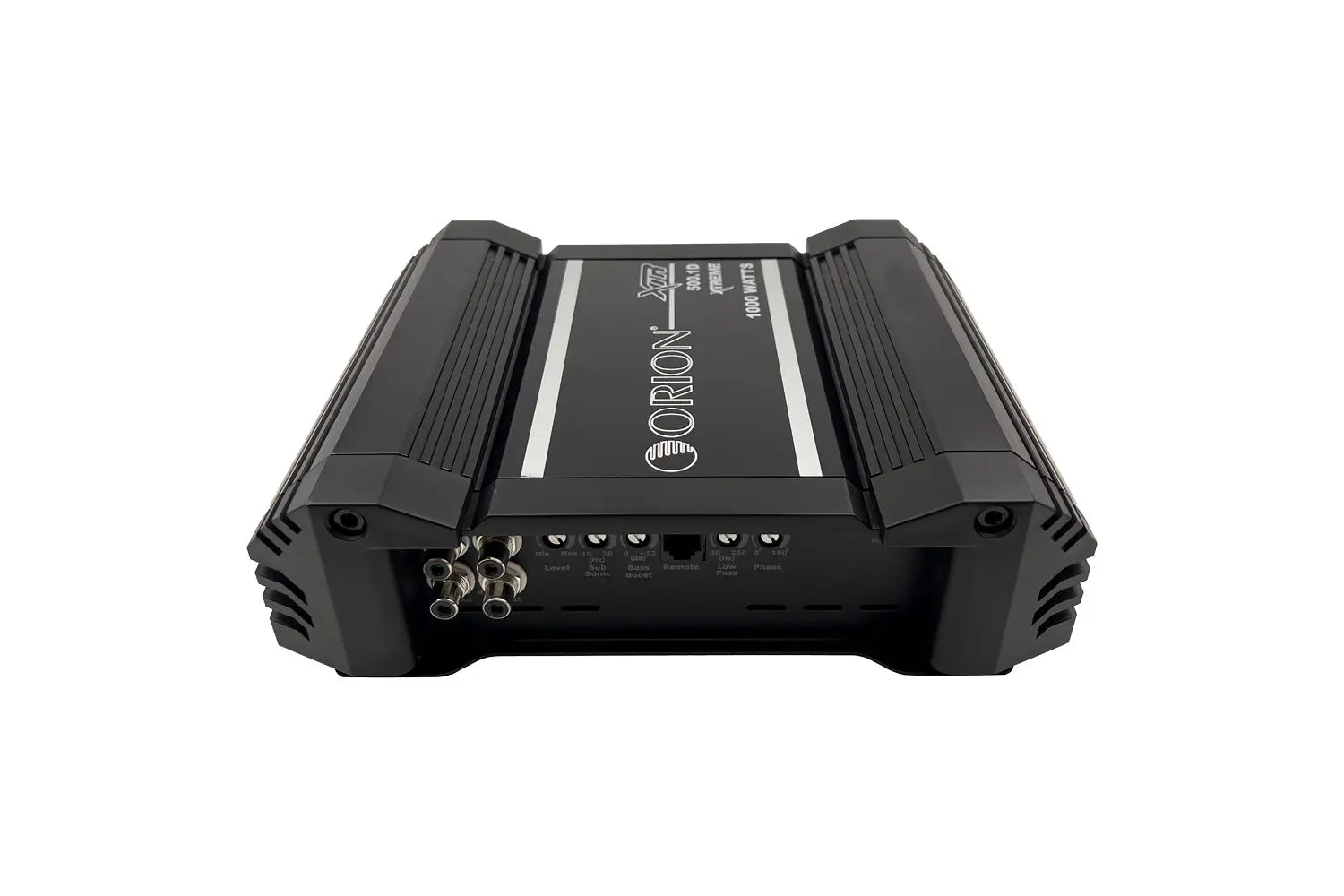

• -RCA Out Throughput
• -12dB Octave Low-Pass Filter
• -Electronic Crossover Network
• -Bass Boost Circuit
• -Intelligent Power and
• -Protection LED Indicator
• -Soft Turn-on/Turn-off
• -Turn-On Delay
• -Fault and Protection Monitoring
• -4-Way Protection - Thermal, DC offset, Short Protection, -under & over voltage

Power Rating

• Power Ratings:
• - RMS Power @ 4 Ohms @ 0.5% THD+N: 125W
• - RMS Power @ 2 Ohms @ 0.5% THD+N: 250W
• - RMS Power @ 1 Ohm @ 0.5% THD+N: 500W

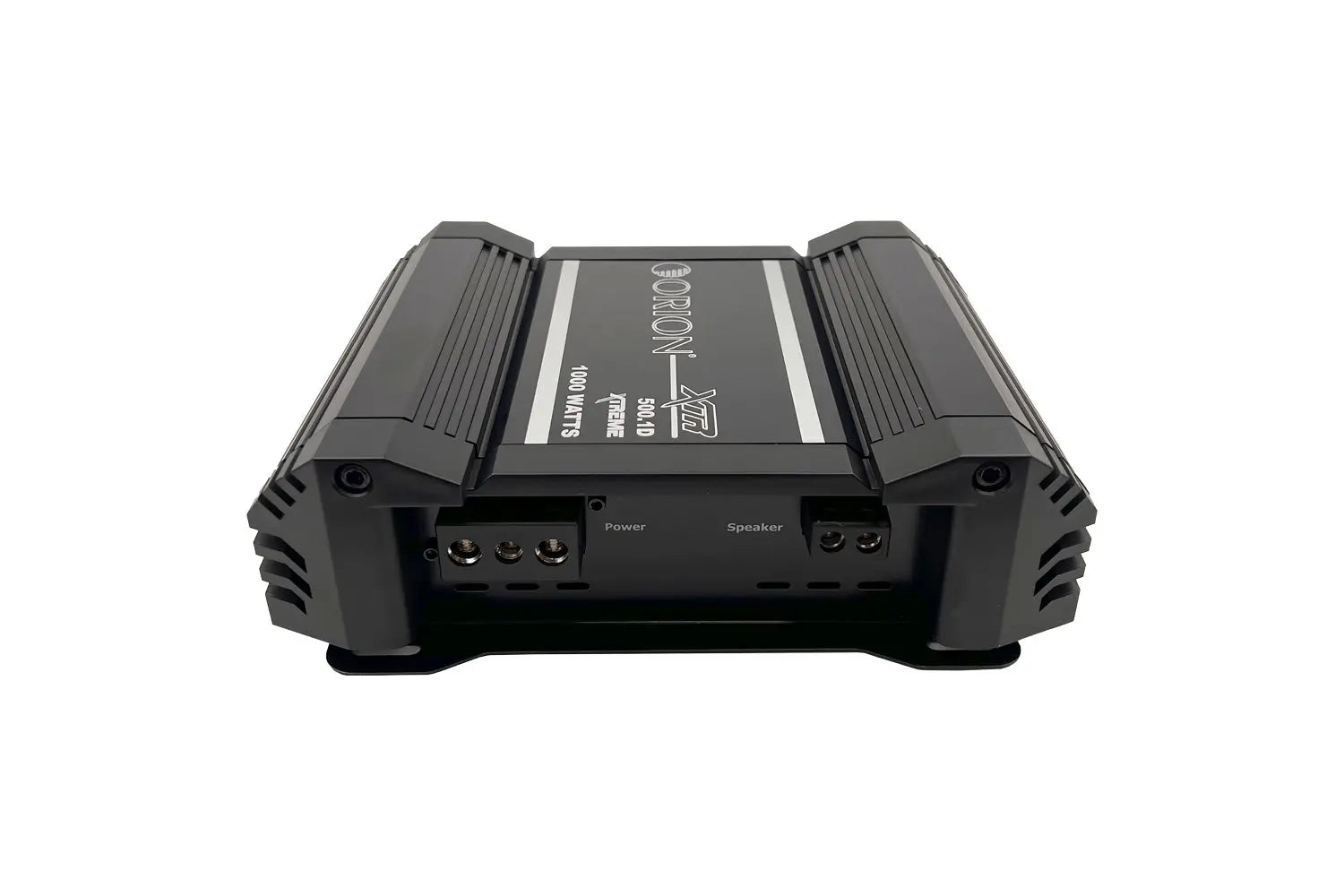

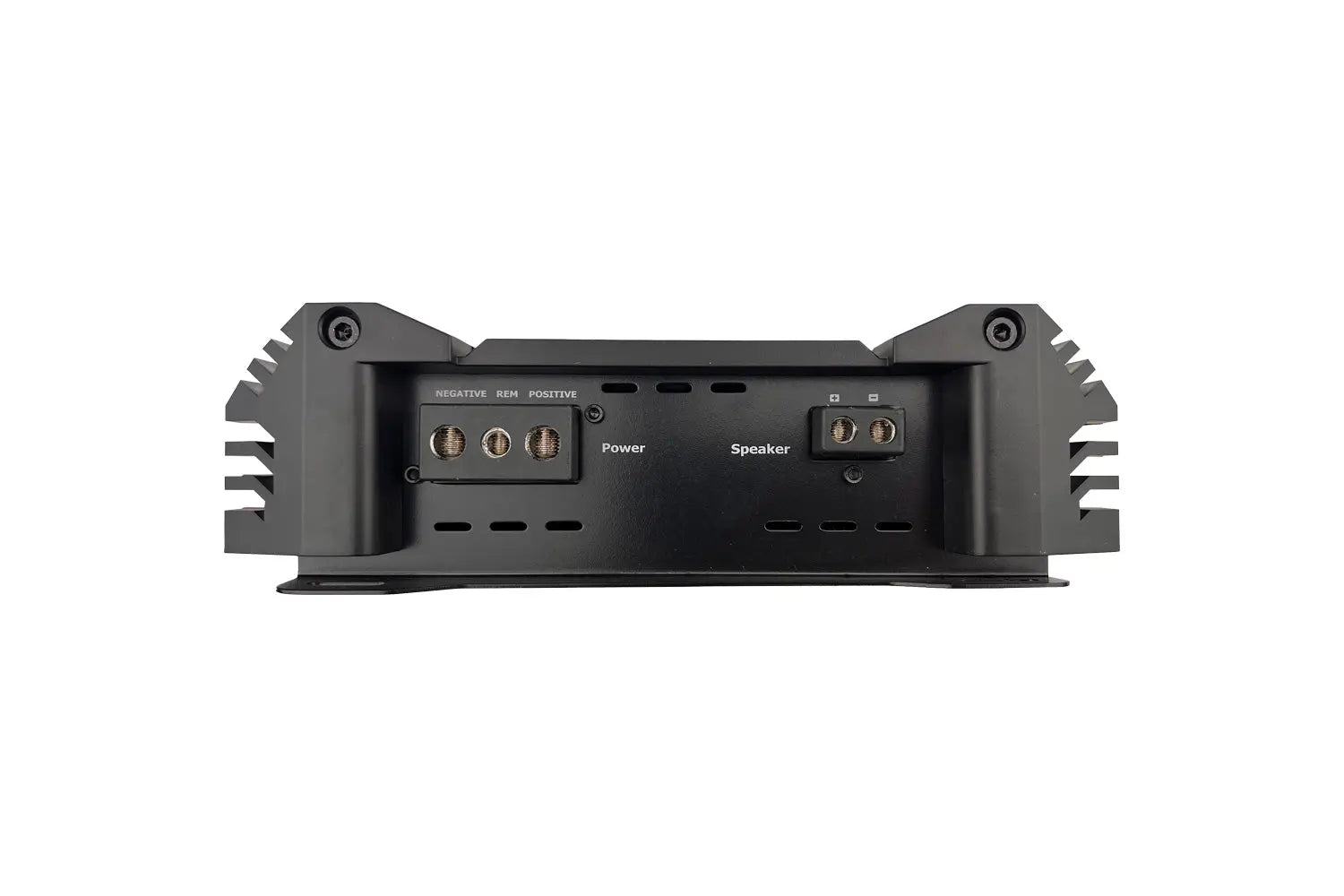

• POWER TERMINAL MANAGEMENT:
• Positive Terminals: 1 x 4 AWG.
• Negative Terminals: 1 x 4 AWG.
• Remote Turn-ON Signal: 12 AWG.
• Speaker Output Terminals: 12 AWG.

Specifications

• Frequency Response: 15Hz - 250Hz
• Linear Bandwidth 15Hz to 250Hz +/- 3 dB
• Low Pass Crossover: 30Hz - 300Hz
• Supply Voltage: 9 - 16V
• Amplifier Efficiency: >80%
• Damping Factor: 200dB
• Signal to Noise Ratio: >90dB
• T.H.D. & Noise: 0.5%
• Phase Shift: 0 - 180
• Bass Boost: 0-18dB Variable
• Subsonic Filter: 10 - 25Hz
• Variable Input Level Control: 0.2V - 6.0V
• Fuses: **A recommended (x **A ATC Fuses)
• Dimensions (L x W x H): 7.1" x 9.25" x 2.75" (180x235x70mm)
