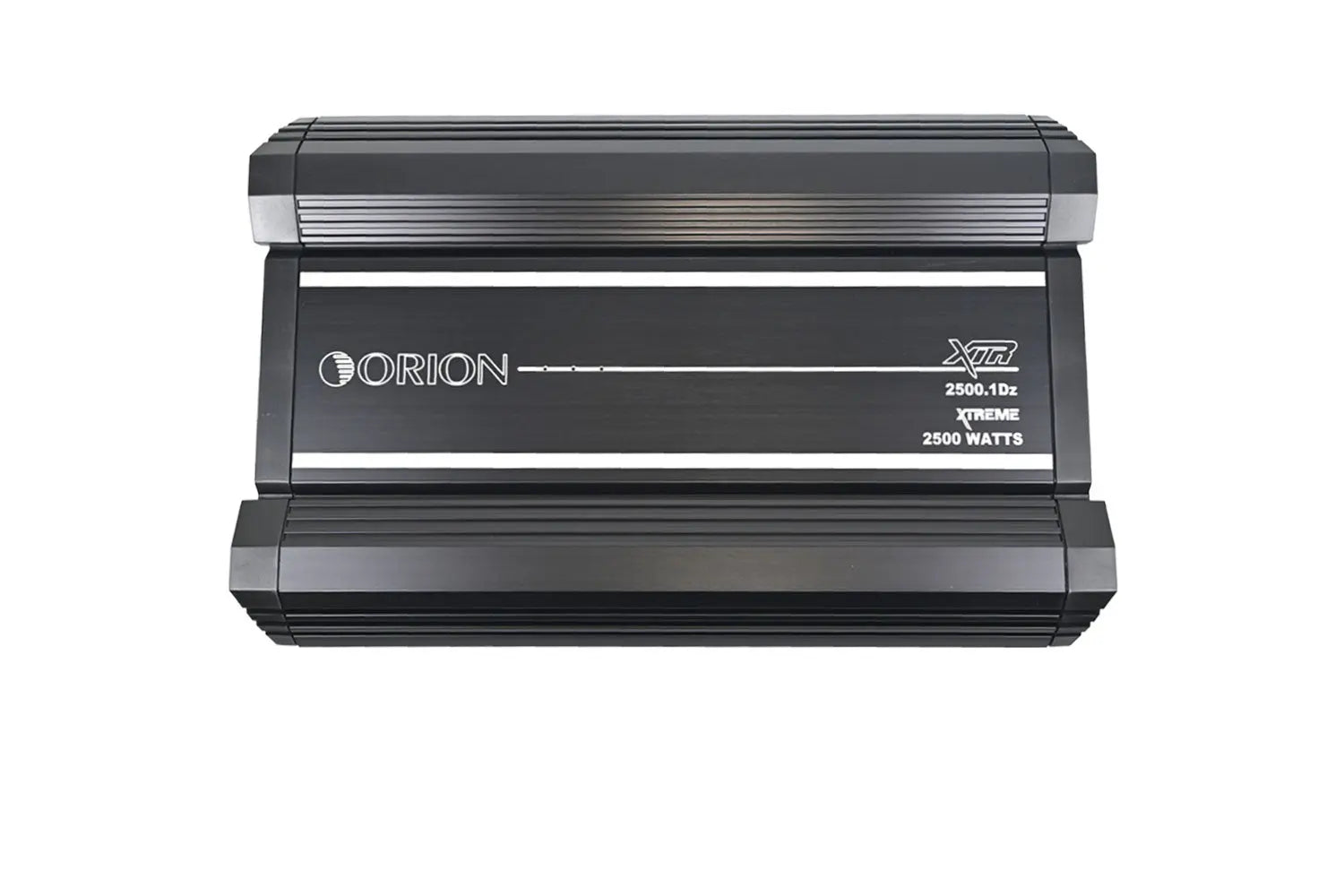

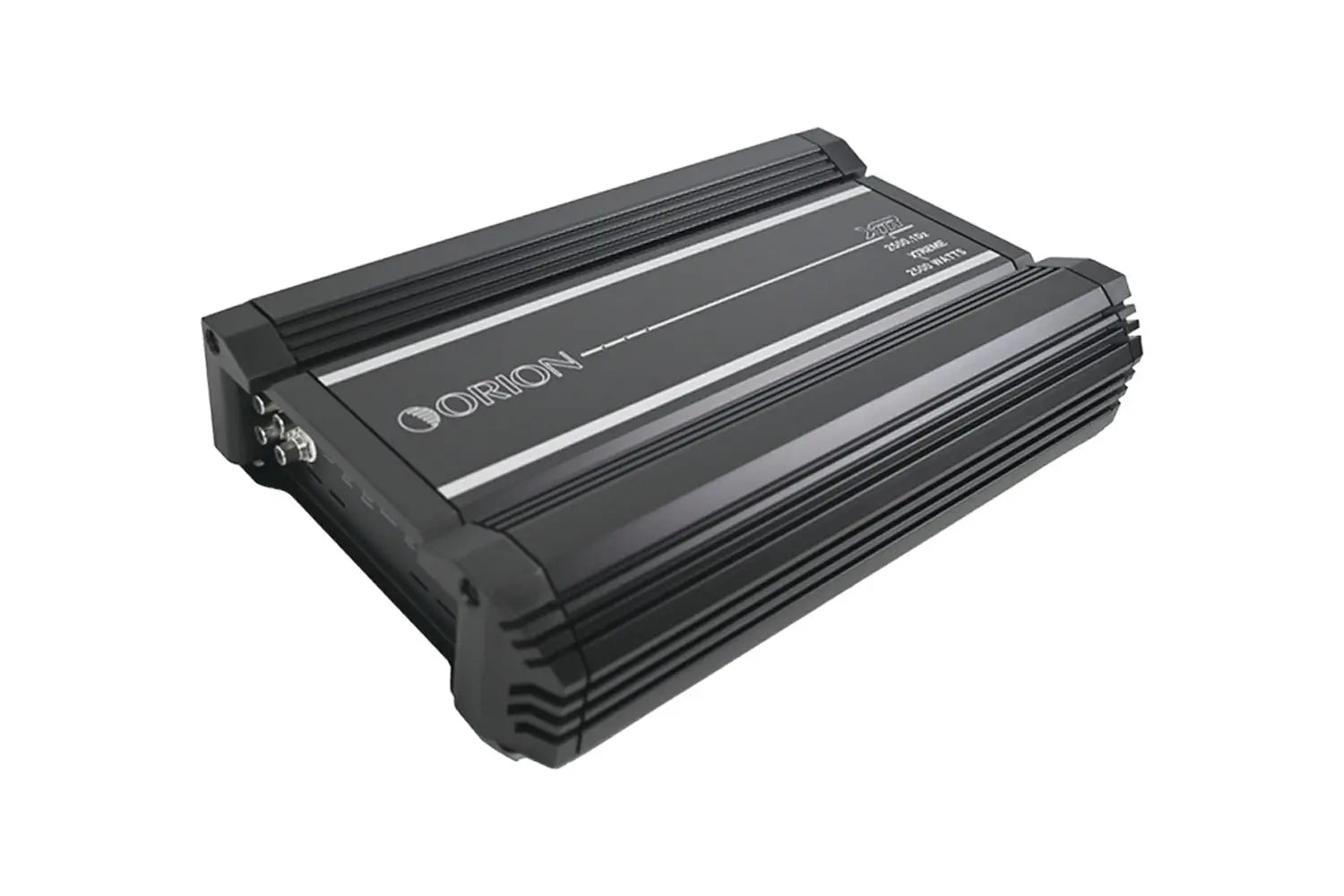

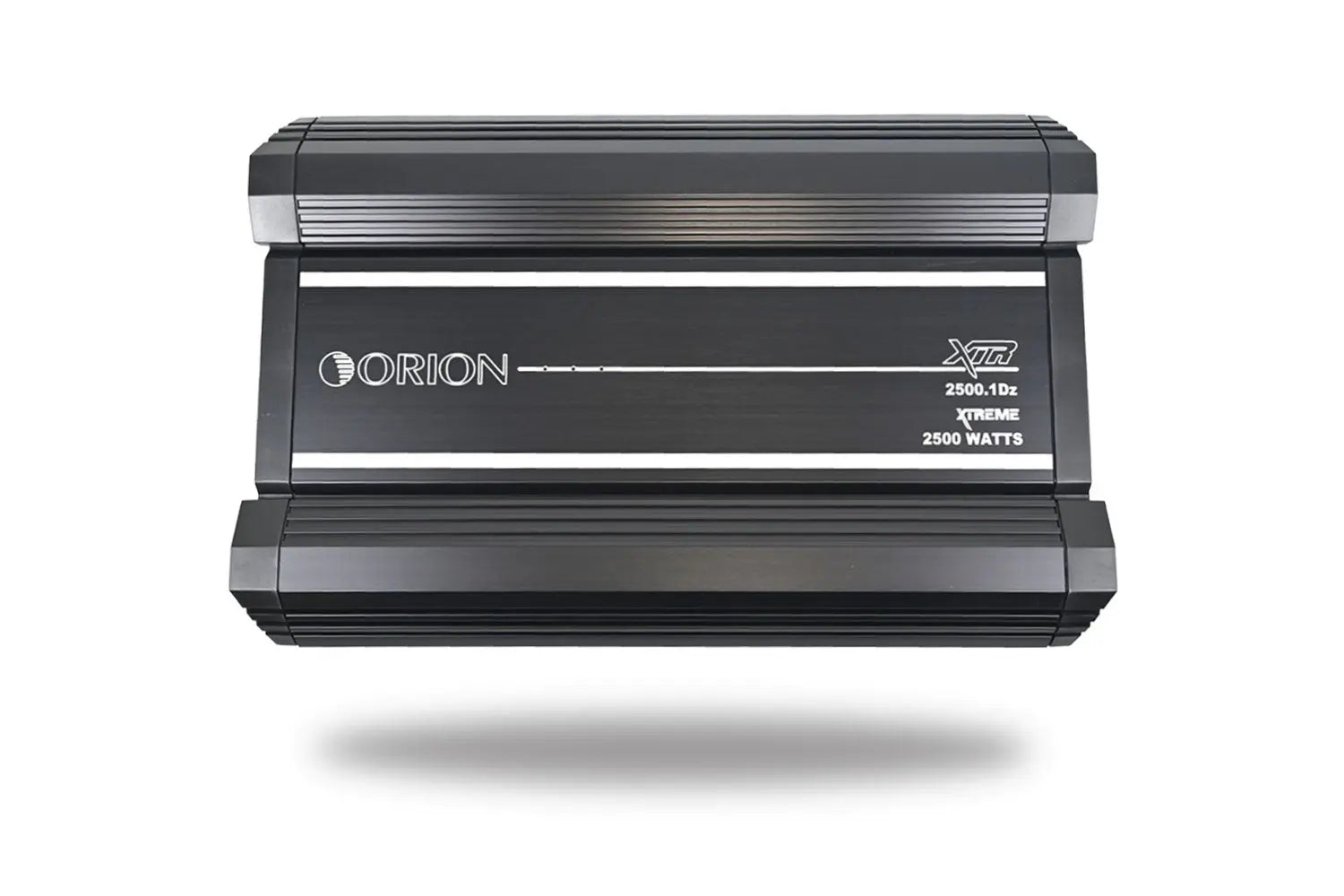

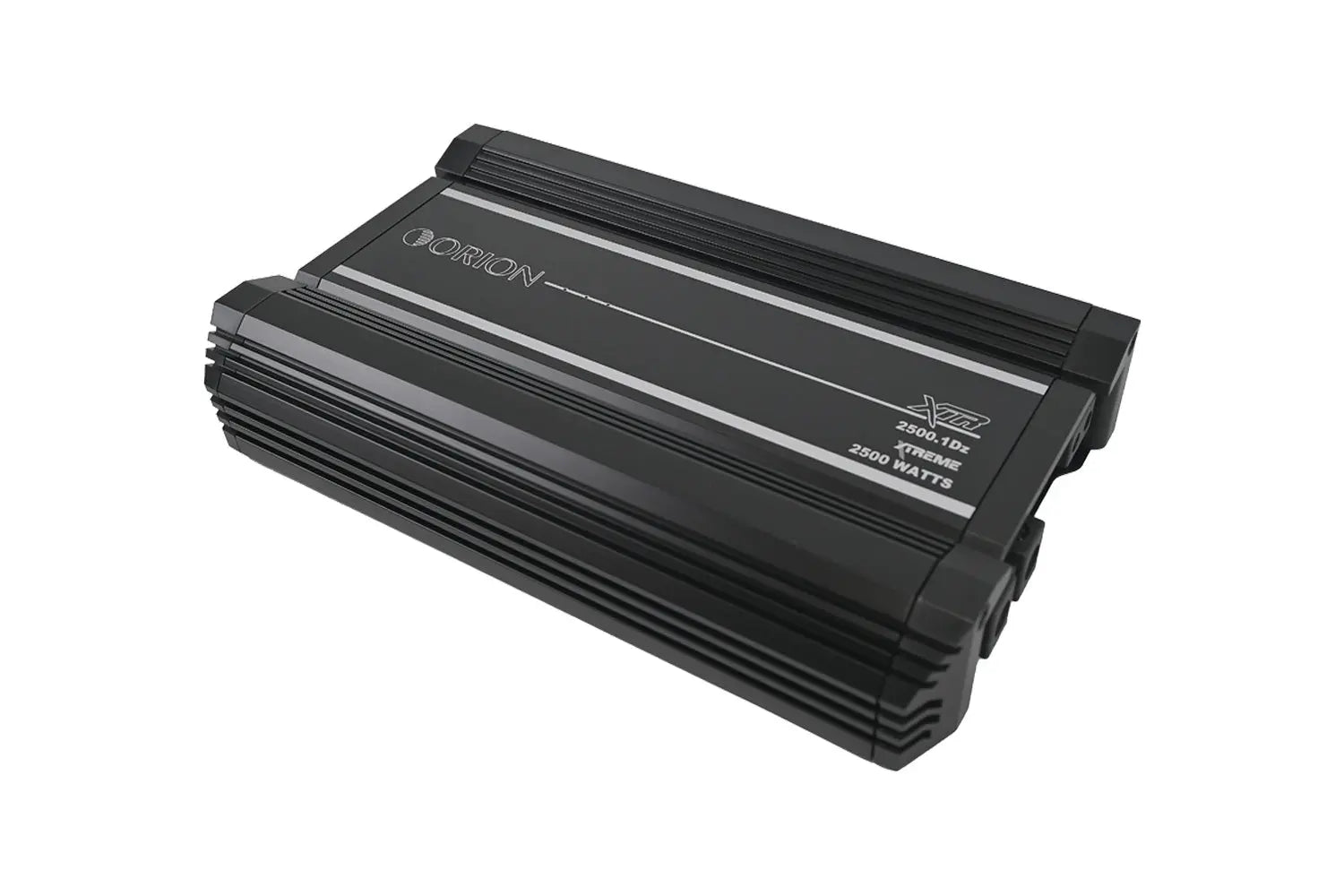

XTR2500.1Dz - 2500 Watt RMS Class D Monoblock Orion XTR Amplifier

XTR2500.1Dz XTR Series 2500W RMS 1-Channel Class-D Amplifier

Unleash Auditory Excellence: The ORION XTR2500.1Dz XTR Series 2500W RMS 1-Channel Class-D Amplifier raises the bar for audio performance. With advanced features and precision engineering, this amplifier transcends boundaries, delivering an unparalleled fusion of power, accuracy, and control to your car audio system.

Immersive Sound Reproduction: Rediscover your music in its fullest detail. Every note, beat, and melody - from the gentlest to the most dynamic - is meticulously reproduced for an immersive and authentic listening experience.

Unmatched Power and Precision: Experience your music with unprecedented force and precision. The ORION XTR2500.1Dz XTR Series Amplifier seamlessly blends commanding power with exceptional audio quality, creating an auditory masterpiece that resonates deeply.

Elevate Your Drive: Enter the realm of sonic magnificence with the ORION XTR2500.1Dz XTR Series 2500W RMS 1-Channel Class-D Amplifier. Elevate your audio journey, redefine your driving soundtrack, and immerse yourself in an elevated level of musical sophistication. It's time to embrace sound in its purest form.

Key Features

• Class D Amplification: Harness the efficiency and precision of Class D amplification for powerful and accurate sound reproduction.
• 2500 Watts RMS: Immerse yourself in a world of sonic supremacy with 2500 Watts RMS, delivering unmatched audio performance.

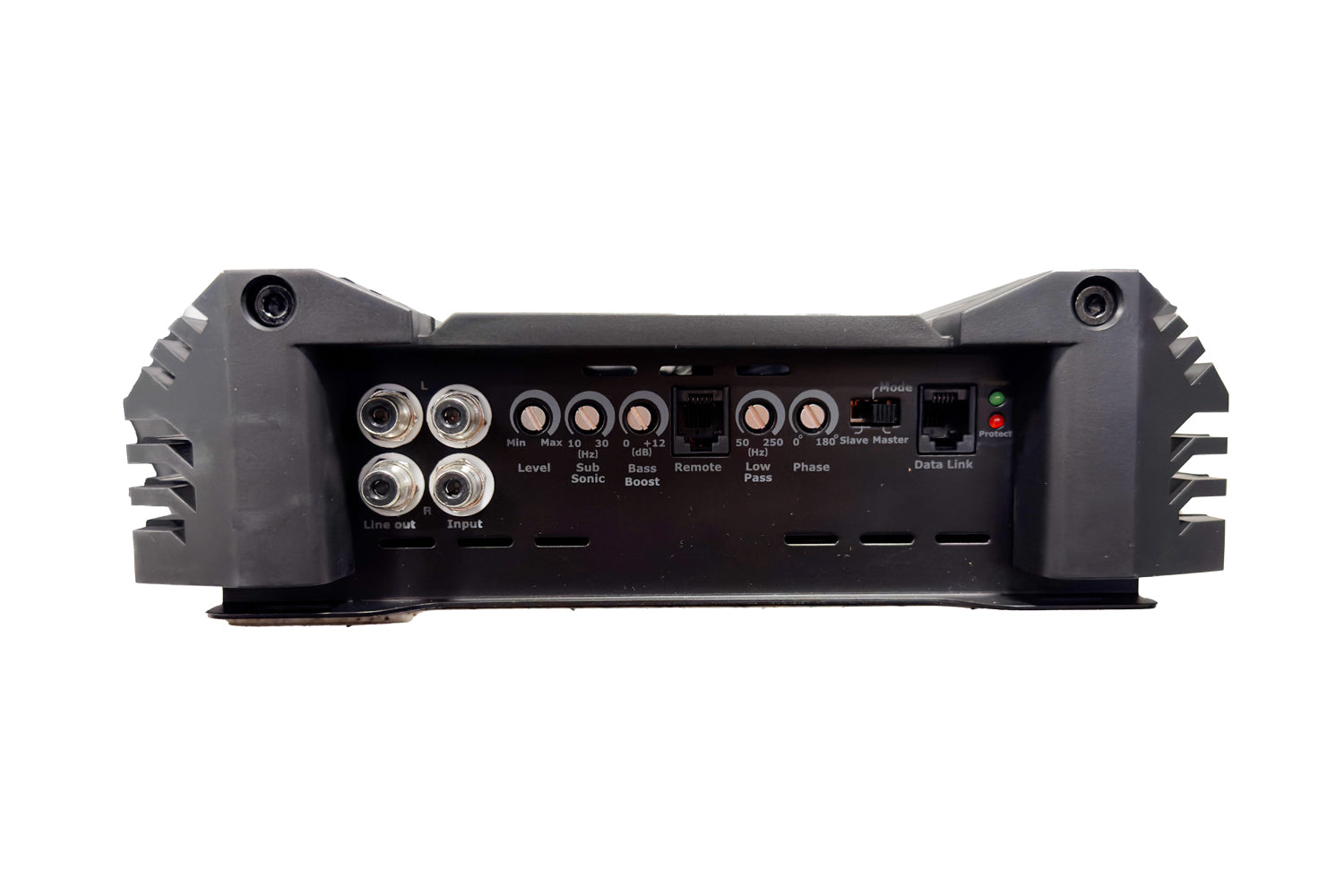

• Precision Audio Control: The adjustable built-in crossover allows meticulous calibration of audio frequencies, optimizing speaker performance.

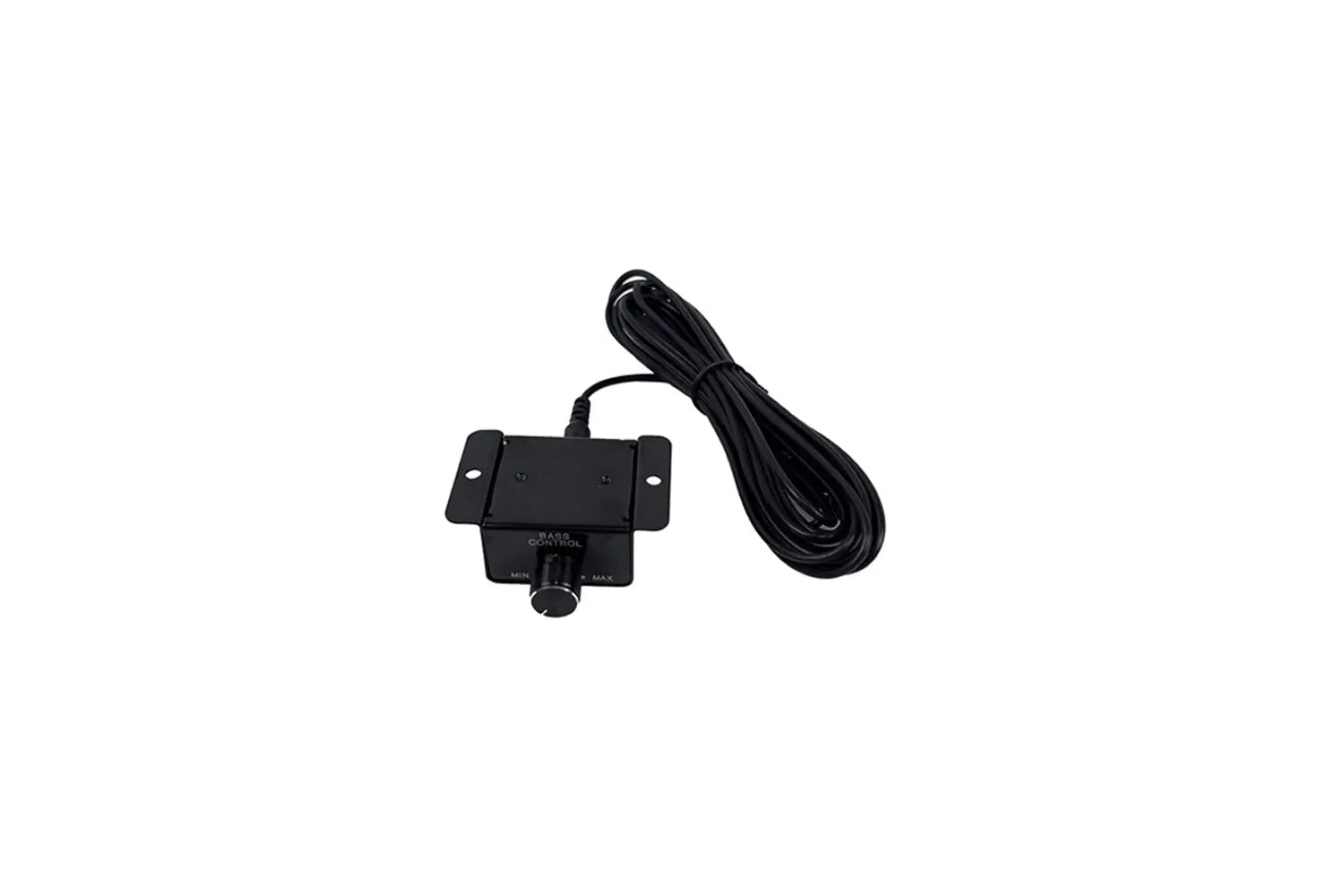

• Customized Bass Enhancement: Elevate your low frequencies with the adjustable bass boost feature, delivering impactful and resonant bass notes.
• Advanced Protection Measures: Equipped with protection circuitry, the amplifier safeguards against overheating and short circuits, ensuring durability.
• Compact and Stylish Design: The adjustable built-in crossover allows meticulous calibration of audio frequencies, optimizing speaker performance.
• Engineered Excellence: Meticulously engineered for optimal audio precision, power efficiency, and steadfast operation.
• -All MOSFET Power Supply & Output Stage
• -Heavy Gauge / High Current Custom Power and Speaker Terminals
• -2-Ohm Stable
• -RCA Out Throughput
• -12dB Octave Low-Pass Filter
• -Electronic Crossover Network
• -Bass Boost Circuit
• -Intelligent Power and
• -Protection LED Indicator
• -Soft Turn-on/Turn-off
• -Turn-On Delay
• -Fault and Protection Monitoring

Power Rating

• - RMS Power @ 4 Ohms @ 0.5% THD+N: 1250W
• - RMS Power @ 2 Ohms @ 0.5% THD+N: 1750W
• - RMS Power @ 1 Ohm @ 0.5% THD+N: 2500W
• - Linked with identical Amplifier
• RMS Power @ 2 Ohms @ 0.5% THD+N: 3000W

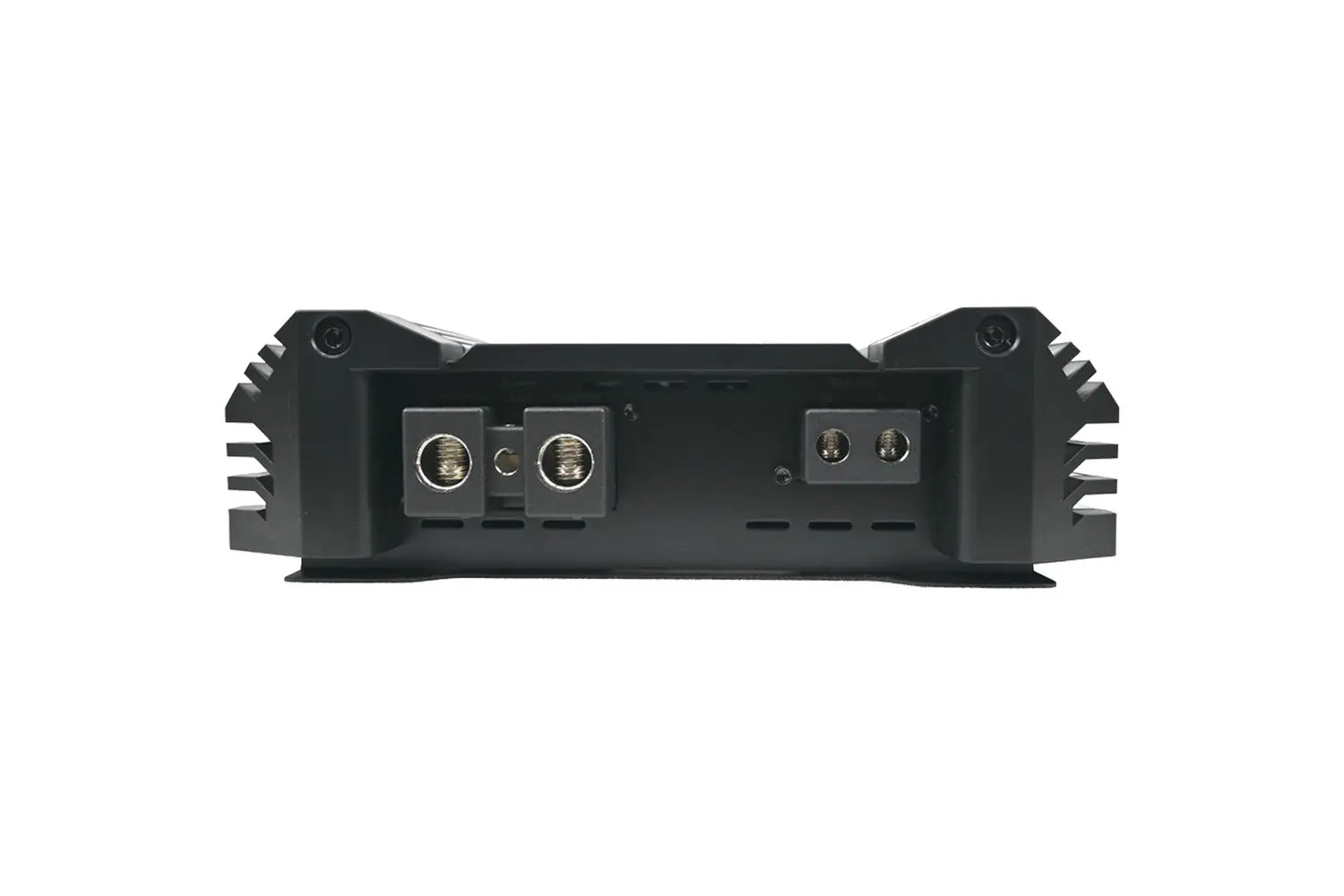

• POWER TERMINAL MANAGEMENT
• Positive Terminals: 1 x 0 AWG.
• Negative Terminals: 1 x 0 AWG.
• Remote Turn-ON Signal: 10 AWG.
• Speaker Output Terminals: 4 AWG.

Specifications

• Frequency Response: 20Hz - 250Hz
• Low Pass Crossover: 50Hz - 250Hz
• Supply Voltage: 9 - 16V
• Amplifier Efficiency: >88%
• Damping Factor: 200dB
• Signal to Noise Ratio: >90dB
• T.H.D. & Noise: 0.5%
• Phase Shift: 0 - 180
• Bass Boost: 0-18dB Variable
• Subsonic Filter: Off / 25Hz
• Variable Input Level Control: 0.2V - 6.0V
• Fuses: 250A recommended (not included)
• Dimensions (L x W x H): 14.17" x 9.25" x 2.75" (360x235x70mm)
