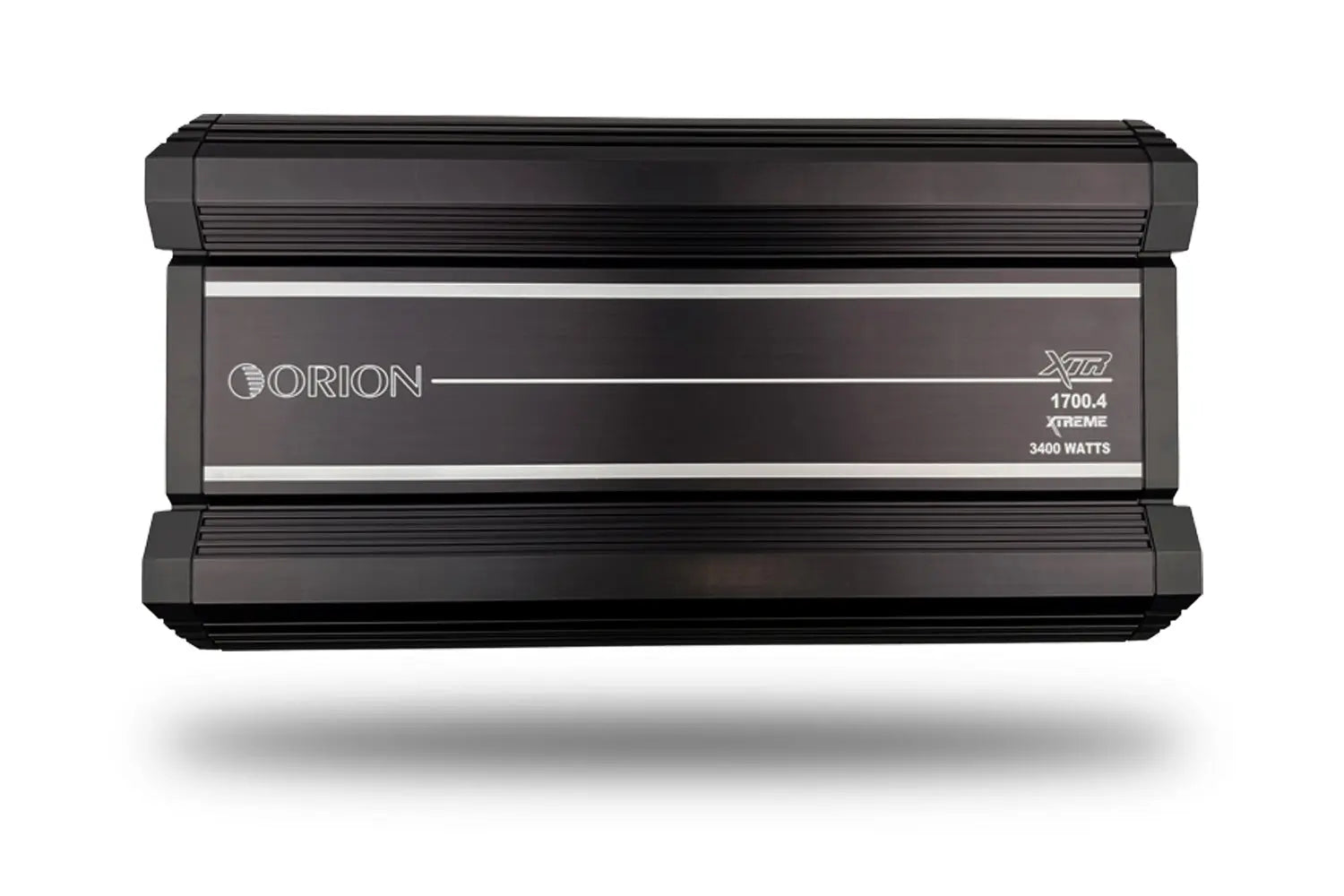

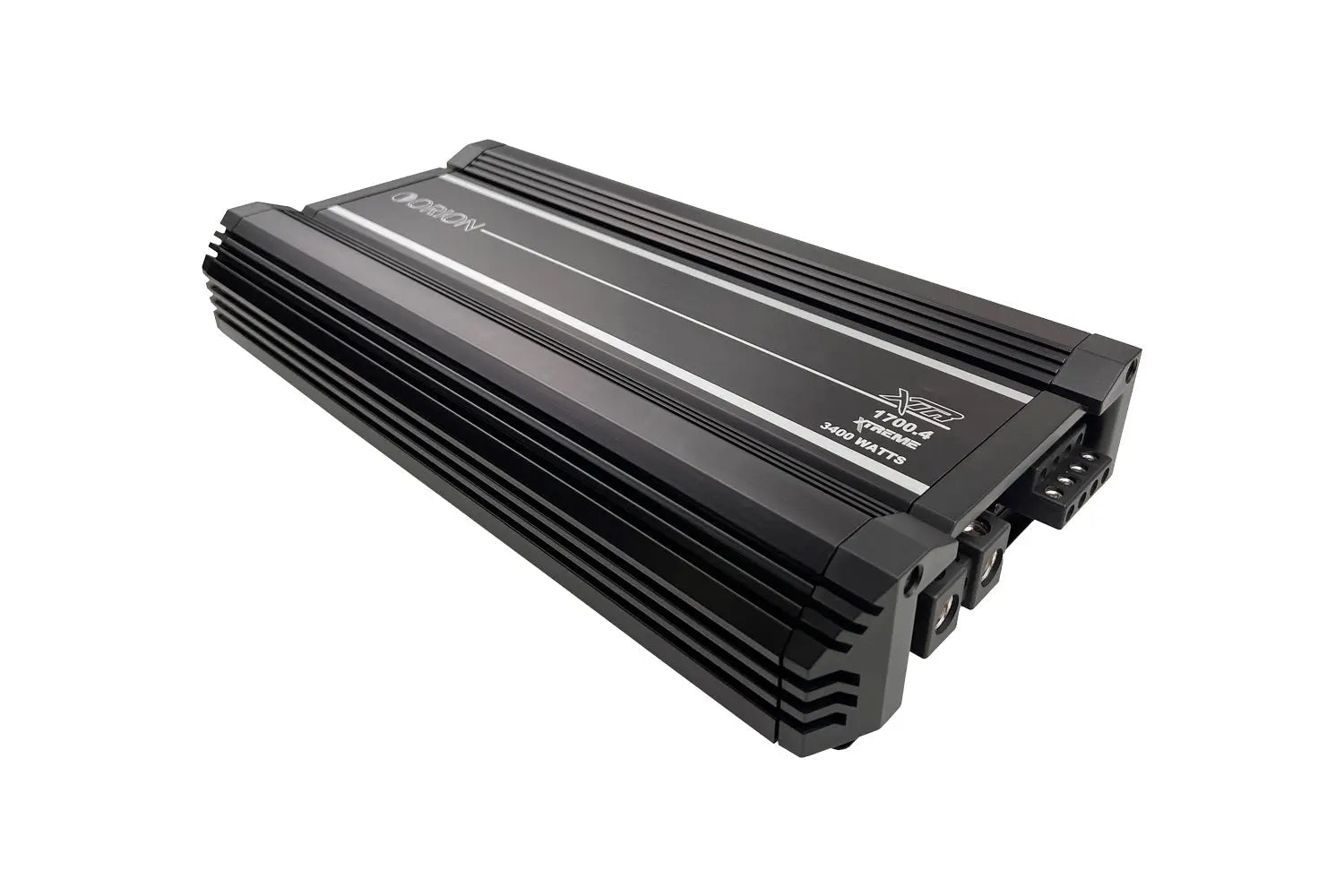

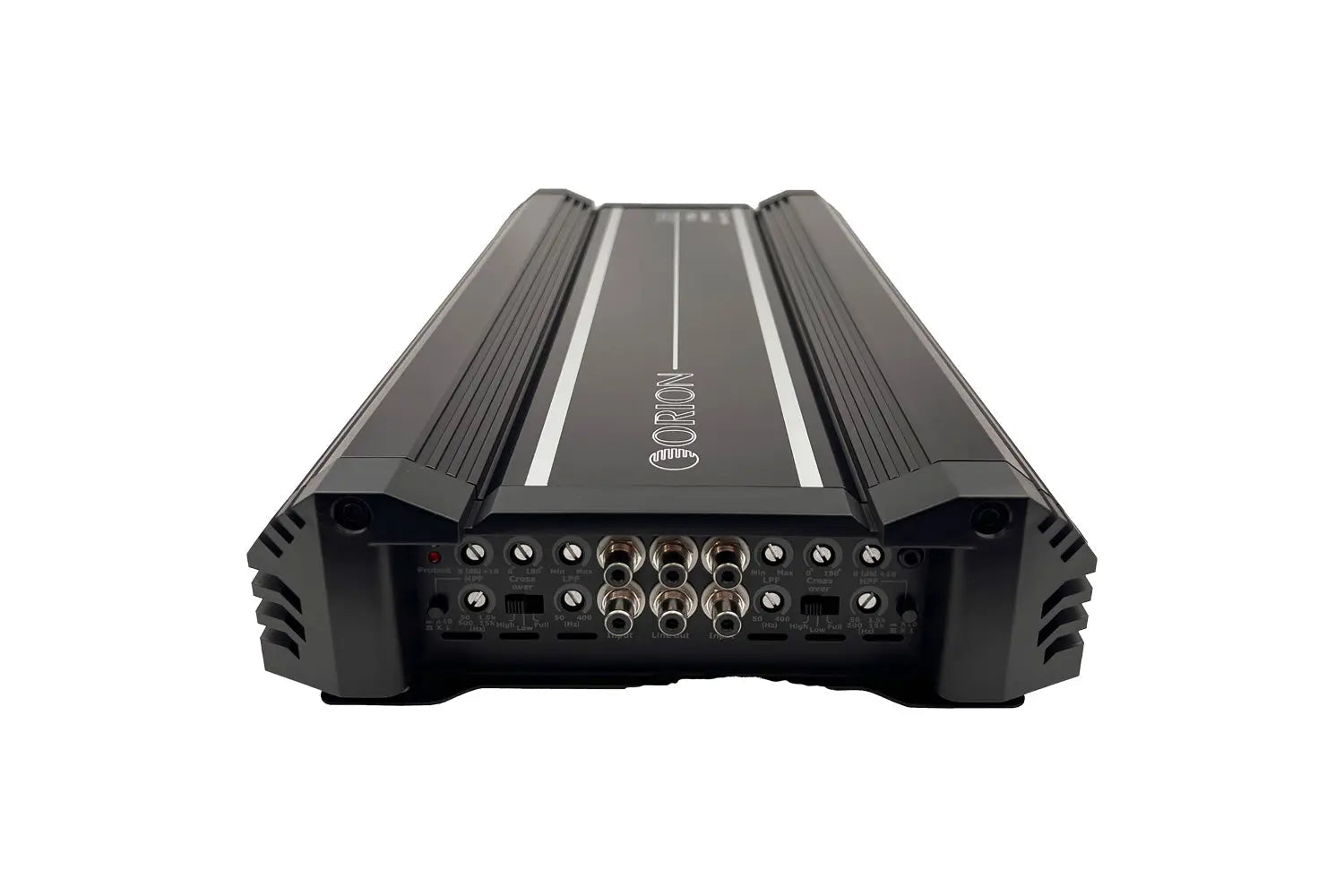

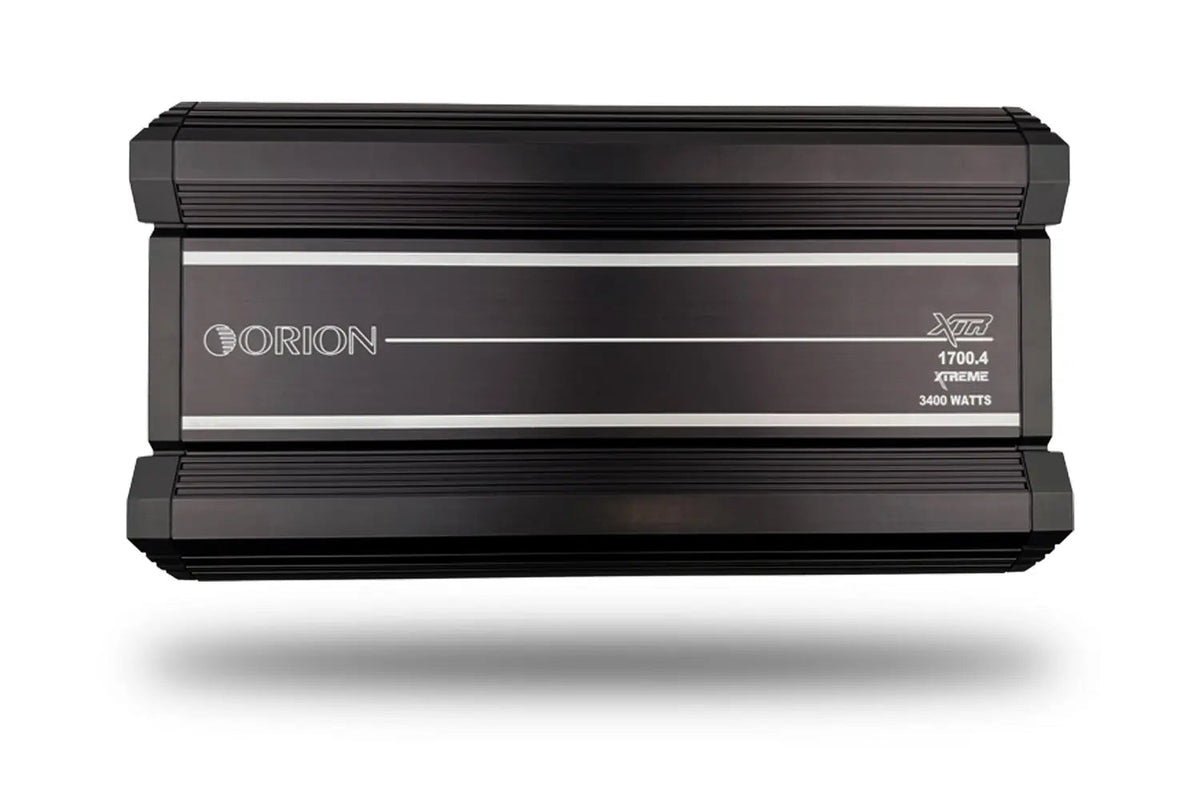

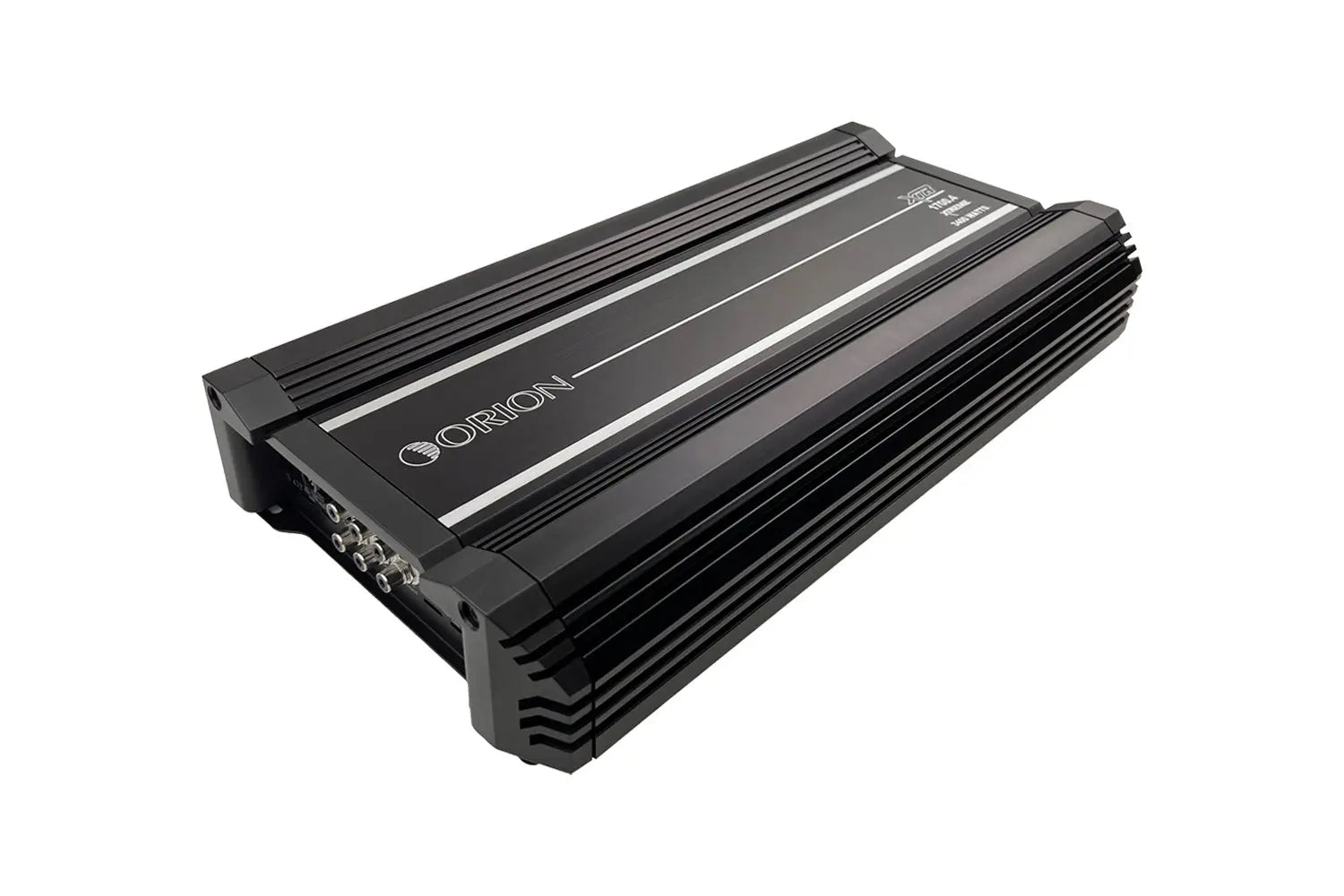

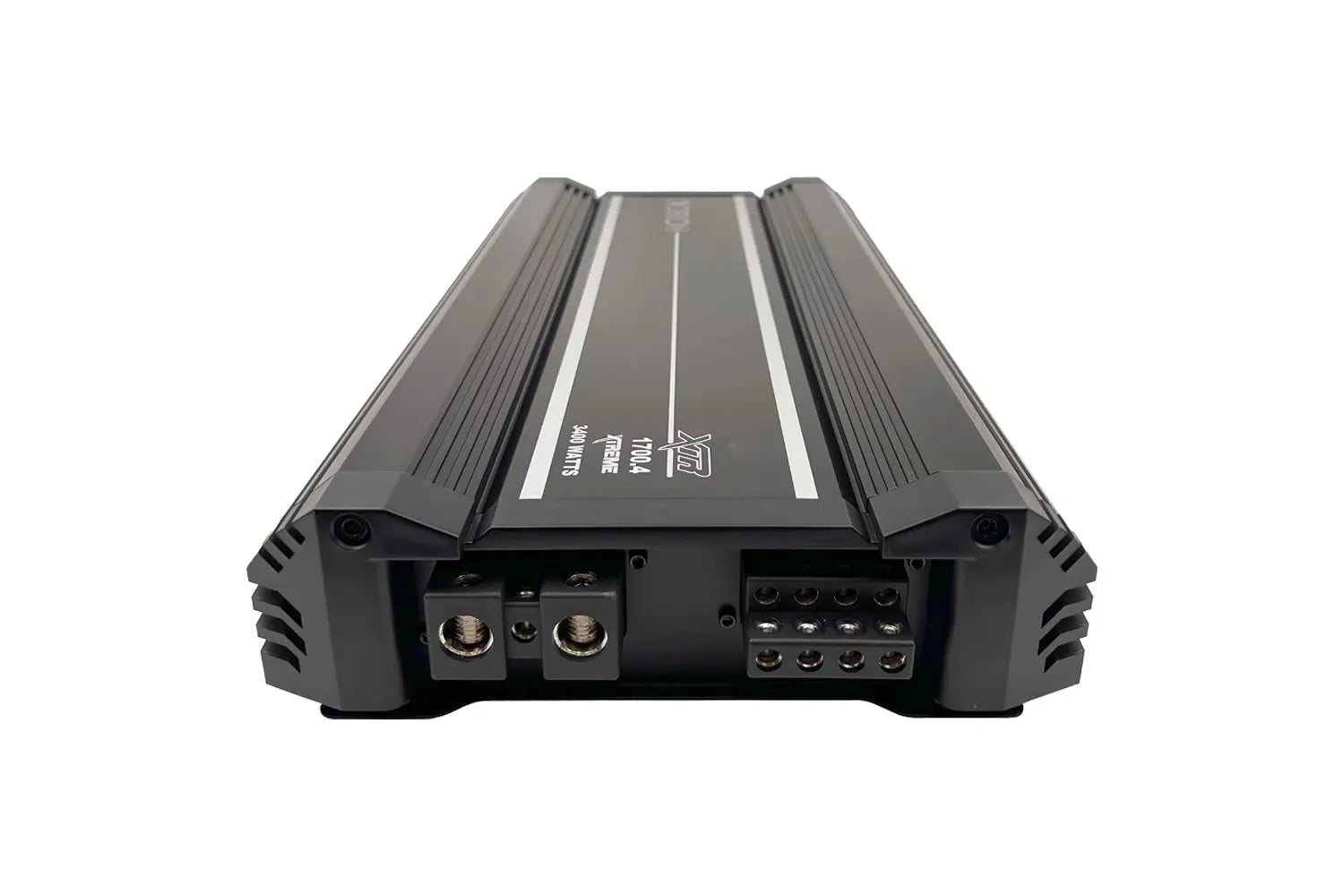

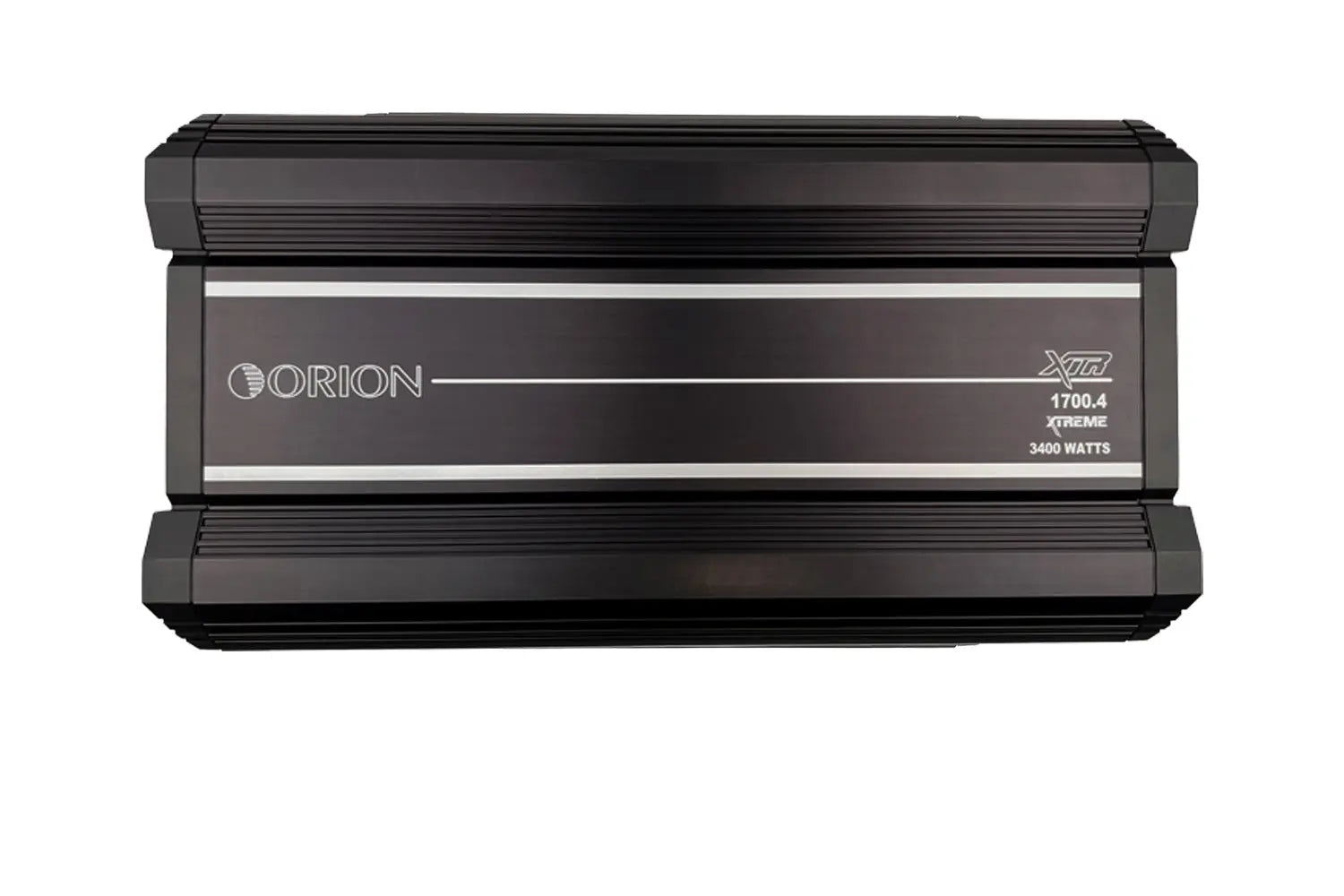

XTR1700.4 - 1700 Watt RMS Class A/B Car Amplifier 4 Channel
ORION XTR1700.4 XTR Series 1700W RMS Class-AB 4 Car Amplifier 4 Channel Unleash Auditory Excellence: The ORION...
- $499.95
- $499.95
- Unit price
- per
Subtotal:
$499.95
Couldn't load pickup availability
25 in stock
ORION XTR1700.4 XTR Series 1700W RMS Class-AB 4 Car Amplifier 4 Channel
Unleash Auditory Excellence: The ORION XTR1700.4 XTR Series 1700W RMS 4-Channel Class-AB Amplifier reigns supreme in audio performance. With advanced features and precision engineering, this amplifier transcends traditional boundaries, delivering a fusion of power, accuracy, and control to your car audio system.
Immersive Sound Reproduction: Experience your music anew, in its purest essence. Each note, rhythm, and melody is faithfully recreated, capturing every nuance from the gentlest whisper to the most powerful crescendo, ensuring an immersive and genuine listening journey.
Supreme Power and Precision: Indulge in the ultimate music experience with the ORION XTR1700.4 XTR Series Amplifier. With seamless integration of unmatched power and exceptional audio quality, this amplifier creates an auditory masterpiece that resonates profoundly, ensuring every note is felt deeply.
Elevate Your Drive: Embark on a journey of unparalleled excellence with the ORION XTR1700.4 XTR Series 1700W RMS 4-Channel Class-AB Amplifier. Elevate your audio experience, redefine your driving soundtrack, and immerse yourself in a realm of musical splendor like never before. Embrace the pure essence of sound and elevate your auditory adventures to new heights.
Key Features
- Class AB Amplification: Experience the pinnacle of efficiency and precision with Class AB amplification for supreme and accurate sound reproduction.
- 1700 Watts RMS: Immerse yourself in a world of supreme audio excellence with 1700 Watts RMS, delivering uncompromising and clear sound performance.

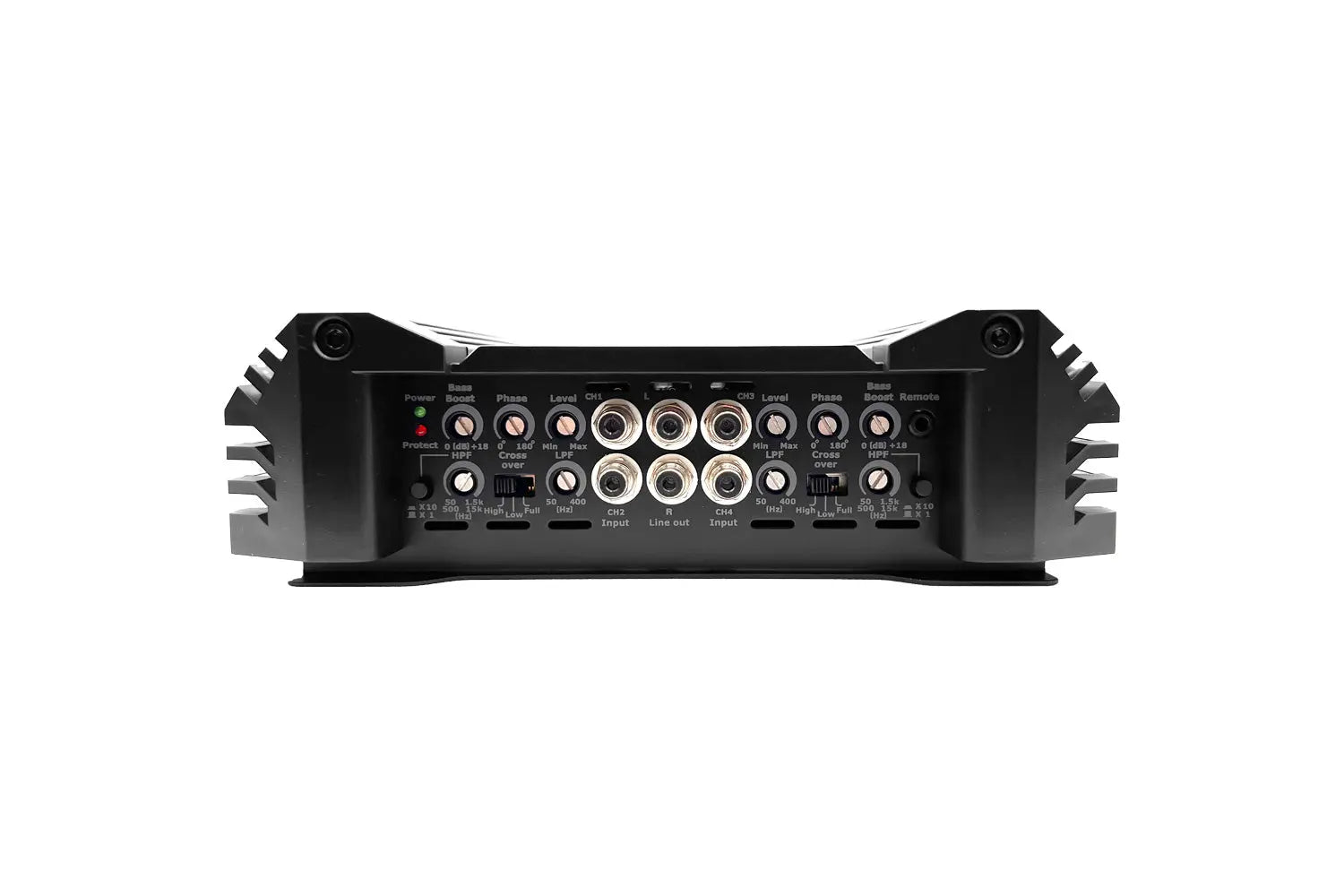

- Precision Audio Control: The adjustable built-in crossover allows meticulous calibration of audio frequencies, optimizing speaker performance.

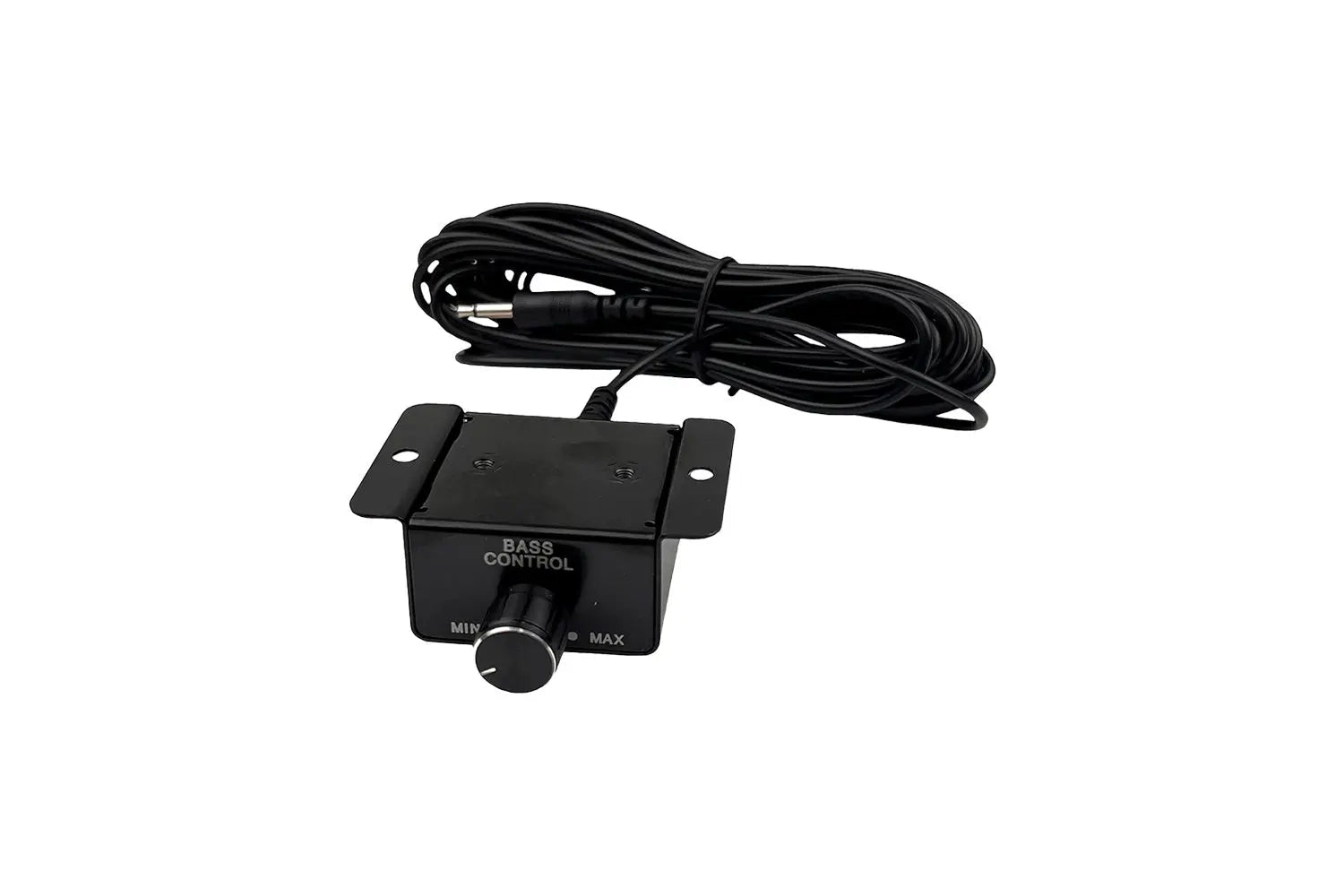

- Customized Bass Enhancement: Elevate your low frequencies with the adjustable bass boost feature, delivering impactful and resonant bass notes.
- Advanced Protection Measures: Equipped with protection circuitry, the amplifier safeguards against overheating and short circuits, ensuring durability.
- Compact and Stylish Design: The amplifier's sleek design offers versatile installation options without compromising performance or aesthetics.
- Engineered Excellence: Meticulously engineered for optimal audio precision, power efficiency, and steadfast operation.
- -All MOSFET Power Supply & Output Stage
- -Heavy Gauge / High Current Custom Power and Speaker Terminals
- -2-Ohm Stable
- -RCA Out Throughput
- -12dB Octave Low-Pass Filter
- -Electronic Crossover Network
- -Bass Boost Circuit
- -Intelligent Power and
- -Protection LED Indicator
- -Soft Turn-on/Turn-off
- -Turn-On Delay
- -Fault and Protection Monitoring
- -4-Way Protection: Thermal, DC offset, Short Protection, under & over voltage
Power Rating
- - RMS WATTS @ 4 Ohms @ 0.5% THD+N: 4 x 250W
- - RMS WATTS @ 2 Ohms @ 0.5% THD+N: 4 x 425W
- - RMS WATTS @ 4 Ohms @ 0.5% THD+N: 2 x 850W

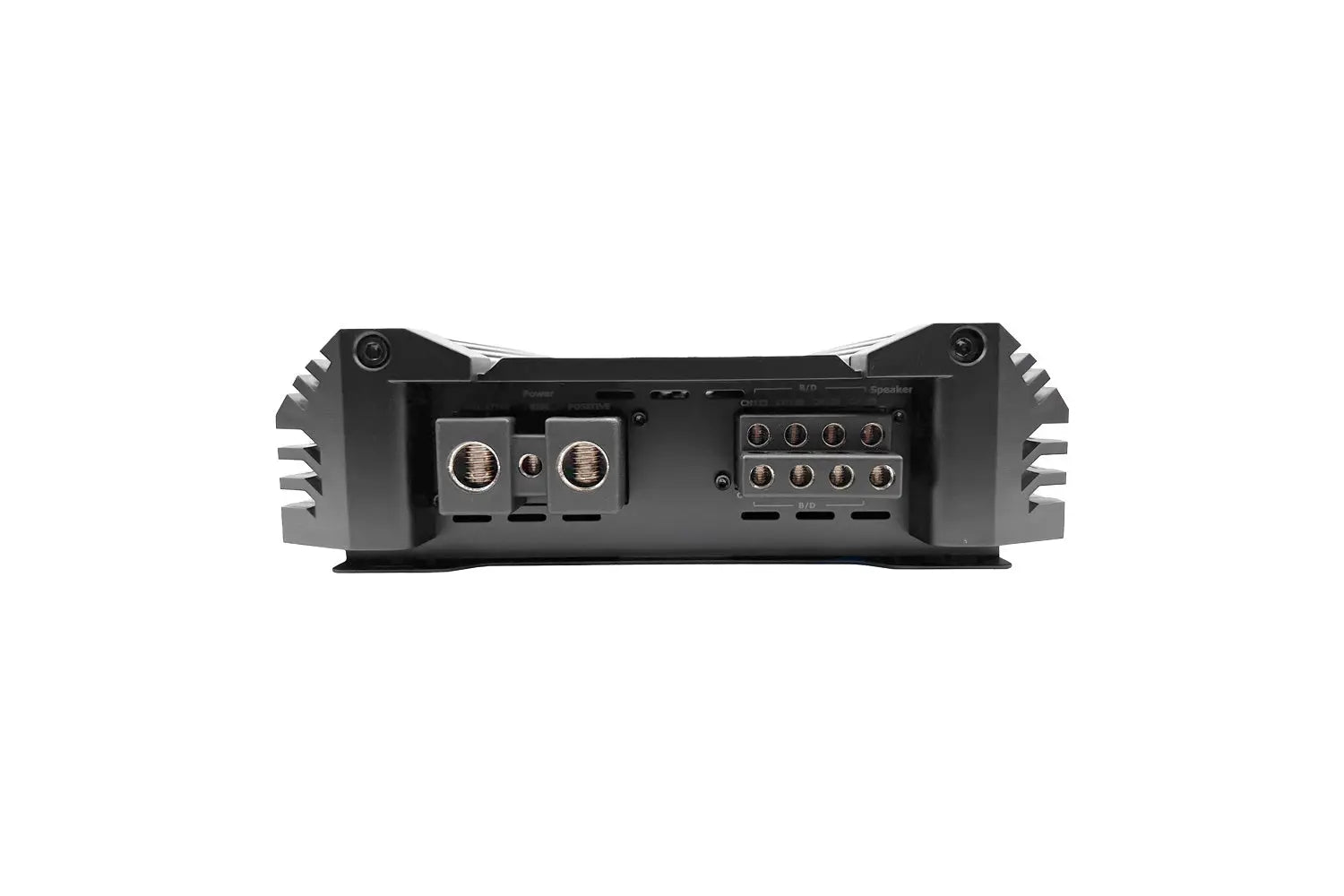

- POWER TERMINAL MANAGEMENT
- Positive Terminals: 1 x 0 AWG.
- Negative Terminals: 1 x 4 AWG.
- Remote Turn-ON Signal: 10 AWG.
- Speaker Output Terminals: 10 AWG.
Specifications
- Frequency Response: 20Hz - 35kHz
- Linear Bandwidth 20Hz to 65kHz +/- 3 dB
- High Pass Crossover Continuously variable (50-1.5kHz/500-15kHz)
- Low Pass Crossover Continuously variable (50-400Hz)
- Supply Voltage: 9 - 16V
- Amplifier Efficiency: >60%
- Damping Factor: 100dB
- Signal to Noise Ratio: >95dB
- T.H.D. & Noise: 0.5%
- Phase Shift: 0 - 180
- Bass Boost: 0-18dB Variable
- Variable Input Level Control: 0.2V - 6.0V
- Fuses: 150A recommended
- Dimensions (L x W x H): 17.32" x 9.25" x 2.75" (440x235x70mm)
