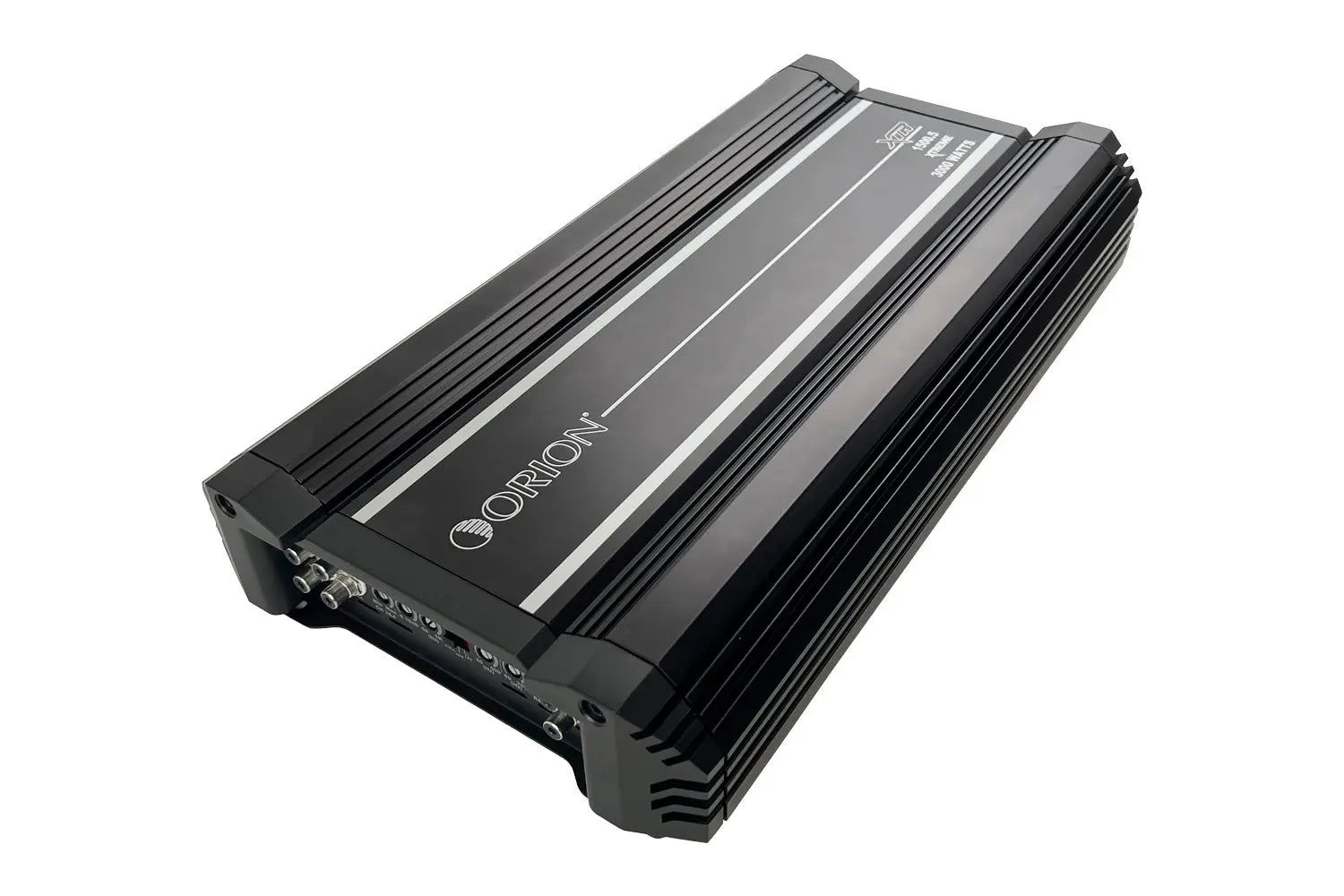

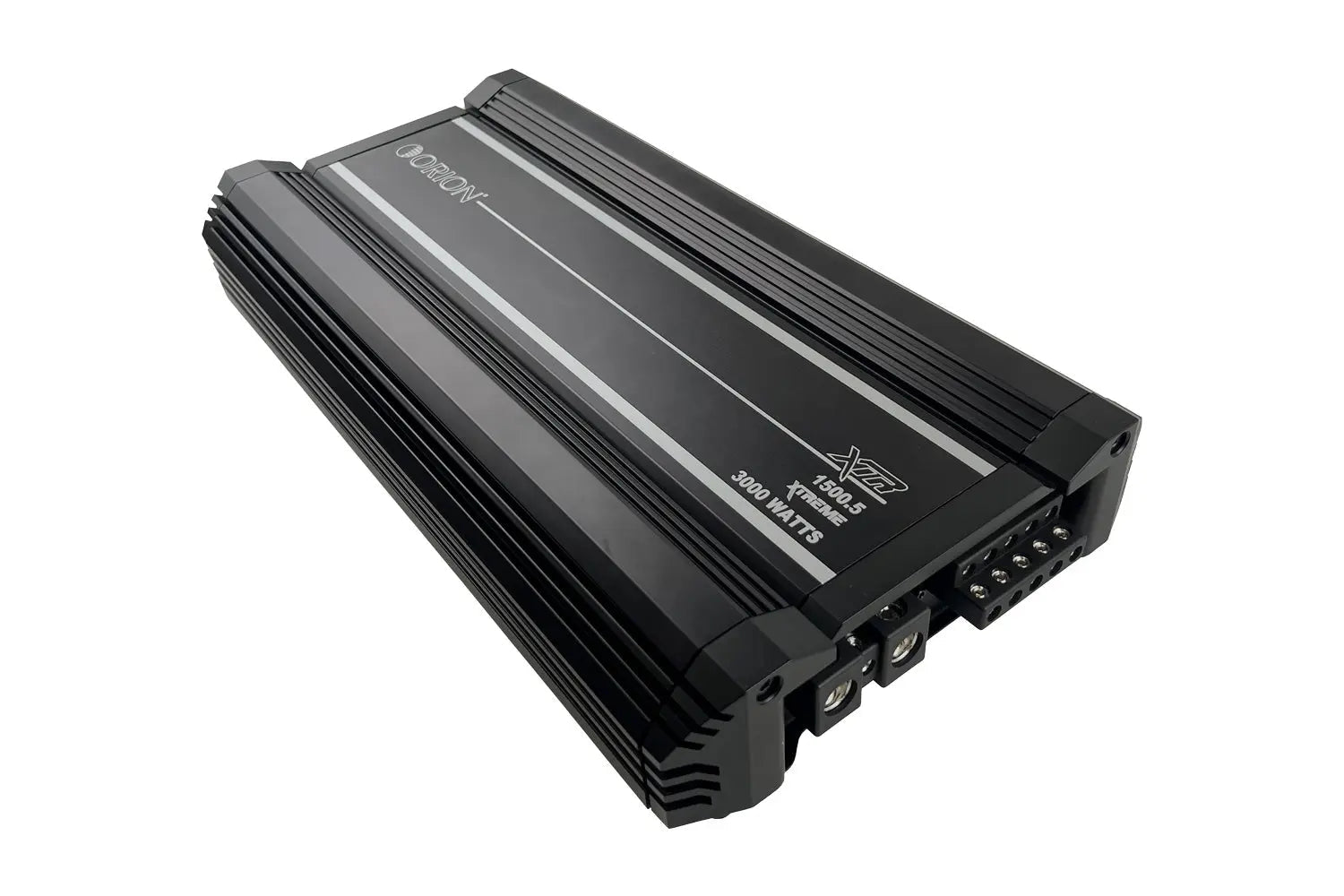

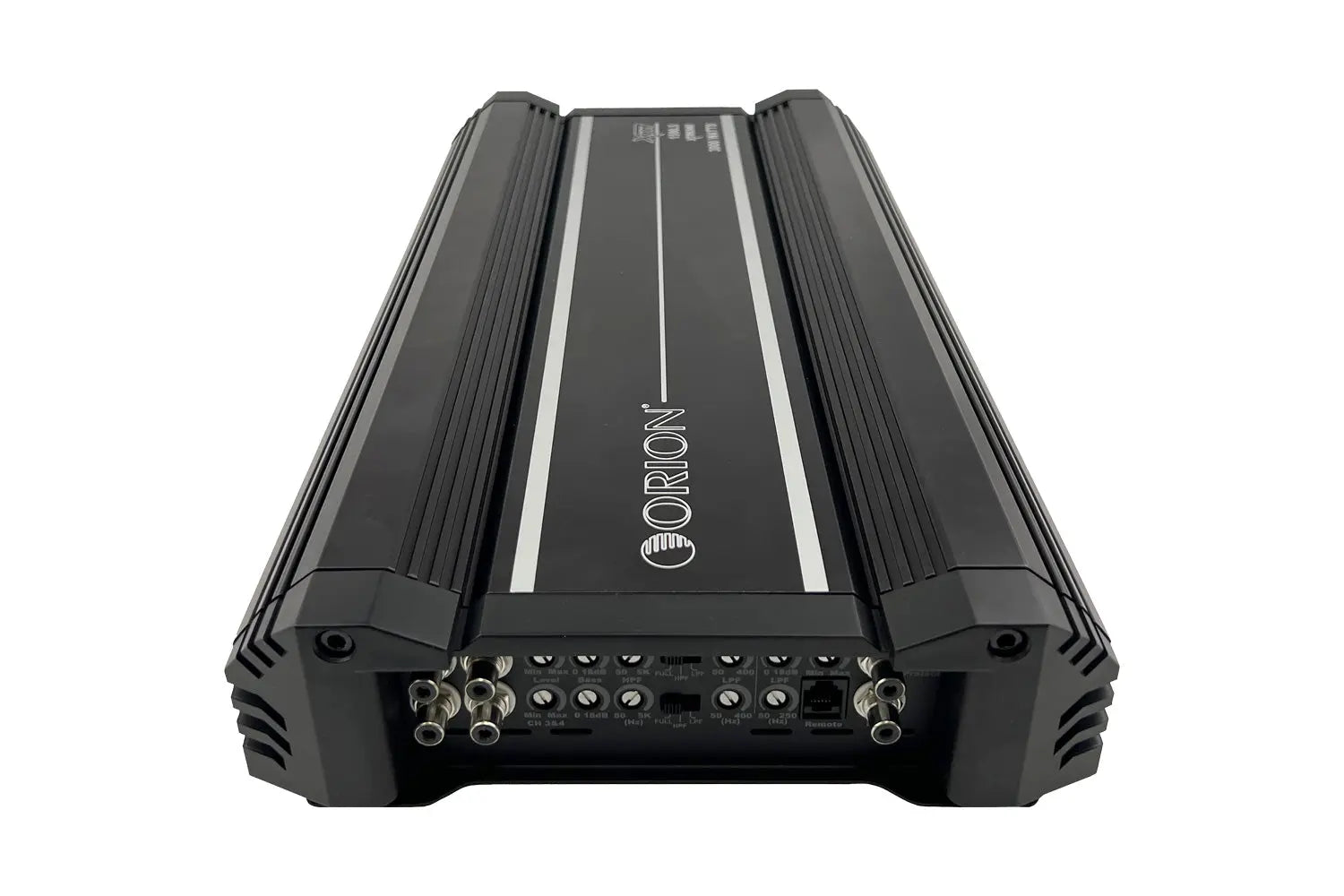

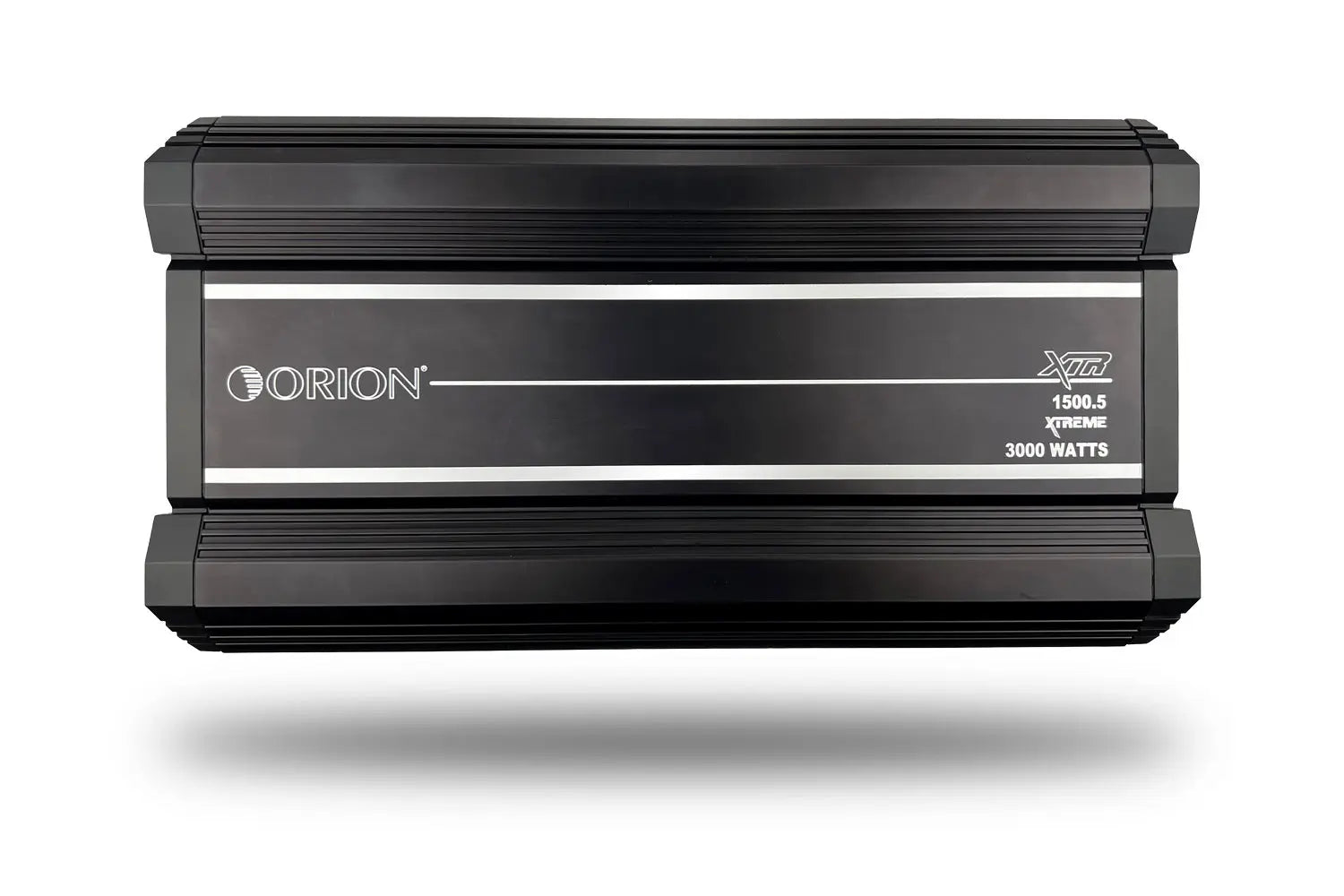

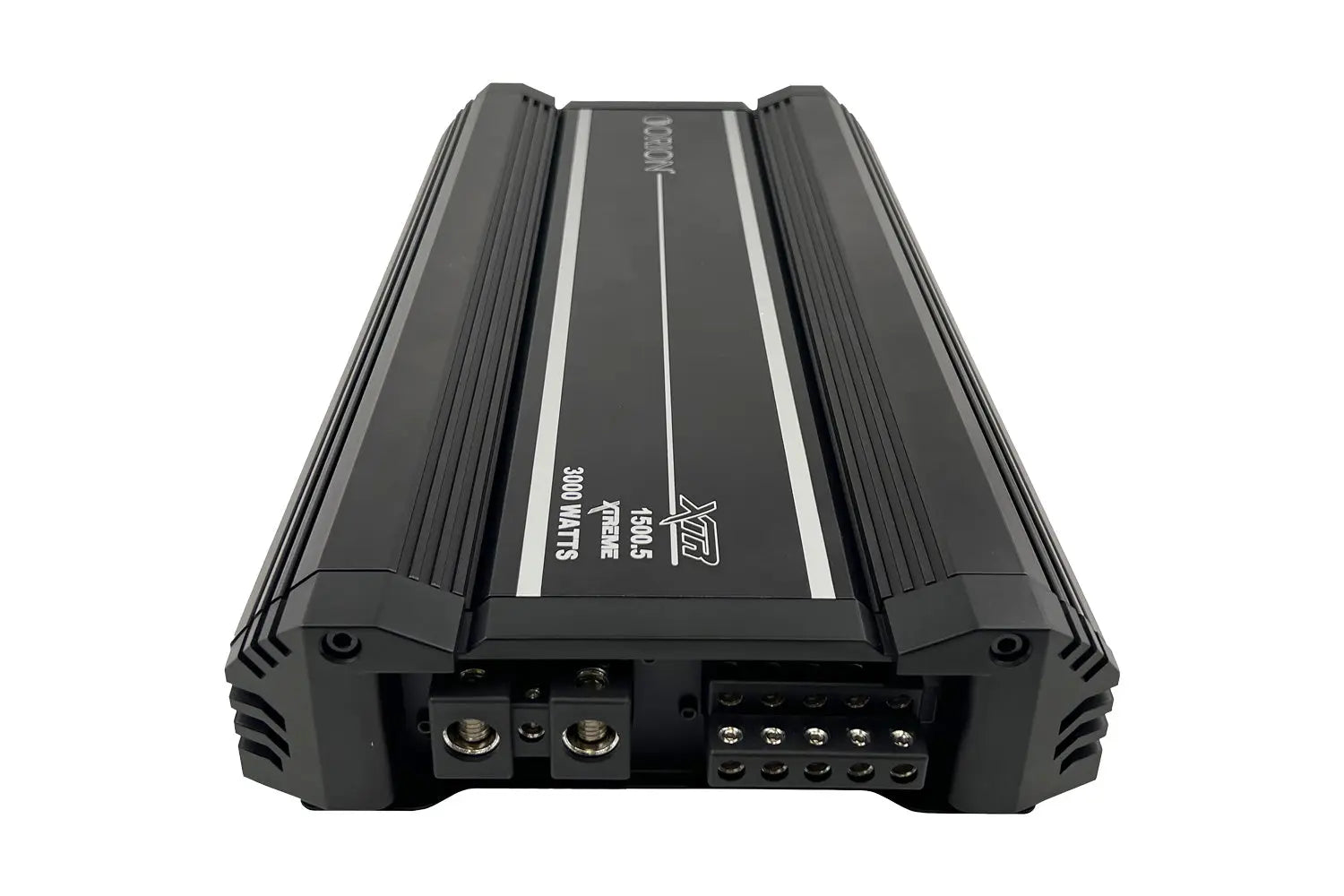

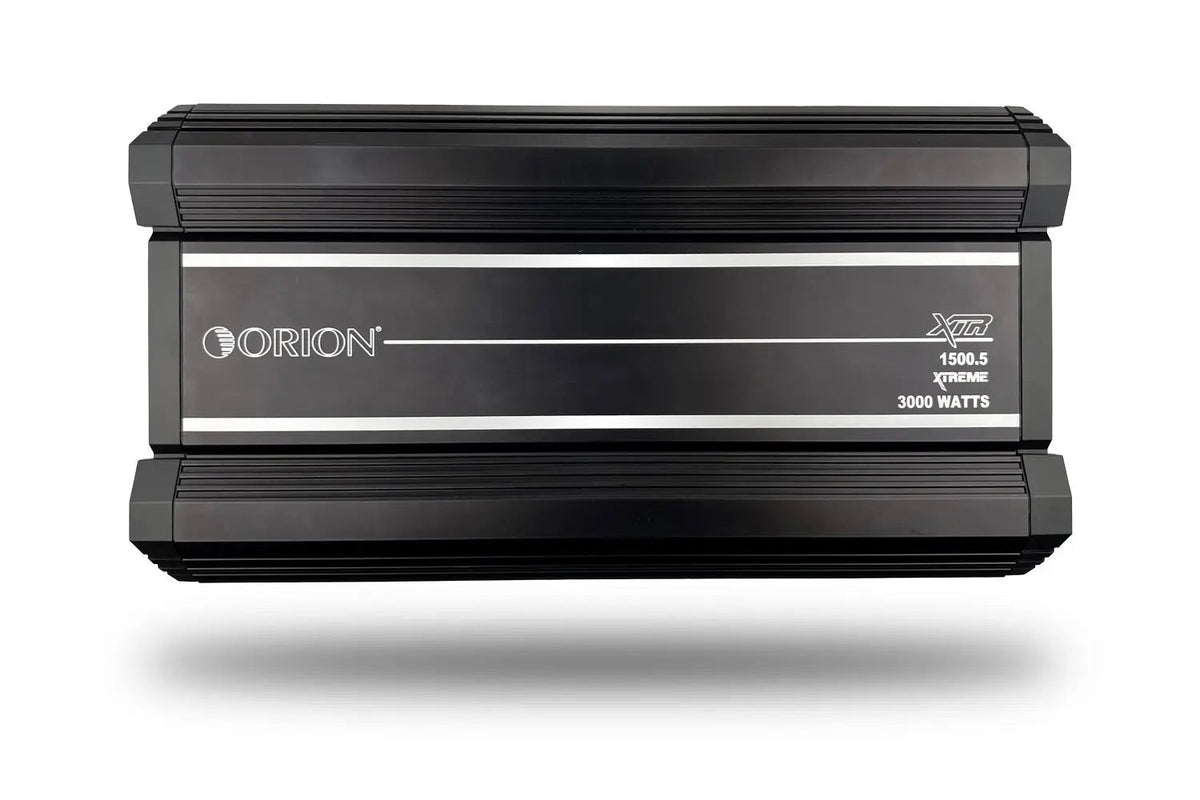

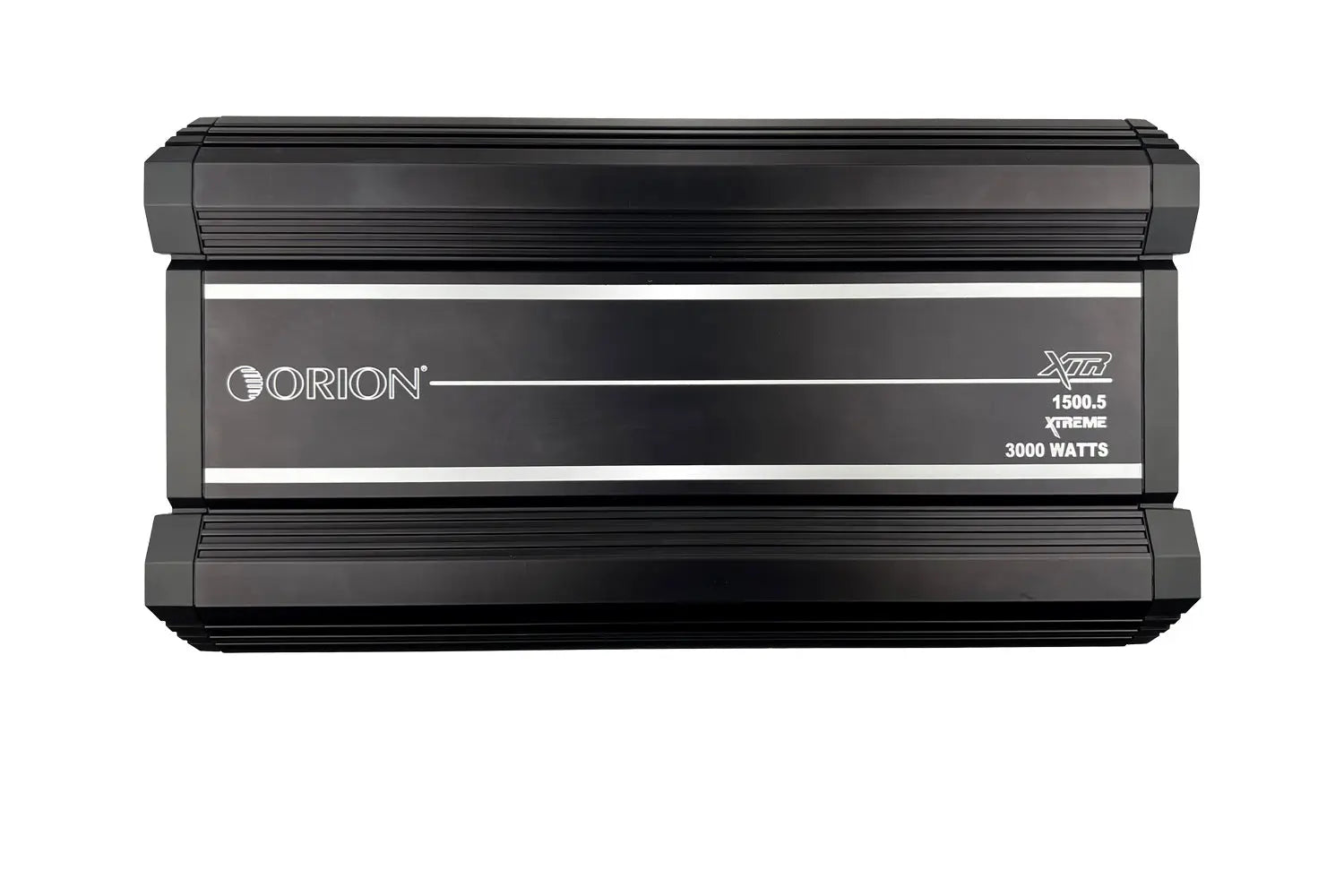

XTR1500.5 - 1500 Watt RMS 5 Channel Class AB/D Amplifier

ORION XTR1500.5 XTR Series 1500W RMS 5-Channel Class-AB/D Amplifier

Unleash Auditory Excellence: The ORION XTR1500.5 XTR Series 1500W RMS 5-Channel Class-AB/D Amplifier sets a new standard for audio excellence, delivering a perfect blend of power, precision, and efficiency. Crafted for audiophiles who demand the ultimate in sound quality, this amplifier elevates your audio experience to extraordinary heights.

Immersive Sound Reproduction: Rediscover your music in its purest form. Every note, beat, and melody - from the gentlest to the most dynamic - is meticulously reproduced for an immersive and authentic listening experience.

Versatility and Power: Experience versatility and power in harmony. The ORION XTR1500.5 XTR Series Amplifier seamlessly blends adaptable power with exceptional audio quality, crafting a sonic masterpiece that adapts to your preferences.

Elevate Your Drive: Step into the realm of versatility and excellence with the ORION XTR1500.5 XTR Series 1500W RMS Class-AB/D 5 Channel Car Amplifier.

Elevate your audio journey, redefine your driving soundtrack, and immerse yourself in an elevated level of musical adaptability. It's time to embrace sound in its purest form.

Key Features

• Class AB/D Amplification: Experience the perfect blend of efficiency and versatility with Class AB/D amplification for powerful and accurate sound reproduction.
• 1500 Watts RMS: Immerse yourself in a world of versatile audio excellence with 1500 Watts RMS, delivering balanced and clear sound performance.
• Power Distribution Options: The amplifier's multiple channels provide flexibility for various speaker setups, enabling you to customize your audio experience.
• Precision Audio Control: The adjustable built-in crossover allows meticulous calibration of audio frequencies, optimizing speaker performance.

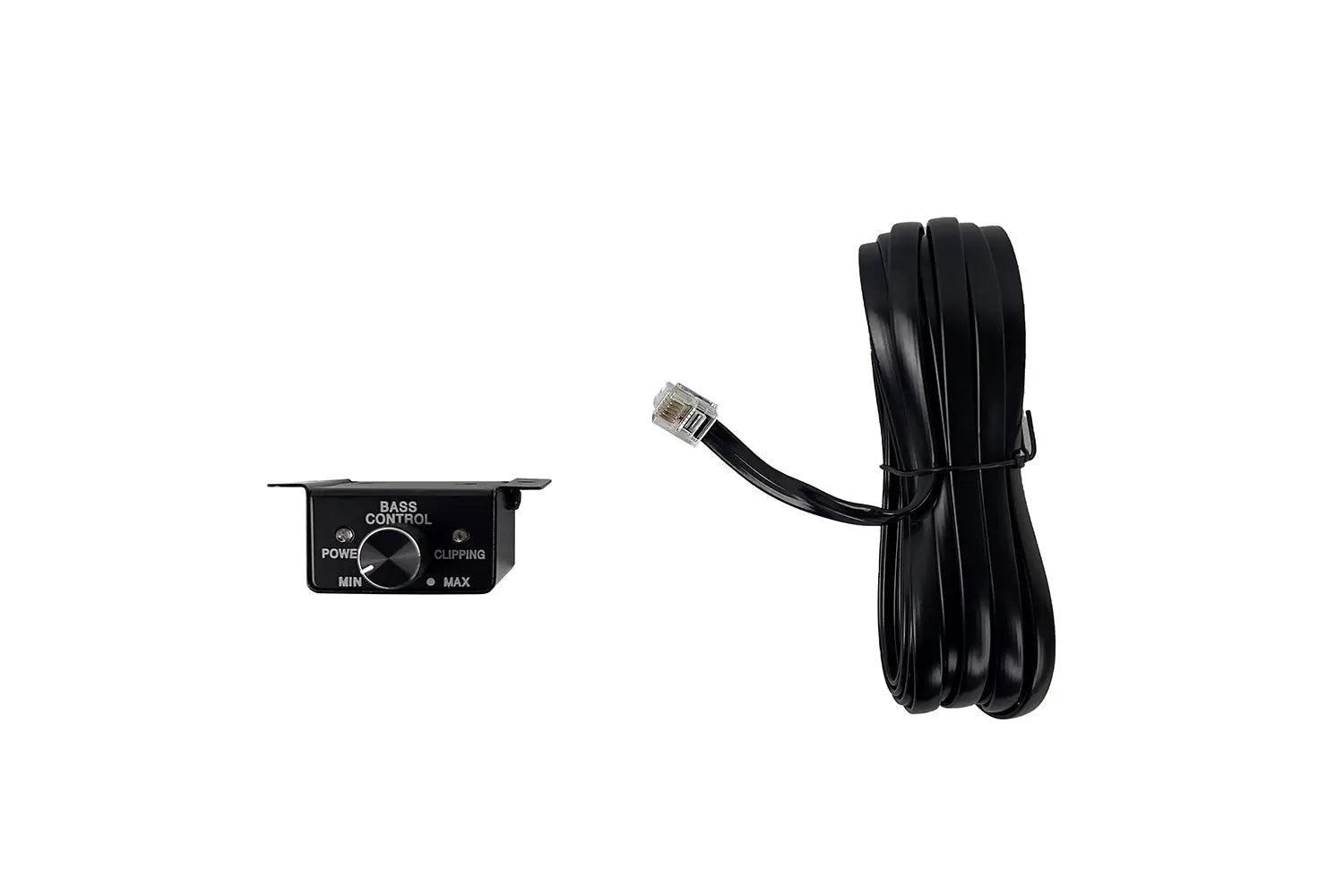

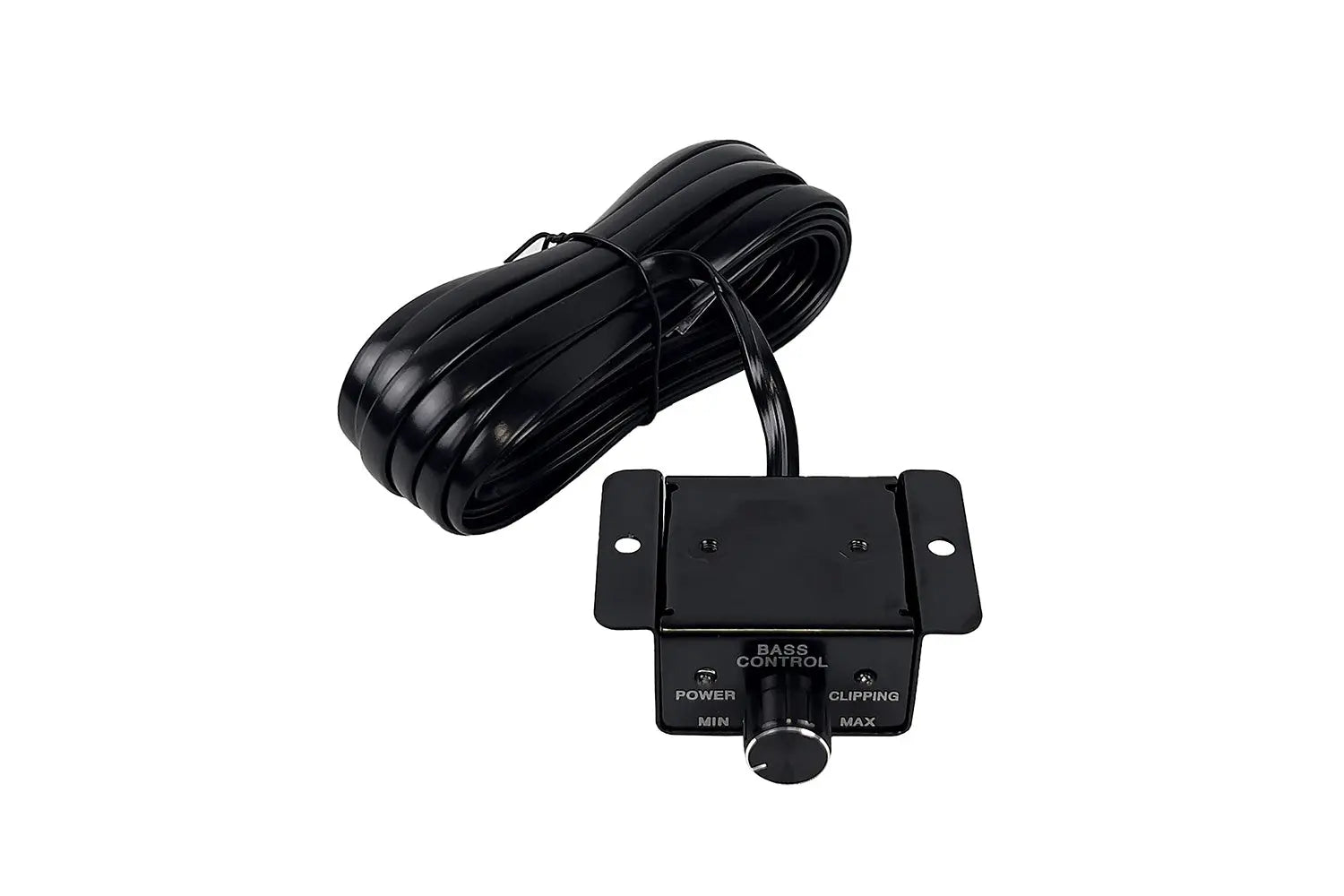

• Customized Bass Enhancement: Elevate your low frequencies with the adjustable bass boost feature, delivering impactful and resonant bass notes.
• Advanced Protection Measures: Equipped with protection circuitry, the amplifier safeguards against overheating and short circuits, ensuring durability.
• Compact and Stylish Design: The amplifier's sleek design offers versatile installation options without compromising performance or aesthetics.
• Engineered Excellence: Meticulously engineered for optimal audio precision, power efficiency, and steadfast operation.
• -All MOSFET Power Supply & Output Stage
• -Heavy Gauge / High Current Custom Power and Speaker Terminals
• -2-Ohm Stable
• -RCA Out Throughput
• -12dB Octave Low-Pass Filter
• -Electronic Crossover Network
• -Bass Boost Circuit
• -Intelligent Power and
• -Protection LED Indicator
• -Soft Turn-on/Turn-off
• -Turn-On Delay
• -Fault and Protection Monitoring
• -4-Way Protection: Thermal, DC offset, Short Protection, under & over voltage

Power Rating

• - RMS WATTS @ 4 Ohms @ 0.5% THD+N: 4 x 90W + 1 x 380W
• - RMS WATTS @ 2 Ohms @ 0.5% THD+N: 4 x 125W + 1 x 650W
• - RMS WATTS @ 1 Ohms @ 0.5% THD+N: Not supported + 1 x 1000W
• - RMS WATTS @ 4 Ohms @ 0.5% THD+N: 2 x 250W + Not supported

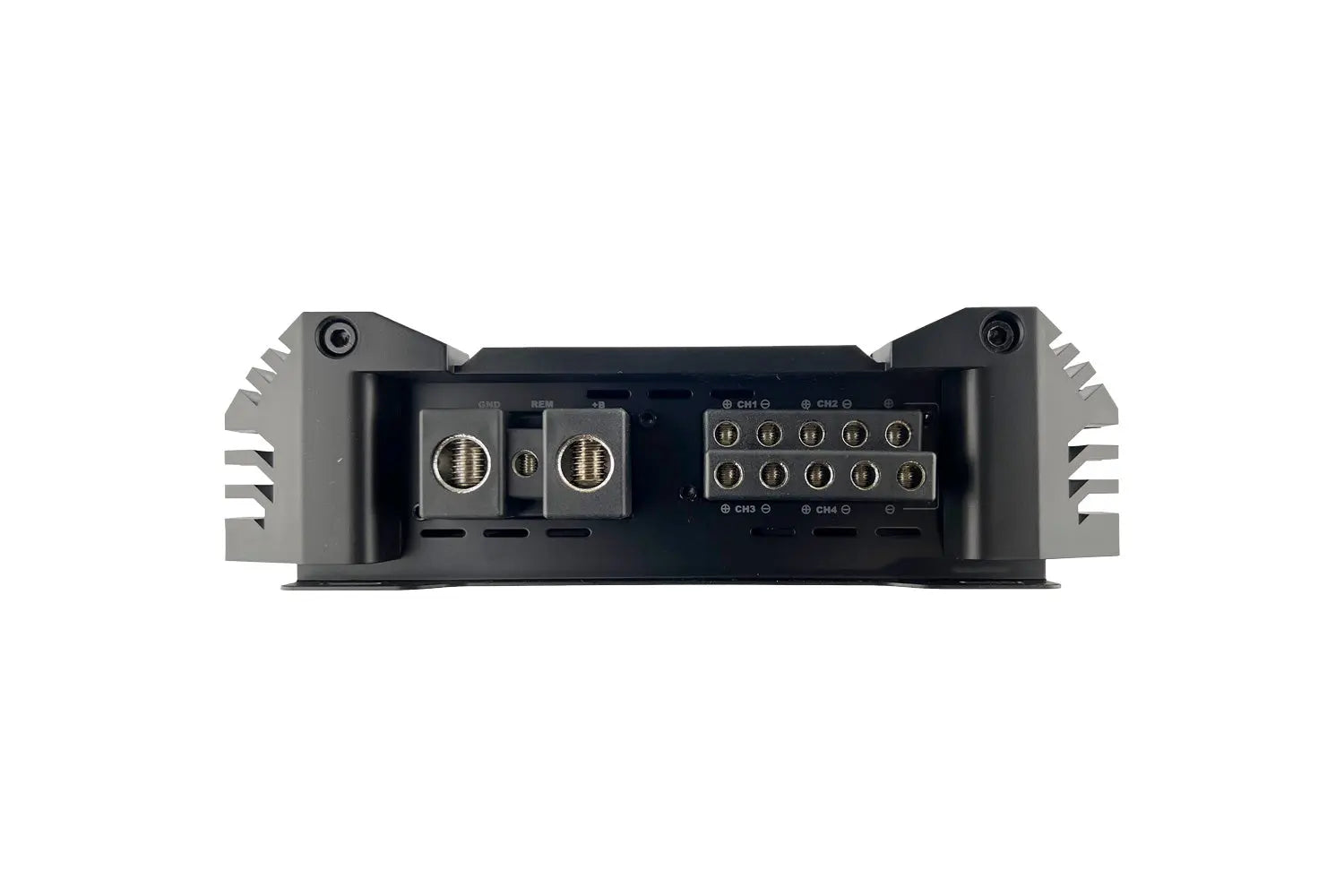

• POWER TERMINAL MANAGEMENT
• Positive Terminals: 1 x 4 AWG.
• Negative Terminals: 1 x 4 AWG.
• Remote Turn-ON Signal: 10 AWG.
• Speaker Output Terminals: 10 AWG.

Specifications

• Frequency Response: 20Hz - 350kHz
• Linear Bandwidth 20Hz to 65kHz +/- 3 dB

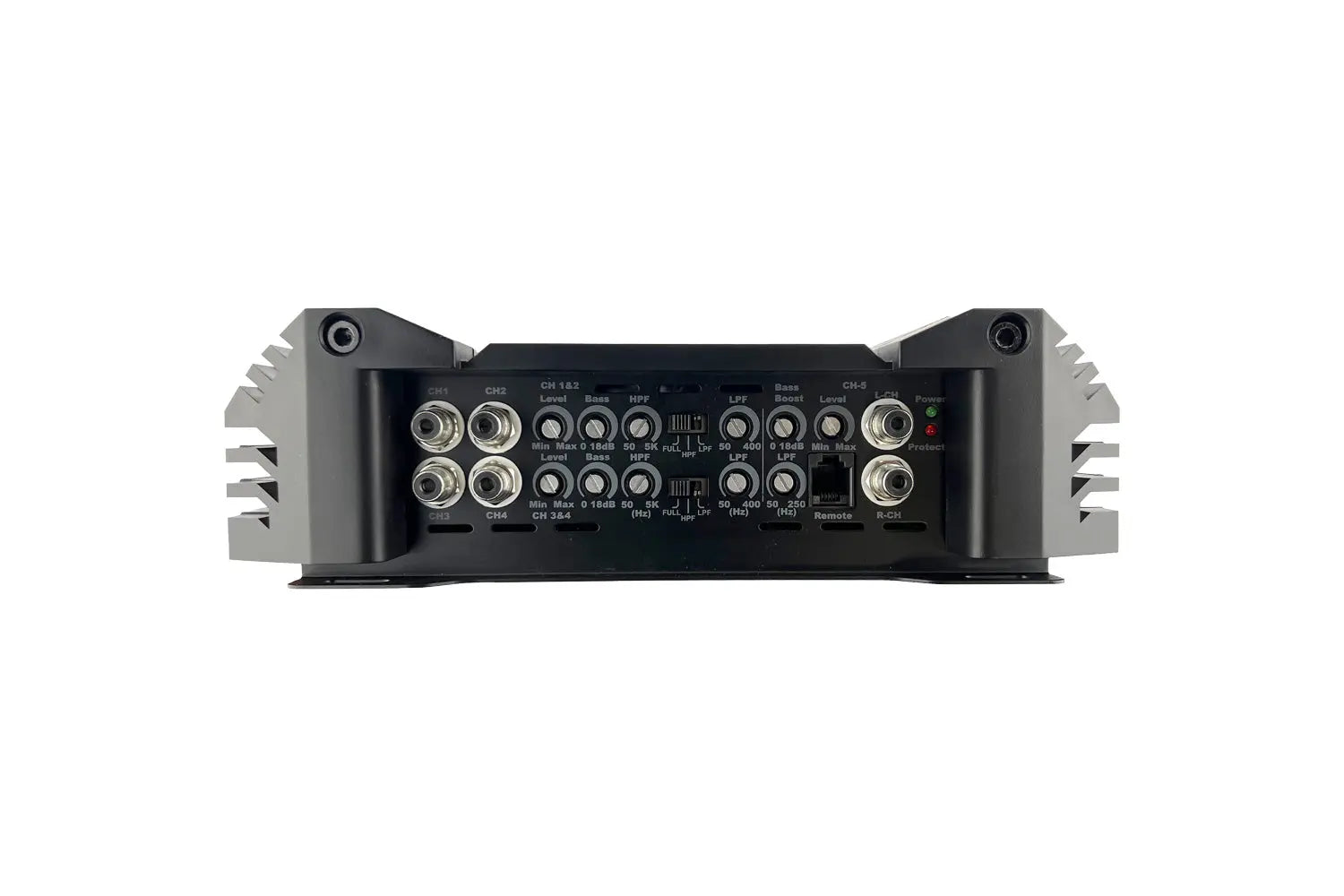

• High Pass Crossover Continuously variable Channel 1-4: (50-5kHz)
• Low Pass Crossover Continuously variable Channel 1-4: (50-400Hz)
• Low Pass Crossover Continuously variable Channel 5: (50-250Hz)
• Supply Voltage: 9 - 16V
• Amplifier Efficiency: >60%
• Damping Factor: 200dB
• Signal to Noise Ratio: >90dB
• T.H.D. & Noise: 0.5%
• Bass Boost: 0-18dB Variable
• Variable Input Level Control: 0.2V - 6.0V
• Fuses: ***A recommended (TBD)
• Dimensions (L x W x H): 17.32" x 9.25" x 2.75" (440x235x70mm)
