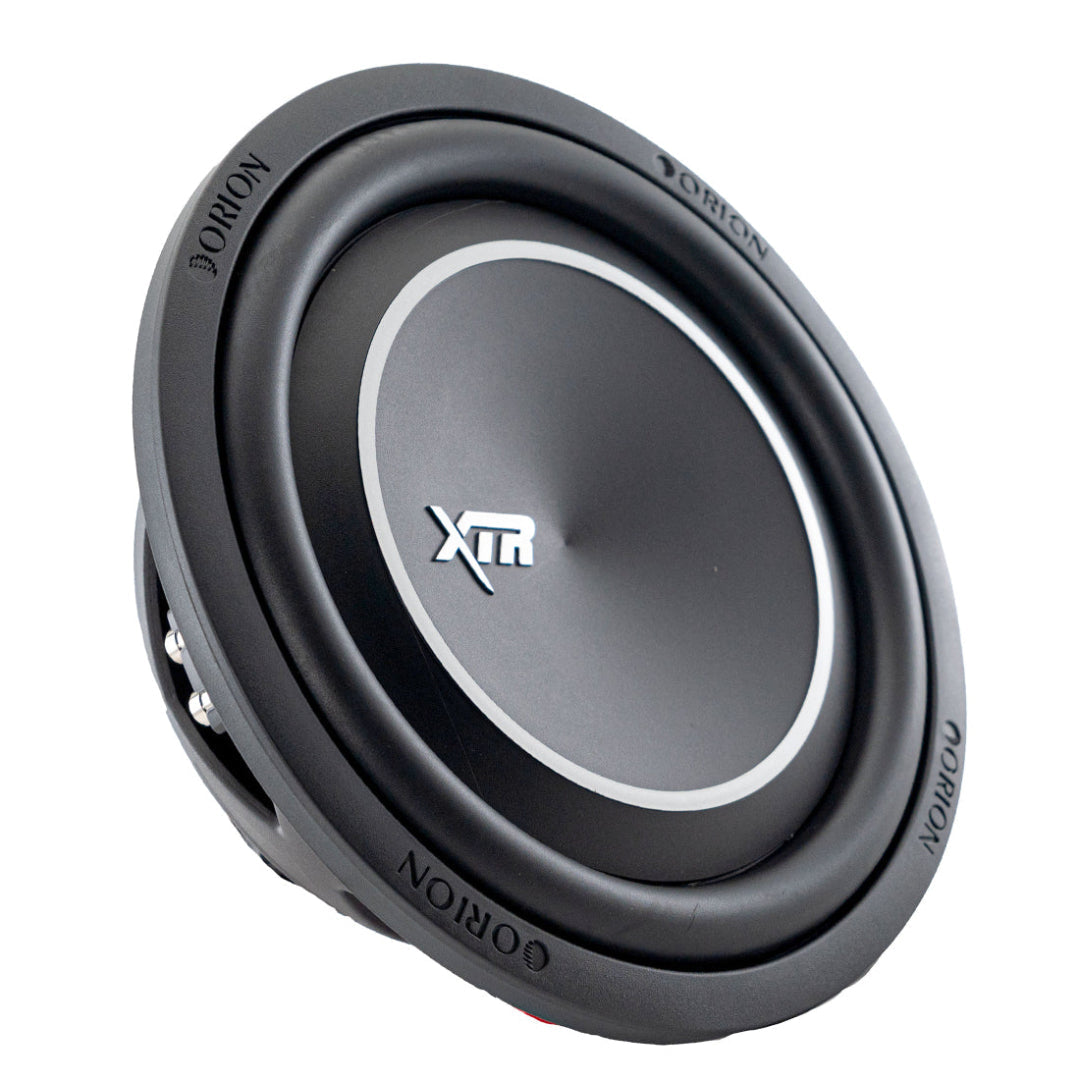

Orion XTR12SWD4 - 12 Inch Dual 4 Ohm Shallow Mount Subwoofer | 500W RMS Bass Power

High-Output Shallow 12 Inch Subwoofer with Flexible Wiring Options

The Orion XTR12SWD4 delivers deep, controlled bass in a slim shallow-mount design. Specifically engineered as a 12 inch dual 4 ohm shallow car subwoofer, it produces strong low-frequency output while fitting in tight spaces. As a result, it works well in modern vehicles and compact enclosures. With 500W RMS and 2000W peak power, it offers an excellent balance of output, efficiency, and everyday reliability.

Additionally, the dual 4-ohm voice coil configuration provides flexible wiring options. Because of this, matching amplifier loads becomes easier in shallow system layouts. Therefore, the XTR12SWD4 is ideal for under-seat installs, shallow trunk builds, and stealth audio upgrades.

Built for Shallow-Mount Performance

To ensure consistent output in limited space, the XTR12SWD4 features a UV-coated paper and fiber blend cone. Moreover, it uses a durable NBR surround to control excursion in a shallow profile. Together, these materials help reduce distortion while maintaining clean and accurate bass response.

A polypropylene dustcap reinforces the cone structure. As a result, stability is maintained during higher output levels. In addition, a ceramic magnet motor structure provides reliable control and efficiency despite the reduced mounting depth.

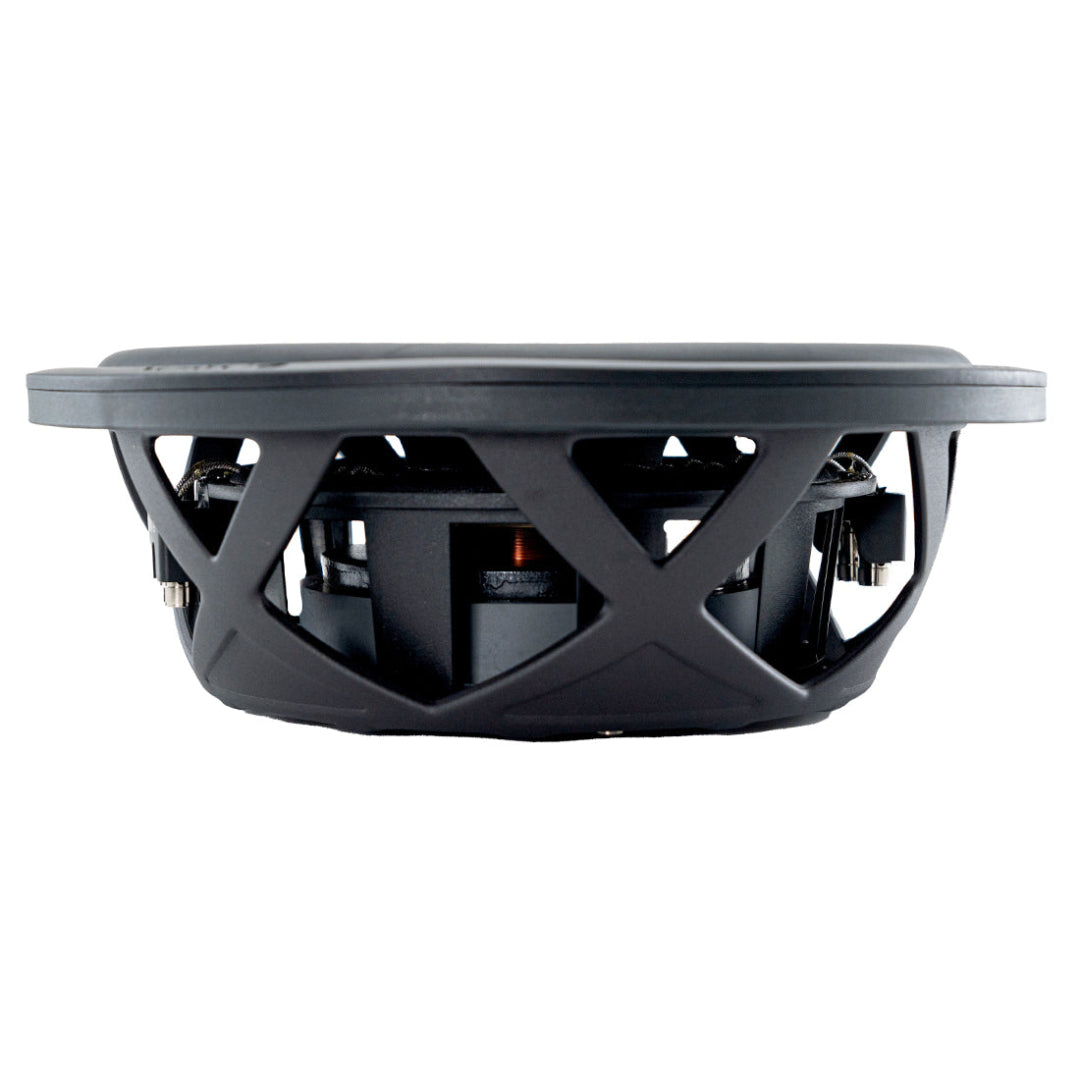

With a 3.58-inch mounting depth, this shallow subwoofer installs easily where traditional subwoofers cannot. Therefore, it is a strong solution for compact enclosures, space-conscious vehicles, and clean OEM-style upgrades.

Ideal For

• Under-seat and shallow enclosure installations
• Compact trunk and stealth audio builds
• Daily-driven systems needing clean bass output
• Space-restricted custom car audio applications

Key Features

• 12 inch dual 4 ohm shallow mount car subwoofer
• 500W RMS / 2000W peak power handling
• Dual voice coil design for flexible wiring configurations
• UV-coated paper and fiber blend cone
• NBR surround for durability in shallow applications
• Polypropylene dustcap for added cone stability
• Ceramic magnet motor structure
• Ultra-shallow 3.58" mounting depth
• Optimized for compact sealed enclosures
• Proven Orion Car Audio XTR Series build quality

Key Features

• Dual 4 Ohm Voice Coils: Flexible wiring options with 3" copper-wound coils for enhanced durability.
• UV-Coated Paper/Fiber Cone: Delivers rigidity and superior sound responsiveness.
• NBR Rubber Surround: Provides excellent durability and allows extensive cone movement.
• Exclusive Heavy-Gauge Stamped Steel Basket: Increases structural integrity and reduces vibration.
• Nickel-Plated Push Terminals: Ensures reliable and easy connections.
• Shallow Mount Design: Perfect for installation in tight spaces without sacrificing performance.

Specifications

• Subwoofer Size: 12 (Inches)
• Voice Coil Configuration: Dual 4-ohm
• Power Handling (Peak): 2000 Watts
• Power Handling (RMS): 500 Watts
• Sensitivity: 85 dB
• Frequency Response: 28 Hz - 300 Hz
• Dustcap Material: Polypropylene
• Cone Material: UV Coated Paper / Fiber Blend Cone
• Surround Material: NBR
• Magnet Information: Ceramic
• Mounting Depth: 91mm / 3.58 (Inches)
• Cutout Diameter: 280mm / 11.02 (Inches)
• Overall Diameter: 324mm / 12.76 (Inches)
