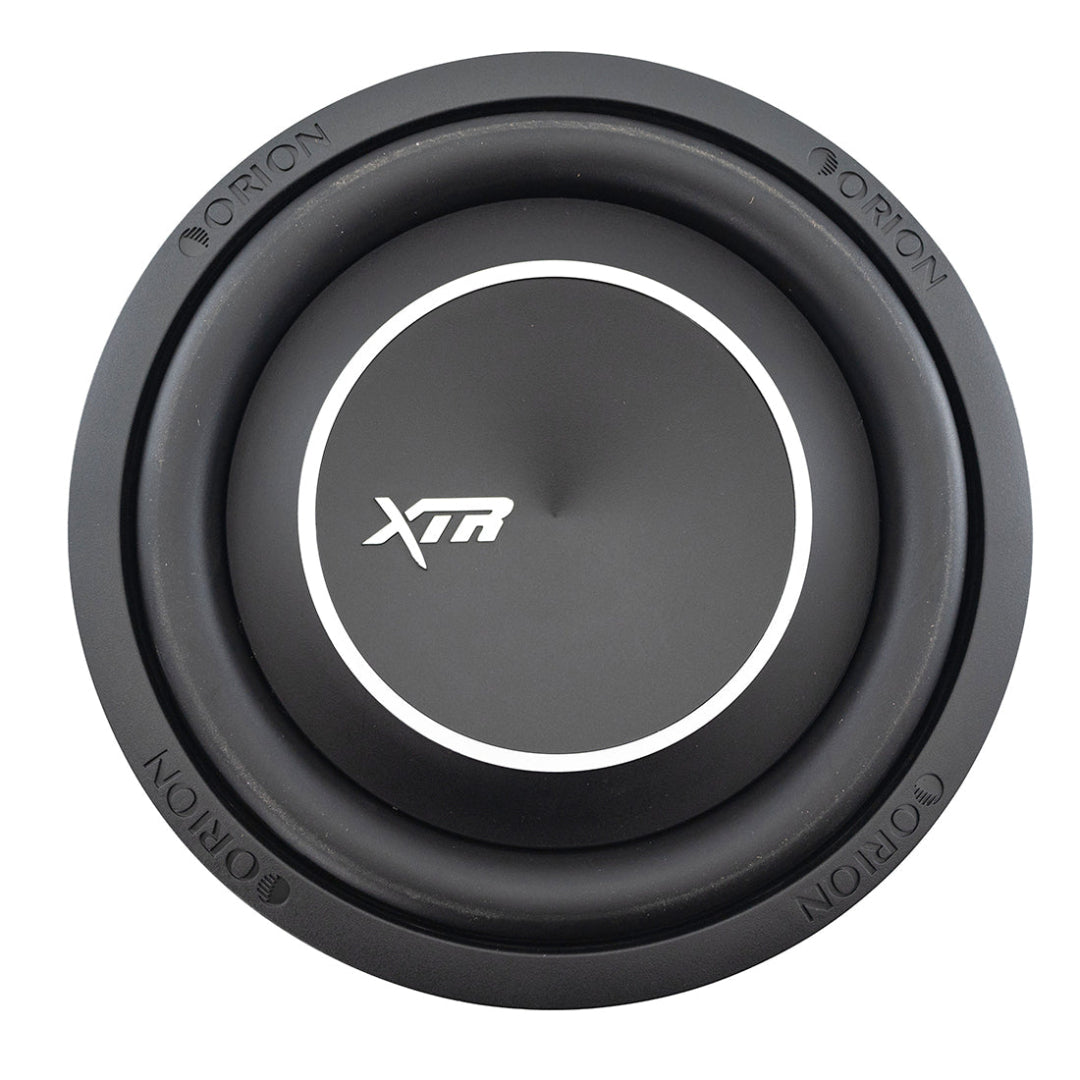

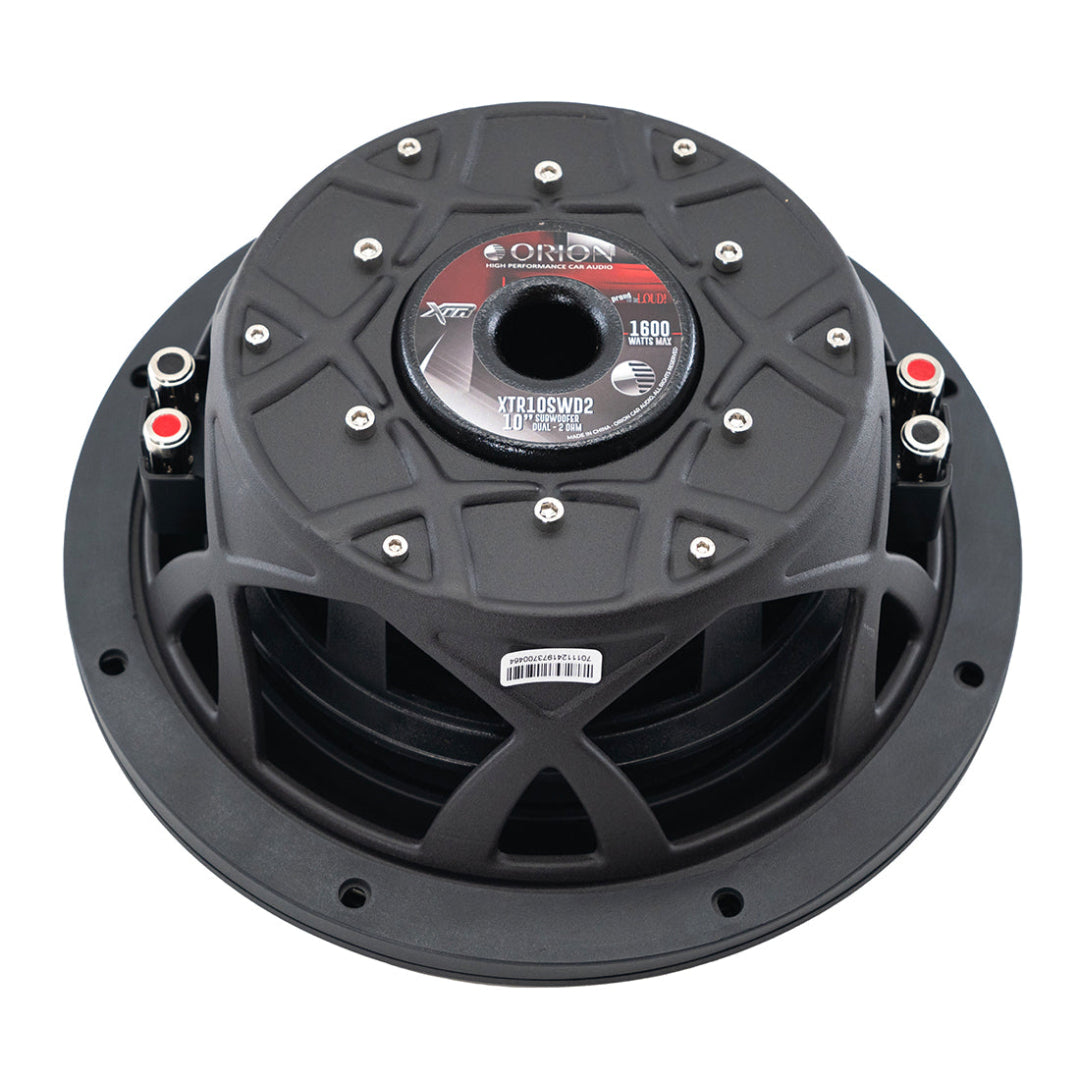

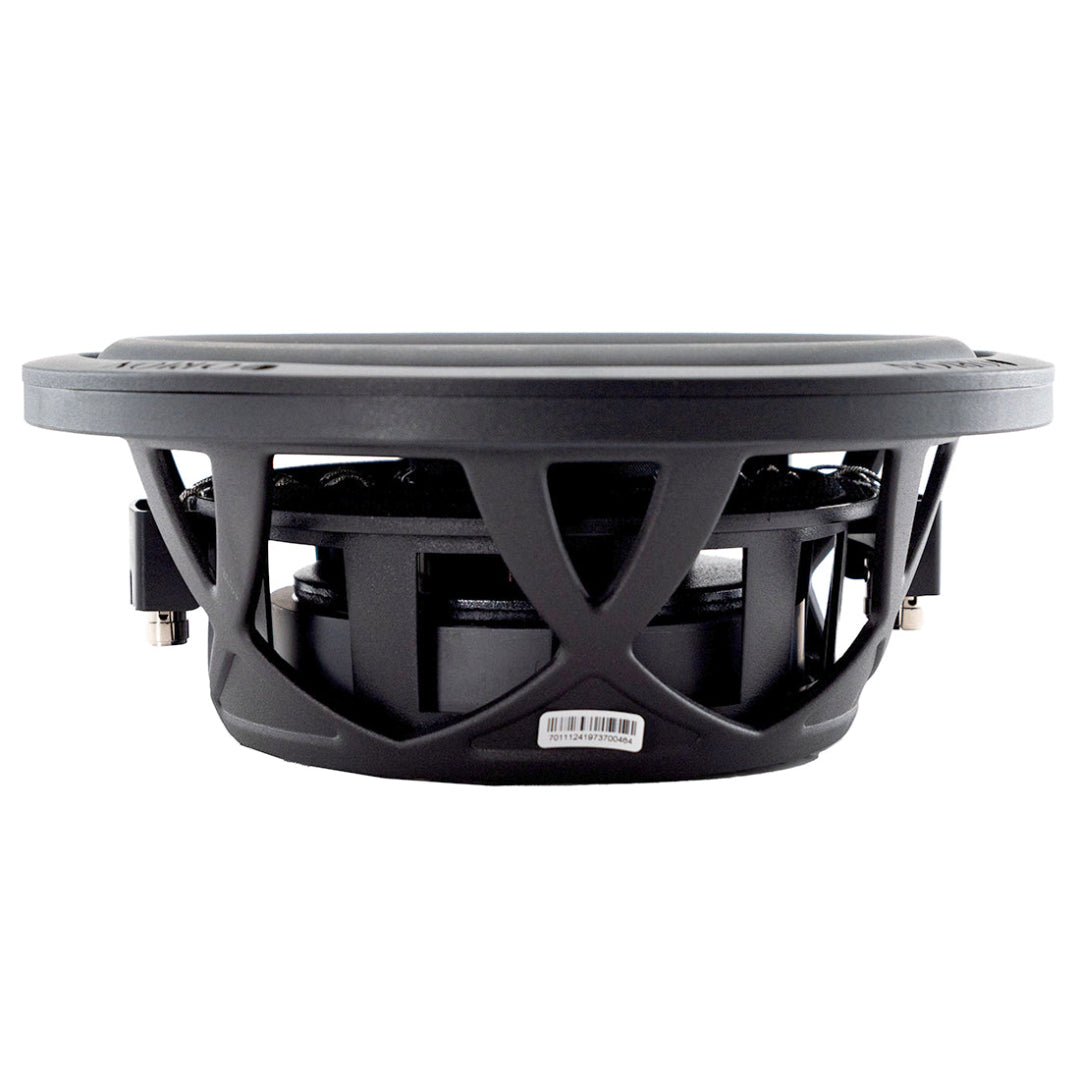

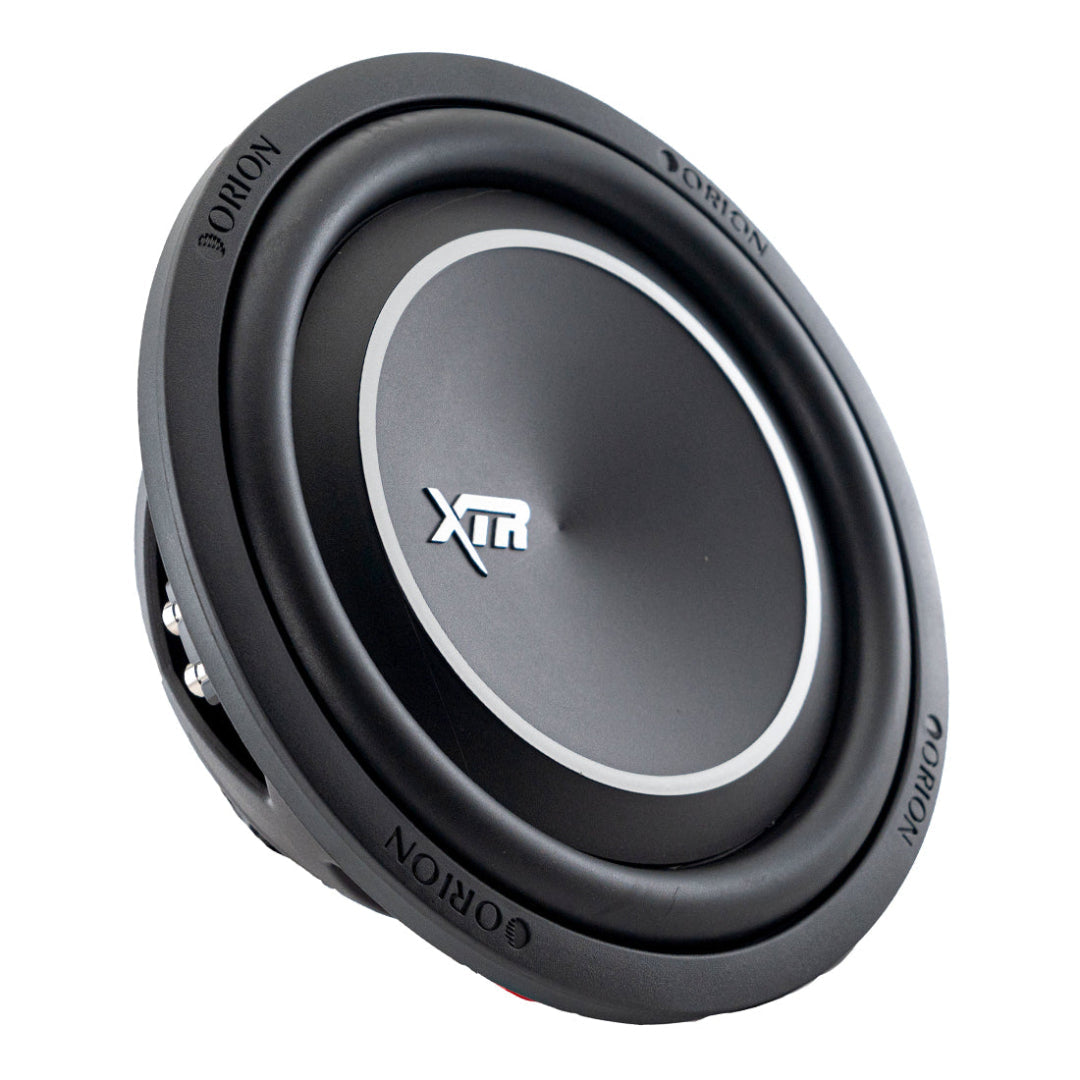

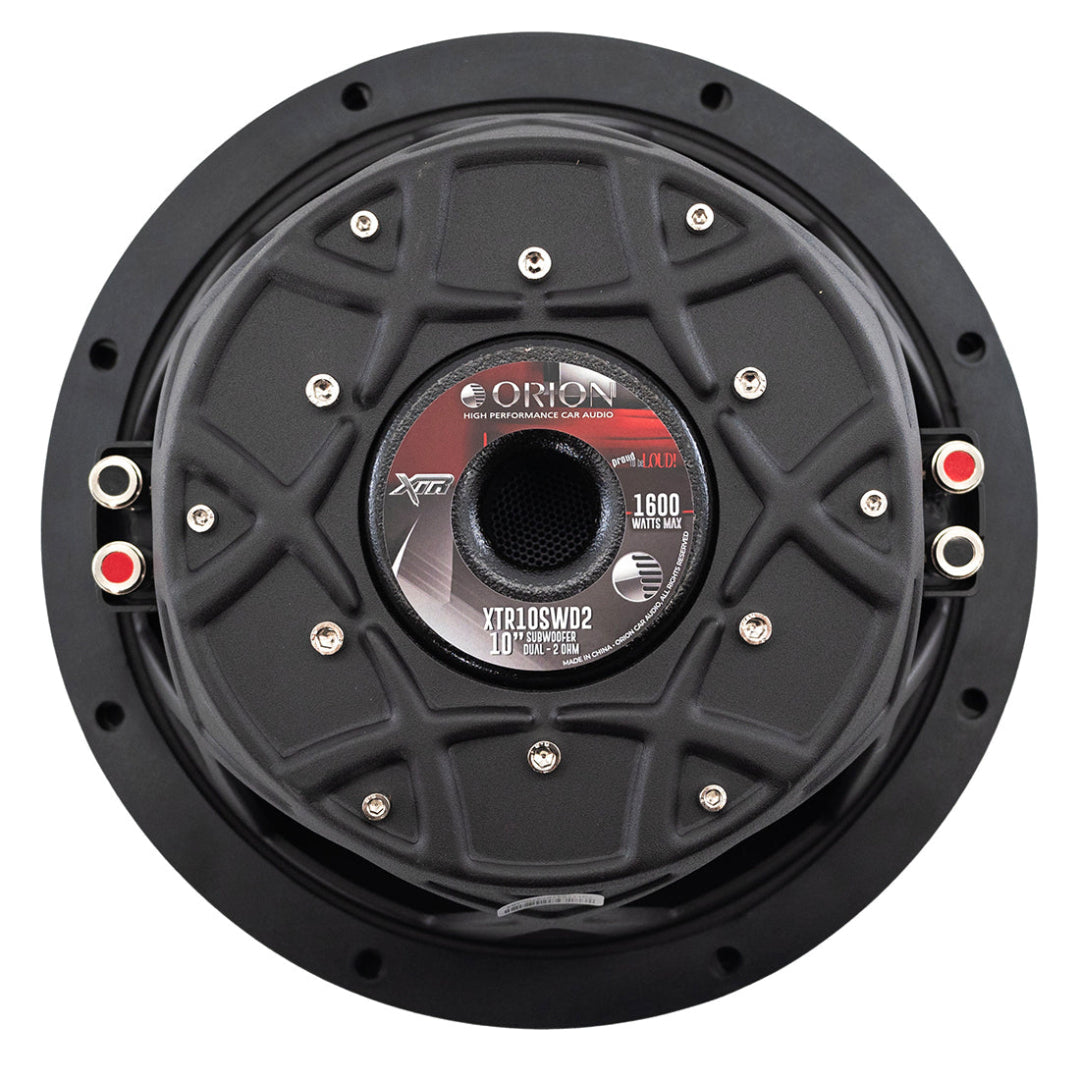

Orion XTR10SWD2 - 10 Inch Dual 2 Ohm Shallow Mount Subwoofer | 400W RMS Bass Power

Compact Shallow 10 Inch Subwoofer for Tight Install Spaces

The Orion XTR10SWD2 delivers clean, controlled bass in a slim shallow-mount design. Specifically engineered as a 10 inch dual 2 ohm shallow car subwoofer, it produces reliable low-frequency output while fitting in space-restricted installations. As a result, it is ideal for modern vehicles and compact builds. With 400W RMS and 1600W peak power, it offers an excellent balance of efficiency, control, and everyday performance.

Additionally, the dual 2-ohm voice coil configuration provides flexible wiring options. Because of this, matching amplifier loads becomes easier in compact system layouts. Therefore, the XTR10SWD2 works well in under-seat installs, shallow enclosures, and stealth trunk systems.

Built for Shallow-Mount Performance

To ensure consistent output in tight spaces, the XTR10SWD2 features a UV-coated paper and fiber blend cone. Moreover, it uses a durable NBR surround to support controlled excursion in a shallow profile. Together, these materials help reduce distortion while maintaining clean and accurate bass response.

A polypropylene dustcap reinforces the cone structure. As a result, stability is maintained during higher output levels. In addition, a ceramic magnet motor structure provides reliable control and efficiency despite the reduced mounting depth.

With a 3.43-inch mounting depth, this shallow subwoofer installs easily where traditional subwoofers cannot. Therefore, it is an excellent solution for tight enclosures, modern vehicle layouts, and space-saving audio upgrades.

Ideal For

• Under-seat and shallow enclosure installations
• Compact trunk and stealth audio builds
• Daily-driven systems requiring clean bass
• Space-restricted custom car audio applications

Key Features

• 10 inch dual 2 ohm shallow mount car subwoofer
• 400W RMS / 1600W peak power handling
• Dual voice coil design for flexible wiring configurations
• UV-coated paper and fiber blend cone
• NBR surround for durability in shallow applications
• Polypropylene dustcap for added cone stability
• Ceramic magnet motor structure
• Ultra-shallow 3.43" mounting depth
• Optimized for compact sealed enclosures
• Proven Orion Car Audio XTR Series build quality

Key Features

• Dual 2 Ohm Voice Coils: Flexible wiring options with 2.5" copper-wound coils for enhanced durability.
• UV-Coated Paper/Fiber Cone: Delivers rigidity and superior sound responsiveness.
• NBR Rubber Surround: Provides excellent durability and allows extensive cone movement.
• Exclusive Heavy-Gauge Stamped Steel Basket: Increases structural integrity and reduces vibration.
• Nickel-Plated Push Terminals: Ensures reliable and easy connections.
• Shallow Mount Design: Perfect for installation in tight spaces without sacrificing performance.

Specifications

• Subwoofer Size: 10 (Inches)
• Voice Coil Configuration: Dual 2-ohm
• Power Handling (Peak): 1600 Watts
• Power Handling (RMS): 400 Watts
• Sensitivity: 83 dB
• Frequency Response: 35 Hz - 300 Hz
• Dustcap Material: Polypropylene
• Cone Material: UV Coated Paper / Fiber Blend Cone
• Surround Material: NBR
• Magnet Information: Ceramic
• Mounting Depth: 87mm / 3.43 (Inches)
• Cutout Diameter: 231mm / 9.09 (Inches)
• Overall Diameter: 275mm / 10.83 (Inches)
