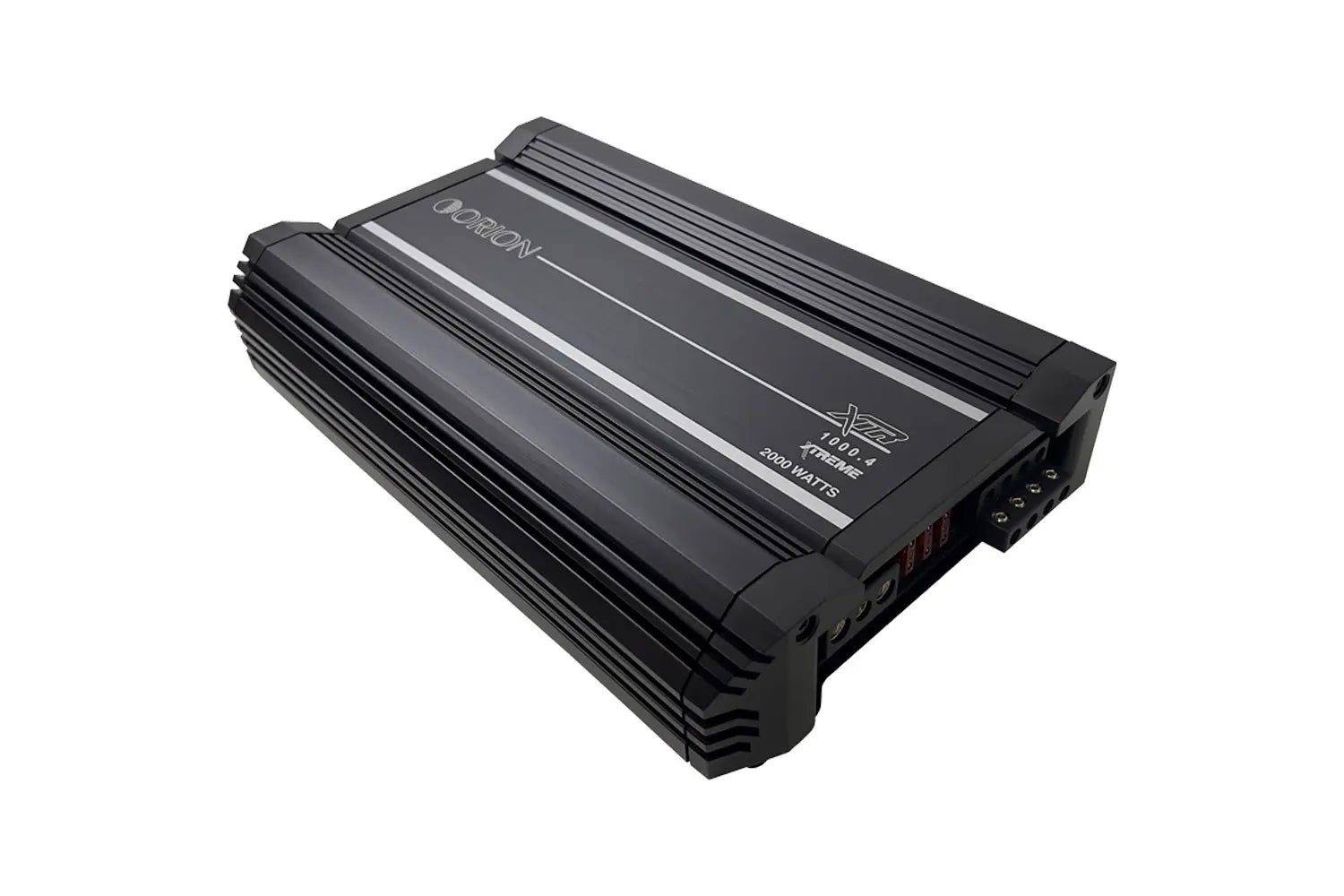

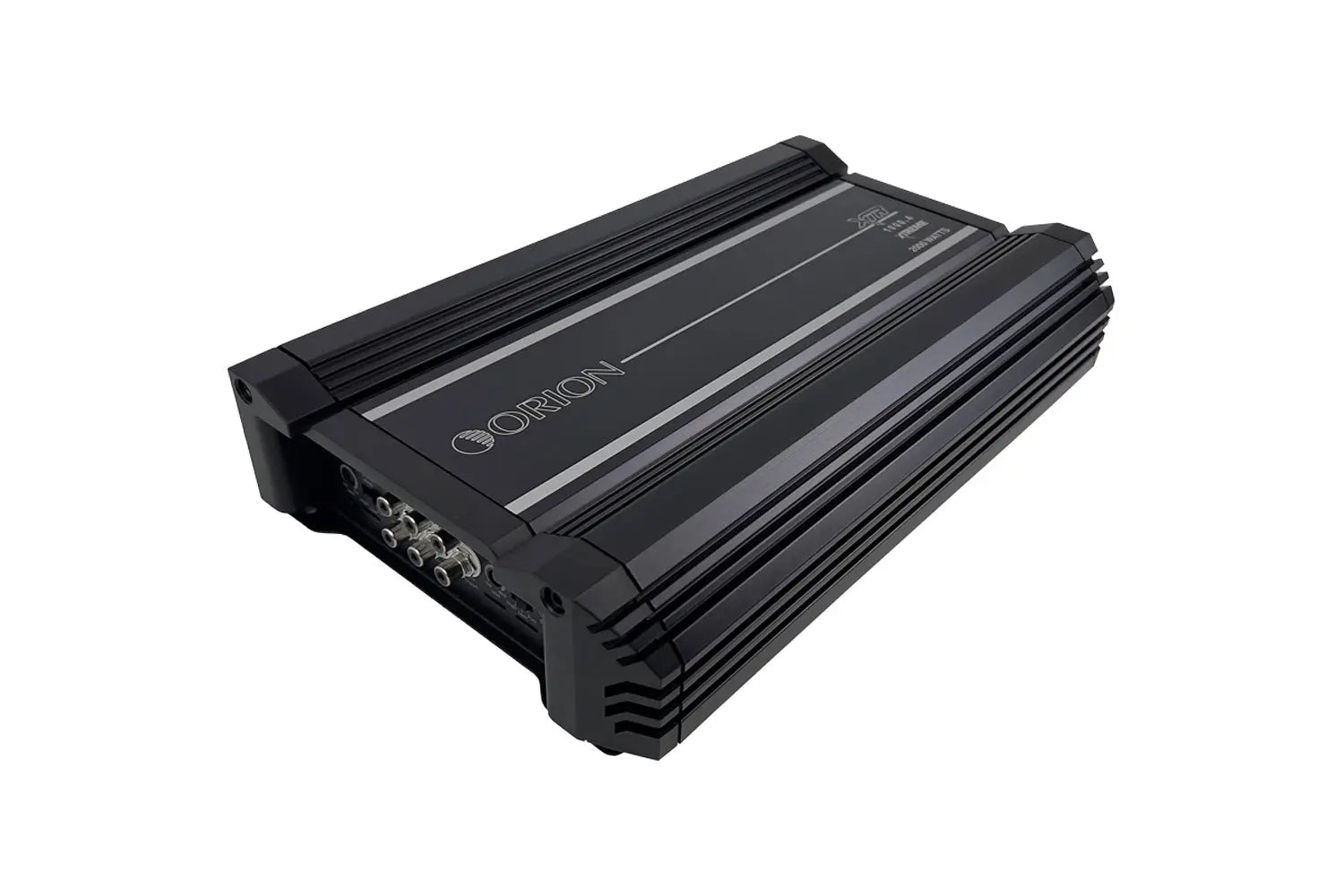

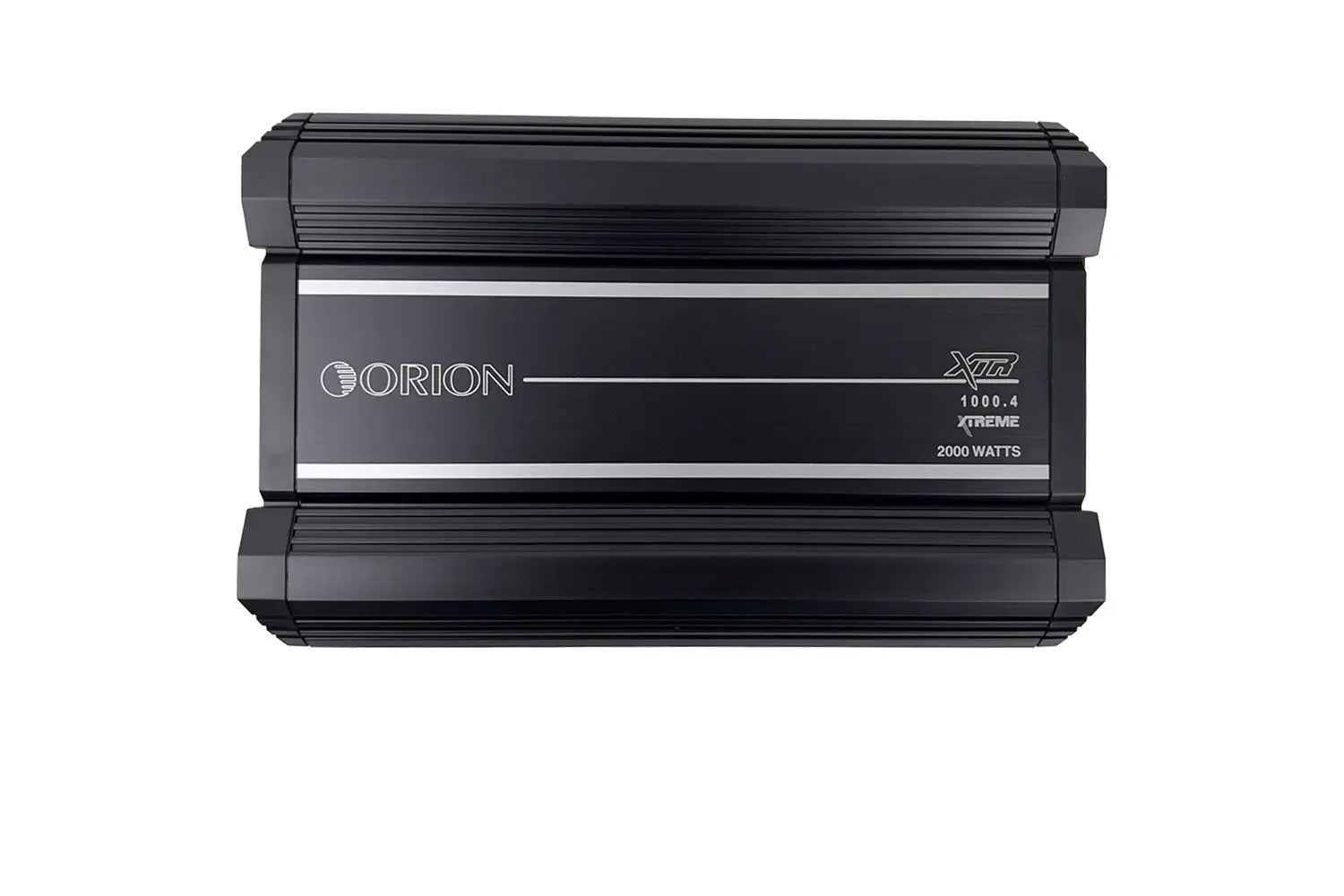

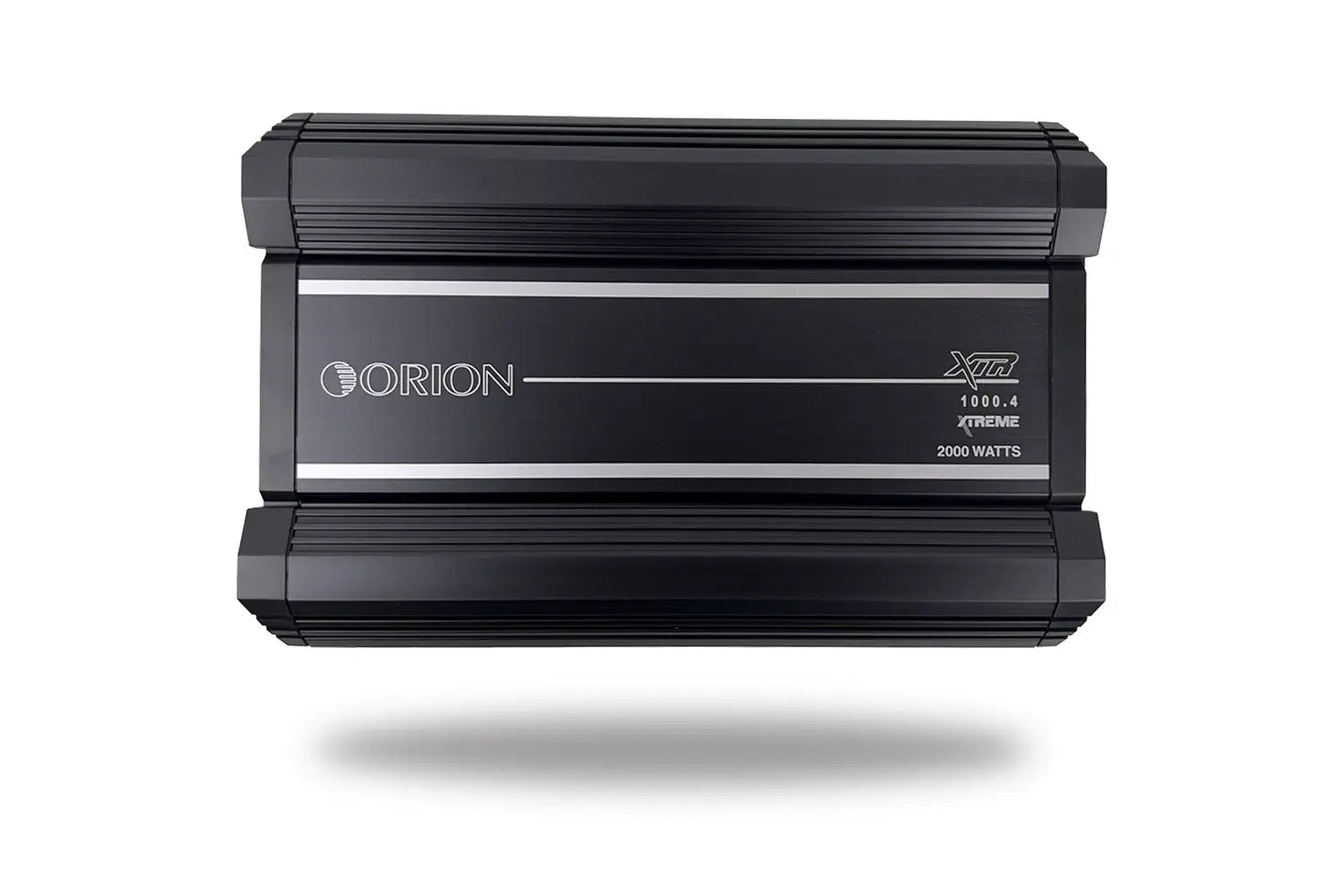

XTR1000.4 - 1000 Watt RMS Class A/B 4 Channel Amplifier
ORION XTR1000.4 XTR Series 1000W RMS 4-Channel Class-AB Amplifier Unleash Auditory Excellence: The ORION XTR1000.4 XTR Series...
- $389.95
- $389.95
- Unit price
- per
Subtotal:
$389.95
Couldn't load pickup availability
25 in stock
ORION XTR1000.4 XTR Series 1000W RMS 4-Channel Class-AB Amplifier
Unleash Auditory Excellence: The ORION XTR1000.4 XTR Series 1000W RMS 4-Channel Class-AB Amplifier empowers your audio journey. With advanced features and precision engineering, this amplifier transcends traditional boundaries, delivering a fusion of power, accuracy, and control to your car audio system.
Immersive Sound Reproduction: Rediscover your music in its purest form. Every note, beat, and melody - from the gentlest to the most dynamic - is meticulously reproduced for an immersive and authentic listening experience.
Robust Power and Precision: Experience your music with robust power and precision. The ORION XTR1000.4 XTR Series Amplifier seamlessly integrates commanding power with exceptional audio quality, crafting a sonic masterpiece that resonates deeply.
Elevate Your Drive: Step into the realm of robust excellence with the ORION XTR1000.4 XTR Series 1000W RMS 4-Channel Class-AB Amplifier. Elevate your audio journey, redefine your driving soundtrack, and immerse yourself in an elevated level of musical satisfaction. It's time to embrace sound in its purest form.
Key Features
- Class AB Amplification: Experience the robust fusion of efficiency and precision with Class AB amplification for powerful and accurate sound reproduction.
- 1000 Watts RMS: Immerse yourself in a world of robust audio excellence with 1000 Watts RMS, delivering commanding and clear sound performance.

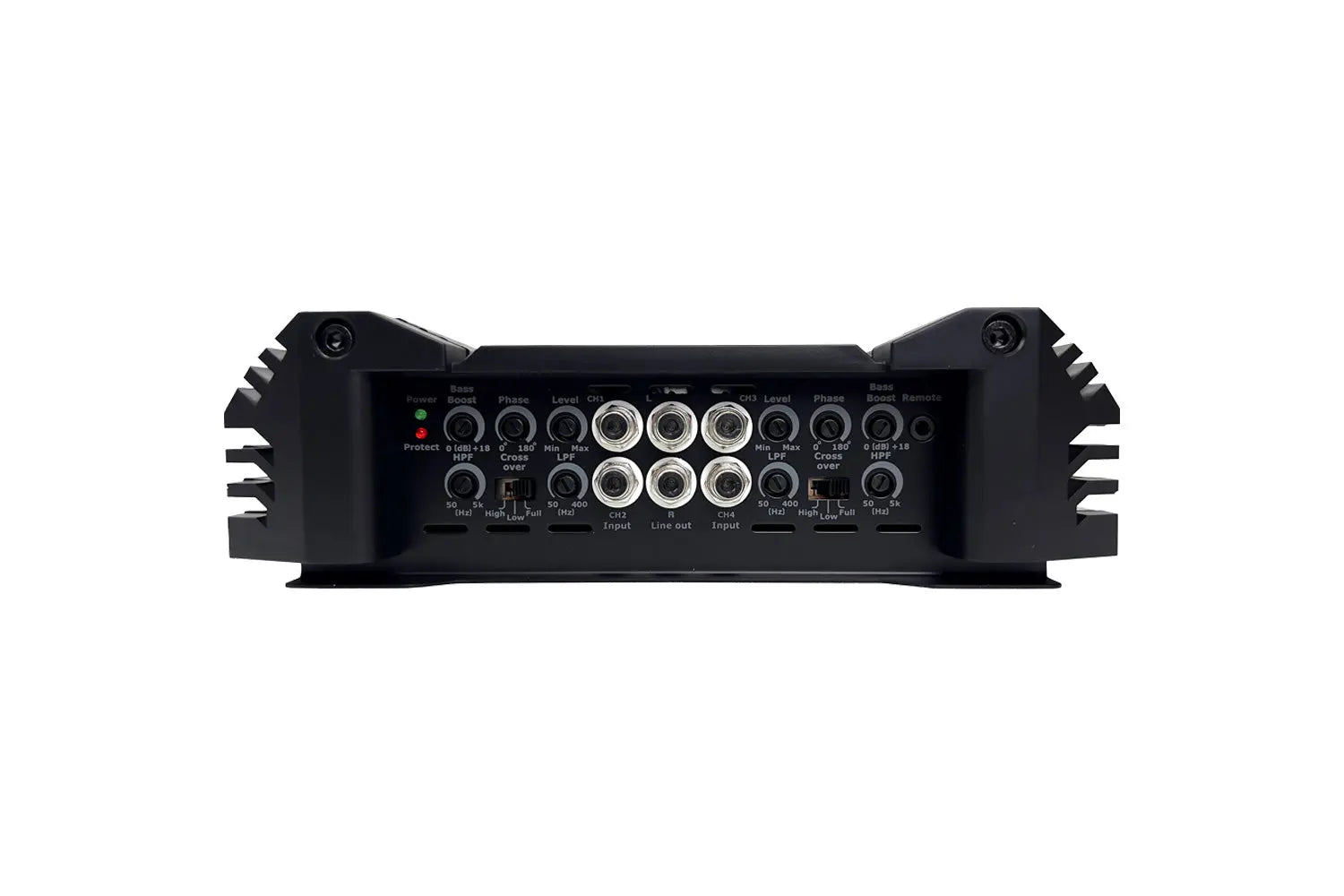

- Precision Audio Control: The adjustable built-in crossover allows meticulous calibration of audio frequencies, optimizing speaker performance.

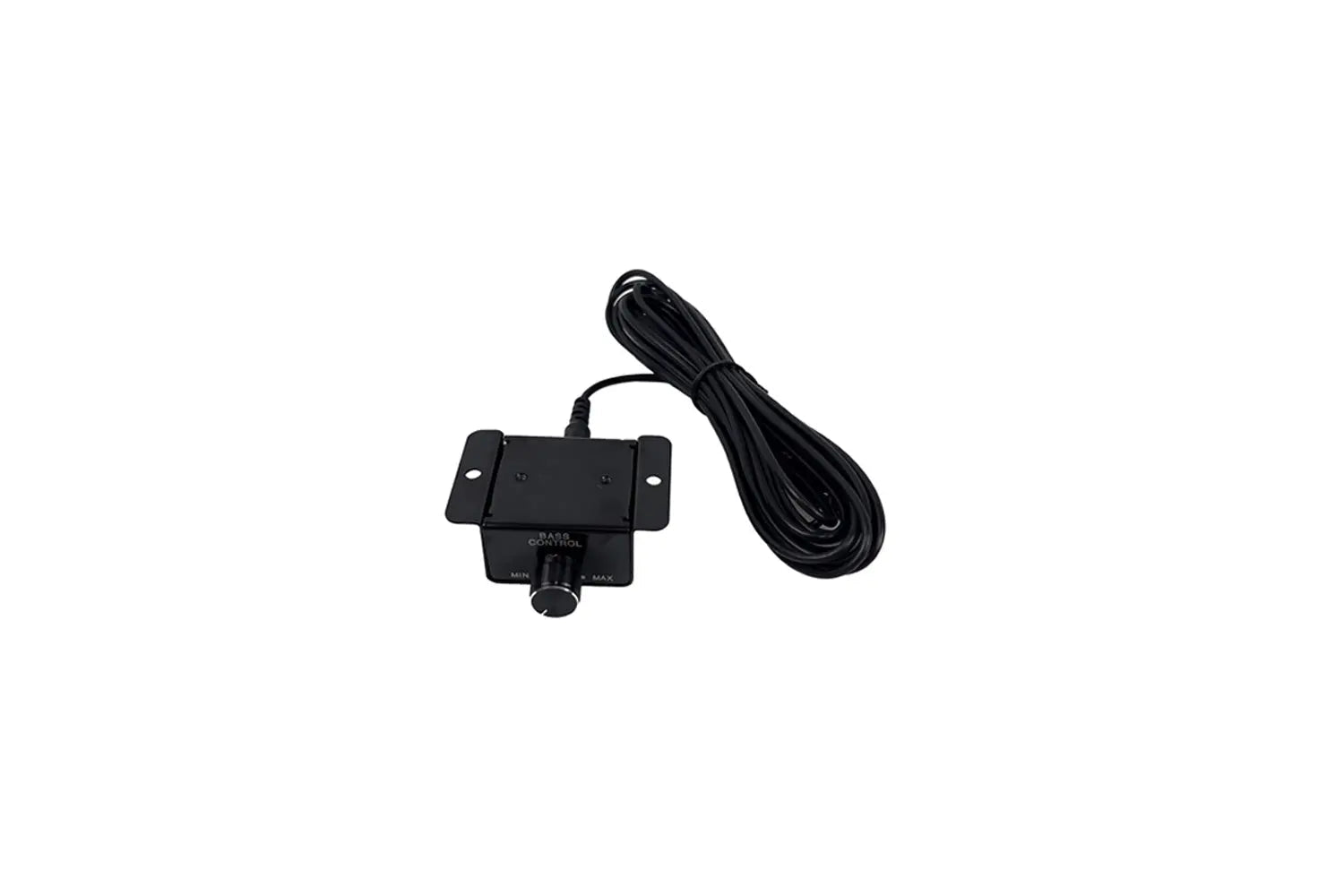

- Customized Bass Enhancement: Elevate your low frequencies with the adjustable bass boost feature, delivering impactful and resonant bass notes.
- Advanced Protection Measures: Equipped with protection circuitry, the amplifier safeguards against overheating and short circuits, ensuring durability.
- Compact and Stylish Design: The amplifier's sleek design offers versatile installation options without compromising performance or aesthetics.
- Engineered Excellence: Meticulously engineered for optimal audio precision, power efficiency, and steadfast operation.
- -All MOSFET Power Supply & Output Stage
- -Heavy Gauge / High Current Custom Power and Speaker Terminals
- -2-Ohm Stable
- -RCA Out Throughput
- -12dB Octave Low-Pass Filter
- -Electronic Crossover Network
- -Bass Boost Circuit
- -Intelligent Power and
- -Protection LED Indicator
- -Soft Turn-on/Turn-off
- -Turn-On Delay
- -Fault and Protection Monitoring
- -4-Way Protection: Thermal, DC offset, Short Protection, under & over voltage
Power Rating
- - RMS WATTS @ 4 Ohms @ 0.5% THD+N: 4 x 165W
- - RMS WATTS @ 2 Ohms @ 0.5% THD+N: 4 x 250W
- - RMS WATTS @ 4 Ohms @ 0.5% THD+N: 2 x 500W

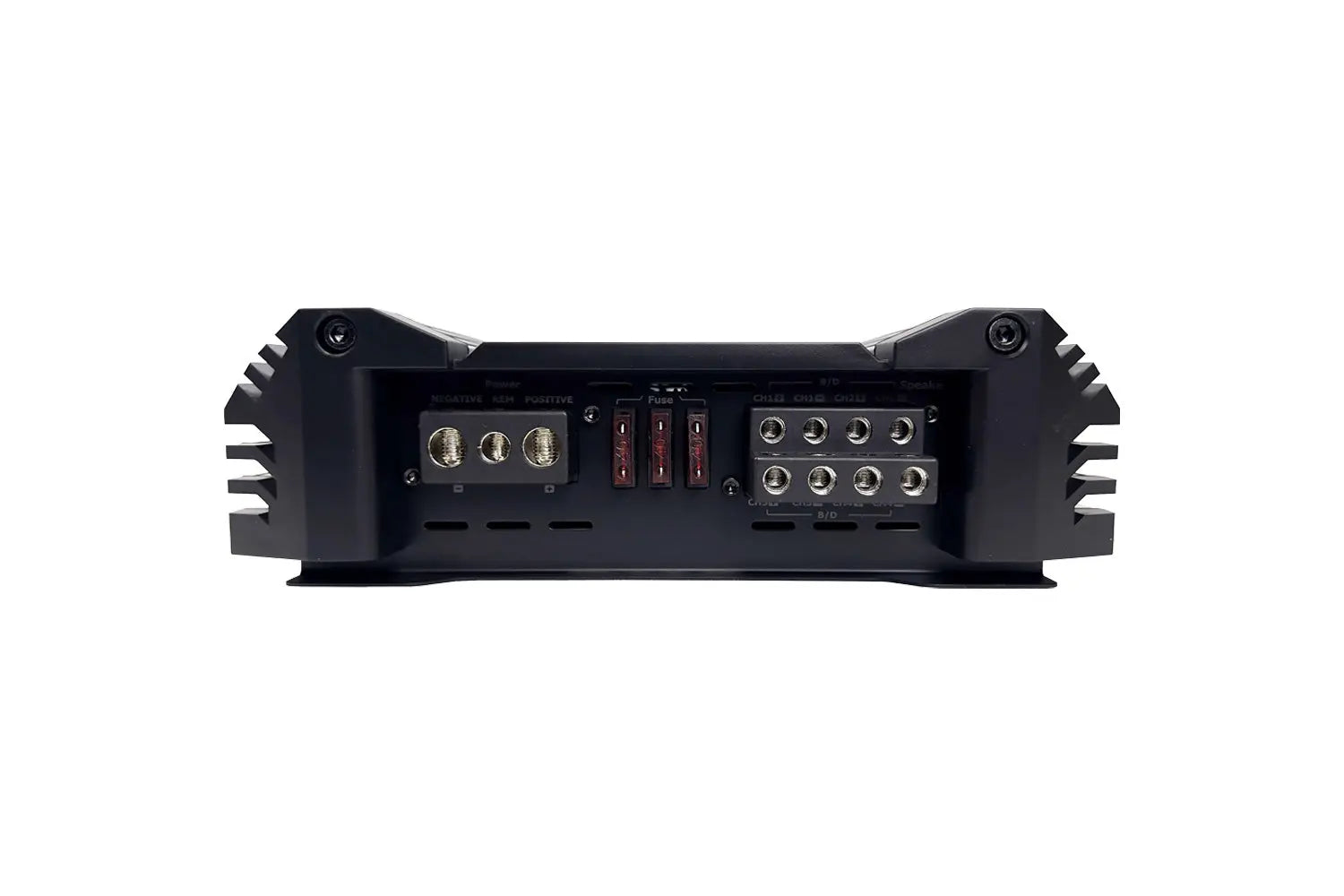

- POWER TERMINAL MANAGEMENT
- Positive Terminals: 1 x 4 AWG.
- Negative Terminals: 1 x 4 AWG.
- Remote Turn-ON Signal: 10 AWG.
- Speaker Output Terminals: 10 AWG.
Specifications
- -Frequency Response: 20Hz - 350kHz
- -Linear Bandwidth 20Hz to 65kHz +/- 3 dB
- -High Pass Crossover Continuously variable (50-5kHz)
- -Low Pass Crossover Continuously variable (50-400Hz)
- -Supply Voltage: 9 - 16V
- -Amplifier Efficiency: >60%
- -Damping Factor: 100dB
- -Signal to Noise Ratio: >90dB
- -T.H.D. & Noise: 0.5%
- -Phase Shift: 0 - 180
- -Bass Boost: 0-18dB Variable
- -Variable Input Level Control: 0.2V - 6.0V
- -Fuses: 120A recommended (3 x 40A ATC Fuses)
- -Dimensions (L x W x H): 14.17" x 9.25" x 2.75" (360x235x70mm)
