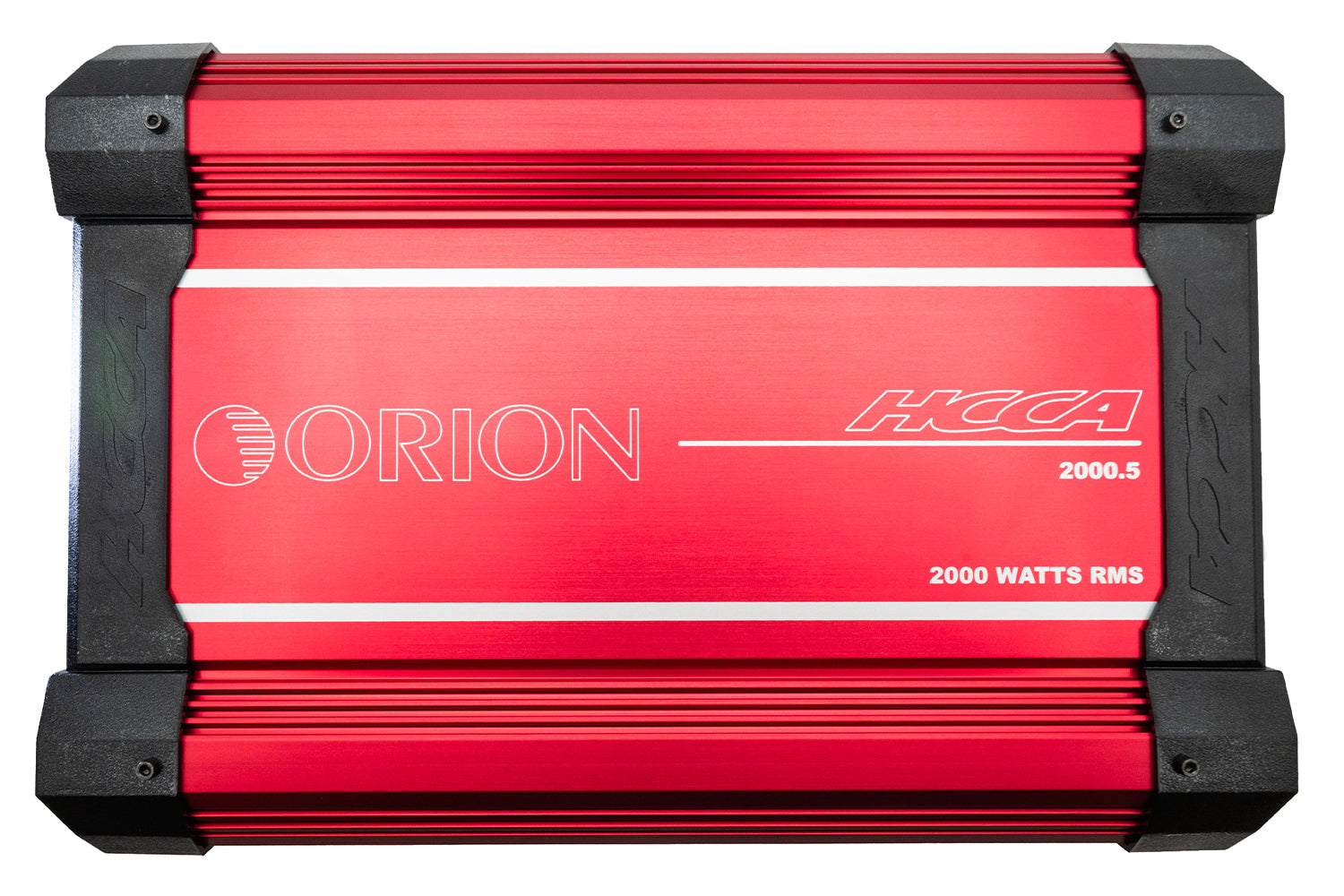

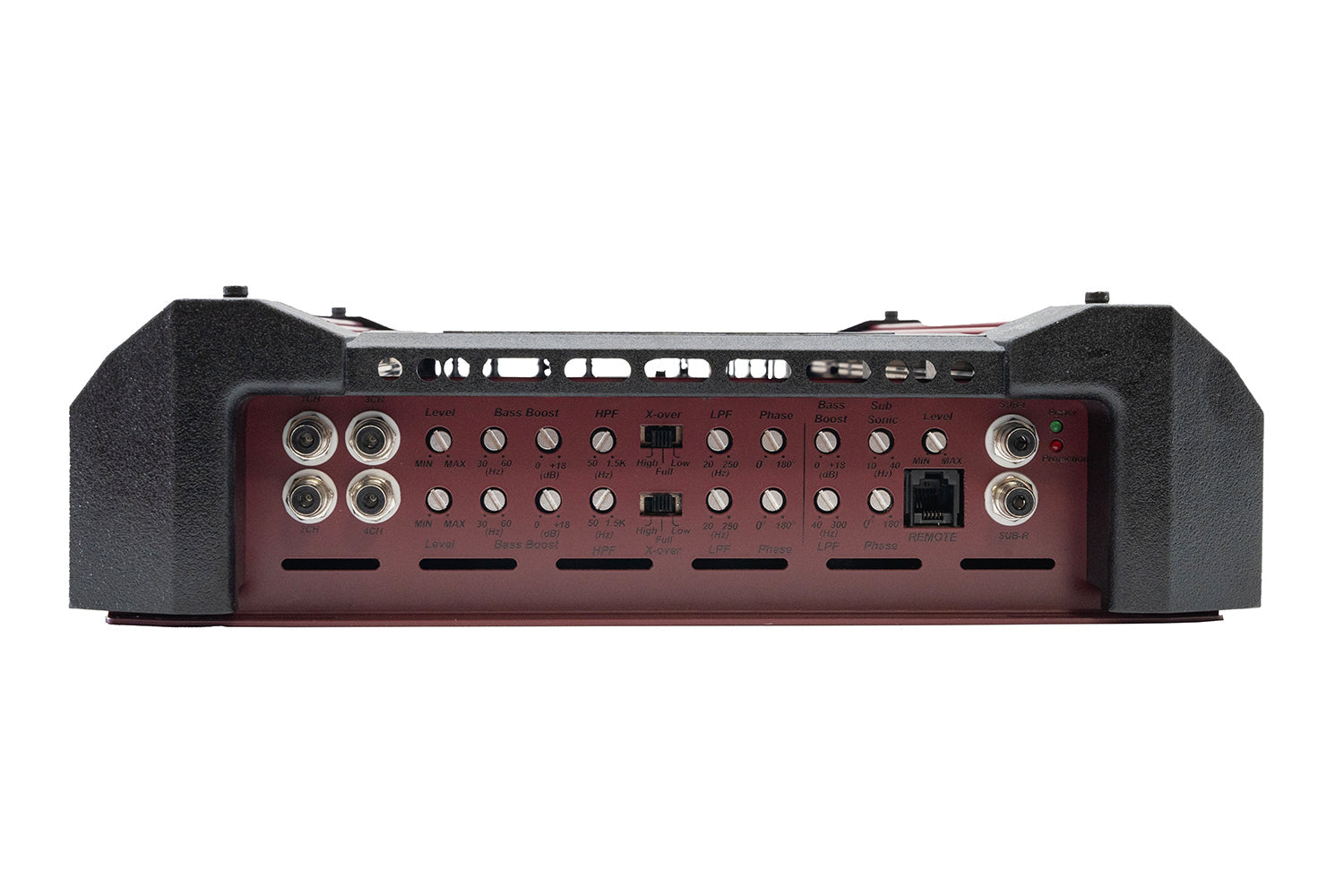

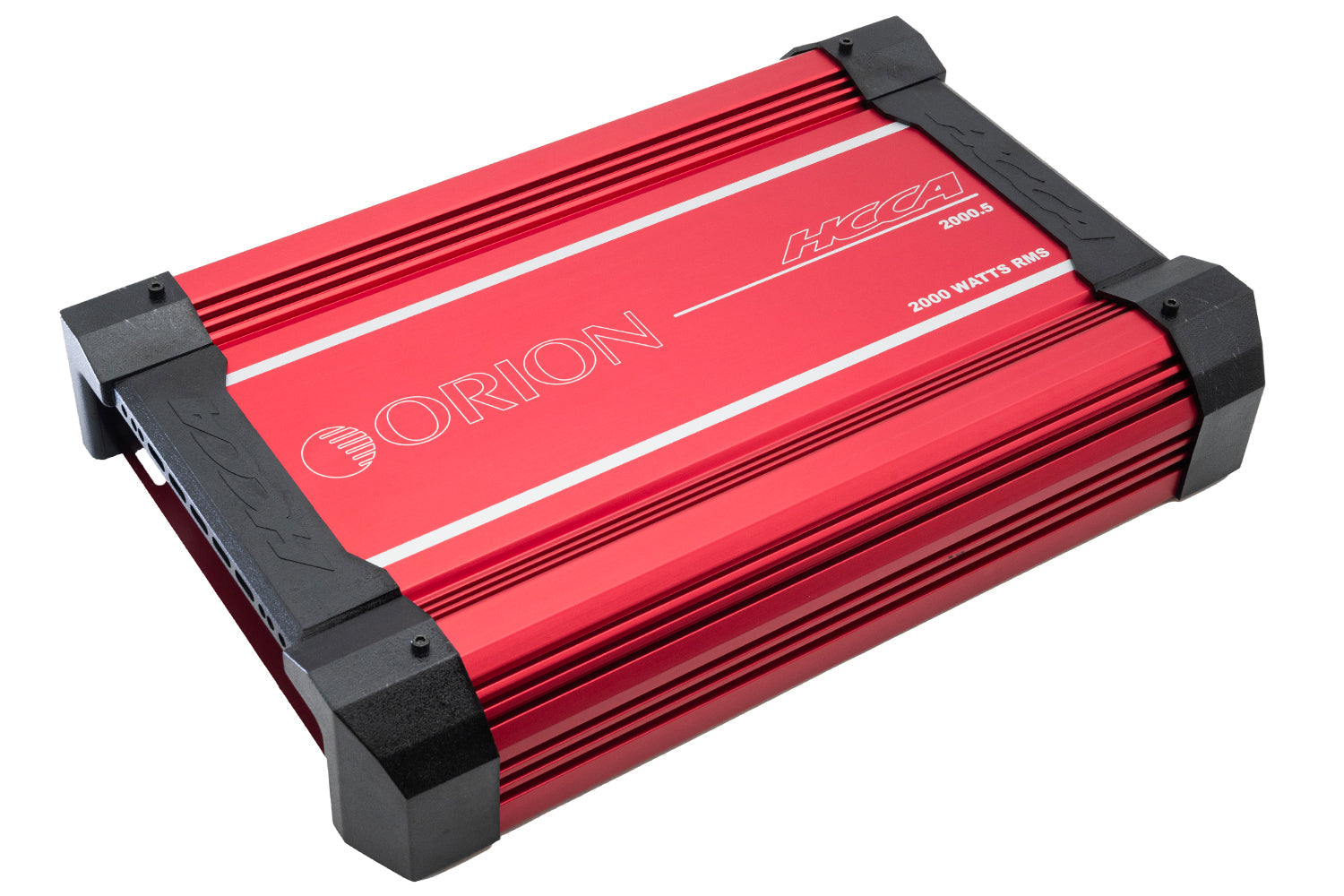

HCCA2000.5 - 2000W RMS 5-Channel Class-AB/D Amplifier For Car

ORION HCCA2000.5 HCCA Series 2000W RMS 5-Channel Class-AB/D Amplifier For Car

Unleash Audiophile-Grade Power and Precision: The ORION HCCA2000.5 HCCA Series 2000W RMS 5-Channel Class-AB/D Amplifier sets a new standard for audio excellence, delivering a perfect amalgamation of power, precision, and efficiency. Engineered for discerning audiophiles, this amplifier redefines your audio experience, offering an unmatched level of sonic clarity and impact.

Elevate Your Audio Journey: Elevate your audio experience with the ORION HCCA2000.5 HCCA Series 2000W RMS 5-Channel Class-AB/D Amplifier. Expertly designed and equipped with advanced features, this amplifier transforms your listening into an immersive masterpiece.

Uncompromising Sound Fidelity: Rediscover your music with unparalleled accuracy and detail. From gentle harmonies to impactful beats, every sonic nuance is faithfully reproduced.

Unmatched Power and Precision: Experience a harmonious blend of power and precision that redefines your audio landscape. The ORION HCCA2000.5 HCCA Series Amplifier seamlessly marries commanding power with sonic accuracy, creating an auditory journey that captivates the senses.

Elevate Your Drive: Elevate your driving experience with the ORION HCCA2000.5 HCCA Series 2000W RMS 5-Channel Class-AB/D Amplifier. Transform your audio journey and indulge in a level of sonic excellence that exceeds all expectations.

Key Features

• Class-AB/D Amplification: Experience the synergistic power of Class-AB/D amplification, combining the efficiency of Class B with the sound quality of Class A and D.
• 2000 Watts RMS: Immerse yourself in a world of commanding audio power with 2000 Watts RMS, delivering impactful and detailed sound performance.
• Precision Audio Control: The adjustable built-in crossover allows meticulous calibration of audio frequencies, optimizing speaker performance. Customized Bass Enhancement: Elevate your low frequencies with the adjustable bass boost feature, delivering impactful and resonant bass notes.
• Advanced Protection Measures: Equipped with protection circuitry, the amplifier safeguards against overheating and short circuits, ensuring lasting reliability.
• Sleek and Stylish Design: The amplifier's sleek design seamlessly integrates into your audio setup, adding sophistication to your system.
• Engineered Excellence: Meticulously engineered for optimal audio precision, power efficiency, and consistent performance.
• All MOSFET Power Supply

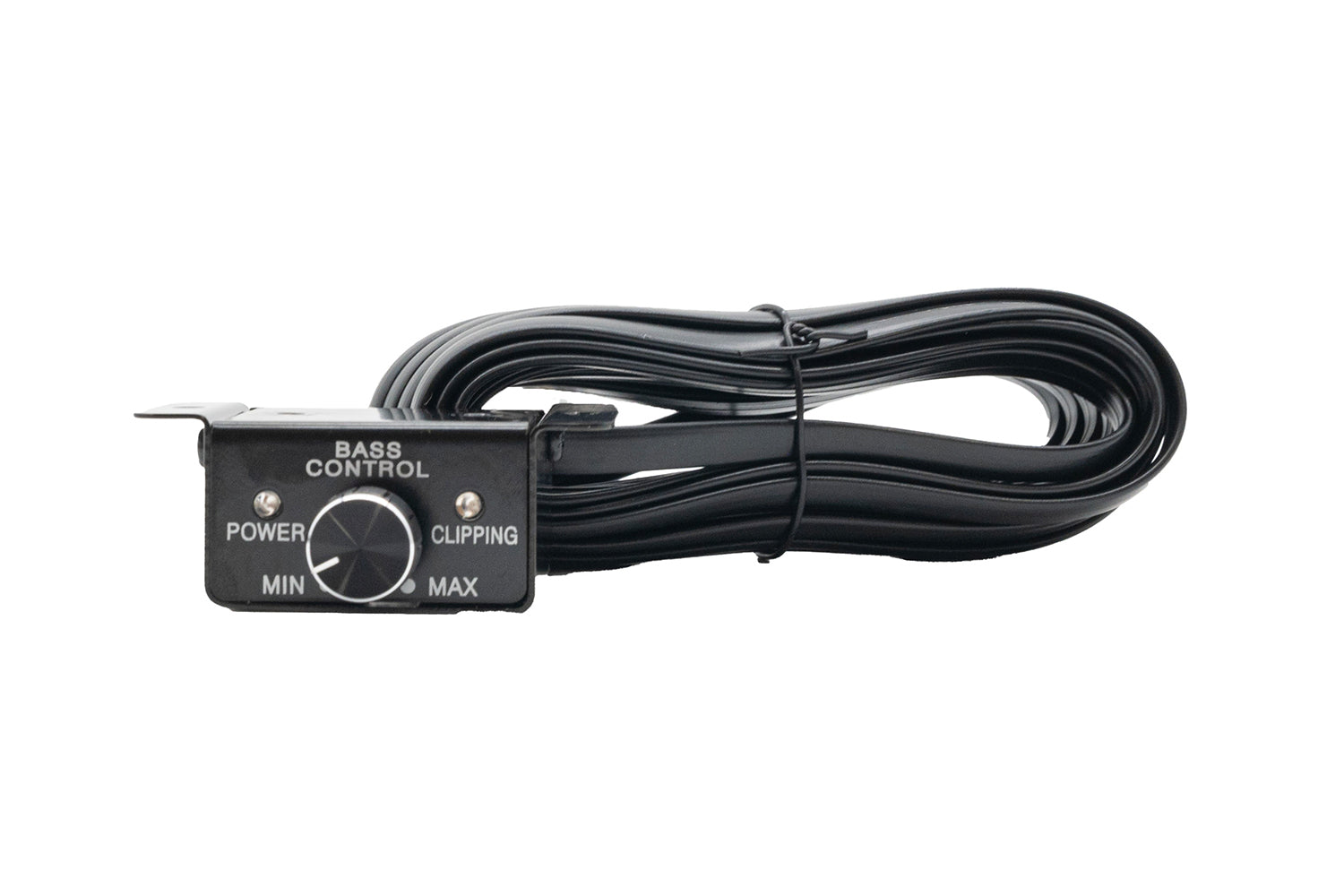

• Remote Gain Control
• Heavy Gauge Direct-Wire High Current Power and Speaker Terminals
• Electronic Crossover Network
• Bass Boost Circuitry
• Tri-Mode Capable
• High-Pass/Low-Pass Filter Control
• Power and Protection LED Indicators
• Soft Turn-on/Turn-off
• Balanced Input (CMRR)
• Fault and Protection Monitoring
• 4-Way Protection: Thermal, DC offset, Short Protection, under & over voltage

Power Rating

• - RMS WATTS @ 4 Ohms @ 0.5% THD+N: 4 x 220W + 1 x 650W
• - RMS WATTS @ 2 Ohms @ 0.5% THD+N: 4 x 330W + 1 x 1000W
• - RMS WATTS @ 1 Ohms @ 0.5% THD+N: 4 x Not Supported + 1 x 650W

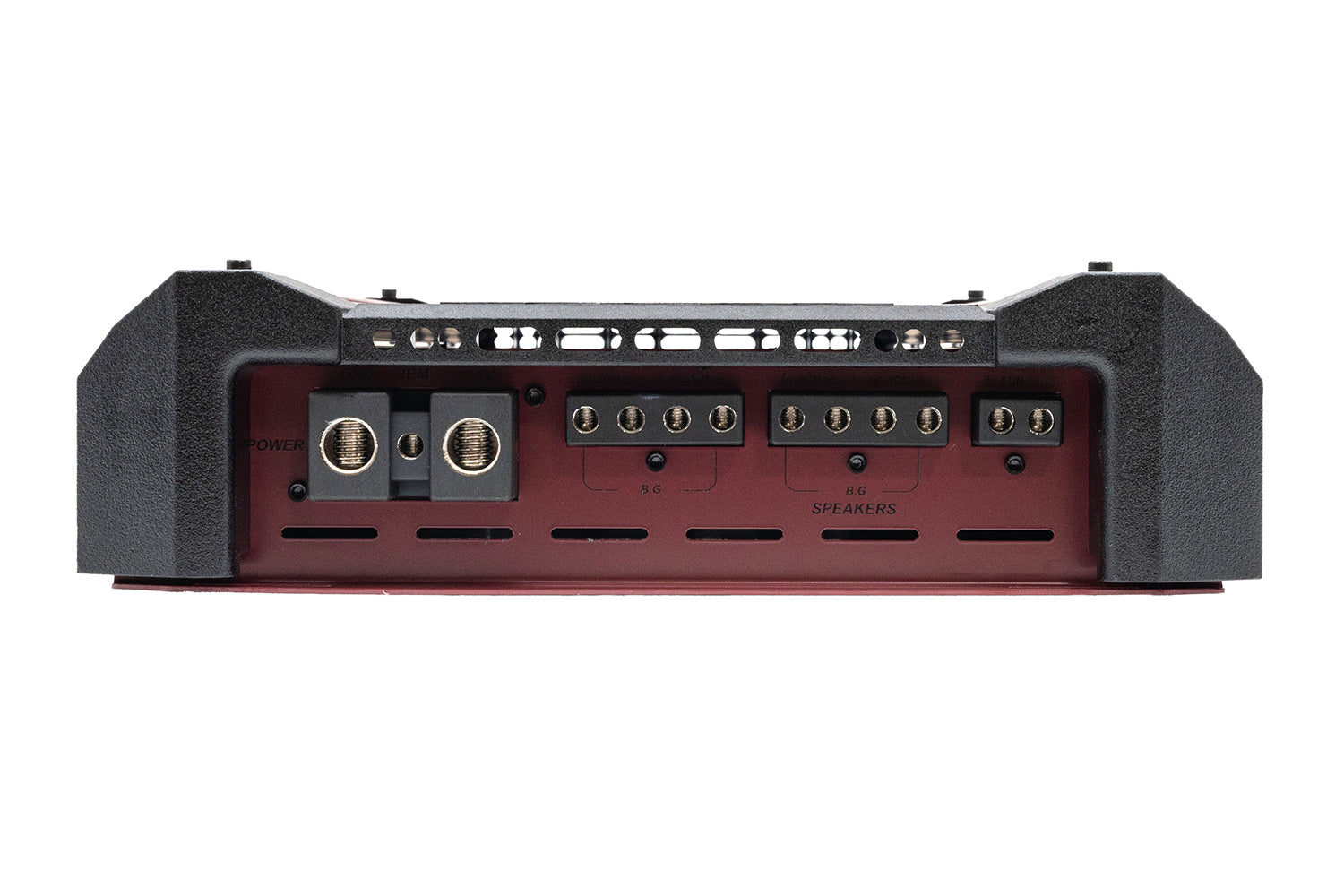

• POWER TERMINAL MANAGEMENT
• Positive Terminals: 1 x 0 AWG.
• Negative Terminals: 1 x 4 AWG.
• Remote Turn-ON Signal: 10 AWG.
• Speaker Output Terminals: 10 AWG.

Specifications

• - Frequency Response 10Hz to 35kHz +/- 1 dB
• - Linear Bandwidth 20Hz to 65kHz +/- 3 dB
• - High Pass Crossover Continuously variable (40-1.25kHz/400-12.5kHz)
• - Low Pass Crossover Continuously variable (40-300Hz)
• - Phase shift control 0 to 180
• - Bass Boost 0-18dB variable
• - Distortion at Rated Power 0.005% THD+N
• - Damping Factor > 100
• - Input Sensitivity(RMS) 200mV to 6V
• - Supply Voltage Range 9 to 16V
• - Input Impedance 20K Ohms
• - Amplifier Efficiency > 67% into 2 Ohms load at max. power
• - SNR at rated output power and lowest impedance > 95dB
• - Fuses: 200A recommended (not included)
• - Dimensions (L x W x H): 17.5" x 12" x 3.5" (444.5x304.8x88.9mm)
