Orion HCCA154SPL - 15 Inch Dual 4 Ohm SPL High Power Subwoofer | 5000W RMS Extreme Bass Power

Competition-Grade 15 Inch Subwoofer Built for Maximum SPL Output | High Power Subwoofer

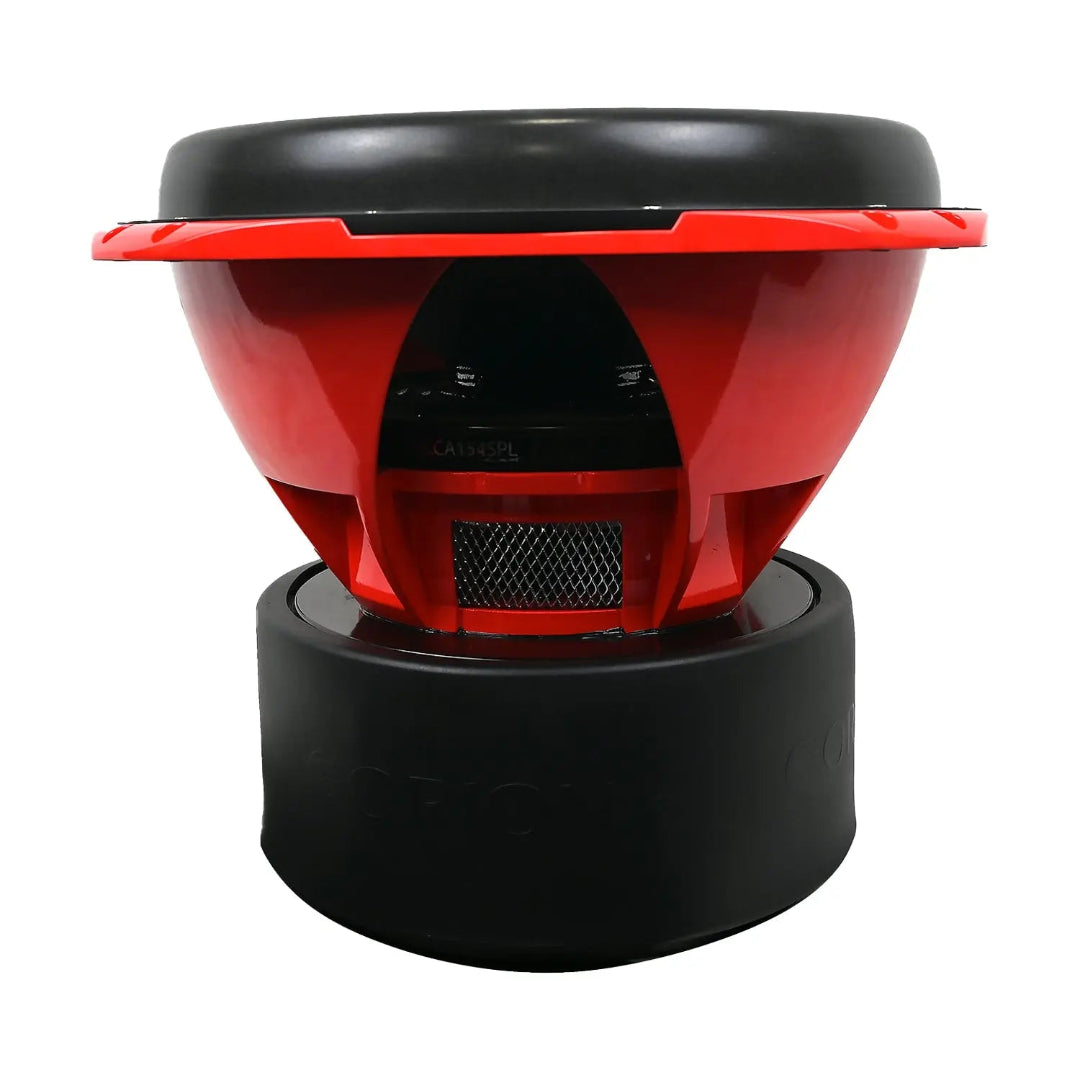

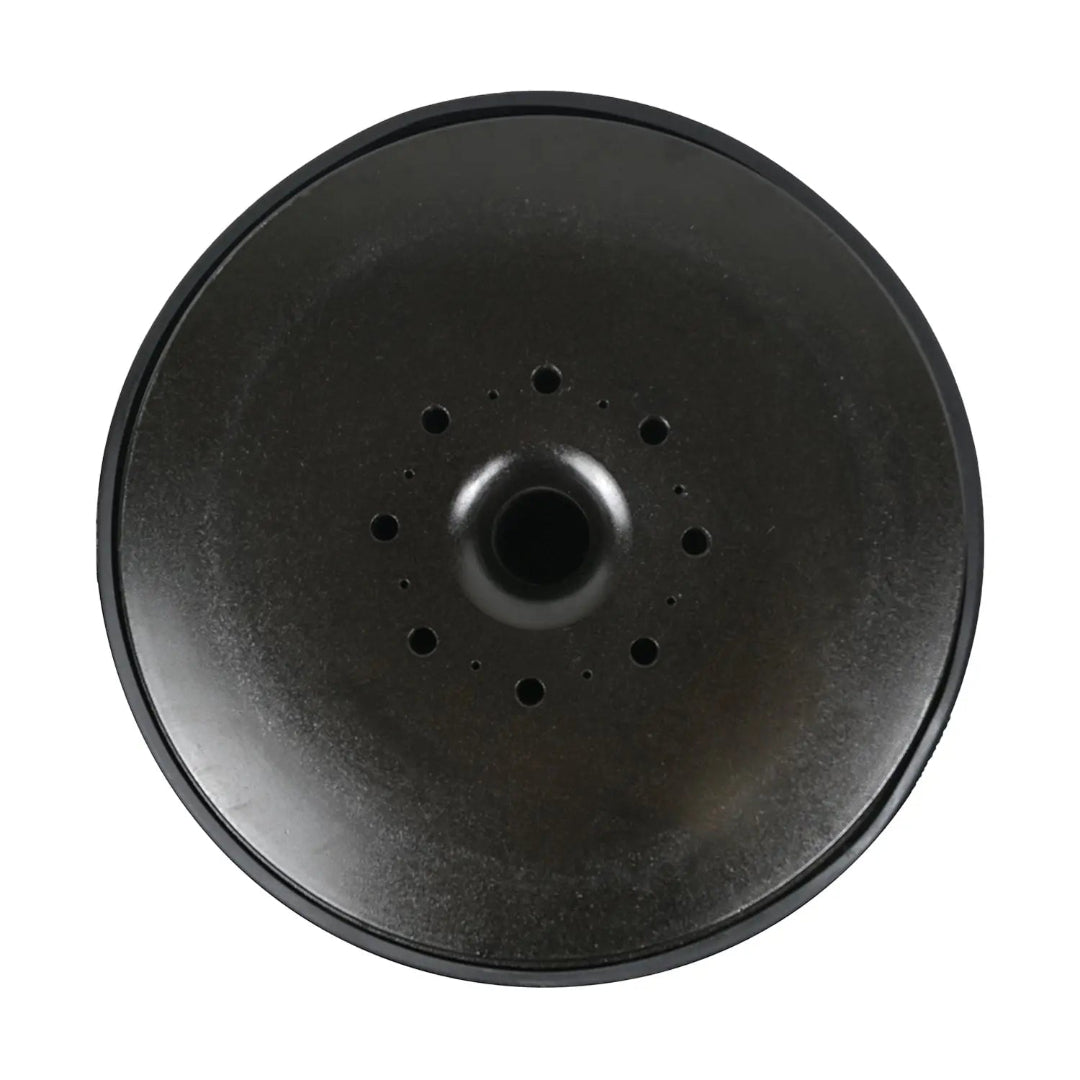

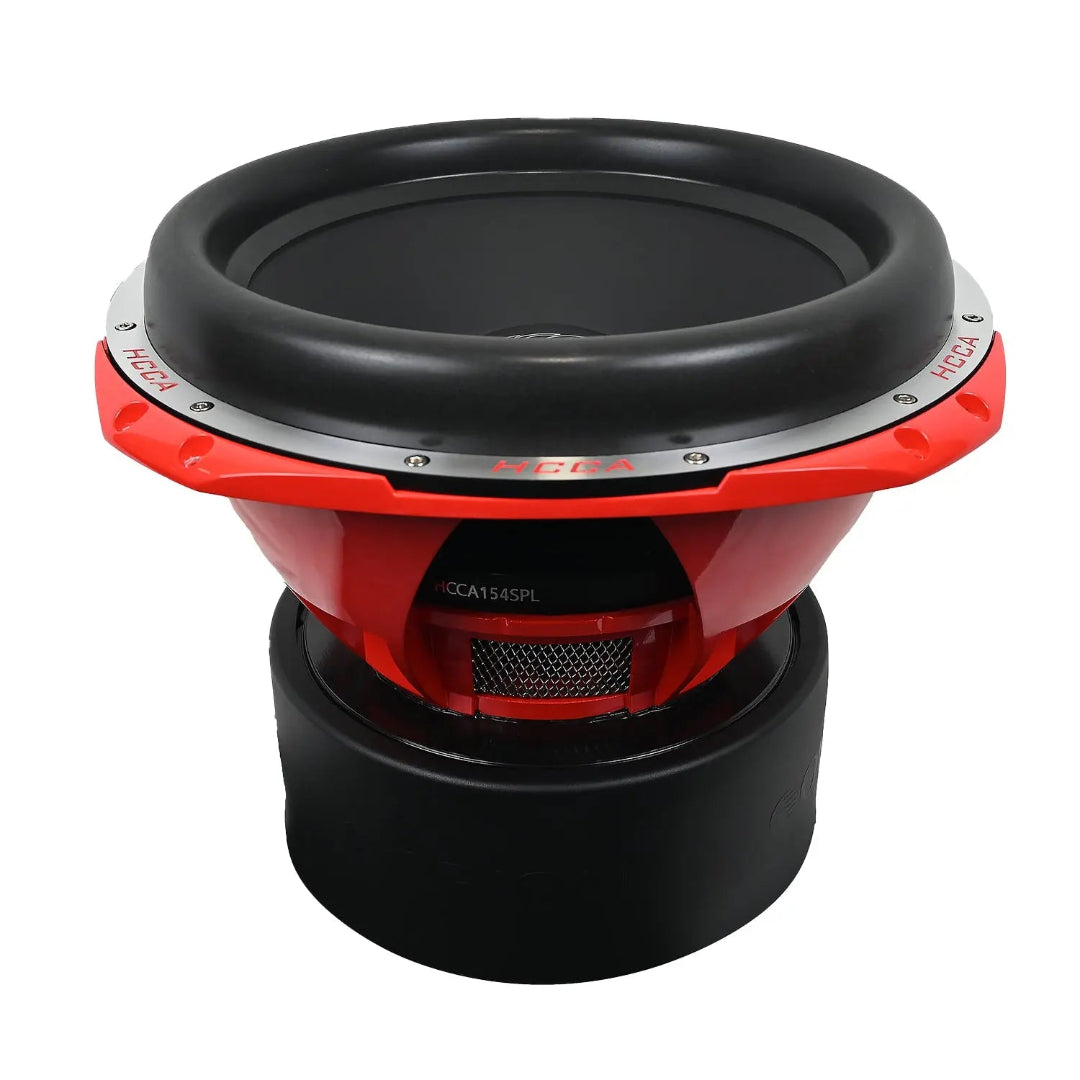

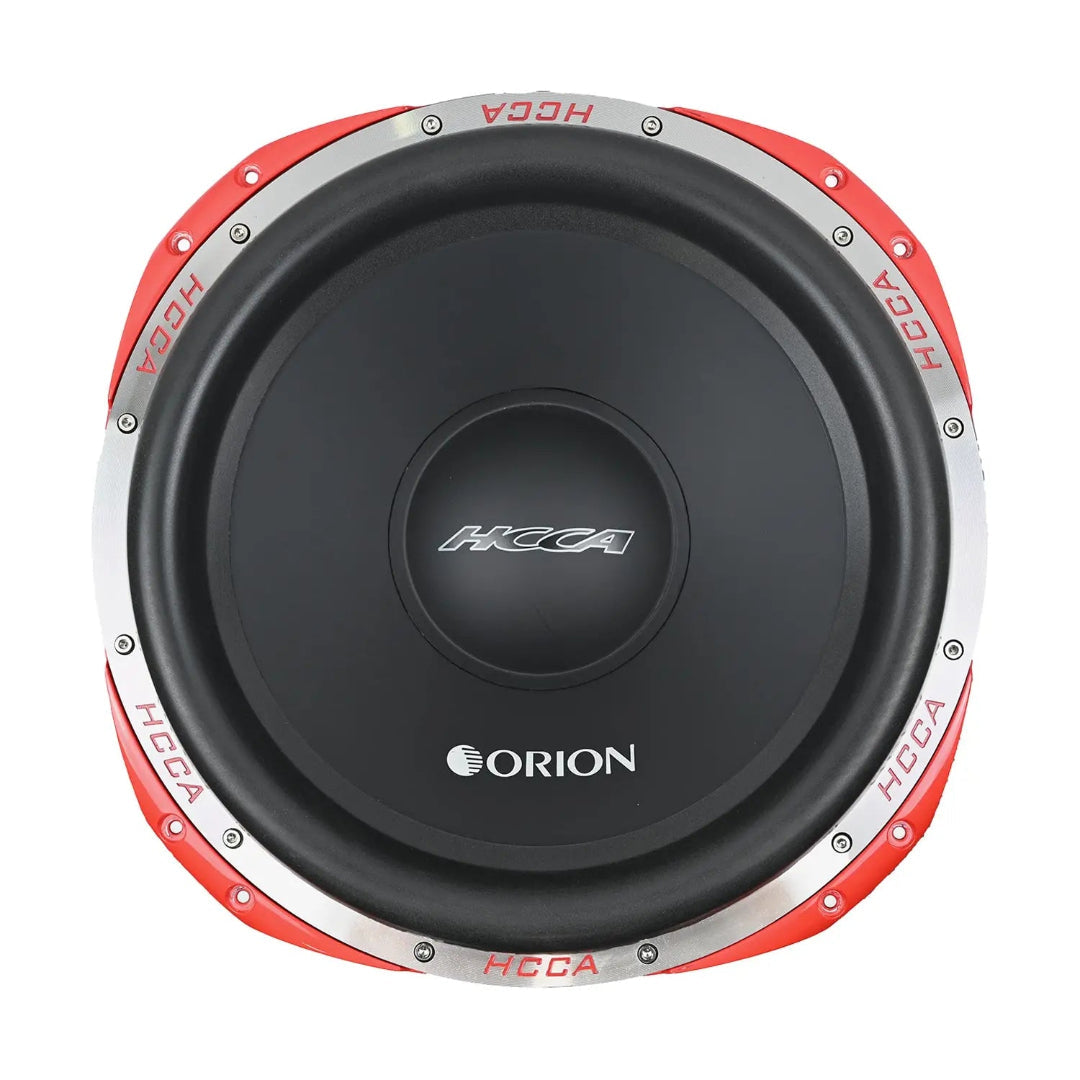

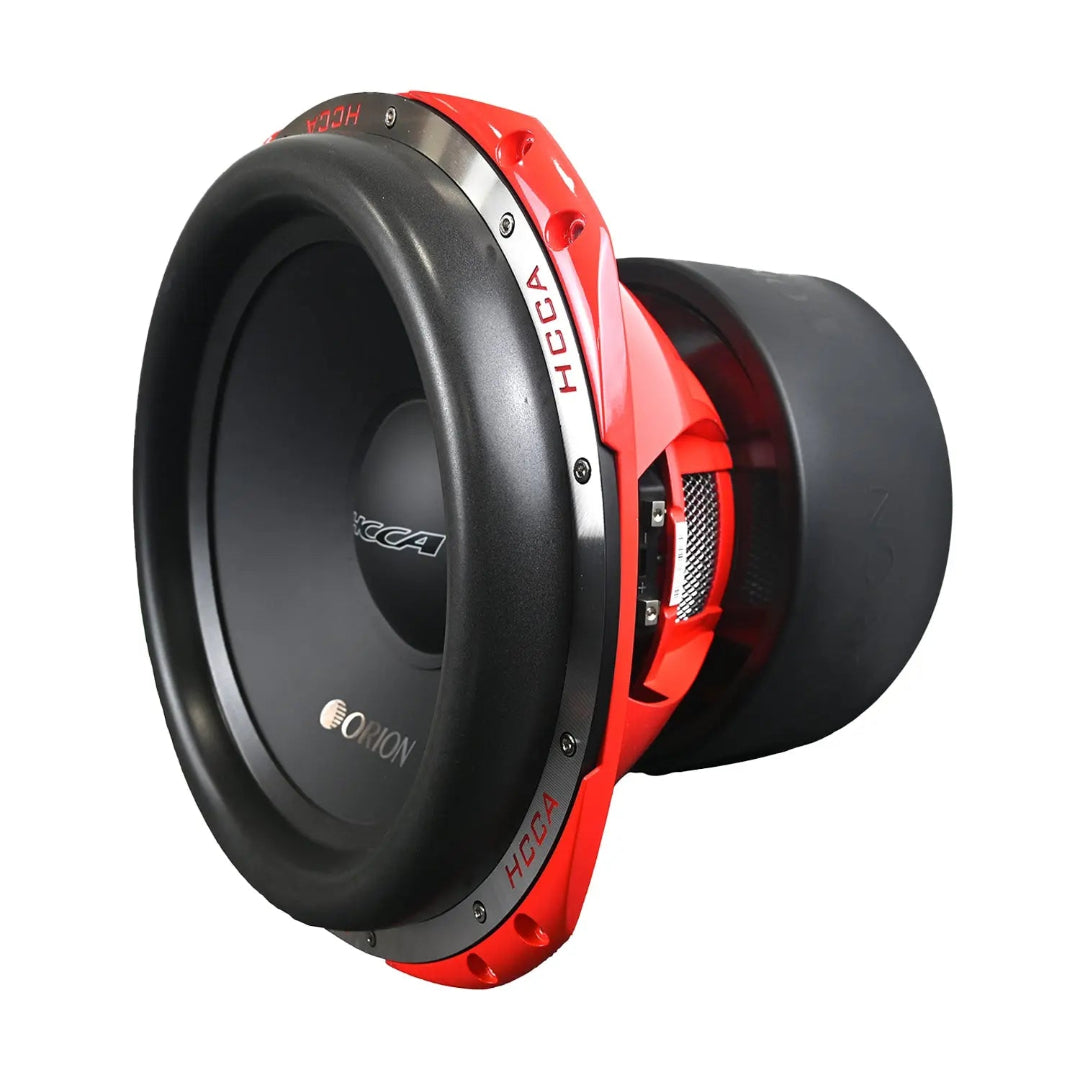

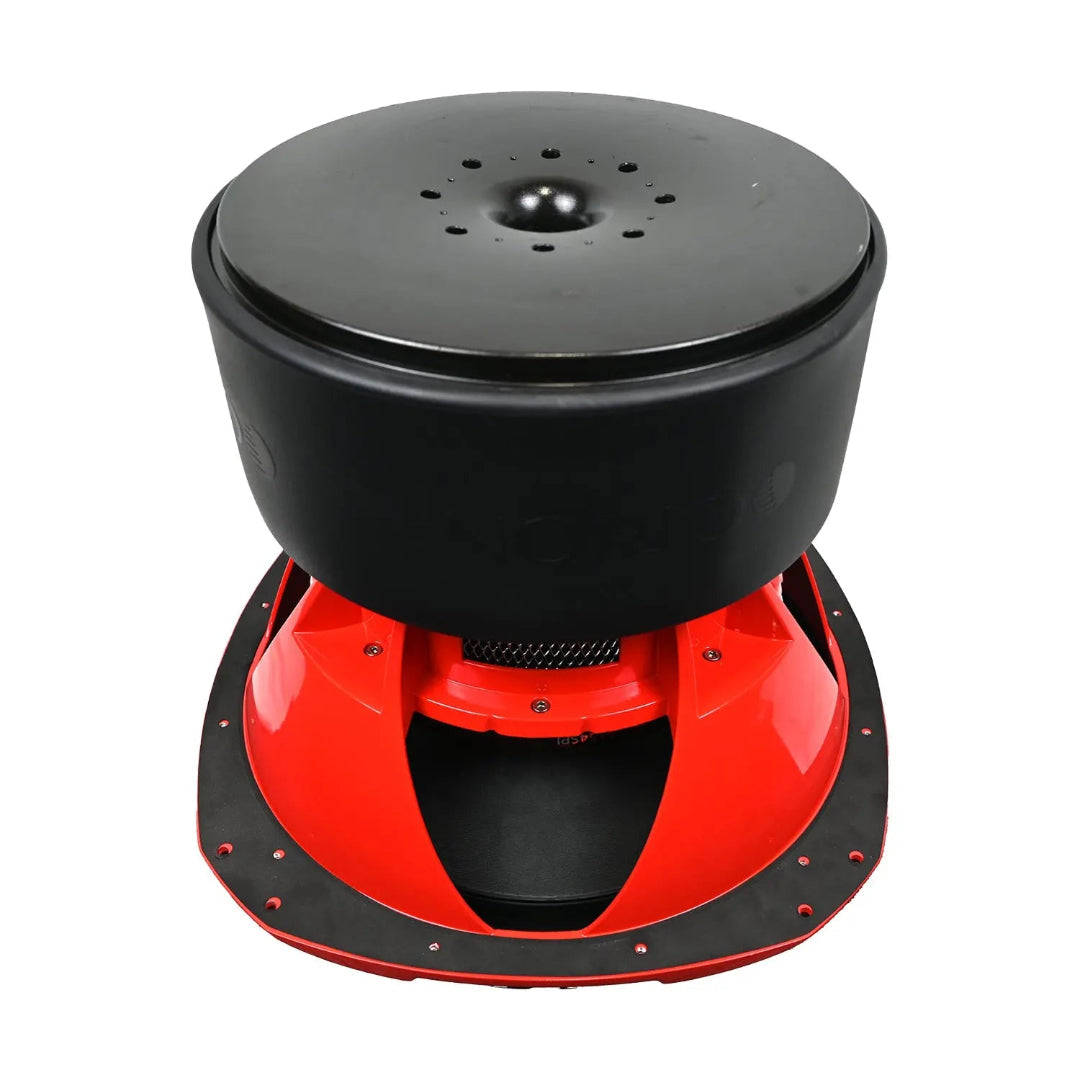

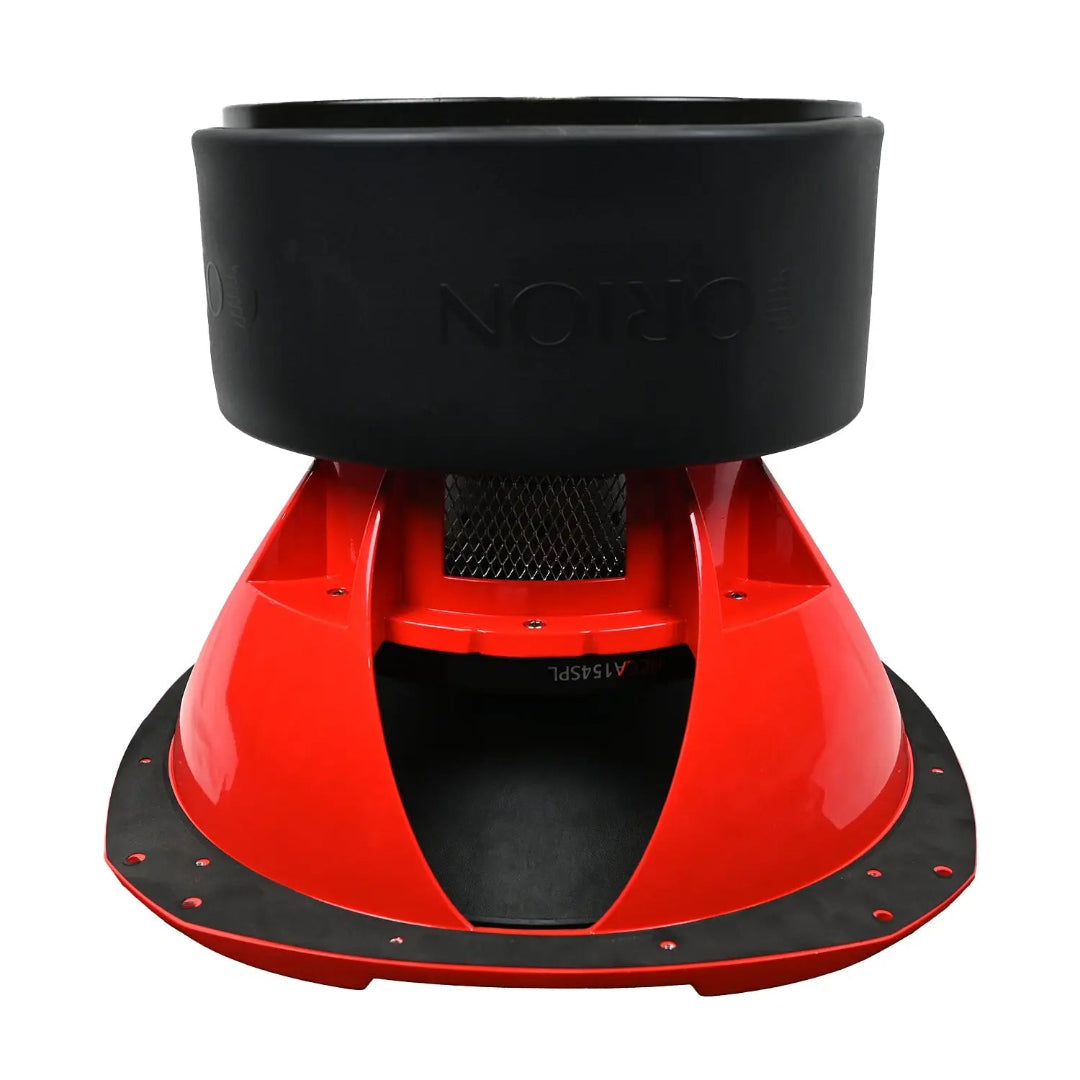

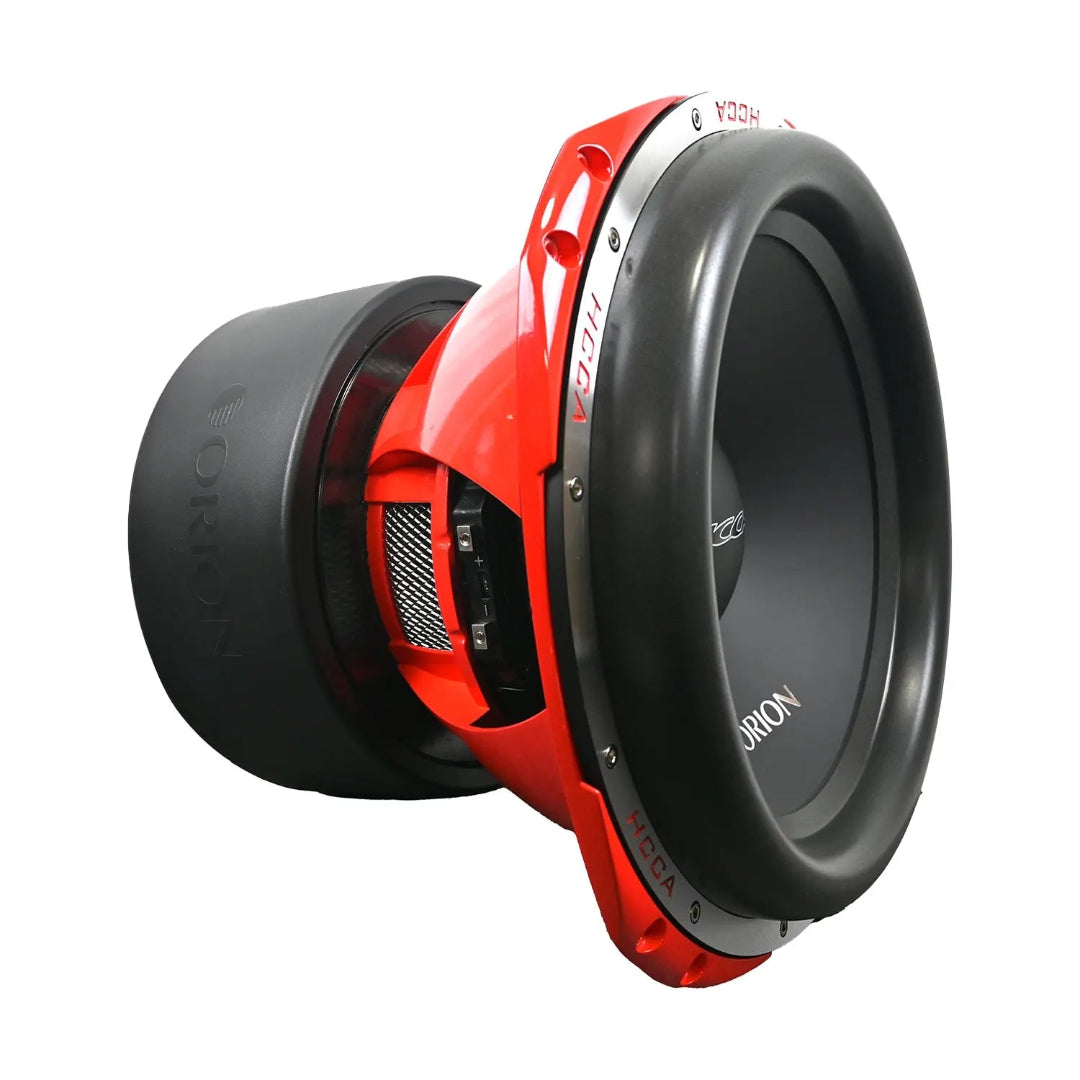

The Orion HCCA154SPL is engineered for extreme sound pressure levels. Specifically, this 15 inch dual 4 ohm SPL competition subwoofer delivers massive low-frequency output with authority. As a result, it performs exceptionally well in high-power SPL systems. With 5000W RMS and 20000W peak power, it is built to handle intense power without compromise.

Additionally, the dual 4-ohm voice coil configuration offers flexible wiring options. Because of this, it adapts easily to different competition amplifier setups. Therefore, the HCCA154SPL fits SPL competition vehicles, demo builds, and extreme bass walls where output matters most.

Built for Extreme SPL Abuse

To withstand extreme output, the HCCA154SPL uses a moisture- and UV-resistant paper cone. Moreover, it features a reinforced NBR foam surround that supports massive cone movement. Together, these components help maintain control during violent excursion.

At its core, the subwoofer uses a huge 4-inch high-temperature voice coil. As a result, it manages extreme heat during competition runs. In addition, a 690 oz triple-stack ceramic magnet motor structure delivers enormous motor force. This design maximizes efficiency and output under extreme power levels. Experience ground-shaking bass using a High Power Subwoofer

Ideal For

• SPL competition vehicles
• Extreme bass demo builds
• Multi-subwoofer bass walls
• High-voltage, high-power audio systems

Key Features

• 15 inch dual 4 ohm SPL competition subwoofer
• 5000W RMS / 20000W peak power handling
• Massive 4" high-temperature voice coil
• Moisture- and UV-resistant paper cone
• Reinforced NBR foam surround for extreme excursion
• Polypropylene dustcap for added cone strength
• Huge 690 oz triple-stack ceramic magnet
• Designed specifically for maximum SPL output
• Optimized for competition-style enclosures
• Legendary Orion Car Audio HCCA SPL Series engineering

Key Features

• Extreme Competition Power: The Orion HCCA154SPL subwoofer is engineered to handle extreme competition power levels with an impressive RMS power handling of 5000 Watts and a peak power handling of 20000 Watts.
• Dual 4-ohm Configuration: Featuring a dual 4 ohm voice coil setup, this subwoofer provides versatile wiring options to optimize impedance and power delivery.
• Precision Sound Reproduction: The non-pressed paper cone and NBR rubber surround ensure precise sound reproduction, capable of handling extreme power levels while maintaining accuracy.
• Unmatched Performance: With a voice coil diameter of 4 inches, this subwoofer is designed to excel under the most demanding audio conditions, making it an ideal choice for competition setups.
• High-Quality Components: The subwoofer features a high-quality magnet structure, advanced cooling, and durable materials to ensure reliable and consistent performance even during prolonged use.

Specifications

• Subwoofer Size: 15" (Inches)
• Voice Coil Configuration: Dual 4-ohm
• Power Handling (Peak): 20000 Watts
• Power Handling (RMS): 5000 Watts
• Sensitivity: 87.2 dB
• Frequency Response: 21 Hz - 100 Hz
• Voice Coil Diameter: 4" (Inches)
• Dustcap Material: Polypropylene
• Cone Material: Moisture and UV Resistant Paper Cone
• Surround Material: NBR Foam
• Magnet Information: 690 Oz Triple Stack Ceramic
• Mounting Depth: 306mm / 12.05 (Inches)
• Cutout Diameter: 383mm / 15.07 (Inches)
• Overall Diameter: 422mm / 16.61 (Inches)
