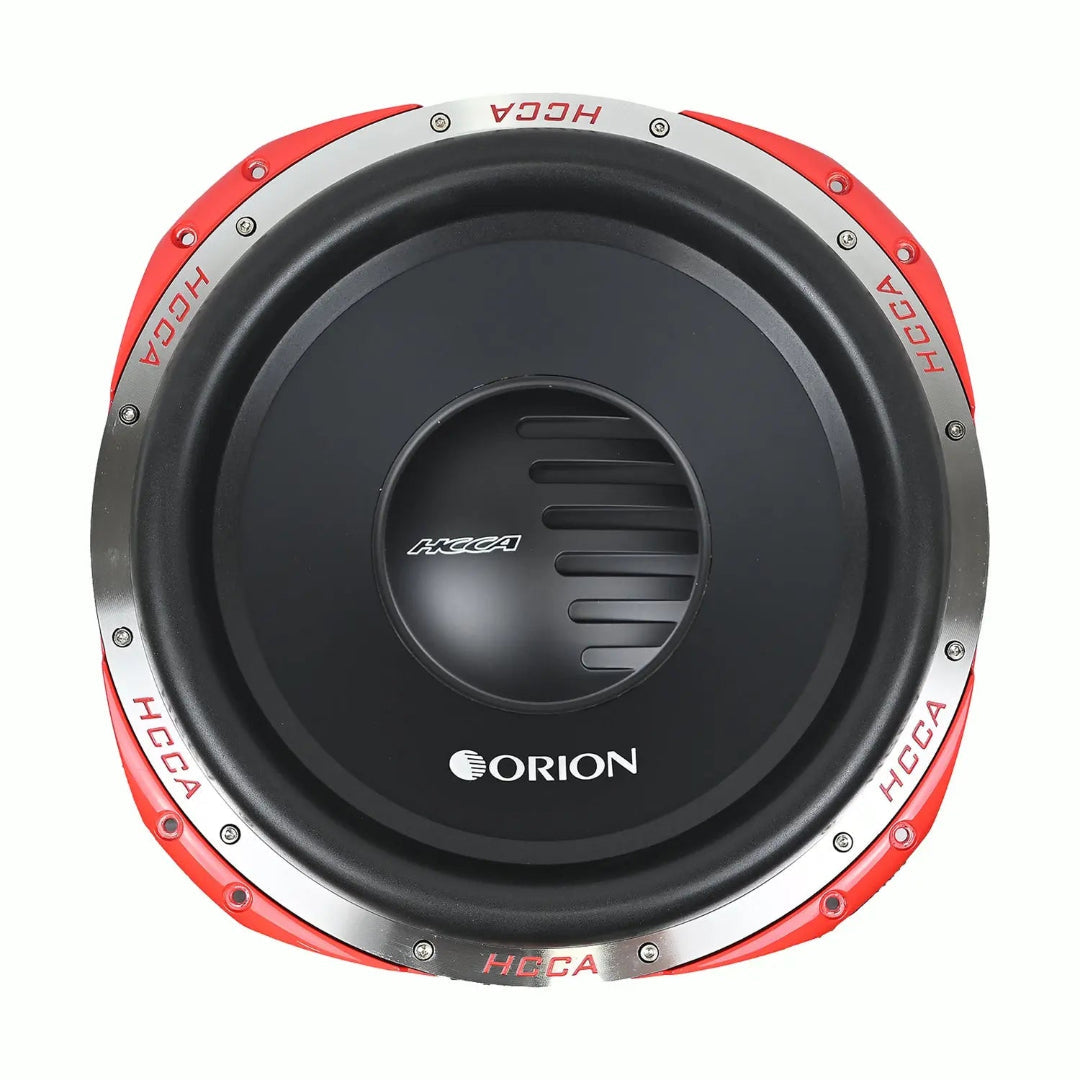

Orion HCCA154 - 15 Inch Dual 4 Ohm High-Performance Orion Hcca Subwoofer | 2500W RMS Bass Power

High-Performance 15 Inch Subwoofer for Deep, Controlled Bass

The Orion HCCA154 delivers deep and controlled bass for high-performance car audio systems. Specifically, this 15 inch dual 4 ohm high-power Orion Hcca Subwoofer produces strong low-frequency output with authority. As a result, it performs well in demanding daily-driven builds. With 2500W RMS and 10000W peak power, it offers massive output while maintaining control and long-term reliability.

Additionally, the dual 4-ohm voice coil configuration provides flexible wiring options. Because of this, matching amplifier loads becomes easier across a wide range of system designs. Therefore, the HCCA154 fits enthusiast-level builds, high-output daily systems, and advanced custom installs.

Built for Power, Control, and Long-Term Durability

To support extreme output, the HCCA154 uses a moisture- and UV-resistant paper cone. Moreover, it features a durable NBR foam surround. Together, these components allow strong cone movement while keeping bass tight and controlled.

At its core, the subwoofer uses a large 4-inch high-temperature voice coil. As a result, it manages heat more effectively during extended high-power use. In addition, a 445 oz triple-stack ceramic magnet motor structure delivers exceptional motor force and stability. This design helps maintain clean and consistent bass even at higher power levels.

Ideal For

• High-performance daily-driven audio systems
• Enthusiast-level bass builds
• Multi-subwoofer setups requiring deep low-end control
• Custom car audio systems with high power demands

Key Features

• 15 inch dual 4 ohm high-performance subwoofer
• 2500W RMS / 10000W peak power handling
• 4" high-temperature voice coil for improved heat control
• Moisture- and UV-resistant paper cone
• NBR foam surround for controlled excursion
• Polypropylene dustcap for added cone strength
• Massive 445 oz triple-stack ceramic magnet
• Designed for high-output performance systems
• Optimized for sealed and ported enclosures
• Proven Orion Car Audio HCCA Series engineering

Specifications

• Subwoofer Size: 15" (Inches)
• Voice Coil Configuration: Dual 4-ohm
• Power Handling (Peak): 10000 Watts
• Power Handling (RMS): 2500 Watts
• Sensitivity: 87.2 dB
• Frequency Response: 21 Hz - 100 Hz
• Voice Coil Diameter: 4" (Inches)
• Dustcap Material: Polypropylene
• Cone Material: Moisture and UV Resistant Paper Cone
• Surround Material: NBR Foam
• Magnet Information: 445 Oz Triple Stack Ceramic
• Mounting Depth: 294mm / 11.57 (Inches)
• Cutout Diameter: 383mm / 15.07 (Inches)
• Overall Diameter: 422mm / 16.61 (Inches)
