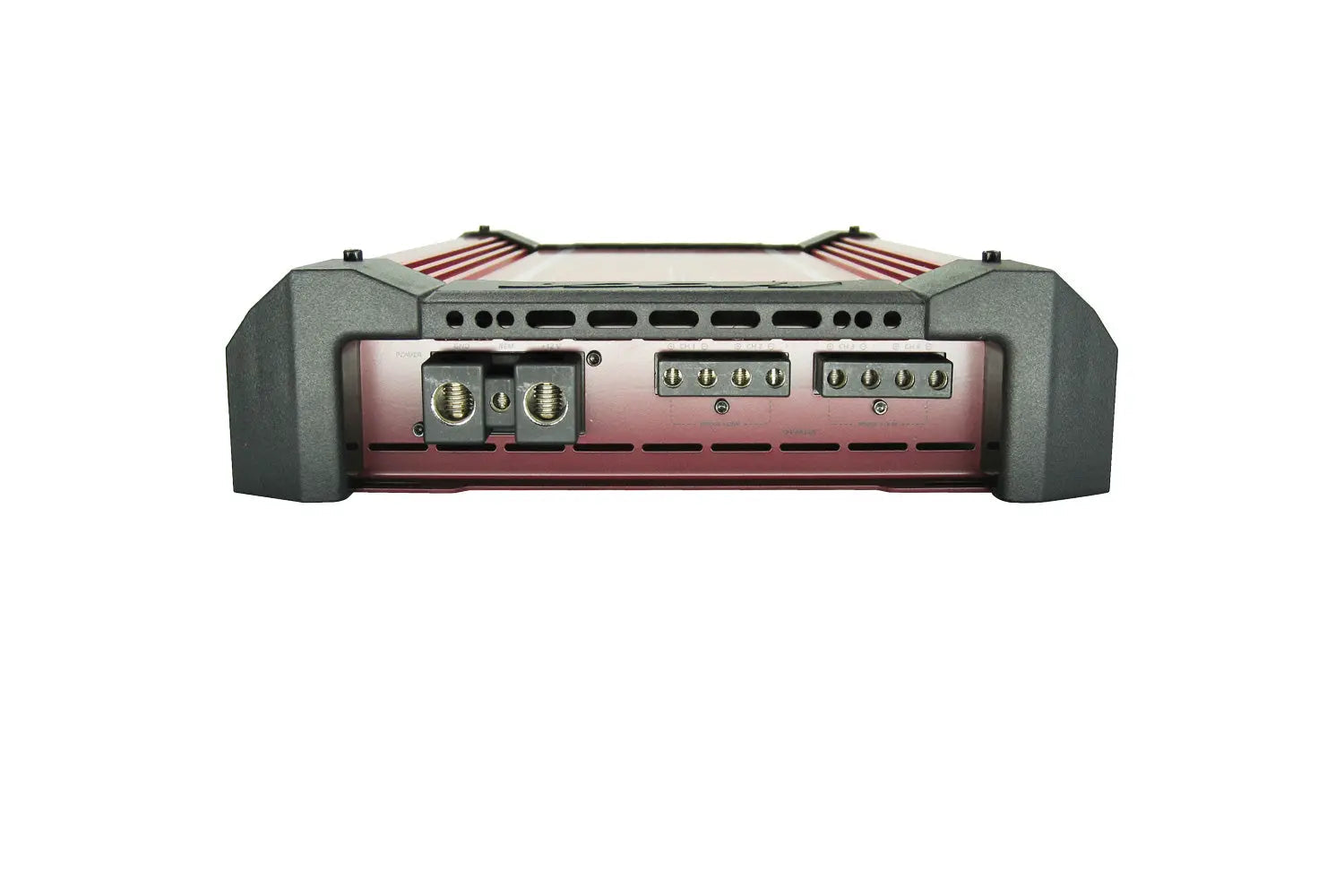

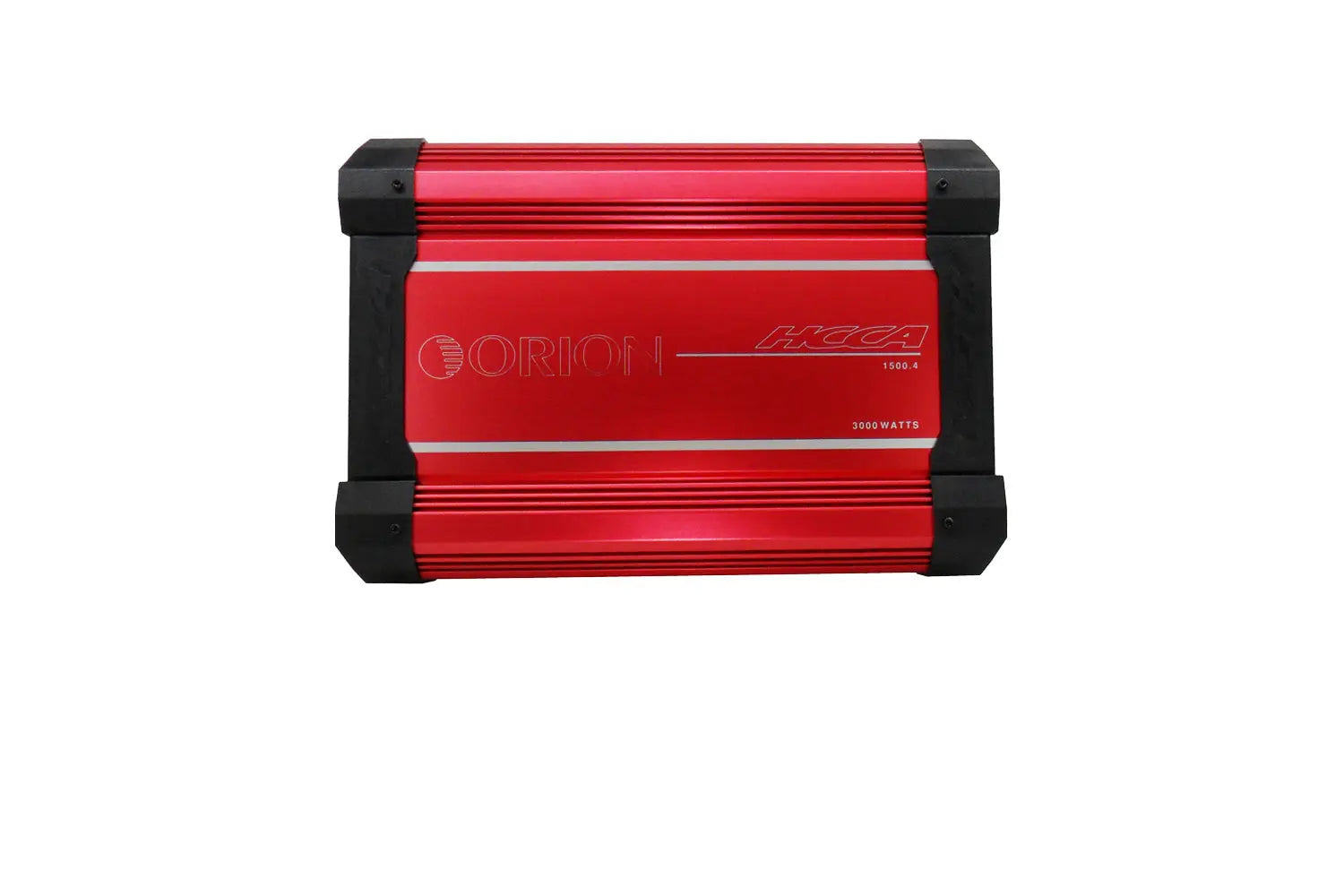

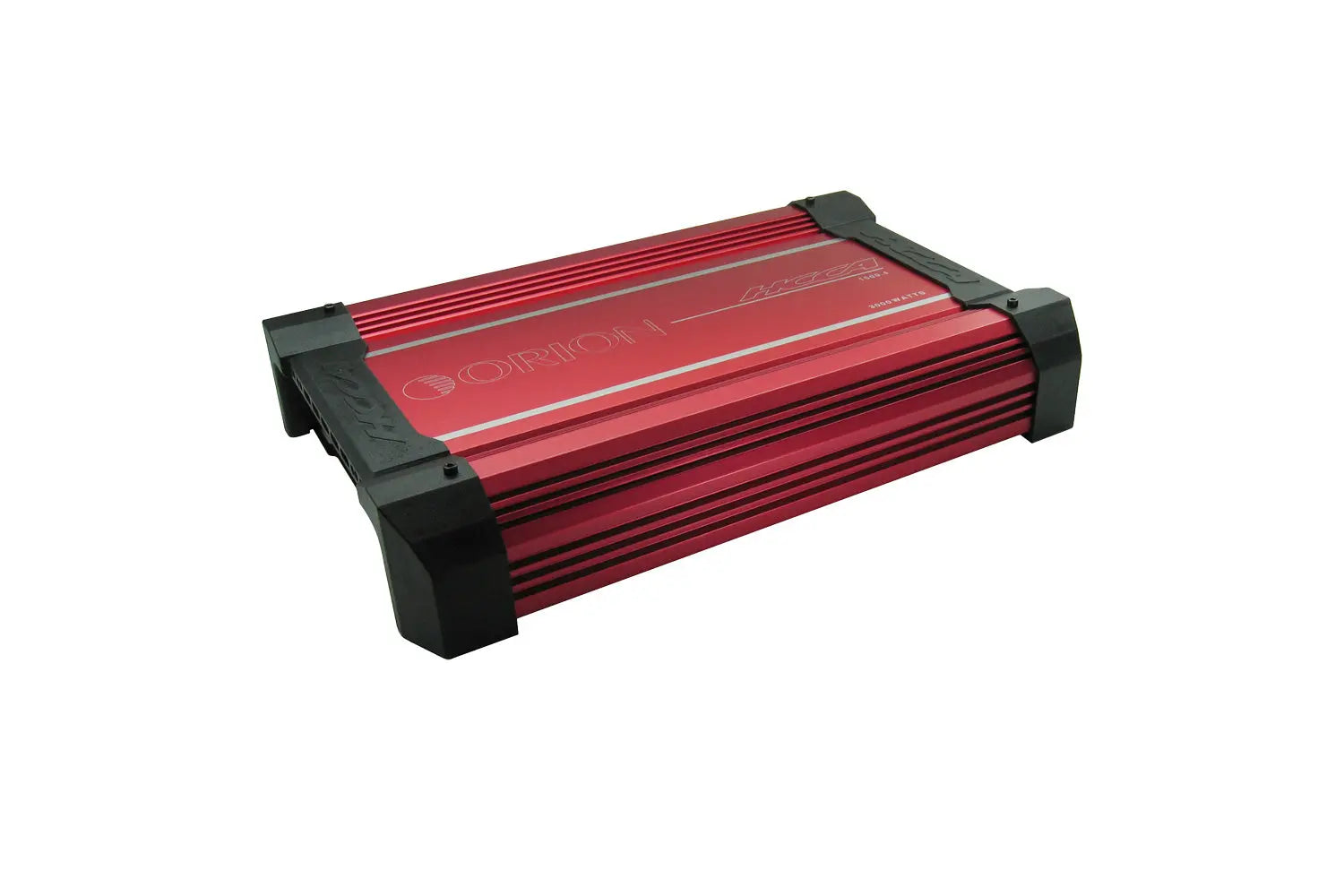

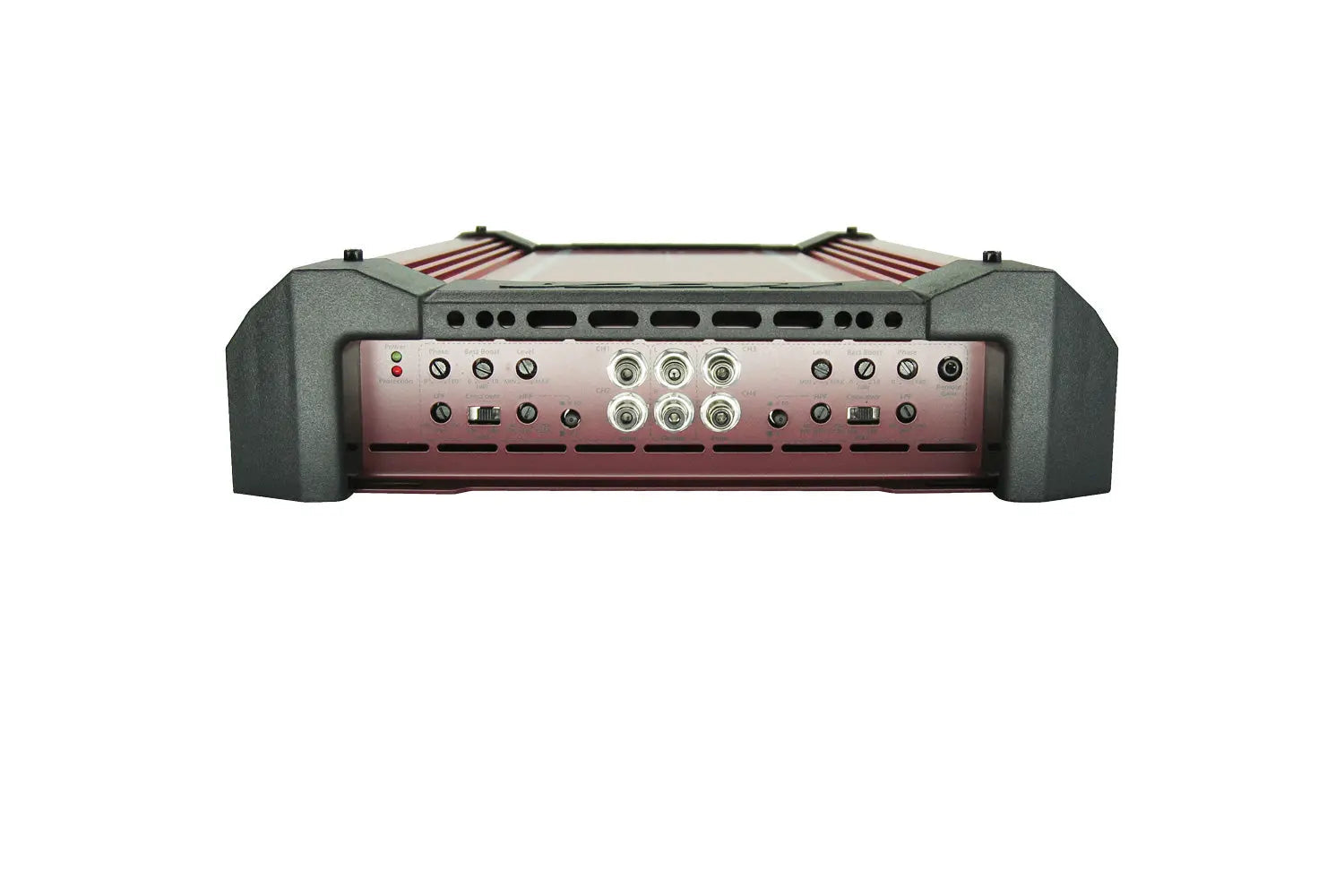

HCCA1500.4 - 1500W RMS 4-Channel Class-AB Amplifier

ORION HCCA1500.4 HCCA Series 1500W RMS Class-AB Car Amplifier 4 Channel

Elevate Your Audio Experience with Precision and Power: The ORION HCCA1500.4 HCCA Series 1500W RMS 4-Channel Class-AB Amplifier redefines audio excellence, offering an exceptional fusion of power, precision, and efficiency. Crafted for audiophiles who demand uncompromising sound quality, this amplifier delivers a rich auditory experience that is second to none.

Elevate Your Audio Journey: Elevate your audio experience with the ORION HCCA1500.4 HCCA Series 1500W RMS 4-Channel Class-AB Amplifier. Expertly designed and equipped with advanced features, this amplifier transforms your audio into an immersive masterpiece.

Unmatched Sound Fidelity: Rediscover your music with unprecedented clarity and detail. From delicate melodies to powerful crescendos, every sonic detail is brought to life.

Power and Precision Redefined: Experience a harmonious blend of power and precision that sets new benchmarks. The ORION HCCA1500.4 HCCA Series Amplifier seamlessly marries potent power with sonic accuracy, creating an audio journey that captivates the senses.

Elevate Your Drive: Elevate your driving experience with the ORION HCCA1500.4 HCCA Series 1500W RMS 4-Channel Class-AB Amplifier. Transform your audio journey and embrace a level of sonic excellence that surpasses expectations.

Key Features

• Class-AB Amplification: Experience the harmonious combination of Class-AB amplification, merging the efficiency of Class B with the sound quality of Class A for a remarkable sonic journey.
• 1500 Watts RMS: Immerse yourself in a world of audio prowess with 1500 Watts RMS, delivering impactful and nuanced sound performance.
• Precision Audio Control: The adjustable built-in crossover allows meticulous calibration of audio frequencies, optimizing speaker performance.
• Customized Bass Enhancement: Elevate your low frequencies with the adjustable bass boost feature, delivering impactful and resonant bass notes.
• Advanced Protection Measures: Equipped with protection circuitry, the amplifier ensures reliability by safeguarding against overheating and short circuits.
• Compact and Stylish Design: The amplifier's sleek design seamlessly integrates into your audio setup, adding elegance without compromising on performance.
• Engineered Excellence: Meticulously engineered for optimal audio precision, power efficiency, and consistent performance.
• All MOSFET Power Supply
• Remote Gain Control
• Heavy Gauge Direct-Wire High Current Power and Speaker Terminals
• Electronic Crossover Network
• Bass Boost Circuitry
• Tri-Mode Capable
• High-Pass/Low-Pass Filter Control
• Power and Protection LED Indicators
• Soft Turn-on/Turn-off
• Balanced Input (CMRR)
• Fault and Protection Monitoring
• 4-Way Protection: Thermal, DC offset, Short Protection, under & over voltage

Power Rating

• - RMS WATTS @ 4 Ohms @ 0.5% THD+N: 4 x 250W
• - RMS WATTS @ 2 Ohms @ 0.5% THD+N: 4 x 375W
• - RMS WATTS @ 4 Ohms @ 0.5% THD+N: 2 x 750W
• POWER TERMINAL MANAGEMENT
• Positive Terminals: 1 x 0 AWG.
• Negative Terminals: 1 x 4 AWG.
• Remote Turn-ON Signal: 10 AWG.
• Speaker Output Terminals: 10 AWG.

Specifications

• - Frequency Response 10Hz to 35kHz +/- 1 dB
• - Linear Bandwidth 20Hz to 65kHz +/- 3 dB
• - High Pass Crossover Continuously variable (40-1.25kHz/400-12.5kHz)
• - Low Pass Crossover Continuously variable (40-300Hz)
• - Phase shift control 0 to 180
• - Bass Boost 0-18dB variable
• - Distortion at Rated Power 0.005% THD+N
• - Damping Factor > 100
• - Input Sensitivity(RMS) 200mV to 6V
• - Supply Voltage Range 9 to 16V
• - Input Impedance 20K Ohms
• - Amplifier Efficiency > 67% into 2 Ohms load at max. power
• - SNR at rated output power and lowest impedance > 95dB
• - Fuses: 150A recommended (not included)
• - Dimensions (L x W x H): 17.32" x 11.89" x 3.15" (440x302x80mm)
