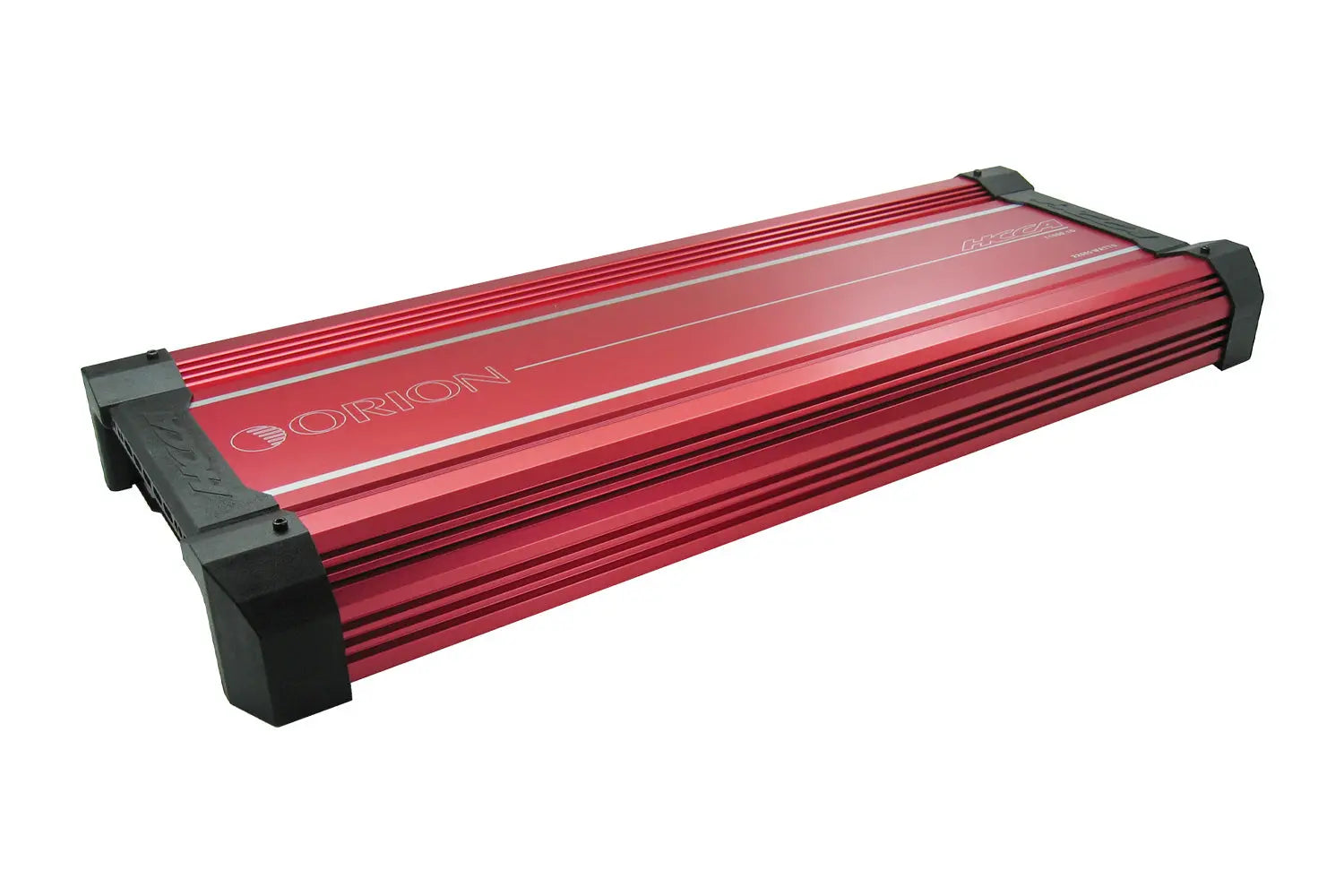

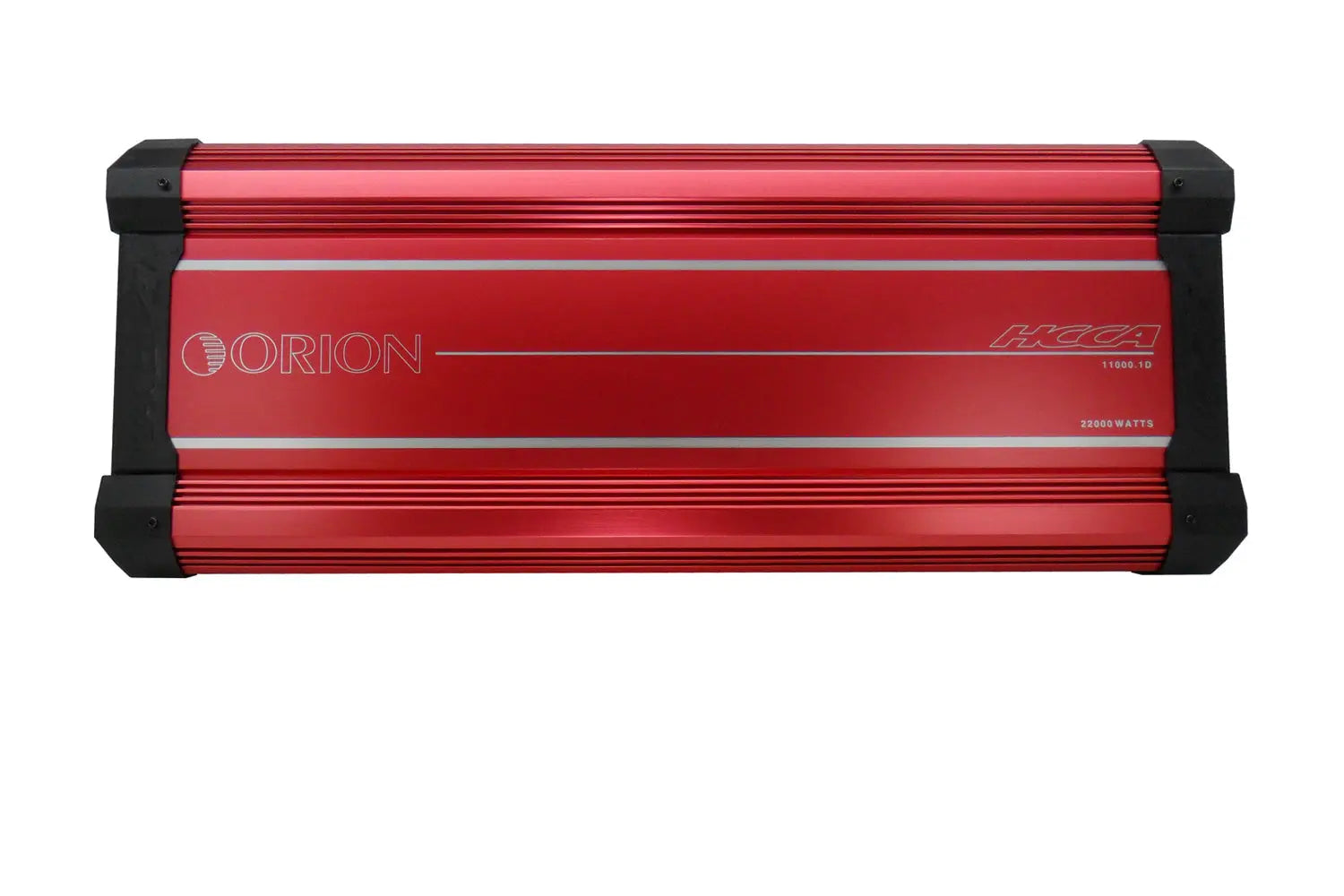

HCCA12500.1DSPLX - 125000W RMS MONOBLOCK CLASS D AMPLIFIER

ORION HCCA12500.1DSPLX HCCA Series 12500W RMS 1-Channel Class-D Amplifier

Unleash Monumental Power and Precision: defines the pinnacle of power and precision in car audio. Engineered for audio purists and enthusiasts seeking unparalleled performance, this amplifier redefines your audio experience with unprecedented power and accuracy.

Unleash Auditory Excellence: Elevate your audio journey with the ORION HCCA12500.1DSPLX HCCA Series 12500W RMS 1-Channel Class-D Orion HCCA Amplifier. Crafted with precision engineering and advanced features, this amplifier redefines power and accuracy, delivering an auditory experience that resonates profoundly.

Immersive Sound Reproduction: Rediscover your music in its truest form. Every note, beat, and melody - from the softest to the most intense - is meticulously reproduced for an immersive and authentic listening experience.

Monumental Power and Precision: Experience your music with monumental power and precision. The ORION HCCA12500.1DSPLX HCCA Series Amplifier seamlessly blends commanding power with exceptional audio quality, creating an auditory masterpiece that captivates the senses.

Elevate Your Drive: Step into the realm of monumental power with the ORION HCCA12500.1DSPLX HCCA Series 12500W RMS 1-Channel Class-D Amplifier. Elevate your audio journey, redefine your driving soundtrack, and immerse yourself in an elevated level of musical grandeur. It's time to embrace sound in its purest form.

Upgrade your car sound system with the Orion Hcca Amplifier today

Key Features

• Class D Amplification: Experience the pinnacle of efficiency and power with Class D amplification, delivering unmatched and precise sound reproduction.
• 12500 Watts RMS: Immerse yourself in a world of monumental audio power with 12500 Watts RMS, delivering commanding and precise sound performance.
• Precision Audio Control: The adjustable built-in crossover allows meticulous calibration of audio frequencies, optimizing speaker performance.
• Customized Bass Enhancement: Elevate your low frequencies with the adjustable bass boost feature, delivering impactful and resonant bass notes.
• Advanced Protection Measures: Equipped with protection circuitry, the amplifier safeguards against overheating and short circuits, ensuring durability.
• Compact and Stylish Design: The amplifier's sleek design offers versatile installation options without compromising performance or aesthetics.
• Engineered Excellence: Meticulously engineered for optimal audio precision, power efficiency, and steadfast operation.
• All MOSFET Power Supply & Output Stage
• Heavy Gauge / High Current Custom Power and Speaker Terminals
• 12/24dB / Octave Low-Pass Filter
• Remote Gain Controller Included
• Low-Level and High-Level Balanced Input
• Infrasonic Filter
• Concealed Controls Under Locking Top Panel Orion Patented ESP
• Digitally Programmed Input Voltage for Fast, Accurate System Setup
• Input Sensitivity Lock-Out Mode Lock the Tweekers Out!
• Turn-On Delay
• Fault and Protection Monitoring
• 4-Way Protection: Thermal, DC offset, Short Protection, under & over voltage

Power Rating

• - RMS Power @ 4 Ohms @ 0.5% THD+N: 4300W
• - RMS Power @ 2 Ohms @ 0.5% THD+N: 7500W
• - RMS Power @ 1 Ohm @ 0.5% THD+N: 12500W
• - Linked with identical Amplifier
• RMS Power @ 2 Ohms @ 0.5% THD+N: 25400W

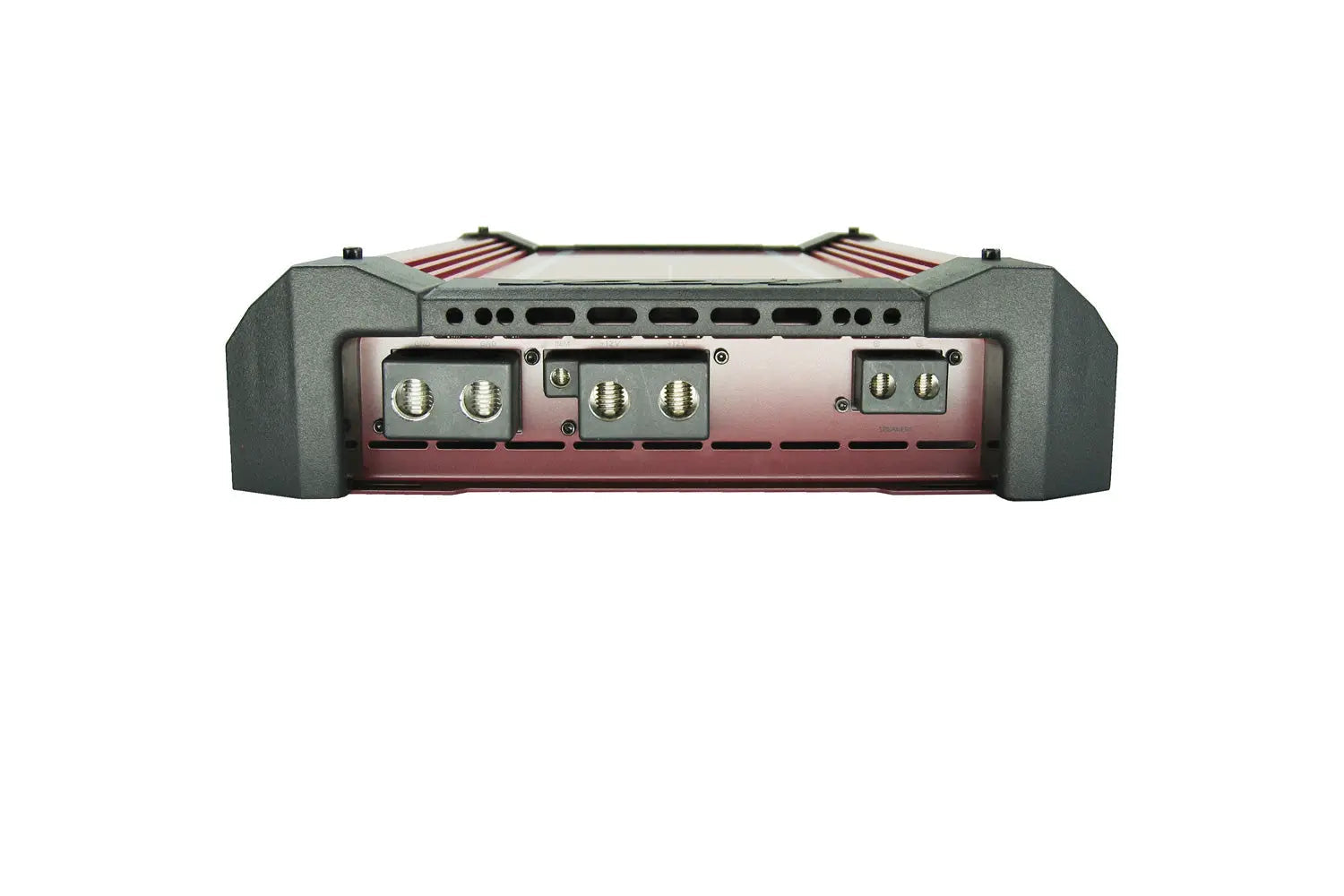

• POWER TERMINAL MANAGEMENT
• Positive Terminals: 3 x 0 AWG.
• Negative Terminals: 3 x 0 AWG.
• Remote Turn-ON Signal: 10 AWG.
• Speaker Output Terminals: 4 AWG.

Specifications

• - Frequency Response: 15Hz - 250Hz
• - Low Pass Crossover: 40Hz - 300Hz
• - Supply Voltage: 9 - 16V
• - Amplifier Efficiency: >88%
• - Damping Factor: 200dB
• - Signal to Noise Ratio: >90dB
• - T.H.D. & Noise: 0.5%
• - Input Impedance: 24K Ohms
• - Phase Shift: 0 - 180
• - Bass Boost: 0-18dB Variable
• - Subsonic Filter: 10 - 40Hz
• - Variable Input Level Control: 0.2V - 6.0V
• - Fuses: 1100A recommended (not included)
• - Dimensions (L x W x H): 33.85" x 11.89" x 3.15" (860x302x80mm)
