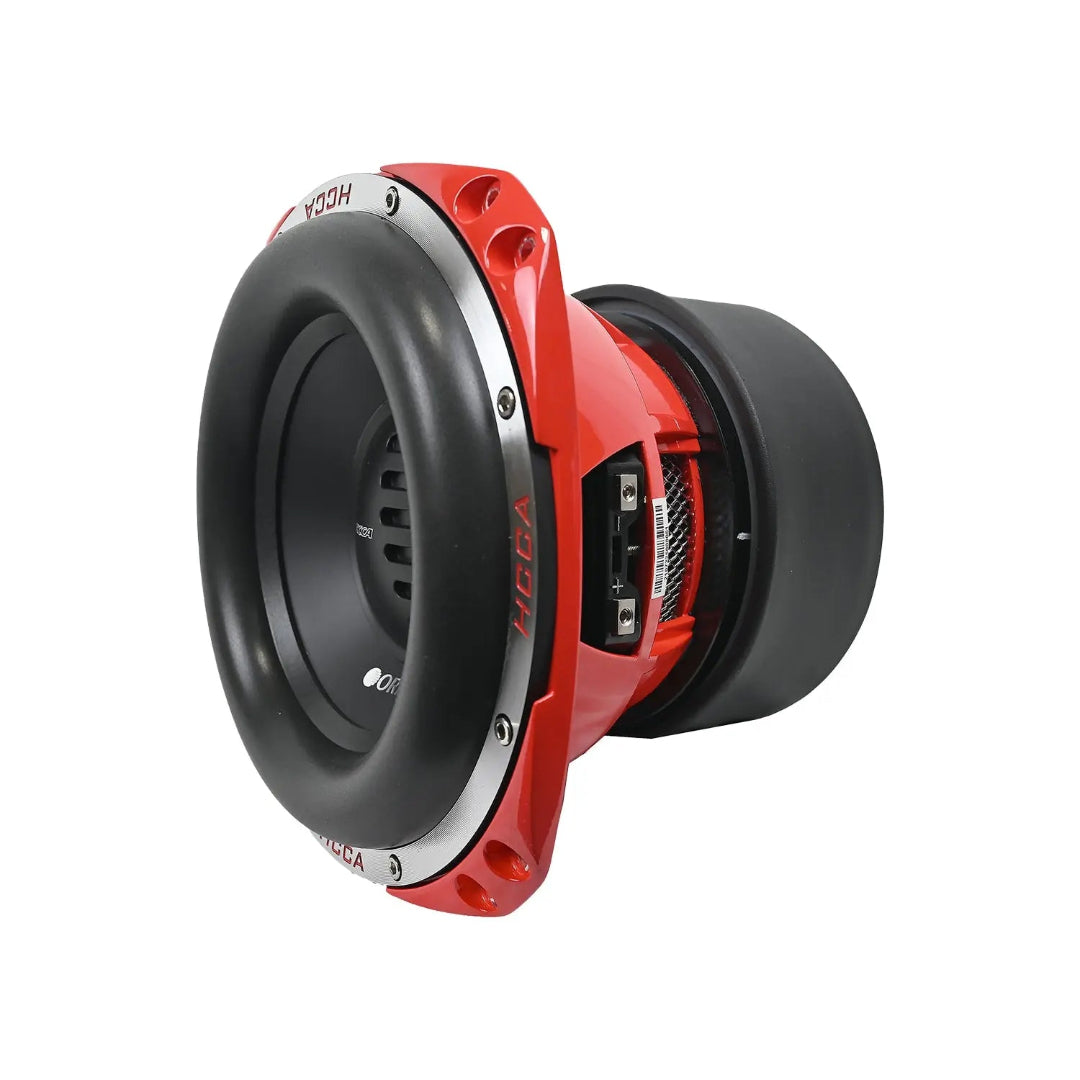

Orion HCCA104 - 10 Inch Dual 4 Ohm High-Performance Subwoofer | 2000W RMS Bass Power

High-Performance 10 Inch Subwoofer for Powerful, Controlled Bass

The Orion HCCA104 delivers strong and controlled bass for high-performance car audio systems. Specifically, this 10 inch dual 4 ohm high-power subwoofer produces deep low-frequency output with excellent control. As a result, it performs well in demanding daily-driven builds. With 2000W RMS and 8000W peak power, it offers serious output without focusing solely on SPL competition use.

Additionally, the dual 4-ohm voice coil configuration provides flexible wiring options. Because of this, matching amplifier loads becomes easier across many system layouts. Therefore, the HCCA104 works well in high-output daily systems, enthusiast upgrades, and custom audio installs.

Built for Power, Control, and Long-Term Reliability

To support high output levels, the HCCA104 uses a moisture- and UV-resistant paper cone. Moreover, it features a durable NBR foam surround. Together, these components allow strong cone movement while maintaining control and sound quality.

At its core, the subwoofer uses a 3-inch high-temperature voice coil. As a result, it manages heat more effectively during extended listening sessions. In addition, a 264 oz triple-stack ceramic magnet motor structure delivers strong motor force and stability. This design helps maintain clean and consistent bass at higher power levels.

Ideal For

• High-performance daily-driven audio systems
• Enthusiast-level bass builds
• Multi-subwoofer setups with strong low-end control
• Custom car audio systems requiring high power handling

Key Features

• 10 inch dual 4 ohm high-performance subwoofer
• 2000W RMS / 8000W peak power handling
• 3" high-temperature voice coil
• Moisture- and UV-resistant paper cone
• NBR foam surround for controlled excursion
• Polypropylene dustcap for added cone strength
• Massive 264 oz triple-stack ceramic magnet
• Designed for high-output performance systems
• Optimized for sealed and ported enclosures
• Proven Orion Car Audio HCCA Series engineering

Specifications

• Subwoofer Size: 10" (Inches)
• Voice Coil Configuration: Dual 4-ohm
• Power Handling (Peak): 8000 Watts
• Power Handling (RMS): 2000 Watts
• Sensitivity: 83.66 dB
• Frequency Response: 33 Hz - 100 Hz
• Voice Coil Diameter: 3" (Inches)
• Dustcap Material: Polypropylene
• Cone Material: Moisture and UV Resistant Paper Cone
• Surround Material: NBR Foam
• Magnet Information: 264 Oz Triple Stack Ceramic
• Mounting Depth: 214mm / 8.425 (Inches)
• Cutout Diameter: 238mm / 9.37 (Inches)
• Overall Diameter: 268.5mm / 10.57 (Inches)
