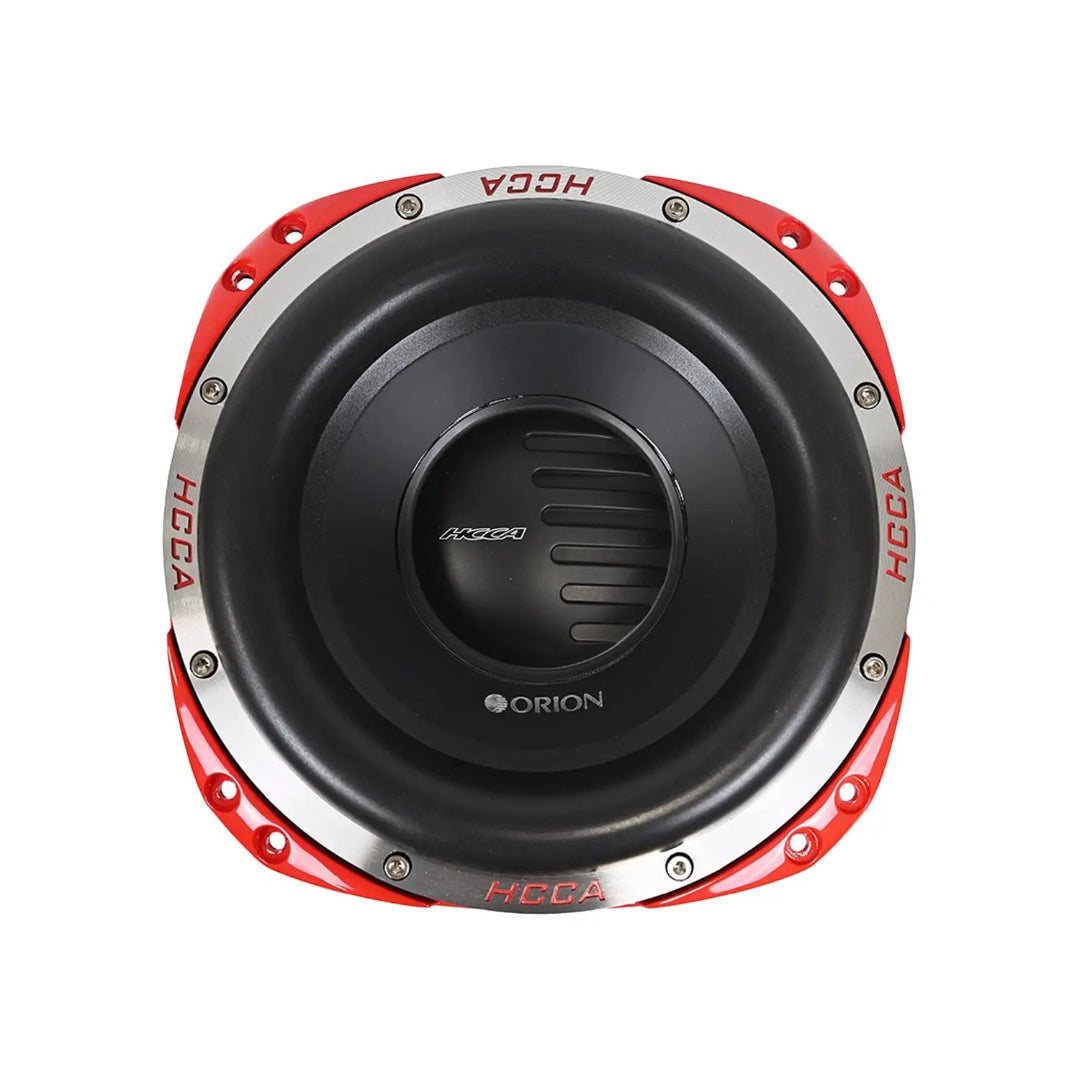

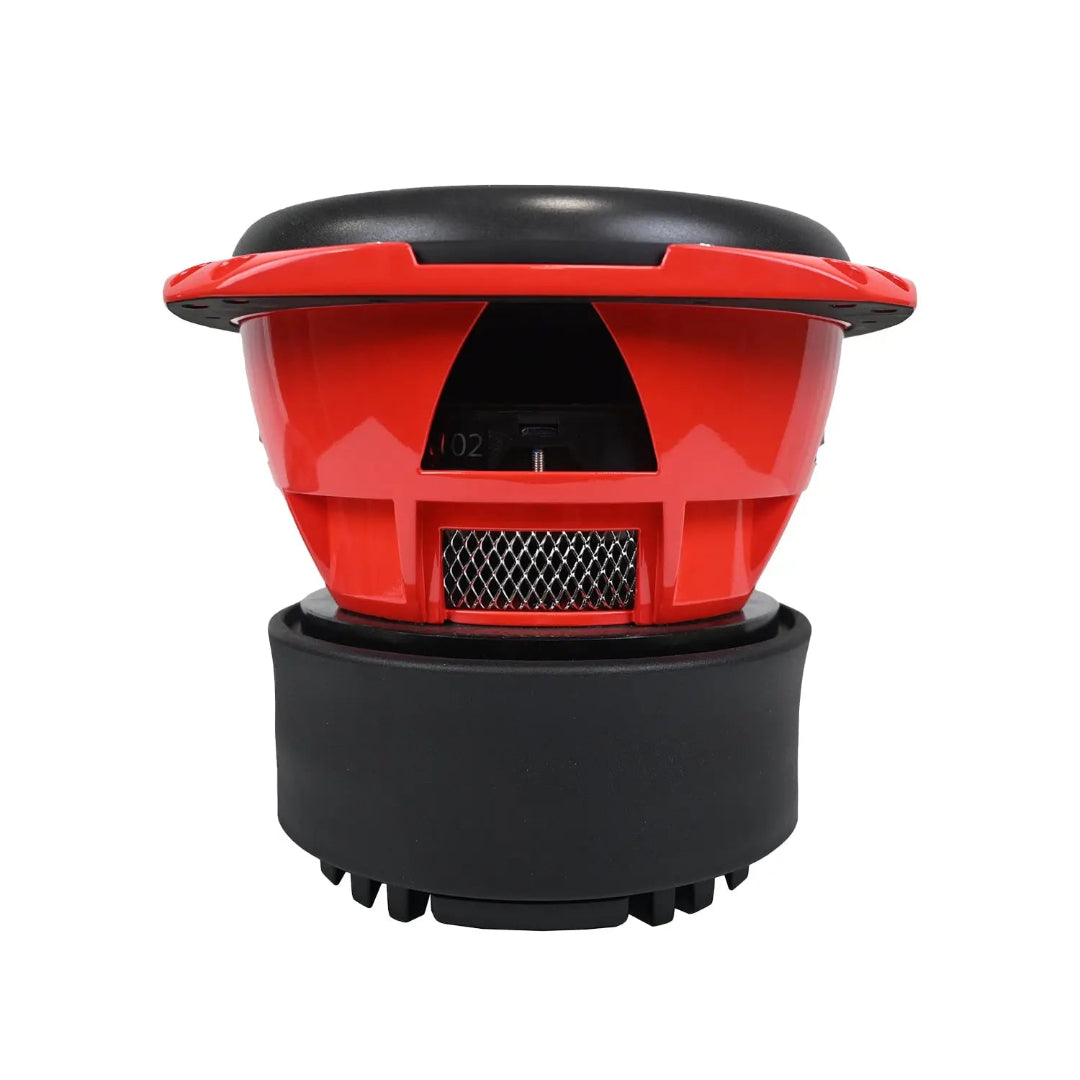

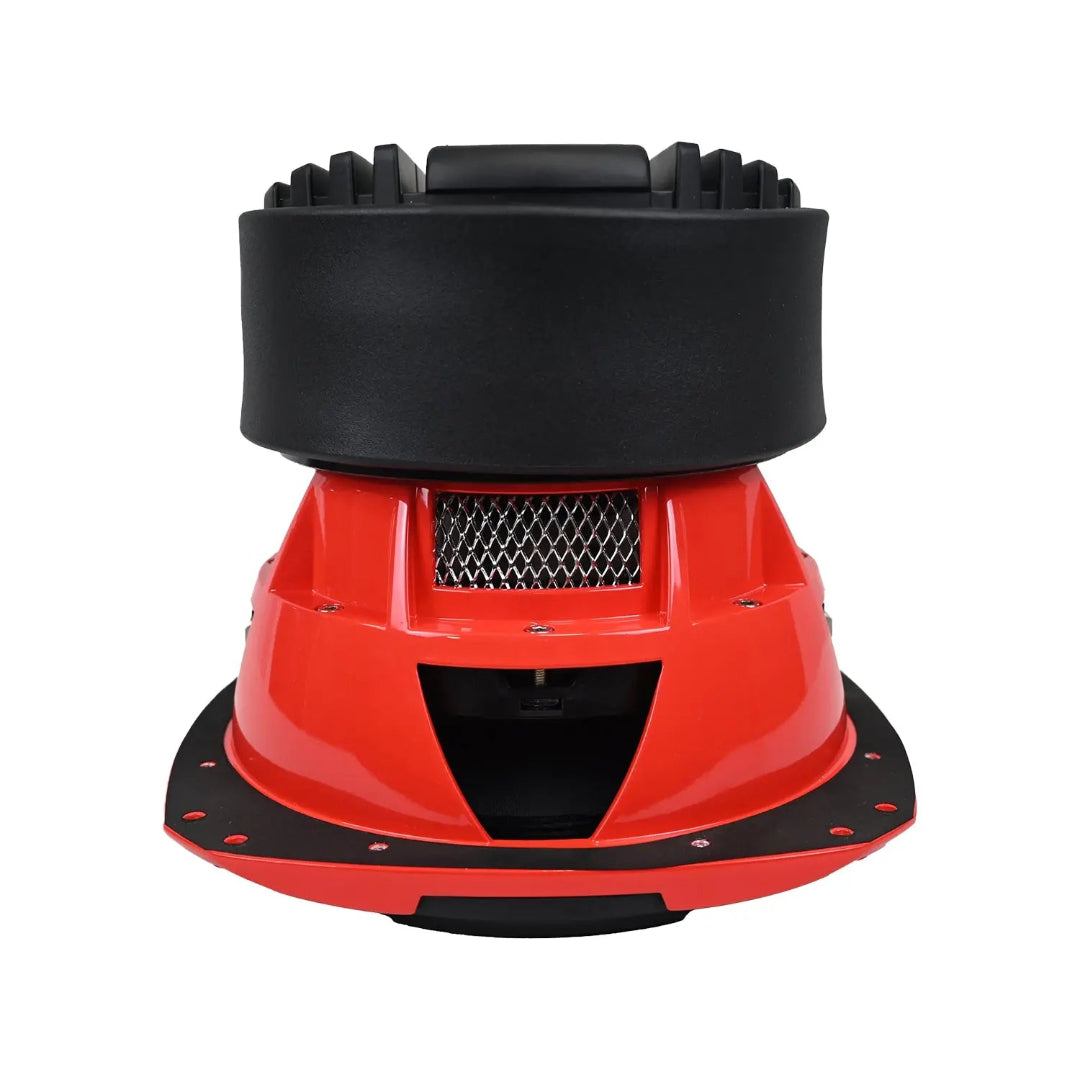

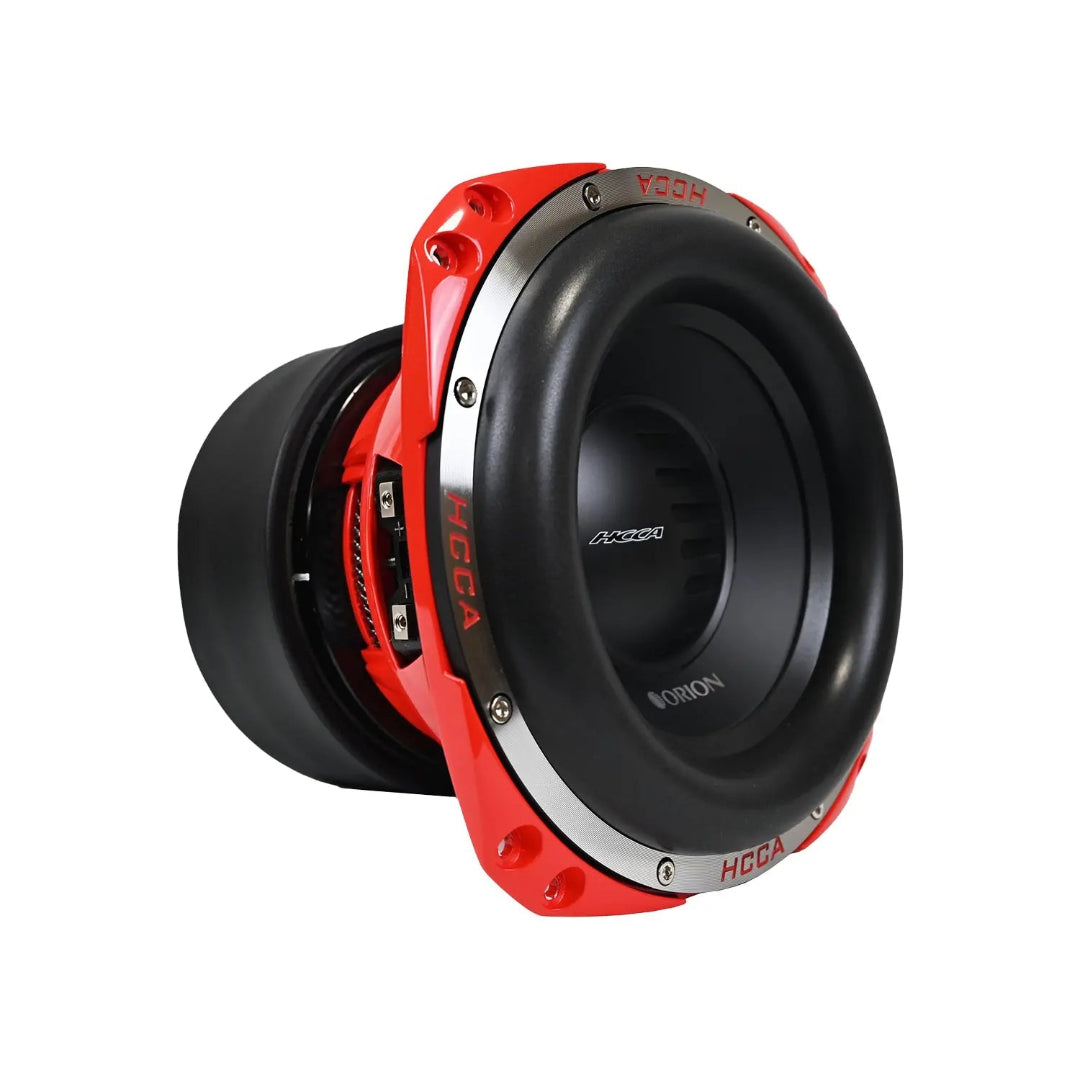

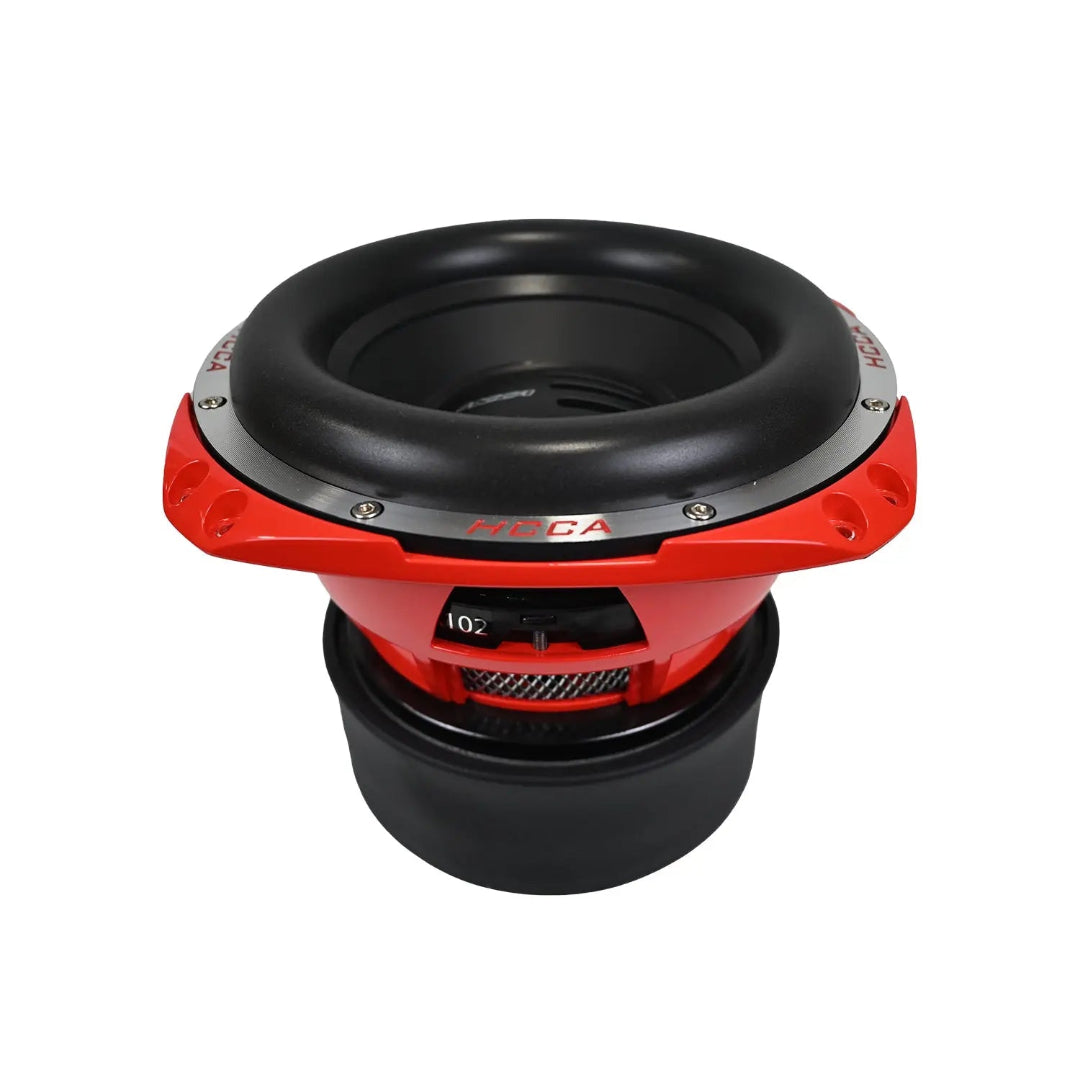

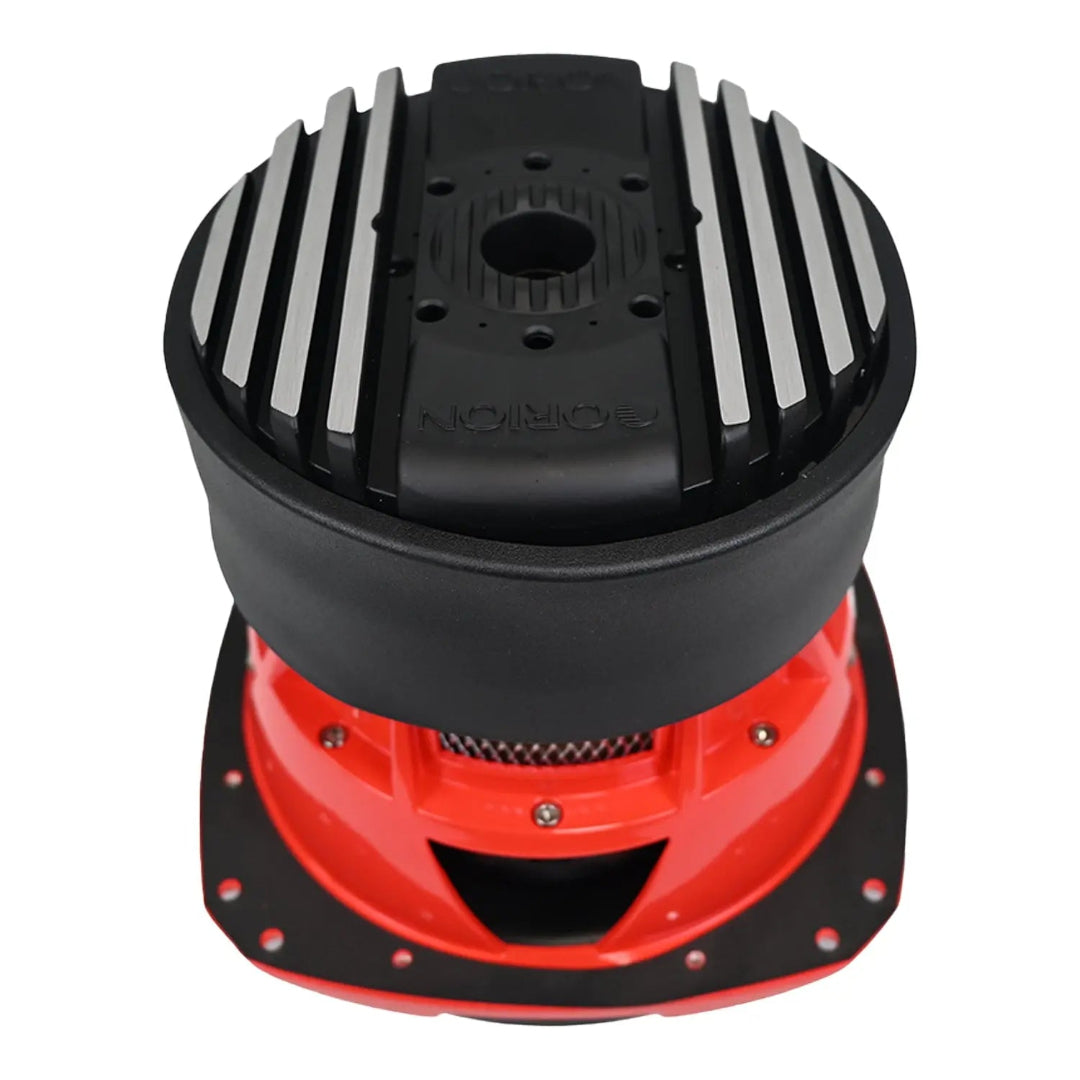

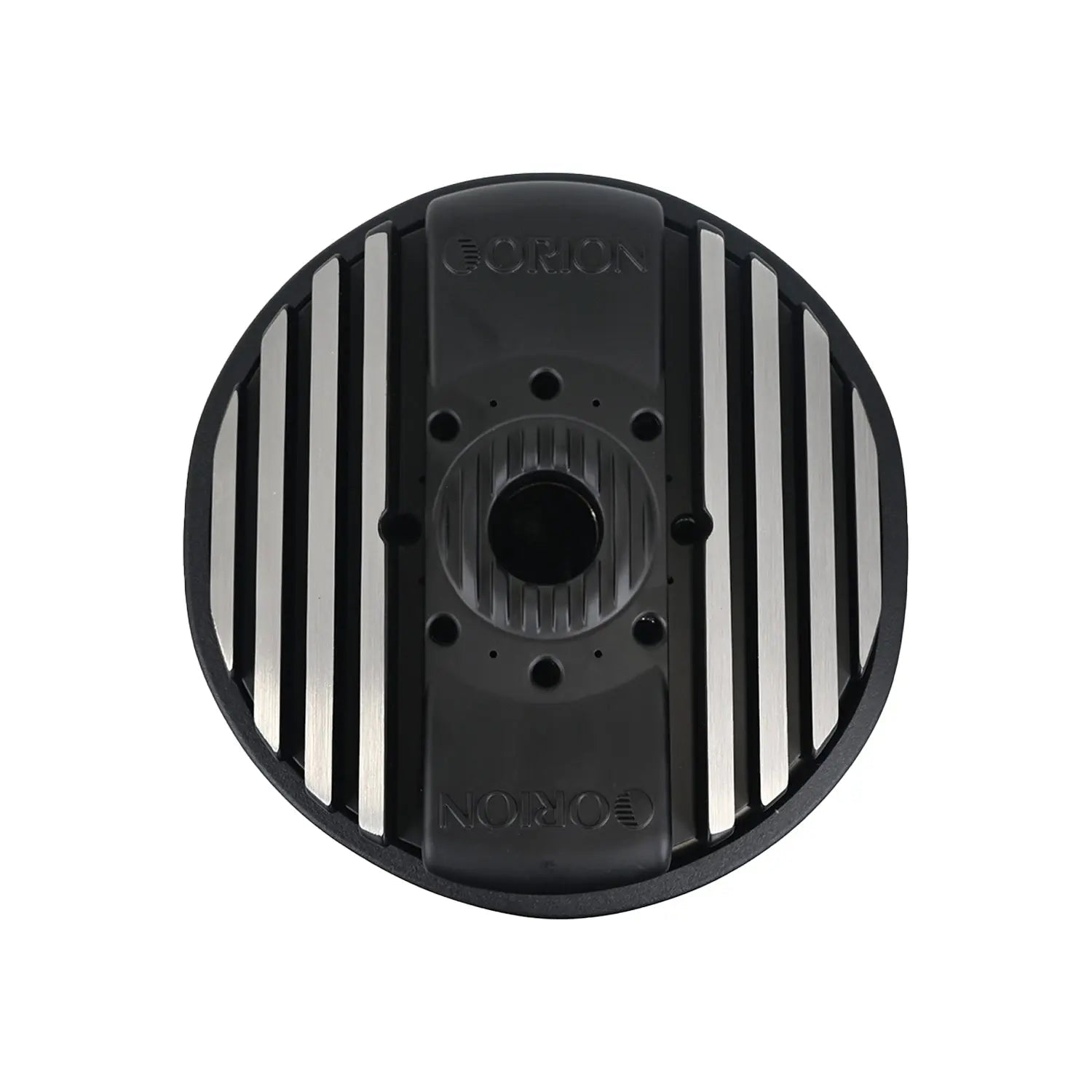

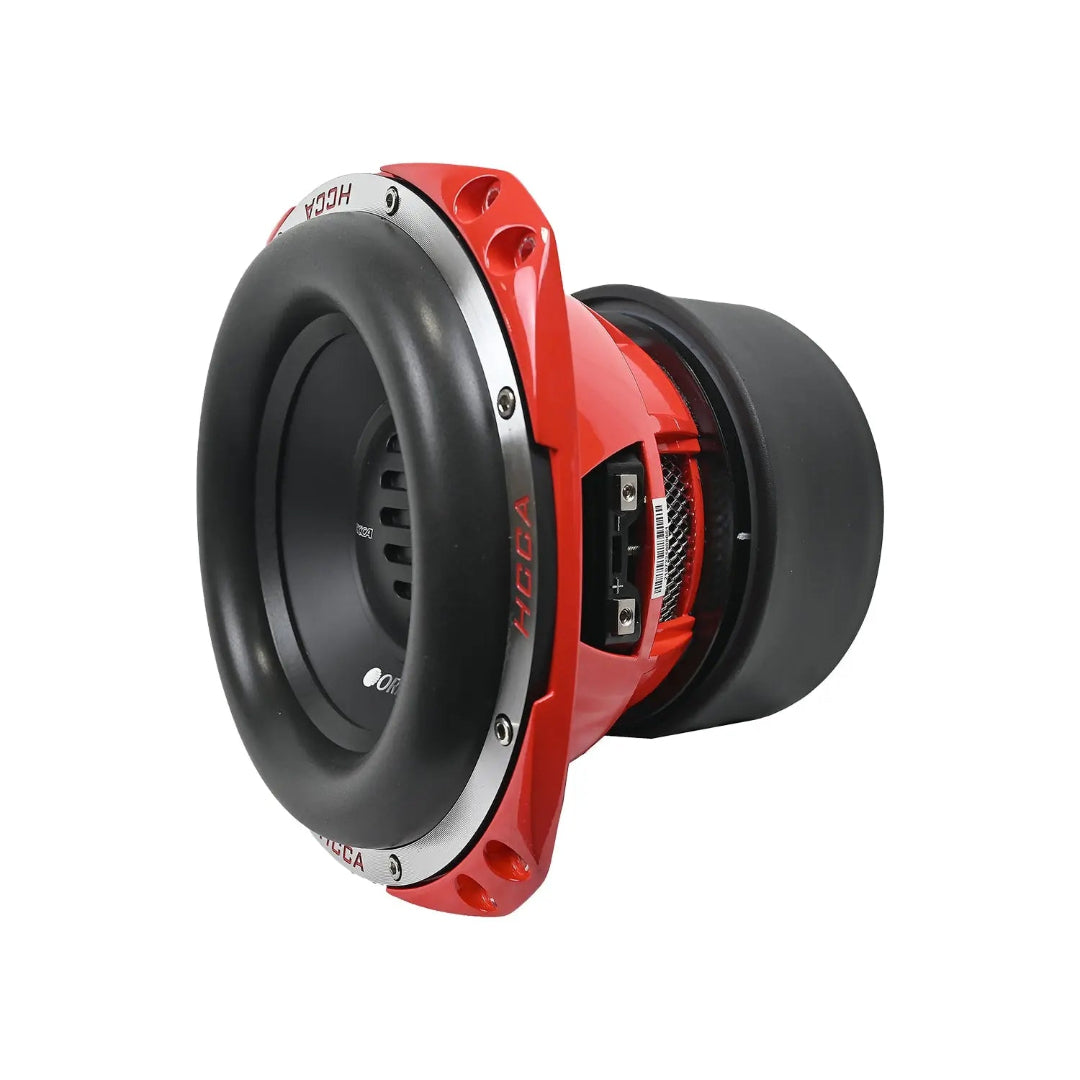

Orion HCCA102 - 10 Inch Dual 2 Ohm High-Performance Subwoofer | 2000W RMS Bass Power

High-Performance 10 Inch Subwoofer for Powerful, Controlled Bass

The Orion HCCA102 delivers strong and controlled bass for high-performance car audio systems. Specifically, this 10 inch dual 2 ohm high-power subwoofer produces deep low-frequency output with excellent control. As a result, it performs well in demanding daily-driven systems. With 2000W RMS and 8000W peak power, it offers serious power handling without being focused solely on SPL competition.

Additionally, the dual 2-ohm voice coil configuration provides flexible wiring options. Because of this, matching amplifier loads becomes easier across a wide range of system designs. Therefore, the HCCA102 works well in high-output daily builds, performance upgrades, and enthusiast-level installs.

Built for Power, Control, and Reliability

To support high output, the HCCA102 uses a moisture- and UV-resistant paper cone. Moreover, it features a durable NBR foam surround. Together, these components allow strong cone movement while maintaining control and sound quality.

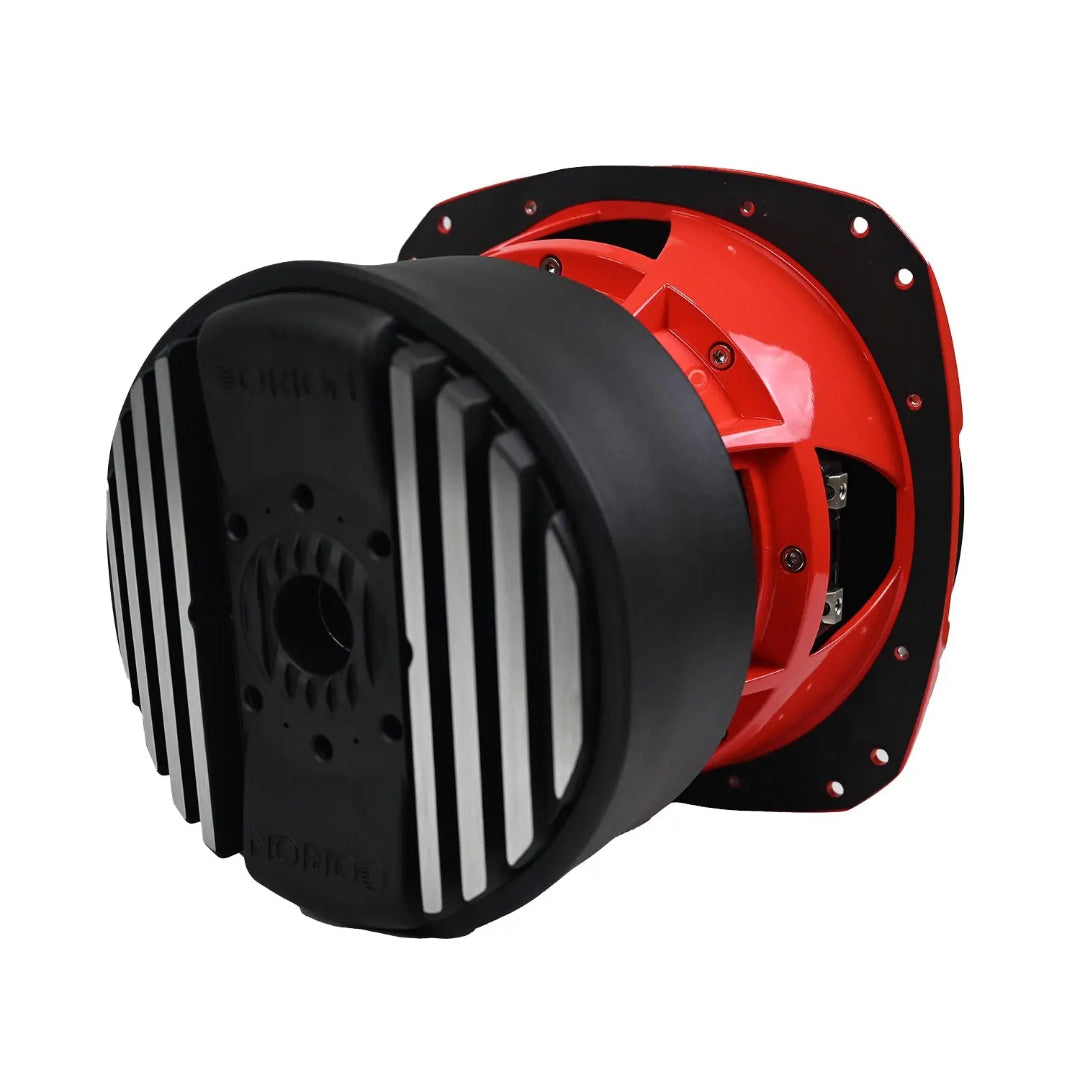

At its core, the subwoofer uses a 3-inch high-temperature voice coil. As a result, it manages heat more effectively during extended listening sessions. In addition, a 264 oz triple-stack ceramic magnet motor structure delivers strong motor force and stability. This design helps maintain clean and consistent bass at higher power levels.

Ideal For

• High-performance daily-driven audio systems
• Enthusiast-level bass builds
• Multi-subwoofer setups with strong low-end control
• Custom car audio systems requiring high power handling

Key Features

• 10 inch dual 2 ohm high-performance subwoofer
• 2000W RMS / 8000W peak power handling
• 3" high-temperature voice coil
• Moisture- and UV-resistant paper cone
• NBR foam surround for controlled excursion
• Polypropylene dustcap for added cone strength
• Massive 264 oz triple-stack ceramic magnet
• Designed for high-output performance systems
• Optimized for sealed and ported enclosures
• Proven Orion Car Audio HCCA Series engineering

Specifications

• Subwoofer Size: 10" (Inches)
• Voice Coil Configuration: Dual 2-ohm
• Power Handling (Peak): 8000 Watts
• Power Handling (RMS): 2000 Watts
• Sensitivity: 86.51 dB
• Frequency Response: 32 Hz - 100 Hz
• Voice Coil Diameter: 3" (Inches)
• Dustcap Material: Polypropylene
• Cone Material: Moisture and UV Resistant Paper Cone
• Surround Material: NBR Foam
• Magnet Information: 264 Oz Triple Stack Ceramic
• Mounting Depth: 214mm / 8.425 (Inches)
• Cutout Diameter: 238mm / 9.37 (Inches)
• Overall Diameter: 268.5mm / 10.57 (Inches)
