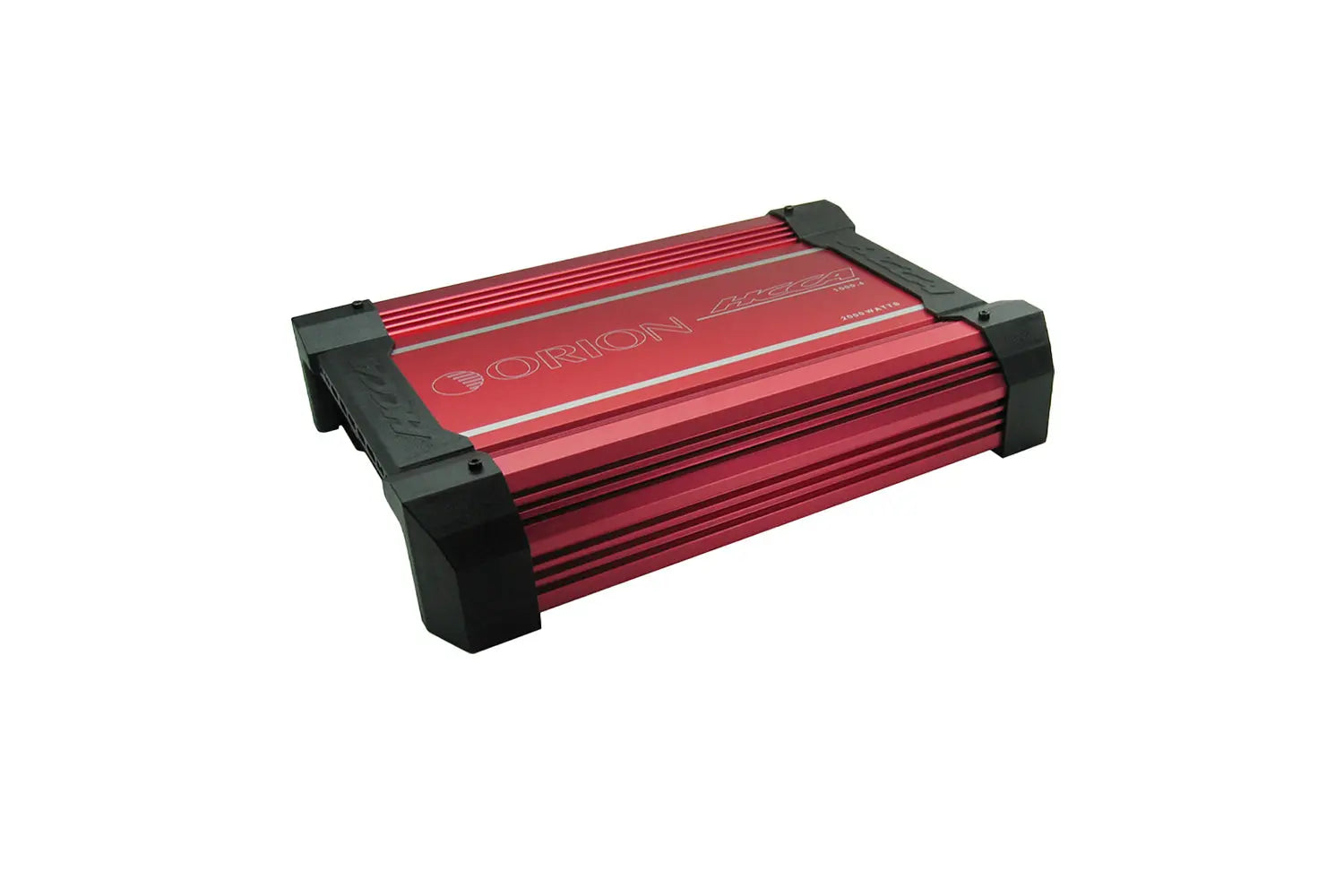

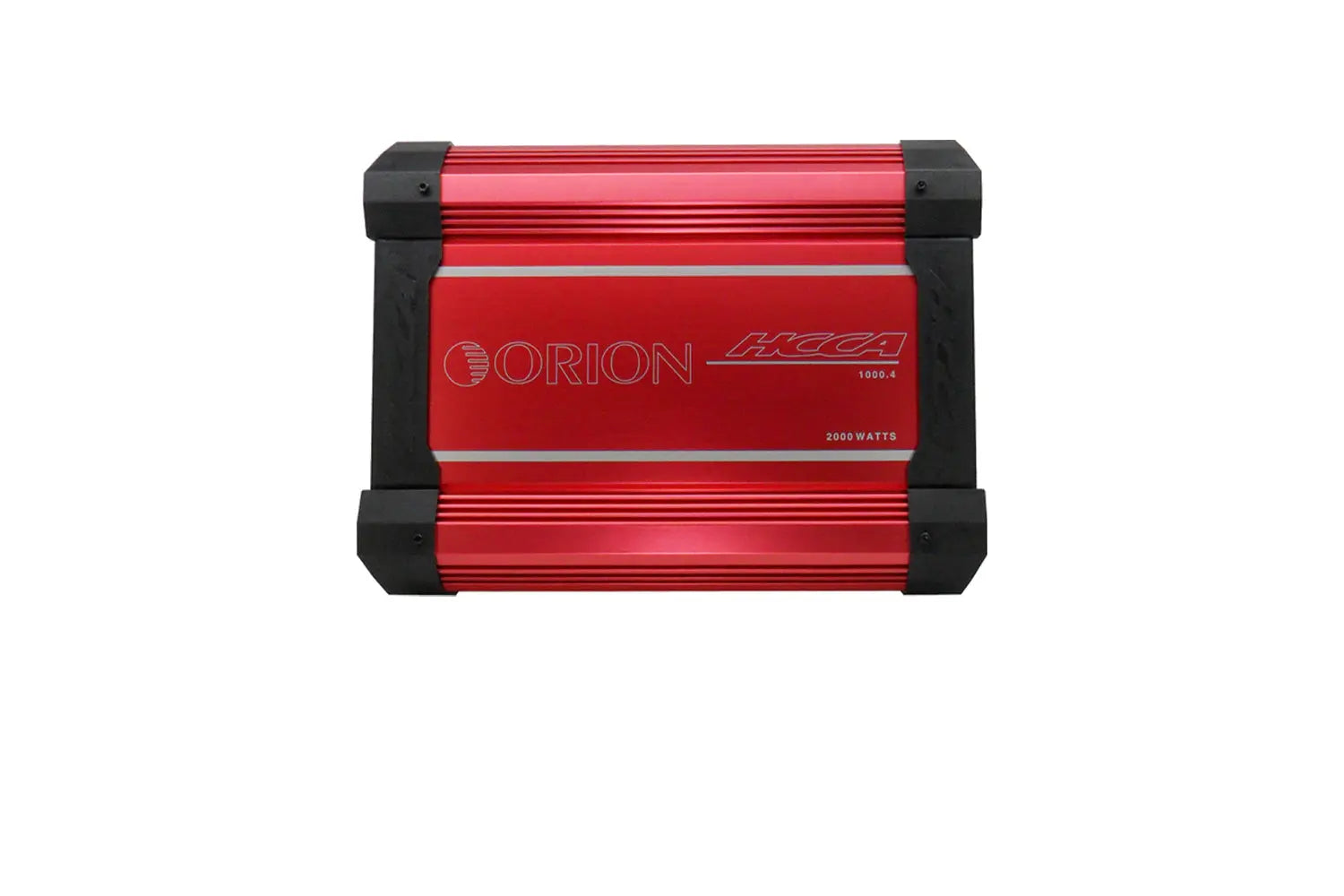

HCCA1000.4 - 1000W RMS 4-Channel Class-AB Amplifier

Key Features

• Class-AB Amplification: Experience the harmonic blend of Class-AB amplification, combining the efficiency of Class B and the sound quality of Class A for a remarkable audio journey.
• 1000 Watts RMS: Immerse yourself in an auditory landscape with 1000 Watts RMS, delivering impactful and detailed sound performance.
• Precision Audio Control: The adjustable built-in crossover allows meticulous calibration of audio frequencies, optimizing speaker performance.
• Customized Bass Enhancement: Elevate your low frequencies with the adjustable bass boost feature, delivering impactful and resonant bass notes.
• Advanced Protection Measures: Equipped with protection circuitry, the amplifier safeguards against overheating and short circuits, ensuring lasting durability.
• Compact and Stylish Design: The amplifier's sleek design adds sophistication to your audio setup without compromising performance or aesthetics.
• Engineered Excellence: Meticulously engineered for optimal audio precision, power efficiency, and unwavering performance.
• All MOSFET Power Supply
• Heavy Gauge Direct-Wire High Current Power and Speaker Terminals
• Electronic Crossover Network
• Bass Boost Circuitry
• Tri-Mode Capable

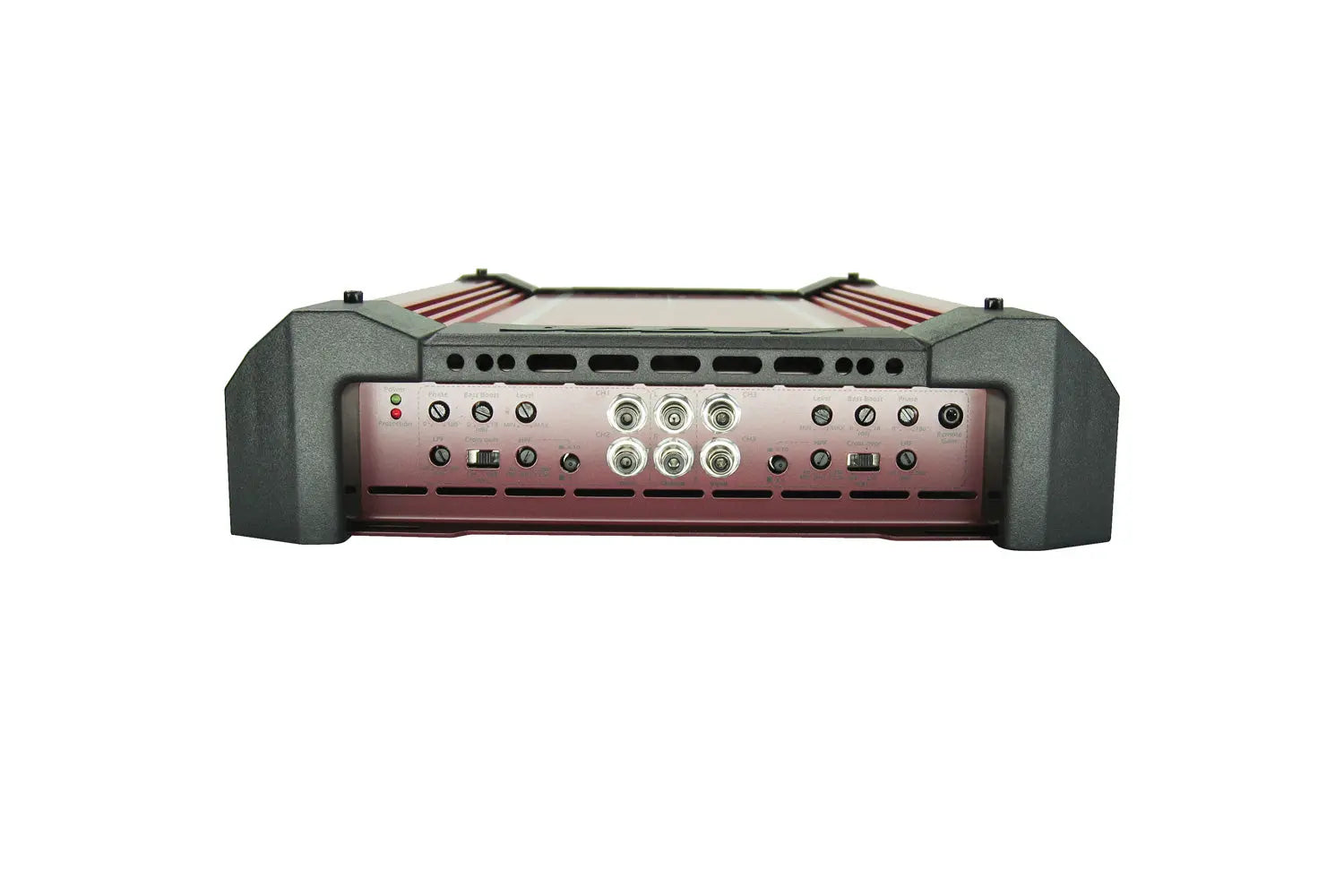

• High-Pass/Low-Pass Filter Control
• Power and Protection LED Indicators
• Soft Turn-on/Turn-off
• Balanced Input (CMRR)
• Fault and Protection Monitoring
• 4-Way Protection: Thermal, DC offset, Short Protection, under & over voltage

Power Rating

• - RMS WATTS @ 4 Ohms @ 0.5% THD+N: 4 x 150W
• - RMS WATTS @ 2 Ohms @ 0.5% THD+N: 4 x 250W
• - RMS WATTS @ 4 Ohms @ 0.5% THD+N: 2 x 500W

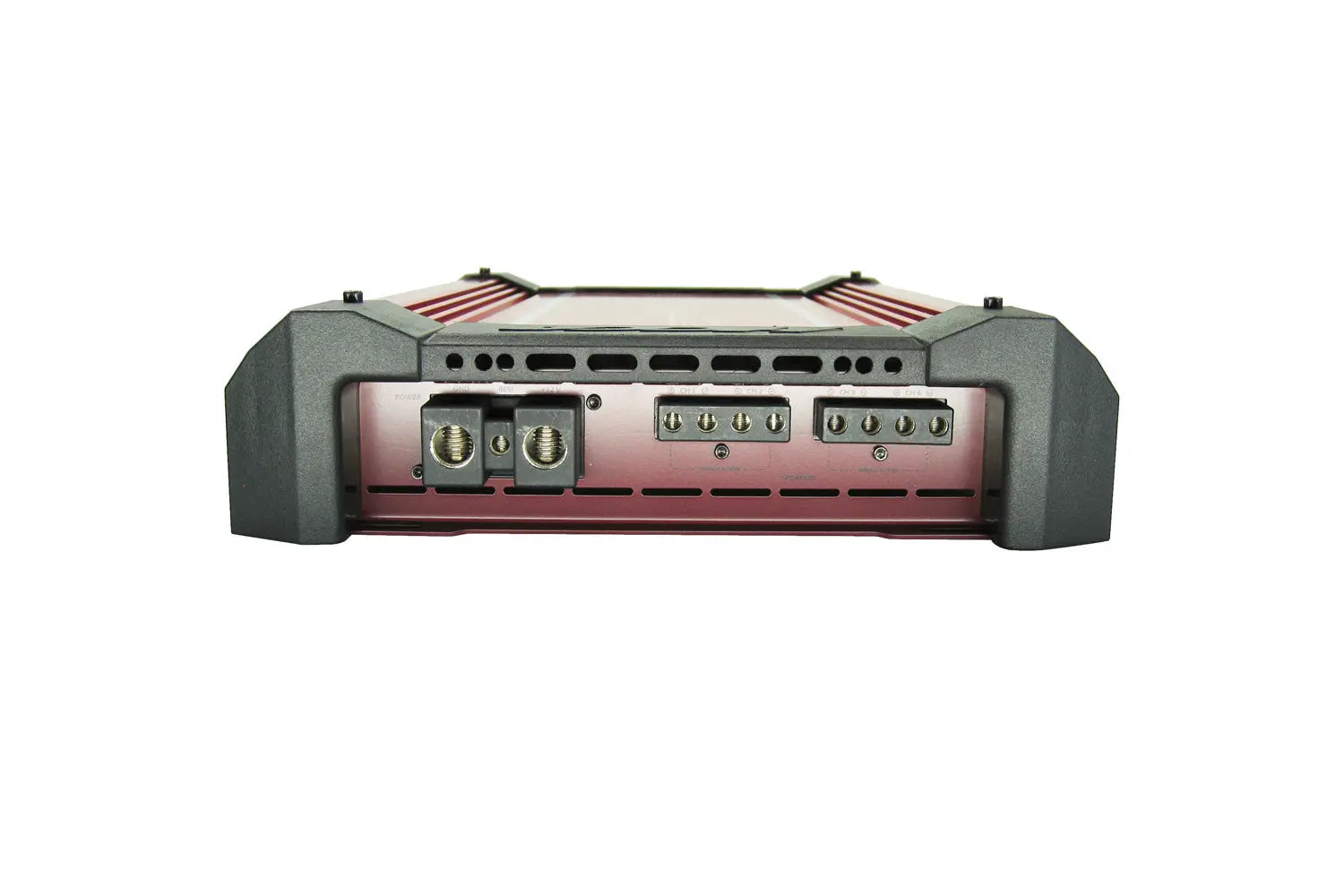

• POWER TERMINAL MANAGEMENT
• Positive Terminals: 1 x 0 AWG.
• Negative Terminals: 1 x 4 AWG.
• Remote Turn-ON Signal: 10 AWG.
• Speaker Output Terminals: 10 AWG.

Specifications

• - Frequency Response: 10Hz to 35kHz +/- 1 dB
• - Linear Bandwidth: 20Hz to 65kHz +/- 3 dB
• - High Pass Crossover Continuously variable: (40-1.25kHz/400-12.5kHz)
• - Low Pass Crossover Continuously variable: (40-300Hz)
• - Phase shift control: 0 to 180
• - Bass Boost: 0-18dB variable
• - Distortion at Rated Power: 0.005% THD+N
• - Damping Factor: > 100
• - Input Sensitivity(RMS): 200mV to 6V
• - Supply Voltage Range: 9 to 16V
• - Input Impedance: 20K Ohms
• - Amplifier Efficiency: > 67% into 2 Ohms load at max. power
• - SNR at rated output power and lowest impedance: > 95dB
• - Fuses: 80A recommended (not included)
• - Dimensions (L x W x H): 15.75" x 11.89" x 3.15" (400x302x80mm)
