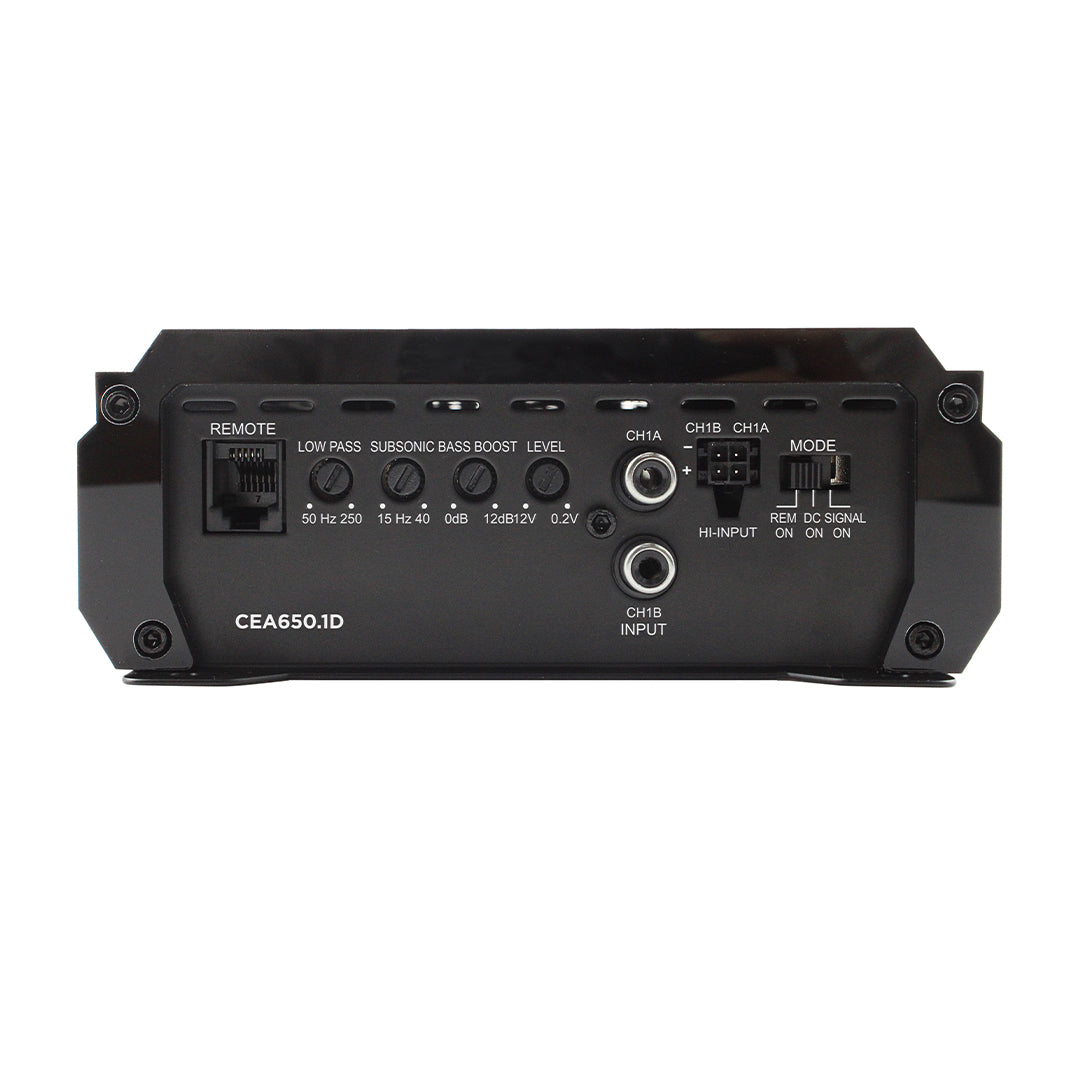

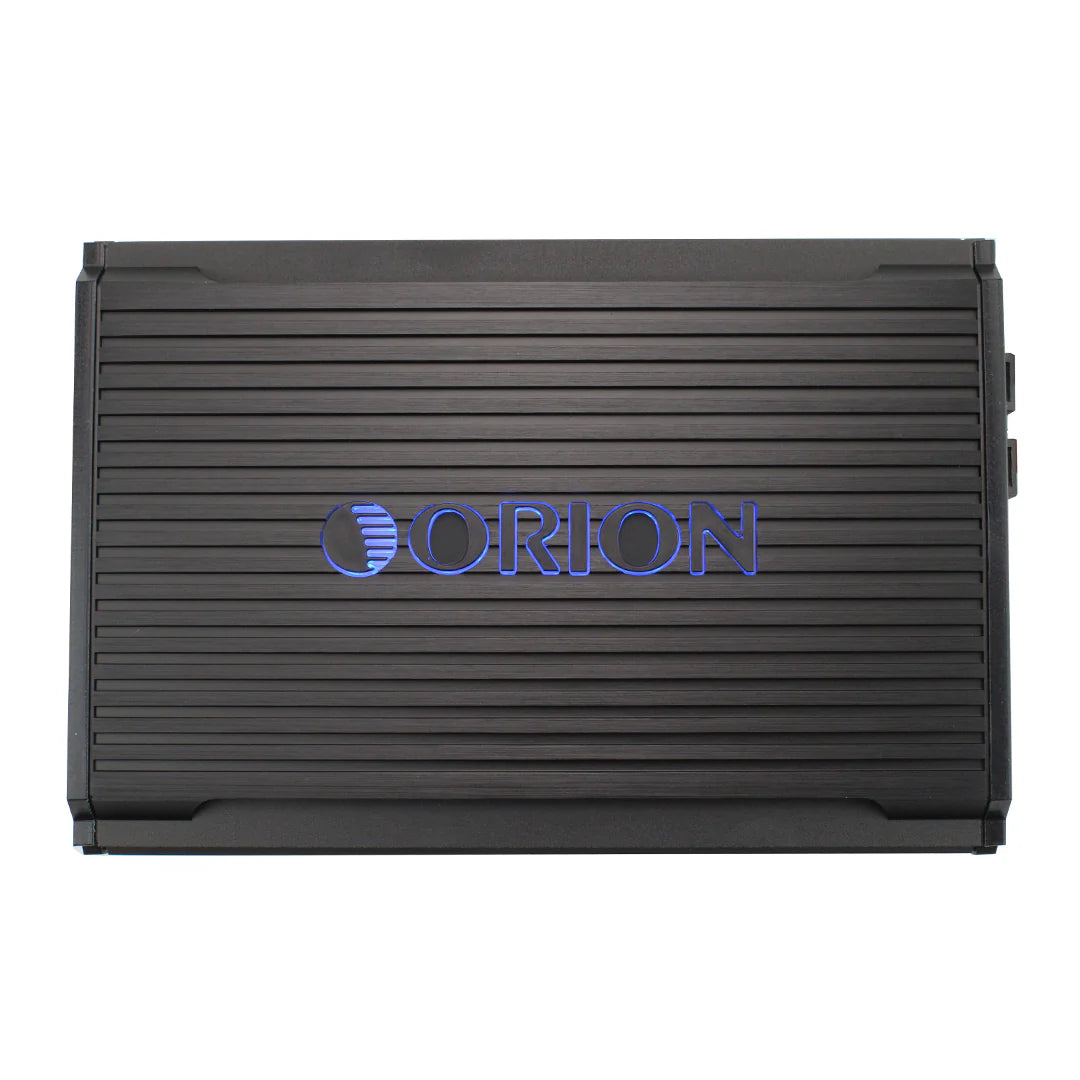

CEA650.1D - 2600W Max Power / 650 Watts RMS Class D Monoblock Amplifier

ORION CEA650.1D Cobalt Elite Series 650-Watt RMS 1-Channel Class D Amplifier

The Orion CEA650.1D from the Cobalt Elite Series is a compact powerhouse built for clean, controlled bass in everyday systems. Delivering up to 650 watts RMS power, this Class D monoblock Cobalt Elite Amplifier is perfect for anyone seeking tight, efficient low-end response without overloading their electrical system or space.

Engineered for optimal performance, the CEA650.1D includes essential tuning features like a variable low-pass crossover and adjustable bass boost. These controls let you fine-tune your subwoofer output for maximum impact, ensuring your bass hits hard and stays clean no matter what you're listening to.

Durable and reliable, this amp features built-in protection circuitry against thermal overload, short circuit, and low voltage-giving you the confidence to push your system day after day. The sleek, compact chassis is designed for easy installation in tight spaces, while maintaining excellent heat management.

Whether you're upgrading a factory setup or building your first system, the CEA650.1D delivers consistent, well-defined bass that enhances your entire soundstage. It's the ideal amplifier for daily drivers who want solid performance without breaking the bank.

Key Features

• Efficient Class D Amplification:
• Experience high-efficiency power delivery with advanced Class D technology. The CEA650.1D maximizes output while minimizing heat and energy loss, providing crisp, punchy bass with minimal strain on your vehicle's electrical system.
• Precision Tuning Capabilities:
• Take full control of your sound with an integrated electronic crossover network, 12dB/octave low-pass filter, and adjustable bass boost circuit. Whether you're fine-tuning for deep lows or clean transitions, this amp lets you dial in the perfect frequency response.
• Compact and Versatile Design:
• The space-saving form factor makes it easy to install in tight spaces without compromising performance. Perfect for stealth installs in daily drivers or under-seat mounting in compact vehicles.
• All-MOSFET Power Supply & Output Stage:
• Built with high-performance MOSFET components for enhanced switching efficiency, clean signal integrity, and reliable power delivery even under demanding loads.
• Remote Gain Control Included:
• Easily adjust output levels on the fly with the included remote gain controller, allowing you to fine-tune bass response from the driver's seat.
• All MOSFET Power Supply & Output Stage:
• Heavy Gauge / High Current Custom Power and Speaker Terminals
• 1-Ohm Stable
• Remote Gain Controller Included
• 12dB Octave Low-Pass Filter
• Electronic Crossover Network
• Bass Boost Circuit
• Intelligent Power and Protection LED Indicator
• Soft Turn-on/Turn-off
• Turn-On Delay
• Fault and Protection Monitoring
• 4-Way Protection: Thermal, DC offset, Short Protection, under & over voltage

Power Rating

• RMS WATTS @ 1 Ohms: 650W
• RMS WATTS @ 2 Ohms: 500W
• RMS WATTS @ 4 Ohms: 300W
• POWER TERMINAL MANAGEMENT
• -Positive Terminals: 1 x 4 AWG.
• -Negative Terminals: 1 x 4 AWG.
• -Remote Turn-ON Signal: 10 AWG.
• -Speaker Output Terminals: 10 AWG.

Specifications

• Frequency Response: 15Hz - 250Hz
• Subsonic: (15 - 40Hz)
• Low Pass Crossover Continuously variable: 50 Hz - 250 Hz
• Supply Voltage: 10 - 16V
• Input Impedance: 22kOhm
• Signal to Noise Ratio: 92dB
• Phase Shift: 0/180 Degrees
• Bass Boost: 0 - 12dB Variable
• Variable Input Level Control: 0.2V - 6.0V
• Recommended Fuse Rating: 80A
• Dimensions (L x W x H): 7.87" x 5.71" x 2.13"
