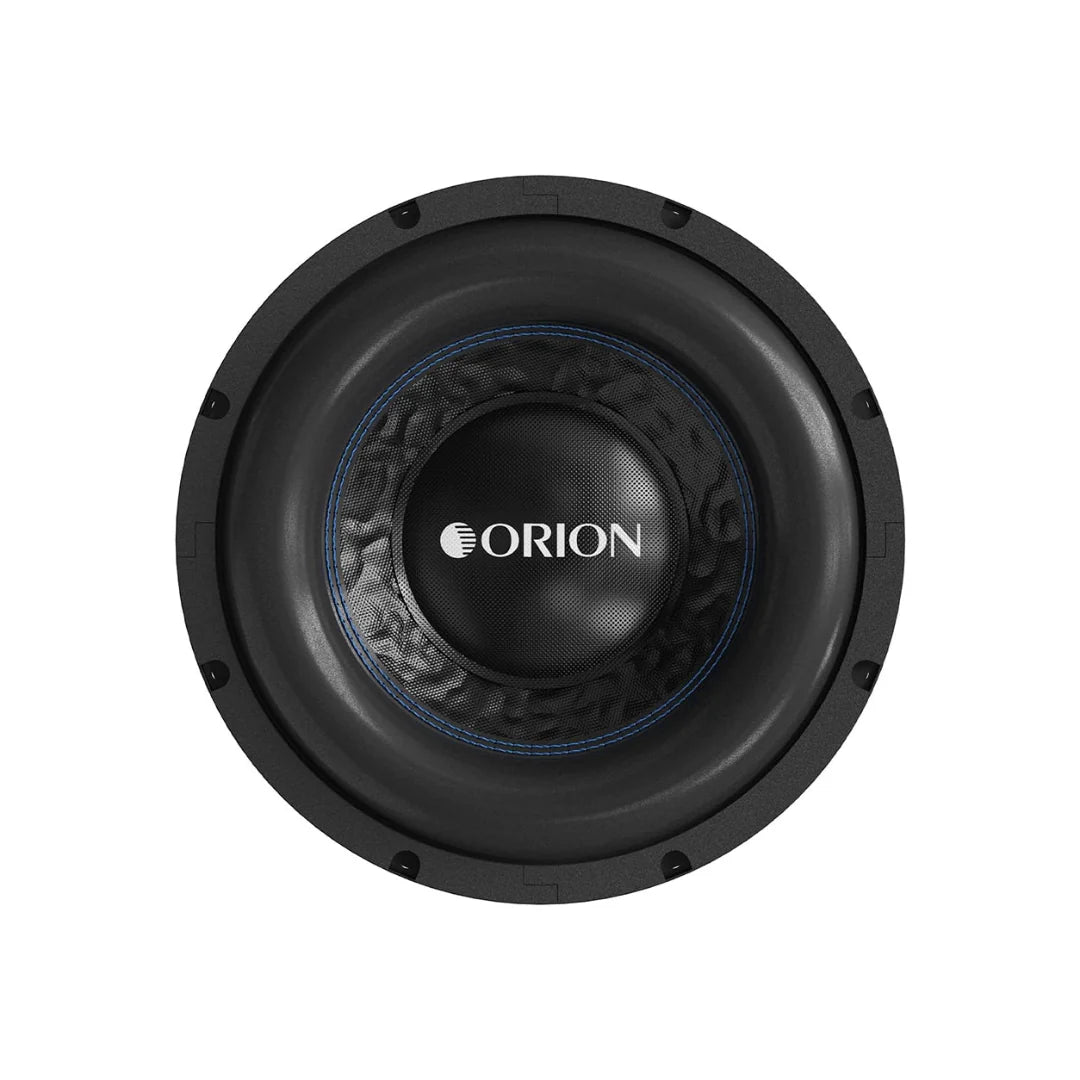

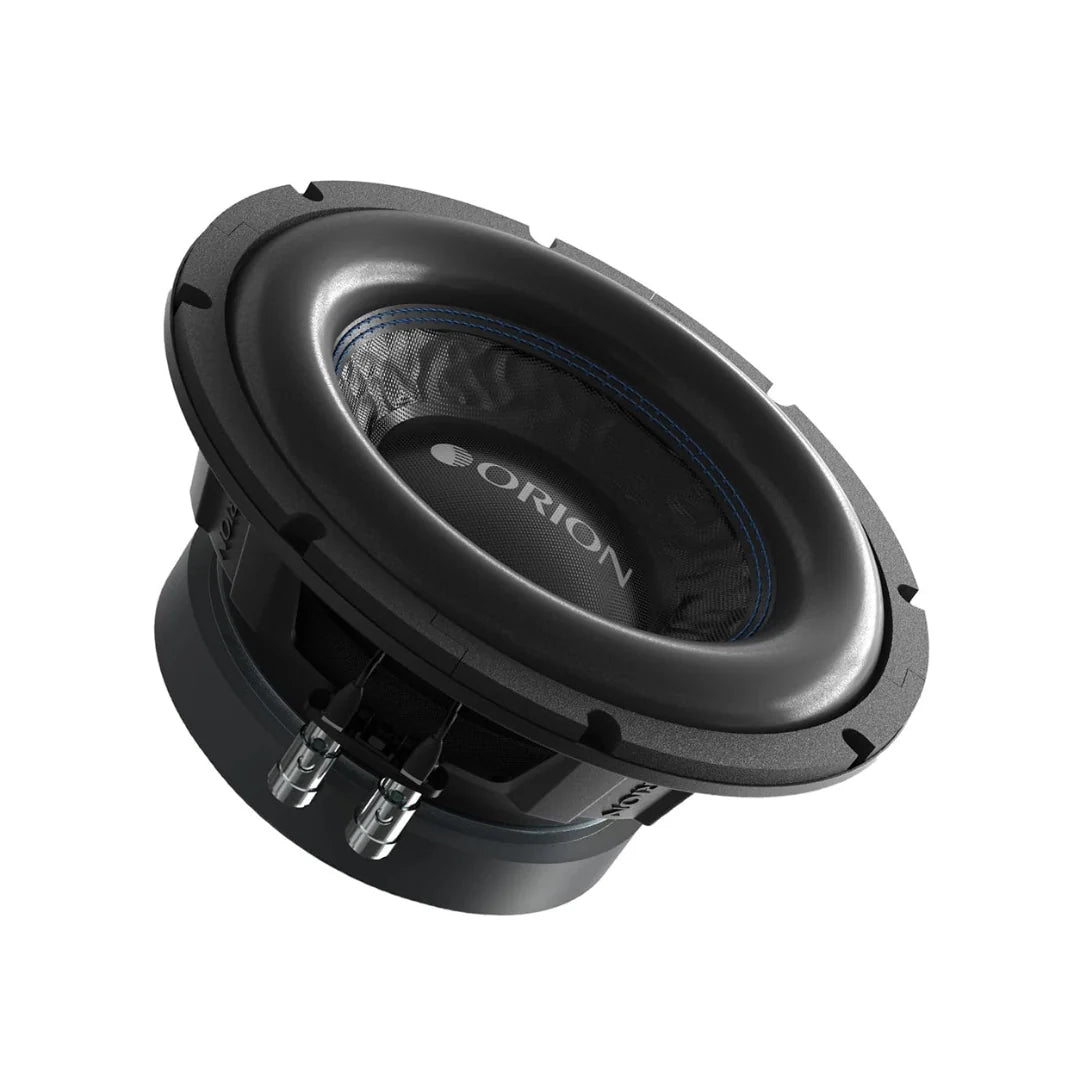

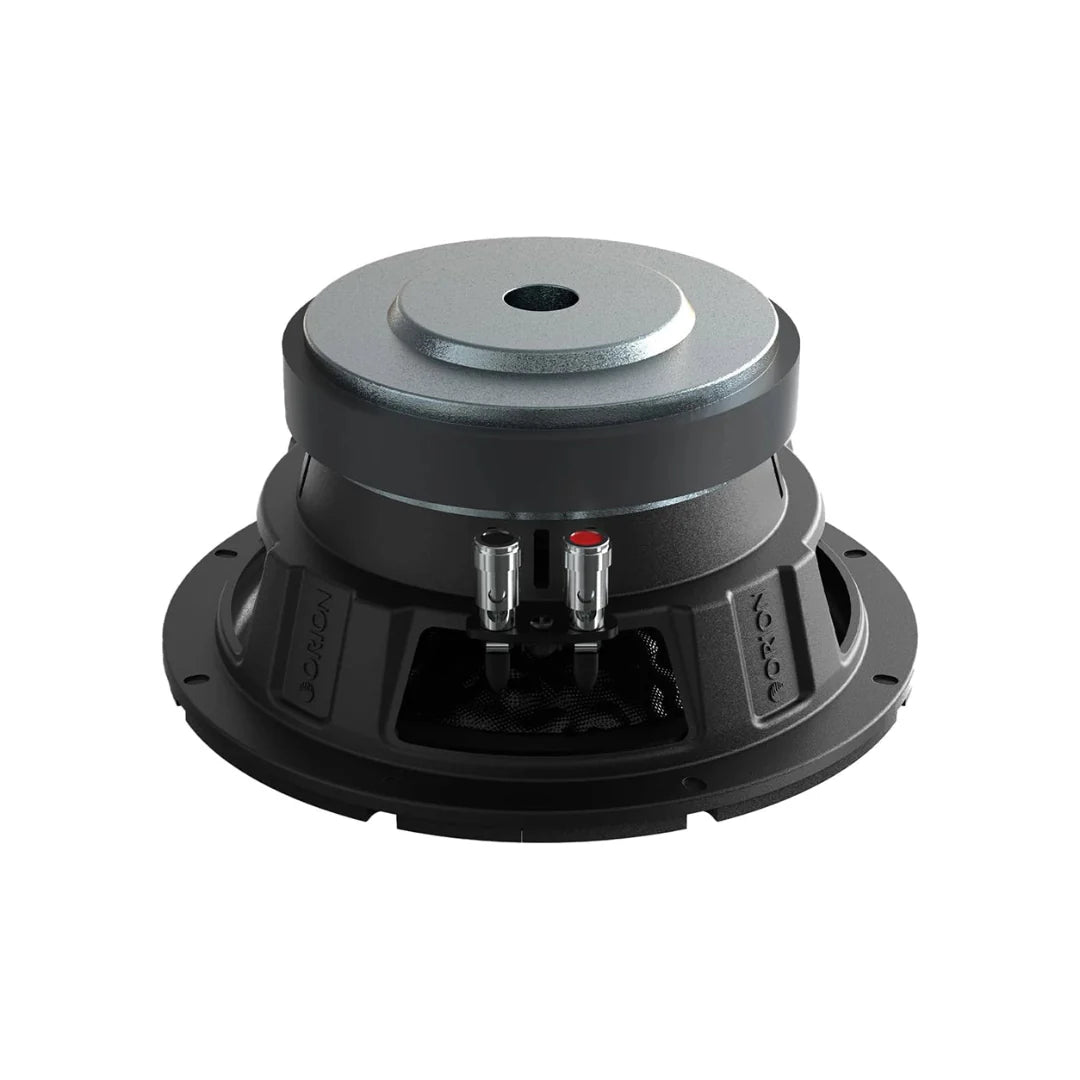

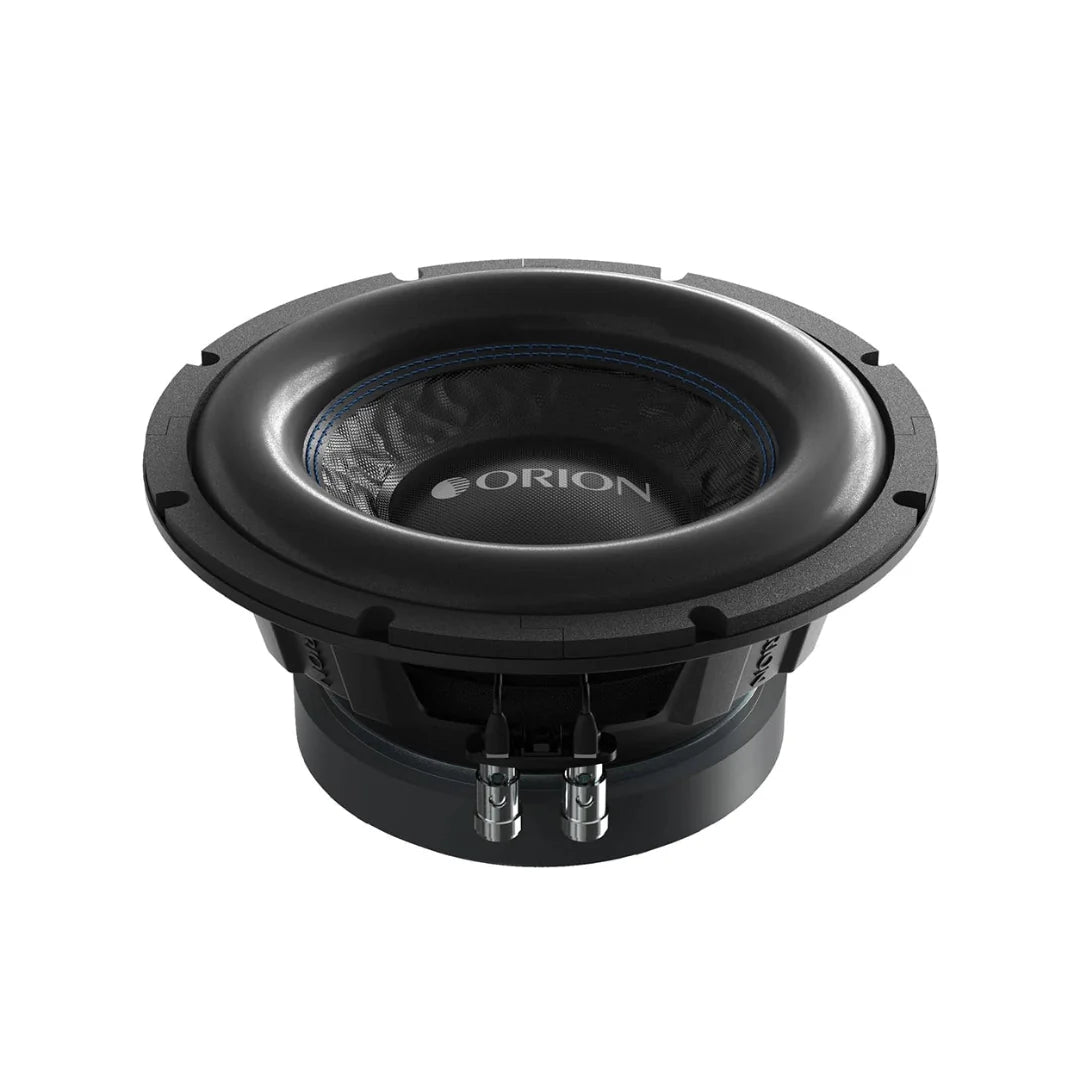

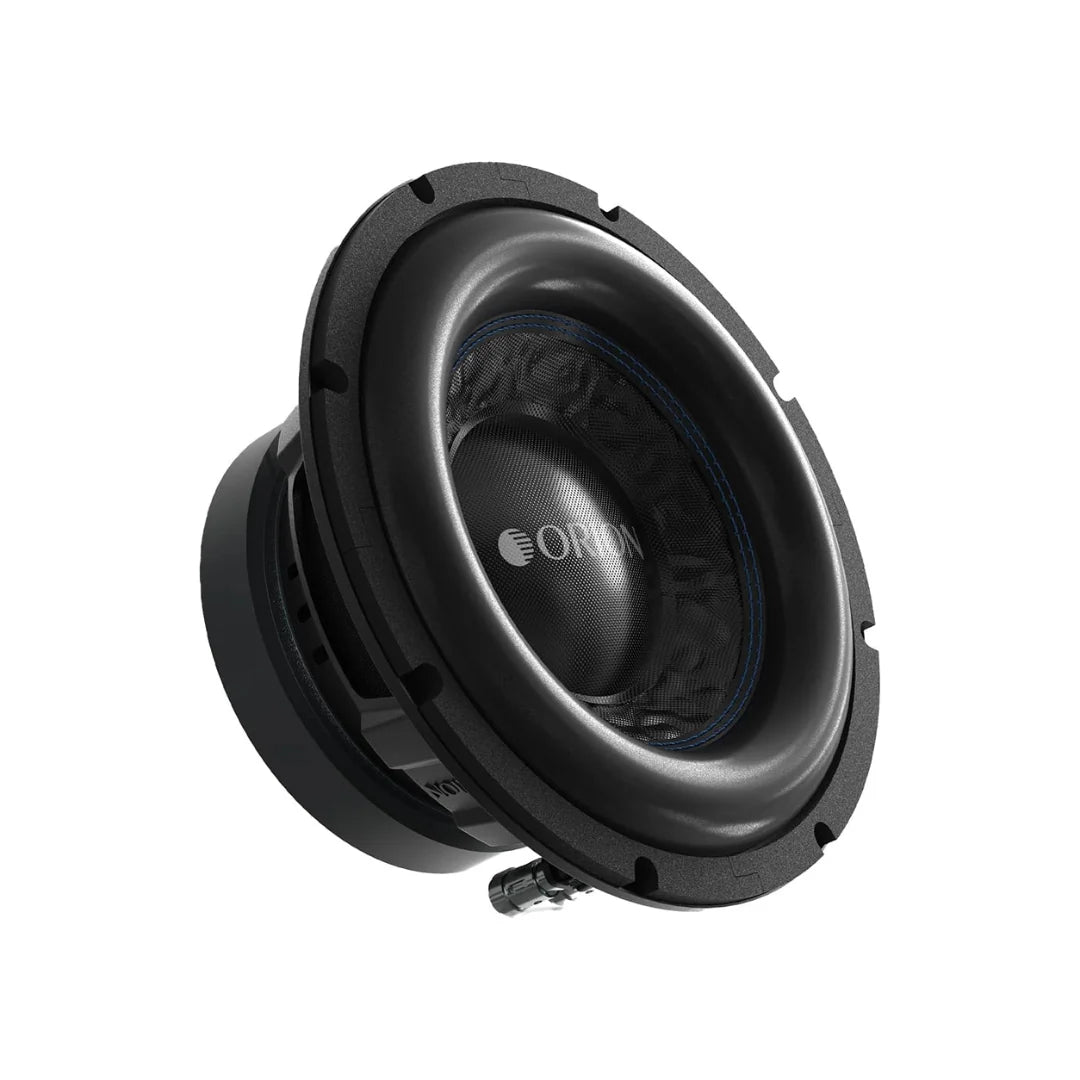

Orion CBW804S 8" Single Voice Coil 4 Ohm Subwoofer | 800W Max Cobalt Series Bass

Clean, Reliable Bass for Everyday Car Audio Systems

Upgrade your sound system with the Orion CBW804S 8 inch car subwoofer. This model is designed for clean bass and dependable performance. It works well in daily driving setups and budget-friendly upgrades.

With 200W RMS and 800W max power, the CBW804S delivers tight low-end response. It stays controlled, even at higher volume levels. In addition, the single 4-ohm voice coil makes amplifier pairing simple and efficient.

The subwoofer uses a UV-coated paper and fiber blend cone. As a result, bass remains accurate and consistent over time. A high-quality foam surround supports smooth cone movement and long-term durability.

Moreover, the 2-inch copper voice coil on a Kapton former improves heat dissipation. This design helps the subwoofer perform reliably during extended listening sessions. With a 3.78-inch mounting depth, it fits easily into sealed or ported enclosures.

Whether you are replacing a factory subwoofer or building a new system, the Orion CBW804S delivers solid bass backed by trusted Orion engineering.

Key Features

• 8 inch car subwoofer for daily use

• 200W RMS / 800W max power handling

• Single 4-ohm voice coil for easy wiring

• UV-coated paper and fiber blend cone

• High-quality foam surround for durability

• 2-inch copper voice coil on Kapton former

• Compact 3.78-inch mounting depth

Key Features

• High-Efficiency 4-Ohm Subwoofer: Delivers clean, powerful bass response that integrates seamlessly into a wide range of car audio setups.
• High-Strength 2" Copper Voice Coil: Built on a durable Kapton former to handle heat and maintain stable performance during long, high-power sessions.
• UV-Coated Paper/Fiber Cone: Features a rigid, UV-protected cone designed for accurate low-frequency reproduction and long-term durability.
• Premium Foam Surround: Ensures smooth cone movement and reduced distortion, enhancing overall bass clarity and depth.
• Strong Power Handling: Provides 200W RMS and 800W Max Power, delivering impactful, distortion-free bass output.
• Wide Low-Frequency Response: Covers 20 Hz to 300 Hz, capturing deep lows and tight bass notes across all music genres.
• High-Performance Ferrite Magnet: Equipped with a 40 oz magnet for increased motor force, improved control, and stronger bass impact.
• Vehicle-Friendly Mounting Depth: With a 3.78" mounting depth, the CBW804S fits easily into sealed or ported enclosures for versatile installations.

Specifications

• Subwoofer Size: 8 (Inches)
• Voice Coil Configuration: Single 4-ohm
• Power Handling (Peak): 800 Watts
• Power Handling (RMS): 200 Watts
• Sensitivity: 86 dB
• Frequency Response: 20 Hz - 300 Hz
• Voice Coil Diameter: 2 (Inches)
• Cone Material: UV Coated Paper / Fiber Blend Cone
• Surround Material: Foam Surround
• Magnet Information: 40 Oz Ferrite
• Mounting Depth: 96mm / 3.78 (Inches)
• Overall Depth: 113.25mm / 4.46 (Inches)
• Mounring Diameter: 204mm / 8.03 (Inches)
• Overall Diameter: 214mm / 8.43 (Inches)
