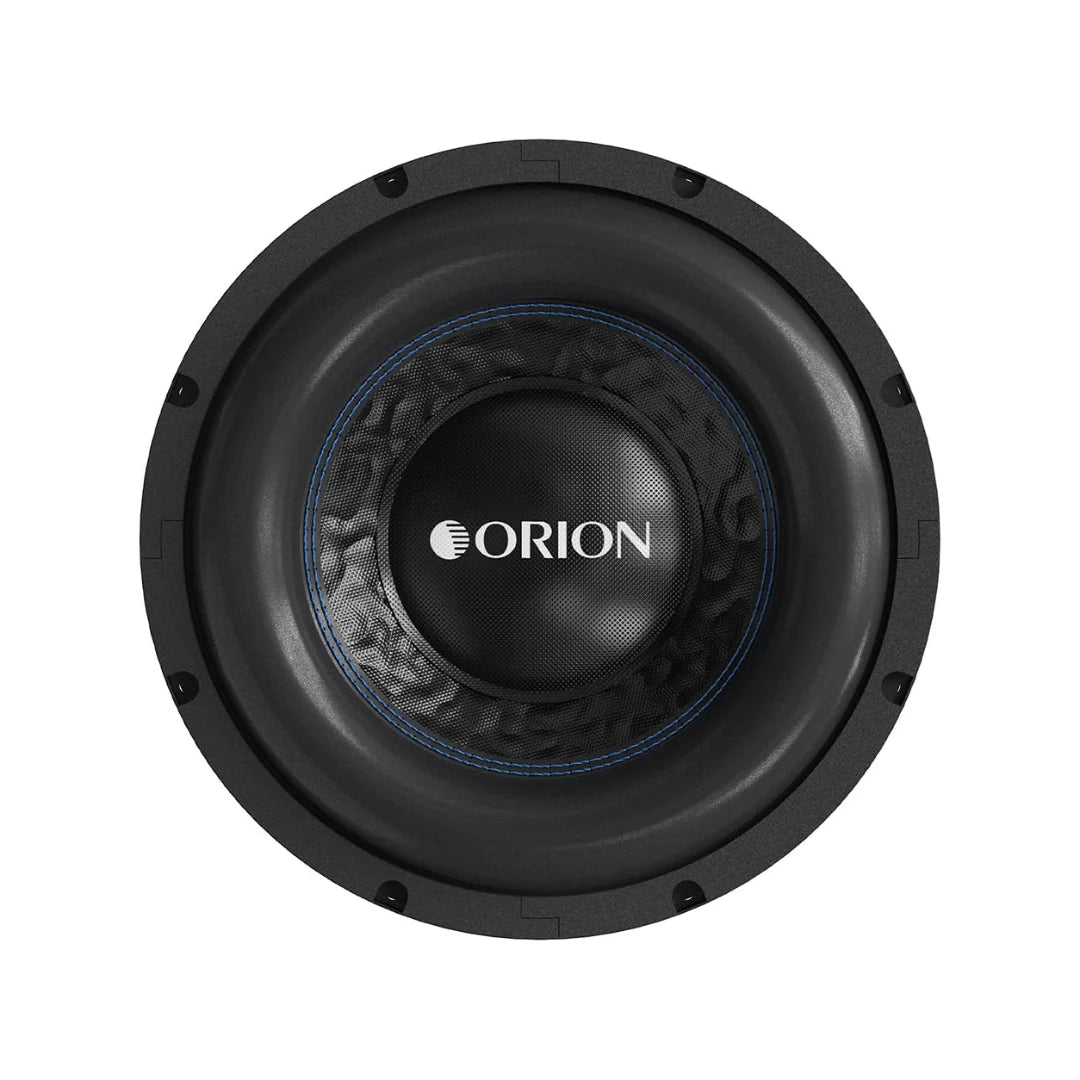

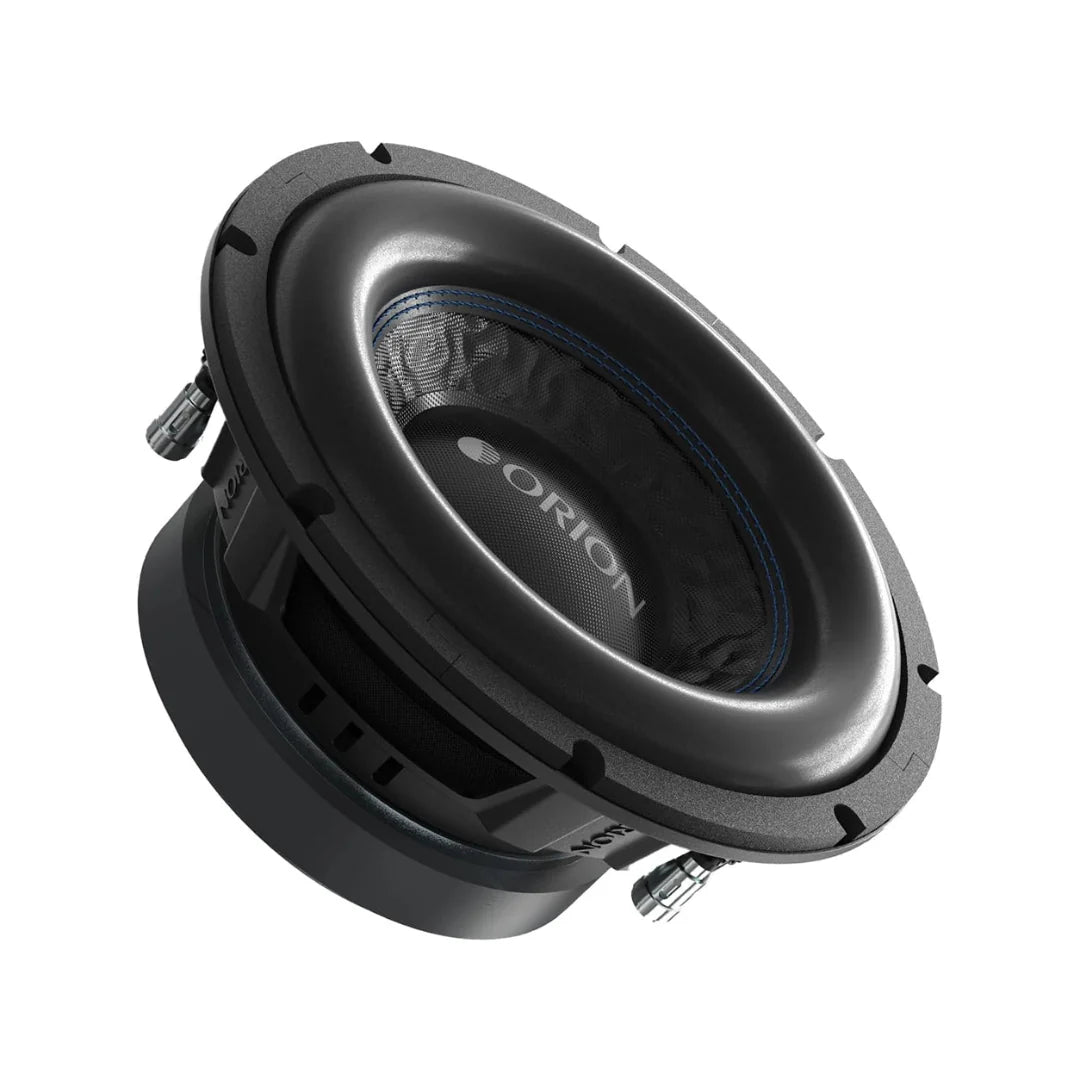

Orion CBW804D 8" Dual Voice Coil 4 Ohm Subwoofer | 800W Max Cobalt Series Bass

Compact 8 Inch Subwoofer with Reliable Everyday Bass

Upgrade your car audio system with the Orion CBW804D 8 inch dual 4 ohm car subwoofer from the Cobalt Series. Designed for clean, tight, and dependable bass, this subwoofer delivers strong low-end performance in a compact and installation-friendly format. With 200W RMS and 800W max power, it offers a balanced mix of output, durability, and value.

Built for daily use, the CBW804D features a UV-coated paper and fiber blend cone paired with a high-quality foam surround. As a result, it produces responsive bass while maintaining consistent performance over time. Additionally, this construction helps resist wear from heat and extended listening sessions.

At its core, the subwoofer uses a 2-inch OFC copper-clad aluminum voice coil wound on a rugged Kapton former. This design improves heat dissipation and reliability, which means the subwoofer continues performing smoothly even when pushed harder.

Thanks to its 3.78-inch mounting depth, the CBW804D installs easily in both sealed and ported enclosures. Therefore, it works well for tight spaces, factory system upgrades, and budget-focused custom builds alike.

Whether the goal is enhancing a daily driver or adding controlled bass to a compact system, the Orion CBW804D delivers dependable low-frequency performance backed by Orion's proven engineering.

Key Features

• 8 inch dual 4 ohm car subwoofer

• 200W RMS / 800W max power handling

• UV-coated paper and fiber blend cone

• High-quality foam surround for durability

• 2" OFC copper-clad aluminum voice coil

• Kapton former for improved heat management

• Shallow 3.78" mounting depth

• Optimized for sealed and ported enclosures

Key Features

• High-Efficiency Dual 4-Ohm Subwoofer: Delivers tight, accurate bass response with flexible wiring options for a variety of car audio setups.
• Strong Power Handling: Provides 200W RMS and 800W Max Power, offering solid, reliable bass performance for daily driving.
• 2" OFC Copper-Clad Aluminum Voice Coil: Wound on a durable Kapton former for improved heat dissipation and long-term reliability under continuous use.
• UV-Coated Paper/Fiber Cone: Designed for strength and stability, producing clean low-frequency output while resisting wear over time.
• High-Quality Foam Surround: Allows smooth cone movement and enhanced bass accuracy, minimizing distortion even at higher volumes.
• Wide Low-Frequency Range: Covers 20 Hz - 300 Hz, delivering deep, punchy bass across all music genres.
• Compact Mounting Depth: Features a 3.78" mounting depth, making it easy to install in sealed or ported enclosures-even in tight spaces.
• Reliable Ferrite Magnet Structure: Equipped with a robust motor assembly for improved control and stronger bass impact.
• Versatile System Compatibility: Ideal for factory upgrades, custom builds, and budget-friendly audio systems seeking dependable low-end performance.

Specifications

• Subwoofer Size: 8 (Inches)
• Voice Coil Configuration: Dual 4-ohm
• Power Handling (Peak): 800 Watts
• Power Handling (RMS): 200 Watts
• Sensitivity: 85 dB
• Frequency Response: 20 Hz - 300 Hz
• Voice Coil Diameter: 2 (Inches)
• Cone Material: UV Coated Paper / Fiber Blend Cone
• Surround Material: Foam Surround
• Magnet Information: 40 Oz Ferrite
• Mounting Depth: 96mm / 3.78 (Inches)
• Overall Depth: 113.25mm / 4.46 (Inches)
• Mounting Diameter: 204mm / 8.63 (Inches)
• Overall Diameter: 214mm / 8.43 (Inches)
