Product Overview

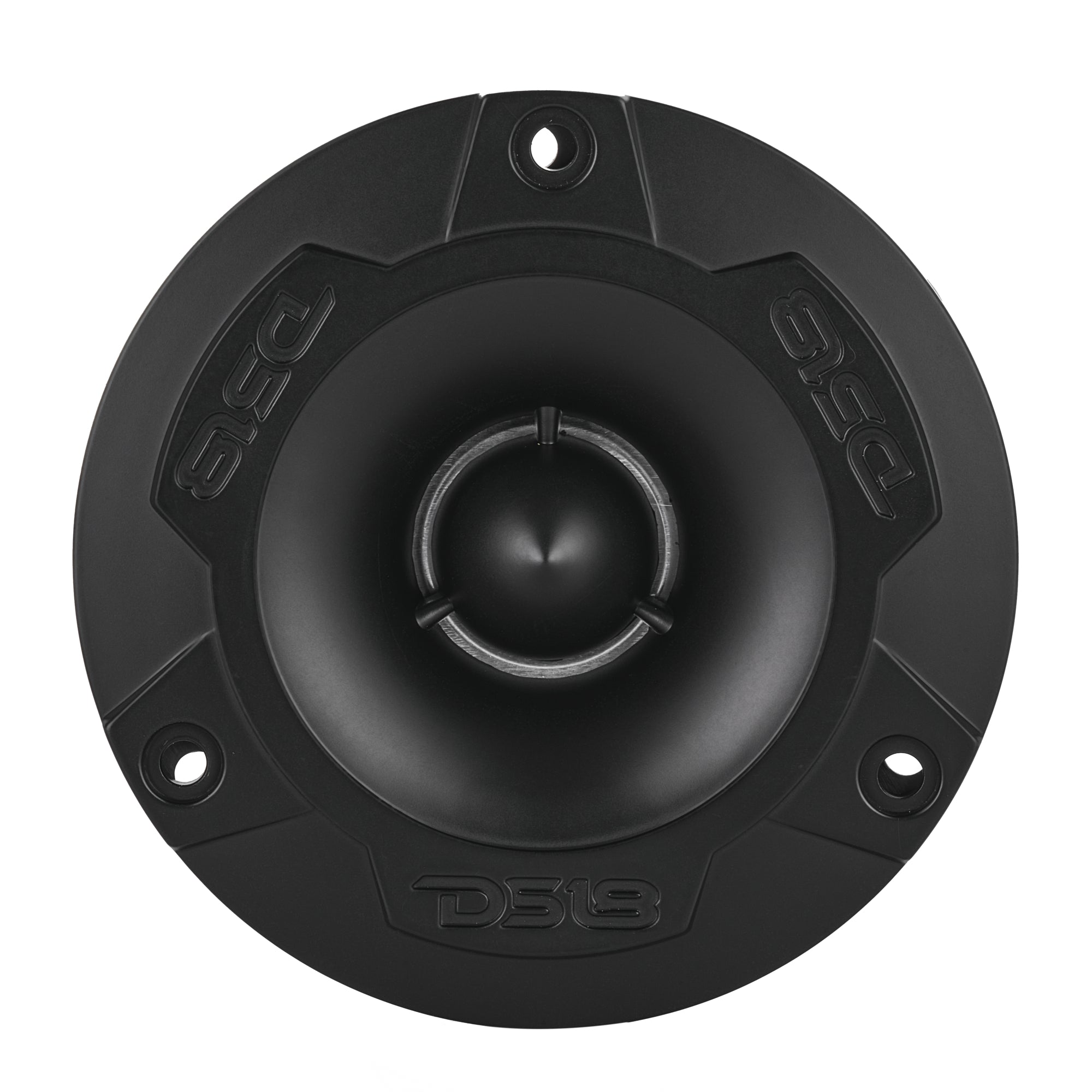

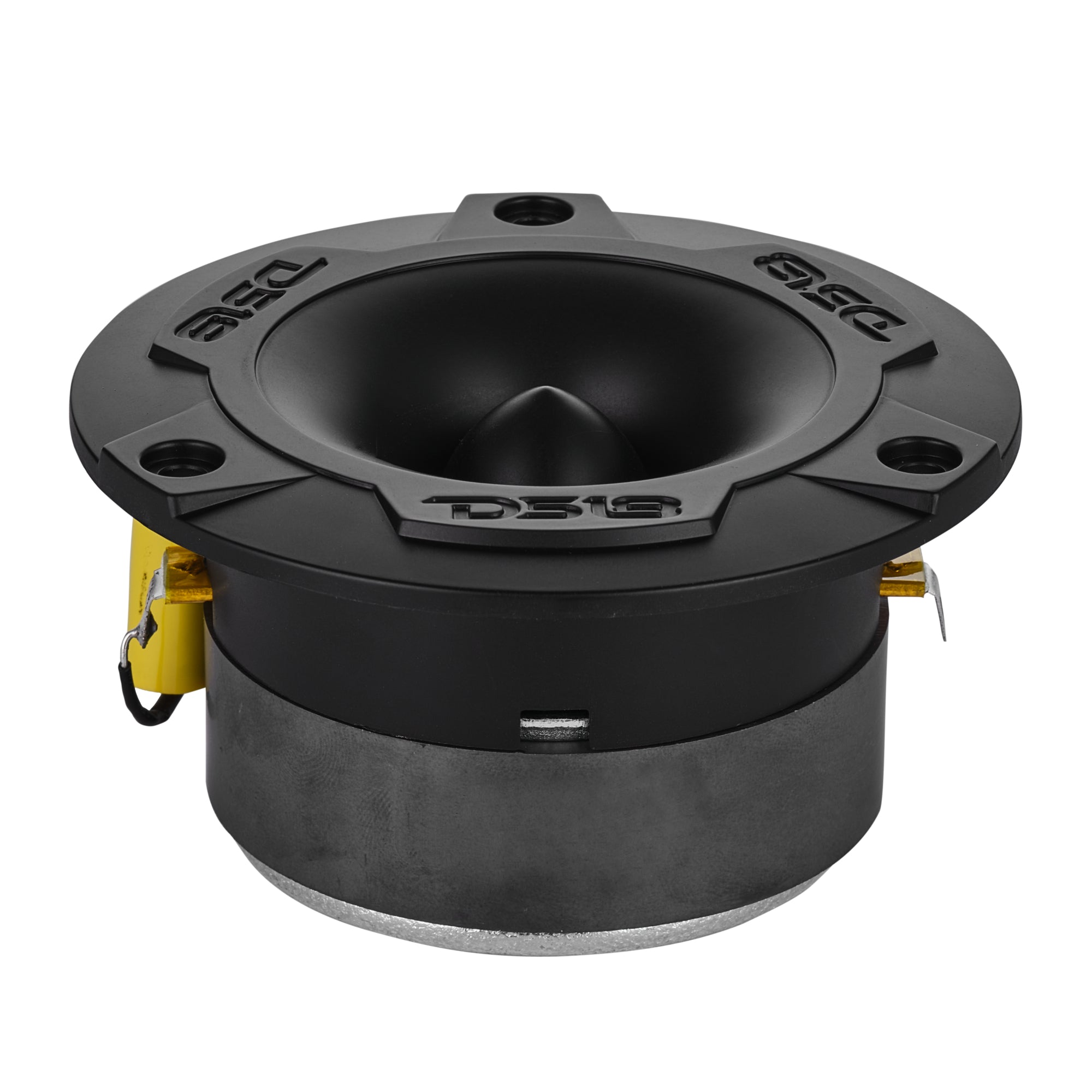

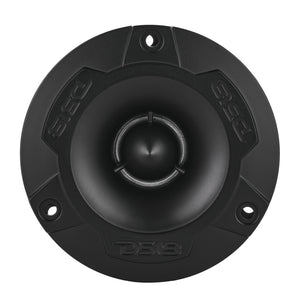

3.8” Marine Water-Resistant Super Bullet Tweeter with 1” Aluminum Voice Coil
The NXL-T1 is engineered for extreme marine and outdoor use with a fully waterproof IP36-rated design. Its marine-grade materials provide resistance to water, UV rays, salt and corrosion, for long-lasting durability.
Powerful High-Frequency Performance
Rated at 60W AES, 120W program, and 240W peak power handling, the NXL-T1 delivers crystal-clear highs that cut through any mix. Its 1-inch aluminum voice coil and diaphragm produce smooth, detailed sound across a 3.5kHz to 20kHz frequency range with a high 103dB sensitivity.
Versatile Installation Options

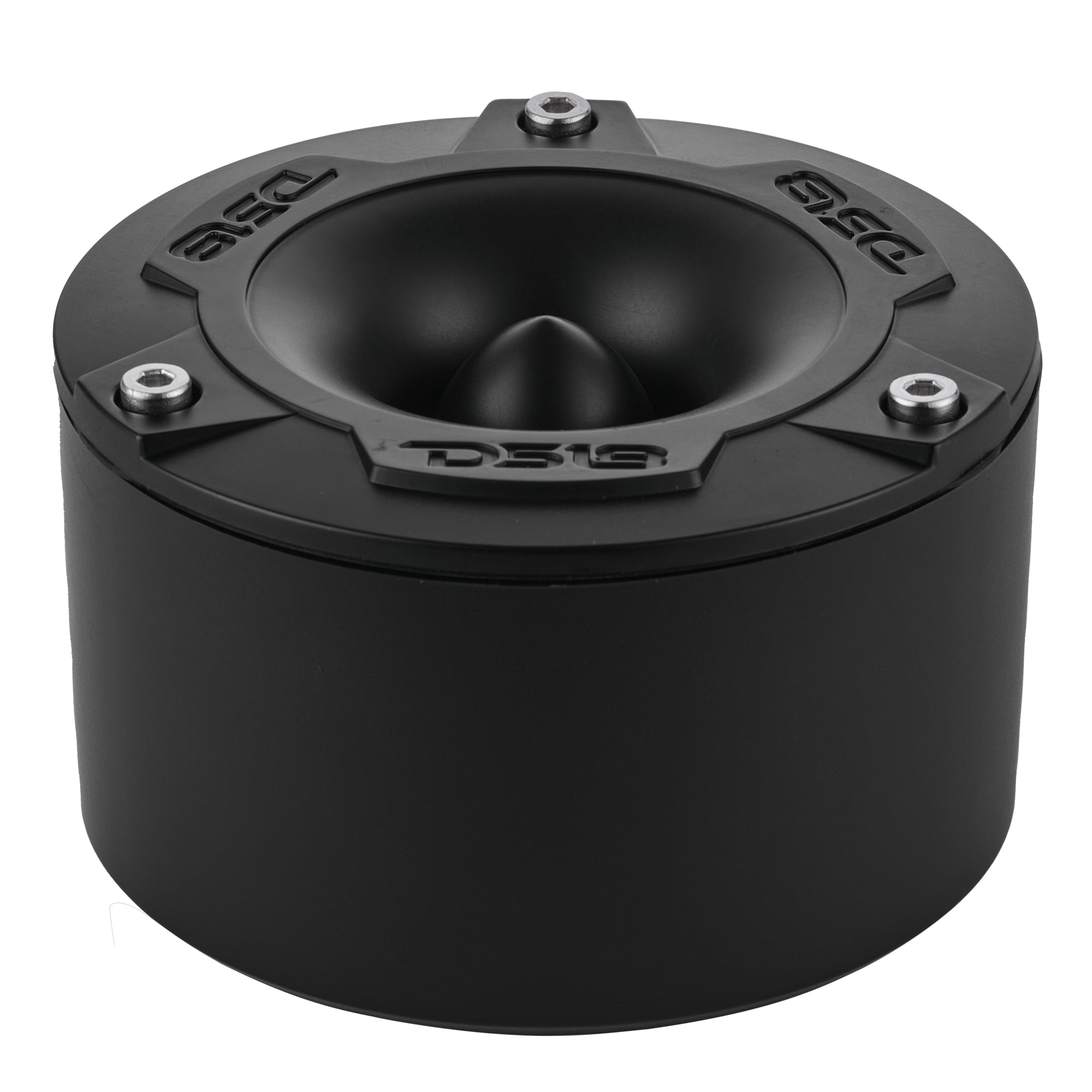

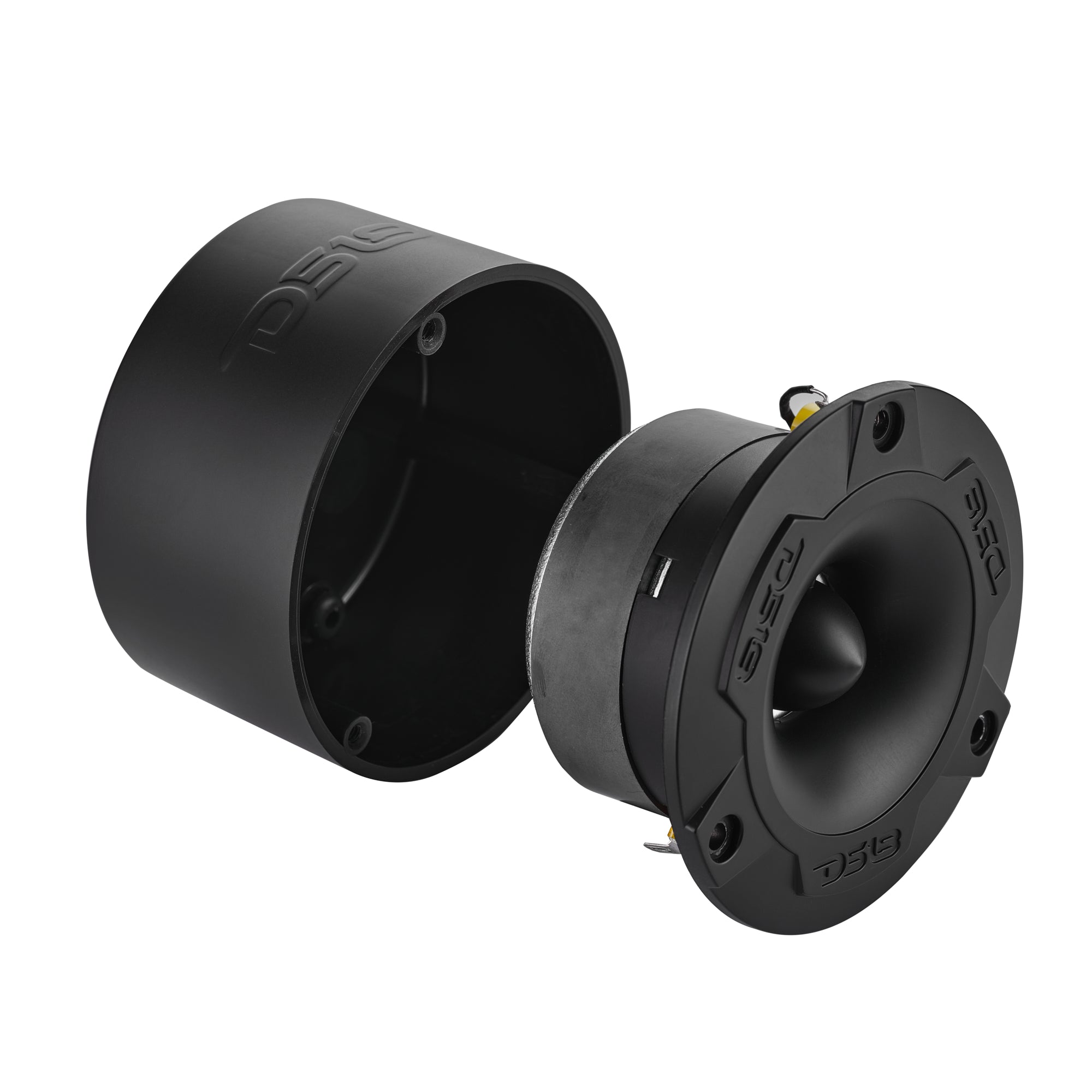

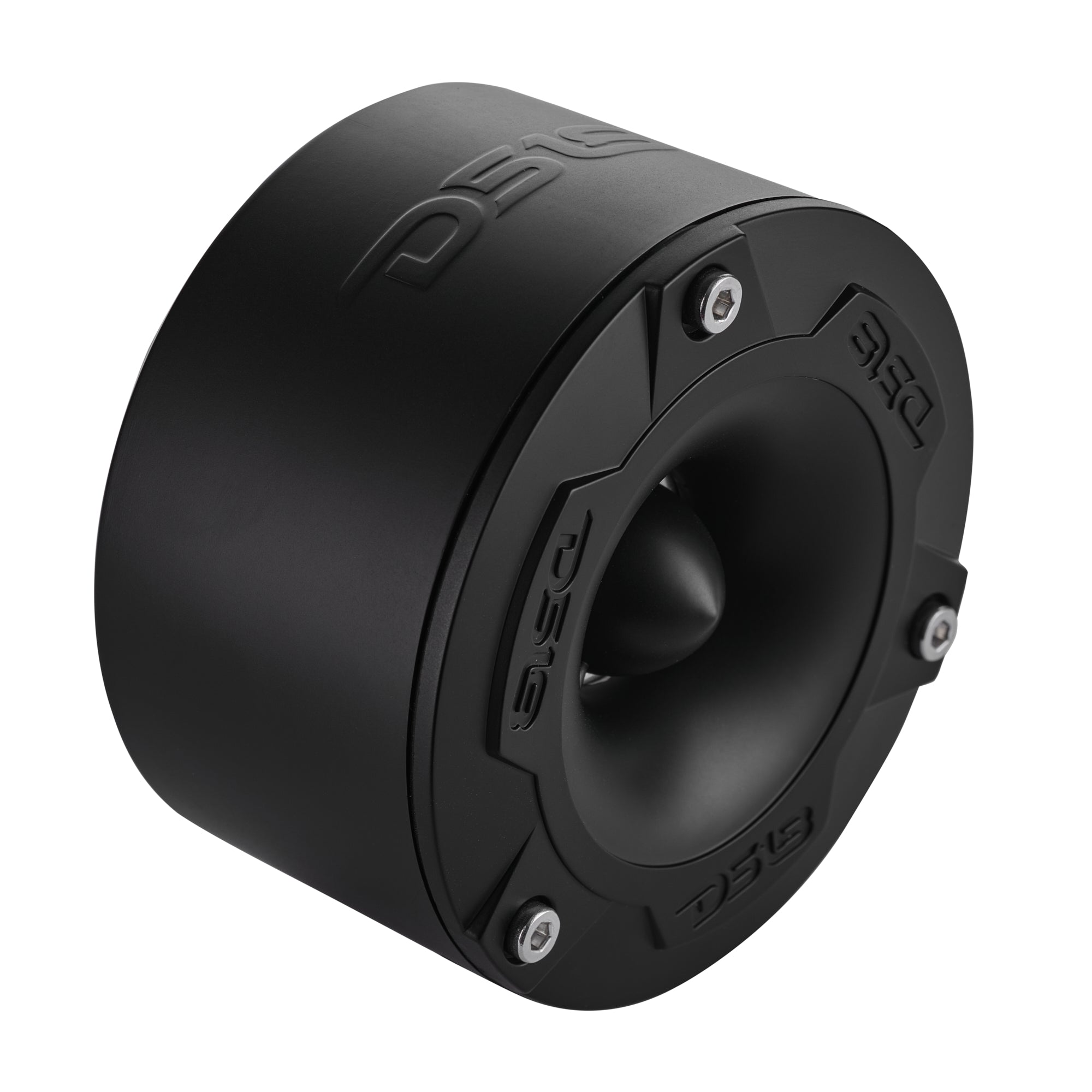

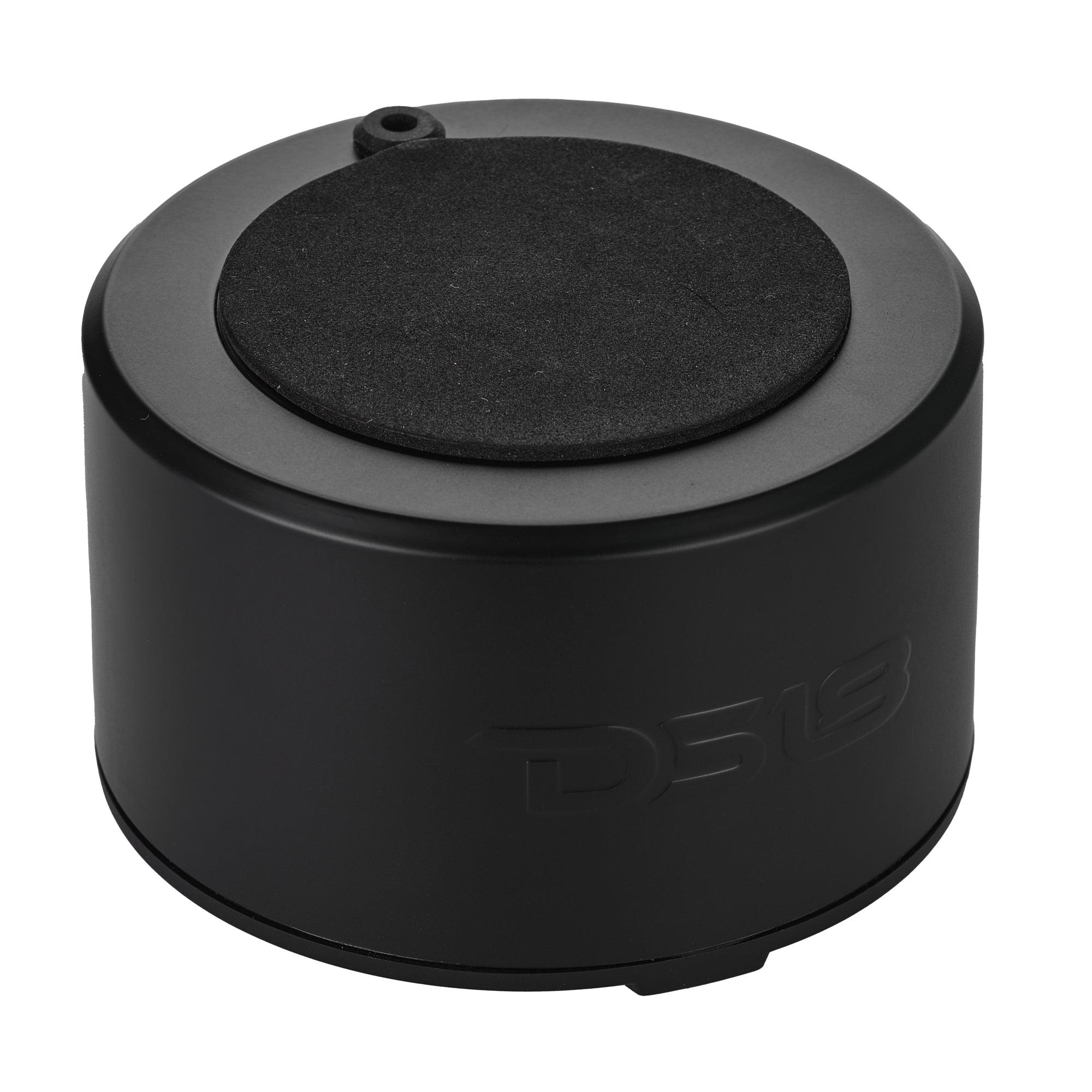

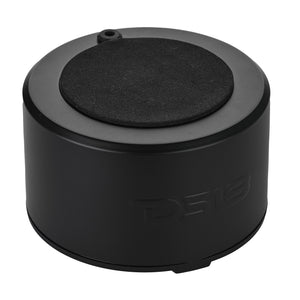

Choose between flush mount without enclosure for a low-profile install or surface mount with the included enclosure for added protection and easier placement flexibility. Compact dimensions make it easy to fit in marine boats, 4x4 vehicles, and motorcycles. Choose between sleek black or clean white to perfectly match your marine or powersports rig.
Upgrade your marine audio with DS18’s NXL-T1 tweeter for high-performance you can hear and feel!
Key Features
- 3.8" Marine Super Bullet Tweeter
- RMS Power: 120 Watts (240 Watts Peak)
- Impedance: 4 Ohm ~ 103dB
- Ferrite Magnet
- Water Resistant IP36
- Pair
Specifications
| Nominal Diameter | 3.75" / 95.2mm |
|---|---|
| Nominal Impedance | 4 Ohms |
| AES Power Handling | 60W |
| Program Power Handling | 120W |
| Peak Power Handling | 240W |
| Sensitivity (1w/1m) | 103dB |
| Frequency Response | 3.5kHz-20kHz |
| Recommended Hi Pass Crossover | 2KHz |
| Pair or Single | Pair |
| Marine Grade Type | IP36 |
| UV / Salt Protection | Yes |
| Body Material / Color | ASA / Black |
| Voice Coil Diameter | 1" / 25.4mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW |
| Diaphragm Material | Aluminum |
| Magnet Material | Ferrite |
| Magnet Weight | 8 oz |

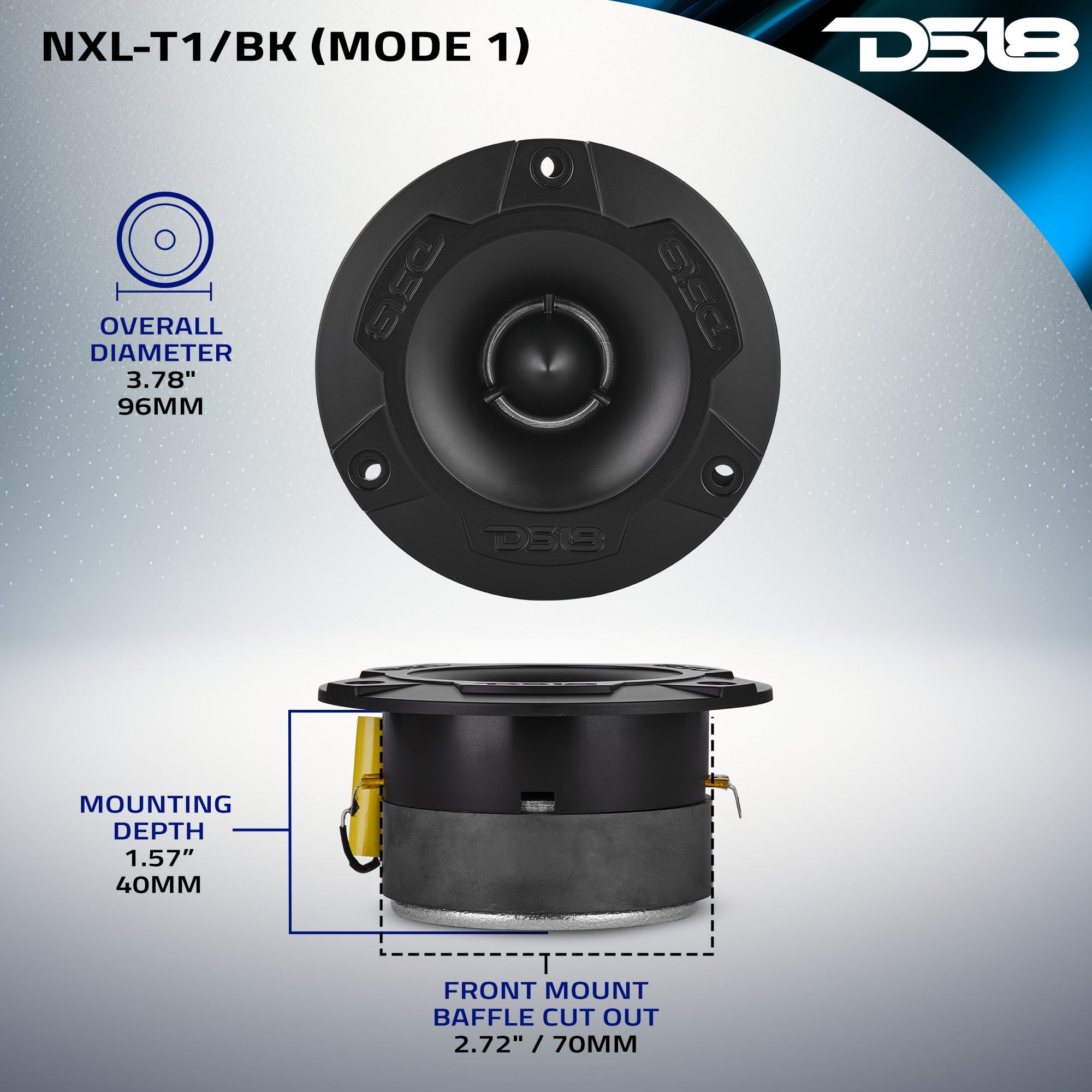

| Overall Diameter | 3.78" / 96mm |
| Overall Depth | 1.78" / 45mm / 2.26" / 57.4mm |
| Front Mount Baffle Cutout | 2.72" / 70mm |
| Mounting Depth | 1.57" / 40mm |
